Product type	Combined refrigerator with freezer compartment
Brand	Hoover
Model	HOCE3T618FBK
Minimum required width	920 mm
Minimum required depth	1137 mm
Door reversibility	Yes (tools needed: electric screwdriver)
Defrosting	Automatic (refrigerator and freezer)
Super cooling function	Yes (lowers temperature to 2°C for 30 minutes)
Fine temperature adjustment	Yes (15 sub-levels, accessible by long press of 8 seconds)
Interior lighting	Yes (bulb)
Door alarm	Yes (audible beep after 3 minutes of opening)
Connectivity	hOn app (Wi-Fi compatible)
Air distribution	Adjustable by air flow lever (left: colder to freezer)
Vegetable drawer	Yes, with humidity slider (left: humid, right: dry)
Shelves	Yes, movable
Door bins	Yes
Freezer drawers	Yes
Leveling feet	Yes

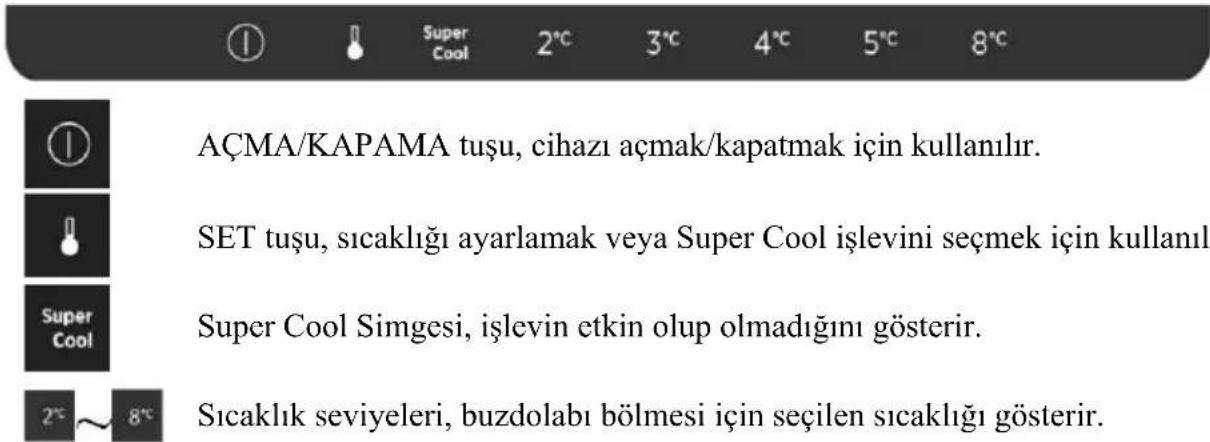

Control panel	Touch keys: On/Off and Set
Demo mode	Yes (activation: door open, hold On/Off, press Set 5 times)
Recommended temperature	4°C for normal conditions

Frequently Asked Questions - HOCE3T618FBK HOOVER

How to adjust the refrigerator temperature?

Press the Set key to scroll through levels. The selected temperature is confirmed after 3 seconds of inactivity. In summer, set between 5 and 8°C; in winter, between 3 and 4°C.

How to activate the Super cooling function?

Press the Set key several times until the Super cooling indicator lights up. The function lasts 30 minutes and lowers the temperature to 2°C. Activate it 11 hours before filling the refrigerator.

What to do if the door alarm sounds?

The audible alarm triggers if the door remains open for more than 3 minutes. Close the door to stop it. If the alarm persists, check that the door closes properly.

What to do if the refrigerator is not cooling enough?

Check: door closure, temperature setting (lower if necessary), no overloading, and that the ambient temperature is suitable. Avoid opening the door frequently.

Why is there frost on the back wall of the refrigerator?

This is normal during operation. Ensure that hot food has cooled before placing it, that containers are covered, and that the door closes well.

Why does the motor run continuously?

Possible causes: door not closed properly, frequent opening, high ambient temperature, or the appliance has just been plugged in. Wait 8 to 12 hours for complete cooling.

How to reverse the door opening direction?

Use an electric screwdriver. Unscrew the top, middle, and bottom hinges, then reassemble them on the other side. Follow the steps in the manual.

What does the flashing 4°C indicator mean?

This indicates a fan error. Contact technical support to resolve the issue.

How to use the fine temperature adjustment?

Press and hold the Set key for 8 seconds to enter fine adjustment mode. Press briefly to adjust sub-levels. The mode deactivates automatically after 5 seconds of inactivity.

How to connect the hOn app?

Download the hOn app from the stores, create an account or log in, then follow the pairing instructions in the app.

USER MANUAL HOCE3T618FBK HOOVER

Discover extra contents and create your inventory list

EN....3

IT 9

ES 16

FR....23

DE....30

BG....37

CS 44

DA....50

EL....56

FI 63

HR 69

HU 73

NL....79

NO 86

PL 92

PT 99

RO 105

SK 112

SL 118

SR 124

SV 130

UA 136

AR 142

TR 148

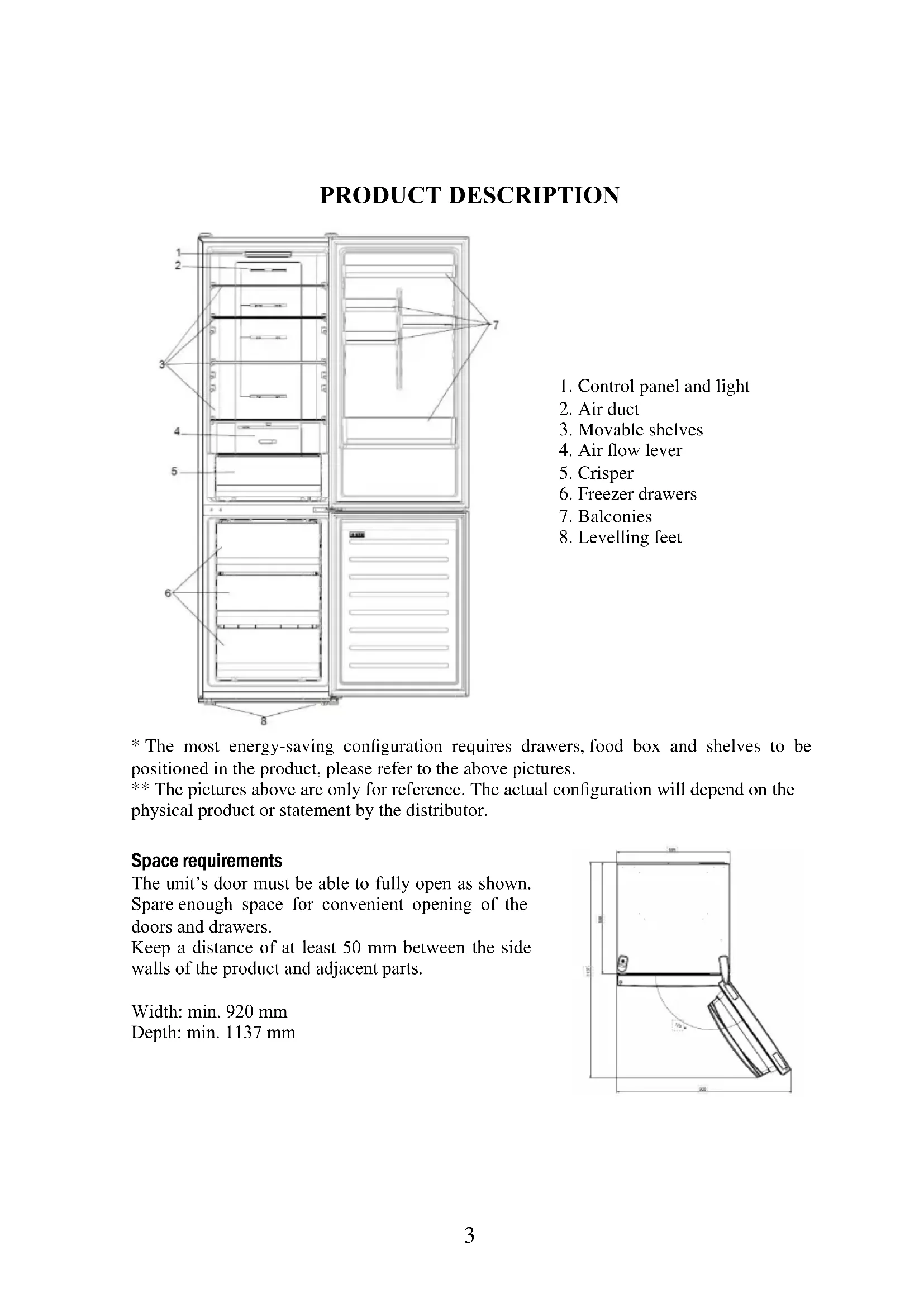

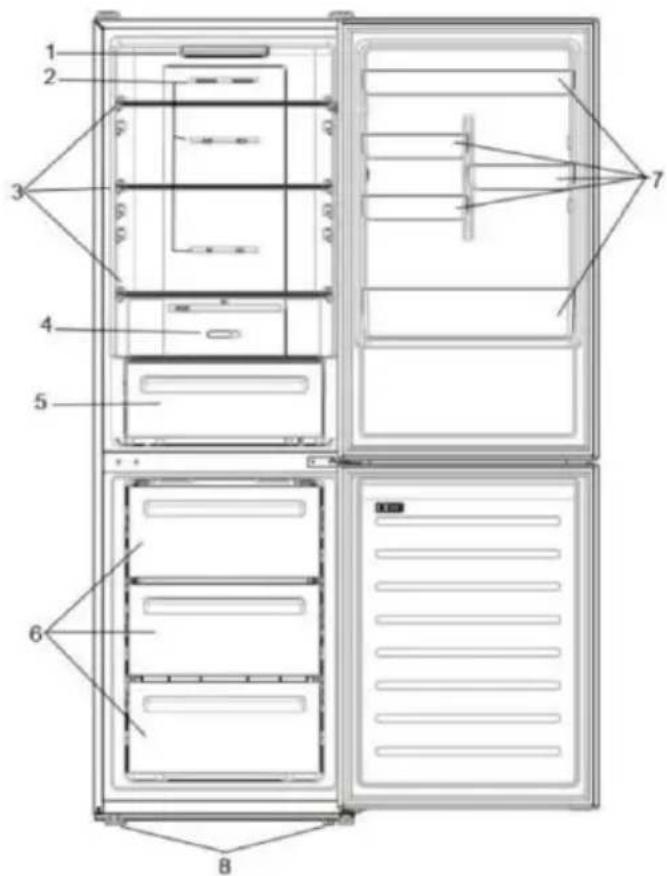

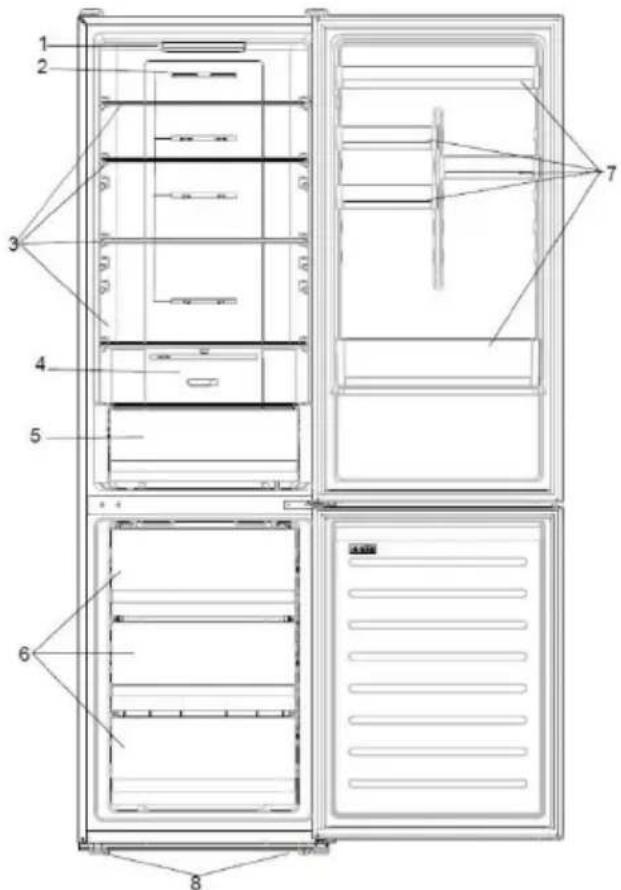

PRODUCT DESCRIPTION

1. Control panel and light
2. Air duct
3. Movable shelves
4. Air flow lever
5. Crisper
6. Freezer drawers
7. Balconies
8. Levelling feet

* The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures. ** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

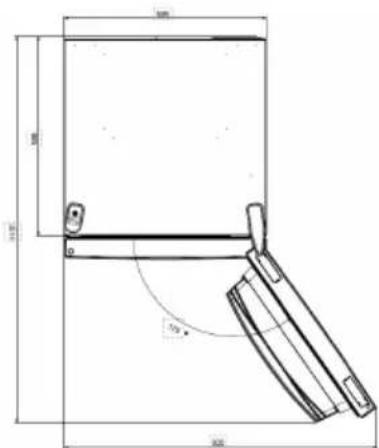

Space requirements

The unit's door must be able to fully open as shown. Spare enough space for convenient opening of the doors and drawers.

Keep a distance of at least 50 mm between the side walls of the product and adjacent parts.

Width: min. 920 mm

Depth: min. 1137 mm

USE

Use

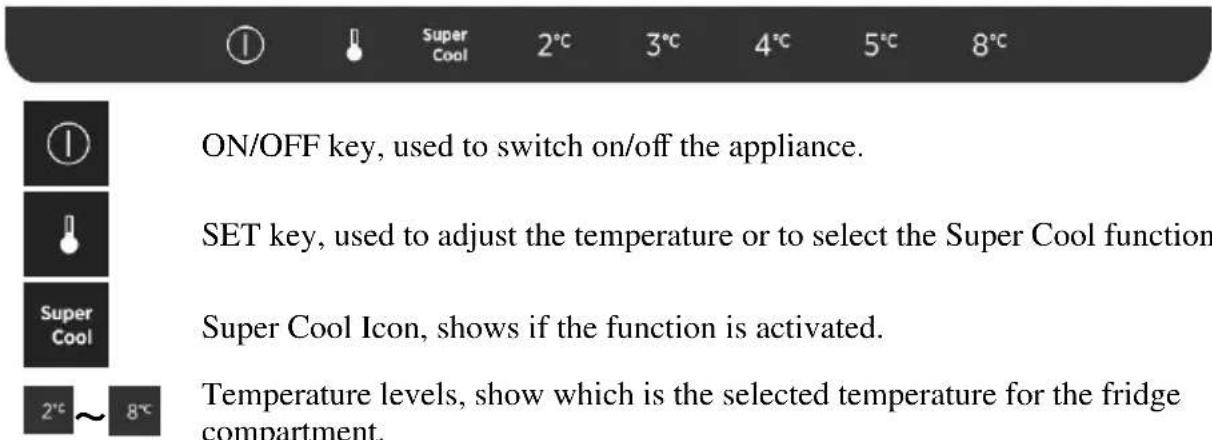

• Plug on the appliance and it automatically turns on. • The temperature is automatically set at 4°C in the fridge.
• To change the temperature, press the SET key. When the setting increases, the corresponding LED light turns on. An acoustic signal is made every time the SET key is pressed and the temperature is changed. After 3 seconds without pressing any key, the setting is confirmed and an acoustic signal is made.
• Under normal operating condition (in spring and autumn), it is recommended to set the temperature at 4 °C. In summer or when the ambient temperature is high, it is recommended to set temperature at 5~8 °C, so as to guarantee the fridge and freezer temperatures and reduce the refrigerator continuous running time; and in winter or when the ambient temperature is low, it is recommended to set temperature at 3~4 °C to avoid frequent start/stop of the refrigerator. • In case of power loss, the last cooling level set is restored.
• To restore the default setting, keep the door switch inside the refrigerator pressed and simultaneously press the ON/OFF key for 5 seconds.

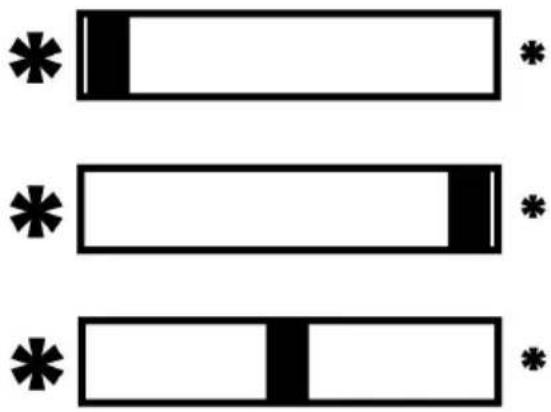

Adjustment of the air flow

The airflow in the refrigerator and freezer compartments can be adjusted manually by moving the lever in the fridge compartment (see product description):

- By moving the airflow lever to the left, the temperature inside the freezer will be colder.

- By moving the airflow lever to the right, the temperature inside the freezer will be warmer.

- It is suggested to keep the airflow lever in the middle position.

Fine Tuning

The fine tuning selection mode allows you to set the temperatures by sublevels (15 in total); each temperature level has four sublevels.

How to use the fine tuning function:

• Press the SET key for 8 seconds to enter fine tuning selection mode. When the appliance enters the mode, an acoustic signal is made and the LED of the currently selected cooling level blinks.
• By short pressing the SET key within 5 seconds, the fine tuning setting increases and, at each pressing, an acoustic signal is made.
• During fine tuning, the LED of the selected cooling level is fixed, while the LED of the selected sublevel blinks.
• If no key is pressed for 5 seconds, the system automatically exits from fine tuning selection mode. The fine tuning setting is saved and the LED of the selected fridge temperature is fixed.
• If the fine tuning is activated again, the setting will start from the previously stored level.

Super Cool function

It is suggested to switch on the Super Cool function if a large quantity of food should be stored (for example after the purchase). The Super-Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming. When the function is activated, the temperature of the fridge is automatically set at 2\ °C .

How to use the Super Cool function:

• Press many times the SET key until the Super Cool LED is turned ON; the function is activated (suggestion: turn ON 11hrs before loading). • To exit the Super Cool function, press the SET key again. • The Super Cool function automatically ends after 30 hours running.
• When the Super Cool ends, the corresponding icon of the control panel turns off and the previously set cooling level is restored.

Defrosting

The defrosting of the refrigerator and freezer compartments are done automatically: no manual operation is needed.

Slider

Near the vegetable basket there is a slider that allows you to adjust the humidity inside it: moving it to the right decreases the humidity, moving it to the left increases the humidity.

Demo mode

Keeping pressed the door switch inside the refrigerator, if the SET key is pressed for 5 seconds, the refrigerator will enter the Demo mode. To exit the mode, keep pressed the door switch and press again the SET key for 5s.

Error codes

If 4 °C LED light is flashing, it means there has been a fan error. Please, contact the technical assistance to help solve the problem

APP CONNECTION (Content only)

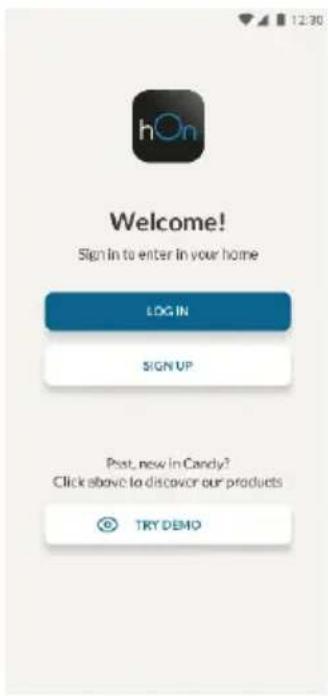

IN APP PAIRING PROCEDURE

Step 1

- Download the hOn app from the app stores

Step 2

- Create your account on the hOn App or log in if you already have an account

Step 3

- Follow the pairing instructions in the hOn App

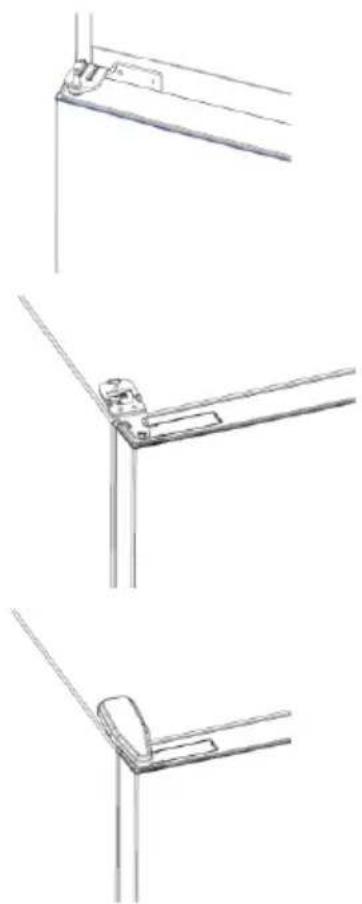

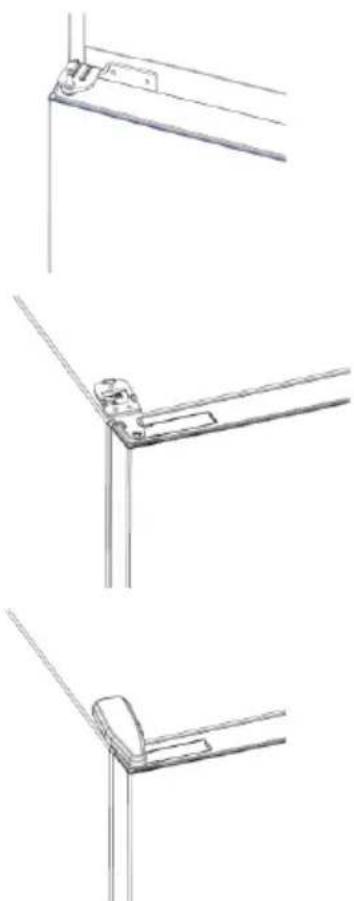

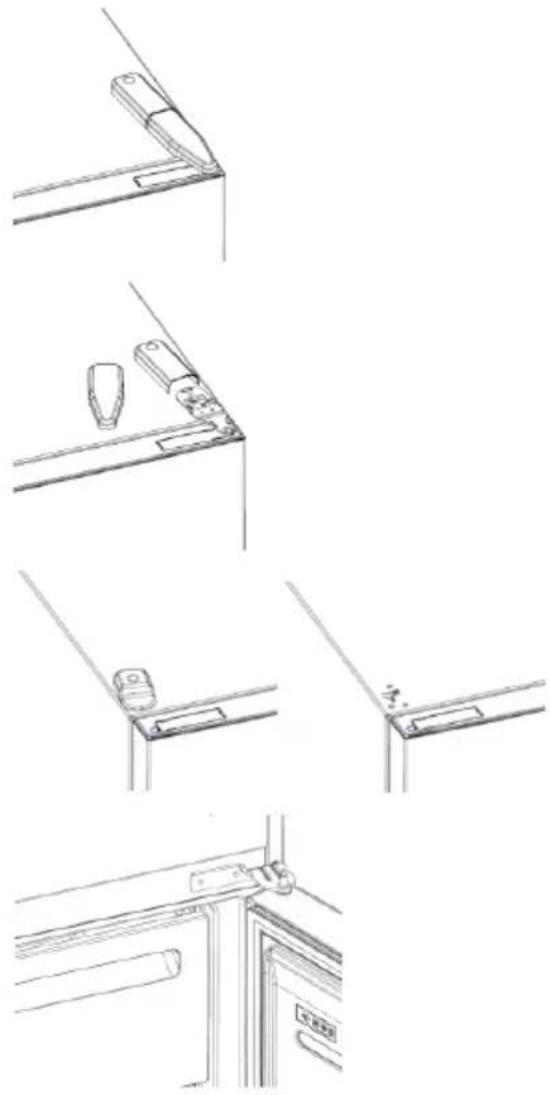

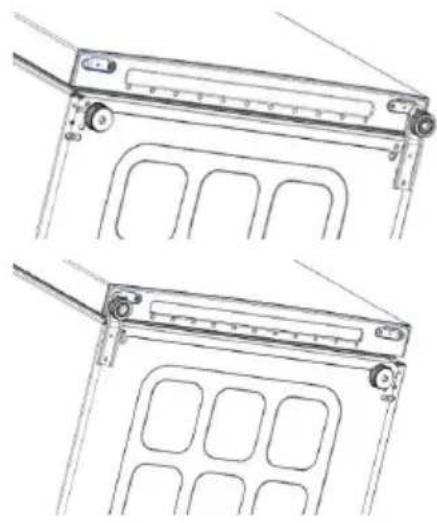

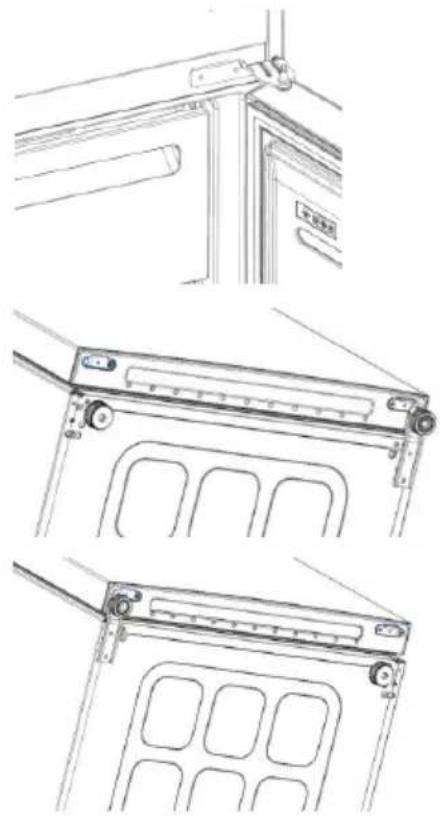

DOOR REVERSIBILITY

Tools needed: Electric screwdriver

1. Remove the top hinge cover
2. Unscrew the top hinge
3. Remove the top hinge cover (left)
4. Remove the middle hinge

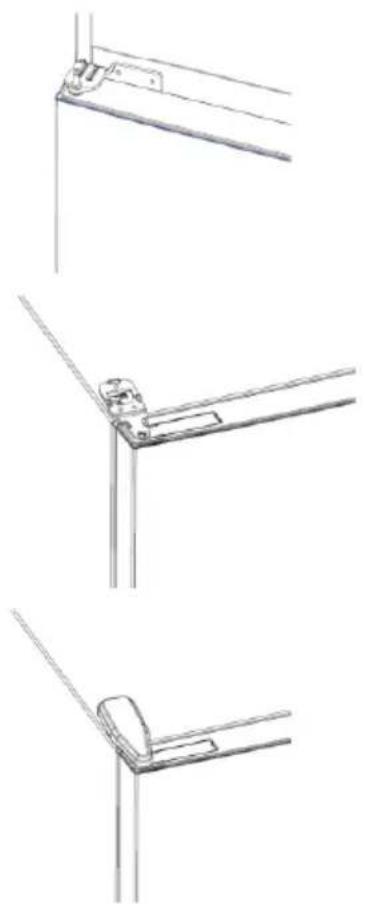

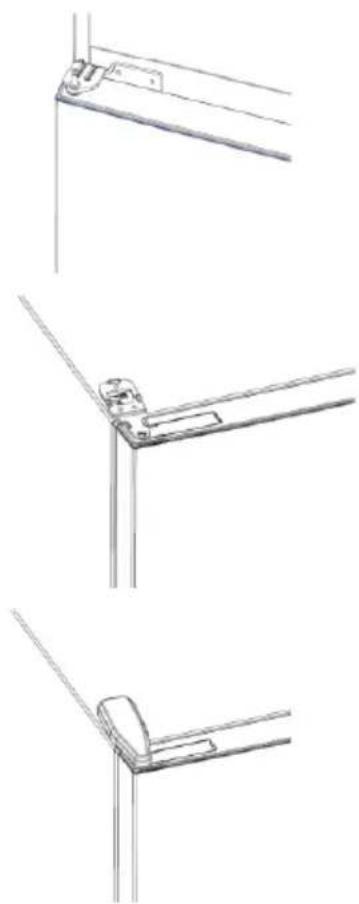

1. Remove the lower hinge
2. Mount the hinge foot
3. Mount the middle hinge
4. Mount the upper hinge plate
5. Mount the upper hinge cover

TROUBLESHOOTING

The inside light bulb does not turn on.	No electricity.	The power cable is not properly plugged in.Check if the appliance is switched off (see Temperature Adjustment).Check the power socket is working correctly (e.g. with another electric device).
	Holiday Mode is activated.	Deactivate Holiday mode.
The internal temperature of the refrigerator and/or freezer is not cold enough.	The doors are not closed.	Check that the door and gaskets close properly.
	The doors are frequently opened.	Avoid opening the doors unnecessarily for some time.
	Incorrect temperature setting.	Check the temperature setting and, if possible, set a lower temperature (see Temperature Adjustment).
	The refrigerator and/or freezer are too full.	Wait for the temperature of the refrigerator/ freezer to stabilise.Avoid filling the refrigerator and freezer excessively.
	The surrounding temperature is too low.	Move the unit to a warmer place or heat the current room.
	Warm items have been stored.	Always allow items to cool before storing them.
The food in the refrigerator freezes.	Incorrect temperature setting.	Check the temperature setting and, if possible, increase the temperature.
	Food in contact with the back wall.	Keep the food away from the refrigerator's back wall.
The bottom of the refrigerator compartment is wet or water droplets are present.	The drain hose could be clogged.	Clean the drain hose with a stick or similar item to allow the water to drain.
Presence of drops of water or frost on the rear wall of the refrigerator.	Depending on the function, drops of water or frost form on the rear wall of the refrigerator during operation.	It is not a defect.
	Warm items have been stored.	Always allow items to cool before storing them.
	There are open food containers or liquids.	Always cover food and liquids.
	The doors are not closed.	Check that the door and gaskets close properly.
	The doors are frequently opened.	Avoid opening the doors unnecessarily for some time.
Presence of water in the vegetable drawer.	Lack of air circulation.	Verify that your appliance is not too full.
	Vegetables and fruit with too much moisture.	Wrap the fruit and vegetables in plastic materials, e.g. cling film, bags or containers.
The motor runs continuously.	The doors are not closed.	Make sure the doors are closed and check the seals close properly.
	The doors are opened frequently.	Avoid opening the doors unnecessarily for some time.
	Ambient temperature is very high.	Verify that the ambient temperature is in the range set out in the specifications on the appliance tag.Set the display screen/thermostat to a warmer temperature.
	The appliance has been off (no power) for some time.	It normally takes the appliance 8-12h to cool completely.
The frozen food is thawing.	Surrounding temperature is too low.	Move the unit to a warmer place or heat the current room.
	The freezer door is not closed.	Make sure the door is closed and that the gasket is sealing proper
Fridge door alarm.	Fridge door alarm (acoustic beep) activates whenever the door is left open for more than 3 minutes.	Avoid leaving the door open when not needed. The beep ceases when the door is closed.
The appliance makes noises such as gurgling, buzzing, clicking, creaking.	No breakdowns. An engine is running, e.g. refrigeration unit, fan. The refrigerant flows into the pipes. Motor, switches and solenoid valves are switched on or off.	No action needed.
	The appliance is not located on level ground.	Adjust the feet to level the appliance.
	The appliance touches an object around it.	Remove objects around the appliance.
The appliance does not cool, the temperature and lighting indicators are on.	Demo mode is activated.	Deactivate DEMO mode.
Strong ice and frost in the freezer compartment.	The items were not adequately packaged.	Always pack the items well.
	A door/drawer of the appliance is not tightly closed.	Close the door/drawer.
	The door/drawer has been opened too frequently or for too long.	Do not open the door/drawer too frequently.
	The door/drawer gasket is dirty, worn, cracked or mismatched.	Clean the door/drawer gasket or replace it with a new one.
	Something on the inside prevents the door/drawer from closing properly.	Reposition the shelves, door racks or internal containers to allow the door/drawer to close.
The sides of the appliance are warm.	This is normal.

Step 2

Step 3

TROUBLESHOOTING

Step 2

Step 3

Fine adjustment

Step 2

Step 3

TROUBLESHOOTING

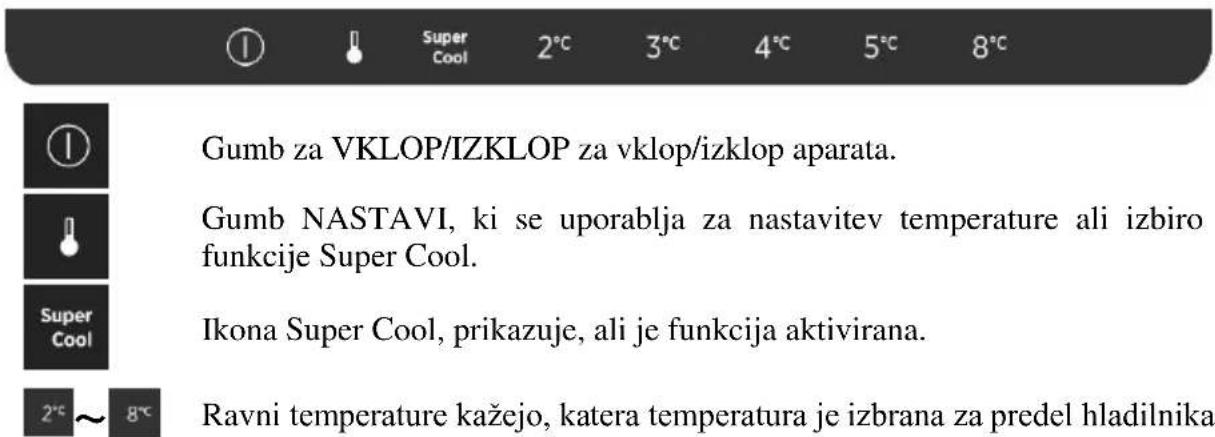

USAGE

1

Super Cool

2°C

3°C

4°C

5°C

8°C

Fine adjustment

Step 2

Step 3

TROUBLESHOOTING

USE

Fine adjustment

Step 2

Step 3

TROUBLESHOOTING

Fine adjustment

PAIRING PROCEDURE WITH THE APP

Step 1

Step 2

Step 3

TROUBLESHOOTING

Fine adjustment

PAIRING PROCEDURE IN THE APP

Step 1

Download the hOn app from the app stores.

Step 2

Step 3

TROUBLESHOOTING

Step 2

Step 3

Fine adjustment

Step 2

Step 3

TROUBLESHOOTING

USE

1

Super Cool

2°C

3°C

4°C

5°C

8°C

- By moving the air flow lever to the right, the temperature inside the freezer will be higher.

Fine adjustment

The fine adjustment selection mode allows setting temperatures in sub-levels (15 in total); each temperature level has four sub-levels.

How to use the fine adjustment function:

Step 2

Step 3

- Follow the pairing instructions in the hOn app

PRODUCT DESCRIPTION

Fine tuning

Step 2

Step 3

TROUBLESHOOTING

Ne uključuje se žarulja unutarnjeg osvjetljenja.	Nema struje.	Kabel napajanja nije propisno ukopčan.Provjerite da uredaj nije isključen (pogledajte Podešavanje temperature).Provjerite radi li električna uličnica ispravno (npr. s drugim električnim uređajem).
	Aktiviran je način rada Holiday.	Deaktivirajte način rada Holiday.
Unutarnja temperatura hladnjaka i/ili zamrzivača nije dovoljno niska.	Vrata nisu zatvorena.	Provjerite zatvaraju li se vrata i brtve pravilno.
	Vrata se često otvaraju.	Izbjegavajte nepotrebno otvaranje vrata neko vrijeme.
	Neodgovarajuća postavka temperature.	Provjerite postavku temperature i po mogućnosti smanjite je (pogledajte odjejak Podešavanje temperature).
	Hladnjak i/ili zamrzivač je/su prepuni.	Pričekajte da se temperatura hladnjaka/zamrzivača stabilizira.Izbjegavajte prekomjerno punjenje hladnjaka i zamrzivača.
	Temperatura okoline je preniska.	Premjestite uredaj na toplije mjesto ili zagrijte prostoriju.
	Pohranjene su tople namirnice.	Uvljek pričekajte da se namirnice ohlade prije nego ih spremite.
Hrana u hladnjaku se zamrzava.	Neodgovarajuća postavka temperature.	Provjerite postavku temperature i, ako je moguće, povećajte je.
	Hrana dodiruje stražnju stijenku.	Držite hranu dalje od stražnje stijenke hladnjaka.
Donji dio odjeljka hladnjaka je mokar ili su prisutne kapljice vode.	Odvodno crijevo možda je začepljeno.	Očistite odvodno crijevo štapom ili sličnim predmetom kako biste omogućili odvod vode.
Kapljice vode ili mraz na stražnjoj stijenci hladnjaka.	Ovisno o funkciji, kapljice vode ili mraz formiraju se na stražnjoj stijenci hladnjaka tijekom rada.	To nije znak kvara.
	Pohranjene su tople namirnice.	Uvijek pričekajte da se namirnice ohlade prije nego ih spremite.
	Otvoreni su spremnici hrane ili tekućine.	Uvijek prekrijte hranu i tekućine.
	Vrata nisu zatvorena.	Provjerite zatvaraju li se vrata i brtve pravilno.
	Vrata se često otvaraju.	Izbjegavajte nepotrebno otvaranje vrata neko vrijeme.
U ladici s povrćem ima vode.	Nema cirkulacije zraka.	Provjerite da uredaj nije prepun.
	Povrće i voće sadrži previše vlage.	Zamotajte voće i povrće u plastične materijale, npr. prianjajuću foliju, vrećice ili spremnike.
Motor radi neprekidno.	Vrata nisu zatvorena.	Provjerite jesu li vrata zatvorena i jesu li brtve propisno zatvorena.
	Vrata se često otvaraju.	Izbjegavajte nepotrebno otvaranje vrata neko vrijeme.
	Temperatura okoline vrlo je visoka.	Provjerite je li temperatura okoline u rasponu navedenom u specifikacljama na oznaci uredaja.Postavite zaslontermostat na višu temperaturu.
	Uređaj je isključen (nema napajanja) već neko vrijeme.	Obično je potrebno 8 do 12 sati da se uredaj potpuno ohladi.
Zamrznuta hrana se odmrzava.	Temperatura okoline je preniska.	Premjestite uredaj na toplijo mjesto ili zagrijte prostoriju.
	Vrata zamrzivača nisu čvrsto zatvorena.	Provjerite jesu li vrata zatvorena i ispravnost brtve.
Alarm za vrata hladnjaka.	Alarm za vrata hladnjaka (zvučni signal) aktivira se uvijek kada su vrata otvorena dulje od 3 minute.	Ne ostavljajte vrata otvorena kada to nije potrebno. Zvučni signal prestaje nakon zatvaranja vrata.
Uređaj proizvodi zvukove kao što su grgljanje, zujanje, klikanje, škripanje.	Nema kvarova. Motor radi, npr. rashladna jedinica, ventilator. Rashladno sredstvo ulazi u cijevi. Motor, prekidači i elektromagnetski ventili uključeni su ili isključeni.	Nije potrebno ništa poduzimati.
	Uređaj se ne nalazi na ravnom tlu.	Podesite nožice za niveliranje uređaja.
	Uređaj dodiruje predmet u svojoj okolini.	Uklonite predmete oko uređaja.
Uređaj se ne hladi, indikatori temperature i osvjetljenja uključeni su.	Aktiviran je demonstracijski način rada.	Deaktivirajte demonstracijski način rada.
Mnogo je leda i mraza u odjeljku zamrzivača.	Namirnice nisu primjereno zapakirane.	Uvljek dobro zapakirajte namlmice.
	Ladica ili vrata uređaja nisu dobro zatvorena.	Zatvorite vrata/ladicu.
	Vrata/ladica su/je otvarana prečesto ili predugo.	Ne otvarajte vrata/ladicu prečesto.
	Brtva vrata/ladice je prijava, istrošena, napuknuta ili nepravilno postavljena.	Očistite brtvu vrata/ladice ili je zamijenite novom.
	Nešto u unutrašnjosti onemogućuje pravilno zatvaranje vrata/ladice.	Premjestite police, police na vratima ili unutarnje spremnike kako bi se vrata/ladica mogla zatvoriti.
Bočne strane uređaja su tople.	To je normalno.

PRODUCT DESCRIPTION

Fine adjustment

Step 2

Step 3

TROUBLESHOOTING

Fine adjustment

Step 2

- Create your account on the hOn app, or log in if you already have an account.

Step 3

TROUBLESHOOTING

Fine adjustment

Step 2

Step 3

TROUBLESHOOTING

USE

ON/OFF key, used to turn the appliance on/off.

Fine adjustment

Step 2

Step 3

USE

Fine adjustment

Step 2

Step 3

TROUBLESHOOTING

1. Control panel and light
2. Air duct
3. Movable shelves
4. Air flow lever
5. Fruit and vegetable drawer
6. Freezer drawers
7. Upper door compartments
8. Leveling feet

USE

Fine tuning

Step 2

Step 3

- Follow the pairing instructions in the hOn app

REVERSIBILITY OF DOORS

TROUBLESHOOTING

USE

Use

Fine Adjustment

Step 2

- Create your account in the hOn app or log in if you already have an account

Step 3

TROUBLESHOOTING

- By moving the air flow lever to the right, the temperature in the freezer will be warmer.

- It is recommended to keep the air flow lever in the middle position.

Step 2

Step 3

- Follow the pairing instructions in the "hOn" app

DOOR REVERSIBILITY Possible tool: Electric screwdriver

1. Remove the cover from the top hinge.
2. Unscrew the top hinge.
3. Remove the cover from the top hinge (left).

1. Remove the middle hinge.
2. Remove the bottom hinge.
3. Install the hinge foot.
4. Install the middle hinge.
5. Install the top hinge plate.
6. Install the top hinge cover.

TROUBLESHOOTING

Unutrašnja sijalica se ne uključuje.	Nema struje.	Kabl za napajanje nije pravilno priključen.Proverite da li je uređaj isključen (pogledajte Podešavanje temperature).Proverite da li utičnica radi ispravno (npr. sa drugim električnim uređajem).
	Režim Holiday je aktiviran.	Deaktivirajte režim Holiday.
Unutrašnja temperatura frižidera i/ili zamrzivača nije dovoljno hladna.	Vrata nisu zatvorena.	Proverite da li su vrata i zaptivke pravilno zatvoreni.
	Vrata se često otvaraju.	Izbegavajte neko vreme nepotrebno otvaranje vrata.
	Pogrešno podešavanje temperature.	Proverite podešavanje temperature i, ako je moguće, podesite nižu temperaturu (pogledajte Podešavanje temperature).
	Frižider i/ili zamrzivač su previše puni.	Sačekajte da se temperatura frižidera/ zamrzivača stabilizuje.Izbegavajte prekomemo punjenje frižidera i zamrzivača.
	Temperatura okoline je previše niska.	Pomerite jedinicu na toplije mesto ili zagrejte prostoriju u kojoj se trenutno nalazi.
	Topli artikli su uskladišteni.	Uvek ostavite artikle da se ohlade pre skladištenja.
Hrana u frižideru se zamrzava.	Pogrešno podešavanje temperature.	Proverite podešavanje temperature i, ako je moguće, povečajte temperaturu.
	Hrana je u kontaktu sa zadnjim zidom.	Držite hranu dalje od zadnjeg zida frižidera.
Dno odeljka frižidera je mokro ili su prisutne kapljice vode.	Možda je zapušeno odvodno crevo.	Očistite odvodno crevo štapićem ili sličnim predmetom kako biste omogućili odvod vode.
Prisustvo kapljica vode ili mraza na zadnjem zidu frižidera.	U zavisnosti od funkcije, kapljice vode ili mraza se tokom rada formiraju na zadnjem zidu frižidera.	To nije kvar.
	Topli artikli su uskladišteni.	Uvek ostavite artikle da se ohlade pre skladištenja.
	Postoje otvorene posude za hranu ili tečnosti.	Uvek pokrijte hranu i tečnosti.
	Vrata nisu zatvorena.	Proverite da li su vrata i zaptivko pravilno zatvoroni.
	Vrata se često otvaraju.	Izbegavajte neko vreme nepotrebno otvaranje vrata.
Prisustvo vode u fioci za povrće.	Nedostatak cirkulacije vazduha.	Uverite se da uređaj nije previše pun.
	Povrće i voće sadrži previše vlage.	Voće i povrće umotajte u plastične materijale, npr. plastičnu folilju, kese ili posude.
Motor radi neprekidno.	Vrata nisu zatvorena.	Proverite da li su vrata zatvorena i da li su zaptivke pravilno zatvorene.
	Vrata se često otvaraju.	Izbegavajte neko vreme nepotrebno otvaranje vrata.
	Temperatura okruženja je veoma visoka.	Proverite da li je temperatura okruženja u opsegu navedenom u specifikacijama na nalepnici uređaja.Podesite displej/termostat na višu temperaturu.
	Uređaj je isključen (nema struje) već neko vreme.	Obično je potrebno 8-12 sati da se uređaj potpuno ohladi.
Zamrznuta hrana se otaça.	Temperatura okoline je previše niska.	Pomerite jedinicu na toplije mesto ili zagrejte prostoriju u kojoj se tronutno nalazi.
	Vrata zamrzivača nisu zatvorena.	Proverite da li su vrata zatvorena i da li zaptivka pravilno zaptiva.
Alarm za vrata frižidera.	Alarm za vrata frižidera (zvučni signal) se aktivira kad god su vrata otvorena duže od 3 minuta.	Ne ostavljajte vrata otvorena kada to nije potrebno. Zvučni signal prestaje kada se zatvore vrata.
Uređaj proizvodi zvukove kao što su klokotanje, zujanje, škljocanje, škripanje.	Nema kvarova. Motor radi, npr. rashladna jedinica, ventilator. Rashladno sredstvo teče u cevima. Motor, prekidači i elektromagnetni ventili su uključeni ili isključeni.	Nikakva radnja nije potrebna.
	Uređaj se nalazi na neravnoj površini.	Podesite stopice za nivellisanje uređaja.
	Uređaj dodiruje neki predmet do njega.	Uklonite predmete oko uređaja.
Uređaj ne hladi, indikatori temperature i osvetljenja su uključeni.	Aktiviran je Demo režim.	Deaktivirajte DEMO režim.
Velike količine leda i mraza su se formirale u zamrzivaču.	Artikli nisu adekvatno upakovani.	Uvek dobro upakujte predmete.
	Vrata/fioka uređaja nije dobro zatvorena.	Zatvorite vrata/fioku.
	Vrata/fioka je otvorena prečesto ili predugo.	Ne otvarajte vrata/fioku prečesto.
	Zaptivka vrata/floke je prljava, istrošena, napukla ili neodgovarajuća.	Očistite zaptivku vrata/floke ili je zamenite novom.
	Nešto iznutra sprečava da se vrata/fioka pravilno zatvore.	Promenite položaj polica, polica za vrata ili unutrašnjih posuda kako biste omogućili zatvaranje vrata/floke.
Bočne strane uređaja su tople.	Ovo je normalna pojava.

PRODUCT DESCRIPTION

USE

1

Super Cool

2°C

3°C

4°C

5°C

8°C

Fine adjustment

Step 2

Step 3

TROUBLESHOOTING

OPERATION

Fine Tuning

Step 2

Step 3

Step 3

OPERATION

Fine Tuning

Step 2

Step 3

TROUBLESHOOTING
