HOCE4T618EWK - Fridge HOOVER - Free user manual and instructions

Product type	Fridge-freezer
Brand	Hoover
Model	HOCE4T618EWK
Dimensions (space required)	Width: 920 mm, Depth: 1137 mm
Capacity	Not specified
Climate class	Not specified
Noise level	Not specified
Power supply	230 V, 50 Hz (standard)
Energy class	Not specified
Refrigerant	Not specified
Main functions	Super Cool, Super Freeze, Eco Mode, Holiday Mode, Fine adjustment, Built-in Wi-Fi, Automatic defrost
Refrigerator temperature	2 °C to 8 °C (adjustable by 1 °C via app, default 4 °C)
Freezer temperature	-25 °C (Super Freeze) to -18 °C (default)
Control panel	Touch LED screen with SET and On/Off buttons
Wi-Fi	Yes, 2.4 GHz, max power 100 mW, compatible with hOn app
Door reversibility	Yes, reversible (tools required)
Defrost	Automatic (no action required)
Vegetable drawer humidity control	Yes, adjustable slider
Maintenance	Regular cleaning of interior and door seals
Error codes	Flashing 6 °C LED = fan error

Frequently Asked Questions - HOCE4T618EWK HOOVER

How to adjust the refrigerator temperature?

Open the refrigerator door and press the SET button. The temperature changes in steps: 2 °C, 4 °C, 6 °C, 8 °C. A beep confirms the change. You can also adjust the temperature in 1 °C steps via the hOn app.

How to activate Super Cool mode?

Press the SET button repeatedly until the Super Cool light turns on. The refrigerator temperature goes to 2 °C. The function stops automatically after 30 minutes. You can also activate it via the app.

How to activate Super Freeze?

This function can only be activated via the hOn app. Select Super Freeze in the app; the freezer temperature goes to -25 °C. It automatically deactivates after 50 hours.

How to activate Eco Mode?

Eco Mode can only be activated via the hOn app. It sets the refrigerator to 5 °C and the freezer to -18 °C to optimize storage. To exit, deactivate it in the app or change a function on the panel.

How to use Holiday Mode?

Activate it in the hOn app. The refrigerator goes into low energy mode (lights off) but the freezer remains normal. To exit, deactivate it in the app or select another function on the panel.

What to do in case of an error code?

If the 6 °C light flashes, it indicates a fan error. Please contact Hoover technical support to resolve the issue.

How to reverse the door opening direction?

The door is reversible. You will need a screwdriver. Follow the steps in the manual: remove the top, middle, and bottom hinges, then reassemble them on the other side. The reversibility kit is included.

How to connect the refrigerator to Wi-Fi?

Download the hOn app and create an account. Press and hold the SET button (2 seconds) to activate Wi-Fi: the icon flashes. Follow the instructions in the app for pairing. The Wi-Fi then connects automatically.

How to adjust the vegetable drawer humidity?

Near the vegetable drawer there is a slider. Push it to the left to increase humidity, to the right to decrease it. This adapts the storage of fruits and vegetables.

How to perform manual defrosting?

No manual defrosting is necessary. The refrigerator and freezer compartments defrost automatically. Condensation water drains through an opening and evaporates.

USER MANUAL HOCE4T618EWK HOOVER

PRODUCT DESCRIPTION....2

Space requirements....2

USE 3

Use....3

Customized temperature....3

Fine Tuning....4

Super Cool function .... 4

Super Freeze function....4

Eco mode....5

Holiday function....5

Defrosting....5

Demo mode....5

Error codes 5

APP CONNECTION (Content only) 6

IN APP PAIRING PROCEDURE 6

Step 1....6

Step 2....6

Step 3....6

WiFi Use 7

DOOR REVERSIBILITY 8

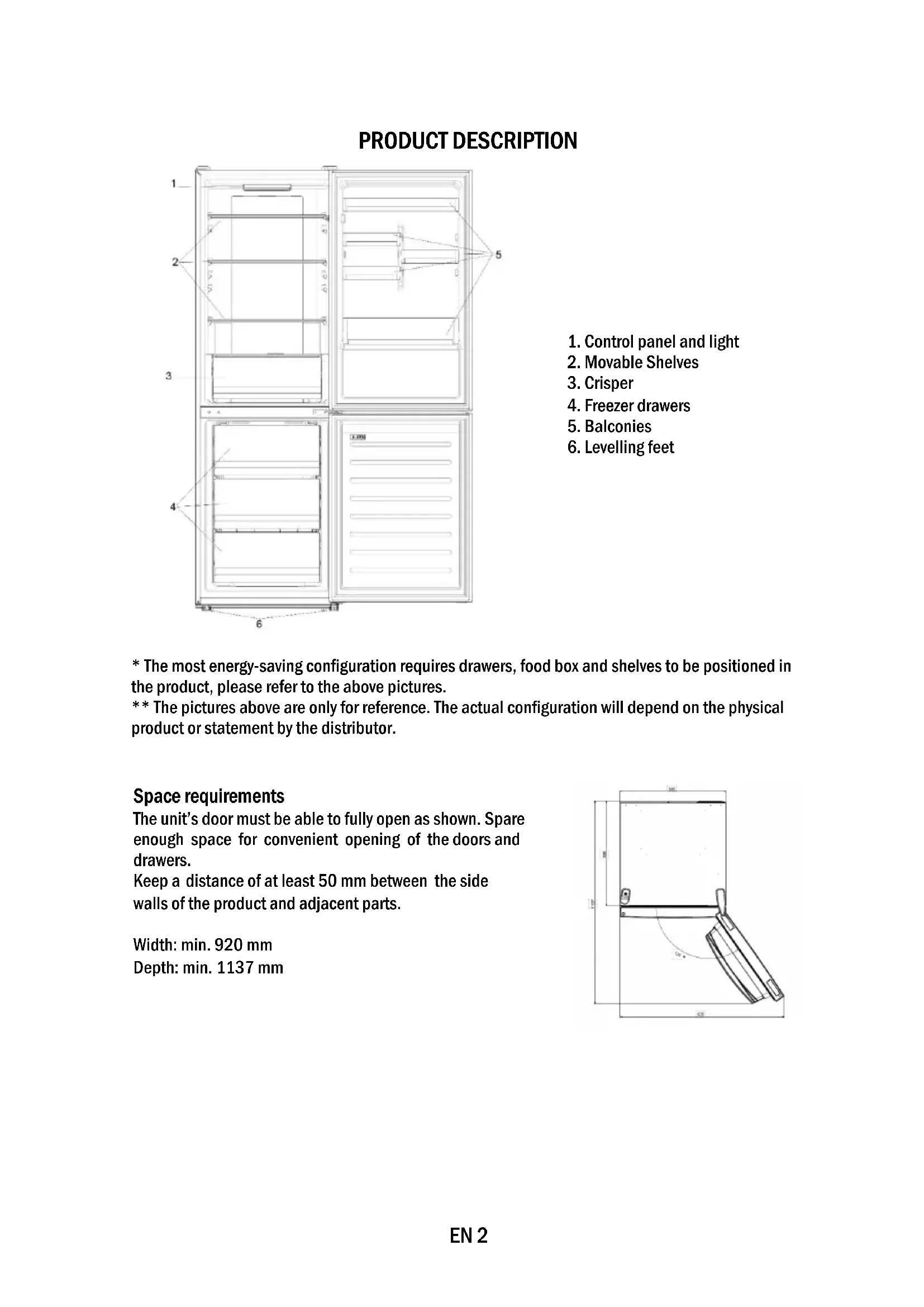

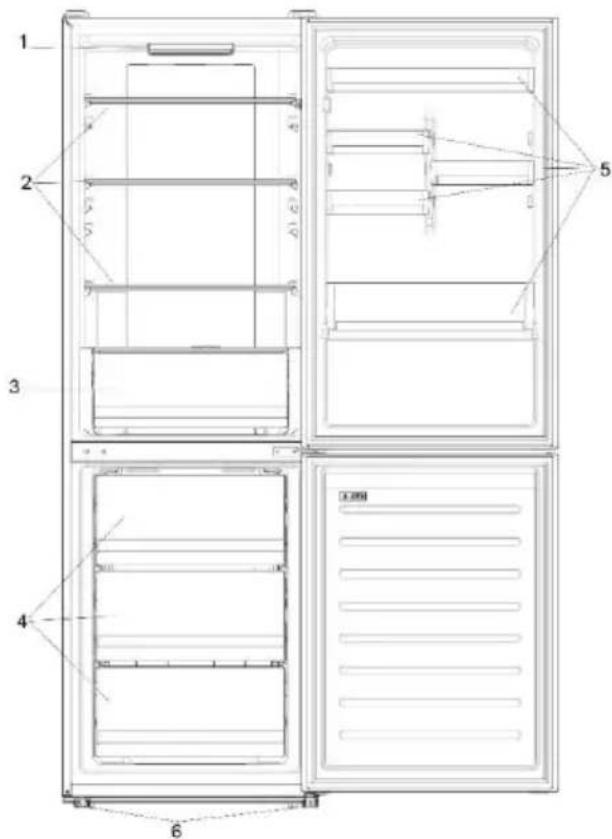

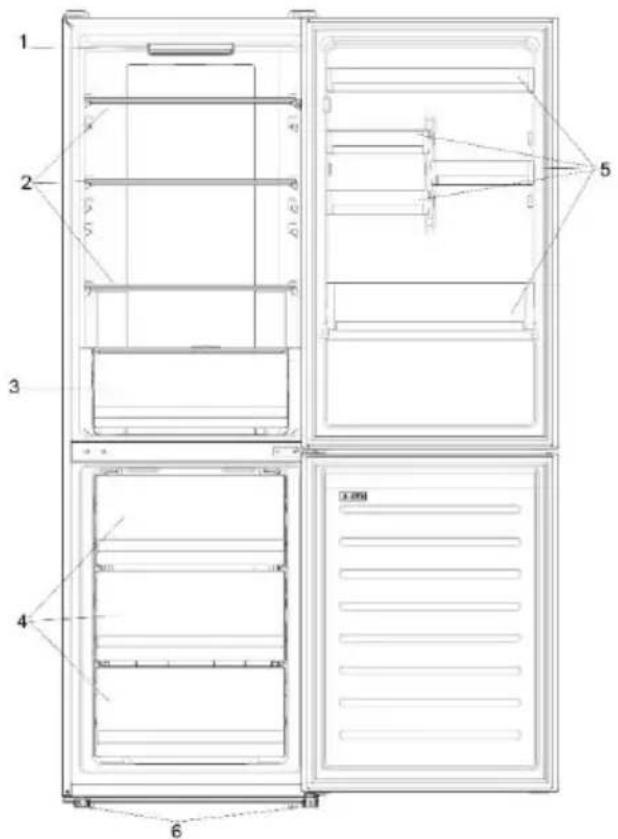

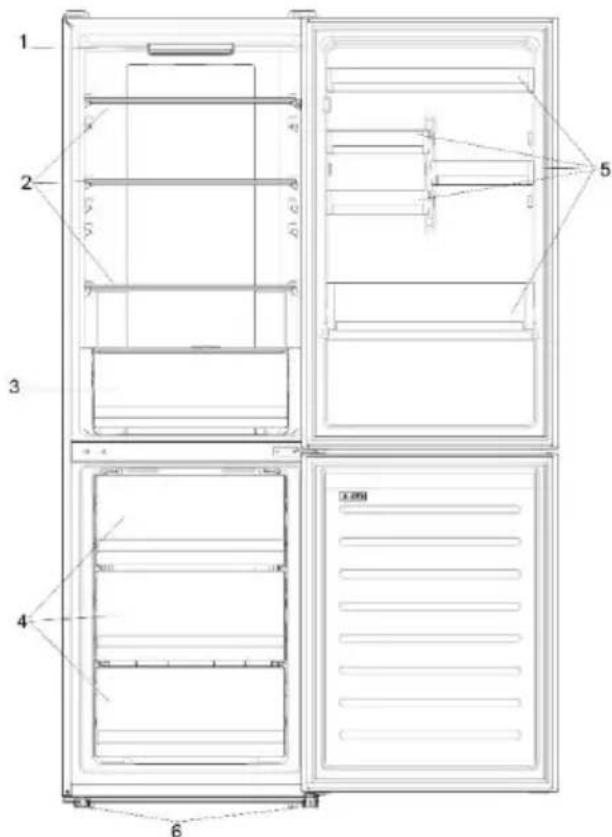

PRODUCT DESCRIPTION

1. Control panel and light
2. Movable Shelves
3. Crisper
4. Freezer drawers
5. Balconies
6. Levelling feet

* The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.
** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

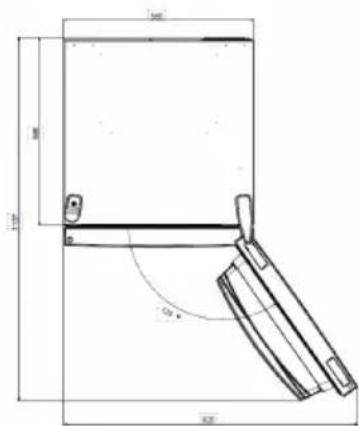

Space requirements

The unit's door must be able to fully open as shown. Spare enough space for convenient opening of the doors and drawers.

Keep a distance of at least 50 mm between the side walls of the product and adjacent parts.

Width: min. 920 mm

Depth: min. 1137 mm

USE

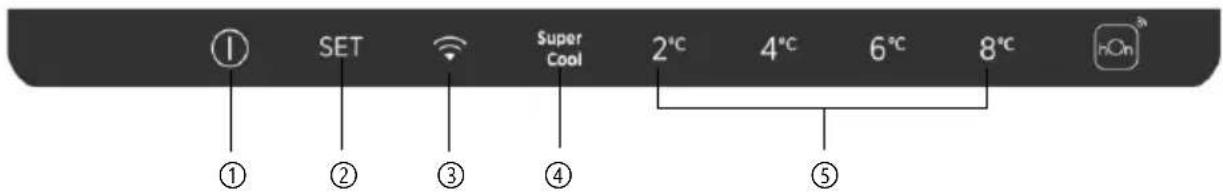

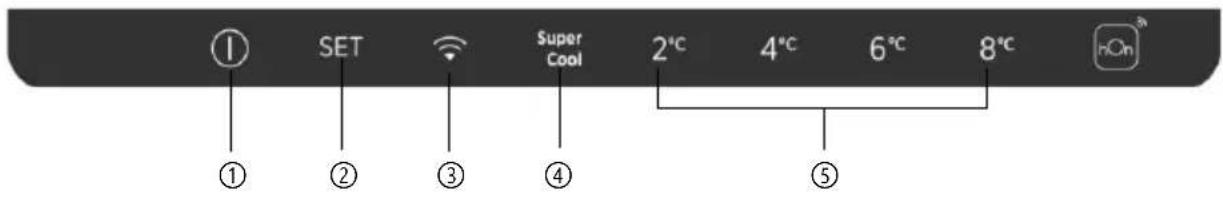

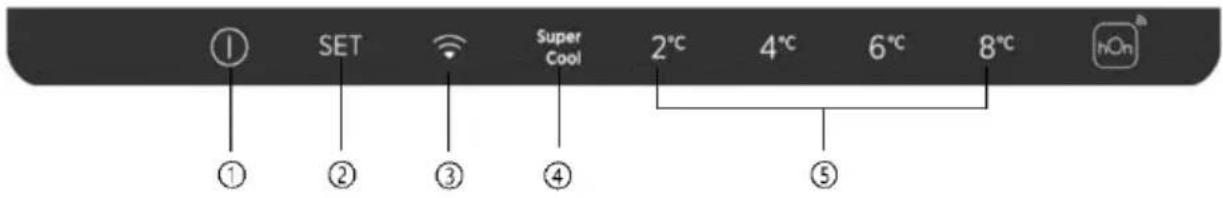

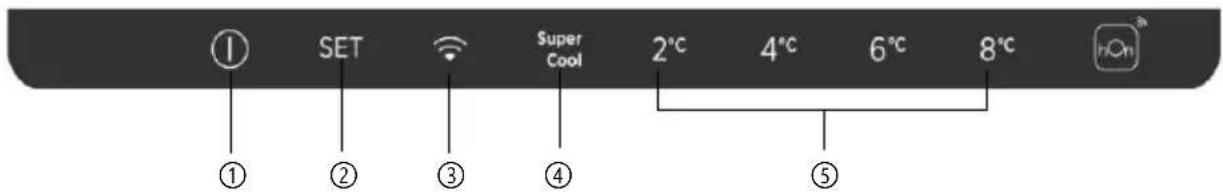

① ON/OFF key, used to switch on/off the appliance.
② SET key, used to select the fridge temperature or the special functions like.
③ WiFi Icon, shows if the appliance is connected to the app.
④ Super Cool Icon, shows if the function is activated.
⑤ Temperature levels, show which is the selected temperature.

Use

• Plug on the appliance. The appliance will turn on automatically.
• The temperature will automatically set at 4 °C in the fridge and -18 °C in the freezer.
• To change the temperature, with the fridge door open, press the SET key. When the setting increases, the corresponding LED light will turn on. An acoustic signal is made every time the SET key is pressed and the temperature is changed.
  • In case of power loss, the last cooling level set will be restored.
• To restore the default setting, at the screen lit, keep pressed the TEMP button, and then press ON/OFF button 5 times in 5 seconds.
• Under the normal operating condition (in spring and autumn), it is recommended to set the temperature at 4 °C. In summer when the ambient temperature is high, it is recommended to set temperature at 6\~8 °C, so as to guarantee the fridge and freezer temperatures and reduce the refrigerator continuous running time; and in winter when the ambient temperature is low, it is recommended to set temperature at 2\~4 °C to avoid frequent start/stop of the refrigerator.

Customized temperature

From the app, it is possible to customize the temperature of the fridge compartment. The temperature can be set with 1 °C sensitivity and it is possible to select a temperature from 2 °C to 8 °C in the fridge. An acoustic signal is made every time the temperature is changed. When the temperature is selected by the app, there is no indication on the control panel, all the temperature LED lights are turned off, while only the WiFi icon is turned on.

Fine Tuning

The fine tuning selection SET gives to possibility to set the temperatures by sublevels; each temperature level has three sublevels.

How to use the fine tuning function:

• Press the SET key for 8 seconds to enter fine tuning selection mode. When the appliance enters the mode, an acoustic signal is made and the LED of currently selected cooling level blinks.
• By short pressing the SET key within 5 seconds, the fine tuning setting increases and, at each pressing, an acoustic signal is made.
• During fine tuning, the LED of the selected cooling level is fixed, while the LED of the selected sublevel blinks.
• If no key is pressed for 5 seconds, the system automatically exits from fine tuning selection mode. The fine tuning setting is saved and the LED of the selected fridge temperature is fixed.
• If the fine tuning is activated again, the setting will start from the previously stored level.

Super Cool function

It is suggested to switch on the Super Cool function if a large quantity of food should be stored (for example after the purchase). The Super-Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming. When the function is activated, the temperature of the fridge is automatically set at 2 °C.

How to use the Super Cool function:

• The function can be activated by pressing many times the SET key until the Super Cool LED is turned ON or by selecting it from the app. If the function is activated, the corresponding icon on the control panel will be turned on.
  • To exit the Super Cool function, press the SET key again.
• The Super Cool function automatically ends after 30 hours running.
• When the Super Cool ends, the corresponding icon of the control panel turns off and the previously set cooling level is restored.

Super Freeze function

The super freezing function accelerates the freezing of fresh food and protects the goods already stored from undesirable warming. If a large amount of food has to be freeze, it is recommended to set the Super Freeze function on 24h before the usage. When the function is activated, the temperature is automatically set at -25 °C.

How to use the Super Freeze function:

• The function can be launched only by selecting it from the app. If the function is activated, it will be shown by the app; there is no indication on the control panel.
  • To exit the Super Freeze function, turn it off from the app.
• The Super Freeze function automatically ends when the function has lasted for more than 50 hours.

Eco mode

The Eco mode can be activated to optimize the performance of the appliance, whereas obtaining the best food storage. When the function is activated, the temperature is automatically set at 5 °C in the fridge, and at -18 °C in the freezer.

How to use the Eco mode:

• The function can be activated only by selecting it from the app. If the function is activated, it will be shown by the app; there is no indication on the control panel.
• To exit the Eco mode, turn it off from the app; the previously selected temperature will be restored.
• The Eco mode automatically ends when another function is chosen from the control panel.

Holiday function

The Holiday function can be used to reduce the energy consumption of the appliance, when it is not used regularly. When the function is on, the LED lights will be off (even if the door is open) and the fridge will work on low power consumption mode, whereas the freezer will keep working normally. How to use the Holiday function:

• The function can be activated only by selecting it from the app. If the function is activated, it will be shown by the app; there is no indication on the control panel.
• To exit the Holiday function, turn it off from the app; the previously selected temperature will be restored.
• The Holiday function automatically ends when another function is chosen from the control panel.

Defrosting

The defrosting of the refrigerator and freezer compartment are done automatically: no manual operation is needed.

Slider

Near the vegetable basket there is a slider that allows you to adjust the humidity inside it: moving it to the right decreases the humidity, moving it to the left increases the humidity.

Demo mode

Keep the refrigerated door open, press and hold the on / off key, and click the set key five times. The refrigerator will enter the Demo mode. To exit the mode, keep pressed the door switch and press again the mode key for 5s.

Error codes

If - 6 °C LED light is flashing, it means there has been a fan error. Please, contact the technical assistance to help solve the problem

APP CONNECTION (Content only)

IN APP PAIRING PROCEDURE

Step 1

• Download the hOn app on the stores

Step 2

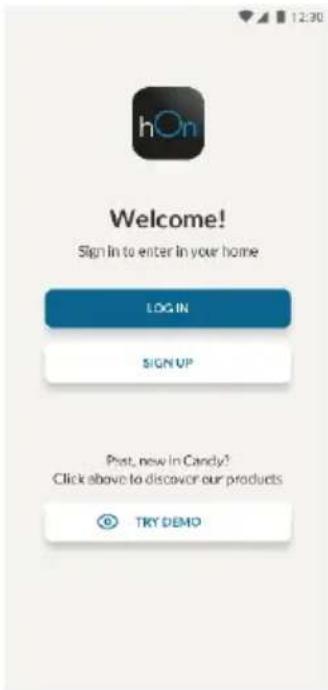

- Create your account on the hOn App or log in if you already have an account

Step 3

- Follow pairing instructions in the hOn App

WiFi Use

To activate the Wi-Fi, long press the set key for 2 seconds, the Wi-Fi icon will turn on and an acoustic signal is made.

If the Wi-Fi has not been configured yet, when the refrigerator turns on, it will automatically enter the configuration mode and keep this status for 30 minutes. To use the configuration mode:

• Press the set key for 2s but less than 8s, the refrigerator enters the Wi-Fi configuration mode and an acoustic signal is made. The Wi-Fi icon starts blinking.
• Follow in app instructions to configure the Wi-Fi (see above).
• Once the Wi-Fi is configured and the connection established, the Wi-Fi icon is on and fixed.
• After 30 minutes without performing any operation, the Wi-Fi will automatically exit the configuration mode.
• If the Wi-Fi has already been configured, it will automatically reconnect according to the configuration information.

Radio-module - Technical data

Frequency rate (OFR)	2400 MHz-2843.5 MHz
Channel frequencies	2412...2472 MHz(step size 5 MHz)
Maximum power(EIRP)	100 mW

Radio equipment type is in compliance with Directive 2014/53/EU.

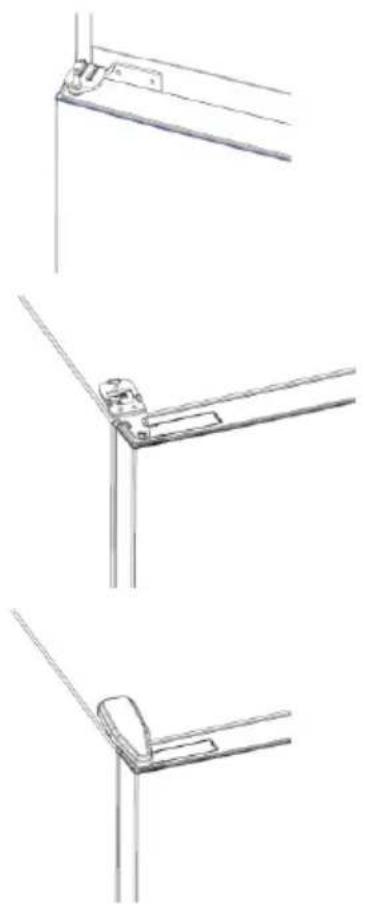

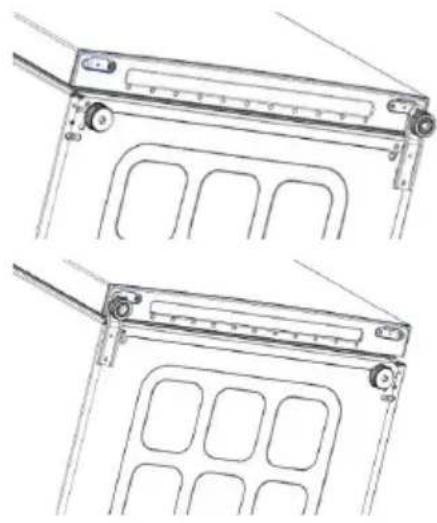

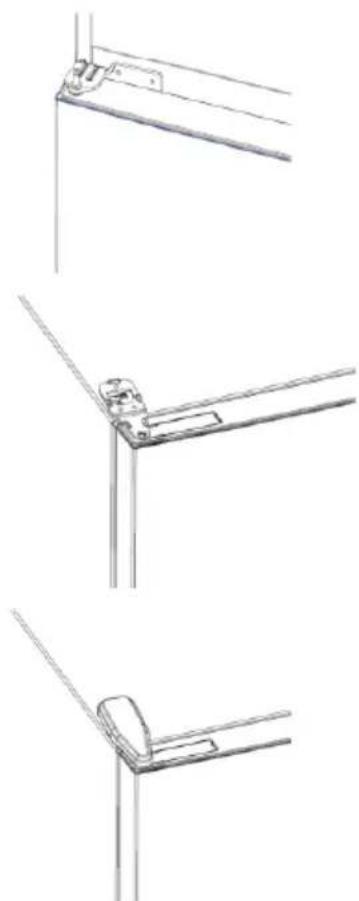

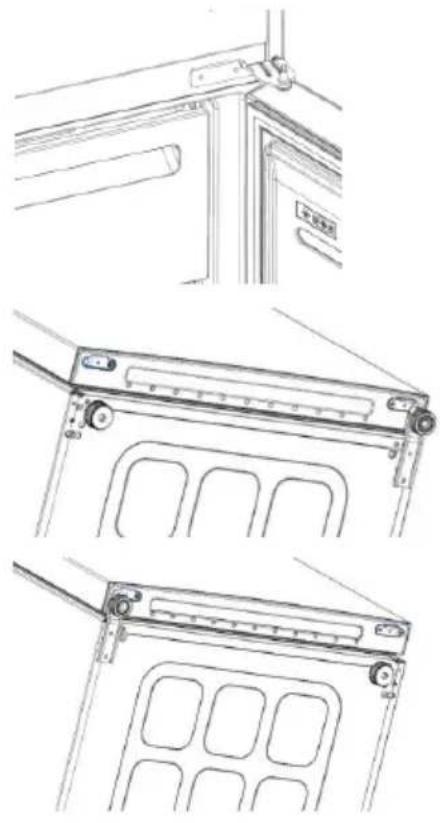

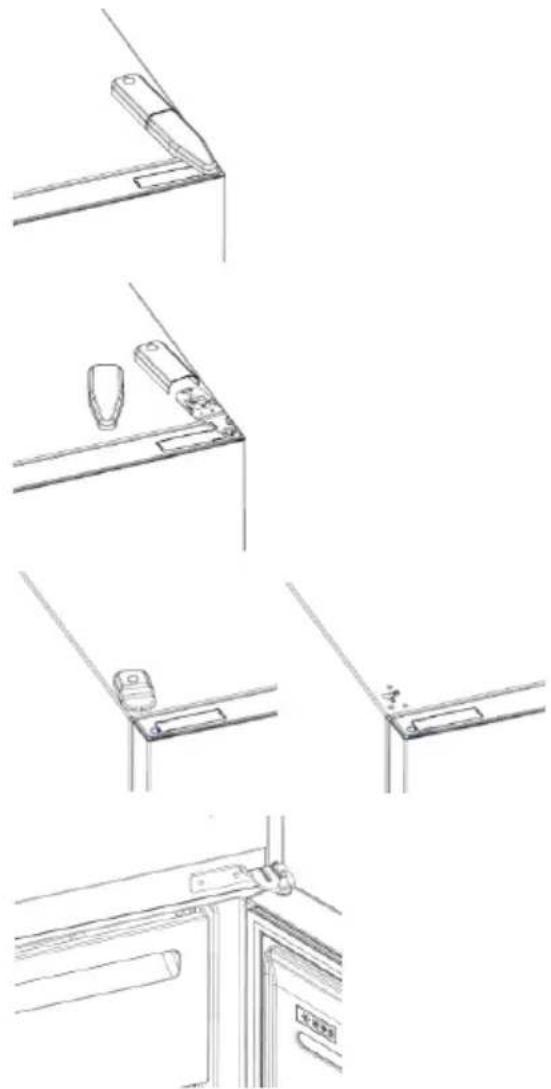

DOOR REVERSIBILITY

Tools needed: screwdriver

1. Remove the top hinge cover
2. Unscrew the top hinge
3. Remove the top hinge cover (left)
4. Remove middle hinge

Line drawings of kitchen appliances and fixtures (no text or symbols)

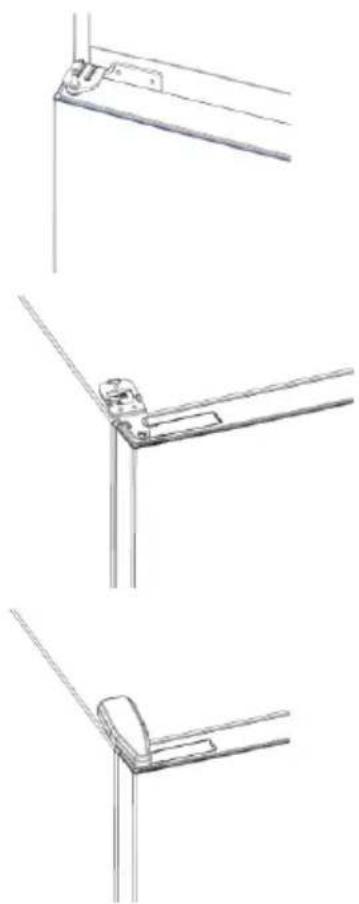

1. Remove lower hinge
2. Mount hinge foot
3. Mount middle hinge
4. Mount the upper hinge plate
5. Mount the upper hinge cover

Technical line drawing of a mechanical device with two views (top and side), showing internal compartments and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Резюме

ОПИСАНИЕ НА ПРОДУКТА.... 10

Изисквания за пространство....10

УПОТРЕБА....11

Употреба....11

Персонализирана температура....11

Стъпка 2

Стъпка 3

Line drawings of four different mechanical or architectural components with no visible text or symbols

Technical line drawings of three different mechanical or architectural components with no visible text or symbols

Technical line drawings of three different metal bracket mounting configurations (no text or symbols)

Shrnutí

POPIS VÝROBKU 19

POSTUP PÁROVÁNÍ S APLIKACÍ

Krok 1

Krok 2

Krok 3

Line drawings of kitchen appliances and fixtures (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting detail (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Oversigt

PRODUKTBESKRIVELSE....27

Arealkrav 27

BRUG 28

Brug 28

Tilpasset temperatur 28

Finjustering....29

FREMGANGSMÅDE VED PARRING I APP 31

Trin 1....31

Trin 2....31

Trin 3....31

Wi-Fi-brug....32

SKIFT AF D∅RENS HÆNGSELSSIDE 33

PRODUKTBESKRIVELSE

FREMGANGSMÅDE VED PARRING I APP

Trin 1

• Download hOn-appen i butikkerne

Trin 2

Trin 3

Line drawings of kitchen appliances and fixtures in various orientations (no text or symbols)

Technical line drawing of a mechanical device with multiple ports and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a corner bracket with diagonal lines (no text or symbols)

Zusammenfassung

Schritt 2

Schritt 3

Line drawings of kitchen appliances and fixtures (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), showing internal compartments and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting detail (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Περίληψη

ΧΡΗΣΗ

Βήμα 2

Βήμα 3

Line drawings of four different corner brackets with no text or symbols

Technical line drawings of three different mechanical or architectural components (no text or symbols)

Technical line drawings of three different metal bracket mounting configurations (no text or symbols)

Resumen

USO

Paso 2

Paso 3

Line drawings of kitchen appliances and fixtures (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting detail (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Yhteenveto

TUOTEKUVAUS 60

Tilantarve....60

KÄYTTÖ....61

Käyttö....61

Vaihe 2

Vaihe 3

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a kitchen counter with a lid and handle (no text or symbols)

Pure technical line drawing of two mechanical bracket components without any text or symbols

Line drawing of a door handle and door frame with no text or symbols

Technical line drawing of a mechanical device with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Sommaire

DESCRIPTION DU PRODUIT....68

Espace requis 68

UTILISATION....69

Utilisation....69

Étape 2

Étape 3

Line drawings of kitchen appliances and fixtures (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Sažetak

OPIS PROIZVODA....76

Prostorni zahtjevi 76

UPORABA....77

Uporaba 77

Prilagođena temperatura 77

Fino namještanje 78

Funkcija super hlađenja 78

Funkcija super zamrzavanje....78

Način rada Eco....79

Funkcija praznici 79

Odmrzavanje....79

2. korak

3. korak

- Pridržavajte se uputa za uparivanje u aplikaciji hOn

Uporaba mreže Wi-Fi

Da biste aktivirali mrežu Wi-Fi, dugo pritisnite tipku SET 2 sekunde i uključuje se ikona mreže Wi-Fi te odašilje zvučni signal.

Ako se mreža Wi-Fi još nije konfigurirala kada se hladnjak uključuje, automatski prelazi u način konfiguriranja i ostaje u tom statusu 30 minuta. Za uporabu načina konfiguriranja:

• Pritisnite tipku SET 2 s, ali ne kraće od 8 s, hladnjak prelazi u način konfiguriranja mreže Wi-Fi i odašilje se zvučni signal. Ikona mreže Wi-Fi počinje treperiti.
• Pridržavajte se uputa u aplikaciji za konfiguriranje mreže Wi-Fi (pogledajte gore).
• Nakon što se konfigurira mreža Wi-Fi i uspostavi veza, uključuje se ikona mreže Wi-Fi i fiksno ostaje uključena.
• Nakon 30 minuta bez izvođenja bilo kakve radnje, mrežom Wi-Fi automatski se izlazi iz načina konfiguriranja.
• Ako se mreža Wi-Fi već konfigurirala, automatski se ponovno povezuje u skladu s informacijama o konfiguriranju.

Radio-modul - Tehnički podaci

Učestalost (OFR)	2400 MHz-2843.5 MHz
Frekvencije kanala	2412...2472 MHz(veličina koraka 5 MHz)
Maksimalna snaga(EIRP)	100 mW

Line drawings of kitchen appliances and fixtures (no text or symbols)

1. Uklonite donju šarku
2. Postavite postolje šarke
3. Postavite srednju šarku
4. Postavite ploču gornje šarke
5. Postavite poklopac gornje šarke

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Összegzés

TERMÉKLEÍRÁS....84

Helyigény....84

HASZNÁLAT 85

Használat 85

2. lépés

3. lépés

Line drawings of a door handle assembly with bracket, door, and door lock components (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Indice

UTILIZZO

Fase 2

Fase 3

Line drawings of a door frame assembly with no text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with internal compartments and mounting bracket (no text or symbols)

Pure technical line drawing of a mechanical bracket or hinge (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Simple line drawing of a corner joint or bracket structure (no text or symbols)

Samenvatting

PRODUCTBESCHRIJVING....100

GEBRUIK

Stap 2

Stap 3

Line drawings of kitchen appliances and fixtures (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Sammendrag

PRODUKTBESKRIVELSE....108

Plassbehov 108

BRUK 109

Bruk 109

Tilpasset temperatur 109

Finjustering....110

BRUK

Trinn 2

- Opprett kontoen din på hOn-appen, eller logg på hvis du allerede har en konto

Trinn 3

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a mechanical component or bracket with no text or symbols

Technical line drawing showing two views of a bracket or support structure with no visible text or symbols

Line drawing of a door frame with handle and door, no text or symbols present

Technical line drawing of a mechanical device with multiple ports and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a corner bracket with diagonal lines (no text or symbols)

Podsumowanie

OPIS PRODUKTU 116

Krok 2

Krok 3

Line drawings of a door frame assembly with no text or symbols

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Resumo

Largura: min. 920 mm

Profundidade: min. 1137 mm

UTILIZAÇÃO

Passo 2

Passo 3

Line drawings of a door frame assembly with bracket, handle, and lock components (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), showing internal compartments and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting detail (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Cuprins

DESCRIEREA PRODUSULUI 132

UTILIZAREA

Pasul 2

Pasul 3

Line drawings of five different door or cabinet components, showing front, side, top, and front views with no text or symbols.

Technical line drawing of a mechanical device with two views (top and side), showing internal compartments and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Оглавление

War 2

War 3

Line drawings of kitchen appliances and fixtures in various orientations (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), showing internal compartments and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Zhrnutie

POPIS PRODUKTU....149

POUŽITIE

Krok 2

Krok 3

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a mechanical or architectural component with no text or symbols

Technical line drawing showing two views of a bracket or support structure with no visible text or symbols

Line drawing of a door handle and door panel assembly (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting bracket without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Povzetek

OPIS IZDELKA 157

Prostorske zahteve....157

UPORABA....158

Uporaba 158

Temperatura po meri 158

Fina Nastavitev 159

Funkcija Super Cool 159

Funkcija Super Freeze 159

Način ECO 160

Funkcija počitnice....160

Odmrzovanje....160

Predstavitveni način....160

Kode napak 160

POVEZAVA Z APLIKACIJO (samo vsebina)....161

POSTOPEK SEZNANITVE V APLIKACIJI 161

1. korak....161

2. korak....161

3. korak....161

Uporaba Wi-Fi....162

REVERZIBILNA VRATA....163

OPIS IZDELKA

UPORABA

2. korak

3. korak

Line drawings of a door frame assembly with no text or symbols

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Sažetak

OPIS PROIZVODA....165

Zahtevi prostora....165

UPOTREBA....166

Upotreba 166

Prilagodena temperatura 166

UPOTREBA

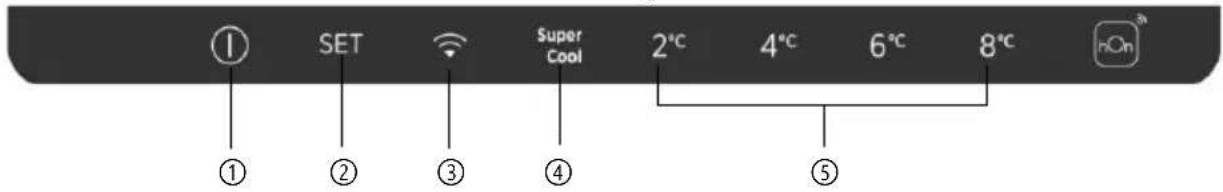

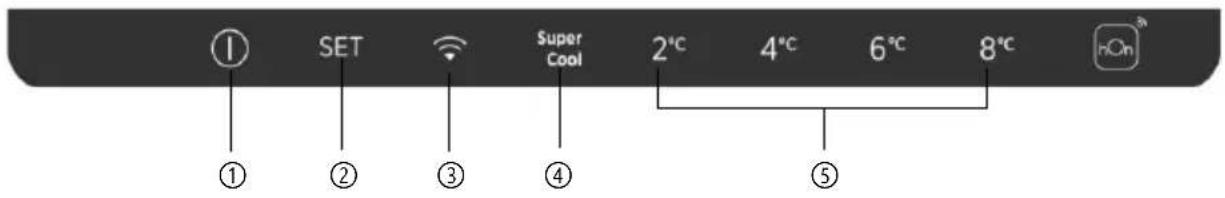

① Taster ON/OFF se koristi za uključivanje/isključivanje aparata.
② Taster SET, koristi se za odabir temperature frižidera ili za posebne funkcije.
③ Ikonica Wi-Fi, pokazuje da li je aparat povezan sa aplikacijom.
④ Ikonica Super Cool pokazuje da li je funkcija aktivirana.
⑤ Nivoi temperature pokazuju koja je temperatura izabrana.

Upotreba

• Uključite aparat. Aparat će se automatski uključiti.
  • Temperatura će se automatski postaviti na 4 °C u frižideru i -18 °C u zamrzivaču.
• Da biste promenili temperaturu, sa otvorenim vratima frižidera pritisnite taster SET. Kada se podešavanje poveća, uključiće se odgovarajuće LED svetlo. Akustični signal se stvara svaki put kada se pritisne taster SET i kada se temperatura promeni.
• U slučaju nestanka struje, frižider će se vratiti na poslednji skup nivoa hlađenja.
• Da biste vratili standardno podešavanje, dok je ekran osvetljen, držite pritisnutim dugme TEMP i zatim pritisnite dugme ON/OFF 5 puta u 5 sekundi.
• U normalnom radnom stanju (u proleće i jesen), preporučuje se postavljanje temperature na 4 °C. Leti ili kada je ambijentalna temperatura visoka, preporučuje se postavljanje temperature na 6 – 8 °C, da bi se garantovale temperature frižidera i zamrzivača i smanjilo neprekidno vreme rada frižidera; a zimi ili kada je ambijentalna temperatura niska, preporučuje se postavljanje temperature na 2 – 4 °C kako bi se izbeglo često uključivanje/zaustavljanje frižidera.

Prilagodena temperatura

Iz aplikacije je moguće prilagoditi temperaturu odeljka frižidera. Temperatura se može podesiti sa osetljivošću od 1 °C, a u frižideru je moguće odabrati temperaturu od 2 °C do 8 °C. Pri svakoj promeni temperature emituje se zvučni signal. Kada aplikacija odabere temperaturu, na kontrolnoj tabli nema indikacije, sva LED svetla za temperaturu su isključena, dok je uključena samo ikonica Wi-Fi.

2. korak

3. korak

• Pratite uputstva za uparivanje u hOn aplikaciji

Pure technical line drawing of a mechanical bracket or angle (no text or symbols)

Simple line drawing of a mechanical component or bracket with no text or symbols

Technical line drawing showing two views of a mechanical bracket or bracket with no visible text or symbols

1. Uklonite srednju š arku
2. Uklonite donju š arku
3. Postavite stopicu š arke
4. Postavite srednju š arku
5. Postavite pločicu gornje š arke
6. Postavite poklopac gornje š arke

Technical line drawings of three different mechanical or architectural components (no text or symbols)

Technical line drawings of three different metal bracket mounting configurations (no text or symbols)

Sammanfattning

PRODUKTBESKRIVNING 173

I APP-HOPKOPPLINGSLÄGE....177

Steg 1....177

Steg 2....177

Steg 3....177

ANVÄNDNING

Steg 2

Steg 3

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a mechanical component or bracket with no text or symbols

Technical line drawing showing two views of a bracket or support structure with no visible text or symbols

Line drawing of a door frame with handle and door, no text or symbols present

Technical line drawing of a mechanical device with multiple ports and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a corner bracket with diagonal lines (no text or symbols)

Резюме

ОПИС ПРОДУКТУ 181

Крок 2

Крок 3

Line drawings of kitchen appliances and fixtures (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), showing internal compartments and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Özet

ÜRÜN AÇIKLAMASI....189

KULLANIM

Adim 2

Adım 3

Line drawings of a door frame assembly with no text or symbols

Technical line drawing of a mechanical device with two views (top and side), showing internal compartments and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting detail (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Simple line drawing of a corner joint or bracket structure (no text or symbols)
