KS120F - Fridge PKM - Free user manual and instructions

Brand	PKM
Model	KS120F
Product type	Refrigerator-freezer with 3-star freezer compartment
Dimensions (H x W x D)	88.0 x 54.0 x 54.5 cm
Package dimensions (H x W x D)	94.0 x 57.5 x 56.5 cm
Net weight	29.0 kg
Gross weight	31.0 kg
Power supply	220-240 V ~ 50 Hz
Energy class	F (scale A+++ to D)
Annual energy consumption	181 kWh/year
Total net volume	116 L (refrigerator) + 15 L (freezer)
Net refrigerator volume	101 L
Net freezer volume	15 L
Freezing capacity	2.0 kg / 24 h
Storage time in case of power failure	10 hours
Climate category	N/ST (16 °C to 38 °C)
Defrost type	Refrigerator: automatic; Freezer: manual
Thermostat	Adjustable (positions 0 to 7)
Number of shelves	1 glass shelf
Door balconies	2 balconies + 1 bottle balcony
Vegetable drawer	1 drawer
Interior light	10 W bulb
Compressor	1 compressor (refrigerant R600a)
Noise level	41 dB(A)
Reversible door stop	Yes
Sliding hinges	Yes (for integration)
Maintenance and cleaning	Clean with a damp cloth and mild detergent; manually defrost the freezer; dust the condenser twice a year
Spare parts and repairability	Original spare parts available; repair by qualified personnel; do not repair yourself

Frequently Asked Questions - KS120F PKM

How to install the PKM KS120F refrigerator?

Place the appliance in a dry, well-ventilated room, away from sunlight. Leave a ventilation space of at least 200 cm² for air inlet and outlet. Wait 4 to 6 hours after installation before plugging it in. Use a spirit level to check levelness.

How to adjust the refrigerator temperature?

Turn the thermostat knob to position 3 (medium setting). For a colder temperature, turn to a higher number (4 to 7). For a warmer temperature, turn to 1 or 2. Position 0 stops the compressor but does not cut the power.

What does the climate category N/ST mean?

The appliance is designed for an ambient temperature of +16 °C to +38 °C. The categories N (temperate) and ST (subtropical) are indicated on the label.

How to reverse the refrigerator door?

Unplug the appliance. Remove the top and bottom hinges, then reassemble them on the opposite side. The door should be handled by two people. Ensure the seals are properly adjusted after the change.

How to clean and defrost the KS120F refrigerator?

For cleaning, use a damp cloth with a mild detergent. The refrigerator defrosts automatically, but the freezer must be defrosted manually when the frost layer exceeds 3 mm. Remove food, turn off the appliance, place cloths to absorb water, and remove the ice. Never use sharp objects.

What foods can be frozen in this refrigerator?

The freezer compartment (3 stars, -18°C) allows storing frozen foods and freezing fresh foods (up to 2 kg/24h). Suitable for meat, fish, vegetables, prepared meals. Do not freeze eggs in shell, salads, or creamy dairy products.

What to do in case of failure or if the appliance does not work?

Check the plug, fuse, and voltage. If the compressor does not start, wait a few minutes (thermal protection). If the noise is unusual, check that the appliance is level and not touching a wall. Refer to the 'Troubleshooting minor faults' chapter in the manual.

What type of bulb to use for replacement?

Use a bulb of the same type and power 10 W. Unplug the appliance before removing the cover and bulb. The bulb is not intended for room lighting.

How to save energy with this refrigerator?

Do not leave the door open too long. Avoid introducing hot food. Defrost regularly. Ensure good ventilation around the appliance. Clean the condenser twice a year.

Where to find spare parts for the PKM KS120F?

Original spare parts are available from the manufacturer or authorized after-sales service. Only use original spare parts. For any repair, contact the store where you purchased the appliance.

USER MANUAL KS120F PKM

Interior view of a white refrigerator with open doors and shelves (no visible text or symbols)

Exterior view of a building with two flag markers and the letter 'A' on top (no additional text or symbols)

Simple line drawing of a structural beam with two supports and a labeled point B (no text or symbols beyond the label)

Two technical illustrations: one showing a white electrical box with two holes, the other a white cabinet labeled 'L' and 'R' (no text or symbols on main components)

Two white metal bracket components with circular holes, no text or symbols visible

Pure diagram of a rectangular object with six circular holes and directional arrows, no text or symbols present.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the refrigerator.

Technical diagram showing exploded and assembled views of a cabinet with labeled components 1 through 4

Interior view of a white refrigerator with numbered compartments (1–6) open, showing no text or symbols on the cabinet itself.

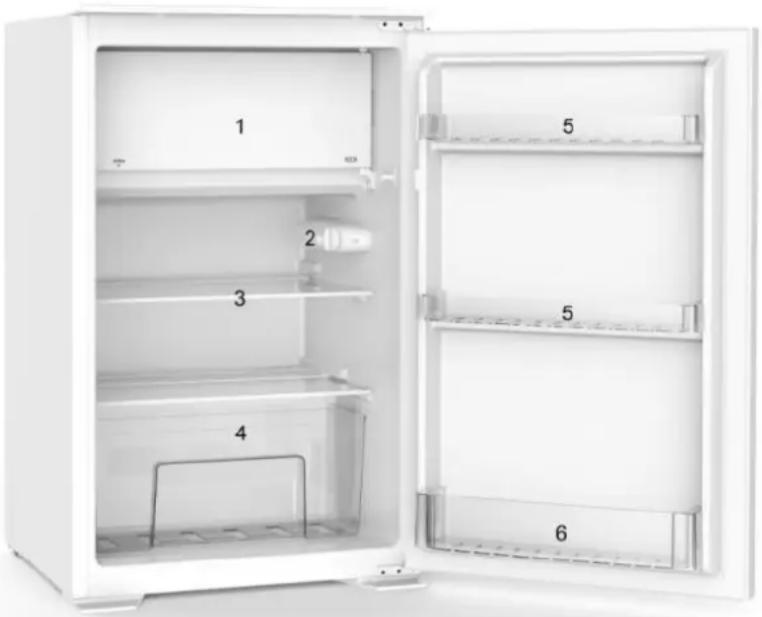

1 GEFRIERFACHKLAPPE
2 THERMOSTAT
3 VERSTELLBARES REGAL
4 GEMÜSEFACH
5 TÜRABLAGEN
6 FLASCHENFACH

4.1 Temperaturregelung

MILCHPRODUKTE UND EIER

Top-down schematic of a boat with circular and oval components (no text or symbols)

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information 35
   1.1 Signal words.... 36
   1.2 Safety instructions.... 36
2. Climatic classes....39
3. Installation guide....40
   3.1 Installation site 40
   3.2 Installation 40
   3.3 Changing of the hinge position.... 45
4. Operation.... 46
   4.1 Temperature setting.... 46
   4.2 Operation parameters.... 47
   4.3 Helpful hints / energy saving.... 47
   4.3.1 Meaning of the *-labelling of freezers.... 48
   4.3.2 Storage of food....50
5. Cleaning and maintenance.... 54
   5.1 Defrosting.... 55
   5.2 Replacing of the illuminant.... 56
6. Trouble shooting....56
7. Decommissioning....59
8. Technical data....60
9. Waste management....60
10. Guarantee conditions....62

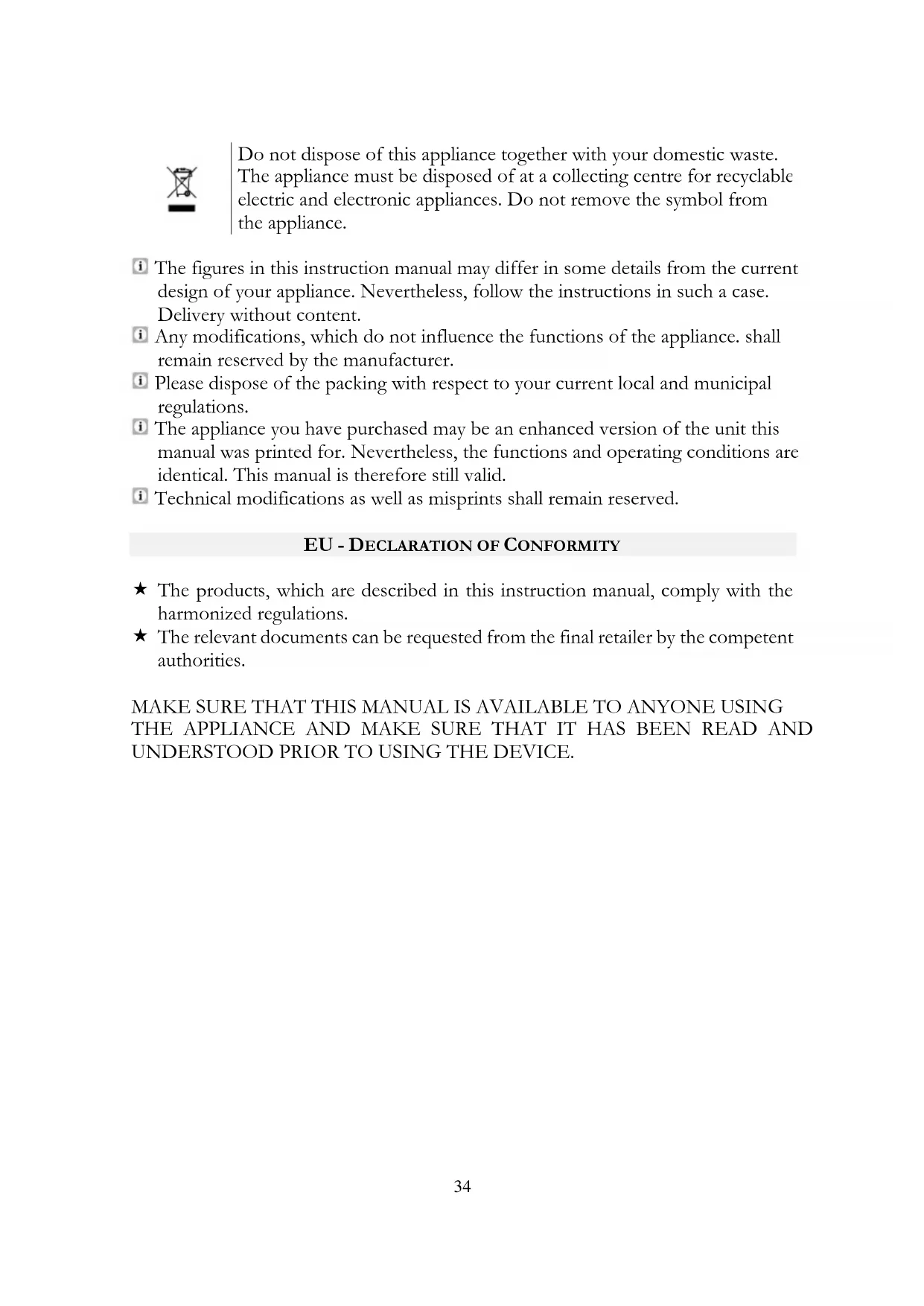

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.
i The appliance is intended for cooling food only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazard involved. Children between 3 and 8 years are allowed to load and unloan refrigerators. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1.1 Signal words

DANGER!

indicates a hazardous

situation which, if ignored, will result in death or serious injury.

WARNING!

situation which, if ignored, could result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution.

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.
2. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
3. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.
4. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.
5. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!
6. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons.

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.
2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the shop you purchased the appliance at immediately.

3. If gas is set free in your home:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel or thermostat.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.

2. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.

3. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.

4. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.

5. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.

6. Do not use a socket board or a multi socket when connecting the appliance to the mains.

7. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.

8. Check that the power cord is not placed under the appliance or damaged when moving the appliance.

9. The technical data of your energy supplier must meet the data on the model plate of the appliance.

10. Your domestic circuit must be equipped with an automatic circuit breaker.

11. Do not modify the appliance.

12. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!

13. Disconnect the appliance from the mains before you clean or maintain it.

14. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.

15. Do not put any heat-radiating appliances onto your appliance.

16. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.

17. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.

18. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!
19. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.
20. Children must never play with the appliance.
21. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate
22. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. Do not put any gassy beverages into the appliance, because their containers could explode.
2. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time
3. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
2. Do not tilt the appliance more than 45^0 .
3. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
4. Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
5. Never use the door for moving the appliance as you will damage the hinges.

6. The appliance must be transported and installed by at least two persons.

7. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.

8. Do not operate the appliance unless all components are installed properly.
9. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
10. Do not put hot liquids or hot foodstuff into the appliance.
11. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
12. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Climatic classes

Look at chap. TECHNICAL DATA for information about the climatic class of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+100→+320C	e.g. unheated cellar
N	+160→+320C	inner home temperature
ST	+160→+380C	inner home temperature
T	+160→+430C	inner home temperature

3.1 Installation site

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
2. The accessories of your appliance can be protected from damage due to transportation (adhesive tapes etc.). Remove such tapes very carefully. Remove remains of such tapes with a damp cloth using lukewarm water and a mild detergent (see also chapter CLEANING AND MAINTENANCE). Never remove any components of the back of the appliance!
3. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
4. Check that the appliance and the power cord are not damaged.
5. Install the appliance in a dry and well-ventilated place.
6. Protect the appliance from direct sunlight.
7. The doors must open completely and without hindrance.
8. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
9. Connect the appliance to the mains properly.
10. The nameplate is situated inside the appliance or at the back.

3.2 Installation

➢ Depending on delivery, there are 2 different ways of installation. Carry out the installation relevant to your mounting-accessories (either A or B).
The dimensions of the appliance are registered in chap. TECHNICAL DATA.

⚠ WARNING! Switch off and unplug the appliance before installation. RISK OF ELECTRIC SHOCK!

⚠️ CAUTION! The installation must be carried out by at least two persons; otherwise you may hurt yourself or damage the appliance. Do not tilt the appliance more than 45^0 .

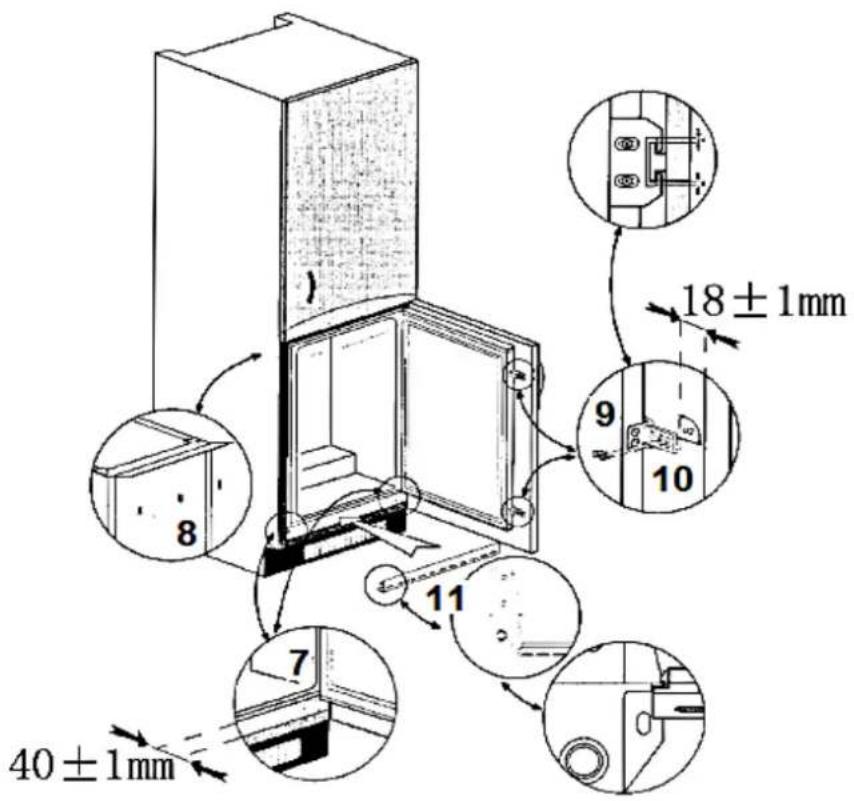

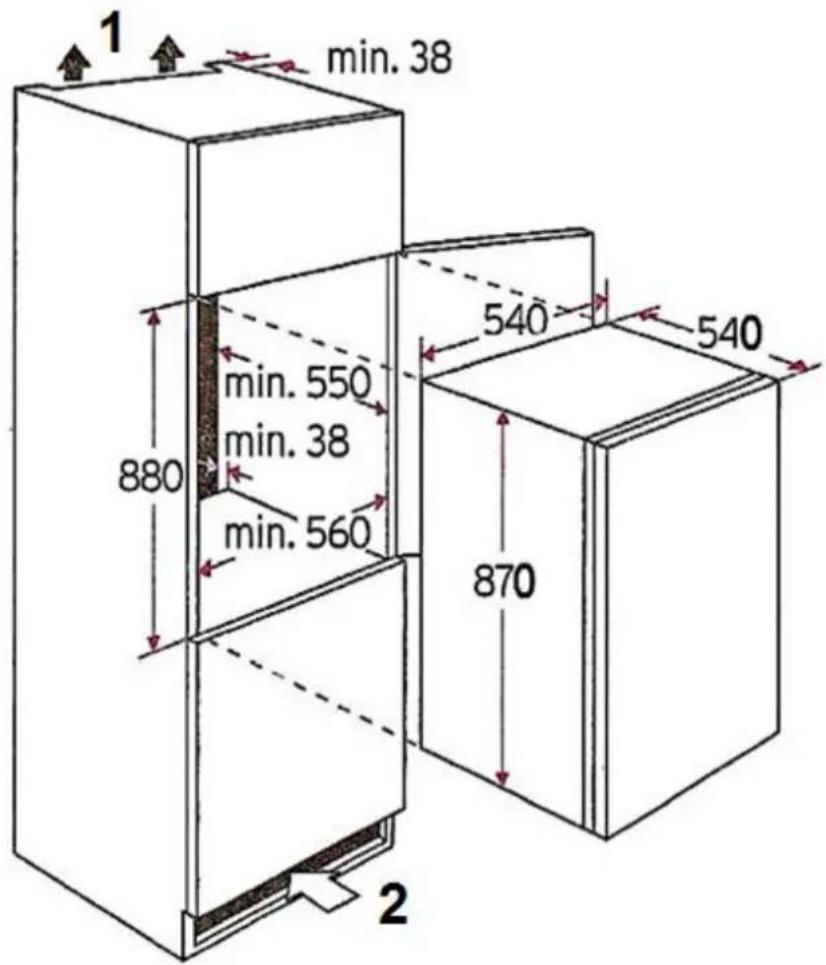

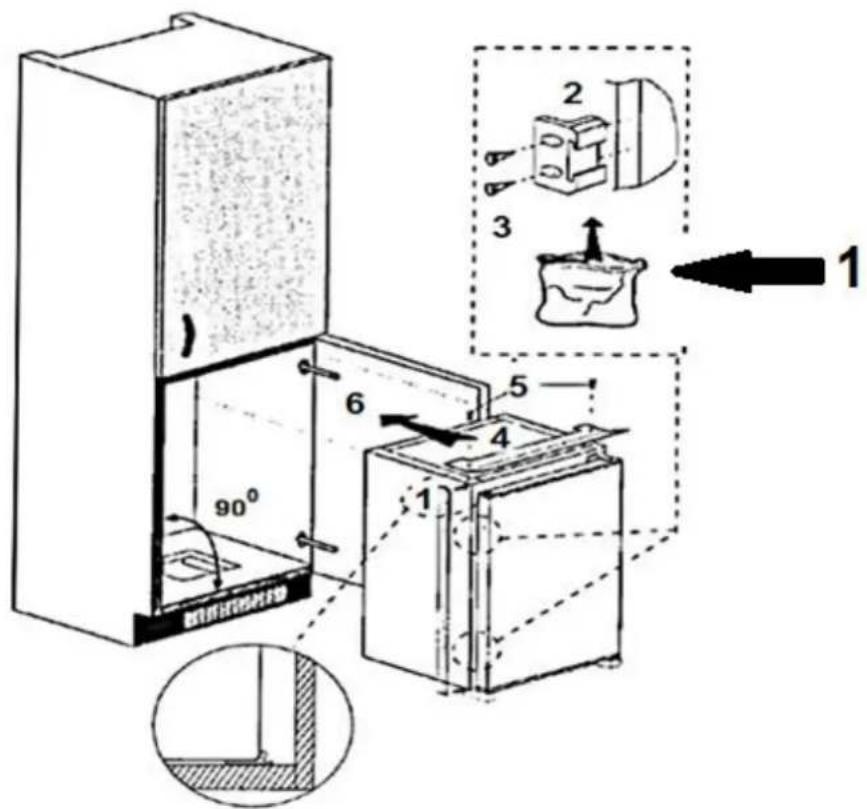

INSTALLATION A

1. Push the appliance carefully into the cabinet. Check that the appliance stands safely and properly adjusted in the cabinet.
2. Fix the appliance with the 4 woodscrews on the fixing-points described below.

Exterior view of a modern building with two flag-like markers and the letter 'A' on the roof (no additional text or symbols)

Fixing points to fix the appliance with the assembled components A+B and the supplied woodscrews in the cabinet.

Simple line drawing of a structural beam with two supports and a labeled point B (no text or symbols beyond labels)

1. Level the distance between cabinet and appliance with the supplied plastic profile-seal.

Diagram showing a cube above a circular cross-section with internal structure (no text or symbols)

Plastic profile scal

Lateral view (cross section).

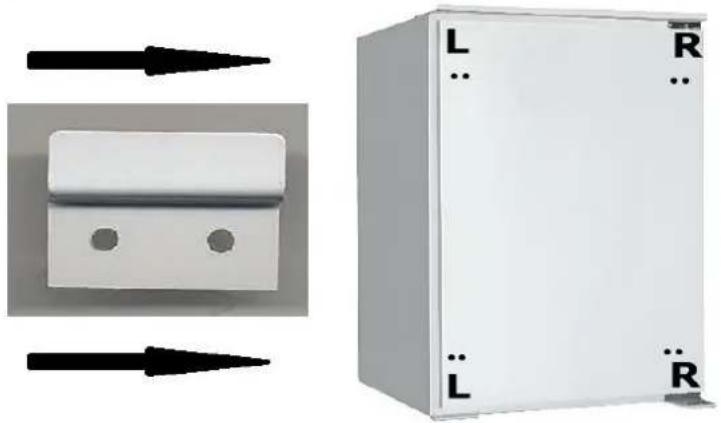

TO FIX THE SLIDING FRIDGE HINGE, PROCEED AS FOLLOWS:

1. Fix the 2 small hinges with the supplied screws considering the hinge position (left or right).

Two technical illustrations: one showing a white electrical box with two dots, the other a white cabinet labeled L and R (no text or symbols on components)

1. Fix the long hinge on the inside of the cabinet-door. Take the correct measurements by placing the hinges on each other.

Two white metal bracket components with circular holes, no text or symbols visible

1. When adjusting afterwards check that the front side of the long hinge has approx. 2 cm distance to the outer side of the cabinet-door. Now fix the hinge with the supplied screws.

2 cm distance

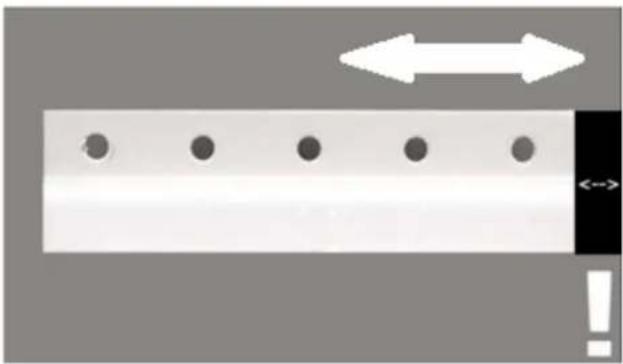

Pure diagram of a rectangular object with six circular holes and directional arrows, no text or symbols present.

The black bar represents 2 cm distance.

The installation of the long hinge as well as the linkage of the long and short hinge should be carried out with the doors opened!

INSTALLATION B

Technical diagram of a refrigerator interior with labeled components and angle measurement

1: bag

18 ± 1mm 9 10 8 11 7 40 ± 1mm

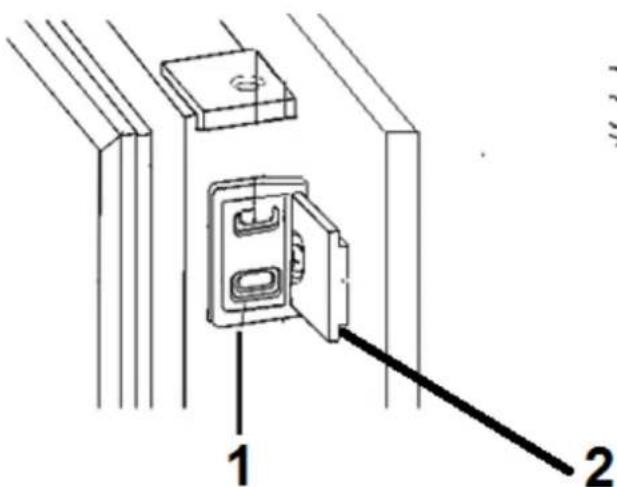

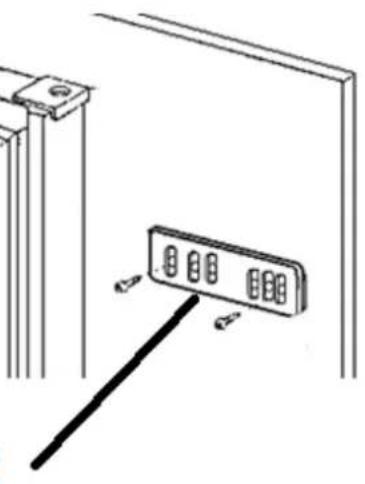

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, likely illustrating a connector or mounting mechanism.

1: Hinge-part on fridge door.

Pure electrical circuit lines without any symbols

2: Hinge-part on cabinet door.

Dimensions A/B

3.3 Changing of the hinge position

⚠ WARNING! Switch off and unplug the appliance before changing the hinge position. RISK OF ELECTRIC SHOCK!

CAUTION! The change of the hinge position must be carried out by at least two persons; otherwise you may hurt yourself or damage the appliance. Do not tilt the appliance more than 45 ^0 .

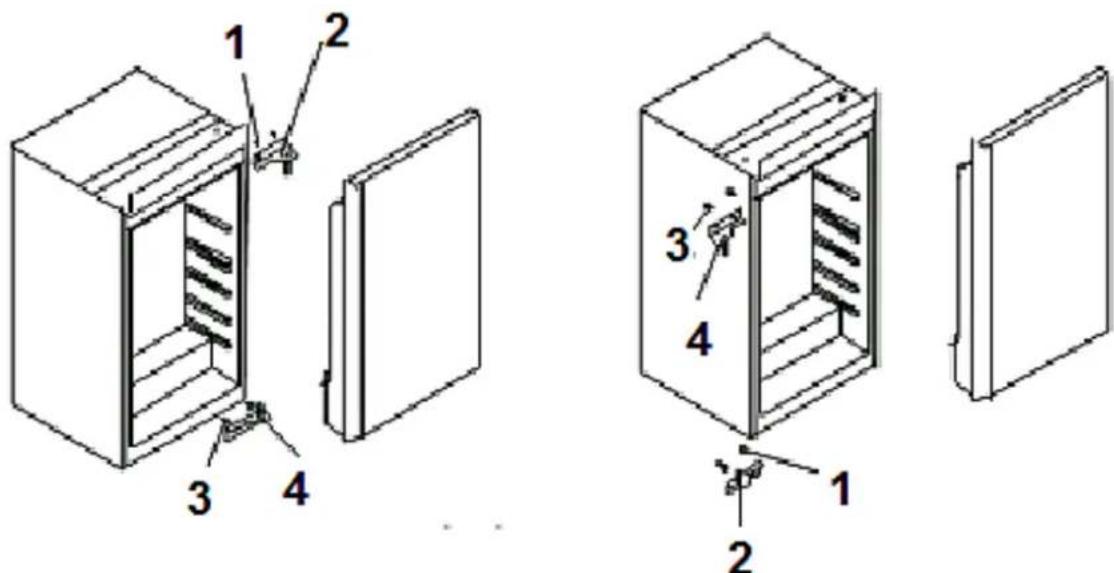

Technical diagram of a cabinet with numbered components and exploded view, showing internal structure and assembly.

1. Unscrew the 2 screws (1+2) and remove the entire top hinge.
2. Lift the door upwards until you have removed it from the bottom hinge. Store the door in a safe place so you will not damage it.
3. Unscrew the screws (3+4) of the bottom hinge and remove it.
4. Fix the former top hinge on the bottom with the 2 screws. Carry out the steps described above in reverse order.
5. Check that the door is well-adjusted and closes properly before you finally tighten the screws.

NOTICE! Adjust the door properly. The seal must close properly.

Interior view of a white refrigerator with six numbered compartments (1–6) open, showing the front and interior views without any text or symbols.

1 FREEZER FLAP
2 THERMOSTAT
3 ADJUSTABLE SHELF
4 CRISPER
5 DOOR TRAYS
6 BOTTLE POCKET

4.1 Temperature setting

AFTER HAVING INSTALLED THE APPLIANCE WAIT 4 HOURS BEFORE YOU CONNECT IT TO THE MAINS.

1. Set the thermostat to position 3 (daily-use-temperature) as soon as you have switched on the appliance. After 5 hours the appliance has reached in normal operating temperature and is ready for operation.
2. If you desire a higher (warmer) temperature, set the thermostat from position 3 to position 2 or lower.
3. If the ambient temperatures are high (e.g. hot summer-days), set the thermostat to position 4 or higher to decrease the temperature inside the appliance.
4. If you have set a lower (colder) setting, some ice may occur on the back of the appliance. In such a case set the thermostat to a higher (warmer position.
5. The setting 0/OFF switches off the compressor only. You must unplug the appliance to disconnect it from the mains.

⚠ WARNING! Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.

4.2 Operation parameters

1. The appliance can only reach the relevant temperatures when:

a. the ambient temperature meets the climatic class.
b. the doors close properly.
c. you do not open the doors too often or too long.
d. the door seals are in proper condition.
e. the appliance is properly positioned.
f. you have not overfilled the appliance.
g. you do not store warm or hot food in the appliance.

1. High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.

2. Defrost the appliance periodically as encrusted ice will decrease the power and increase the energy consumption of the appliance.

4.3 Helpful hints / energy saving

Do not line the drawers with aluminium foil, waxed paper or paper layers; otherwise optimum circulation of the cold air is impeded so the appliance cannot work at best performance.
◆ Cooked food can be stored in the appliance. Let it cool down to room temperature before you put it into your appliance.
◆ Store your food in colourless, airtight and tasteless materials.
Some food like meat, fish etc. may become dry and release strong odours. You can avoid these by wrapping them into aluminium foil or plastic wrap or putting them into an airtight bag or container.
Allow ample storage place for your food. Do not overfill your appliance.
- Wrap your food in plastic wrap or suitable paper and place each kind of food in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.
Let warm or hot food cool down to room temperature before you put it into your appliance. Otherwise the energy consumption will increase and encrusted ice will be generated.
If you buy frozen food, the packaging must not be damaged and the product must be properly stored (sales container -18°C or lower).
Put the frozen food you want to defrost into the cooling-compartment of your appliance.
How to defrost frozen food depends on your kitchen-equipment and the purpose, you want to use the frozen food for.

√ room temperature

√ in the cooling-compartment of your appliance
√ in an electrical oven4
√ in a microwave5

❖ Try opening the door as little as possible, especially when the weather is warm and humid. If you open the door, close it as fast as possible.
- Permanently check, that the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.
◆ Defrost the appliance periodically (if necessary) as encrusted ice will decrease the power and increase the energy consumption of the appliance.
Put the frozen food you want to defrost into the cooling-compartment of your appliance.

4.3.1 Meaning of the \*-labelling of freezers

2-stars (**) and 3-stars (***) freezers are suitable for storing frozen food (prefrozen) and ice or for making ice and ice cubes.
i (*), 2- (**), and 3-stars (***) freezers are not suitable for freezing fresh food.

COMPARTMENTS	STARS(*)	TARGET STORAGE TEMPERATURE	SUITABLE FOOD
Freezer	(***)*	-18 °C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 3 monthsiSuitable for freezing fresh food.
Freezer	***	-18°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 3 monthsiNot suitable for freezing fresh food.
Freezer	**	-12°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 2 monthsiNot suitable for freezing fresh food.
Freezer	*	-6°C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 1 monthiNot suitable for freezing fresh food.
0*-compartment	-	-6°C - 0°C	➢Suitable for fresh meat products (pork, beef, chicken, etc.) and processed food consumed or processed within the same day or within the next three days after storage (max.).iNot suitable for freezing food or for storing frozen food.

⚠ WARNING! Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.

WARNING! Contact with frozen food, ice and metal components in the freezer compartment can cause injuries similar to burns.

4.3.2 Storage of food

The operation of your appliance is described generally in the chapter “OPERATION” et seq.; the following explanations will help you to store your food properly.
Food must not get in touch with the surfaces inside the appliance directly. It has to be wrapped separately in aluminium foil or in cellophane foil or in airtight plastic boxes.

STORING FOOD IN THE REFRIGERATOR COMPARTMENT

The fridge helps to extend the storage times of fresh perishable foods.

PROPER STORAGE OF FRESH FOOD ENSURES BEST RESULTS

➢ Store food that is very fresh and of good quality only.
➢ Ensure that food is well wrapped or covered before it is stored. This will help to maintain the freshness of food and prevent it from dehydrating, deteriorating in colour or losing taste It will also prevent odour transfer.
- Vegetables and fruit need not be wrapped if they are stored in the crisper of the fridge compartment.
Make sure that strong smelling food is wrapped or covered in storage and kept away from foods such as butter, milk and cream as they can be spoiled by strong odours.
➢ Cool hot food down before placing it in the fridge compartment.

DAIRY FOODS AND EGGS

Most pre-packed dairy foods have a recommended „use by / best before / best by / date stamped on them. Store them in the fridge compartment and use within the recommended time.
- Butter can be spoiled by strong smelling foods so it is best stored in a sealed container.
➢ Eggs should be stored in the fridge compartment.

RED MEAT

➢ Place fresh red meat on a plate and cover it with waxed paper, plastic wrap or foil.
Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

POULTRY

Fresh whole birds should be rinsed inside and outside with cold running water, dried and placed on a plate covered with plastic wrap or foil.
➢ Poultry pieces should also be stored this way.
Whole poultry must only be filled immediately before cooking to avoid food poisoning.

FISH AND SEAFOOD

Whole fish and fillets should be used on the day of purchase. Until required, they should be stored in the fridge on a plate which is covered with plastic wrap, waxed paper or foil loosely.
If storing overnight or longer, take particular care to select very fresh fish.
Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.
Keep shellfish chilled at all times. Use within 1 – 2 days.

PRECOOKED FOOD AND LEFTOVERS

These should be stored in suitable covered containers so that the food will not dry out.
▶ Keep for 1-2 days only.
➢ Reheat leftovers once only and until steaming hot.

CRISPER

The crisper is the optimum storage location for fresh fruit and vegetables.
➢ Take care not to store the following food at temperatures of less than 7 °C for long periods: citrus fruit, melons, pineapple, papaya, passion fruit, cucumber, peppers, tomatoes.

Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.
➢ Do not refrigerate avocados (until they are ripe), bananas and mangoes.

FREEZING AND STORING OF FOOD IN THE FREEZER COMPARTMENT

To store deep-frozen food.

To make ice cubes.

To freeze food.

NOTICE! Ensure that the door of the freezer compartment has been closed properly.

PURCHASING OF FROZEN FOOD

The packaging must not be damaged.
➢ Use by the „use by /best before/best by/“ date.
If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

STORING OF FROZEN FOOD

➢ Store at -18 °C or colder.
- Avoid opening the freezer compartment door unnecessarily.

FREEZING OF FRESH FOOD

➢ Freeze fresh and undamaged food only.
To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.

NOTICE! Keep food to be frozen away from food which is already frozen.

THE FOLLOWING FOOD IS SUITABLE FOR FREEZING

▶ Cakes and pastries.
▶ Fish and seafood.

▶ Meat, game and poultry.
▶ Vegetables, fruit and herbs.
Eggs without shells.
➢ Dairy products such as cheese and butter.
➢ Ready meals and leftovers such as soups, stews, cooked meat and fish.
▶ Potato dishes and soufflés.
▶ Desserts.

THE FOLLOWING FOOD IS NOT SUITABLE FOR FREEZING

➢ Types of vegetables, which are usually consumed raw, such as lettuce or radishes.
Eggs in shells.
➢ Grapes, whole apples, pears and peaches.
➢ Hard-boiled eggs, yogurt, soured milk, sour cream, and mayonnaise.

To prevent food from losing its flavour or drying out, place food in airtight packaging.
1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

SUITABLE PACKAGING

➢ Plastic film, tubular film made of polyethylene, aluminium foil.
i These products are available from specialist outlets.

RECOMMENDED STORAGE TIMES OF FROZEN FOOD IN THE FREEZER COMPARTMENT

These times vary depending on the type of food.
The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

FOOD	STORAGE TIME
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

IMPORTANT INSTRUCTIONS!

When you freeze fresh foods with a „use by /best before/best by/“ date, you must freeze them before this date expires.
Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
Once defrosted, food should be consumed quickly.

5. Cleaning and maintenance

1. ⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it.
2. Always keep the appliance clean so that unpleasant odours do not occur.
3. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
4. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

DETERGENT:

Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents! Do not use any organic detergents! ^6 Do not use essential oils!
These instructions are valid for all surfaces of your appliance.

EXTERNAL CLEANING:

1. Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

INTERNAL CLEANING:

1. Clean the shelves and the inside with warm water and a mild detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Check the water drain and clean it if needed.

DOOR SEALS:

Clean with warm water and a mild, non- acidic detergent. Do not restart the appliance until the door seals have dried completely.

Drain hole:

➢ Check the opening of the water drain on the back of the cooling compartment regularly. Clean the opening with a small wooden rod. Do not use any sharpedged items; otherwise you will damage the appliance.

5.1 Defrosting

MANUAL DEFROSTING (FREEZING COMPARTMENT)

⚠ WARNING! Never use any mechanical items, knives or other sharp-edged objects to remove the encrusted ice. RISK OF ELECTRICAL SHOCK!

1. Remove the content from the freezing-compartment and put it into a cooling box.

2. Switch off the appliance by turning the thermostat to position 0/AUS/OFF and disconnect it from the mains.

3. When the encrusted ice melts put some dry cloths into the freezer-compartment to hold the water back.
4. Remove the big pieces of ice first. Afterwards remove the small pieces of ice.
5. Wipe and dry the appliance and door seals with dry and soft cloths.
6. After cleaning leave the door open for some time to ventilate the appliance.

AUTOMATIC DEFROSTING (COOLING COMPARTMENT)

1. The cooling compartment is defrosted automatically. The water runs into a container near the compressor.
2. If the automatic defrosting does not meet the requirements, e.g. on days with high ambient temperatures and humidity, defrost the appliance manually as described above.

5.2 Replacing of the illuminant

1. WARNING!

Switch off and unplug the appliance before replacing the illuminant.

1. Remove the cover.

2. Take out the illuminant.

3. Replace it by a new one (10W).

4. Reinstall the cover.

Top-down schematic of a mechanical component with internal oval and circular features (no text or symbols)

According to the EU regulation No. 244/2009, your appliance is classified as a household appliance in accordance with the ecodesign requirements for nondirectional household lamps. This means that bulbs, which are used in household appliances, must not be used to illuminate domestic establishments.

6. Trouble shooting

Malfunction
Possible cause	Measure
THE APPLIANCE DOES NOT WORK AT ALL.

The plug of the appliance is not connected to the socket.
The plug has become loose.
The socket is not supplied with energy.
The fuse is switched off.
The voltage is too low.

▶ Check the corresponding socket by connecting it with another appliance.
▶ Check the fuse box.
➢ Compare the data on the model plate with the data of your energy supplier.

THE COMPRESSOR DOES NOT WORK AT ALL.

➢ Incorrect energy supply.	➢ Check the energy supply.
THE COMPRESSOR OPERATES FOR TOO LONG.
➢ The appliance has been switched off for a while.➢ Too much or too hot food in the appliance.➢ Doors opened too often or too long.	➢ The appliance needs some time to reach the preset temperature.➢ Remove any hot food.➢ Do not open the door too often/too long.

UNSATISFACTORY COOLING CAPACITY.

➢ The door was frequently opened.➢ The door is not properly closed.➢ Encrusted ice inside the appliance.➢ The current temperature setting is too warm➢ Warm or hot food inside the appliance.➢ The appliance is overfilled.➢ The door seals are damaged.

➢ Select a different setting if necessary.➢ Check the door/door seals.➢ Defrost the appliance.

STRONG FORMATION OF ENCRUSTED ICE.

The door is not properly closed.The door seal is damaged or soiled.

Close the door.Clean/replace the door seal.

THE DOOR MAKES A STRANGE SOUND WHEN OPENED.

➢ The door seals are soiled.	➢ Clean the seals.
COMPRESSOR DOES NOT START IMMEDIATELY AFTER HAVING CHANGED THE SETTING.
➢ Normal operating condition.	➢ The compressor will start after a while.

UNUSUAL NOISE.

The appliance is not installed on a flat and level ground. The appliance touches a wall or another object.

➢ Install the appliance properly.
Store food properly.
Remove the items.

➢ Frozen food is stored improperly.

Items have dropped behind the appliance.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

THE OPERATING PROCEDURES DESCRIBED BELOW ARE NORMAL AND DO NOT INDICATE A MALFUNCTION.

The refrigerant generates a sound similar to flowing water.
Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

DISTINCT NOISE

When you operate the appliance for the first time or the temperature falls below a certain level, the appliance will operate with high power to reach the preset temperature.

CONDENSED WATER IN / ON THE APPLIANCE

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures.

CLICKING

You will hear the compressor click if it is activated or deactivated.

HUM

is caused by the compressor while running.

KNOCKING / SNAPPING

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

DECOMMISSIONING, TEMPORARILY:

IF THE APPLIANCE IS NOT USED FOR A LONGER PERIOD OF TIME:

1. Disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
2. Remove all food stored in the appliance.
3. Dry the inside of the appliance with a cloth and leave the door open for a few days.

WHILE AWAY ON AN AVERAGE VACATION / HOLIDAY (14-21 DAYS):

1. Do the same as described above, or

2. let the appliance operate.

a. remove all perishable food from the cooling compartment.
b. clean the cooling compartment.
c. freeze all food which is suitable to be frozen.

IF YOU WANT TO MOVE THE APPLIANCE:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. Do not damage the feet of the appliance.

DECOMMISSIONING, ULTIMATE:

1. Disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

8. Technical data

TECHNICAL DATA*
Model	Built-in fridge
Climatic class	N/ST
Energy efficiency class**	F
Annual energy consumption in kW/h***	181.00
Voltage/frequency	220-240V ΛC/50Hz
Volume net/cooling/freezer in l	116/101/15
Stars	3***
Freezing capacity within 24 h	2.00 kg
Max. storage time/malfunction	10.00 h
Noise emission	41 dB/Λ
Adjustable thermostat	yes
Compressor	1
Refrigerant	R600a
Changeable hinge position	yes
Sliding hinges	yes
Defrosting cooling compartment/freezer	automatically / manually
Freezer flaps	1
Glass shelves/door trays/bottle pocket	1/2/1
Crisper	1
Dimensions appliance H*W*D in cm	88.00*54.00*54.50*
Dimensions packaging H*W*D in cm	94.00*57.50*56.50
Weight net/gross in kg	29.00/31.00

◆ Technical modifications reserved.

*	According to regulation (EU) No. 1060/2010
**	On a scale from Λ+++ (highest efficiency) to D (lowest efficiency).
***	Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.

9. Waste management

1. Dispose of the appliance relevant to the current legislation in view of explosive

gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

REFRIGERANT:

1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.
2. ⚠ WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Cher client,

⚠ MISE EN GARDE ! attire

Exterior view of a building facade with two small flags and the letter 'A' on top (no additional text or symbols)

Simple line drawing of a structural beam with two supports and a labeled point B (no text or symbols beyond labels)

Simple line drawing of a 3D cube with a vertical line and horizontal line crossing through it (no text or symbols)

Joint plastique

Cross-sectional diagram of a mechanical or electrical component with hatched fill and central vertical bar (no text or symbols)

Two technical illustrations: one showing a white electrical box with two dots, and another showing a white cabinet labeled L and R with dot markers (no readable text or symbols beyond labels)

Two white metal bracket components with circular holes, no text or symbols visible

Pure diagram of a rectangular object with six circular holes and directional arrows, no text or symbols present.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating parts of the refrigerator.

Technical diagram showing two labeled components (1 and 2) of a wall-mounted device, likely an electrical or electronic component assembly.

Technical diagram showing exploded and assembled views of a cabinet with labeled components 1 through 4

Interior view of a white refrigerator with six numbered compartments (1–6) open, showing the front and interior views without any text or symbols.

1. COMPARTIMENT CONGELATEUR
2. THERMOSTAT
3. ÉTAGERE REGLABLE
4. BAC A LEGUMES
5. BALCONNETS DE PORTE
6. BALCONNET DE BOUTEILLE

ACHAT DE PRODUITS SURGELES

OBSERVATIONS IMPORTANTES!

Top-down schematic of a mechanical component or device with internal oval and oval features (no text or symbols)

Exterior view of a building facade with two flag-like markers and the letter 'A' on top (no additional text or symbols)

Simple diagram of a structural beam with two supports and a labeled point B (no text or symbols beyond labels)

Diagram showing a cube intersecting a circular cross-section with a vertical rod inserted (no text or labels)

Two technical illustrations: one showing a white panel with two holes, the other a white cabinet labeled 'L' and 'R', both with black arrows pointing outward (no text or symbols on components)

Two white metal bracket components with circular holes, no text or symbols visible

Pure diagram of a rectangular object with six circular holes and directional arrows, no text or symbols present.

Technical diagram of a refrigerator interior with labeled components and angle annotation

1: bag

Interior view of a white refrigerator with numbered compartments (1–6) open, showing no text or symbols on the cabinet itself.

1. VRIEZER KLEPJE
2. THERMOSTAAT
3. VERSTELBARE LEGPLANK
4. FRISSER
5. DEUR BAKJES
6. FLES VAK

GESCHIKTE VERPAKKING:

Plastic folie, buisfolie van polyethyleen, aluminiumfolie.

Top-down schematic of a mechanical component with internal structure (no text or symbols)

1. WAARSCHUWING!

ALS U HET APPARAAT WILT VERPLAATSEN:

Aftersales service information on the leaflet inside this instruction manual.
