USER MANUAL CRX Pro 65 DOMETIC

ca. 50 mm (2 inch) ca. 50 mm (2 inch) ca. 50 mm (2 inch) ca. 50 mm (2 inch) ca. 50 mm (2 inch) ca. 50 mm (2 inch) ca. 50 mm (2 inch) ca. 50 mm (2 inch)

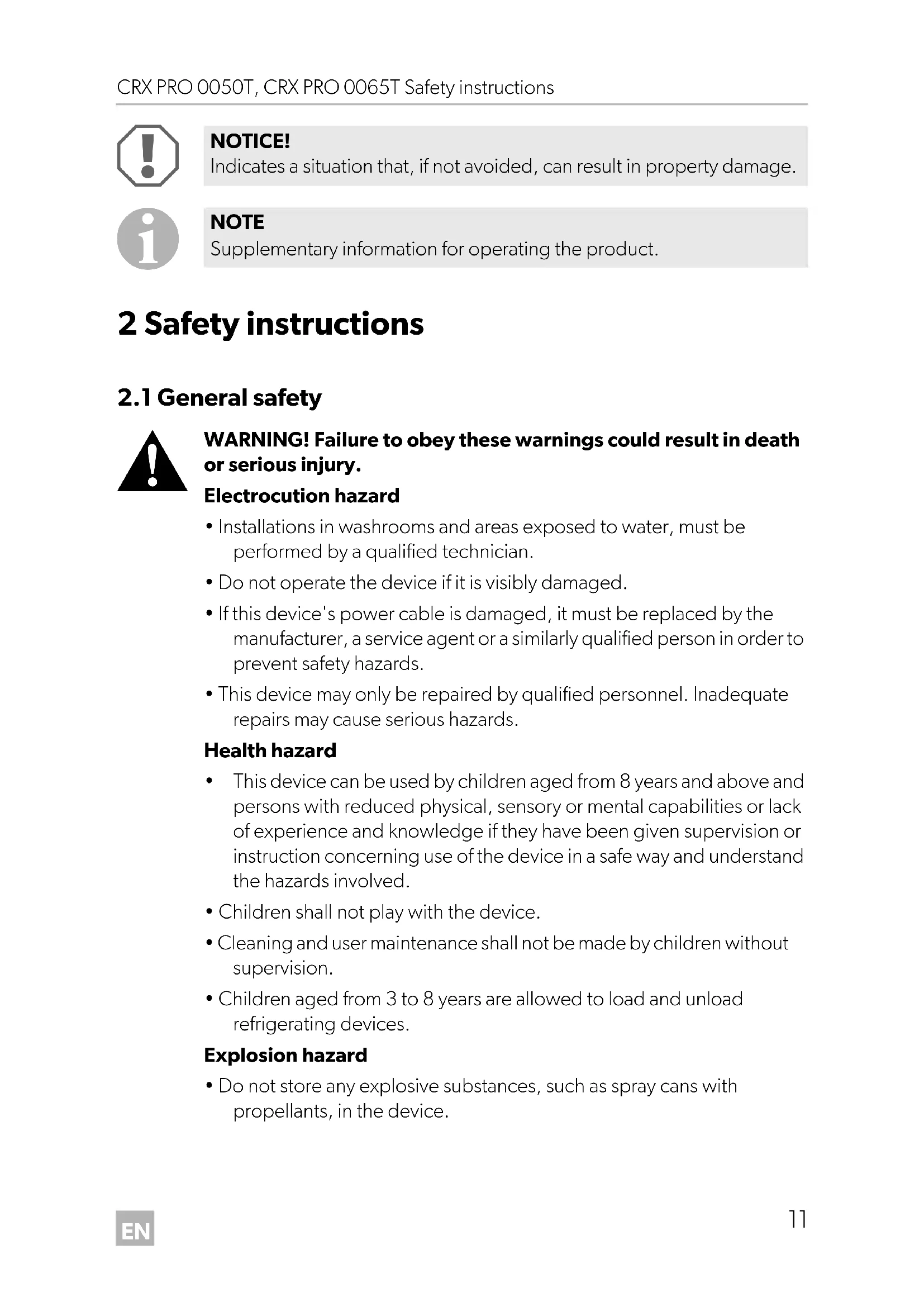

WARNING! Failure to obey these warnings could result in death or serious injury. Electrocution hazard

• Installations in washrooms and areas exposed to water, must be performed by a qualified technician.

• Do not operate the device if it is visibly damaged.

• If this device's power cable is damaged, it must be replaced by the manufacturer, a service agent or a similarly qualified person in order to prevent safety hazards.

• This device may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards. Health hazard

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.

• Children shall not play with the device.

• Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating devices. Explosion hazard

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Risk of crushing

• Do not put your fingers into the hinge. Health hazard

• Foodstuff may only be stored in its original packaging or in suitable containers.

• Check that the voltage specification on the type plate is the same as that of the power supply.

• Never pull the plug out of the socket by the connection cable.

• Disconnect the device and other electric consumers from the battery before connecting the quick charging device.

• Disconnect the device or switch it off when you turn off the engine. Otherwise you may discharge the battery.

• The device is not suitable for storing substances which are caustic or contain solvents.

• Keep the drainage outlet clean at all times.

• Do not open the refrigerant circuit under any circumstances.

• Never transport the device in a horizontal position, so that no oil can leak out of the compressor.

• Make sure that the refrigerant circuit is not damaged during transpor- tation. The refrigerant in the refrigerant circuit is highly flammable. In the event of any damage to the refrigerant circuit: – Avoid naked flames and sparks. – Air the room well.

• Set up the device in a dry location where it is protected against splash- ing water.

2.2 Operating the device safely

DANGER! Failure to obey these warnings will result in death or serious injury. Electrocution hazard

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Electrocution hazard

• Before starting the device, ensure that the power supply line and the plug are dry. Health hazard

• Opening the door for long periods can cause significant increase of the temperature in the compartments of the device.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Store raw meat and fish in suitable containers in the device, so that it is not in contact with or can drip onto other food.

• If the device is left empty for long periods: – Switch off the device. – Defrost the device. – Clean and dry the device. – Leave the door open to prevent mould developing within the device.

• Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for that purpose.

• Do not place it near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)

• Danger of overheating! Always ensure sufficient ventilation so that the heat generated during operation can dissipate. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

• Ensure that the ventilation vents are not covered.

• Do not fill the inner container with ice or fluid.

• Never immerse the device in water.

• Protect the device and the cable against heat and moisture.

• Make sure that foodstuffs do not touch the walls of the cooling area.

3Scope of delivery 4Accessories Available as accessories (not included in the scope of delivery): If you have any questions, please contact the dealer or your service partner directly. 5 Intended use The refrigerator is suitable for:

• Installation in trucks

• Cooling, deep-freezing and storing food The refrigerator is not suitable for:

• Storing corrosive substances or substances that contain solvents

• Quick-freezing food This product is only suitable for the intended purpose and application in accordance with these instructions. This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or mainte- nance will result in unsatisfactory performance and a possible failure. Quantity Description 1 Refrigerator with shelves 1 Water drain outlet 1 Installation and operating manual Description Explanation Ref. no. Mounting Frames Flush-mount and standard mounting frames are available for all CRX models. Various DometicCRXPRO0050T-CRXPRO0065T_IOM_4445103471_AMER3(en-fr-es)_202x-xx-xx.book Seite 14 Mittwoch, 28. Juli 2021 9:54 09EN CRX PRO 0050T, CRX PRO 0065T Technical description

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage

• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer

• Alterations to the product without express permission from the manufacturer

• Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications. 6 Technical description It is recommended the unit is installed into a fixed position. Once it is installed, only the front of the appliance may be accessible. If the refrigerator is operated without a freezer compartment, frozen products can be stored in the short term using the fast-cooling function. All materials used in the refrigerator are compatible for use with foodstuffs. The refrigerant circuit is maintenance-free. The refrigerator can withstand a short-term inclination of 30°. The temperature is set using the control panel on the inside left of the refrigerator. Four temperature ranges from +3 °C (37 °F) to +12°C (54°F), and a fast-cooling function, are available for selection.

6.1 Control elements inside the refrigerator

The various types of refrigerators are shown in the following illustrations:

7 Installing and connecting the refrigerator

7.1 Notes on installing the refrigerator

Observe the following when installing the refrigerator:

• Install the refrigerator so that the warm air produced can easily flow away (fig. 4, page 5). 5 Crisper compartment 6 Bottle restraint (to hold bottles in the door) No. in fig. 3, page 4 Explanation 1 IR sensor for switching the interior light 2 LED Service display 3 LED Blue: Compressor is running LED Orange: Compressor is off 4 On/off button 5 Inner lighting 6 Temperature selection button 7 LED: Fast cooling function on 8 LEDs: Temperature levels No. Explanation DometicCRXPRO0050T-CRXPRO0065T_IOM_4445103471_AMER3(en-fr-es)_202x-xx-xx.book Seite 16 Mittwoch, 28. Juli 2021 9:54 09EN CRX PRO 0050T, CRX PRO 0065T Installing and connecting the refrigerator

Key for fig. 4, page 5 Observe the following installation dimensions:

• Keep objects clear of openings in the housing or installation structure (such as ventilation slots, etc.).

• Condensate is produced when the refrigerator is operating normally. You can either wipe up the condensate on the floor of the refrigerator in regular intervals, or drain it through a water drain outlet in the floor of the refrigerator (see chapter “Mounting the water drain outlet (optional)” on page 17).

7.2 Mounting the water drain outlet (optional)

1. Connect a hose with an inside diameter of 10 mm (0.4 inch) (not included) to the

2. Lay the refrigerator on its side in order to access the bottom side.

3. Mount the water drain outlet (fig. 5 2, page 6) aligned to the front or to the

back according to the desired direction.

Proceed as follows to install the refrigerator:

1. If you wish to drain the condensate through a hose:

Mount the water drain port (see chapter “Mounting the water drain outlet (optional)” on page 17)

2. Open the refrigerator door.

3. Remove the blanking plugs (fig. 6 2, page 6).

4. Push the refrigerator into the recess.

6. Press the blanking plugs (fig. 6 2, page 6) into the openings.

7.4 Changing the door hinge

You can also change the hinge of the door, so that it opens to the left rather than the right. ➤ Proceed as shown (fig. 7, page 7 to fig. 8, page 7).

7.5 Connecting the refrigerator to DC voltage

The refrigerator can be operated with a 12 V or a 24 V DC voltage supply. For safety reasons, the refrigerator is equipped with an electronic system to prevent the polarity being reversed. This protects the refrigerator against reversed polarity when connecting to a battery and against short circuiting. To protect the battery, the refrigerator switches off automatically if the voltage is insufficient (see table below): NOTICE! Material damage

• To avoid voltage drops and loss of performance, keep the connection cable as short as possible and directly connected from the power source to the DC wire connection of the unit. Therefore avoid additional switches, plugs or power strips.

• Disconnect the cooling device and all power source connections from the battery before you connect the battery to a quick charging device. Overvoltage can damage the electronics of the device. 12 V 24 V Cut-off voltage

1. Determine the required cross section of the cable in relation to the cable length

according to fig. 9, page 7. Legend to fig. 9, page 7:

2. Before starting up the device for the first time, check whether the operating volt-

age and the battery voltage match (see type plate).

3. Connect your refrigerator to a plug socket which is fuse-protected at 15 A

(at 12 V) or 7.5 A (at 24 V) (fig. 0 1, page 8).

4. Connect the red cable (fig. 0 rd, page 8) to the positive terminal of the battery.

5. Connect the black cable (fig. 0 bk, page 8) to the negative terminal of the

battery. 8 Using the refrigerator The refrigerator conserves fresh foodstuffs. The freezer compartment conserves frozen foodstuffs and freezes fresh foodstuffs.

Coordinate axis Meaning Unitl Cable length m∅ Cable cross section mm² NOTICE! Material damage Make sure the polarity is correct. CAUTION! Health hazard Please check if the cooling capacity of the refrigerator is suitable for storing the food you wish to cool. NOTICE! Material damage

• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy glass containers.

• Food may only be stored in its original packaging or in suitable containers.

• Only open the refrigerator as often and for as long as necessary.

• Allow warm food to cool down first before placing it in the device to keep cool.

• Defrost your refrigerator as soon as a layer of ice forms.

• Avoid unnecessarily low temperature settings.

• For optimal energy consumption, position the shelves and drawers according to their position on delivery.

• On a regularly basis, make sure the door seal still fits properly.

• Clean dust and dirt from the condenser at regular intervals.

8.2 Switching on the refrigerator

➤ Switch the refrigerator on by pressing the button.

8.3 Setting the temperature

➤ Press the button repeatedly until the desired temperature level is set. The lower/largest LED is the coldest setting. The upper/smallest LED is the warmest setting. To switch from the coldest level to the warmest level press the button again. NOTE

• Before starting your new refrigerator for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 23).

• Do not use force to press the flap of the freezer.

• Do not pull out the dividing wall if there is ice in the freezer.

The option of operating the refrigerator using a fast-cooling function allows tempera- tures suitable for freezing foods to be reached. ➤ Press the button longer than 3 seconds. ✔ The LED above the button lights up. ➤ Press the button again longer than 3 seconds to operate the refrigerator in normal mode.

8.5 Conserving foodstuffs

You can conserve foodstuffs in the refrigerator. The time for which the food can be conserved in this way is usually stated on the package. NOTE The cooling performance can be affected by:

• The ambient temperature

• The amount of food to be conserved

• The frequency with which the door is opened. NOTICE! Material damage

• Only use the fast-cooling function when the removable freezer com- partment is not being used. Otherwise there is a risk that the freezer compartment becomes too cold and condensate cannot be pre- vented from forming on the outside of the refrigerator. The energy consumption will also increase dramatically.

• Note that bottles and other containers can burst when frozen.

• Note that it is difficult to open the refrigerator directly after closing it. NOTICE! Material damage

• Do not conserve warm foodstuffs in the refrigerator.

• Do not place glass containers containing liquid in the freezer compartment. NOTE Food which can easily absorb tastes and odors, as well as liquids and products with a high alcohol content, should be conserved in air-tight containers. DometicCRXPRO0050T-CRXPRO0065T_IOM_4445103471_AMER3(en-fr-es)_202x-xx-xx.book Seite 21 Mittwoch, 28. Juli 2021 9:54 09EN Using the refrigerator CRX PRO 0050T, CRX PRO 0065T

The refrigerator is divided in different zones with different temperatures:

• The colder zones are immediately above the drawers for fruit and vegetables, near the back wall.

• Observe the temperature information and best before date on the food packaging.

• Observe the following when using the refrigerator: – Never re-freeze products which have started defrosting or have been defrosted; consume them as soon as possible. – Wrap food in aluminium foil or cling film and shut in a suitable box with a lid. This ensures that aromas, the shape and the freshness will be better con- served.

8.6 Defrosting the freezer

This is how to defrost the refrigerator:

1. Empty the contents.

2. If necessary, put them in another cooling device to keep them chilled.

3. Press the button until the refrigerator switches off.

4. Leave the door open.

8.7 Switching off and storing the refrigerator

If you do not intend to use the refrigerator for a long time, proceed as follows:

1. Press the button until the refrigerator switches off.

2. Disconnect the connection cable from the battery or disconnect the plug on the

AC cable plug from the rectifier.

3. Clean the refrigerator (see chapter “Cleaning and maintenance” on page 23).

✔ The door stays open thus preventing smells from arising. NOTICE! Material damage Never use mechanical tools to remove ice or to loosen objects stuck to the device. The only exceptions are devices approved for the purpose by the manufacturer. DometicCRXPRO0050T-CRXPRO0065T_IOM_4445103471_AMER3(en-fr-es)_202x-xx-xx.book Seite 22 Mittwoch, 28. Juli 2021 9:54 09EN CRX PRO 0050T, CRX PRO 0065T Cleaning and maintenance

9 Cleaning and maintenance

➤ Clean the refrigerator regularly and as soon as it becomes dirty with a damp cloth. ➤ Make sure that no water drips into the seals. This can damage the electronics. ➤ Wipe the refrigerator dry with a cloth after cleaning. ➤ Check the condensate drain regularly. Clean the condensate drain when necessary. If it is blocked, the condensate collects on the bottom of the refrigerator. WARNING! Electrocution hazard Always disconnect the refrigerator from the mains before you clean and service it. NOTICE! Damage hazard

• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the refrigerator.

• Never use hard or sharp tools to remove ice or to free objects frozen onto the device.

10 Warranty Refer to the sections below for information about warranty and warranty support in the US, Canada, and all other regions.

10.1 United States and Canada

The statutory warranty period applies. If the product is defective, please contact the manufacturer’s branch in your region (dometic.com/dealer) or your retailer. For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date

• A reason for the claim or description of the fault 11 Disposal

➤ Place the packaging material in the appropriate recycling waste bins, wherever possible. WARNING! Risk of child entrapment Before disposing of your old refrigerator:

• Dismantle the drawers.

If you wish to finally dispose of the product, ask your local recycling center or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. 12 Troubleshooting The significance of the red LED (fig. 3 2, page 4) For operational faults it illuminates several times. The number of pulses depends on the type of fault. Each flash lasts for one quarter of a second. After the series of impulses a pause follows. The sequence for the fault is repeated every four seconds. Number of flashesFault Possible cause1 Low Voltage The supply voltage is outside of the set range2 Excessive fan current The fan load on the electronics unit is more than 1 A3 The motor doesn't start The rotor is jammed.The pressure difference in the cooling system is too high (> 5 bar)4 Speed too low If the cooling system is overloaded, the mini-mum speed of the motor of 1,850 rpm can-not be maintained5 Overheating of the electronics unitIf the cooling system is loaded too heavily or the temperature is set too high, the electron-ics can overheatConstantly Temperature sensor errorsTemperature sensor is defective DometicCRXPRO0050T-CRXPRO0065T_IOM_4445103471_AMER3(en-fr-es)_202x-xx-xx.book Seite 25 Mittwoch, 28. Juli 2021 9:54 09EN Troubleshooting CRX PRO 0050T, CRX PRO 0065T

Compressor does not run (battery connection) Problem Possible cause Remedy

Term = 0 V There is an interruption in the battery – electronics connection Establish a connection Main switch faulty (if installed) Replace the main switch Additional supply line fuse has blown (if installed) Replace the supply line fuse

Term ≤ U CON Battery voltage is too low Charge the battery Start attempt with

Term ≤ U OFF Loose cables Poor contact (corrosion) Establish a connection Battery capacity too low Replacing the battery Cable cross section too small Replace the cable (fig. 9, page 7) Start attempt with

Ambient temperature too high – Insufficient ventilation Move the refrigerator to another location Condenser is dirty Clean the condenser Electric circuit between the pins in the compres- sor interrupted Defective compressor Contact customer service No input voltage for controller and load dump board Defective controller and load dump board assembly Replace complete control module

Term Voltage between the positive and negative terminals of the electronics

Cut-in voltage of the electronics

Poor cooling, increase in interior temperature Unusual noises 13 Technical data Problem Possible cause Remedy Compressor runs for a long time/continuously Ambient temperature too high – Insufficient ventilation Move the refrigerator to another location Condenser is dirty Clean the condenser Faulty fan Replace the fan Compressor does not run often Battery capacity exhausted Charge the battery Problem Possible cause Remedy Loud humming A component of the refrigerant circuit cannot move freely (touching the wall) Bend the component carefully away from the obstruction There is a foreign object stuck between the cooling unit and the wall Remove the foreign object Fan noise Replace the fan

(1.79 cu ft) Freezer compartment storage volume:

This product contains fluorinated greenhouse gases. The cooling unit is hermetically sealed. Rated current 12 Vg: 24 Vg:

equivalent: 0.063 t (138.8 lbs)

(141.1 lbs) Global warming potential (GWP): 1430 1430 Dimensions: fig. a, page 8 fig. b, page 9 Weight: 16.6 kg (36.6 lbs)
