SHB 3048 - Mechanical chipper SINBO - Free user manual and instructions

Brand	SINBO
Model	SHB 3048
Product type	Mechanical chopper (food processor)
Power	300 W
Voltage	230 V / 50-60 Hz
Maximum capacity (meat)	250 g
Maximum operating time	30 seconds
Cooling time	2 minutes
Blade material	Stainless steel
Bowl material	Glass (estimated)
Safety system	Lid locking, the appliance only operates if the lid is correctly mounted
Non-slip base	Yes
Dishwasher cleaning	Accessories (except motor unit and base) dishwasher safe, top rack
Integrated cord storage	Yes, winding around the motor unit
Accessory storage in bowl	Yes (except blades)
Included accessories	Motor unit, bowl, lid, pusher, blade set
Weight	Approximately 1.5 kg (estimated)
Dimensions (LxWxH)	Approximately 20 x 20 x 30 cm (estimated)
Warranty	Manufacturer's standard

Frequently Asked Questions - SHB 3048 SINBO

What is the maximum amount of meat I can chop at once?

The maximum quantity is 250 g. Do not exceed this limit to avoid overloading the motor.

Can I chop ice cubes or coffee beans?

No, this appliance is not designed to chop hard foods like ice cubes, coffee, spices or chocolate. Use it only for soft or tender foods.

The appliance does not work, what should I do?

Check that the lid is correctly mounted and the latches are engaged. Ensure the plug is connected. If the problem persists, contact after-sales service.

How to clean the motor unit?

Never immerse the motor unit in water. Clean it with a well-wrung damp cloth. Other accessories (bowl, lid, blades) can be washed by hand or in the dishwasher (top rack).

Can I leave the blades in the bowl for storage?

No, never store the blades inside the bowl. Store them separately to avoid any accident and damage to the appliance.

How long can I run the appliance continuously?

Do not exceed 30 seconds of continuous operation. After each use, let the appliance cool down for 2 minutes before using it again.

Is the appliance suitable for chopping onions?

Yes, cut the onions into pieces of about 2 cm before chopping. The maximum capacity is 250 g.

How to correctly mount the lid?

Place the lid on the bowl aligning the notches. Turn it until it clicks into place. The appliance will only work if the lid is properly locked.

Can I use the appliance without the non-slip base?

It is recommended to use the non-slip base to ensure appliance stability during operation. Place it with the textured side down.

What to do if the appliance has trouble chopping?

Stop the appliance, remove part of the mixture and process it in several batches. Make sure to cut the food into small pieces (1-2 cm) before chopping.

USER MANUAL SHB 3048 SINBO

Close-up of a Sinbo appliance with a black lid and control buttons, placed on a transparent base (no readable text or symbols)

TR

EN

FR

DE

ES

RU

UA

AR

HR

RO

www.sinbo.com

GİRİŞ

Değerli Müşterimiz,

1. Lid
2. Sealing ring
3. Blade unit
4. Removable blade covers
5. Bowl
6. Non-slip ring

Exploded view diagram of a kitchen appliance with numbered parts for identification

Made in Turkey - TÜRK MALI

DİKKAT!!

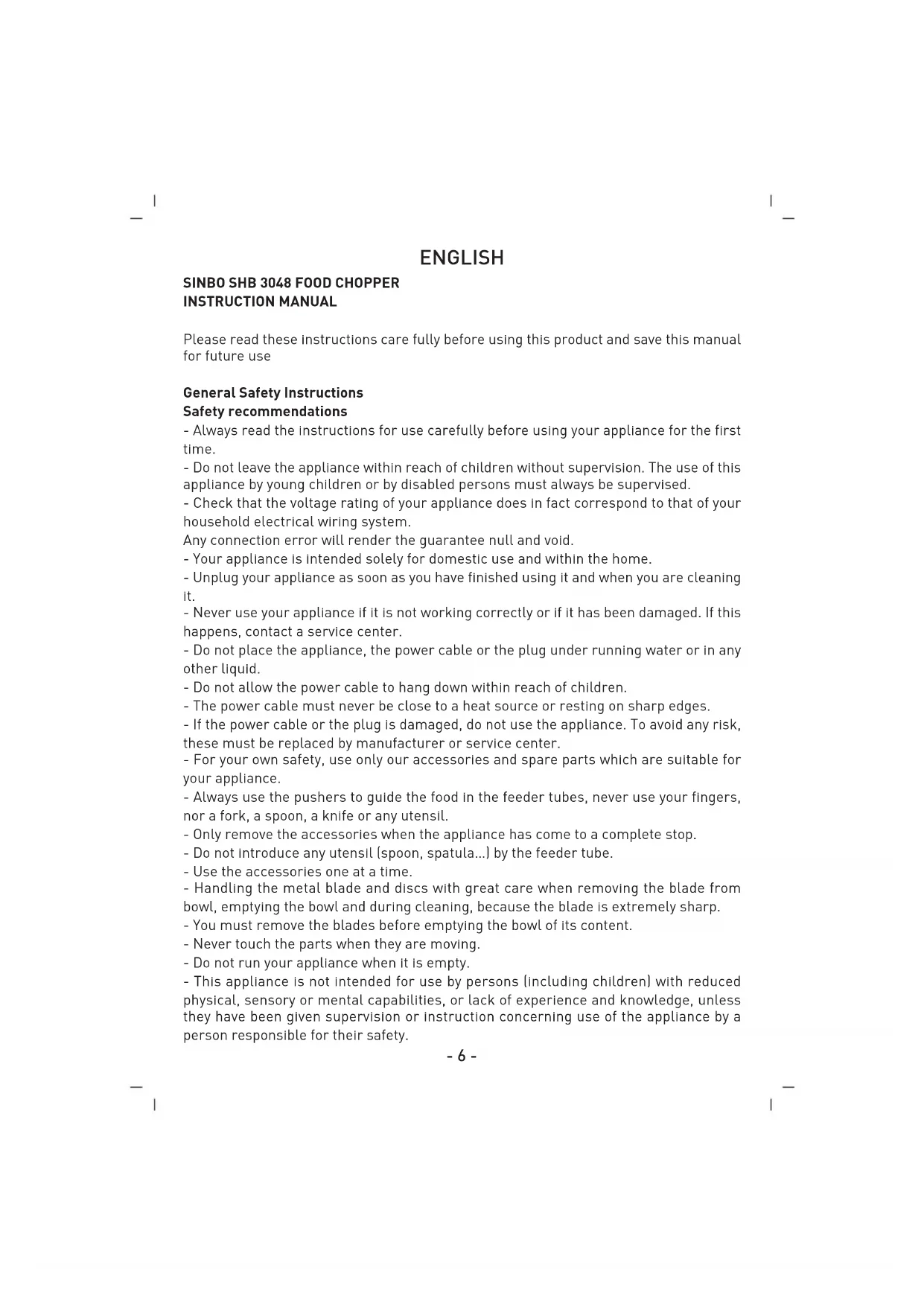

Please read these instructions care fully before using this product and save this manual for future use

General Safety Instructions

Safety recommendations

• Always read the instructions for use carefully before using your appliance for the first time.
• Do not leave the appliance within reach of children without supervision. The use of this appliance by young children or by disabled persons must always be supervised.
• Check that the voltage rating of your appliance does in fact correspond to that of your household electrical wiring system.

Any connection error will render the guarantee null and void.

• Your appliance is intended solely for domestic use and within the home.
• Unplug your appliance as soon as you have finished using it and when you are cleaning it.
• Never use your appliance if it is not working correctly or if it has been damaged. If this happens, contact a service center.
• Do not place the appliance, the power cable or the plug under running water or in any other liquid.
• Do not allow the power cable to hang down within reach of children.
• The power cable must never be close to a heat source or resting on sharp edges.
• If the power cable or the plug is damaged, do not use the appliance. To avoid any risk, these must be replaced by manufacturer or service center.
• For your own safety, use only our accessories and spare parts which are suitable for your appliance.
• Always use the pushers to guide the food in the feeder tubes, never use your fingers, nor a fork, a spoon, a knife or any utensil.
• Only remove the accessories when the appliance has come to a complete stop.
• Do not introduce any utensil (spoon, spatula...) by the feeder tube.
• Use the accessories one at a time.
• Handling the metal blade and discs with great care when removing the blade from bowl, emptying the bowl and during cleaning, because the blade is extremely sharp.
• You must remove the blades before emptying the bowl of its content.
• Never touch the parts when they are moving.
• Do not run your appliance when it is empty.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

SAFETY RECOMMENDATIONS

• Children should be supervised to ensure that they do not play with the appliance.
• Warning: Do not misuse the appliance.

Maximum working quantities and times

- Pork & meat : Max. 250 g

When prepare the foods such as Pork, meat, steak etc. the max. quantity of the mixture is 250g.. The operation time is max. 30s and the rest periods is 2min of each use. Then let the appliance cool down to the room temperature.

Using your appliance

1. Place the non slip mat onto the work-surface, rib side down,
2. Position the bowl onto the middle of the non slip mat.
3. -Fit the knife blade over the pin in the bowl.
4. Add your food, and choose "HIGH or LOW speed" see processing guide.

- Cut large pieces of food into 1-2cm pieces.

- Don't chop hard foods such as coffee beans, ice cubes, spices or chocolate—you'll damage the blade.

1. fit the splashguard.make sure the slots in the splashguard fit over the handleless in the rim of the bowl.

- The food chopper will not operate unless the splashguard is fitted.

1. Fit the power unit.

- The power unit will only fit correctly in two positions.

1. Plug in.pres down the power unit for a short period of time to produce a pulsing action this will avoid over processing the ingredients.

- If the machine labours.remove some of the mixture and continue processing in several batches.

- Stop the machine and scrape down if necessary

1. After use unplug and dismantle.

Cleaning

• Disconnect the appliance plug from the socket.
• Clean the motor block and the cord with a wet and well-wrung sponge.
  All the accessories can be washed :
• Wash with water and detergent. Be very careful when handling the stainless steel blades to avoid cutting yourself.

Power unit and non slip mat

Wipe with a damp cloth, then dry

Other parts

Wash by hand then dry thoroughly or wash on the top rack of your dishwasher.

Storage

Assemble the food chopper and wrap the cord around the power unit.

Processing guide

Meat-250g-Remove bones, fat and gristle. Cut into 1-2cm pieces

Herbs (eg .parsley) -50g -Remove stalks

Nuts(eg.almonds)-200g -Remove stalks

Cheese(eg.cheddar)-100g -Cut into 1-2cm pieces

Bread-75g - Cut into 1-2cm pieces

Hardboiled eggs - 6 -Half or quarter (depending upon size)

Onions-250g-Cut into approx. 2cm pieces

Biscuits-150g - Break into pieces

Soft fruits(eg Raspberries)-250g-Remove stalks

You can store some accessories inside the bowl as indicated in to save space when the product is not in use.

PLEASE NOTE

• DO NOT SWITCH ON THE APPLANCE WITH THE ACCESSORIES STORED IN THE BOWL.
• NEVER SOTRE THE TWO CUTTING AND SLICING BLADES INSIDE THE BOWL : AN INCORRECT OPERATION COULD SERIOUSLY DAMAGE THE PRODUCT.

What to do if your appliance does not work?

Check :

• the connection
• that the bowl cover are properly locked on to the motor unit.
• That the lockers are locked properly.

Your appliance still does not work?

Contact a service center or manufacturer.

Children being supervised not to play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

This device can only be used by children older than 8 years old or physically disabled or hearing-impaired or people with lessen mental faculties or the inexperienced or ignorant people after providing sufficient information for secure utilization and by informing about the possible hazards or under supervision. Children should not play with this device. The cleaning and maintenance activities carried by children should be under supervision.

FRANÇAIS

SINBO SHB 3048 ROBOT DE CUISINE MODE D'EMPOLOI
