PIXMA TS5350a - Printer CANON - Free user manual and instructions

Product type	Inkjet multifunction printer
Brand	Canon
Model	PIXMA TS5350a
Dimensions (W x D x H)	416 x 363 x 212 mm (approx.)
Weight	6.3 kg (approx.)
Power supply	AC 100-240 V, 50/60 Hz
Main functions	Print, copy, scan
Print technology	Thermal inkjet
Maximum print resolution	4800 x 1200 dpi
Print speed (ISO)	Black: 8 ppm, Color: 4 ppm (approx.)
Number of nozzles	Black: 640, Color: 384 (cyan, magenta, yellow)
Supported paper types	Plain paper, photo paper, envelopes
Paper tray capacity	Cassette: 100 sheets (A4), Rear tray: 1 sheet (photo)
Connectivity	Wi-Fi, USB 2.0
System compatibility	Windows, macOS, iOS, Android
Ink cartridges	FINE: Black cartridge PG-545, Color cartridge CL-546
Maintenance and cleaning	Clean the cartridge contacts with a soft cloth; use the head cleaning function from the panel
Safety	Do not touch the cartridge contacts; use only the supplied power cord
Spare parts and repairability	Replaceable ink cartridges; refer to Canon website for parts
General information	Compact printer with LCD screen; setup via Canon PRINT app

Frequently Asked Questions - PIXMA TS5350a CANON

How to install the printer for the first time?

Follow the steps: unpack, remove protective tapes, plug in the power cord, turn on, select the language, install ink cartridges, load paper, then connect to a computer or smartphone via the website ij.start.canon or the Canon PRINT app.

How to connect the printer via Wi-Fi?

For a wireless connection, install the Canon PRINT app on your smartphone or follow the instructions on the Canon website. Activate the printer's Wi-Fi via the control panel, then use the app to find your network and enter the password.

What to do if the printer does not turn on?

Check that the power cord is properly connected to the printer and the power outlet. If it still does not turn on, test another outlet. If the issue persists, contact Canon support.

How to replace the ink cartridges?

Open the top cover, wait for the cartridge holder to move to the center. Remove the used cartridge by pushing it gently. Unpack the new cartridge, remove the protective tape, and insert it until it clicks. Close the cover.

My print is blurry or has streaks, what should I do?

Use the head cleaning function from the control panel (Maintenance menu). If the issue persists, print a nozzle check pattern and perform a deep cleaning. Make sure to use suitable paper.

How to scan a document?

Place the document face down on the glass, close the cover. Press OK, select Scan on the panel. You can also scan from the Canon PRINT app on your smartphone or computer.

The printer shows 'Paper jam', how to resolve?

Turn off the printer. Open the rear cover and cassette. Gently remove any stuck paper. Ensure paper is loaded correctly and guides are adjusted. Avoid exceeding the maximum capacity.

What is the difference between the rear tray and the cassette?

The cassette is used for plain paper (up to 100 sheets A4). The rear tray is for photo paper or special media (load one sheet at a time).

How to print from my smartphone?

Download the Canon PRINT Inkjet/SELPHY app from the App Store or Google Play. Connect your smartphone to the same Wi-Fi network as the printer. Open the app, add the printer, and select the document to print.

The light blinks orange on the panel, what does it mean?

An orange blinking light usually indicates an error: unrecognized ink cartridge, paper jam, or low ink level. Refer to the manual for the exact blinking code or use the app for more information.

USER MANUAL PIXMA TS5350a CANON

Read Safety and Important Information (addendum) first.

Installing the Printer......page 1

Connecting to a Computer, Smartphone or Tablet...... page 4

Instructional Videos

Instructions vidéo

Anleitungsvideos

Instructievideo's

Video informativi

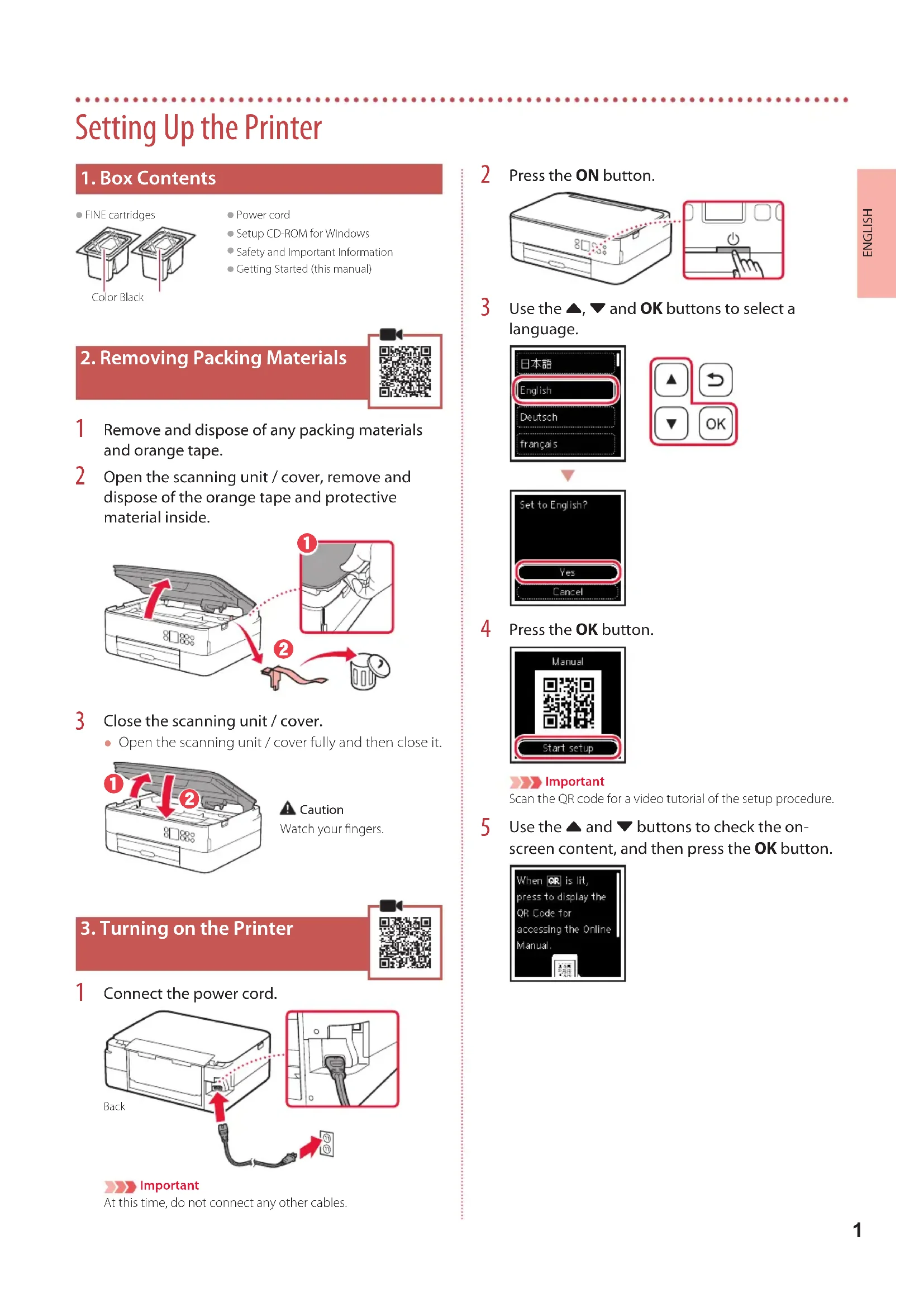

Setting Up the Printer

1. Box Contents

• FINE cartridges

Color Black

Power cord
- Setup CD-ROM for Windows
• Safety and Important Information
• Getting Started (this manual)

2. Removing Packing Materials

1 Remove and dispose of any packing materials and orange tape.

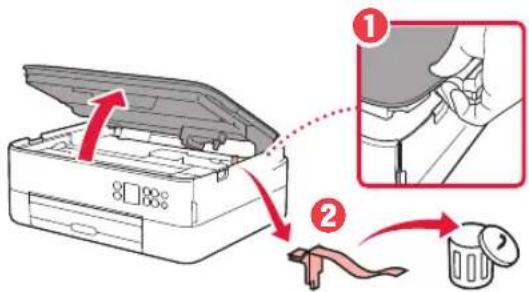

2 Open the scanning unit / cover, remove and dispose of the orange tape and protective material inside.

3 Close the scanning unit / cover.

- Open the scanning unit / cover fully and then close it.

Caution
Watch your fingers.

3. Turning on the Printer

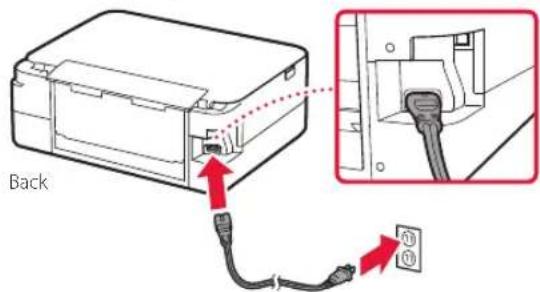

1 Connect the power cord.

Important
At this time, do not connect any other cables.

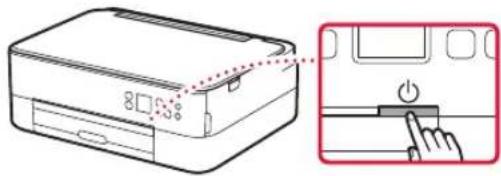

2 Press the ON button.

3 Use the ▲, ▼ and OK buttons to select a language.

4 Press the OK button.

Important
Scan the QR code for a video tutorial of the setup procedure.

5 Use the ▲ and ▼ buttons to check the on-screen content, and then press the OK button.

Setting Up the Printer

4. Installing the FINE Cartridges

1 Open the scanning unit / cover.

Caution

Do not touch the FINE cartridge holder until it stops moving.

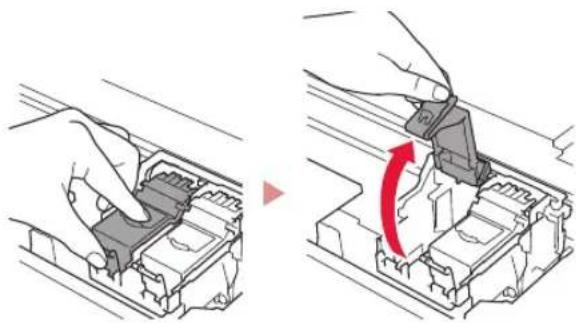

2 Pinch and open the ink cartridge locking cover on the left-hand side.

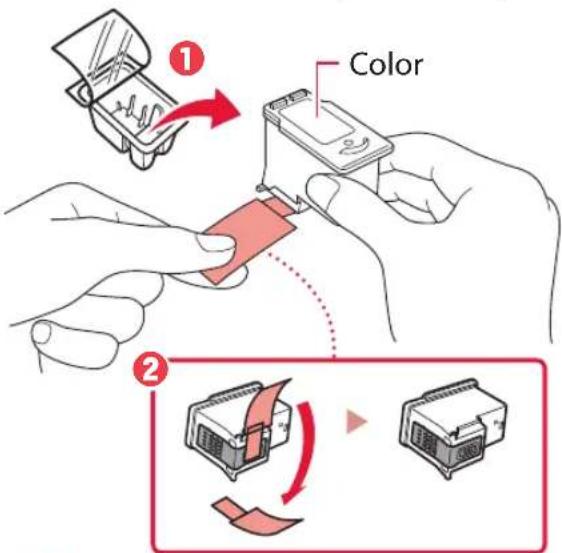

3 Remove the Color FINE cartridge from the container and remove the protective tape.

Important

• Do not touch the ink on the protective tape. It could stain your hands or surrounding objects.
• Do not touch the areas shown in the figure. Otherwise, the printer may not print correctly.

4 Set the Color FINE cartridge in the FINE cartridge holder.

Important

Do not bump the FINE cartridge. Doing so may cause a malfunction.

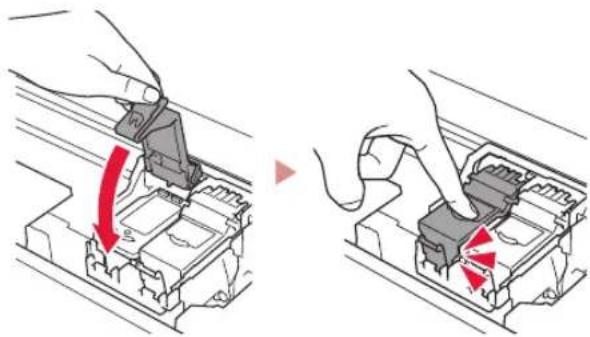

5 Push down the ink cartridge locking cover firmly until it snaps into place to close it completely.

6 Repeat steps 2 to 5 and install the Black FINE cartridge as well, on the right-hand side.

7 Close the scanning unit / cover.

• The printer will start initializing.

Caution

Watch your fingers.

5. Loading Paper

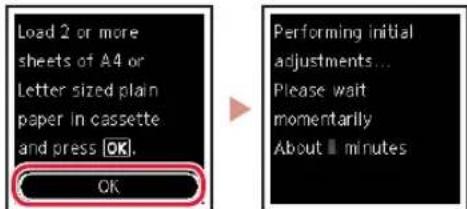

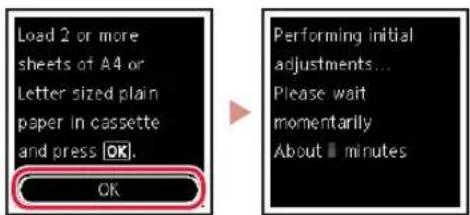

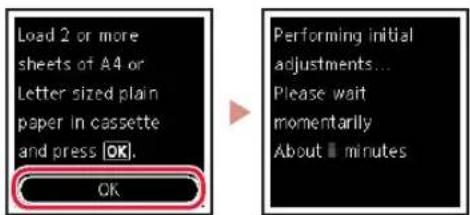

1 Press the OK button.

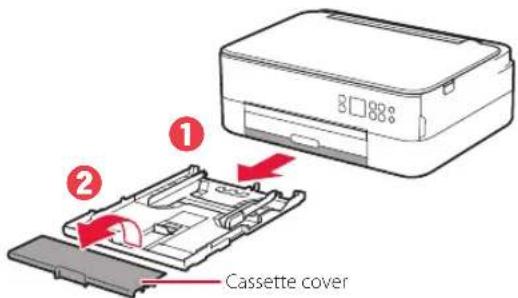

2 Remove the cassette from the printer and remove the cassette cover.

3 Slide apart the paper guides.

- Slide the right paper guide to the right edge. Align the front paper guide with the Letter or A4 mark.

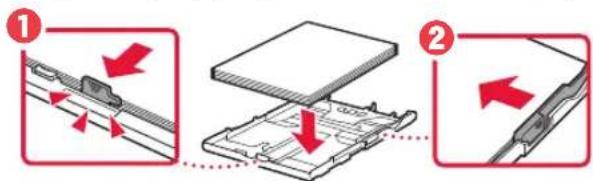

4 Load paper.

• Load 2 or more sheets of Letter or A4 sized plain paper with the print side facing down.
• Place the paper against the front paper guide, and align the right paper guide to the width of the paper.

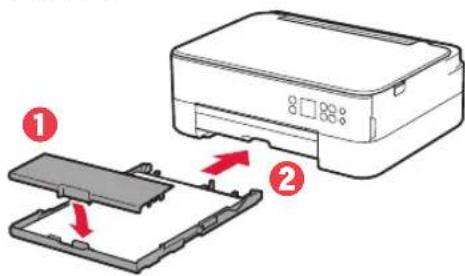

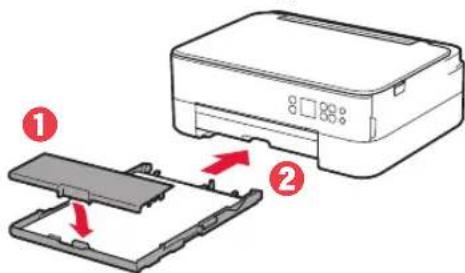

5 Attach the cassette cover and replace the cassette.

- Look at it from the side to confirm it looks like the diagram.

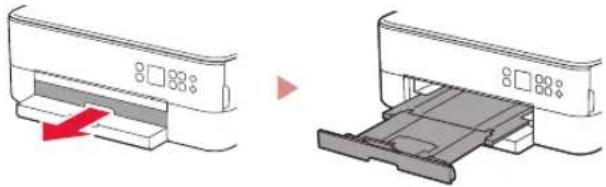

6 Pull out the paper output tray.

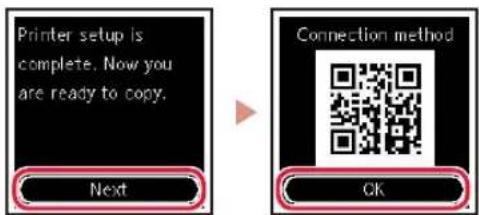

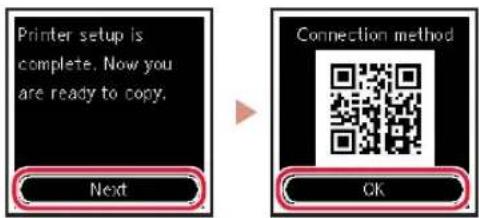

7 Press the OK button.

8 Press the OK button.

Important

Scan the QR code for a video tutorial of the setup procedure.

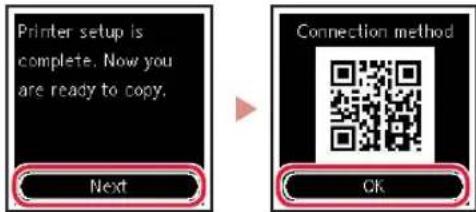

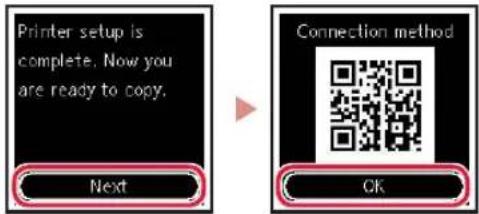

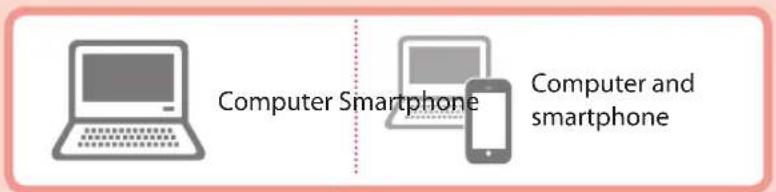

9 Check that the following screen appears.

If you will use the printer without connecting any other devices, setup is now complete.

What device are you connecting?

6-a

Connecting to a Computer

If you are using multiple computers, perform these steps on each computer.

1 Access the Canon website from a computer.

https://ij.start.canon

2 Select Set Up.
3 Enter your printer's model name and click Go.
4 Click Start.
5 Click If you have already prepared your printer, go to Connect.

Note

The following steps are for Windows (except Windows 10 in S mode) and macOS users. For other operating systems, continue setup by following the on-screen instructions instead.

6 Click Download.
7 Run the downloaded file.
8 Click Start Setup.

9 Follow the on-screen instructions.

• These operations may take some time.
- To connect to a smartphone as well, see "6-b. Connecting to a Smartphone" on page 5.

Using the Setup CD-ROM for Windows

Double click EasySetup.exe in the CD-ROM, and then continue from step 3. If you do not have an internet connection, open the win folder in the CD-ROM and double click SETUP.exe. This will install the printer driver.

6-b

Connecting to a Smartphone

If you are using multiple smartphones, perform these steps on each smartphone.

Prepare the following before starting.

1 Enable the Wi-Fi setting on your smartphone.
2 Connect your smartphone to the wireless router (if you have a wireless router). Refer to your smartphone and wireless router manuals for more details.

1 Install the "Canon PRINT Inkjet/SELPHY" app on your smartphone.

- Scan the QR code shown on the right to access the Canon website, and then download the app.

2 Open the installed app.

3 Follow the on-screen instructions in the app to add your printer.

Once you have added your printer, you can print from your smartphone.

To print photos, see "Loading Photo Paper" on page 6.

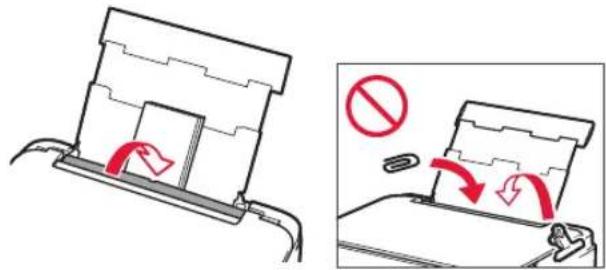

Loading Photo Paper

Photo paper can only be loaded in the rear tray.

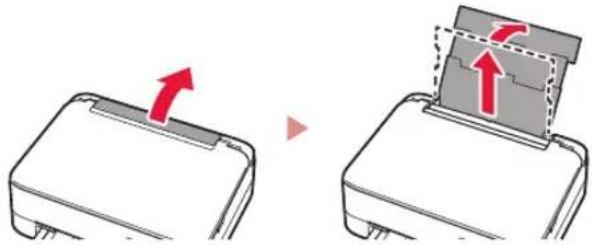

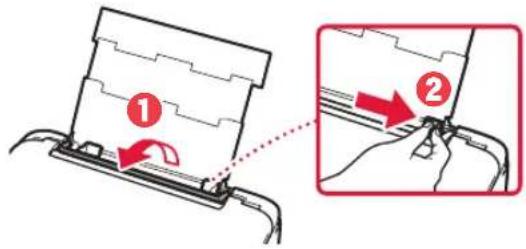

1 Open the rear tray cover and extend the paper support.

2 Open the feed slot cover and slide the right-hand side paper guide to the far right.

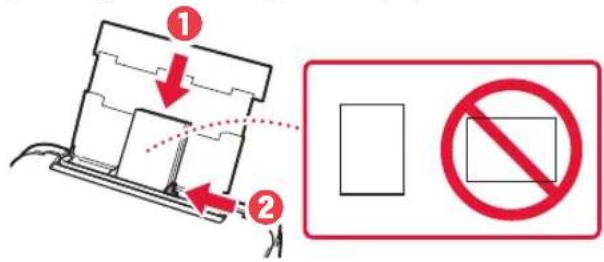

3 Load several sheets of photo paper with the print side facing up and slide the side paper guide against the edge of the paper stack.

4 Close the feed slot cover.

- Follow the on-screen instructions to set information for the loaded paper.

Copying

1 Turn on the printer.
2 Load Letter or A4 sized plain paper.

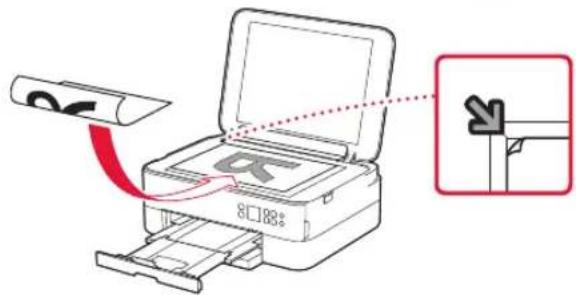

3 Open the document cover and place the document face down on the platen. Align the document with the alignment mark (↘)

4 Close the document cover.
5 Press the OK button.
6 Select Copy settings, and then press the OK button.
7 Specify print settings using the ▲, ▼ and OK buttons.

8 Press the Start button.

Configuration de l'imprimante

Attention

Attention

Important

Attention

Copie

Vorsicht

Vorsicht

Wichtig

Vorsicht

Wichtig

6-a

Kopieren

3 Sluit de scaneenheid / klep.

Let op

De printer instellen

4. De FINE-cartridges installeren

1 Open de scaneenheid / klep.

Let op

Belangrijk

7 Sluit de scaneenheid / klep.

Let op

Belangrijk

6-a

Kopiëren

Attenzione

Importante

Importante

Attenzione

Importante

6-a

Copia

Cuidado

4 Pressione o botão OK.

Importante

Configurando a impressora

4. Instalando os Cartuchos FINE

Cuidado

Importante

Importante

Cuidado

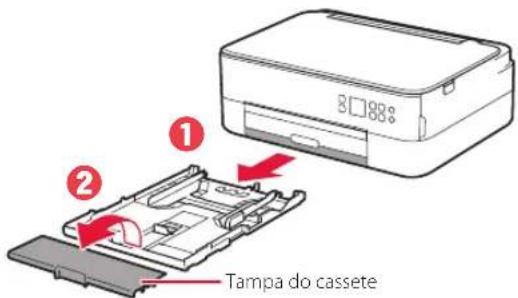

2 Remova o cassete da impressora e remova a tampa do cassete.

3 Deslize as guias do papel.

5 Coloque a tampa do cassete e substitua o cassete.

7 Pressione o botão OK.

8 Pressione o botão OK.

Importante

Copiando

Precaución

Precaución

Importante

Importante

Precaución

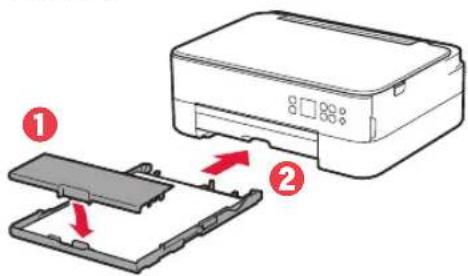

5 Coloque la cubierta del cassette e inserte el cassette.

Importante

6-a

Copia

⚠️ Προσοχή

⚠️ Προσοχή

Σημαντικό

⚠️ Προσοχή

Σημαντικό

Αντιγραφή

4 Tryck på OK.

Viktigt!
Skanna QR-koden för videoinstruktioner för installationsproceduren.

Ställa in skrivaren

4. Installera FINE-kassetterna

⚠ Försiktighet

Viktigt!

Försiktighet

Akta fingrarna.

5. Fylla på papper

1 Tryck på OK.

7 Tryck på OK.

8 Tryck på OK.

Viktigt!

Kopiera

3 Lukk skanneenheten/dekselet.

4 Trykk på OK-knappen.

Viktig!
Skann QR-koden for en videoveiledning om oppsettsprosedyren.

Konfigurere skriveren

4. Installere FINE-kassettene

1 Åpne skanneenheten/dekselet.

Forsiktig!

Viktig!

• Ikke berør blekket på tapen. Det kan sette flekker på hendene dine eller andre gjenstander.
• Ikke berør områdene som er vist på figuren. Skriveren vil ellers ikke kunne skrive ut riktig.

4 Sett FINE-kassetten med farger i FINE-kassettholderen.

Viktig!

7 Lukk skanneenheten/dekselet.

- Skriveren starter initialisering.

Forsiktig!

Pass på fingrene.

5. Legge i papir

1 Trykk på OK-knappen.

5 Fest kassettdekselet og skift ut kassetten.

7 Trykk på OK-knappen.

8 Trykk på OK-knappen.

Viktig!

Skann QR-koden for en videoveiledning om oppsettsprosedyren.

6-a

Koble til en datamaskin

4 Lukk spordekselet for mating.

Kopiere

4 Lukk dokumentdekselet.
5 Trykk på OK-knappen.
6 Velg Kopiinnstillinger (Copy settings), og trykk deretter på OK-knappen.
7 Angi utskriftsinnstillinger med knappene ▲, ▼ og OK.

Forsigtig

Pas på dine fingre.

3. Tænd printeren

4 Tryk på knappen OK.

Vigtigt

Konfigurere printeren

4. Installation af FINE-patroner

Forsigtig

Vigtigt

Vigtigt

Forsigtig

Pas på dine fingre.

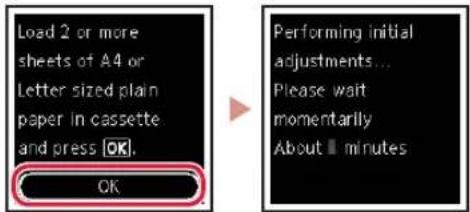

7 Tryk på knappen OK.

8 Tryk på knappen OK.

Vigtigt

6-a

Tilslutning til en computer

Kopiering

Huomio
Varo sormiasi.

4 Paina OK-painiketta.

Tärkeää

Tulostimen asennus

4. FINE-kasettien asentaminen

Huomio

Tärkeää

Huomio

Varo sormiasi.

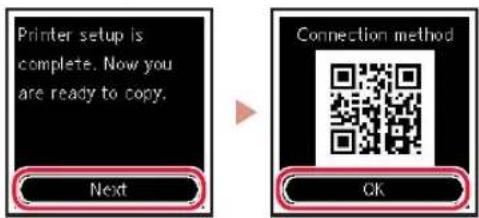

7 Paina OK-painiketta.

8 Paina OK-painiketta.

Tärkeää

6-a

Kopointi

8 Paina Aloita (Start) -painiketta.
