Product Type	Safe
Brand	Burg Wächter
Model	Royal 532
Power Supply	Batteries (type not specified, replace according to mounting)
Display	Digital display with icons
Opening Methods	6-digit code, E-Key (TSE 5103/6103), fingerprint (FP variant)
User Capacity	9 user codes, up to 300 E-Keys, up to 24 Fingerscan users
Default Admin Code	123456
Certification	VdS class B, certified TRSE 6000 electronics
Security Lockout	3 wrong codes → lockout 5 min, then 10 min, etc.
Advanced Features	Clock, date, radio channel (12 channels), access rights management
Maintenance	Regular battery replacement, fingerprint sensor cleaning
Repairability	Spare parts available, replaceable electronics
Manual Pages	44 pages

Frequently Asked Questions - Royal 532 Burg Wächter

How to open the safe with the factory code?

Press the On/Enter key, the display shows 'Code/Fingerp.', enter the admin code (default 123456) and confirm. Then turn the lock unit knob.

How to change the admin code?

Press On/Enter, then Function to access the 'Code Change' menu. Select 'Administrator', enter the old code, then the new code twice. The display confirms 'Code changed'.

Can I open the safe with a fingerprint?

Yes, if your model is equipped with Fingerscan (TRSE 6000 FP). Opening requires two opening methods: one finger + another finger, a code, or an E-Key.

How to register a new user with code?

From the 'Code/Fingerp.' screen, press Function, then navigate to 'Administrator' > 'Register user'. Choose 'Register code', enter the admin code, then the user code and confirm.

What to do if I forget the admin code?

The admin code cannot be recovered. You must contact the after-sales service for a hardware reset. Always keep the code in a safe place.

Why does the safe lock out after three wrong codes?

This is an anti-break-in safety feature. After 3 failures, the safe locks out for 5 minutes, then 10 minutes if another error occurs, etc. The display shows a countdown.

How to change the batteries?

The battery icon shows the status. Open the compartment intended according to your safe's mounting (see page 42 of the manual). Replace the batteries respecting polarity.

What is the E-Key and how to use it?

The E-Key is a contactless identification device (TSE 5103 or 6103). To open, hold the E-Key near the reader after entering your code or fingerprint.

What do the error messages during fingerprint enrollment mean?

Messages like 'too fast', 'too angled', 'too short' indicate a wrong gesture. Slide the finger slowly, straight and centered on the sensor.

How to delete a user or fingerprint?

In the 'Administrator' menu, select 'Delete'. Choose 'Delete user' or 'FS-Reset' for all fingerprints. Enter the admin code and confirm.

USER MANUAL Royal 532 Burg Wächter

Thank you for deciding for a safe with the BURG-WACHTER TRSE 6000 electronics. This electronics is VdS-certified for class B. You have acquired a product meeting extremely high security requirements and developed and manufactured using the latest technical potential.

Please read the entire User Manual before programming and store it at a safe place for future reference.

The TRSE 6000 electronics is available in a TRSE 6000 FP version with a fingerscan unit and in another version TRSE 6000 without the fingerscan unit. The present user manual applies to both versions, however, the menu structure is able to detect automatically the appropriate version and thus only the menu items intended for it are active. The items relevant only for the electronics with a fingerscan unit are marked with*.

Generally, you can open the safe in three possible ways:

with a code
with an E-Key (ident medium TSE 5103 E-Key SB and TSE 6103 E-Key not included in the delivery)
with your fingerprint*

The administrator code when delivered from the factory is 123456. This code must be changed. Additional 9 users with a code to be entered by the keyboard can be defined. Such code has always six digits, similarly to administrator's code.

Additionally, up to 300 E-Keys for contactless opening can be stored.

In case you possess a safe with a fingerscan unit, up to 10 users with fingerscan can be additionally stored. Users with fingerscan are identified in the user list of the lock as USER xxx_FP.

The TRSE 6000 FP electronics is the first safe electronics, for which the opening based on fingerscan is certified.

At least two opening codes shall be entered to open the safe using fingerprint. Another opening code must be entered in addition to fingerscan. This can be either another fingerscan, but also a pin code or an E-Key. All the fingerprints are stored in the system with a value of 12 . In order to acquire the authorization to open, a value of at least 1 must be achieved. A pin code with a value of at least 12 must be therefore entered for the opening, a value of 1 can be also achieved with an additional fingerscan.

Attention: The values can only be adjusted using TSE Light, TSE System and System + software. When a PIN code user or an E-Key user is being created for the safe, an inquiry is made on whether the opening code shall be used together with a fingerprint. Correspondingly, the value is then automatically set to 12 . Otherwise the PIN code and the E-Key are assigned values of 1, the fingerscan is always assigned a value of 12 .

Blocking times: To protect the lock against manipulation the electronics block the access to the safe for 5 minutes if 3 incorrect pincodes have been entered one after another. With every following wrong pincode for 10 minutes. During this period, the display shows the remaining countdown time. Opening the safe is also not possible with a valid user or administrator code.

In order to enhance the protection against intrusion, the following points should be observed:

For locking systems with material code carriers, e. q. an E-Key:

• The code carrier should be consistently stored safely, so that it is accessible only to the authorized persons.
• In case of a loss of the code carrier, the lock should be immediately replaced or converted to a new combination by changing the coding, and / or the code of the lost code carrier should be blocked / deleted.

For locking systems requiring a code:

• No personal data (e.g. dates of birth) or other data, for which a link can be derived to the code owner, should be used for coding.
• If the code is stored in writing, such document should be consistently stored safely, so that it is accessible only to the authorized persons.
• Attention: Any changes of the administrator code and of the user codes shall be made with the safe door opened!
• When the locking system has been reset to another code, this new code should be repeatedly used with the safe door opened.

2.1 Description of basic functions

You can program your lock based on the following description.

You can see the programming instructions on the display. To program the lock (enter into the menu), please press the "Function" key, when the symbol "M" is displayed. You can move within the menu using the keys "1" scroll up (symbol on display) and "2" scroll down (symbol on display). When the symbol "<" is displayed, you can use the "Function" key to skip to the next higher menu level, and choose a particular menu item using the "Enter / On" key. The battery symbol indicates the current battery status:

Battery full

[][]Battery empty (please replace the batteries)

The batteries are replaced in a way depending on the safe fittings.

Battery replacement page 42

C

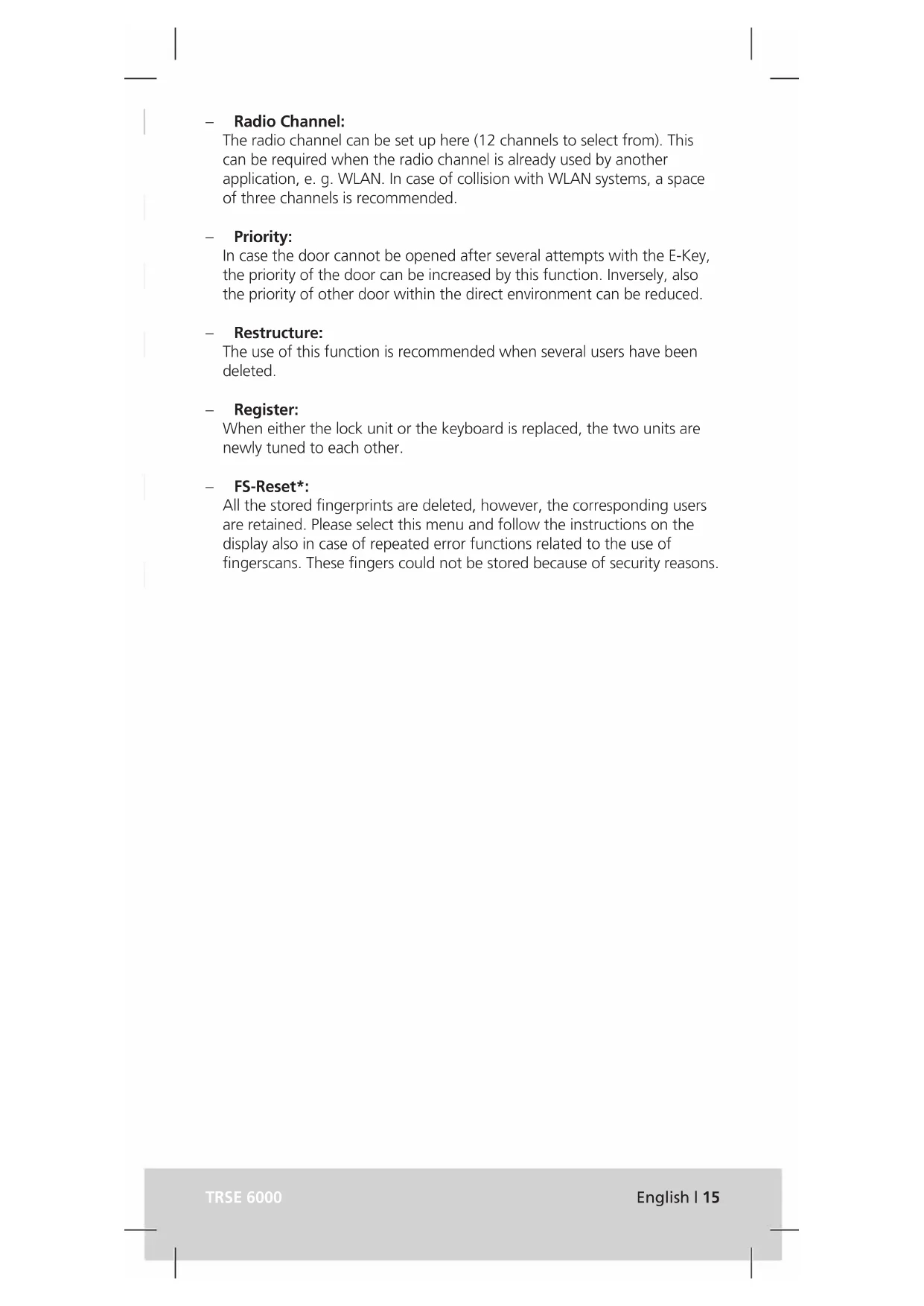

Radio Channel:

The radio channel can be set up here (12 channels to select from). This can be required when the radio channel is already used by another application, e. g. WLAN. In case of collision with WLAN systems, a space of three channels is recommended.

Priority:

In case the door cannot be opened after several attempts with the E-Key, the priority of the door can be increased by this function. Inversely, also the priority of other door within the direct environment can be reduced.

- Restructure:

The use of this function is recommended when several users have been deleted.

Register:

When either the lock unit or the keyboard is replaced, the two units are newly tuned to each other.

- FS-Reset*:

All the stored fingerprints are deleted, however, the corresponding users are retained. Please select this menu and follow the instructions on the display also in case of repeated error functions related to the use of fingerprints. These fingers could not be stored because of security reasons.

2.3 Menu structure

Display Input

Administrator User
E=Enter

2.4 Detailed description of selected basic functions

1. Opening the safe using the factory code

• Press the On/Enter key
• The Code/Fingerp indication is displayed (in case you possess electronics without fingerscan, Code is displayed instead.)
• At this point you are asked to enter the Admin. Code (factory setting 123456)
• The instruction Please turn knob is displayed

Attention: The message Please turn knob implies the action with the knob of the locking unit, for which the opening code has been entered.

2. Changing the Administrator Code

-PresstheOn/Enter key
The indication of Code/Fingerp is displayed
- Press the Function key
-TheChange code menu is displayed
-PresstheOn/Enter key
The indication of Administrator is displayed
-PresstheOn/Enter key
The indication of the Old code is displayed
- At this point you are asked to enter the Admin. Code (factory setting 123456)
-PresstheOn/Enter key
The indication of the New code is displayed
- Enter the new code
-PresstheOn/Enter key
The indication of Repeat code is displayed
- Enter the new code
-PresstheOn/Enter key
- The indication of Code successfully changed is displayed

3. Creating a user with a code

-PresstheOn/Enter key
The indication of Code/Fingerp is displayed
- Press the Function key
-TheChange code menu is displayed
- By pressing the key 2 reach the Administrator menu
-PresstheOn/Enter key
-AdminsetupCreate user is displayed
-PresstheOn/Enter key
- Createcode is displayed
-PresstheOn/Enter key
- At this point you are asked to enter the Admin. Code (factory setting 123456)
The indication of User 00x is displayed
- Please enter the user code and confirm it with ENTER
- Press the On/Enter key
- FS combination to be confirmed with ENTER is displayed
- Press the On/Enter key and accordingly the Function key
After confirmation, Save with the On key is displayed.

4. Creating a user with an E-Key

-PresstheOn/Enter key
The indication of Code/Fingerp is displayed
- Press the Function key
- The Change code menu is displayed
- By pressing the key 2 reach the Administrator menu
Press the On/Enter key
- Admin setup Create user is displayed
- Press the On/Enter key
CreateE-Key is displayed
-PresstheOn/Enter key
- At this point you are asked to enter the admin. Code (factory setting 123456)
- FS combination to be confirmed with ENTER is displayed
Press the On / Enter key and accordingly the Function key
- User 00x Store E-Key using ENTER is displayed
- Please bring the E-Key in the programming mode.
-PresstheOn/Enter key
- E-Key in Prog mode, continue with Enter is displayed
-PresstheOn/Enter key
Afterconfirmation, Save with the On key is displayed

If the message FS combination to be confirmed with ENTER is displayed you have to decide whether the user should get the full opening right or half of it.

Full opening right: press Function key

Half opening right: press ENTER key

If you create a half opening right the Pin code is only to be allowed to open with another opening secret e. g. the fingerprint.

5. Storing a user with fingerprint*

-PresstheOn/Enter key

The indication of Code/Fingerp is displayed
- Press the Function key
- The Change code menu is displayed
- By pressing the key 2 reach the Administrator menu
- Press the On/Enter key
- Admin setup Create user is displayed
- Press the On/Enter key
- By pressing the key 2 several times reach the Create fingerscan menu
-PresstheFunction key
- At this point you are asked to enter the admin.

Code (factory setting 123456)

The indication of Create fingerscan is displayed
- The indication of Store finger is displayed
- Please pull your finger over the sensor for several times according to the instructions shown on the display
- After a successful entry the indication User xxx successfully created is displayed

Attention: When saving a fingerprint it is important that the finger is laid evenly and in a straight position over the sensor. Follow the instructions on the display. The finger is saved only when it can be read in an optimum quality.

6. Opening with fingerprint*

-PresstheOn/Enter key
- The indication of Code/Fingerp is displayed
- Move the saved finger over the sensor
Value not achieved is displayed for a short time
TheCode/Fingerp indication is displayed
- At this point, enter an additional opening code.
- The instruction Please turn knob is displayed

7. Deleting a finger*

• Press the On/Enter key
• The indication of Code/Fingerp is displayed
  PresstheFunction key
• The Change code menu is displayed
• By pressing the key 2 reach the Administrator menu
• Press the On/Enter key
• Admin setup Create user is displayed
• By pressing the key 2 reach the Admin. setup Delete menu
  Press the On/Enter key
• Delete user is displayed
  -PresstheOn/Enter key
• At this point you are asked to enter the admin.

Code (factory setting 123456)

• Now you have to select the appropriate user by pressing the keys 1 or 2
  -PresstheOn/Enter key
• The indication of Delete data to be confirmed with the On key is displayed.
  -PresstheOn/Enter key
  The indication of Data record deleted is displayed

Additional users can be deleted using the On/Enter key. By pressing the Function key, you can reach higher menu levels up to the code entry.

2.5 Error messages*

The following error messages are indicated when a finger is being saved or the safe opened:

Error message Elimination of causes
too fast!please repeat	Move the finger more slowly over the sensor
too aslant!please repeat	Move the finger straight over the sensor
too short!please repeat	Move the finger over the sensor in a way allowing more surface area to be rea
place to the center and repeat!	Place your finger centrally over the sensor

Disposal

Dear customer,

Please help us avoid unnecessary waste.

Should you intend to dispose of this device at any time, please remember that many components of this device contain valuable materials, which can be recycled.

Please be aware that electrical and electronic equipment and batteries shall not be disposed of as household waste, but rather collected separately. Please obtain information on the collecting points for electrical waste from the responsible authority of you municipality.

If you have any questions concerning the EC declaration of conformity, please use [e-mail].
