Accessimo 4 PY312511 - Griddle MOULINEX - Free user manual and instructions

Product type	Electric crêpe maker
Brand	Moulinex
Model	Accessimo 4 PY312511
Power	1500 W (estimated)
Power supply	220-240 V, 50/60 Hz
Dimensions (L x W x H)	Approximately 35 x 35 x 10 cm (estimated)
Weight	Approximately 2.5 kg (estimated)
Capacity	Up to 6 mini crêpes or 1 large crêpe per cooking
Main functions	Cooking crêpes, mini crêpes, blinis, pancakes, grills (depending on model)
Coating	Non-stick, do not use metal utensils
Heating indicator	Thermo-Spot™ (depending on model): pattern turns uniformly red when at optimal temperature
Included accessories	Graduated ladle, spreader, plastic/wooden spatula (depending on model)
Maintenance	Clean with sponge, hot water and dish soap. Do not immerse. Do not use abrasive powder.
Storage	Store flat, out of reach of children
Safety	Automatic shut-off not specified; use on a stable surface, do not leave unattended
Warranty	2 years (standard)
Repairability	Spare parts available from Moulinex after-sales service
Use	Household use only

Frequently Asked Questions - Accessimo 4 PY312511 MOULINEX

How to clean the cooking plate?

Use a soft sponge, hot water and dish soap. Never immerse the appliance nor use abrasive powder or metallic sponge to preserve the non-stick coating.

Can metal utensils be used on the plate?

No, to avoid scratching the non-stick coating, only use plastic or wooden spatulas.

How to do the first use?

Wash the plates with a sponge and dish soap, dry them, then pour a little oil and wipe with a soft cloth. A slight release of odor or smoke is normal during the first heating.

How to spread the crêpe batter evenly?

Pour the batter using the graduated ladle (filled according to the type of crêpe). Use the back of the ladle or the spreader in a circular motion from the center outward. To make spreading easier, dip the ladle or spreader in water.

What to do if the plate sticks?

Make sure the plate is well preheated and lightly oiled. Use a wooden or plastic spatula to gently detach. If the problem persists, clean the plate and apply a little oil again.

Does the appliance heat evenly?

Yes, the heating system ensures even distribution. The Thermo-Spot™ (depending on model) turns uniformly red when optimal temperature is reached.

Can we cook other foods than crêpes?

Yes, depending on the model, you can make blinis, pancakes, galettes, and even meat grills. Consult the manual for recommended quantities and cooking times.

How to store the appliance after use?

Let it cool completely, clean the plate, then store it flat on a stable support, out of reach of children. Place the accessories in their designated compartment.

What to do in case of overheating?

Unplug the appliance immediately and let it cool. Do not place it in a corner or against a wall to avoid overheating. If the problem persists, contact Moulinex after-sales service.

How to know if the plate is ready for use?

Turn on the appliance and wait a few minutes. The Thermo-Spot™ (if present) turns uniformly red. Otherwise, drop a drop of water: it should sizzle immediately.

USER MANUAL Accessimo 4 PY312511 MOULINEX

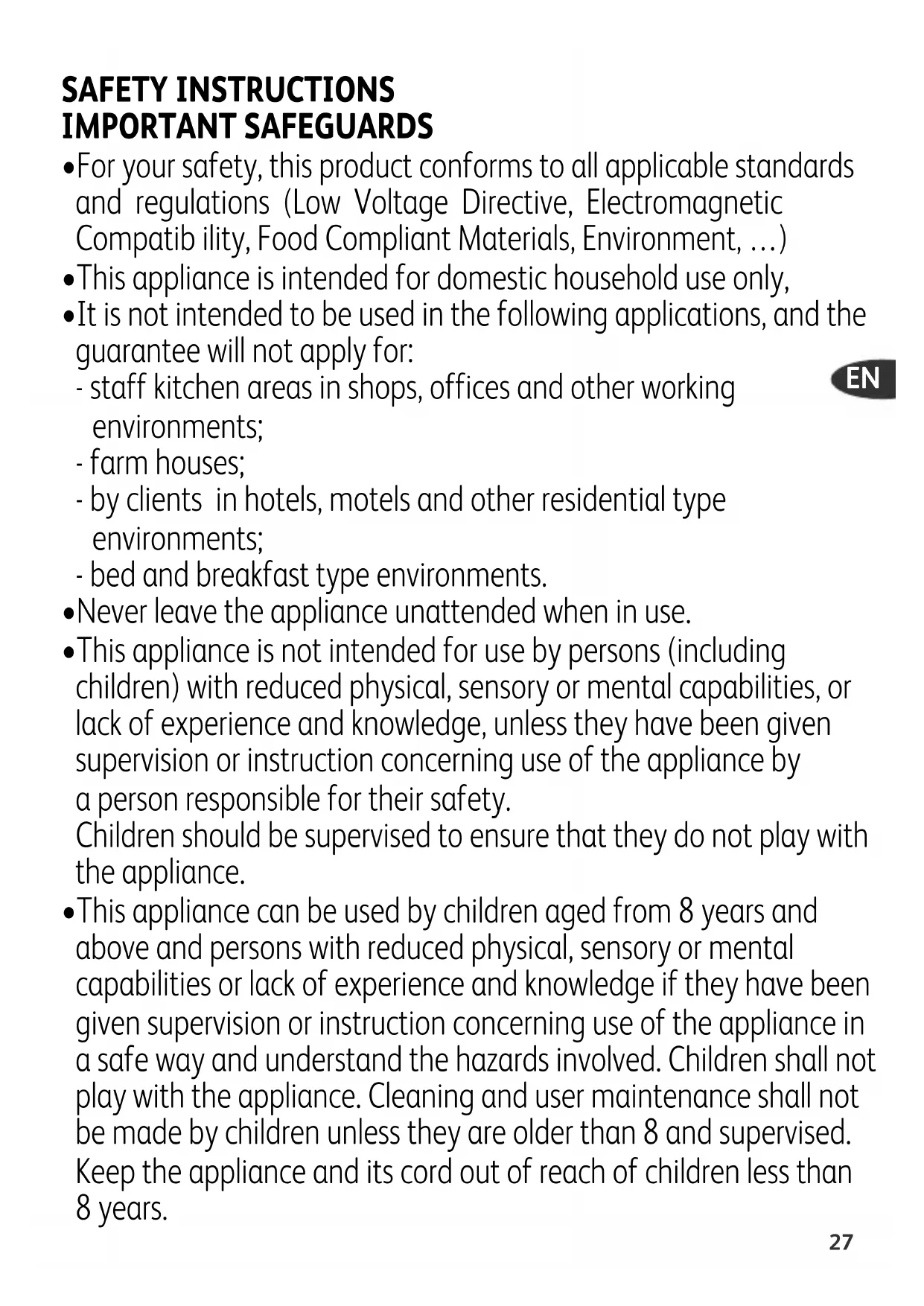

SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS

• For your safety, this product conforms to all applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...)
• This appliance is intended for domestic household use only,
• It is not intended to be used in the following applications, and the guarantee will not apply for:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

• Never leave the appliance unattended when in use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

Children under the age of 8 years should not use this appliance unless continuous supervision by a responsible adult is given.

• This appliance is intended to be assembled, cleaned and maintained by an adult.
• This appliance is intended to stay on the working surface for the time needed to perform its intended operation. After the intended operation has been performed it has to be stored in a safe place not reachable by young and very young children.

EN

- Accessible surface temperatures can be high when the appliance is operating.

Never touch these surfaces, always use the handles.

• Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.
• This appliance is not intended to be operated by means of an external timer or separate remotecontrol system.
• If your appliance is fitted with a removable power cord: if the power cord is damaged, it must be replaced by a special cable or unit available from the manufacturer or its after-sales service.
• If your appliance is fitted with a fixed power cord: if the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Do not immerse the appliance and the cord in water. They are not dishwasher safe.
• Do not consume foodstuff that comes into contact with the parts marked with logo ✗

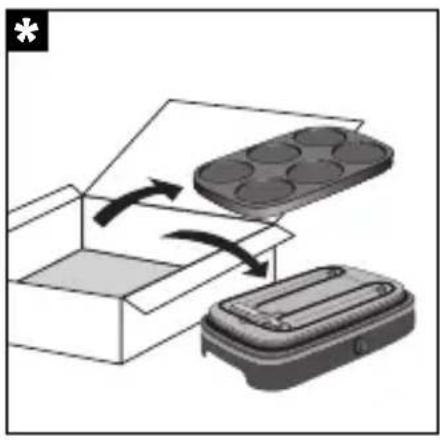

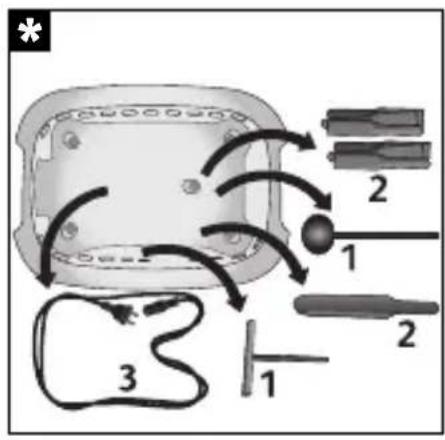

• Remove all packaging materials, stickers and accessories from the inside and the outside of the appliance.
• Keep all packaging, accessories, stickers and plastic bags out of children's reach.

Do

• Read the instructions in this leaflet carefully and keep them within reach. They apply to every version depending on the accessories that come with your appliance.
• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.
• Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds, We advise bird owners to keep them away from the cooking area.

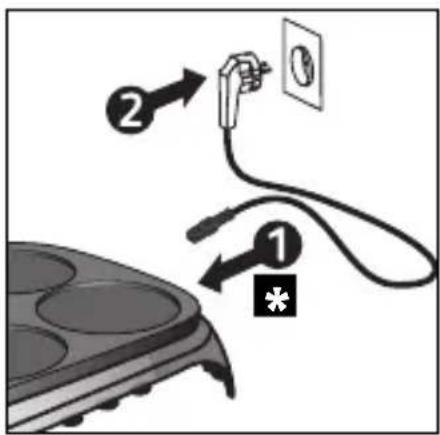

• Fully unwind the power cord.

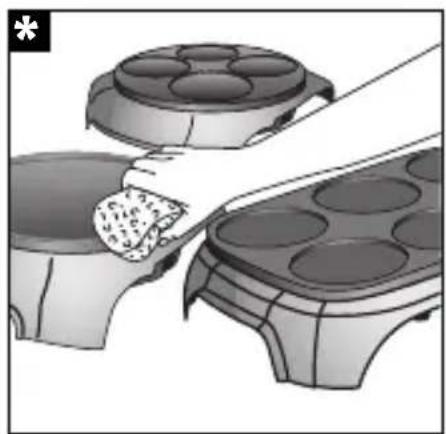

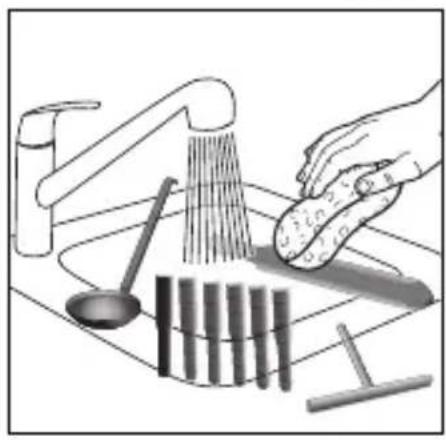

• When using for the first time, wash the plate(s) or the dish or the stone (refer to “after use” paragraph), pour a little cooking oil on the plate or on the inside of the pot and then wipe it with an absorbent kitchen towel.
• If the appliance is used in the centre of the table, keep it out of the reach of children.
• If an extension cord is used, make sure to choose one of equivalent diameter with an earthed socket (for earthed products). If an extension cord is used, make sure to choose one of equivalent diameter (for non earthed products).
• Always plug the appliance into an earthed socket.
• Position the cord carefully, whether an extension is used or not, so that guests can move freely around the table without tripping over it.
• To avoid damaging the non-stick coating of the cooking plate, always use plastic or wooden utensils.
• The cooking plates, the tray and the body of the appliance can be cleaned with a sponge, hot water and washing up liquid.
• Caution: this appliance is not a toy.

Do not

• Never leave the appliance unattended when plugged in.
• Never run the appliance empty.
• To prevent the appliance from overheating, do not place it in a corner or against a wall.
• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.) or on a soft surface such as a tea-towel.
• Do not place cooking utensils on the cooking surfaces of the appliance.
• To avoid spoiling your product, do not use flambé recipes in connection with it at any time.
• Never cut directly in the dish.
• Never use metal scourers or scouring powders to avoid damaging the cooking surface (e.g.:non-stick coating, ...).

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

SAVE THESE INSTRUCTIONS

Accessories (according to the model)

mini-spatulas (1) ladle (2) spreader (3) spatula (4)

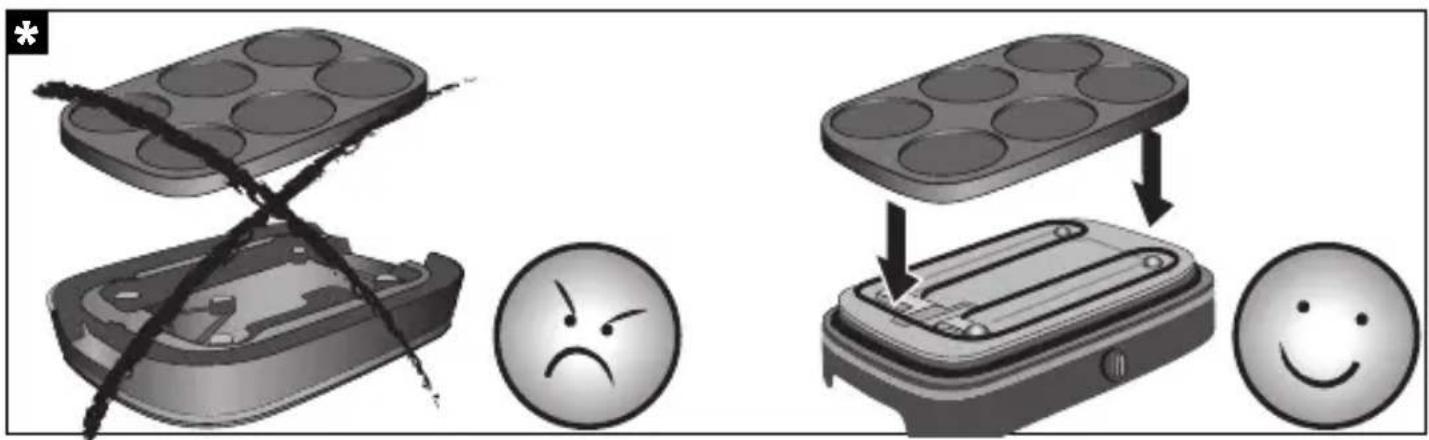

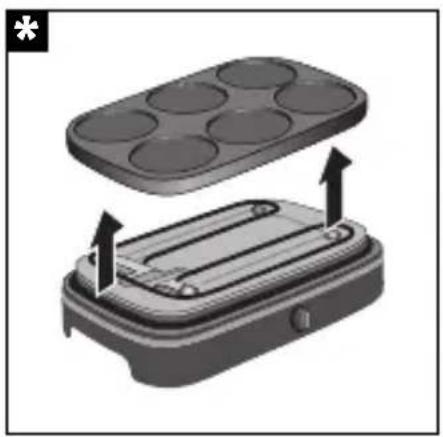

Only use the plate supplied with the appliance or purchased from an approved service centre.

Cooking

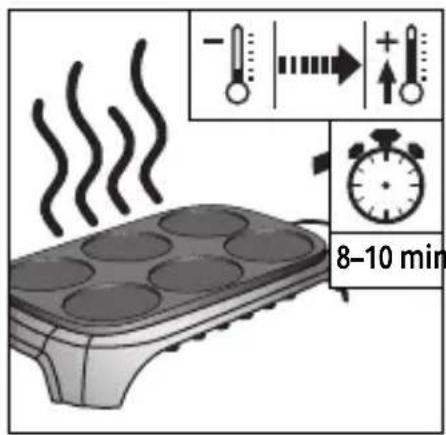

After pre-heating, the appliance is ready to be used.

During first use, the appliance may give off a slight odour and smoke: this is normal.

Thermo-Spot ^™ (according to the model): the Thermo-Spot turns sold red when the appliance is perfectly preheated and ready to cook.

According to the model, use the measuring ladle to obtain the required amount of batter for the chosen recipe:

- For 6 mini pancakes: fill up to the lower level of the ladle (2a)

• For blinis and pancakes: fill the ladle (2b) completely.
• For crêpes (according to the model): fill the ladle completely twice (2b)

According to the model, spread immediately, without pressing, with the back of the ladle (2) (for mini-pancakes) or the spreader (3) for large pancake), in a circular movement from the centre. Turn the pancake over half way through cooking using the spatula supplied for this purpose.

Then fold the pancake as you want: as a roll or in half, in quarters or folded as an envelope or flower shape.

According to the model, to spread the batter easily, we recommend placing the ladle or the spreader in a jug of water.

Garnish the sweet pancakes on your plate after cooking, not whilst it is still on the cooking plate.

According to the model, you can also grill foods.

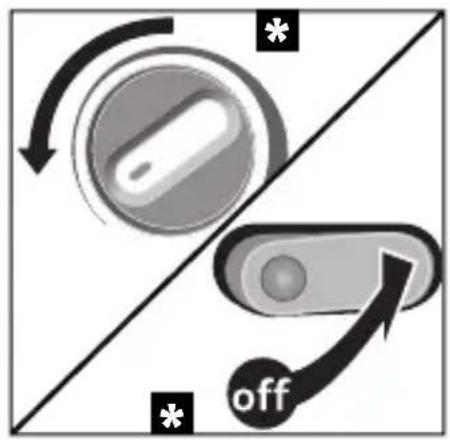

After use

Do not place the plate onto a fragile surface.

Do not place the hot plate in water.

The heating coil is not to be cleaned. If it is really dirty, wait until it has cooled down and wipe with a dry cloth.

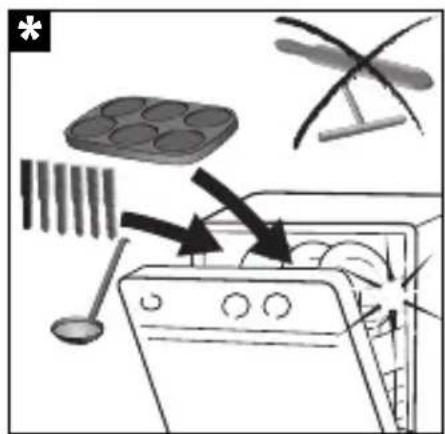

Clean the plates and body of the appliance using a sponge and washing-up liquid.

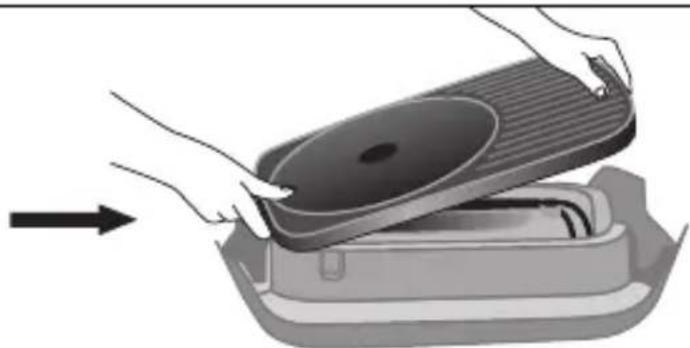

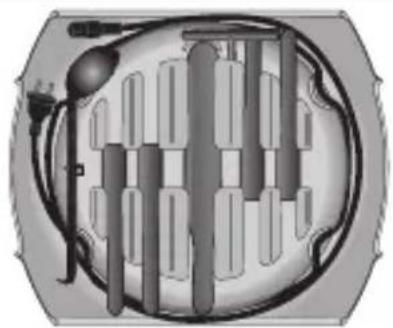

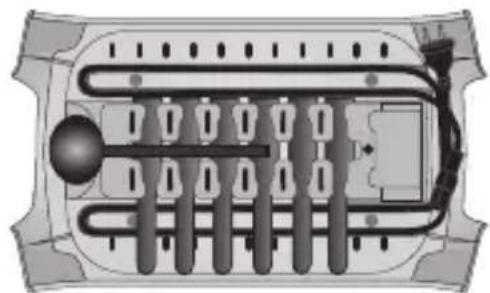

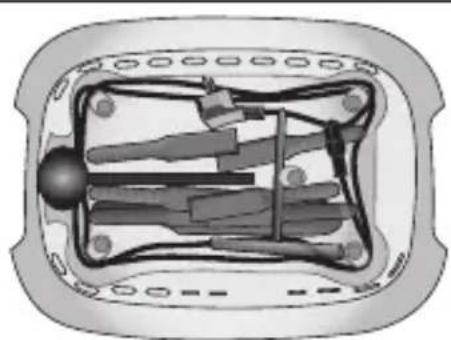

Storage (according to the model)

Place the appliance upside down on a clean, flat and stable surface such as a tablecloth, to avoid damaging the cooking surface.

Store each accessory in its dedicated compartment. Always store the accessories in the right order.

Keep the appliance out of the reach of children.

The Crêpes

40 to 60 mini-pancakes or 20 to 25 large pancakes (according to the chosen plate) • Cooking time: 2 min. on each side

The classic French batter

- 500 g sifted plain flour • 1 litre of milk • 6 eggs • salt • oil or butter

In a large bowl add 500 g plain flour and gradually beat in 1 litre of milk, until the consistency is of a single cream. Graduall beat in the 6 beaten eggs, 2 pinches of salt and 2 tablespoons of oil or melted butter. Leave to stand for 1 to 2 hours. If the batter is too thick after making the crêpes, add a small amount of water and mix again. Salty pancakes can be made by adding more salt to the batter.

Two kitchen utensils labeled 2a and 2b, shown side by side (no text or symbols on the objects themselves)

* : selon modèle
: afhankelijk van het model
: je nach Modell
: in base al modello
: según el modelo
: consoante o modelo
:ανάλογα με το μοντέλο
: depending on the model
: afhængig af modellen
: avhengig av modell
: beroende på modell
: mallista riippuen

Diagram of a box with an open lid and two stacked containers, showing internal movement (no text or symbols)

Illustration of a food preparation step showing a tray with three cavities and a box with a lid, no text or symbols present.

Diagram illustrating a mechanical or biological process with numbered components and directional arrows indicating flow or movement.

Illustration of a hand washing clothes on a kitchen sink with a ladle and utensils nearby (no text or symbols)

Diagram illustrating a device's internal components and emotional states, showing how to change from a tray with handles to a tray with buttons and a smiling face.

2

Illustration of a heating element with a thermometer and plus/minus symbols (no text or labels)

Diagram showing electrical installation steps with labeled components: power plug, cable, and heating appliance

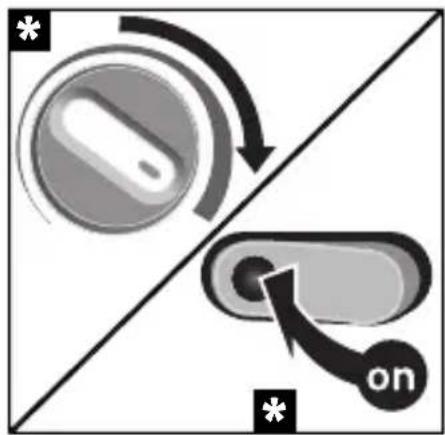

Diagram showing a device with an arrow indicating rotation and a button labeled 'on' on a switch, divided by a diagonal line.

8-10 min

3

Illustration of a thermometer and a heating element (no text or symbols)

Diagram showing a device with directional arrows and a labeled 'off' button, likely illustrating a control or action mechanism.

Diagram showing electrical plug installation with labeled components: one plug inserted into a socket, and two connected cables with a star symbol.

Diagram illustrating temperature measurement setup with labeled indicators and a 1-hour timer.

Diagram of a microwave oven with six circular cavities and an open lid, showing internal components and airflow direction (no text or symbols)

Diagram illustrating kitchen cleaning steps with labeled items including a microwave oven, tray, lamp, and airplane.

Illustration of a microwave oven with four panes and a textured lid (no text or symbols)

4

*

Diagram of a mechanical or electrical component with cylindrical elements and wiring (no text or symbols)

Top-down schematic of a heat exchanger or cooling unit with cooling pipes and a central fan (no text or labels)

*

Cross-sectional diagram of a mechanical or electrical component with internal channels and mounting holes (no text or labels)

Illustration of hands installing or adjusting a device into a storage case (no text or symbols visible)
