AJOMS18BRS - Oscillating sprinkler Aqua Joe - Free user manual and instructions

Product Type	Oscillating Sprinkler
Brand	Aqua Joe
Model	AJ-OMS18-BRS
Base Material	Metal
Number of Spray Nozzles	18
Max Flow Rate	20.4 L/min
Max Pressure (Peak)	120 psi
Typical Operating Pressure	60 psi
Inlet Connection	Standard Garden Hose
Net Weight	0.9 kg
Range Adjustment	Sliding Tabs for Spray Range
Cleaning Function	Cleaning Pin Included
Inlet Filter	Removable for Cleaning
Warranty	2 Years (Residential Use)
Recommended Maintenance	Rinse under faucet, clean nozzles with pin
Storage Tip	Drain water, protect from frost

Frequently Asked Questions - AJOMS18BRS Aqua Joe

How to adjust the range of the Aqua Joe AJOMS18BRS oscillating sprinkler?

Use the sliding tabs located on the side of the sprinkler. Slide them apart for maximum range, close together for reduced range, or slide both to the left or right to water only one side.

What type of hose connector is compatible with this sprinkler?

The sprinkler is equipped with a standard fitting that fits most household garden hoses. Tightly screw the hose onto the fitting to prevent leaks.

What to do if the sprinkler stops turning or sprays poorly?

This is often due to debris. Clean the inlet filter by removing it from the fitting and rinsing with water. Then, use the cleaning pin to unclog the spray nozzles.

How to clean the inlet filter of the sprinkler?

Unscrew the filter from the hose fitting and run water over it to remove dirt. Screw it back on firmly.

Can I use high water pressure with this sprinkler?

The peak maximum pressure is 120 psi, but the typical operating pressure is 60 psi. Too high pressure could damage the unit. If necessary, install a pressure regulator.

How to store the sprinkler after use?

After each use, drain the sprinkler by emptying any remaining water. Never let water freeze inside, as this could damage components. Store it in a frost-free place.

What is the warranty coverage for this sprinkler?

Aqua Joe offers a limited 2-year warranty for defects in materials and workmanship in residential use. The warranty does not cover commercial use, wear parts, or purchases from unauthorized dealers.

How to register my product for warranty?

Register your sprinkler online at snowjoe.com/register, or by phone at 1-866-SNOWJOE (1-866-766-9563). Keep your proof of purchase.

What is the maximum watering area with this sprinkler?

The area depends on pressure and range setting. With the tabs spread fully, the sprinkler can cover a large rectangular area. For an accurate estimate, test with your water pressure.

What to do if a nozzle is clogged?

Use the supplied cleaning pin to unclog each nozzle. Gently insert the pin into the opening and remove debris. Then rinse the sprinkler with clean water.

USER MANUAL AJOMS18BRS Aqua Joe

INDESTRUCTIBLE METAL BASE

OSCILLATING

SPRINKLER

Line drawing of a mechanical device with internal components and a curved handle (no text or symbols)

If you have any questions or comments,

please call the Snow Joe® + Sun Joe® customer service department at:

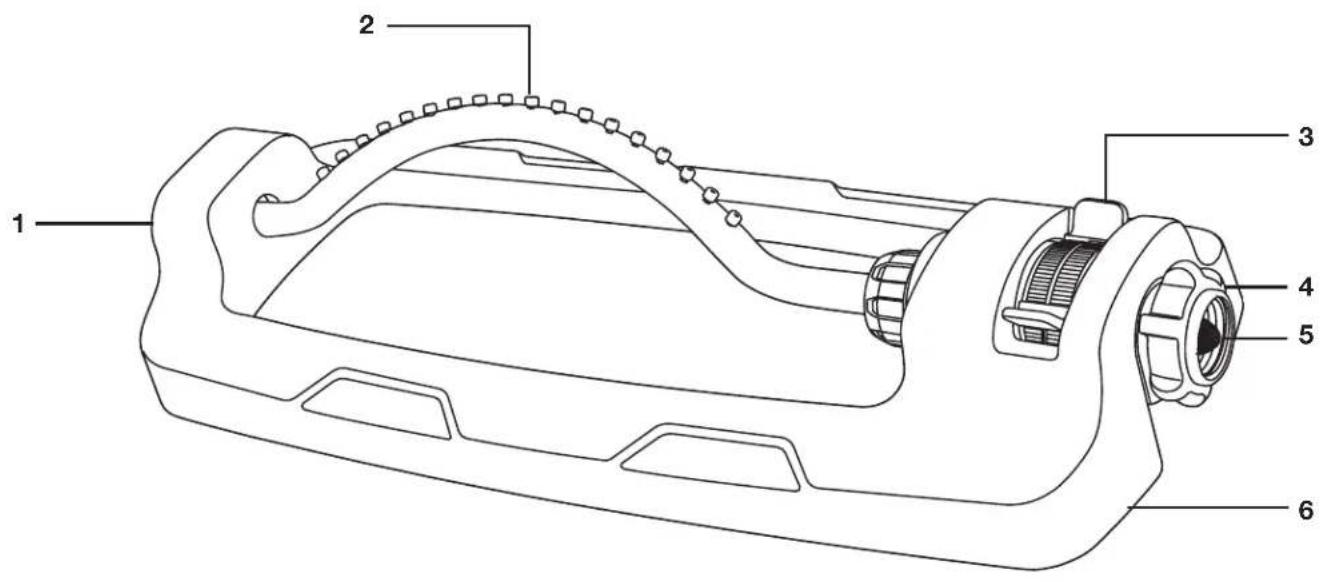

Read the owner's manual and safety rules carefully before using your oscillating sprinkler. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

1. Cleaning pin
2. Spray nozzles (18)
3. Range sliding tabs
4. Hose-end connector
5. Inlet filter
6. Base

Technical diagram of a mechanical device with numbered parts labeled 1 through 6

Technical Data

Brass Nozzle Heads 18

Adjustable Range Control ....Yes

Coverage Max 4295 sq ft (400 m²)

Spray Distance Max 71.5 ft (21.8 m)

Spray Width Max 60 ft (18.3 m)

Max Pressure ^* 120 PSI

Max Flow....5.4 GPM (20.4 l/min)

Fitting Size ....Standard Garden Hose

Net Weight 1.9 lbs (0.9 kg)

* Peak pressure at initial discharge; working pressure under typical load is 60 PSI.

Operation

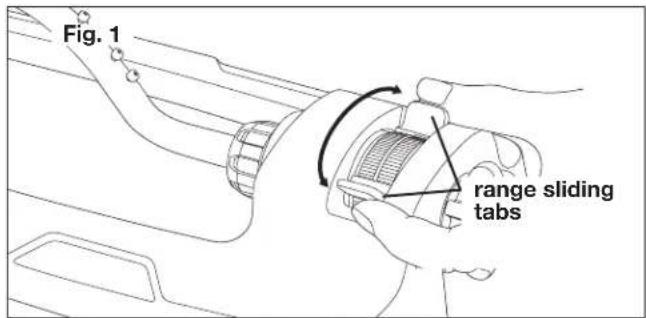

Use range sliding tabs to select desired position and take advantage of the sprinkler's adjustable range control (Fig.1).

Fig. 1 range sliding tabs

For full coverage, spread the tabs apart (Fig. 2). For a narrower range, bring the tabs closer together (Fig. 3). Bring both tabs fully to either the left (Fig. 4) or the right (Fig. 5) for coverage on either side.

Diagram showing airflow or particle trajectories around a rectangular plane, labeled 'Fig. 2' (no text or symbols on arrows)

Diagram showing light rays interacting with a shaded rectangular region, labeled 'Fig. 3' (no text or symbols on the diagram itself)

Diagram showing a 3D surface with arrows indicating direction, labeled 'Fig. 4' (no text or symbols on the diagram itself)

Diagram showing light rays reflecting off a flat surface, labeled 'Fig. 5' (no text or symbols on the diagram itself)

Connecting to the Garden Hose

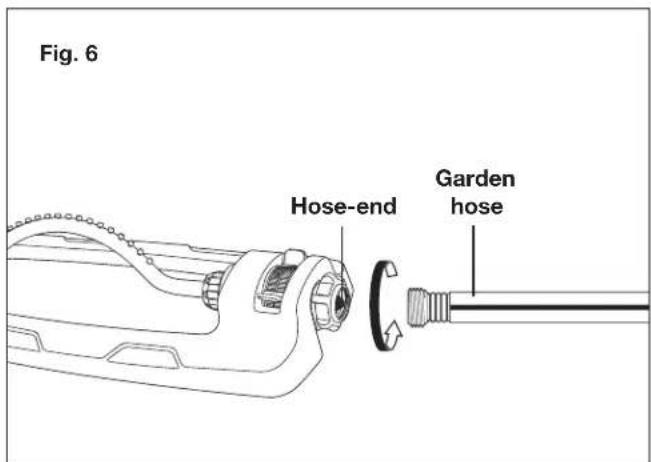

Attach your garden hose to the hose-end connector. (Fig. 6).

Fig. 6 Hose-end Garden hose

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.

Maintenance + Care

Follow the steps below if the sprinkler stops working or exhibits poor water quality due to debris or dirt build-up.

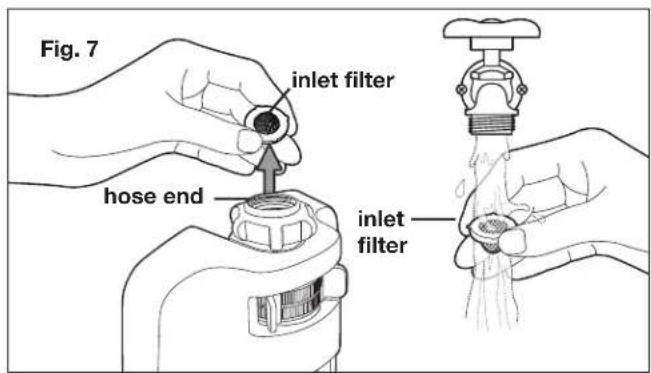

1. Remove the inlet filter from the hose end of the oscillator and run under water (Fig. 7).

Fig. 7 inlet filter hose end inlet filter

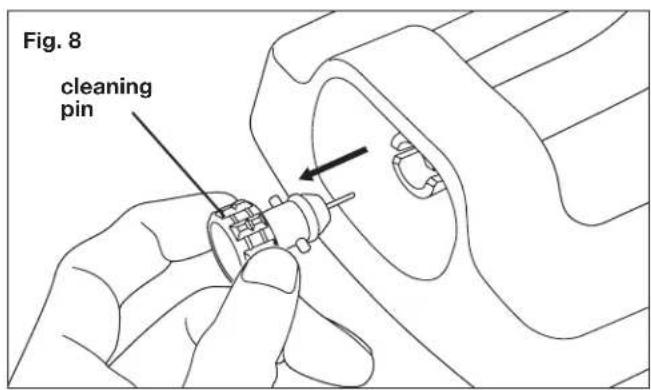

1. Unscrew the cleaning pin from the opposite end of the oscillator (Fig. 8).

Fig. 8 cleaning pin

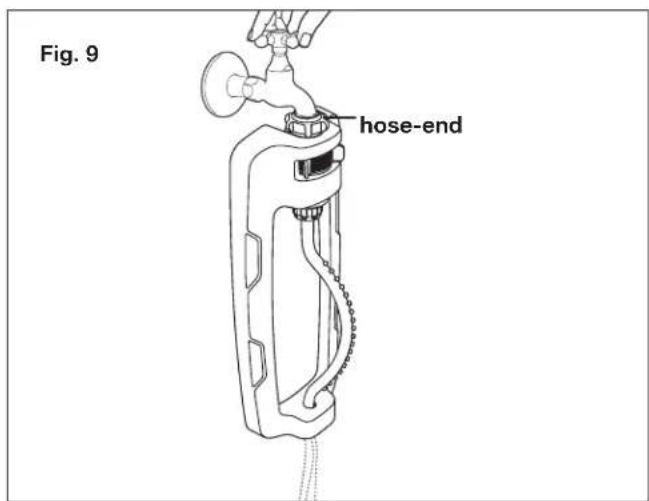

1. To flush, connect the oscillator to a spigot. Turn on the faucet and while the water continues running, spin the tube gently back and forth for few minutes. Then screw the inlet filter firmly back in place (Fig. 9)

Fig. 9 hose-end

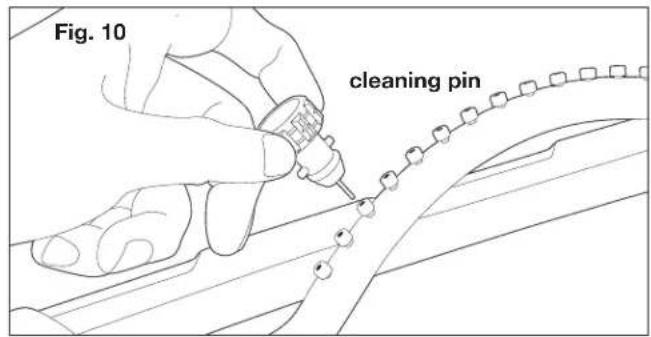

1. Use the provided cleaning pin to clear any clogs from the spray nozzles. Fit cleaning pin firmly back in place before using the sprinkler (Fig. 10).

Service + Support

If your Aqua Joe® AJ-OMS18-BRS oscillating sprinkler requires service or maintenance, please call Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.

Record the following numbers from the bottom of your new product: Model #: A | J | - | O | M | S | 1 | 8 | - | B | R | S | Serial #:

Fig. 10 cleaning pin

Storage

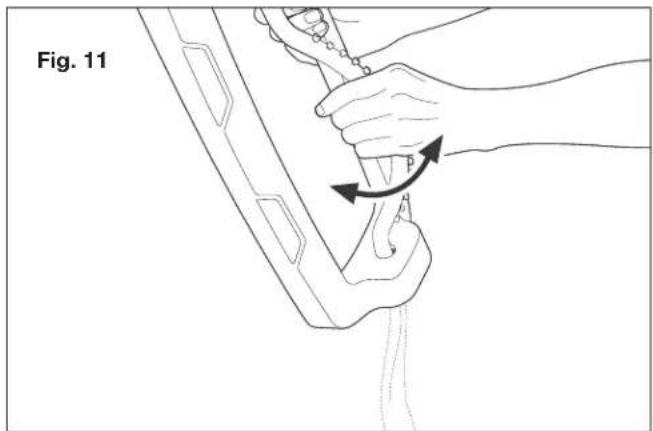

Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler (Fig. 11).

Fig. 11

Abstract gray logo design with a stylized S-like shape inside an oval (no text or symbols)

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
