Product type	Intense Pulsed Light (IPL) Hair Removal Device
Brand	Braun
Model	Silk·expert Pro 3 PL3012
Technology	Intense Pulsed Light (IPL) with SensoAdapt™ skin tone sensors
Users	Women and men (specific areas)
Treated areas (women)	Legs, arms, underarms, bikini, face (below cheekbones)
Treated areas (men)	Shoulders, chest, back, arms, stomach, legs
Maximum number of flashes	300,000 flashes
Heads included	Standard head and precision head (depending on model)
Usage modes	Normal mode and gentle mode (reduced intensity)
Treatment methods	Glide (large areas) and stamp (small areas)
Power supply	Mains power (mains cable with base station)
Weight (approx.)	Approx. 600 g
Safety sensors	Skin contact required for flash; invalid skin tone detection
Auto shut-off	After 10 minutes of inactivity
Cleaning	Dry lint-free cloth; do not rinse or immerse in water
Warranty	2 years (excluding normal wear and damage from improper use)
Repairability	Braun Authorized Service Centers – do not open yourself
Recommended skin test	Before first use, wait 48 hours
Main contraindications	Dark skin (beyond type V), pregnancy, skin cancer, tanned skin, under 18 years old

Frequently Asked Questions - Silk·expert Pro 3 PL3012 BRAUN

How does the Braun Silk·expert Pro 3 PL3012 work?

The device uses Intense Pulsed Light (IPL) to target melanin in the hair follicle. The heat damages the follicle, which slows or stops hair regrowth. The SensoAdapt™ sensors automatically adjust intensity according to skin tone.

What skin and hair types is this device suitable for?

IPL is effective on light to moderately dark skin tones (types I to IV) with dark hair. It is not suitable for very dark, red, blonde, or gray hair. Refer to the skin tone chart in the manual.

How to prepare the skin before a treatment?

Shave or epilate visible hair, then clean and dry the area thoroughly. Do not apply any cream, lotion, or deodorant before treatment. Avoid recent tanning.

What is the recommended usage method?

Place the treatment window firmly against the skin, with both sensors in contact. Press and hold the treatment button while gliding over large areas, or release immediately to stamp small areas. The LED bars turn white when the device is ready to flash.

How long does it take to see results?

One treatment per week for 4 to 12 weeks is recommended during the initial phase. A visible reduction can be noticed as early as 4 weeks. Then, a maintenance treatment every 1 to 2 months is sufficient.

Can the device be used on the face?

Yes, for women only: upper lip, chin, cheeks (below cheekbones). Avoid eyes, eyebrows, and forehead. Use the precision head for these areas. Men should not use it on the face.

What are the possible side effects?

Temporary redness and a warm sensation are normal and subside within 24 hours. Rarely: swelling, pigment changes. If there is intense pain or persistent reaction, stop use and consult a doctor.

What to do if the LED bars show a red light?

A single red LED means the treatment head is not properly attached: reattach it. If all LEDs flash red, this is an error: unplug and re-plug. If the problem persists, contact Braun service.

How to clean and maintain the device?

Use a dry, lint-free cloth to wipe the treatment window and sensors. Never use water, abrasive, or flammable cleaners. Wait for the glass filter to cool before cleaning.

What is the warranty and how to get the device repaired?

The warranty is 2 years from the date of purchase (excluding normal wear and damage from improper use). For any repairs, bring the device to a Braun Authorized Service Center. Never open the device yourself.

USER MANUAL Silk·expert Pro 3 PL3012 BRAUN

Close-up of a white and purple handheld hair dryer with a button labeled (no visible text or symbols on the device body)

Deutsch 4

English 12

Français 19

Español 27

Português 35

Italiano 43

Nederlands 51

Dansk 59

Norsk 66

Svenska 74

Suomi 82

DE / AT 00 800 27 28 64 63 00 800 BRAUNINFOLINE

CH 08 44 - 88 40 10

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802

(service & appel gratuits)

BE 0 800 14 592

ES 900 814 208

PT 808 20 00 33

IT 800 440 017

NL 0 800-445 53 88

DK 70 15 00 13

NO 22 63 00 93

SE 020 - 21 33 21

FI 020 377 877

Type 6032

Braun GmbH

Skin tone & Body hair type chart:

	I II III IV V VI
	✓	✓	✓	✓	✓	×
	✓	✓	✓	✓	✓	×
	✓	✓	✓	✓	✓	×
	×	×	×	×	×	×
	×	×	×	×	×	×
	×	×	×	×	×	×

√ = geeignet / suitable / approprié / apto / adequado / adatto / geschikt / egnet / passende / lämplig / sopii
nicht geeignet / not suitable / non approprié / = uso no apto / não adequado / non adatto / niet geschikt / ikke egnet / ikke passende / inte lämplig / ei sovi käyttöön

Deutsch

Simple diagram of a droplet with concentric wave patterns inside a circle (no text or symbols)

Simple illustration of three droplets above a striped surface (no text or symbols)

Illustration of a person holding a pen, no visible text or symbols

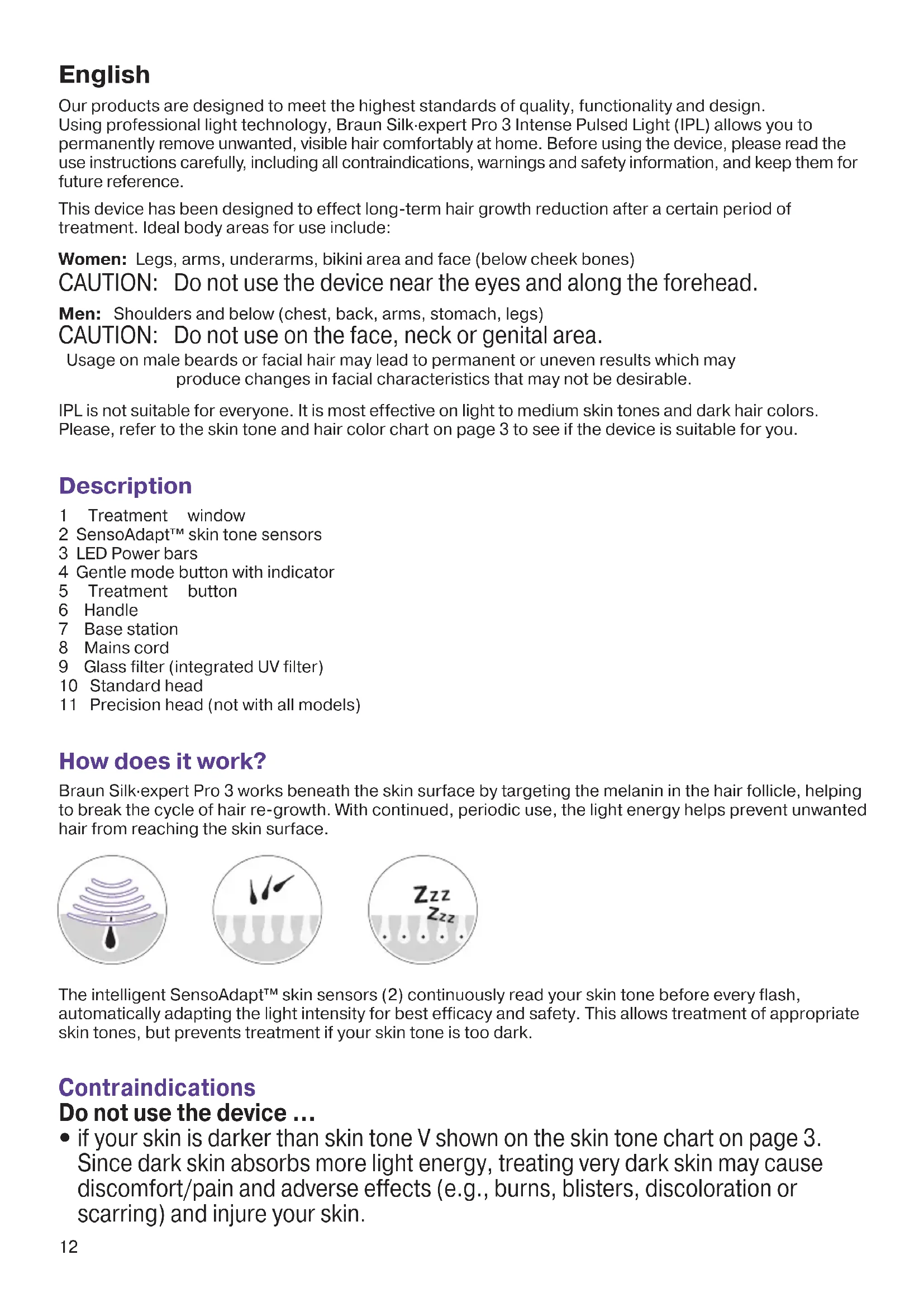

Our products are designed to meet the highest standards of quality, functionality and design.

Using professional light technology, Braun Silk·expert Pro 3 Intense Pulsed Light (IPL) allows you to permanently remove unwanted, visible hair comfortably at home. Before using the device, please read the use instructions carefully, including all contraindications, warnings and safety information, and keep them for future reference.

This device has been designed to effect long-term hair growth reduction after a certain period of treatment. Ideal body areas for use include:

Women: Legs, arms, underarms, bikini area and face (below cheek bones)

CAUTION: Do not use the device near the eyes and along the forehead.

Men: Shoulders and below (chest, back, arms, stomach, legs)

CAUTION: Do not use on the face, neck or genital area.

Usage on male beards or facial hair may lead to permanent or uneven results which may produce changes in facial characteristics that may not be desirable.

IPL is not suitable for everyone. It is most effective on light to medium skin tones and dark hair colors. Please, refer to the skin tone and hair color chart on page 3 to see if the device is suitable for you.

Description

1 Treatment window
2 SensoAdapt™ skin tone sensors
3 LED Power bars
4 Gentle mode button with indicator
5 Treatment button
6 Handle
7 Base station
8 Mains cord
9 Glass filter (integrated UV filter)
10 Standard head
11 Precision head (not with all models)

How does it work?

Braun Silk-expert Pro 3 works beneath the skin surface by targeting the melanin in the hair follicle, helping to break the cycle of hair re-growth. With continued, periodic use, the light energy helps prevent unwanted hair from reaching the skin surface.

Simple icon of a droplet falling into a liquid, enclosed in a circle (no text or symbols)

Simple diagram showing three droplets above a striped pattern, no text or symbols present.

The intelligent SensoAdapt™ skin sensors (2) continuously read your skin tone before every flash, automatically adapting the light intensity for best efficacy and safety. This allows treatment of appropriate skin tones, but prevents treatment if your skin tone is too dark.

Contraindications

Do not use the device ...

- if your skin is darker than skin tone V shown on the skin tone chart on page 3. Since dark skin absorbs more light energy, treating very dark skin may cause discomfort/pain and adverse effects (e.g., burns, blisters, discoloration or scarring) and injure your skin.

• if you are pregnant, lactating, or under the age of 18 as this device has not been tested with these individuals.
• if you have a history of skin cancer or precancerous lesions (e.g., nevi or a large number of moles).
• If your skin has been artificially or naturally tanned recently. Your skin may be sensitive following sun exposure and particularly susceptible to side effects of IPL treatment (e.g. burn, blister, discolour or scar to your skin). Also, avoid unprotected exposure to direct sunlight after your IPL treatment.

Certain conditions can also prohibit the use of this device. Do not use the device if any of the following applies:

• You have a chronic medical condition.
• You have a chronic skin disease (e.g. psoriasis or vitiligo) or damaged skin (e.g. sunburn, cuts, open wounds or active infections) in the areas you wish to treat.
• You have varicose veins in the area you wish to treat.
• You have a known sensitivity to sunlight (photosensitivity) or are taking medication that may make the skin more sensitive (e.g. Retin A, Accutane and/or other topical retinoids).
• You have had a professional skin peel treatment on the area you wish to treat.
• You have any of the above, this device may injure your skin or make existing conditions worse. You may experience side effects such as burns, blisters and skin color changes (hyper- or hypo-pigmentation) or scarring.

If you are unsure whether this device is safe for you to use, please consult your physician or dermatologist.

If you take any kind of medication regularly and over a long period of time, please consult your physician for any potential impact on skin sensitivity to light.

Warnings

Do not use on ...

• scalp, eyebrows or anywhere near or around the eyes. Use in these areas may permanently damage your eyes.
• a tattoo or permanent makeup in the treatment area.
• nipples, genitals or around the anus. These areas may have a darker skin color and/or greater hair density and using the device in these areas may cause discomfort/pain or injure your skin.
• dark brown or black spots such as freckles, birthmarks, moles or warts in the treatment area.
• beard / facial hair for men.

Do not look directly into the glass filter (9) or attempt to activate the device toward the eyes. To protect the safety of your eyes and those of individuals nearby, the device will only activate when both skin tone sensors are placed against the skin. If at any time the device activates when both sensors are NOT in contact with the skin, STOP use immediately and contact your retailer.

Do not use more than once a week on the same area. This will not speed up the results and may increase the chances of injury to your skin.

Precautions

• The device is intended for a single user.
• It is not intended for use by people under 18 years old.
• People with reduced physical, sensory or mental capabilities or lack of experience and knowledge, may use the device if they have been given supervision or instruction concerning the safe use of the device and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the device. Always keep the device out of children's reach.

Electrical and fire safety

Regularly check the device and cords for visible signs of damage. In case of damage or cracks, stop using the device. Electric shock may result from using a damaged device. In case of defects, have the device checked and repaired by an authorized service center. Unqualified repair work can lead to extreme hazards for the user. Always unplug the device after use.

DANGER

Never attempt to repair and open the device, as this may expose you to dangerous electrical components and to pulsed light energy, either of which may cause serious bodily damage and/or permanent eye injury.

Do not use in or near water and wet surfaces such as bathtubs, showers, basins or other vessels that may contain water. If the device becomes wet, it should not be used. Electric shock may result from using a wet device.

Do not use if the device is damaged (e.g. cracked housing, cord damage etc). Internal parts contain electric charges that are hazardous.

Do not use if the glass filter (9) is cracked or missing. Regularly inspect the glass filter for damage.

Do not touch the glass filter during or directly after use since it will get hot.

Do not use petroleum-based or flammable cleaning agents (alcohol, acetones) on the device as these pose a fire risk.

Do not use abrasive cleaning agents. These may damage the device or scratch the glass filter.

Do not attempt to use this device other than for removing unwanted hair.

Do not use the device on a surface other than skin. Do not press the treatment button when the treatment window (1) is not placed in full contact with the skin.

Do not block the cooling vents. The device may overheat and pose an electric shock risk or fire hazard.

How to use

Preparing the treatment area

Remove any visible hair on the skin before using the device. You may use your preferred hair removal method. To keep the treatment window clean and intact, ensure there is no hair remaining on the skin surface. Clean the treatment area and pat it dry.

To power on the device:

Use the mains cord (8) to connect the base station to an electrical outlet. Press the gentle mode button (4) to activate the device. The LED power bars (3) will light up once and, a fan starts running. This means the device is in READY mode. During operation, the device will heat up slightly.

Automatic light adaptation

When both skin tone sensors (2) have skin contact, the device reads your skin tone and selects the appropriate light intensity which is indicated by white LEDs on the Power bars (3). These confirm that the device is ready to flash.

		light skin tone → high light intensity
		dark skin tone → low light intensity
	no LEDs	no skin contact → device will not flash
	red LED	invalid skin tone → device will not flash

Gentle mode

Push the gentle mode button (4) to reduce the light intensity. The gentle mode indicator lights up when it is activated. To deactivate it, press the gentle mode button again.

The power bars flash to confirm a change in the light intensity setting.

When holding the gentle mode button (4) longer than 3 seconds, the device is deactivated.

After 10 minutes without use, the device is automatically deactivated.

To reactivate it, press the gentle mode button.

Patch Test

Before your first treatment, we recommend you test your skin for reaction to Braun Silk-expert on a small area of skin of the body part you plan to treat (about 2 x 3 cm in size; equivalent to the size of two flashes, side by side).

Perform a patch test as described below in chapter «Treatment methods», section «STAMPING».

Wait 48 hours to examine the test area. If the skin appears normal, begin your first treatment. If a skin reaction develops, discontinue using the device and consult your physician. Do not treat the patch tested area for at least one week after the test.

Treatment methods

The area to be treated must be hair-free, clean and dry. Before pushing the treatment button, look away from the device to avoid the bright light.

GLIDING

for fast and efficient treatment of large areas (e.g. legs).

Illustration of a person performing a knee pressure or massage technique (no text or symbols present)

STAMPING

for treating small, hard-to reach areas (e.g. face for females, bikini line, underarms, knee, chin, ankles)

Illustration of a hand holding a medical device with purple bands (no text or symbols)

1. Place the treatment window firmly on your skin, ensuring both skin sensors have skin contact. The power bars (3) show white LEDs

2. Press and hold the treatment button (5). The device will begin to flash.	2. Press and instantly release the treatment button (5). The device will emit a flash.
3. Move the device slowly and continuously from the bottom to the top of the treatment area. Make sure to always keep full skin contact so that the device flashes continuously.	3. Lift off the device and place it onto the next adjacent spot to be treated. Wait for the power bars to show white LEDs. Then press and release the treatment button.
Once the gliding stroke is completed, lift the device off the treatment area. Repeat steps 1-3 to treat the next adjacent area in a parallel stroke.	Continue treatment spot by spot until you have completed the entire area you wish to treat.

Make sure you avoid missed areas by placing the treatment window directly next to the previously treated spot without leaving any space between treated areas.

If you feel intense pain, stop treatment immediately and consult your physician before using the device again.

Treatment head(s)

While the standard head (10) can be used on all areas, it is ideal for efficiently treating large areas, e.g. legs.

The precision head (11) (not with all models) has been specifically designed for small, curvy, hard to reach areas, e.g. face for females, bikini line, underarms, knee, shin, ankle. With the precision head attached, the flashing sequence is slower.

Illustration of a person holding a pen, no visible text or symbols

How to treat the face (females only)

• Before treating the face, make sure you have done a patch test. Remove any visible hair and cosmetics, lotions and creams from the area you wish to treat.
• Before pressing the treatment button, close your eyes or look away to avoid the bright light. Avoid treating the same area twice as this may increase the chance of producing adverse reactions.
• When treating the upper lip area, a void contact with the lips and the nostrils. The central area below the nostrils might be sensitive.
• Do not use on permanent / semi-permanent lip liner on the lip margin.
• TIP: You can press your lips together to ensure that the light does not activate on the upper lip itself.
• Hair growth under the chin can be denser and coarser. This can sometimes lead to slight skin reddening following a treatment. This redness is temporary and should completely disappear after 24 hours.

NOTE:

• If redness or a burning sensation occurs and lasts for several minutes, apply a cool cloth/pad to soothe the area.
• If any pigment changes in the skin, e.g., lightening or darkening, are observed, stop using the device. Seek medical advice to determine the cause which may be due to an underlying medical condition.

Treatment plan

Start-up phase 1 treatment per week (4-12 weeks)
Maintenance treatment continue treating to your needs	e.g. every 1-2 months.

The typical hair growth cycle varies between individuals and could take up to 16 months depending on body area (underarm, lower leg, bikini area). Since only hairs in their growing phase are susceptible to treatment with light, it is important to do multiple treatments to achieve continuously smooth skin. For this reason, we recommend a start-up phase with one treatment per week over a period of 4 - 12 weeks.

In case you no longer see hair growing, you do not need to complete the full 12 weekly treatments. You can switch to the maintenance treatments.

After treatment

Once you have completed your treatment, unplug the power supply from the electrical outlet.

After treatment, we recommend using sunscreen SPF >15 whenever treated areas may be exposed to the sun. We recommend avoiding exposure to artificial light sources, such as tanning booths or solariums.

Avoid any activity or skin products that may irritate your skin for 24 hours after treatment. This includes using hot tubs or saunas, wearing tight-fitting clothing, using bleaching creams, perfumed products or exfoliation products. The above may cause irritation, such as itching and redness, in the treated areas.

Cleaning and storage

After each treatment, the skin tone sensors (2) and the treatment window (1) should be inspected for damage and wiped down with a dry, lint free cloth. If any marks or black spots are seen, clean them off straight away. Do not touch or clean the glass filter (9) immediately after use to allow it to cool down.

Do not rinse or immerse the device in water or any other liquid.

To ensure maximum performance, keep the heads (10, 11) with their built-in reflectors free from dirt, hair or other debris. Do not clean in water, but use a dry cloth for cleaning them carefully.

Store the device in a cool, dry place. Make sure the treatment window and skin sensors are protected from damage.

Possible side effects

Some people will experience slight discomfort (e.g. heat or redness of the skin) when using the device – this is normal. You may feel heat and tingling when activating the flash, followed by redness in the skin.

This type of reaction usually disappears within 24 hours. Adverse reactions are usually immediate or appear within 24 hours. In rare cases, they may take up to 72 hours to appear. If you experience abnormal skin reactions please contact your physician.

Side effect How to assess and react
Warm feeling or tingling sensations during treatment which typically disappear after a few seconds to a minute and decrease with continued use.	This is expected and normal for all IPL treatments. You can keep on using the device as instructed.
Discomfort or pain is intense during treatment or persists after a treatment.	Stop using the device and consult your physician before using it again.
Skin redness during or after treatment which disappears within minutes to several hours.	This is expected and normal for all IPL treatments. You can keep on using the device as instructed once skin redness has disappeared.
Skin redness which does not go away within 24 - 48 hours after treatment.	Stop using the device and consult your physician before using it again.
In very rare cases:
Swelling and redness around the hair follicle that disappears within two or three days.	You can keep on using the device as instructed once swelling and redness around the hair follicle has disappeared.
Swelling and redness around the hair follicle that does not disappear within two to three days.	Stop using the device and consult your physician before using it again.
Temporary changes in skin color (lightening or darkening).	If your skin color changes, stop using the device and consult your physician.
Increase in hair growth in areas of treatment (more likely to be seen with subjects of Mediterranean descent).	If this increase persists over several treatments, stop using the device and consult your physician.

Trouble shooting

The following troubleshooting guide may help you solving initial problems you may experience with this device.

Problem Solution
Power bars do not light up when treatment window is placed on the skin.	Make sure the device is connected to an electrical outlet. Press the gentle mode button (4) to activate it.Ensure both skin tone sensors are in full contact with the skin. If needed, move the device in a way that both skin tone sensors get skin contact.
The device doesn’t work on small areas. Use the precision head* (11) on small, hard-to-reach areas (*if available).Make sure both skin tone sensors are in contact with the skin.
Flashing sequence slows down. Device is in heat-protection mode. To get back to normal speed, allow device to cool down.
On the power bar, only the first LED illuminates red.	Invalid skin tone reading. Your skin is either too light or too dark. The device will not flash.
Gentle mode indicator is flashing. Device is deactivated. Press the gentle mode button to re-activate it.
First LED on power bars flashes red. Head (10 or 11) has been taken off. Re-attach it.
The power bars show an unfamiliar pattern of one red LED shining along with individual white LEDs.	Device error. Device will not operate.Unplug and reconnect. If error persists, contact a Braun Service Centre for repair.
All white LEDs flash. End of product lifetime. Maximum number of flashes (300,000) has been reached.
The device is broken, cracked or appears defective.	Do not use if the handle, the base station or the main cord is damaged. If you are in any doubt about the safety or suspect it is damaged in any way, you must not use it.

Disposal

The product contains recyclable electronic waste. To protect the environment, do not dispose of it in the household waste, but take it to appropriate local collection points.

Subject to change without notice

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorized persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

Simple icon of a droplet falling into a circular frame with concentric wave patterns (no text or symbols)

Simple illustration of three droplets above a striped pattern (no text or symbols)

Illustration of a person holding a pen, no visible text or symbols

Simple diagram of a droplet with concentric wave patterns inside a circle (no text or symbols)

Simple diagram of blood vessels with three droplets inside a circle (no text or labels)

Illustration of a person applying a medical or cosmetic device to their face (no text or symbols visible)

Simple diagram of a droplet falling into a liquid, with concentric wave patterns inside a circle (no text or symbols)

Simple diagram showing three droplets above a striped surface (no text or symbols)

Illustration of a person applying a cosmetic product to her lips (no text or symbols visible)

Simple icon of a droplet with concentric wave lines inside a circle (no text or symbols)

Simple diagram showing three droplets above a striped surface (no text or symbols)

Illustration of a person holding a pen, no visible text or symbols

Simple diagram of a droplet falling into a circular container with concentric wave patterns (no text or symbols)

Simple diagram showing three droplets above a striped pattern, no text or symbols present.

Illustration of a person holding a pen, no visible text or symbols

Simple diagram of a droplet with concentric wave patterns inside a circle (no text or symbols)

Simple diagram showing two droplets above a striped surface (no text or symbols)

Illustration of a person's face with a stylized pen or tool, no visible text or symbols

Illustration of a person holding a pen, no visible text or symbols

Simple diagram of a droplet falling into a circular container with concentric wave patterns (no text or symbols)

Simple diagram showing three droplets above a striped surface (no text or symbols)

Illustration of a person holding a pen, no visible text or symbols

Simple circular diagram showing wave interference with a droplet at the bottom (no text or symbols)

Simple illustration of three droplets above a striped surface (no text or symbols)

Illustration of a person's face with a stylized pen or tool, no visible text or symbols
