USER MANUAL Color imageCLASS MF642Cdw CANON

Please read "Important Safety Instructions" before operating this product. After you finish reading this guide, store it in a safe place for future reference.

The information in this document is subject to change without notice.

canon.com/oip-manual

Getting Started

Please read "Important Safety Instructions" before operating this product. P.32

After you finish reading this guide, store it in a safe place for future reference.

The information in this document is subject to change without notice.

Mise en route

canon.com/oip-manual to read the User's Guide that describes all functions of this machine.

Items Included with the Machine

Simple vertical dotted line with no text or symbols

* * This item include on the machin

* This item may not be included depending on the model of the machine.

Line drawing of a printer with a digital display and paper holder (no text or symbols)

3D rendering of a rectangular mechanical component with mounting holes and a flat body (no text or symbols)

Starter toner cartridges are included.

Installing the Machine

Before starting the installation

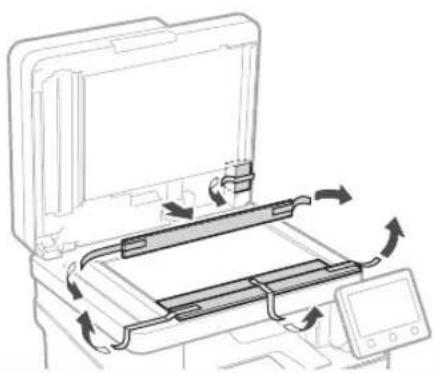

- Remove all of the tape.

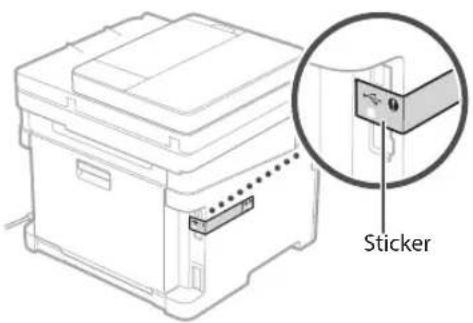

- Do not remove the sticker that covers the USB port.

Sticker

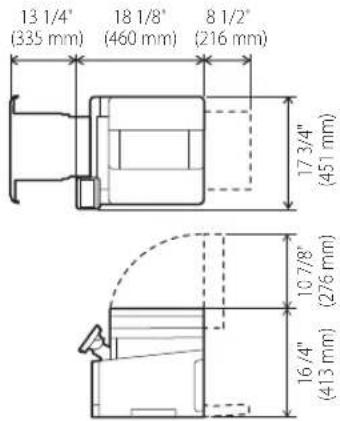

Installation Requirements

Provide a space of 4" (100 mm) or more around the machine.

MF644Cdw/MF642Cdw

13 1/4" (335 mm) 18 1/8" (460 mm) 8 1/2" (216 mm) 17 3/4" (451 mm) 10 7/8" (276 mm) 16 4" (413 mm)

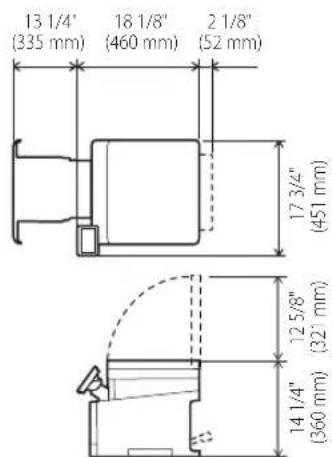

MF641Cw

13 1/4" (335 mm) 18 1/8" (460 mm) 2 1/8" (52 mm) 17 3/4" (451 mm) 12 5/8" (321 mm) 14 1/4" (360 mm)

1

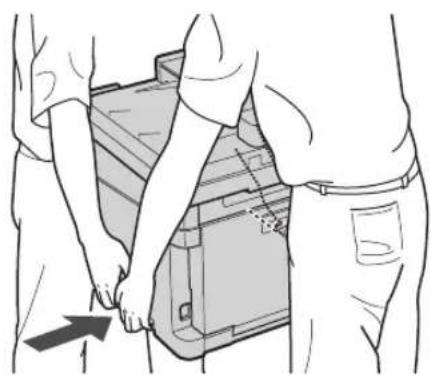

Line drawing of two people handling a large mechanical device with an arrow indicating force (no text or symbols present)

2

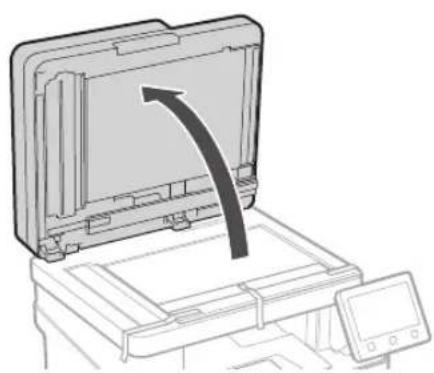

Diagram of a printer with an open lid and a curved arrow indicating motion (no text or symbols)

3

Diagram of a printer's internal structure with arrows indicating motion, no text or symbols present

4

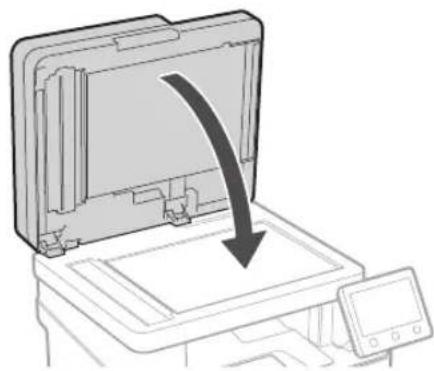

Diagram of a printer with an open lid and a curved arrow indicating a process or operation (no text or symbols present)

5

Illustration of a printer's internal structure being inserted into a plastic holder, with arrows indicating the process (no text or symbols present)

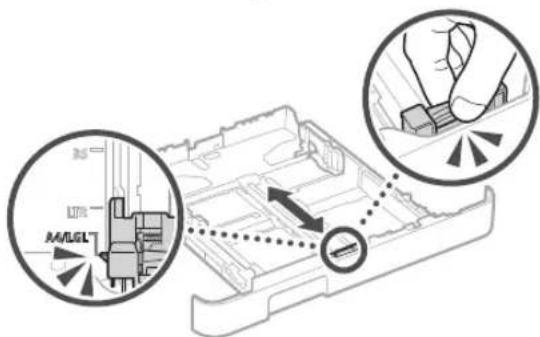

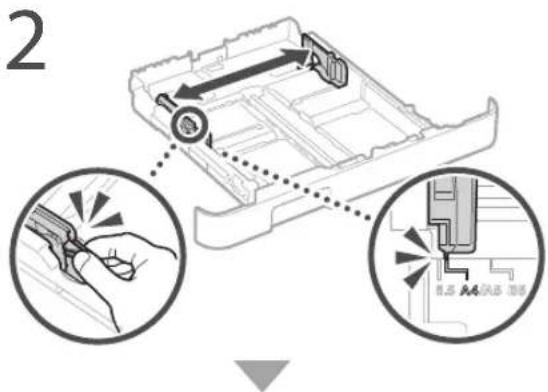

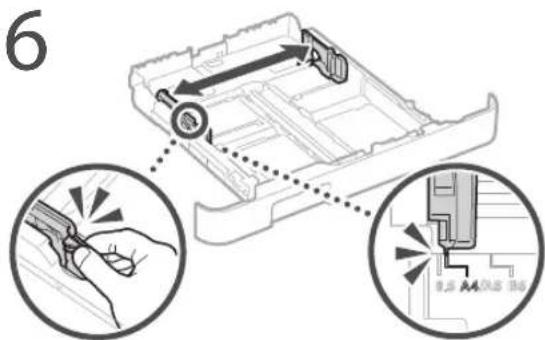

6 0.5 A4 0.5 B6

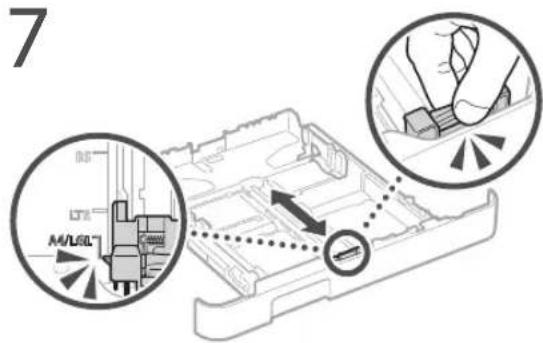

7 M/USB™

8

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

9

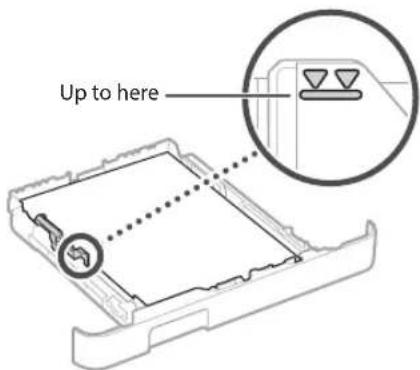

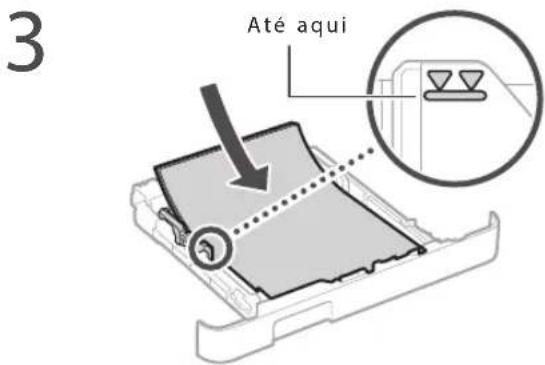

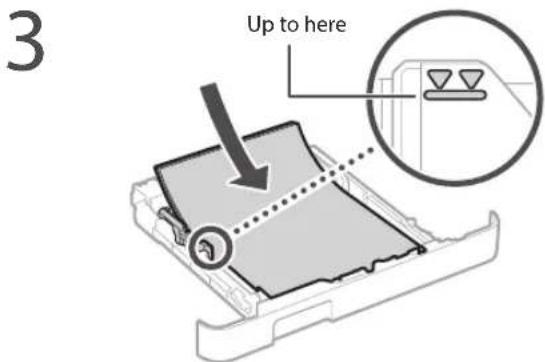

Up to here

10

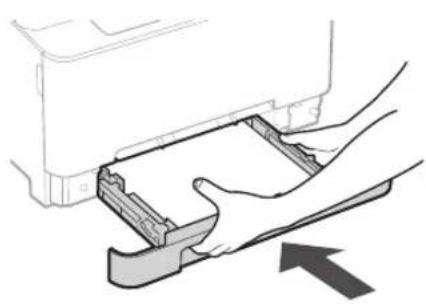

Illustration of hands inserting a device into a plastic housing (no text or symbols)

11

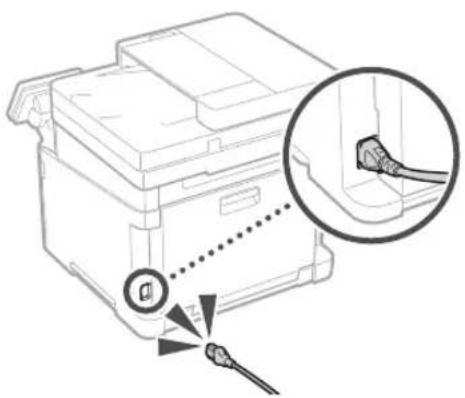

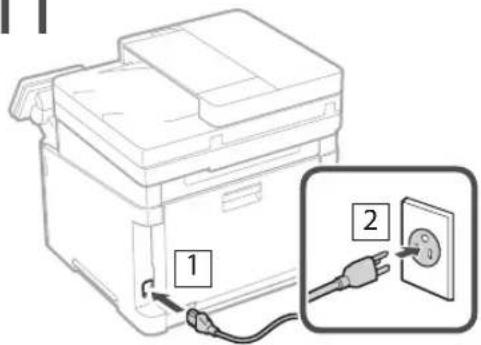

Diagram showing a power adapter with labeled components and an electrical outlet, including a magnified view of the socket.

Next, proceed to configure the machine.

Configuring the Initial Settings of the Machine

About Application Library\*

Application Library is an application that allows you to use useful functions for routine jobs or other convenient functions in a one-touch operation without necessity of making functional settings every time. You can access each registered function by simply pressing the appropriate button displayed in the Home screen. For the respective function, see the description displayed in the Setup Guide.

* This function may not be available, depending on the model of the machine.

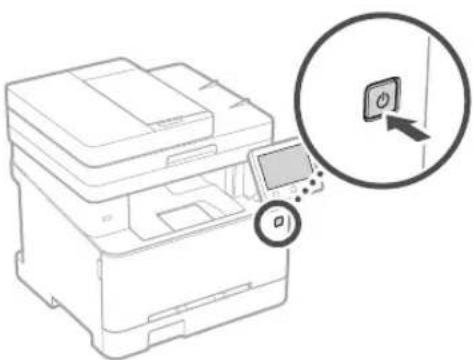

1.

Illustration of a printer with a digital display and a magnified view showing a button (no text or symbols present)

1. Configure the initial settings, according to the screen.

2. Set the language and country/region.

3. Set the time zone and current date/time.
4. Perform color correction.

Configuring the Method of Connecting to a Computer

Before starting the configuration

• The machine cannot be connected to both wired and wireless LANs at the same time.
• If the machine is connected to an unsecured network, your personal information might be leaked to a third party. Please be aware and careful of this.
• The machine does not come with a router. Please have one ready, if necessary.
• Even in an environment without wireless LAN router, you can use Access Point Mode to make a wireless connection to the machine directly from your mobile device (Direct Connection).

→ User's Guide

Specifying the connection method

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

• To connect via wireless LAN :
• To connect via wired LAN or USB :

To connect via wireless LAN

Illustration of a printer, network device, and computer monitor with signal waves (no text or symbols)

1. Make sure that the computer is connected to a router properly.
2. Check the network settings on the computer.

1. Take note of the SSID and network key.

2. Check the label on the router. ➞ User's Guide

3. The setting operation is easier if the router is provided with a WPS mark. ➕ User's Guide

4. Set the access point and network key according to the screen below.

For more information, refer to the manual. OK

1. Select .
2. Select .
3. Select .
4. Select the access point (SSID), and select .
5. Enter a WEP key (network key), and select .

6. Select .

7. Wait until message is displayed.

8. Select .
   • The IP address will be automatically configured in a few minutes.

To view a video guide on the process

You can find a video and guide to assist the process for the Wireless Network connection from the URL below. Viewing these guides will ensure a smooth setup of the device into your existing wireless environment.

http://www.usa.canon.com/WirelessHelp

"Toner replenishment service" settings

Precautions

- Use of the toner replenishment service requires prior registration with select retailers. This service is only available in certain countries.

Through the toner replenishment service, new toner cartridges are automatically delivered to you before your existing toner cartridge is used up.

- This service can be set up through "Toner Delivery Settings" displayed on the Home screen.

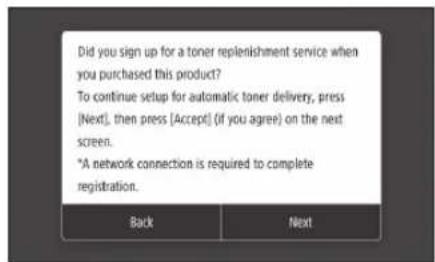

Did you sign up for a toner replenishment service when you purchased this product? To continue setup for automatic toner delivery, press [Next]. then press [Accept] (if you agree) on the next screen. *A network connection is required to complete registration.

1. Select .
2. Select .

- To skip "Toner replenishment service" (or set it later), select and proceed to Step 4.

1. Select .
2. If an error message appears, follow the on-screen instructions to resolve it.
3. Install the driver and software.
   P.9 "Installing the software"

Now you are finished with the configuration of the initial settings.

If your machine is provided with the fax function, proceed to configuring the fax settings. P.10

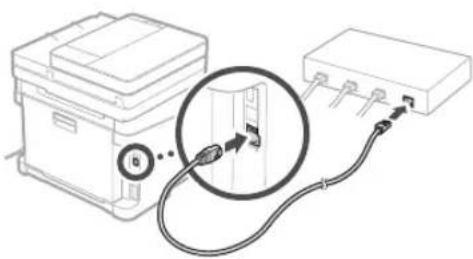

To connect via wired LAN

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

The machine does not come with a LAN cable.

Please have one ready, if necessary.

1. Make sure that the computer is connected to a router properly.
2. Check the network settings on the computer.
3. Connect the LAN cable.

Diagram showing a device connected to a terminal block via cable, with a magnified inset highlighting a detail (no text or symbols present)

• After connecting the cable, wait a few minutes (until the IP address is set automatically).
- If a static IP address has been set on the computer, set the machine's IP address manually.

1. Install the driver and software.

P.9 "Installing the software"

Now you are finished with the configuration of the initial settings.

If your machine is provided with the fax function, proceed to configuring the fax settings. P.10

To connect via USB

Illustration of a desktop computer connected to a printer (no text or symbols present)

• The machine does not come with a USB cable. Please have one ready, if necessary.
  • Make sure that the USB cable you use has the following mark.
• Do not connect the USB cable before installing the driver. If you did, disconnect the USB cable from the computer, close the dialog box, and then perform the following procedure from step 1.

1. Install the driver and software.

P.9 "Installing the software"

- When a screen with instructions for connecting the USB cable to the machine is displayed, remove the sticker that covers the USB port.

Technical illustration of a mechanical device with a magnified inset showing a curved arrow indicating rotation or force (no text or symbols present)

Now you are finished with the configuration of the initial settings.

If your machine is provided with the fax function, proceed to configuring the fax settings. P.10

Installing the software

• The procedure described here is only applicable when your computer runs on the Windows OS. For more details on the software installation procedure, see the driver's manual.
• For the installation when your computer runs on the macOS, see the driver's manual.
• Your machine may not come with the driver for the macOS, depending on the time of purchase. New drivers are uploaded to the Canon website, and you can download and use the latest one.

1.

Illustration of a CD or DVD disc being inserted into a computer tower (no text or symbols visible)

2.

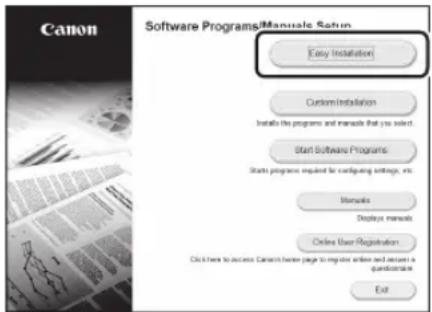

Canon Software Programs/Manuals Refin Easy Installation Custom Installation Installs the programs and manuals that you select. Start Software Programs Starts programs required for configuring settings, etc. Manuals Display manuals Online User Registration Click here to access Canon's home page to my own online and secure a questionnaire Exit

If the screen is not displayed properly, re-insert the CD-ROM/DVD-ROM or search for "D:\MInst.exe" on the Windows platform (This description assumes that "D:" is the CD-ROM/DVD-ROM drive name).

Using the scanner conveniently

Configuring the network settings with "Send Function Setting Tool" allows you to directly send scanned originals with e-mail or I-Fax or store them in a shared folder or on the FTP server.

In the screen displayed in step 2, select [Start Software Programs] ▶ [Send Function Setting Tool] to start the Send Function Setting Tool.

Next, proceed to configure fax settings.

Configuring Fax Settings

Before starting the configuration:

If your machine does not come with a telephone cable, have one ready, as necessary.

Configure the fax settings, according to the screen below.

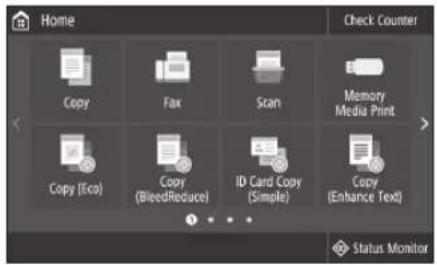

Home Check Counter Copy Fax Scan Memory Media Print Copy (Eco) Copy (BleedReduce) ID Card Copy (Simple) Copy (Enhance Text) Status Monitor

1. Select .
2. Select .
3. Register the machine's telephone number (fax number) and abbreviated user name.

Fax Setup Guide Register the unit telephone number for this device. (Fax number) Next

• The information below will be printed at the top part of the paper output from the destination machine as sender information.

Fax Number Number's Type Sent Time Unit Name Page Number 02/02 2019 10:00AM CAYCN1230000000-AX.0001

1. Set the reception mode.
   • Make the setting by answering the questions on your purposes of using the fax function.

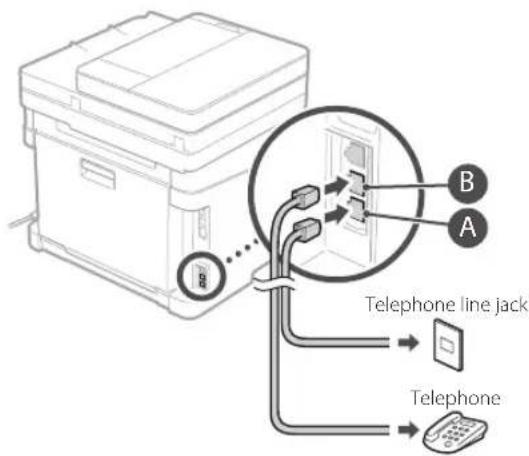

2. Connect to a telephone line.

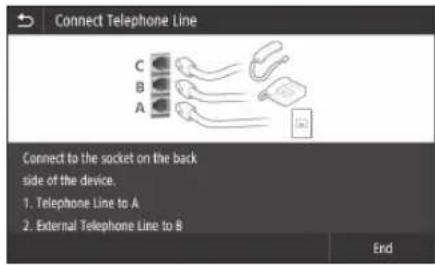

Connect Telephone Line C B A Connect to the socket on the back side of the device. 1. Telephone Line to A 2. External Telephone Line to B End

Telephone line jack A B

1. Select .
2. Select .

Now you are finished with the configuration.

Memo

Line drawing of a printer with an open circuit switch symbol, showing no text or labels present.

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram showing a device connected to a terminal block via cable, with a magnified inset highlighting a component (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram showing a device with a zoomed-in view of its internal structure, no text or symbols present.

Illustration of a CD or DVD drive into a desktop computer case (no text or symbols)

2.

Illustration of a printer with a digital display and a magnified view showing a switch symbol (no text or labels present)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram showing a device connected to an electronic device via cable, with no visible text or symbols.

Illustration of a computer monitor connected to a printer via a cable (no text or symbols)

Illustration of a mechanical device with a magnified inset showing a rotating component (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a server unit (no text or symbols present)

2.

Illustration of a printer with a magnified view showing a button labeled 'O' (no text or symbols on the device itself)

Illustration of three devices: a monitor, a printer with wireless signal lines, and a router (no text or symbols)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Diagram showing a device connected to a terminal block via cable, with a magnified inset highlighting a component (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Diagram showing a device with a close-up view of its internal structure (no text or symbols present)

Illustration of a CD or DVD disc being inserted into a computer tower (no text or symbols visible)

2.

Place the Original Properly

Remember before You Start Operation

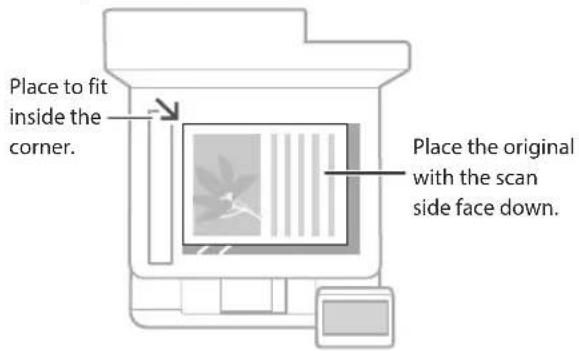

Place your original on the platen glass

Place to fit inside the corner. Place the original with the scan side face down.

Suitable for scanning book pages, magazine pages and newspaper clips.

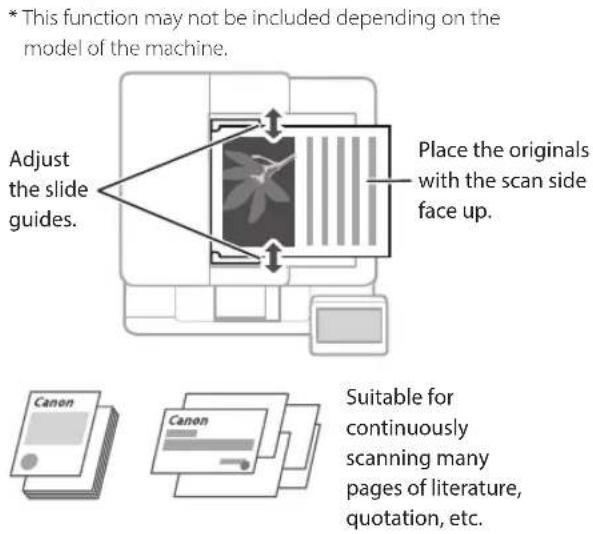

Place your originals into the feeder*

* This function may not be included depending on the model of the machine. Adjust the slide guides. Place the originals with the scan side face up. Canon Canon Suitable for continuously scanning many pages of literature, quotation, etc.

Start the Operation from the Operation Panel

Machine (MF644Cdw)

Line drawing of a printer with a digital display on top (no text or symbols)

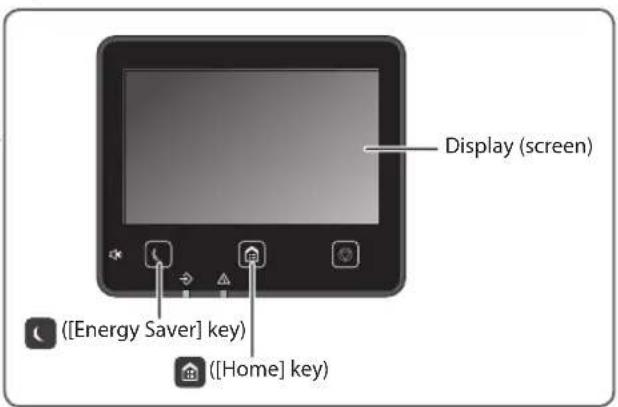

Operation Panel

Display (screen) ([Energy Saver] key) ([Home] key)

Scanning

1. Place the original.
2. Press 📋, and select .
3. Select the type of scan, and enter the necessary information.
4. Select , or .

Types of scan

■ Store in USB memory device
■ Send e-mail
■ Send to file server

To scan from a computer

■ MF Scan Utility

Scan Select a scan type. Computer USB Memory E-Mail F-Max File Status Monitor

For details

"Scanning" in the User's Guide

Copying

1. Place the original.
2. Press 🔒, and then select .
3. Specify the copy settings, as necessary.
4. Enter the desired number of copies.
5. Select or .

Useful copy settings

■ Non 1
■ 2-Sided or 1-Sided*
■ Enlarging or reducing
■ Copying ID cards
■ Passport Copy

* This function may not be available, depending on the model of the machine.

Copy Copy Ratio 100% Frame LTR Density ±0 Number of Colors 1 3 Select. No Main 1 Unit Other Settings Reset BMW Start Color Start Status Monitor

For details

"Copying" in the User's Guide

Faxing\*

1. Place the original.
2. Press 📄, and select .
3. Enter the destination information.
4. Specify the fax settings, as necessary.
5. Select .

Useful fax functions

■ Sequential Broadcast
■ Memory Reception
PC Fax

Fax 02/02/2019 10:00AM Specify a destination. Enter Dest. Specify Destination TX/RX Settings 1 ABC 3 ETF Hold 4 5 JLL 6 MNS Paris 7 8 Tyr 9 WARS Next Drill * New 0 # Status Monitor

For details

→ "Faxing" in the User's Guide

Printing

1. Open the document to print, and select the print function of the application.
2. Select the printer driver for the machine, and select [Preferences] or [Properties].
3. Specify the paper size.
4. Specify the paper source and paper type.
5. Specify the print settings, as necessary.
6. Select [OK].
7. Select [Print] or [OK].

Useful print settings

■ 2-sided*
■ Non 1
■ Booklet Printing*

* This function may not be available, depending on the model of the machine.

File Properties New Document - Top Box Closing (Set to Table Files) Help Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Save As... Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Sina Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine Tine

For details

"Printing" in the User's Guide

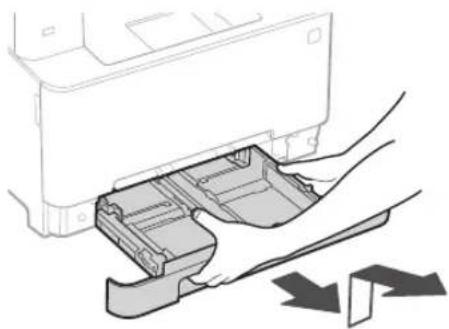

1 Pull out the paper drawer.

2 0.5 A4/0.5 100%

Diagram illustrating a mechanical assembly with labeled components and directional arrows, including magnified views of the component.

3 Up to here

4 Insert the paper drawer into the machine.

If you load a different size or type of paper from the one before, make sure to change the settings.

5 Press and select .

6 Specify the size and type of paper, according to the screen.

Loading in the Manual Feed SlotLoading

Line drawing of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Line drawing of a device casing with a separate panel, no text or symbols present

Line drawing of a printer or printer with paper sheet and paper holder, no text or symbols present

4 Insert the paper slowly into the manual feed slot until it reaches the back of the slot.

5 Specify the size and type of paper, according to the screen.

The Machine Does Not Seem to Work

Check the following.

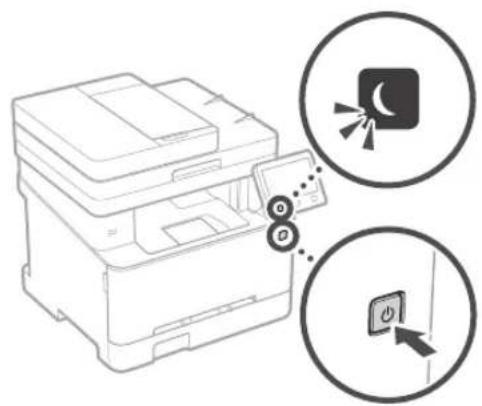

• Is the power turned ON?
  • Is the machine out of sleep mode?

If both the display and 📁 are not lit, press the power switch.

Diagram showing printer printing process with icons for lighting and power switch, including Chinese text labels.

• Is the power cord connected correctly?

Line drawing of a printer with a magnified inset showing cable insertion (no text or symbols)

If the problem persists, see the User's Guide.

Paper Jams Have Occurred

Clear the paper jams, according to the on-screen instructions.

Paper jammed. Open the back cover. Previous 1/3

Replacing the Toner Cartridge

Replace the toner cartridge, according to the on-screen instructions.

End of Cartridge Lifetime Pull the toner cartridge up and out. Previous 3/7 Next

Model number of replacement toner cartridge

• Canon Cartridge 054 Black
• Canon Cartridge 054 Cyan
• Canon Cartridge 054 Magenta
• Canon Cartridge 054 Yellow

• Canon Cartridge 054 H Black
• Canon Cartridge 054 H Cyan
• Canon Cartridge 054 H Magenta
• Canon Cartridge 054 H Yellow

Appendix

Important Safety Instructions

This chapter describes important safety instructions for the prevention of injury to users of this machine and others, and damage to properly. Read this chapter before using the machine, and follow the instructions to use the machine properly. Do not perform any operations not described in this manual. Canon will not be responsible for any damages resulting from operations not described in this manual, improper use, or repair or changes not performed by Canon or a third party authorized by Canon. Improper operation or use of this machine could result in personal injury and/or damage requiring extensive repair that may not be covered under your Limited Warranty.

WARNING

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

CAUTION

Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the machine safely, always pay attention to these cautions.

IMPORTANT

Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine correctly and avoid damage to the machine or property.

Installation

To use this machine safely and comfortably, carefully read the following precautions and install the machine in an appropriate location.

WARNING

Do not install in a location that may result in a fire or electrical shock

• A location where the ventilation slots are blocked (too close to walls, beds, sofas, rugs, or similar objects)
  • A damp or dusty location
  • A location exposed to direct sunlight or outdoors
  • A location subject to high temperatures
  • A location exposed to open flames
• Near alcohol, paint thinners or other flammable substances

Other warnings

• Do not connect unapproved cables to this machine. Doing so may result in a fire or electrical shock.
• Do not place necklaces and other metal objects or containers filled with liquid on the machine. If foreign substances come in contact with electrical parts inside the machine, it may result in a fire or electrical shock.
• When installing and removing the optional accessories, be sure to turn OFF the power, unplug the power plug, and then disconnect all the interface cables and power cord from the machine. Otherwise, the power cord or interface cables may be damaged, resulting in a fire or electrical shock.
• If any foreign substance falls into this machine, unplug the power plug from the AC power outlet and contact your local authorized Canon dealer.

CAUTION

Do not install in the following locations

The machine may drop or fall, resulting in injury.

• An unstable location
• A location exposed to vibrations

Other cautions

• When carrying this machine, follow the instructions in this manual. If carried improperly, it may fall, resulting in injury
• When installing this machine, be careful not to get your hands caught between the machine and the floor or walls. Doing so may result in injury.

IMPORTANT

Do not install in the following locations

Doing so may result in damage to the machine.

• A location subject to temperature and humidity extremes, whether low or high
• A location subject to dramatic changes in temperature or humidity
• A location near equipment that generates magnetic or electromagnetic waves
• A laboratory or location where chemical reactions occur
• A location exposed to corrosive or toxic gases
- A location that may warp from the weight of the machine or where the machine is liable to sink (a carpet, etc.)

Avoid poorly ventilated locations

This machine generates a slight amount of ozone and other emissions during normal use. These emissions are not harmful to health. However, they may be noticeable during extended use or long production runs in poorly ventilated rooms. To maintain a comfortable working environment, it is recommended that the room where the machine operates be appropriately ventilated. Also avoid locations where people would be exposed to emissions from the machine.

Do not install in a location where

condensation occurs

Water droplets (condensation) may form inside the machine when the room where the machine is installed is heated rapidly, and when the machine is moved from a cool or dry location to a hot or humid location. Using the machine under these conditions may result in paper jams, poor print quality, or damage to the machine. Let the machine adjust to the ambient temperature and humidity for at least 2 hours before use.

In altitudes of above sea level 3,000 m or

higher

Machines with a hard disk may not operate properly when used at high altitudes of about 3,000 meters above sea level, or higher.

Connecting the Telephone Line

This machine conforms to a analog telephone line standard. The machine can be connected to the public switched telephone network (PSTN) only. If you connect the machine to a digital telephone line or a dedicated telephone line, it might impede proper operation of the machine and could be the cause of damage. Make sure to confirm a type of telephone line before connecting the machine. Contact your optical fiber line or IP telephone line service providers if you want to connect the machine to those telephone lines.

When using wireless LAN

• Install the machine at a distance of 50 meters or less from the wireless LAN router.
- As far as possible, install in a location where communication is not blocked by intervening objects. The signal may be degraded when passing through walls or floors.
- Keep the machine as far as possible from digital cordless phones, microwave ovens, or other equipment that emits radio waves.
- Do not use near medical equipment. Radio waves emitted from this machine may interfere with medical equipment, which may result in malfunctions and accidents.

If the operating noise concerns you

Depending on the use environment and operating mode, if the operating noise is of concern, it is recommended that the machine be installed in a place other than the office.

Power Supply

A WARNING

• Use only a power supply that meets the specified voltage requirements. Failure to do so may result in a fire or electrical shock.
• The machine must be connected to a socket-outlet with grounding connection by the provided power cord.
• Do not use power cords other than the one provided, as this may result in a fire or electrical shock.
• The provided power cord is intended for use with this machine. Do not connect the power cord to other devices.
• Do not modify, pull, forcibly bend, or perform any other act that may damage the power cord. Do not place heavy objects on the power cord. Damaging the power cord may result in a fire or electrical shock.
• Do not plug in or unplug the power plug with wet hands, as this may result in an electrical shock.
• Do not use extension cords or multi-plug power strips with the machine. Doing so may result in a fire or electrical shock.
• Do not wrap the power cord or tie it in a knot, as this may result in a fire or electrical shock.
• Insert the power plug completely into the AC power outlet. Failure to do so may result in a fire or electrical shock.
• Remove the power plug completely from the AC power outlet during a thunder storm. Failure to do so may result in a fire, electrical shock, or damage to the machine.
  • Make sure that the power supply for the machine is safe, and has a steady voltage.
• Keep the power cord away from a heal source; failure to do this may cause the power cord coating to melt, resulting in a fire or electrical shock.

Avoid the following situations:

If excessive stress is applied to the connection part of the power cord, it may damage the power cord or the wires inside the machine may disconnect. This could result in a fire.

• Connecting and disconnecting the power cord frequently.
• Tripping over the power cord.
• The power cord is bent near the connection part, and continuous stress is being applied to the power outlet or the connection part.
• Applying excessive force on the power plug.

CAUTION

• Install this machine near the power outlet and leave sufficient space around the power plug so that it can be unplugged easily in an emergency.

IMPORTANT

When connecting power

• Do not connect the power cord to an uninterruptible power source. Doing so may result in malfunction of or damage to the machine at power failure.
• If you plug this machine into an AC power outlet with multiple sockets, do not use the remaining sockets to connect other devices.
• Do not connect the power cord to the auxiliary AC power outlet on a computer.

Other precautions

Electrical noise may cause this machine to malfunction or lose data.

Handling

WARNING

• Immediately unplug the power plug from the AC power outlet and contact an authorized Canon dealer if the machine makes an unusual noise, emits an unusual smell, or emits smoke or excessive heat. Continued use may result in a fire or electrical shock.
• Do not disassemble or modify this machine. There are high-voltage and high-temperature components inside the machine. Disassembly or modification may result in a fire or electrical shock.
• Place the machine where children will not come in contact with the power cord and other cables or gears and electrical parts inside the machine. Failure to do so may result in unexpected accidents.
• Do not use flammable sprays near this machine. If flammable substances come into contact with electrical parts inside this machine, it may result in a fire or electrical shock.
• When moving this machine, be sure to turn OFF the power of this machine, and then unplug the power plug and interface cables. Failure to do so may damage the power cord or interface cables, resulting in a fire or electrical shock.
• When plugging or unplugging a USB cable when the power plug is plugged into an AC power outlet, do not touch the metal part of the connector, as this may result in an electrical shock.

If you are using a cardiac pacemaker

This machine generates a low level magnetic flux and ultrasonic waves. If you use a cardiac pacemaker and feel abnormalities, please move away from this machine and consult your physician immediately.

CAUTION

• Do not place heavy objects on this machine as they may fall, resulting in injury.
• For your safety, please unplug the power cord if the machine will not be used for a long period of time.

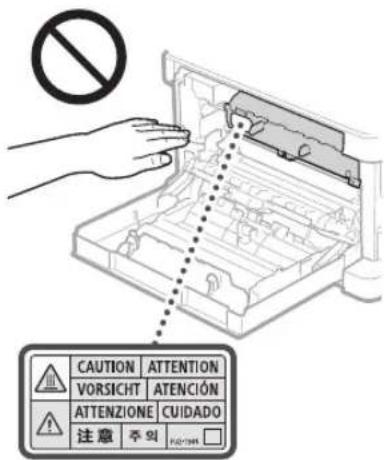

• Use caution when opening and closing covers to avoid injury to your hands.
• Keep hands and clothing away from the rollers in the output area. If the rollers catch your hands or clothing, this may result in personal injury.
• The inside of the machine and the output slot are very hot during and immediately after use. Avoid contact with these areas to prevent burns. Also, printed paper may be hot immediately after being output, so use caution when handling it. Failure to do so may result in burns.

CAUTION ATTENTION VORSICHT ATENCIÓN ATTENZIONE CUIDADO 注意 주외 FEDER

- Be careful not to drop a heavy object, such as a dictionary, on the platen glass. Doing so may damage the platen glass and result in injury.

Feeder

• Do not press down hard on the feeder when using the platen glass to make copies of thick books. Doing so may damage the platen glass and result in personal injury.
• Close the feeder gently to avoid catching your hands, as this may result in personal injury.
• Be careful not to put your hands or fingers into the feeder. Otherwise, you may be injured.

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Paper drawer

- Do not insert your hand into the machine while the paper drawer is removed, as this may result in personal injury.

Energy Saver key

- Press (Energy Saver) for safety when the machine will not be used for a long period of time, such as overnight. Also, turn OFF the main power switch, and disconnect the power cord for safety when the machine will not be used for an extended period of time, such as during consecutive holidays.

Laser Safety

This product is confirmed as a Class 1 laser product in IEC60825-1:2014 and EN60825-1:2014.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

The laser beam can be harmful to human bodies. Since radiation emitted inside the product is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation. Read the following remarks and instructions for safety.

• Never open covers other than those instructed in the manuals for this machine.
• If the laser beam should escape and enter your eyes, exposure may cause damage to your eyes.
• Use of controls, adjustments, or performance of procedures other than those specified in this manual may result in hazardous radiation exposure.

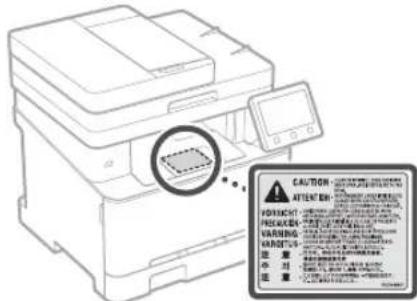

Laser Safety Caution

• Follow the instructions on the caution label attached to this machine.
• Do not subject the machine to strong shocks or vibration.
• Do not forcibly open and close doors, covers, and other parts. Doing so may result in damage to the machine.
• Do not turn the main power switch OFF or open the covers while the machine is in operation. This may result in paper jams.
• Use a modular cable that is shorter than 3 meters.
• Use a USB cable that is shorter than 3 meters.

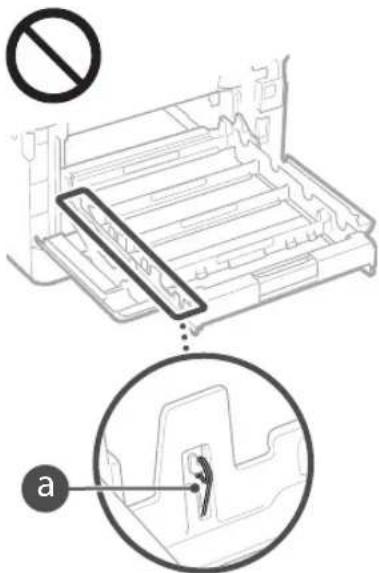

• Do not touch the contacts (a) inside the machine. Doing so may result in damage to the machine.

No a

Appendix

When transporting the machine

To prevent damage to the machine during transport, perform the following.

• Remove the toner cartridges.
• Securely pack the machine in the original box with packing materials.

Safety-Related Symbols

Power switch: "ON" position

Power switch: "OFF" position

Power switch: "STAND-BY" position

① Push-push switch "ON" "OFF"

Protective earthing terminal

Dangerous voltage inside. Do not open covers other than instructed.

CAUTION: Hot surface. Do not touch.

Class II equipment

Moving parts: Keep body parts away from moving parts

CAUTION: An electrical shock may occur. Remove all the power plugs from the power outlet.

There are sharp edges. Keep body parts away from sharp edges.

[NOTE]

Some of symbols shown above may not be affixed depending on the product.

Maintenance and Inspections

Clean this machine periodically. If dust accumulates, the machine may not operate properly. When cleaning, be sure to observe the following. If a problem occurs during operation, see "Troubleshooting" in the User's Guide. If the problem cannot be resolved or you feel the machine requires an inspection, see "When a Problem Cannot Be Solved" in the User's Guide.

WARNING

• Before cleaning, turn OFF the power and unplug the power plug from the AC power outlet. Failure to do so may result in a fire or electrical shock.
• Unplug the power plug periodically and clean with a dry cloth to remove dust and grime. Accumulated dust may absorb humidity in the air and may result in a fire if it comes into contact with electricity.
• Use a damp, well wrung-out cloth to clean the machine. Dampen cleaning cloths with water only. Do not use alcohol, benzine, paint thinner, or other flammable substances. Do not use tissue paper or paper towels. If these substances come into contact with electrical parts inside the machine, they may generate static electricity or result in a fire or electrical shock.
• Check the power cord and plug periodically for damage. Check the machine for rust, dents, scratches, cracks, or excessive heat generation. Use of poorly-maintained equipment may result in a fire or electrical shock.

CAUTION

• The inside of the machine has high-temperature and high-voltage components. Touching these components may result in burns. Do not touch any part of the machine that is not indicated in the manual.
- When loading paper or removing jammed paper, be careful not to cut your hands with the edges of the paper.

Consumables

WARNING

• Do not dispose of used toner cartridges or the like in open flames. Also, do not store toner cartridges or paper in a location exposed to open flames. This may cause the toner to ignite, and result in burns or fire.
• If you accidentally spill or scatter toner, carefully gather the toner particles together or wipe them up with a soft, damp cloth in a way that prevents inhalation. Never use a vacuum cleaner that does not have safeguards against dust explosions to clean up spilled toner. Doing so may cause a malfunction in the vacuum cleaner, or result in a dust explosion due to static discharge.

CAUTION

• Use caution not to inhale any toner. If you should inhale toner, consult a physician immediately.
• Use caution so that toner does not get into your eyes or mouth. If toner should get into your eyes or mouth, immediately wash with cold water and consult a physician.
• Use caution so that toner does not come into contact with your skin. If it should, wash with soap and cold water. If there is any irritation on your skin, consult a physician immediately.
• Keep the toner cartridges and other consumables out of the reach of small children. If toner is ingested, consult a physician or poison control center immediately.
• Do not disassemble or modify the toner cartridge or the like. Doing so may cause the toner to scatter.
• When removing the sealing tape from the toner cartridge, pull it out completely but without using excessive force. Doing otherwise may cause the toner to scatter.

IMPORTANT

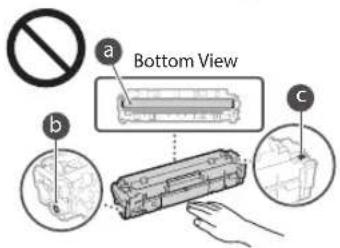

Handling the toner cartridge

- Be sure to hold the toner cartridge using the handle.

Line drawing of a hand placing a component into a rectangular electronic device (no text or symbols)

- Do not touch the toner cartridge memory (a) or the electrical contacts (b). To avoid scratching the surface of the drum inside the machine or exposing it to light, do not open the drum protective shutter (c).

a Bottom View b c

• Except when necessary, do not take out the toner cartridge from the packing material or from this machine.
  • The toner cartridge is a magnetic product. Do not move it close to products susceptible to magnetism including floppy disks and disk drives. Doing so may result in data corruption.

Storing the toner cartridge

• Store in the following environment to ensure safe and satisfactory use. Storage temperature range: 32 to 95°F (0 to 35°C) Storage humidity range: 35 to 85% RH (relative humidity/no condensation)*
• Store without opening until the toner cartridge is to be used.
• When removing the toner cartridge from this machine for storage, place the removed toner cartridge in the original packing material.
• When storing the toner cartridge, do not store it upright or upside down. The toner will solidify and may not return to its original condition even if it is shaken.

* Even within the storable humidity range, water droplets (condensation) may develop inside the toner cartridge if there is a difference of temperature inside and outside the toner cartridge. Condensation will adversely affect the print quality of toner cartridges.

Do not store the toner cartridge in the following locations

• Locations exposed to open flames
• Locations exposed to direct sunlight or bright light for five minutes or more
• Locations exposed to excessive salty air
• Locations where there are corrosive gases (i.e. aerosol sprays and ammonia)
• Locations subject to high temperature and high humidity
• Locations subject to dramatic changes in temperature and humidity where condensation may easily occur
• Locations with a large amount of dust
• Locations within the reach of children

Be careful of counterfeit toner cartridges

- Please be aware that there are counterfeit Canon toner cartridges in the marketplace. Use of counterfeit toner cartridge may result in poor print quality or machine performance. Canon is not responsible for any malfunction, accident or damage caused by the use of counterfeit toner cartridge. For more information, see global.canon/ctc.

Availability period of repairing parts and toner cartridges and the like

- The repairing parts and toner cartridges and the like for the machine will be available for at least seven (7) years after production of this machine model has been discontinued.

Toner cartridge packing materials

• Save the packing materials for the toner cartridge. They are required when transporting this machine.
• The packing materials may be changed in form or placement, or may be added or removed without notice.
  • After you pull out the sealing tape from the toner cartridge, dispose of it in accordance with the applicable local regulations.

When disposing of a used toner cartridge or the like

- When discarding a toner cartridge or the like, place it in the original packing material to prevent toner from scattering from inside, and dispose of it in accordance with the applicable local regulations.

Telephone Equipment

WARNING

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement or near swimming pool.
2. Avoid using a telephone during an electrical storm. There may be remote risk of electric shock form lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.

Notice

Product Name

Safety regulations require the product's name to be registered.

In some regions where this product is sold, the following name(s) in parentheses () may be registered instead.

Color imageCLASS MF644Cdw (F175002)

Color imageCLASS MF642Cdw / MF641Cw (F175000)

FCC (Federal Communications Commission) Users in the U.S.A.

Multi Function Printer, Model F175002, F175000 Contains Transmitter Module FCC ID: VPYLB1KA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

[NOTE]

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in this manual. If you make such changes or modifications, you could be required to stop operation of the equipment.

CANON U.S.A., INC

One Canon Park, Melville, NY 11747, U.S.A.

TEL No. 1-800-OK-CANON

Wireless LAN Regulatory Information

Regulatory information for users in Brazil

Regulatory information for users in Canada

English This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body.

Regulatory information for users in Mexico

Legal Limitations on the Usage of Your Product and the Use of Images

Using your product to scan, print or otherwise reproduce certain documents, and the use of such images as scanned, printed or otherwise reproduced by your product, may be prohibited by law and may result in criminal and/or civil liability. A non-exhaustive list of these documents is set forth below. This list is intended to be a guide only. If you are uncertain about the legality of using your product to scan, print or otherwise reproduce any particular document, and/or of the use of the images scanned, printed or otherwise reproduced, you should consult in advance with your legal advisor for guidance.

• Paper Money
• Travelers Checks
• Money Orders
• Food Stamps
  • Certificates of Deposit
• Passports
• Postage Stamps (canceled or uncanceled)
• Immigration Papers
  • Identifying Badges or Insignias
• Internal Revenue Stamps (canceled or uncanceled)
• Selective Service or Draft Papers
  • Bonds or Other Certificates of Indebtedness
• Checks or Drafts Issued by Governmental Agencies
  • Stock Certificates
  • Motor Vehicle Licenses and Certificates of Title
  • Copyrighted Works/Works of Art without Permission of Copyright Owner

Disclaimers

• The information in this document is subject to change without notice.
• CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OF USE, OR NON-INFRINGEMENT. CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.
- The following applies in California, USA only: The battery included with your product contains Perchlorate Material and may require special handling.
See
http://www.dtsc.ca.gov/hazardouswaste/perchlorate/ for details.

Appendix

Users in the U.S.A.

Pre-Installation Requirements for Canon Facsimile Equipment

A. Location

Supply a suitable table, cabinet, or desk for the machine. See the User's Guide for specific dimensions and weight.

B. Order Information

1. A single telephone line (touch-tone or rotary) should be used.
2. Order an RJ11-C telephone wall jack (USOC), which should be installed by the telephone company. If the RJ11-C wall jack is not present, telephone/facsimile operation is not possible.
3. Order a normal business line from your telephone company's business representative. The line should be a regular voice grade line or an equivalent one. Use one line per unit. DDD (Direct Distance Dial) line
   IDDD (International Direct Distance Dial) line if you communicate overseas

[NOTE]

Canon recommends an individual line following industry standards, i.e.,2,500 (touch-tone) or 500 (rotary/pulse dial) telephones. A dedicated extension off a PBX (Private Branch eXchange) unit without "Call Waiting" can be used with your facsimile unit. Key telephone systems are not recommended because they send nonstandard signals to individual telephones for ringing and special codes, which may cause a facsimile error.

C. Power Requirements

The machine should be connected to a standard 120 volt AC, three-wire grounded outlet only. Do not connect this machine to an outlet or power line shared with other appliances that cause "electrical noise." Air conditioners, electric typewriters, copiers, and machines of this sort generate electrical noise that often interferes with communications equipment and the sending and receiving of documents.

Connection of the Equipment

This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the rear panel of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX.

The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). An FCC compliant telephone line cable and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or premise wiring using a compatible modular jack that is Part 68 compliant. This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subjected to state tariffs.

In Case of Equipment Malfunction

Should any malfunction occur which cannot be corrected by the procedures described in this guide or the User's Guide, disconnect the equipment from the telephone line cable and disconnect the power cord. The telephone line cable should not be reconnected or the power switch turned ON until the problem is completely resolved. Users should contact Canon Authorized Service Facilities for servicing of equipment, Information regarding Authorized Service Facility locations can be obtained by calling Canon Customer Care Center (1-800-OK-CANON).

Rights of the Telephone Company

If this equipment (Color imageCLASS MF644Cdw) causes harm to the telephone network, the telephone company may temporarily disconnect service. The telephone company also retains the right to make changes in facilities and services that may affect the operation of this equipment. When such changes are necessary, the telephone company is required to give adequate prior notice to the user. However, if advance notice is not possible, the telephone company will notify the customer as soon as possible. Also, the customer will be advised of his/her right to file a complaint with the FCC if he/she believes it is necessary.

WARNING

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including FAX machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be a 900 number or any other number for which charges exceed local or long-distance transmission charges.)

[NOTE]

In order to program this information into your machine, you should complete the procedure for registering your name, unit's telephone number, time, and date in the Getting Started.

Users in Canada

Pre-Installation Requirements for Canon Facsimile Equipment

A. Location

Supply a suitable table, cabinet, or desk for the machine. See the User's Guide for specific dimensions and weight.

B. Order Information

1. A single telephone line (touch-tone or rotary) should be used.
2. Order a CA11A modular jack, which should be installed by the telephone company. If the CA11A jack is not present, installation cannot occur.
3. Order a normal business line from your telephone company's business representative. The line should be a regular voice grade line or an equivalent one. Use one line per unit.

DDD (Direct Distance Dial) line -or-

IDDD (International Direct Distance Dial) line if you communicate overseas

[NOTE]

Canon recommends an individual line following industry standards, i.e., 2,500 (touch-tone) or 500 (rotary/pulse dial) telephones. A dedicated extension off a PBX (Private Branch eXchange) unit without "Call Waiting" can be used with your facsimile unit. Key telephone systems are not recommended because they send nonstandard signals to individual telephones for ringing and special codes, which may cause a facsimile error.

C. Power Requirements

The power outlet should be a three-prong grounded receptacle (Single or Duplex). It should be independent from copiers, heaters, air conditioners, or any electric equipment that is thermostatically controlled. The rated value is 115 volts and 15 amperes. The CA11A modular jack should be relatively close to the power outlet to facilitate installation.

[Notice]

• The REN of this product is 1.0.
- Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the company's inside wiring associated with a single line individual service may be extended by means of a certified connector assembly (telephone extension cord). The customer should be aware that compliance with the above conditions may not prevent deterioration of service in some situations.
• Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.
- Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

CAUTION

Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

[NOTE]

This equipment complies with the Canadian ICES-003 Class B limits.

English This product meets the applicable Innovation, Science and Economic Development Canada technical specifications. The Ringer Equivalence Number (REN) indicates the maximum number of devices allowed to be connected to a telephone interface. The termination of an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices not exceed five.

Keys and Buttons Used in This Manual

The following symbols and key names are a few examples of how keys to be pressed are expressed in this manual.

• Operation panel keys: [Key icon] Example:
• Display:
- Buttons and items on the computer display: [Preferences]

Illustrations and Displays Used in This Manual Illustrations and displays used in this manual are which of Color imageCLASS MF644Cdw.

Trademarks

Mac is a trademark of Apple Inc. Microsoft, Windows, Windows Vista, Windows Server, Internet Explorer, Excel, and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Other product and company names herein may be the trademarks of their respective owners.

Third Party Software

This Canon product (the "PRODUCT") includes third-party software modules. Use and distribution of these software modules, including any updates of such software modules (collectively, the "SOFTWARE") are subject to license conditions below.

(1) You agree that you will comply with any applicable export control laws, restrictions or regulations of the countries involved in the event that the PRODUCT including the SOFTWARE is shipped, transferred or exported into any country.

(2) Rights holders of the SOFTWARE retain in all respects the title, ownership and intellectual property rights in and to the SOFTWARE. Except as expressly provided herein, no license or right, expressed or implied, is hereby conveyed or granted by rights holders of the SOFTWARE to you for any intellectual property of rights holders of the SOFTWARE.

(3) You may use the SOFTWARE solely for use with the PRODUCT.

(4) You may not assign, sublicense, market, distribute, or transfer the SOFTWARE to any third party without prior written consent of rights holders of the SOFTWARE.

(5) Notwithstanding the foregoing, you may transfer the SOFTWARE only when (a) you assign to a transferee all of your rights to the PRODUCT and all rights and obligations under the conditions governing the SOFTWARE and PRODUCT and (b) such transferee agrees in writing to be bound by all these conditions.

(6) You may not decrypt, decompile, reverse engineer, disassemble or otherwise reduce the code of the SOFTWARE to human readable form.

(7) You may not modify, adapt, translate, rent, lease or loan the SOFTWARE or create derivative works based on the SOFTWARE.

(8) You are not entitled to remove or make separate copies of the SOFTWARE from the PRODUCT.

(9) The human-readable portion (the source code) of the SOFTWARE is not licensed to you.

Notwithstanding (1) through (9) above, the PRODUCT includes third-party software modules accompanying the other license conditions, and these software modules are subject to the other license conditions. Please refer to the other license conditions of third-party software modules described in Appendix of Manual for the corresponding the PRODUCT. This Manual is available at http://canon.com/oip-manual.

By using the PRODUCT, you shall be deemed to have agreed to all applicable license conditions. If you do not agree to these license conditions, please contact your service representative.

ACCEPTANCE

THE TERMS OF THIS THIRD PARTY SOFTWARE STATED HERE OR IN RELATED WARRANTY PROVISIONS SHALL BE DEEMED ACCEPTED UPON YOUR USE OF THE PRODUCT FOR ONE OR MORE OF ITS NORMAL PURPOSES, IF THERE HAS BEEN NO OTHER PRIOR EXPRESS ACCEPTANCE.

THE TERMS OF THIS THIRD PARTY SOFTWARE GOVERN THE THIRD PARTY SOFTWARE AS DELIVERED WITH THE PRODUCT AND ALL UPDATED VERSIONS OF THE THIRD PARTY SOFTWARE PROVIDED UNDER MAINTENANCE AGREEMENTS OR OTHER SERVICE ARRANGEMENTS FOR THE PRODUCT WITH CANON USA OR CANON CANADA OR THEIR RESPECTIVE AUTHORIZED SERVICE ORGANIZATIONS.

V_180517

Line drawing of a printer with a digital display on top (no text or symbols)

Panneau de commande

Technical diagram showing assembly steps with labeled components and directional arrows indicating process flow

Line drawing of a device rear panel with directional arrows indicating movement or flow (no text or symbols)

Line drawing of a printer or printer casing with a separate cover or panel, no text or symbols present

Line drawing of a printer or printer with paper sheet and paper holder, no text or symbols present

Diagram showing printer operation with icons for lighting and power switch, including a close-up of the printer's screen.

Line drawing of a printer with a magnified inset showing cable insertion (no text or symbols)

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Cassette à papier

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of a component detail labeled 'a'.

Annexe

Line drawing of a hand placing a component into a rectangular housing (no text or symbols)

One Canon Park, Melville, NY 11747, U.S.A.

TEL No. 1-800-OK-CANON

Regulatory information for users in Brazil

Regulatory information for users in Canada

English This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body.

Regulatory information for users in Mexico

English This product meets the applicable Innovation, Science and Economic Development Canada technical specifications.

The Ringer Equivalence Number (REN) indicates the maximum number of devices allowed to be connected to a telephone interface. The termination of an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices not exceed five.

Line drawing of a printer with a digital display on top (no text or symbols)

Panel de control

Visor (pantalla) (Tecla [Ahorro de energia]) (Tecla [Inicio])

Escaneado

Component 1: Component name (C:\Users\Target\Index) File Properties Size Size of sub- Size Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub- Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub Size of sub

Diagram illustrating a mechanical assembly with labeled components and directional arrows, including magnified views of internal structure.

Line drawing of a device casing with internal components and directional arrows indicating movement (no text or symbols)

Line drawing of a printer or printer casing with a paper clip inserted, no text or symbols present

Line drawing of a printer or printer with paper sheet and paper holder, no text or symbols present

Diagram showing printer operation with icons for lighting and power switch, including a close-up of the device's screen.

Line drawing of a printer with a magnified inset showing the cable being inserted (no text or symbols present)

Illustration showing a hand pressing a stack of cards with a 'no' symbol indicating no prohibition or prohibition.

Casete de papel

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Line drawing of a hand inserting a component into a rectangular housing (no text or symbols)

One Canon Park, Melville, NY 11747, U.S.A.

TEL No. 1-800-OK-CANON

Regulatory information for users in Brazil

Regulatory information for users in Canada

English This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body.

Regulatory information for users in Mexico

English This product meets the applicable Innovation, Science and Economic Development Canada technical specifications.

The Ringer Equivalence Number (REN) indicates the maximum number of devices allowed to be connected to a telephone interface. The termination of an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices not exceed five.

Line drawing of a printer with a digital display on top (no text or symbols)

Painel de operações

Technical diagram showing assembly steps with labeled components and directional arrows indicating process flow

Line drawing of a door handle with arrows indicating direction (no text or symbols)

Line drawing of a printer or printer casing with a separate cover panel, no text or symbols present

Line drawing of a printer or printer with paper sheet and paper holder, no text or symbols present

Diagram showing printer operation with icons for lighting and power switch, including a close-up of the next image.

Line drawing of a printer with a magnified inset showing the cable being inserted (no text or symbols present)

Illustration of a hand placing two cards into a box with a 'no' symbol nearby (no text or labels)

Gaveta de papel

Line drawing of a hand placing a component into a rectangular housing (no text or symbols)

FCC (Federal Communications Commission) Usuários nos EUA.

Impressora Multifuncional, Modelo F175002, F175000

Regulatory information for users in Brazil

Regulatory information for users in Canada

English This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body.

Regulatory information for users in Mexico

English This product meets the applicable Innovation, Science and Economic Development Canada technical specifications.

The Ringer Equivalence Number (REN) indicates the maximum number of devices allowed to be connected to a telephone interface. The termination of an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices not exceed five.

One Canon Park, Melville, NY 11747, U.S.A.

Call Center: 1-800-OK-CANON

CANON MEXICANA, S. DE R.L. DE C.V.

Boulevard Manuel Avila Camacho #138 Piso 17,

Col. Lomas de Chapultepec Mexico City, Mexico 11000

Call Center: 01800-710-7168

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

2F Jinbao Building No.89, Jinbao Street,

Dongcheng District, Beijing 100005, PRC

CANON SINGAPORE PTE LTD

1 Fusionopolis Place, #15-10, Galaxis, Singapore 138522

CANON AUSTRALIA PTY LTD

Building A, The Park Estate, 5 Talavera Road, Macquarie Park, NSW 2113, Australia

CANON GLOBAL WORLDWIDE SITES

http://www.canon.com/
