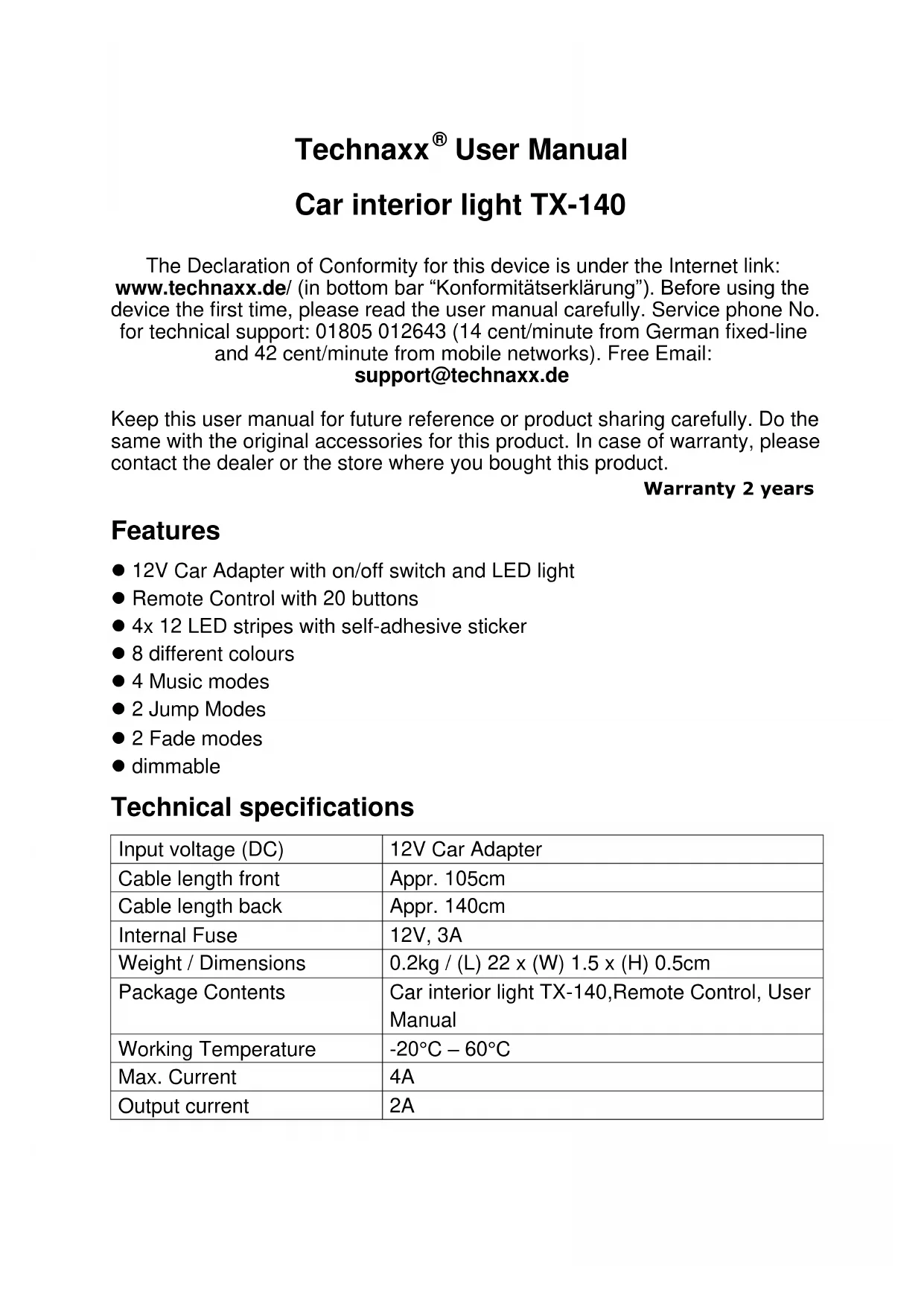

Technaxx® User Manual

Car interior light TX-140

The Declaration of Conformity for this device is under the Internet link: www.technaxx.de/ (in bottom bar “Konformitätserklärung”). Before using the device the first time, please read the user manual carefully. Service phone No. for technical support: 01805 012643 (14 cent/minute from German fixed-line and 42 cent/minute from mobile networks). Free Email:

[e-mail]

Keep this user manual for future reference or product sharing carefully. Do the same with the original accessories for this product. In case of warranty, please contact the dealer or the store where you bought this product.

Warranty 2 years

Features

● 12V Car Adapter with on/off switch and LED light
● Remote Control with 20 buttons
● 4x 12 LED stripes with self-adhesive sticker
● 8 different colours
● 4 Music modes
- 2 Jump Modes
- 2 Fade modes
- dimmable

Technical specifications

Input voltage (DC)	12V Car Adapter
Cable length front	Appr. 105cm
Cable length back	Appr. 140cm
Internal Fuse	12V, 3A
Weight / Dimensions	0.2kg / (L) 22 x (W) 1.5 x (H) 0.5cm
Package Contents	Car interior light TX-140,Remote Control, User Manual
Working Temperature	-20°C – 60°C
Max. Current	4A
Output current	2A

Warnings

- Do not expose the modules to direct sunlight. ●Using adhesive on the fixing pads can leave residues. ●Sticking is not possible to all materials (e.g. fabrics, textiles). ●Check the material compatibility in a hidden area and then clean the application surfaces. ●Do not mount the modules on the front windscreen, side windows or rear window. ●The user must ensure that direct/indirect light emission through the vehicle windows is avoided. ●Place the LED strips so that other road users or the driver and passenger are not dazzled ●Operate the modules only when in stand still operating mode. ●Make sure all wire is fixed and cannot fall off during normal use or accident.

Normal use

The Car interior light is intended to illuminate your Car/ Caravan/ lorries/ Boats with different effects.

→Start the Car or make sure your cigarette lighter is powered, →plug in the Car Adapter. →switch on the Car interior light→select the colour or mode of your choice.

ON/OFF	SWITCH THE Item ON or OFF		Adjust the brightness with 8 different level
	All colours will jump in the rhythm of the music, if no Music, colours change continue		For slow and soft Music, if no Musik colours are changing, each colour adjust brightness before changing to the next colour
	For active Music, if no Music, last colour stay		Colour following the Music, if Music is OFF, light is off as well
JUMP 3	3 colours are changing	JUMP 7	7 colours are changing
FADE 3	3 colours gradual changing	FADE 7	7 colours gradual changing

→This device is not intended for use by children or persons with limited mental capacity or lacking experience and/or lacking expertise. Children should be supervised to ensure they do not play with the device.
→This device is not intended for commercial use.
→Any other use or modification of the device is considered improper and involves significant risks. The manufacturer assumes no liability for damages due to improper use.

Intended sites

The Car interior light is intended for installation in

● Automobiles (and Lorries)
- Caravans
- Boats

with 12V batteries.

Do not place the Car interior light :

• Near heat sources (radiators, direct sunlight), flammable materials, battery compartment or starter battery.
• Moist locations or locations exposed to dripping or splashing water,
  ● In environments with explosion hazards

installation

The installation of the Car interior light TX-140 can be done under the immature board, in the trunk or under the seats. Before you glue the LED Stripes make sure that the cables can be laid cleanly and that no tripping hazards arise. The driver and the passengers must not be hampered by the product at any time. Clean the area before attaching the LED strips to ensure a secure connection. The installation should be done so that neither the driver nor other road users are dazzled or irritated by the lighting.

Warnings & Caution

- ONLY INDOOR APPLICATION. These products do not have ECE approval, ie. h., they may not be used on the vehicle in any outdoor application on public roads. Use on public roads leads to the expiry of the operating license and loss of insurance coverage. In many countries, the distribution and use of these products is prohibited. Please contact your local distributor for availability information in your country. ● Use of the device in life support applications where failure of the device can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. ● Do not use the device in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide, and also not near flammable materials, fumes or gases. Do not operate near car heating vents or in direct sunlight. ● Keep the device dry at all times and disconnect when not in use. ● Turn OFF connected equipment before (!) starting your engine.

CE

Hints for Environment Protection: Packages materials are raw materials and can be recycled. Do not disposal old devices or batteries into the domestic waste. Cleaning: Protect the device from contamination and pollution (use a clean drapery). Avoid using rough, coarse-grained materials or solvents/aggressive cleaner. Wipe the cleaned device accurately. Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany
