Product type	Car seat
Brand	Maxi-Cosi
Model	Titan Pro iSize
Safety standard	R129/03 i-Size
Child height	76 – 150 cm
Recommended age	From 15 months up to approximately 12 years
Maximum child weight (harness phase)	18 kg (76-105 cm)
Maximum child weight (booster phase)	36 kg (100-150 cm)
Orientation	Forward facing
Installation	ISOFIX + Top Tether (76-105 cm); 3-point seat belt + ISOFIX (100-150 cm)
Harness	5-point with height adjustment
Headrest	Height adjustable
Side protection	G-CELL
Recline	Adjustable (recline handle)
Cover	Removable and washable (replacement only with official Maxi-Cosi cover)
Estimated lifespan	Approximately 12 years (intensive use)
Anchor points	ISOFIX + Top Tether + belt strap
Vehicle belt type	3-point fixed or retractable belt (ECE R16 standard)
Vehicle compatibility	List available at www.maxi-cosi.com/car-fitting-list
Included documentation	User manual (106 pages) downloadable as PDF

Frequently Asked Questions - Titan Pro iSize MAXI-COSI

What is the maximum child weight for using the 5-point harness?

The 5-point harness can be used until the child reaches 18 kg (height from 76 to 105 cm).

Can the Titan Pro iSize be installed without ISOFIX?

Yes, from 100 cm to 150 cm, you can use only the vehicle's seat belt or combine ISOFIX and belt. For children from 76 to 105 cm, installation with ISOFIX + Top Tether is mandatory.

How to wash the car seat cover?

The cover and crotch strap cover can be removed and washed. Use only an official Maxi-Cosi replacement cover if replacing, as it is an integral part of the restraint system.

From what age can this seat be used?

The minimum age is 15 months. Do not use before this age as indicated in the manual.

What is the safety standard of the Titan Pro iSize?

This seat is certified according to the latest European standard ECE R129/03 (i-Size), ensuring enhanced safety.

Can I use the seat on the front passenger seat?

Yes, but it is recommended to deactivate the passenger airbag and move the seat back as far as possible. Always consult the vehicle manual.

How to know if the seat is properly installed?

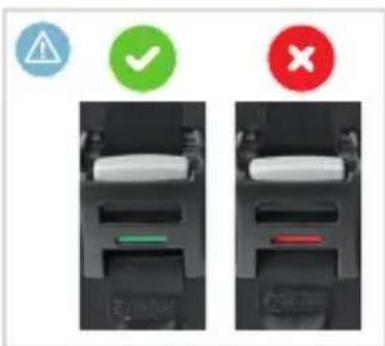

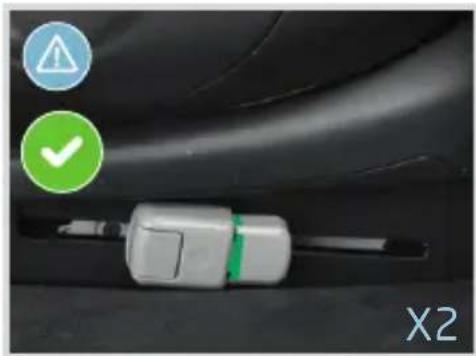

Check that the ISOFIX connectors are properly engaged and the Top Tether strap is correctly attached. The belt must follow the markings on the seat. You should not be able to fit more than one finger (1 cm) between the harness and the child.

What types of car seat belts are compatible?

Use only a 3-point fixed or retractable seat belt, certified according to standard ECE R16 or equivalent. 2-point belts are not allowed.

Where to find the list of compatible vehicles?

The full list of vehicles is available on the website www.maxi-cosi.com/car-fitting-list. Consult it before installation.

What is the recommended lifespan of the seat?

The seat is designed for intensive use of approximately 12 years. After a severe collision, it must be replaced.

USER MANUAL Titan Pro iSize MAXI-COSI

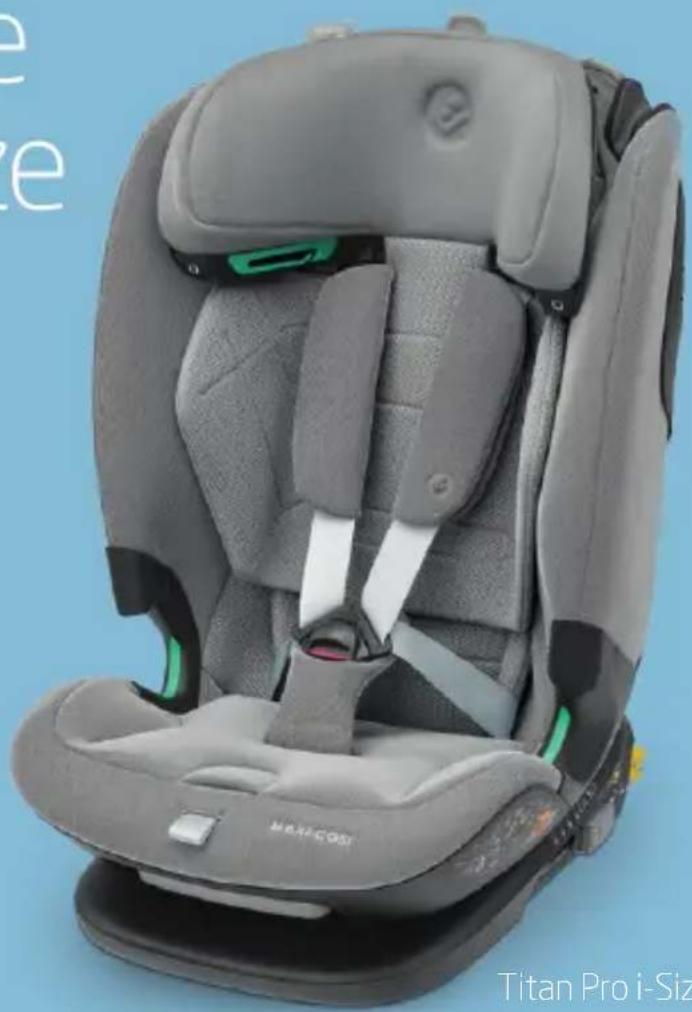

Titan Pro i-Size Titan Plus i-Size

76cm-150cm

15M-12Y

i-Size compliant

Exterior view of a Megross car seat with green accents and gray body (no text or symbols on the car itself)

Titan Pro i-Size

MAXI·COSI®

We carry the future

EN

The quick start guide is intended to provide only an overview. For the maximum protection and comfort of your child, it is essential that you read through the entire manual carefully and follow all instructions.

FR

Index

3

76-105 cm

100- 150 cm

+

23 34

29 41

+

47

51

EN 54 FR 56 DE 58 NL 60 ES 62 IT 64 PT 66 SV 68 DA 70 FI 72 NO 74 EL 76 TR 78 PL 80 RU 82 UK 84 HR 86 SK 88 BG 90 HU 92 SL 94 ET 96 CS 98 RO 100 LT 101 AR 102
EN 54
FR 56
DE 58
NL 60
ES 62
IT 64
PT 66
SV 68
DA 70
FI 72
NO 74
EL 76
TR 78
PL 80
RU 82
UK 84
HR 86
SK 88
BG 90
HU 92
SL 94
ET 96
CS 98
RO 100
LT 102
AR 105

PL

Close-up of a car seatbelt with warning icons (no readable text or symbols)

1.

Close-up of hands adjusting a blue plastic clip inside a car (no text or symbols visible)

Close-up of a hand using a blue tool to adjust a metal pipe fitting with a blue arrow indicating rotation (no text or symbols visible)

EN

The Maxi-Cosi Titan Pro/Plus i-Size has been approved in accordance with the latest European safety standards (ECE R129/03) and is suitable for children from 76 to 150 cm (from approx. 15 months to 12 years). Category of your car seat: R129 i-Size from 76-105cm (max 18kg). i-Size booster from 100-150 cm. Position of your car seat: forward facing.

FR

The Maxi-Cosi Titan Pro/Plus i-Size must be installed with ISOFIX and Top Tether when your child's height is from 76 cm to 105 cm. You can use vehicle belt only, or vehicle belt and ISOFIX to install the Maxi-Cosi Titan Pro/Plus i-Size car seat when you child's height is 100-150cm (max. 36kg). Consult the vehicle manual to find the location of ISOFIX anchorages and more information about installing the car seat in the vehicle. This child restraint is classified for "Universal" use and is suitable for fixing into the seat position of the following cars:

IMPORTANT:

For a complete list of cars, please visit www.maxi-cosi.com/car-fitting-list

Before installing your child car seat with the ISOFIX anchorages system you must read the instruction manual of the vehicle. This manual will indicate the places compatibles with the class size of the car seats.

FR

Volkswagen Golf7

NL

Volkswagen Golf7

TR

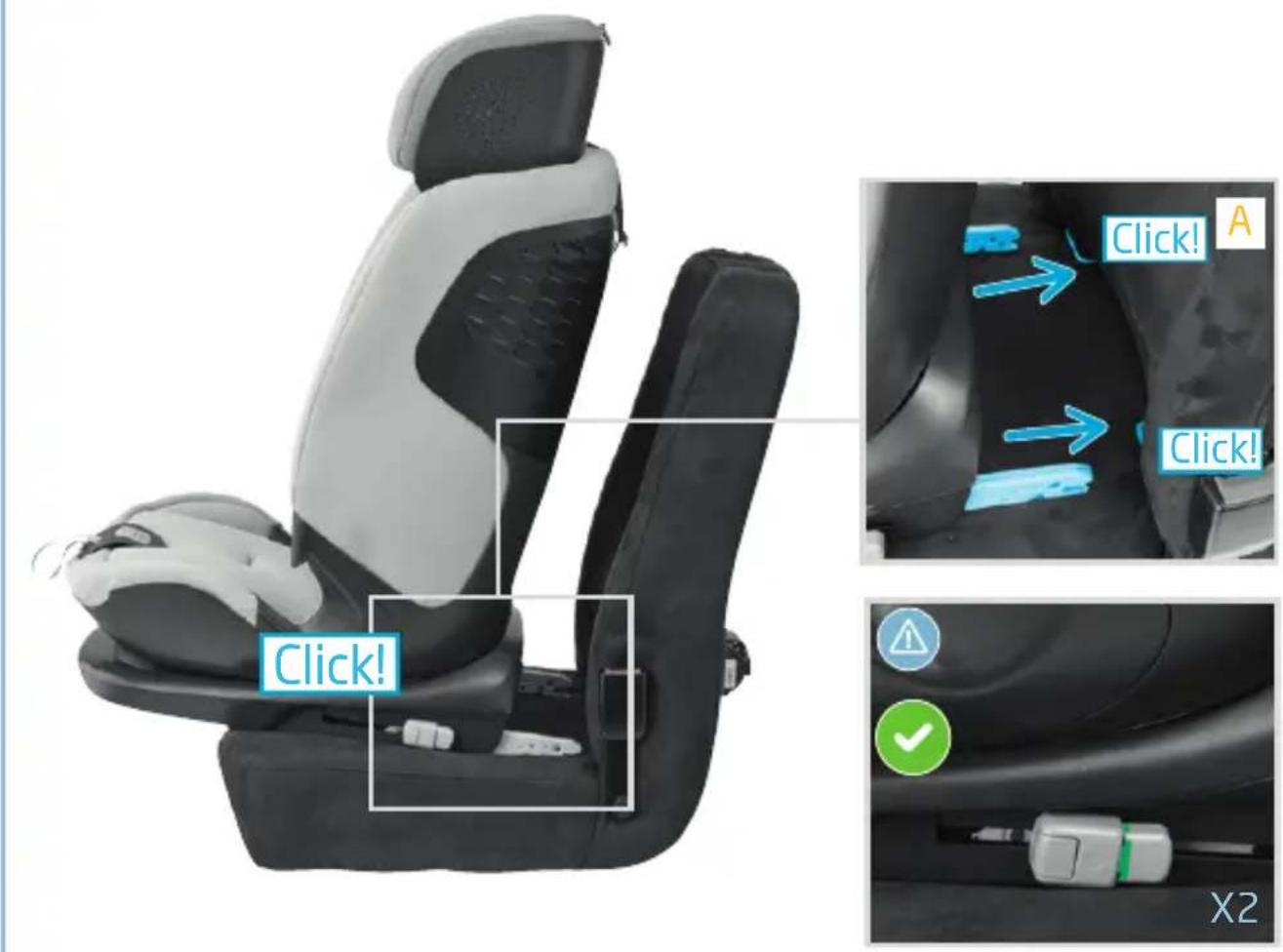

76 - 105 cm

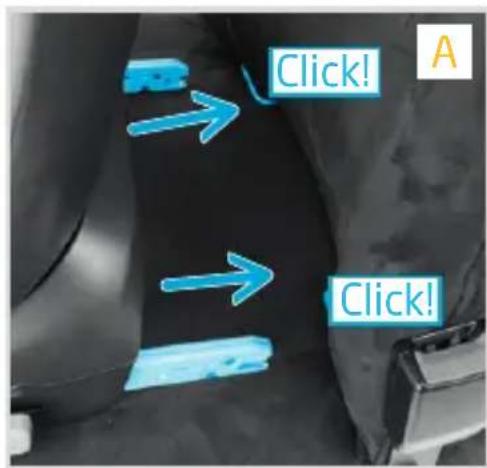

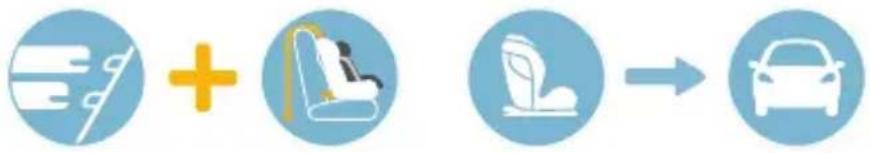

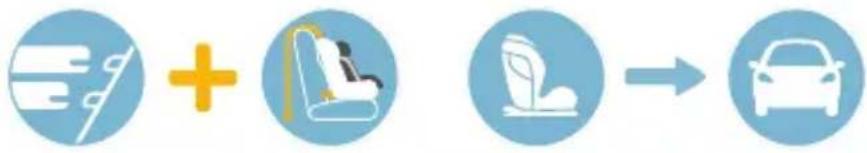

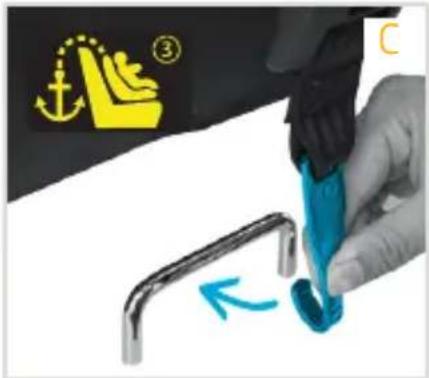

EN ISOFIX + Top Tether

FR ISOFIX + sangle Top Tether

DE ISOFIX + Top Tether

NL ISOFIX + Top Tether

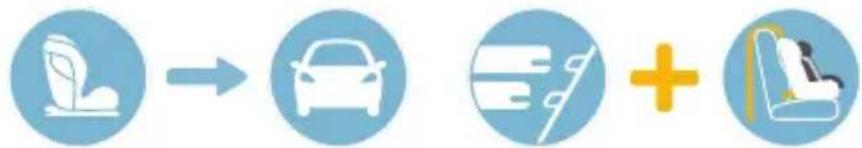


2

Close-up of a car seatbelt component with warning and check icons (no readable text or symbols)

3
1234

Car seat with black and gray pattern, showing safety warning icons (no text or symbols on the car itself)

Car seat with black and gray body, green checkmark indicating no text or symbols (no readable text or symbols)

4

Close-up of hands adjusting a blue car seatbelt component on the backrest, with arrows indicating direction (no text or symbols visible)

Close-up of a black plastic device with warning symbols (no readable text or labels)

Close-up of a black seatbelt buckle with a red X mark and a circular warning symbol (no text or labels)

Close-up of a hand using a blue tool to adjust a metal pipe fitting with a blue arrow indicating rotation (no text or symbols visible)

76 - 105 cm

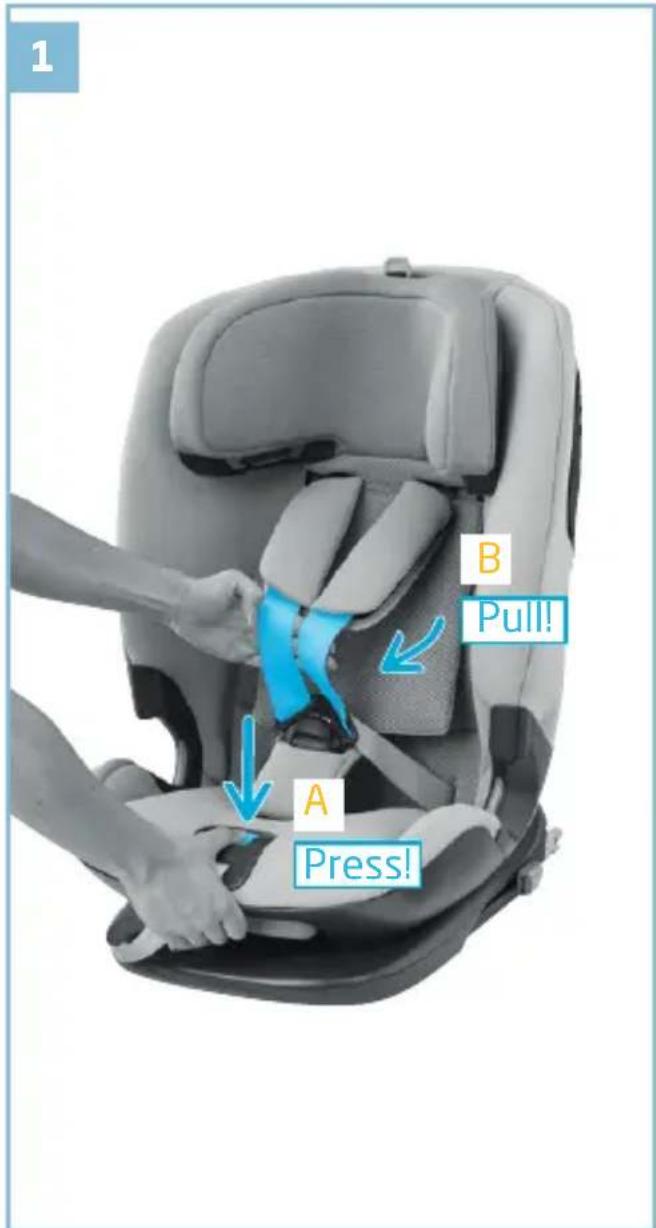

EN Child installation

DA Barneinstallation

4

Interior view of a Titan Pro i-size car seat with blue straps (no text or symbols on the seats)

EN 76-105cm 100-150cm

FR 76-105cm → 100-150cm

DE 76-105cm → 100-150cm

NL 76-105cm → 100-150cm

ES 76-105cm → 100-150cm

IT 76-105cm → 100-150cm

PT 76-105cm → 100-150cm

SV 76-105cm → 100-150cm

DA 76-105cm → 100-150cm

FI 76-105cm → 100-150cm

NO 76-105cm → 100-150cm

EL 76-105εκ 100-150εκ

TR 76-105cm 100-150cm

PL 76-105cm → 100-150cm

RU 76-105cm → 100-150cm

UK 76-105cm → 100-150cm

HR 76-105cm → 100-150cm

SK 76-105cm → 100-150cm

BG 76-105cm → 100-150cm

HU 76-105cm → 100-150cm

SL 76-105cm → 100-150cm

ET 76-105cm → 100-150cm

CS 76-105cm → 100-150cm

RO 76-105cm → 100-150cm

LT 76-105cm → 100-150cm

AR 10.1.1← 1.0-V7

Two blue circular icons with white baby face symbols, one larger than the other, connected by a yellow arrow (no text or symbols)

76 - 105 cm 100 - 150 cm

Top-down view of a gray car comfort seat with a blue seatbelt (no text or symbols visible)

Top-down view of a car comfort seat with gray and white panels (no text or symbols visible)

Two blue circular icons with white face symbols, one increasing and the other decreasing, separated by a yellow arrow (no text or symbols)

Two blue circular icons with white baby face symbols, one increasing and the other decreasing, separated by a yellow arrow (no text or symbols)

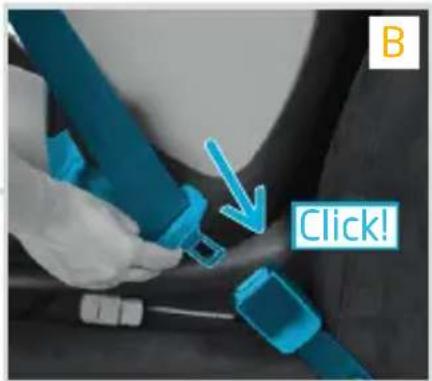

Close-up of a car seatbelt with a blue plastic clip inserted, showing the seat area and hand placement (no text or symbols visible)

Two blue circular icons with white baby face symbols, one increasing and the other decreasing, separated by a yellow arrow (no text or symbols)

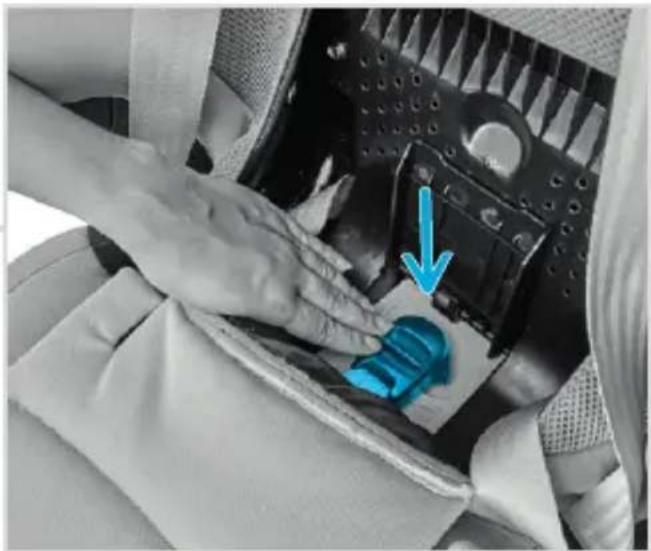

Close-up of a hand pressing down on a car seatbelt component with a blue arrow indicating the action (no text or symbols visible)

Two blue circular icons with white baby face symbols, one increasing and the other decreasing (no text or symbols)

Close-up of a car seatbelt being cleaned with a blue cloth, showing the seat area and upward arrow (no text or symbols)

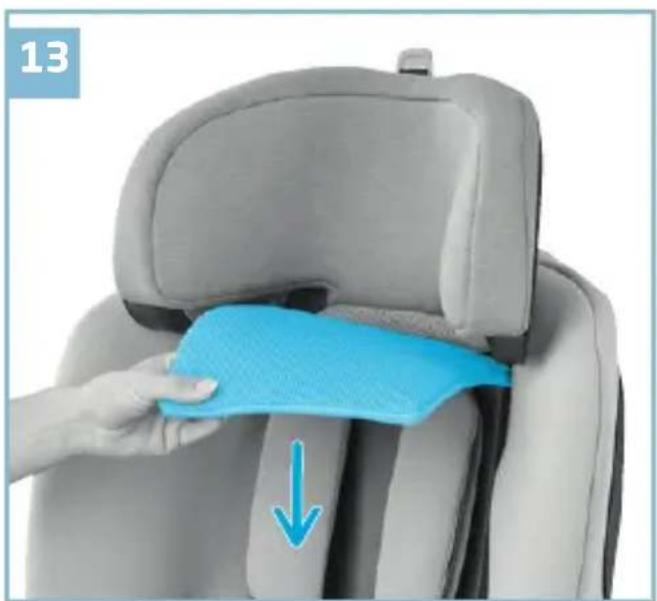

Interior view of a car seat with a hand holding a blue cushioned seat (no text or symbols visible)

Car seat with a blue bandage being lifted, showing the blade being removed (no text or symbols visible)

Two blue circular icons with white baby face symbols, one increasing and the other decreasing, separated by a yellow arrow (no text or symbols)

Top-down view of a gray car comfort seat with black straps and a green checkmark (no text or symbols on the seat itself)

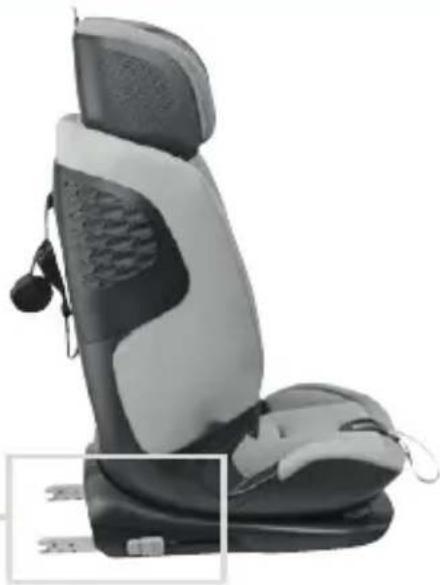

100 - 150 cm

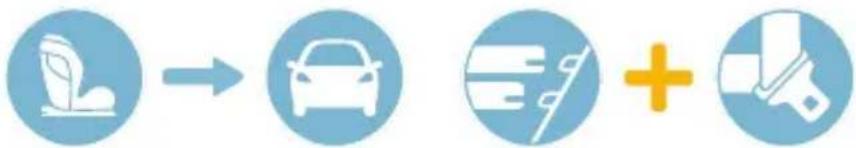

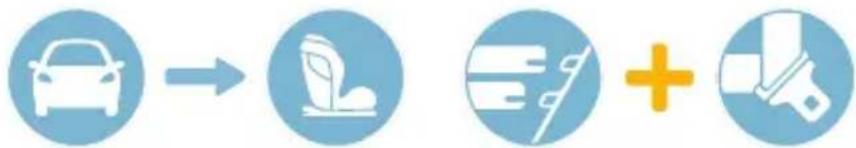

EN ISOFIX + Belted

Interior view of a car comfort seat with black and gray sections, showing seat design and earphones (no text or symbols visible)

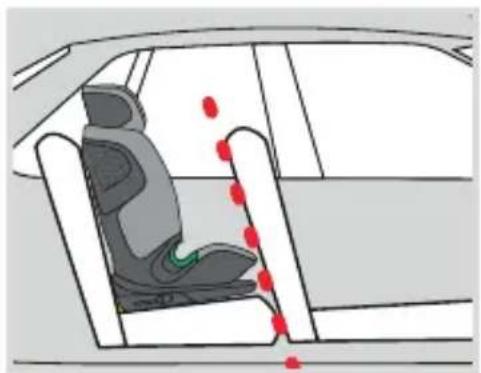

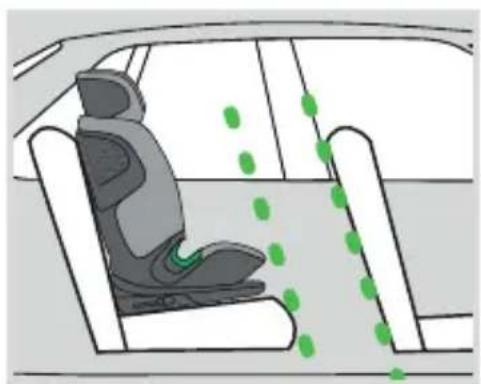

Diagram of a car interior showing a seat, dashboard, and vehicle lanes with green dotted lines indicating traffic or movement (no text or symbols)

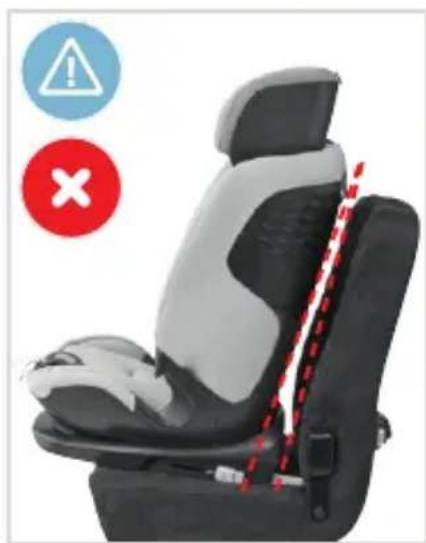

Interior view of a car showing a car seat and dashboard with red dotted lines indicating movement or positioning (no text or symbols)

2

3

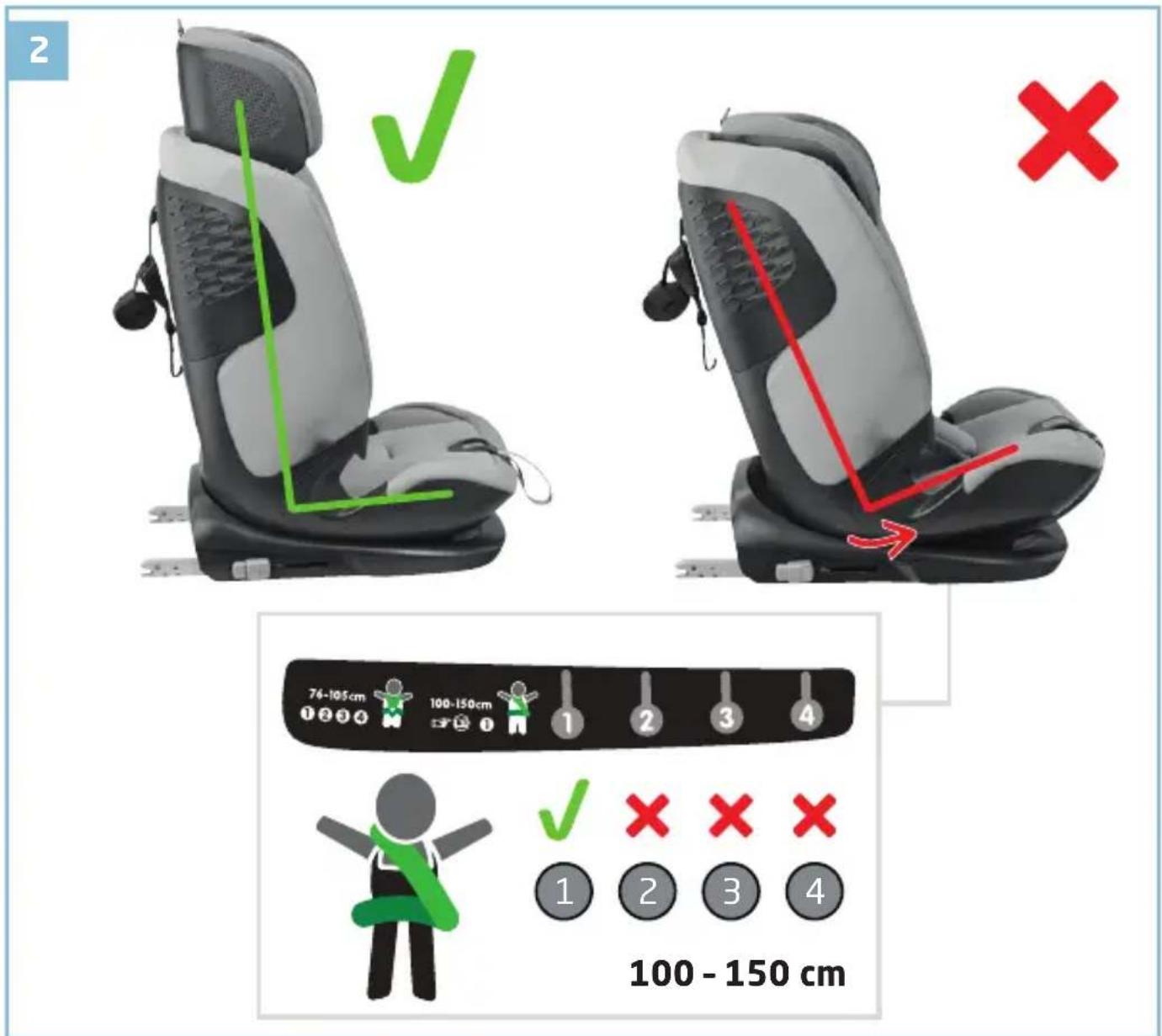

1234

Car seat with black and gray pattern, showing seat alignment and warning symbols (no text or labels)

Car seat with black and gray body, green checkmark indicating correct safety (no text or symbols)

4

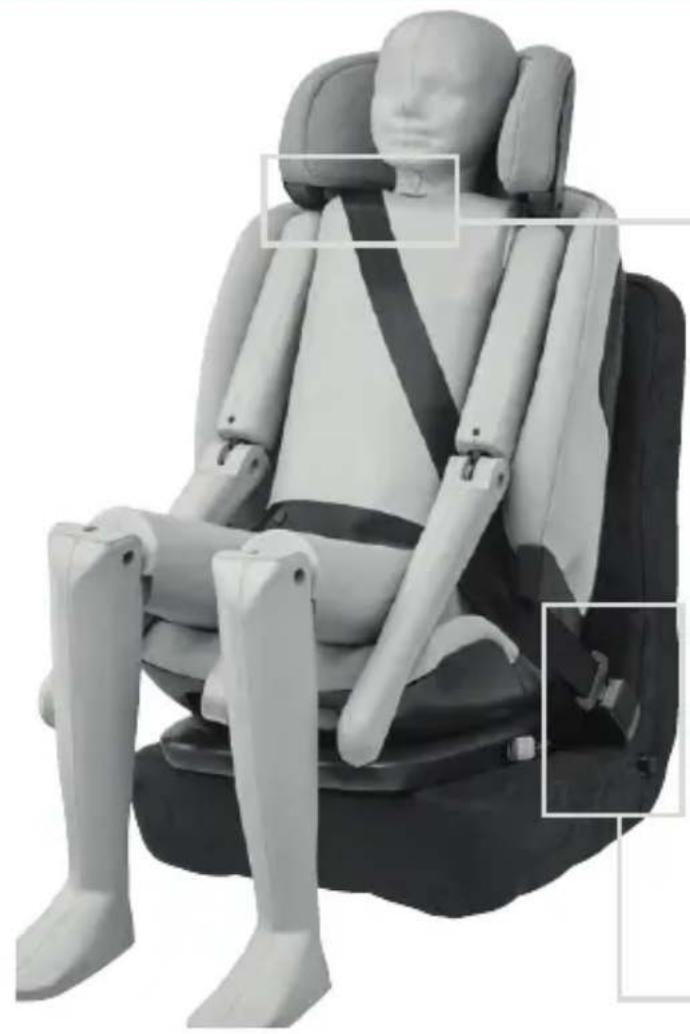

3D rendered model of a human car seat with visible arm joints and legs, no text or symbols present


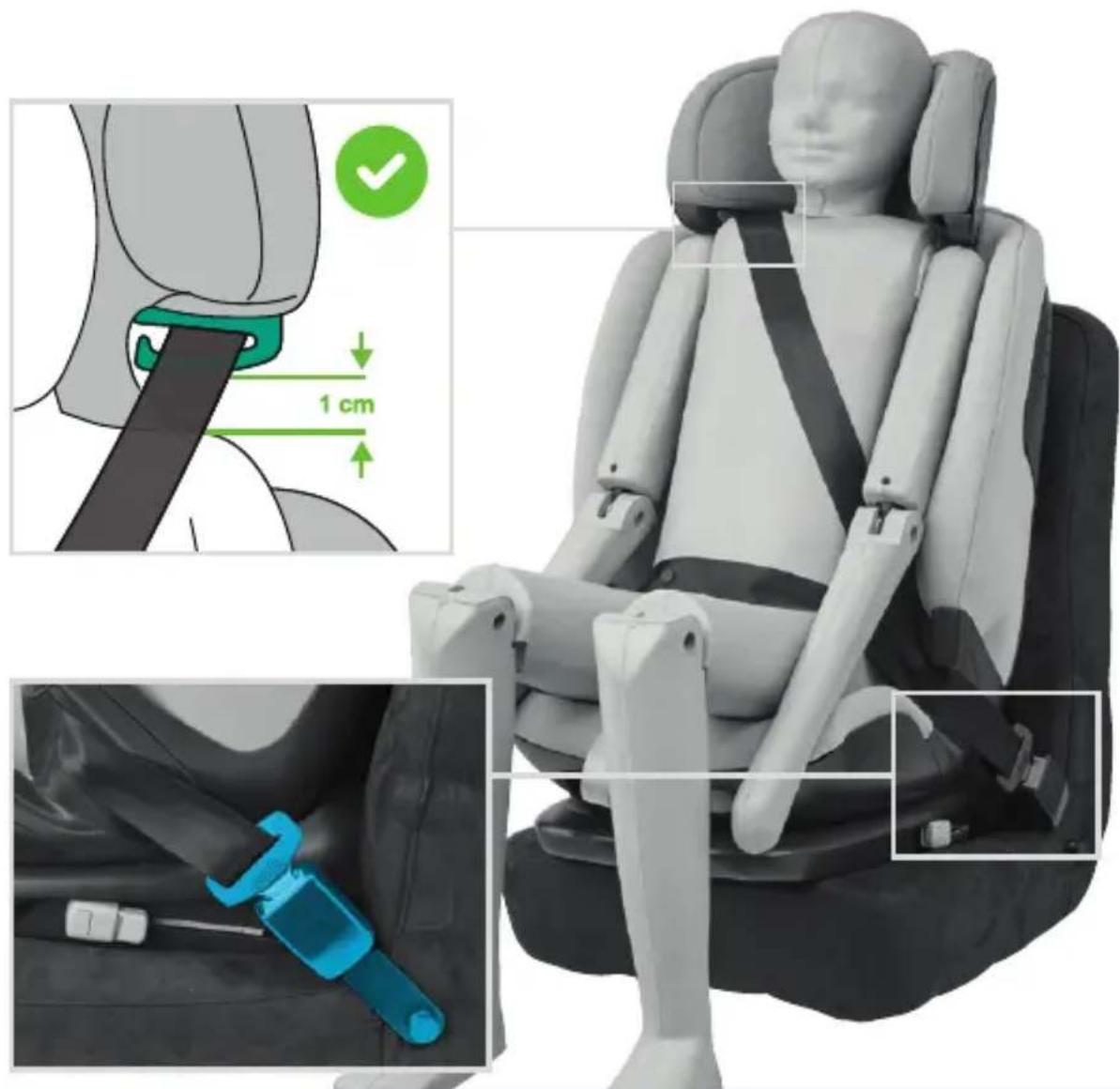

100 - 150 cm

EN Child installation

DA Barneinstallation

Diagram showing a green cable or rope routing through a vehicle (no text or symbols)

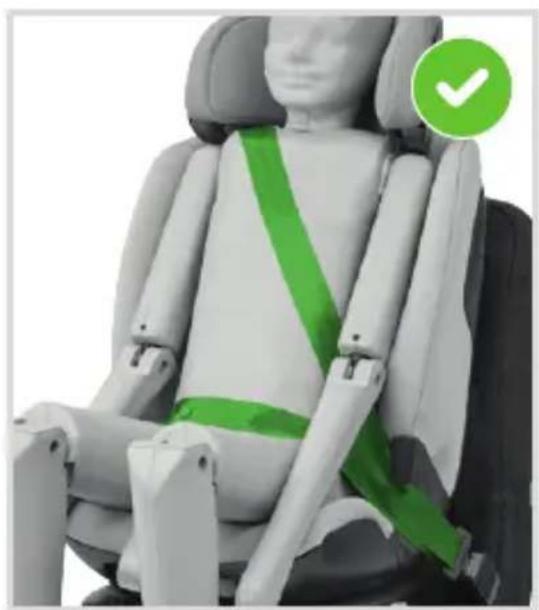

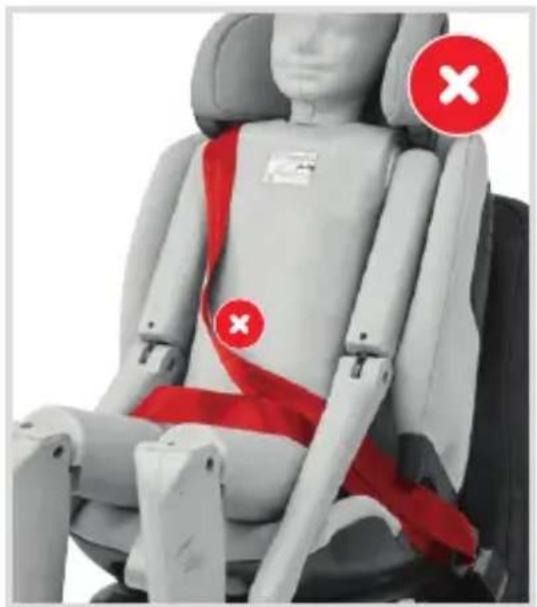

Person wearing a gray car seat with green safety belt, marked with a green checkmark (no text or symbols on the device itself)

Person wearing a gray safety seat with red straps and a red X mark, no visible text or symbols

1

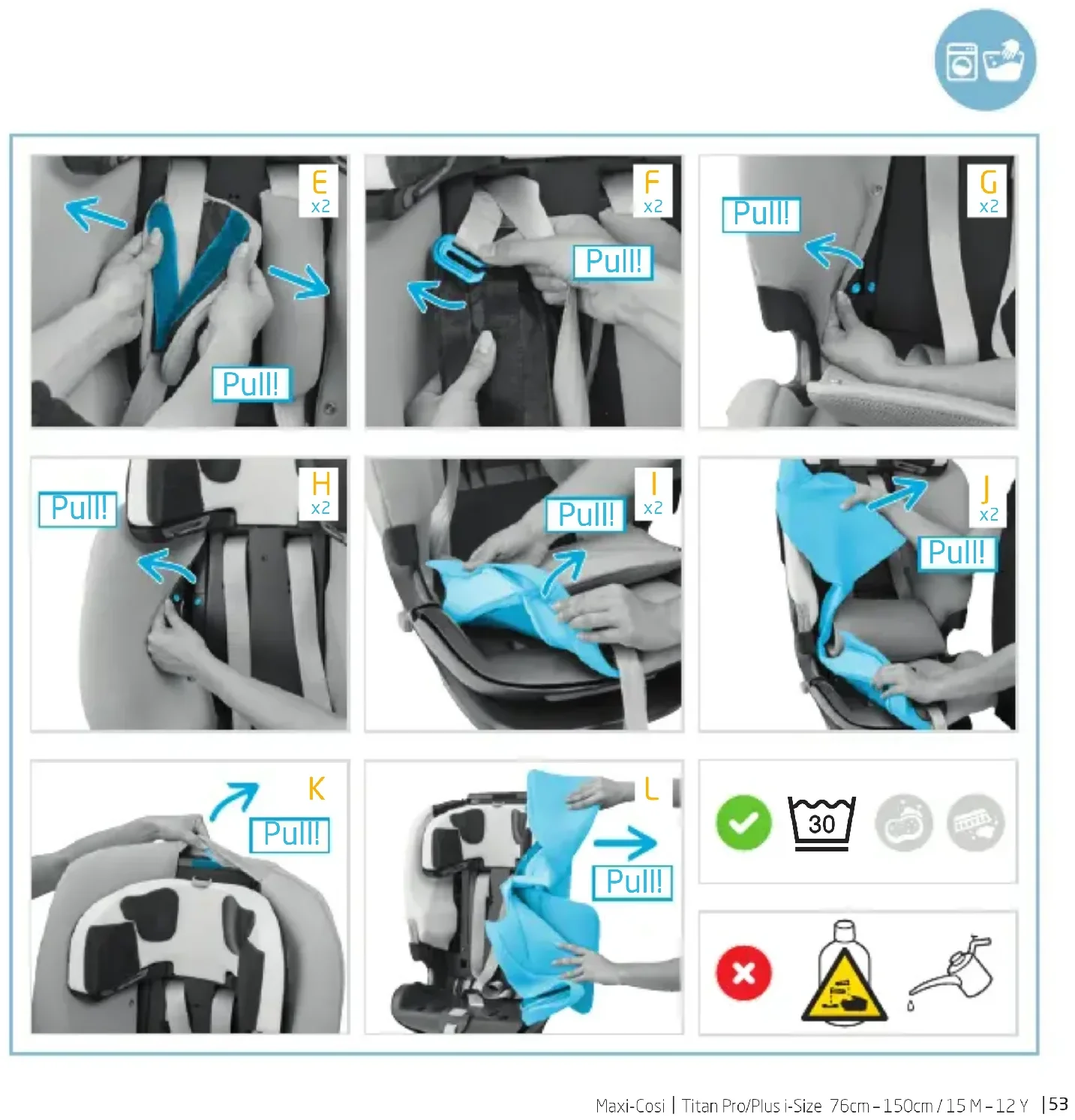

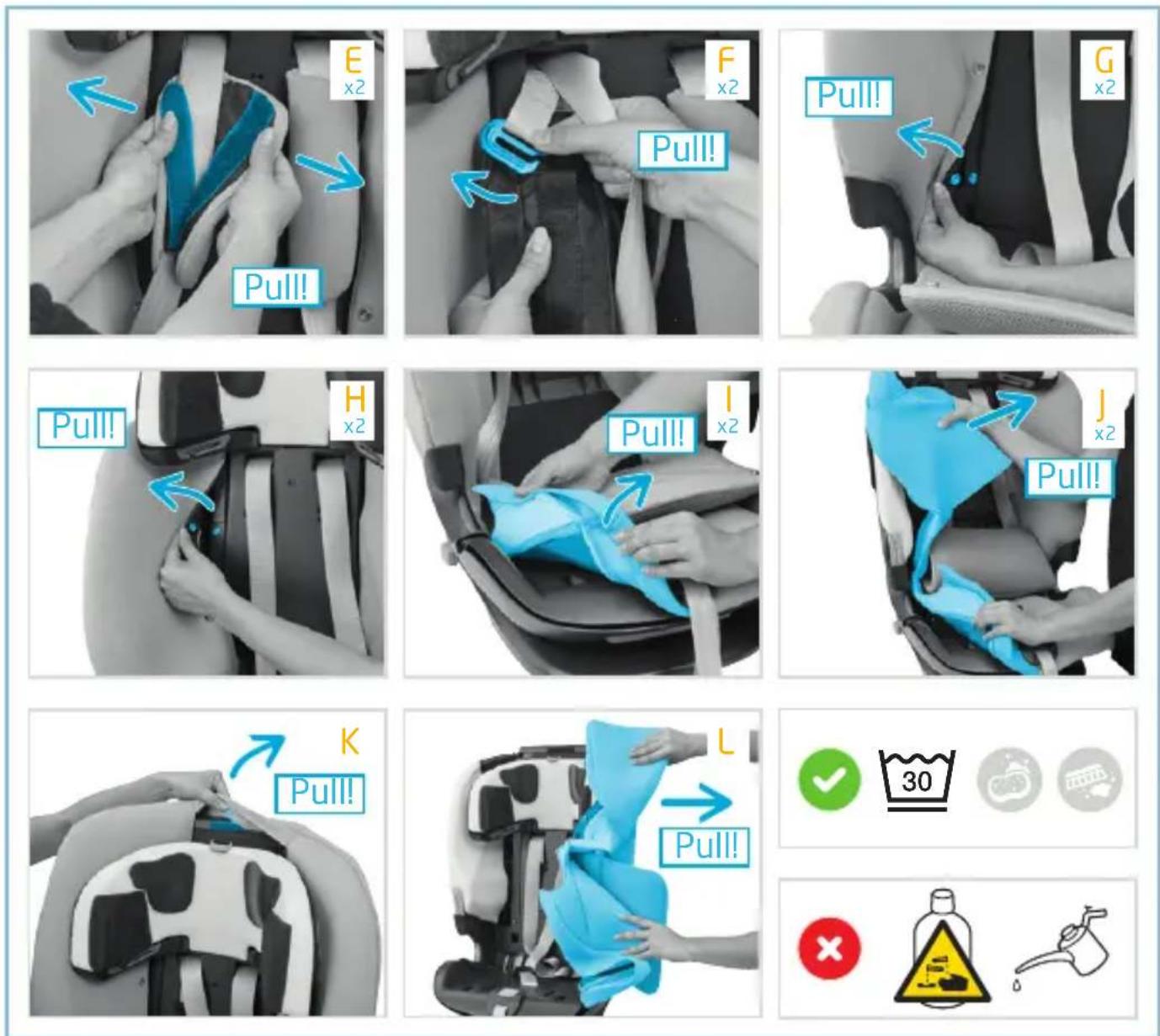

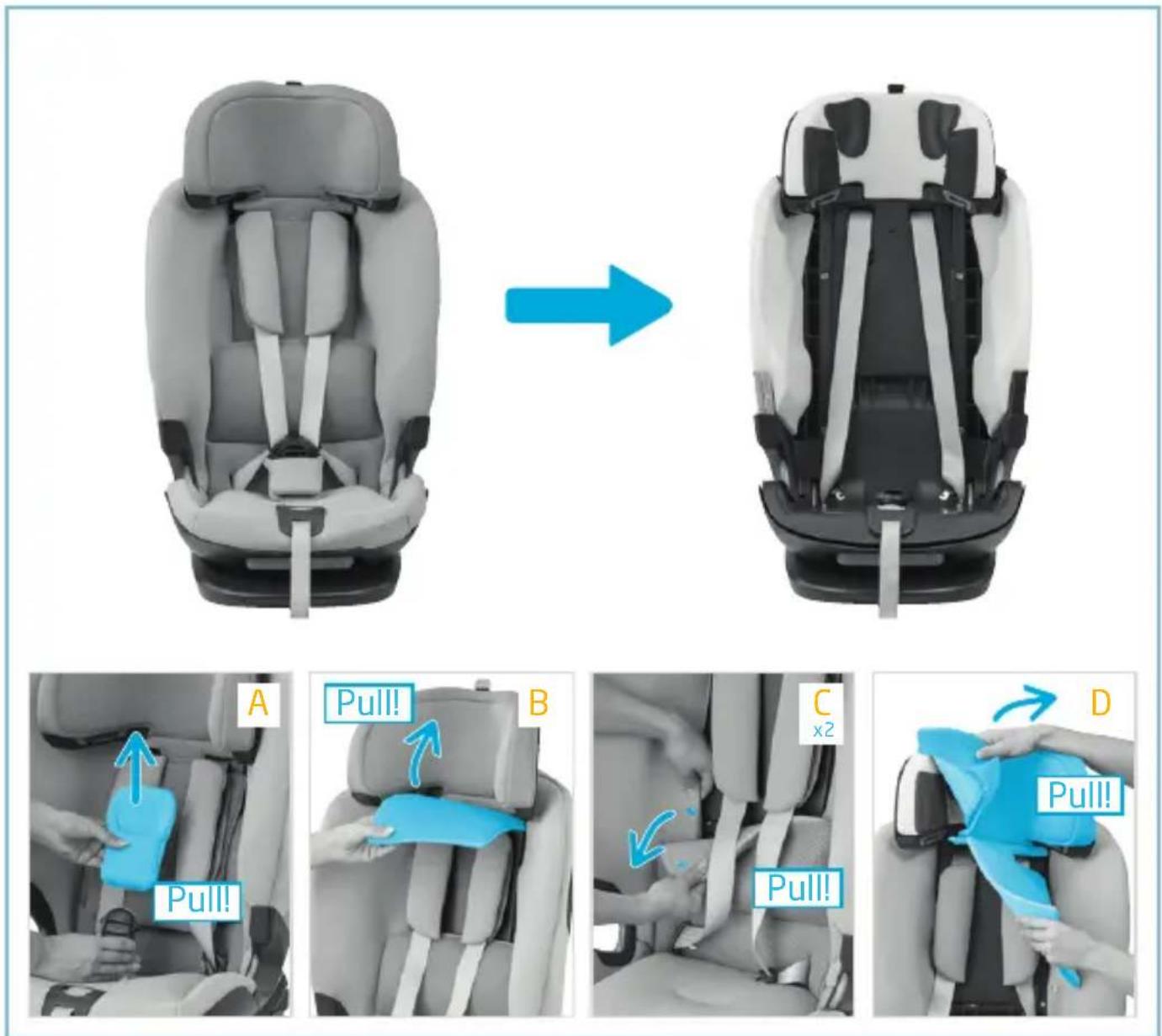

EN Washing

FR Lavage

DE Reinigung

NL Reinigen

ES Lavado

IT Lavaggio

PT Lavagem

SV Tvättråd

DA Vask

FI Pesu

NO Rengjøring

ΕL Πλύσιμο

TR Yıkama

PL Czyszczenie

RU Чистка

UK Прання

HR Pranje

SK Pranie

BG Почистване

HU Mosás

SL Pranje

ET Pesemine

CS Praní

RO Spălare

LT Plovimas

AR غسل

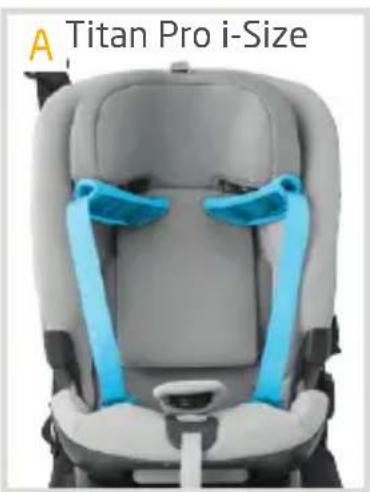

A - Adjustable headrest
B - Shoulder belt slot
C - Shoulder pads
D - 5-point Harness
E - G-CELL
F - Harness buckle
G - Harness adjuster button
H - ISOFIX release handle
I - Harness adjuster strap
J - Headrest adjustment handle
K - Top Tether
L - Storage compartment for the manual
M - ISOFIX connectors release button
N - ISOFIX connectors
0 - Crotch pad
P - Recline handle

SAFETY

The Maxi-Cosi Titan Pro/Plus i-Size is intended for car use only.

• The car seat is developed for an intensive use of approximately 12 years.
• Do not use any load bearing contact points other than those described in the instructions and marked in the child restraint.
• Do not use before the child's age exceeds 15 months.

Maxi-Cosi Titan Pro/Plus i-Size in the car

• Before buying this product make sure the car seat is compatible with the vehicle it is to be used in.
  • After purchasing, install the seat in your vehicle. If you encounter any installation problems, contact your distributor immediately (prior to use).
• Remove the car seat headrest if it stops you from

adjusting the headrest of the car seat to the desired height.

- Make sure to replace the headrest of the back seat of your vehicle when you remove the car seat.

WARNING:

• Check that the child seat is properly installed. It is important for your child's safety that you fit the belt correctly. The vehicle belt must be fixed along the appropriated markings/positioning points on the seat. Please also read the label on the side of the car seat. Never fit the belt in any way other than as shown.
• When the car seat is installed on the front passenger seat, we recommend to switch off the front passenger airbag and place the passenger seat in the rearmost position.

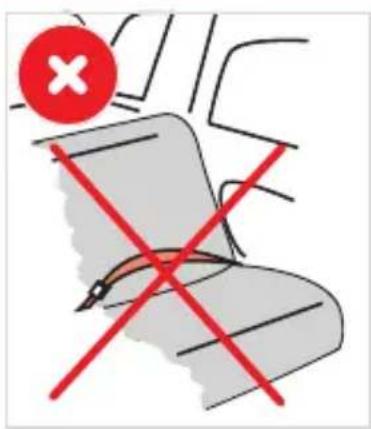

• Use the car seat only on a front-facing seat that is fitted with an automatic or static 3-point belt that has been approved according to the ECE R16 standard or similar. Do NOT use a 2-point belt.

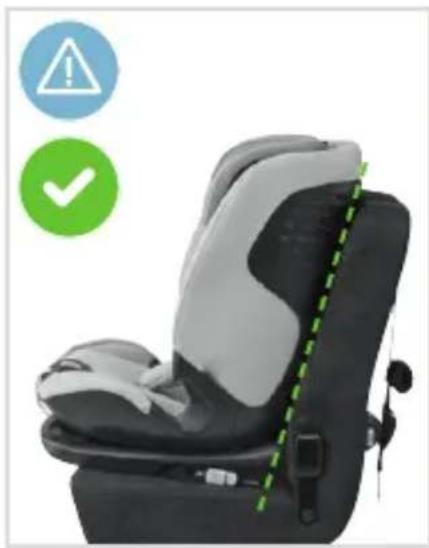

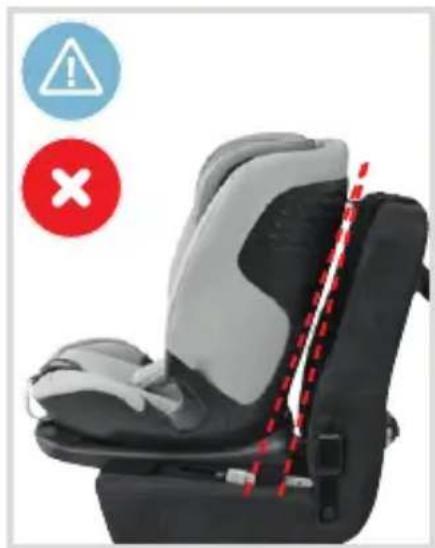

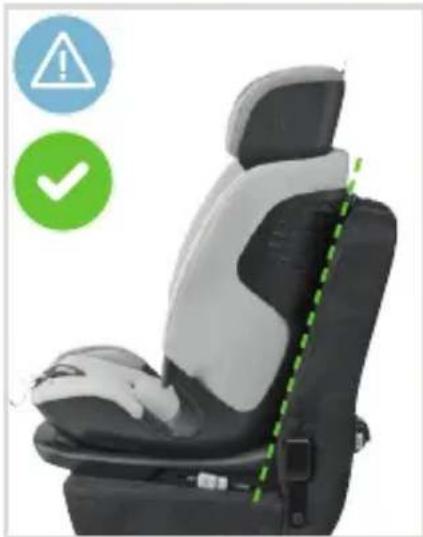

• When installing the car seat, spaces between the base of the car seat and the vehicle seat are possible depending on the position of the anchorage points within the vehicle.

ATTENTION:

• For usage in ISOFIX use the fitting clips for lower anchorage to the vehicle are not sufficient. It is essential to fix the "TOP TETHER" to the upper anchorage point recommended by the car manufacturer.
• The ISOFIX anchors have been developed to obtain a safe and easy fixation of the child safety systems inside the car. Not all cars are equipped with these anchors although they are standard on more recent models.

- If in any doubt about the correct installation or use of the system, the user is advised to contact the distributor or the manufacturer of the child restraining device system.

Your child in the Maxi-Cosi Titan Pro/Plus i-Size

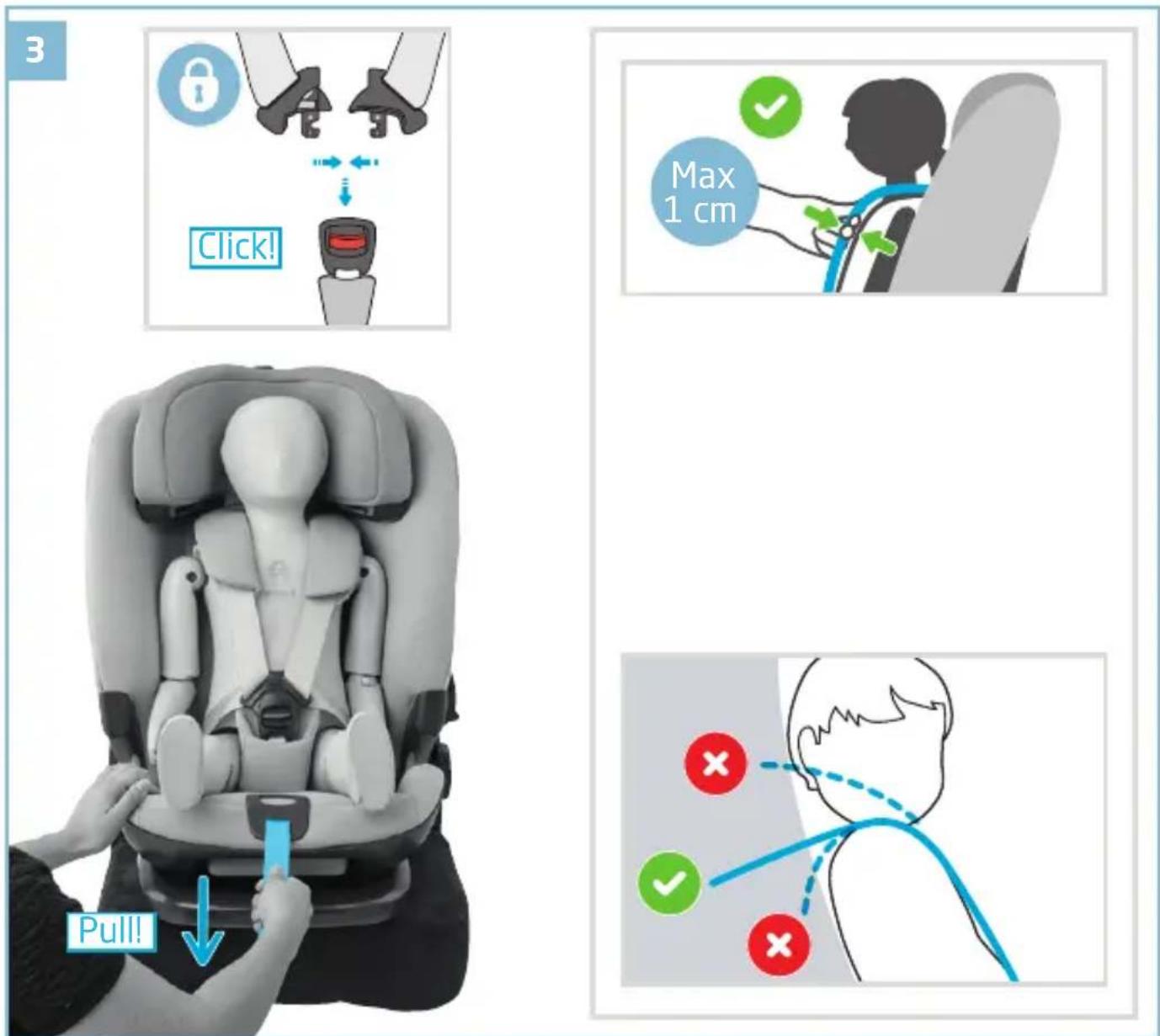

- Make sure you can fit no more than one finger between the harnesses and your child (1cm). If there is more space than 1 cm, tighten the harness belt further.

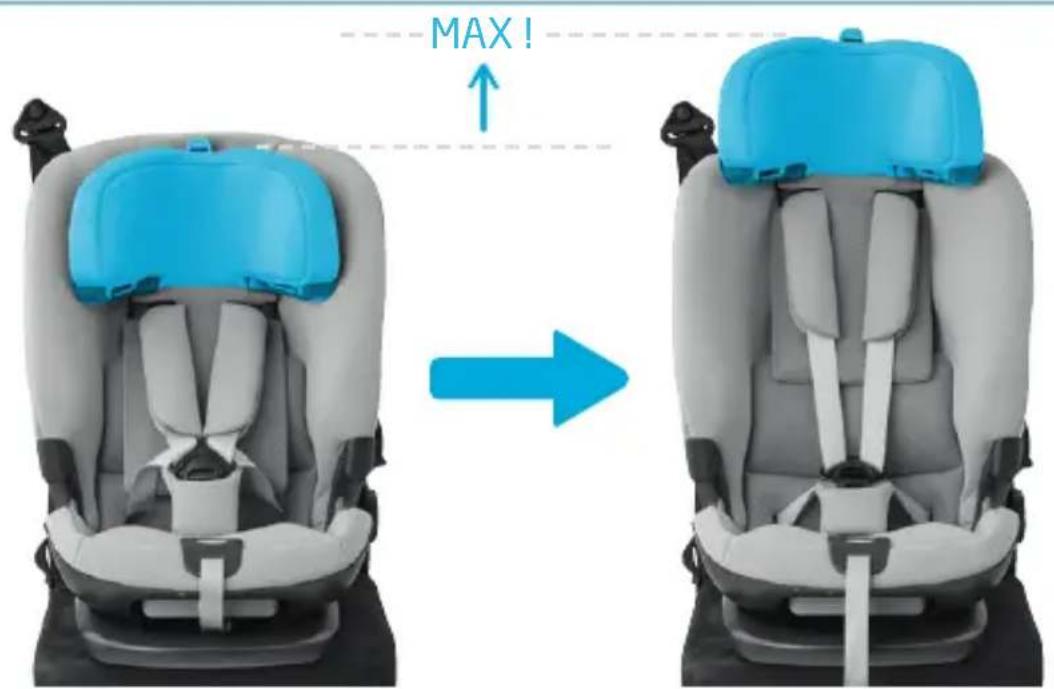

- Make sure the headrest is adjusted to the proper height.

Care

Fabric:

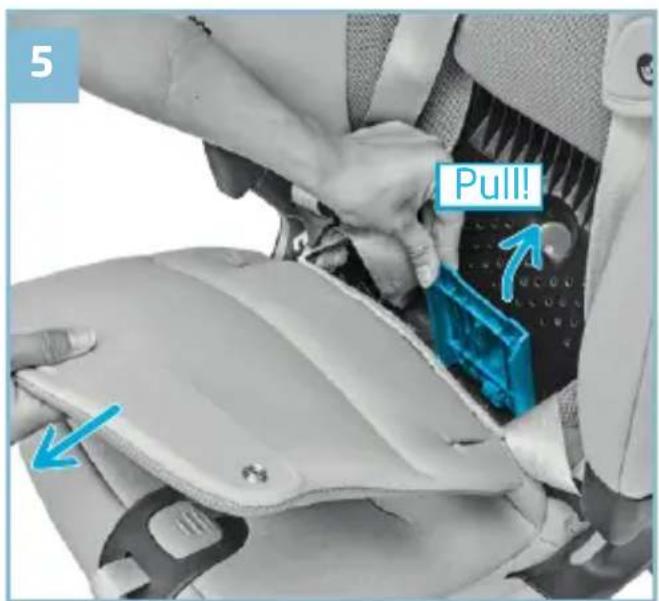

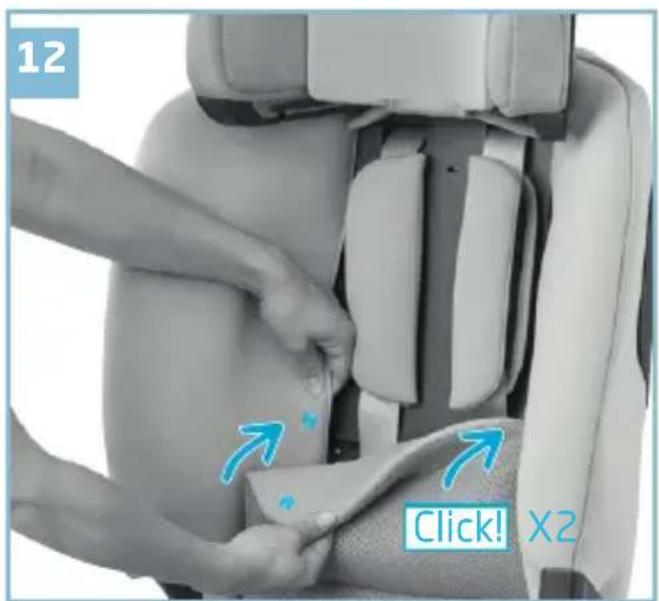

- The cover and crotch pad can be removed for washing. If the cover needs to be replaced at any time, only use official Maxi-Cosi cover because it constitutes an integral part of the restraint performance.

• استخدام م Expected Hyper Pressure on the Manned Water Source for the Water Source.
