USER MANUAL BGGN60 BORETTI

3D rendering of a black gas stove with six blades and a central rotary knob (no text or symbols visible)

BGGN 60 BE / BGGN 60 BEB

BGGN 70 BE / BGGN 70 BEB

FR | NOTICE D'EMPLOI

Two crossed-out objects: a black cylindrical container and a circular grid-patterned plate, both without any text or symbols.

INSTRUCTIONS POUR L'UTILISATEUR

NETTOYAGE

câble L marron (phase)

Two crossed-out kitchen utensils: a black kettle and a circular filter, with diagonal lines crossing (no text or symbols)

ALGEMENE WAARSCHUWINGEN

C

ALGEMENE WAARSCHUWINGEN

ALGEMENE WAARSCHUWINGEN

Two crossed-out kitchen utensils: a black kettle and a circular filter, both without any text or symbols.

INSTRUCTIES VOOR DE GEBRUIKER

REINIGING

BELANGRIJKE WAARSCHUWING

DE HIERNA VERMELDE HANDELINGEN MOETEN UITGEVOERD WORDEN VOLGENS DE VAN KRACHT ZIJNDE NORMEN, UITSLUITEND DOOR GESCHOOLD PERSONEEL. DE FABRIKANT WIJST ALLE VERANTWOORDELIJKHEID AF VOOR SCHADE AAN MENSEN, DIEREN OF ZAKEN DIE HET GEVOLG IS VAN DE NIET-NALEVING VAN DEZE BEPALINGEN

INSTALLATIE

We thank you and congratulate you on granting us your preference, by purchasin one of our products. We are sure that this new appliance, manufactured with quality materials, will meet your requirements in the best possible way.

The use of this new equipment is easy. However, we invite you to read this booklet carefully, before installing and using the appliance. This booklet gives the right information on the installation, use and maintenance, as well as useful advice.

THE MANUFACTURER

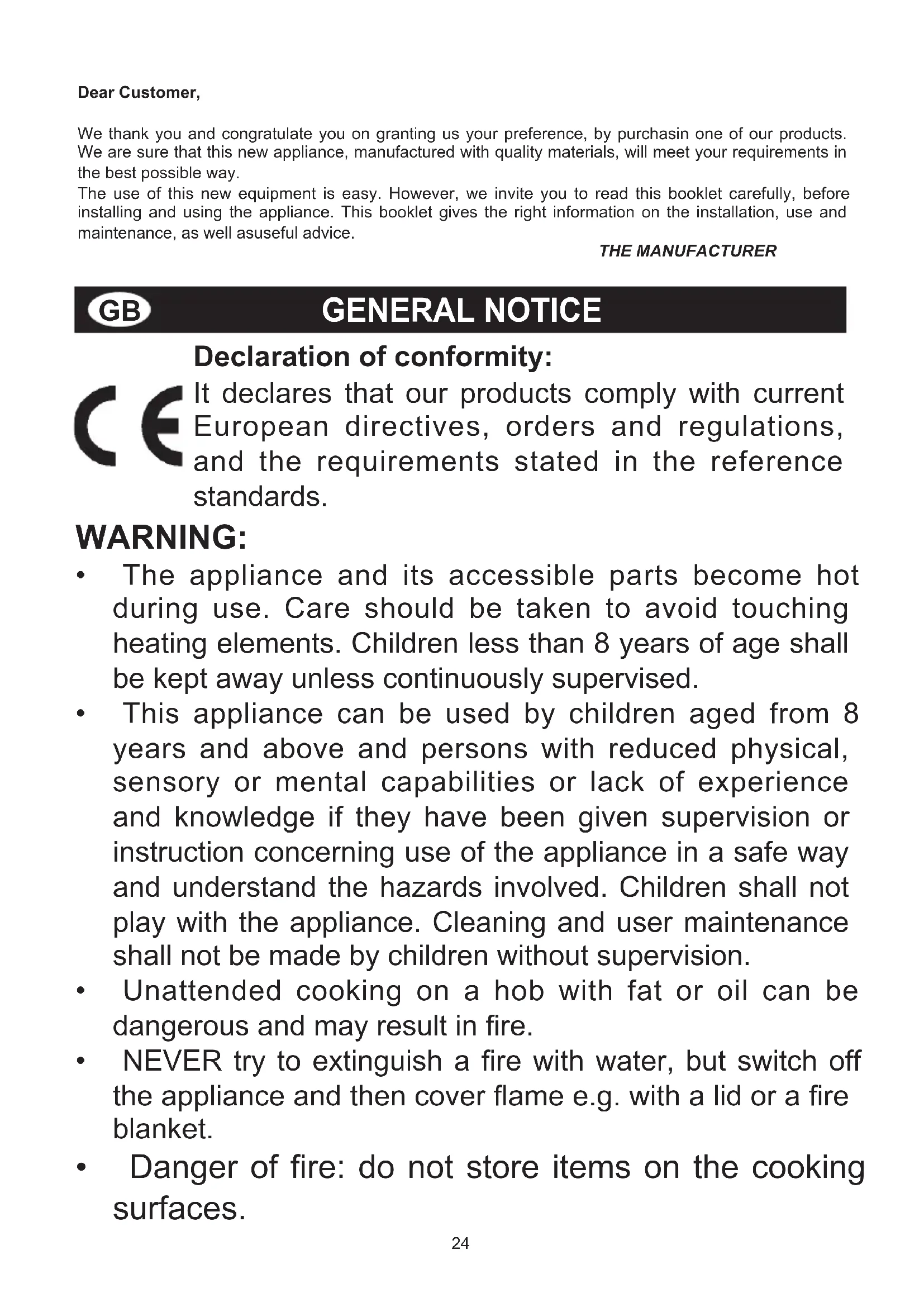

GB

GENERAL NOTICE

Declaration of conformity:

CE It declares that our products comply with current European directives, orders and regulations, and the requirements stated in the reference standards.

WARNING:

• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• Danger of fire: do not store items on the cooking surfaces.

GENERAL NOTICE

• Don't use a steam cleaner for the cleaning the hob.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
  • Do not use the hob during cleaning
• These instructions apply only if the symbol of the country appears on the appliance. If the symbol not appear on the device you need to refer to the technical instructions required that the manufacturer will provide for the amendment of the appliance in terms of use of the destination country.
• Carefully read the instructions before installing and using the appliance. The manufacturer is not responsible if the installation and improper use of the device causing injury or damage. Keep the instructions handy as a reference for the future.
• Never leave the appliance unattended during food preparation because oil and grease could cause a fire.
• When the unit is connected directly to the power supply, you need a switch insulating omnipolar. It is necessary that the appliance can be completely disconnected from the network in accordance with the conditions of the category III on the overvoltage

GENERAL NOTICE

• The earth cable is not included.
- If the power cable is damaged, it must be replaced by the manufacturer, by an authorized technician or by a qualified person to avoid danger.
- When connecting the power cable, make sure it is not in direct contact (eg. through the use of insulation sleeves) with parts that can reach temperatures of over 50 °C.
- For any operations or modifications, contact an authorized technical assistance center and request original spare parts.

The product label, with the serial number, is sticked under the hob.

We invite you to read this instruction booklet carefully, before installing and using the equipment. It is very important that you keep this booklet together with the equipment for any future consultation. If this equipment should be sold or transferred to another person, make sure that the new user receives the booklet, so that he can learn how to operate the appliance and read the corresponding notice. This is a Class 3 appliance.

INSTRUCTIONS FOR THE USER

It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by qualified personnel, in conformity with the regulations in force.

The specific instructions are described in the booklet section intended for the installer.

USING THE BURNERS

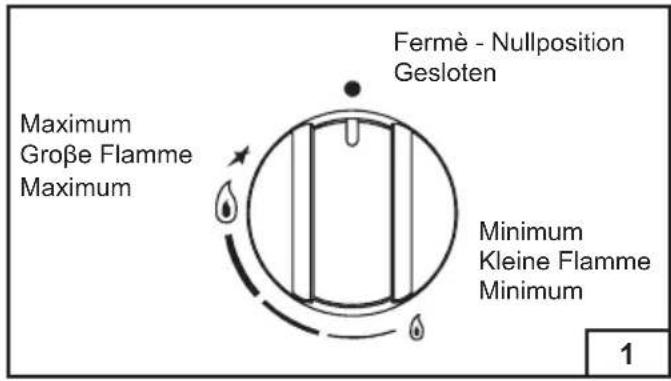

The symbols silk-screen printed on the side of the knob indicate the correspondence between the knob and the burner.

Automatic start-up with valves

Turn the corresponding knob anticlockwise up to the maximum position (large flame, fig.1) and press the knob.

Once the burner has been started up, keep the knob pressed for about 10 seconds.

Using the burners

In order to obtain the maximum yield without waste of gas, it is important that the diameter of the pot is suitable for the burner potential (see the following table), so as to avoid that the flame goes out of the pot bottom (fig. 2).

Use the maximum capacity to quickly make the liquids reach the boiling temperature, and the reduced capacity to heat food or maintain boiling. All of the operating positions must be chosen between the maximum and the minimum ones, never between the minimum position and the closing point.

The gas supply can be interrupted by turning the knob clockwise up to the closing position.

If there is no power supply, it is possible to light the burners with matches, setting the knob to the start-up point (large flame, fig. 1).

BURNERS Power W ∅ of pots
Auxiliary 1000 10 - 14 cm
Semi-rapid 1750 16 - 18 cm
Rapid 3000 20 - 22 cm
Triple crown 3500 22 - 24 cm

Notice

• When the equipment is not working, always check that the knobs are in the closing position (see fig.1).
• If the flame should blow out accidentally, the safety valve will automatically stop the gas supply, after a few seconds. To restore operation, set the knob to the lighting point (large flame, fig. 1) and press.
• While cooking with fat or oil, pay the utmost attention as these substances can catch fire when overheated.
• Do not use sprays near the appliance in operation.
• Do not place unstable or deformed pots on the burner, so as to prevent them from overturning or overflowing.
  • Make sure that pot handles are placed properly.
• When the burner is started up, check that the flame is regular and, before taking pots away, always lower the flame or put it out.

- WARNING !!!

-- DO NOT USE speakers, toaster, iron griddles or grids
- for stainless steel meat on gas burners.
- -- USE ONLY pots as described in
- "USING THE BURNERS" paragraph

Two crossed-out kitchen utensils: a black kettle and a circular filter, with no text or symbols present.

INSTRUCTIONS FOR THE USER

CLEANING

Before any operation, disconnect the appliance from the electric grid. Don't use a steam cleaner for the cleaning the hob. It is advisable to clean the appliance when it is cold.

Enamelled parts

The enamelled parts must be washed with a sponge and soapy water or with a light detergent. Do not use abrasive or corrosive products.

Do not leave substances, such as lemon or tomato juice, salt water, vinegar, coffee and milk on the enamelled surfaces for a long time.

Stainless steel parts

Stainless steel can be stained if it remains in contact with highly calcareous water or aggressive detergents for an extended period of time.

The stainless steel parts should also be cleaned

with soapy water and then dried with a soft cloth.

Burners and racks

These parts can be removed to make cleaning easier.

The burners must be washed with a sponge and soapy water or with a light detergent, wiped well and placed in their housing perfectly.

Make sure that the flame-dividing ducts clogged.

Check that the feeler of the safety valve and the start-up electrode are always perfectly cleaned, so as to ensure an optimum operation.

Gas taps

The possible lubrication of the taps must be carried out by specialized personnel, exclusively.

In case of hardening or malfunctions in the gas taps, apply to the Customer Service.

INSTRUCTIONS FOR THE INSTALLER

IMPORTANT NOTICE:

THE OPERATIONS INDICATED BELOW MUST BE FOLLOWED BY QUALIFIED PERSONNEL EXCLUSIVELY, IN CONFORMITY WITH THE REGULATIONS IN FORCE.

THE MANUFACTURING FIRM REFUSES ALL RESPONSIBILITY FOR DAMAGES TO PEOPLE, ANIMALS OR THINGS, RESULTING FROM THE FAILURE TO COMPLY WITH SUCH PROVISIONS.

INSTALLATION

The installation must be performed in conformity with current regulations.

Installing the top

The appliance is designed to be embedded into heat-resistant pieces of furniture.

The walls of the pieces of furniture must resist a temperature of 75^ C besides the room one.

The equipment must not be installed near inflammable materials, such as curtains, cloths, etc. Make a hole in the top of the piece of furniture, with the dimensions indicated in fig. 3, keeping a distance of at least 50 mm between the rear edge of the installed device and 100 mm from the adjacent side walls.

MODEL L (mm) D (mm)
BGGN60BE 560	480
BGGN70BE 560	480

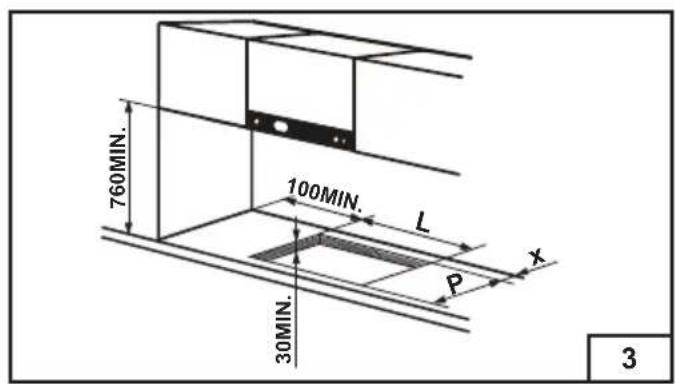

Any possible wall unit over the cook-top must be placed at a distance of at least 760 mm from the top.

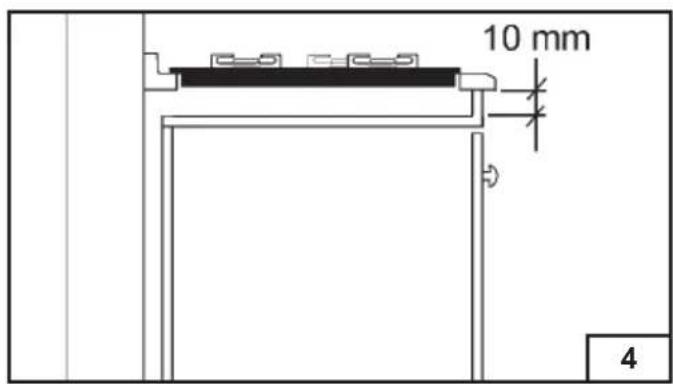

It is advisable to isolate the appliance from the piece of furniture below with a separator, leaving a depression space of at least 10 mm (fig. 4).

INSTRUCTIONS FOR THE INSTALLER

If the hob is going to be installed on the top of an oven, precautions must be taken to guarantee an installation in accordance with current accident prevention standards. Pay particular attention to the position of the electric cable and gas pipe: they must not touch any hot parts of the oven.

Moreover, if the hob is going to be installed on the top of a built in oven without forced cooling ventilation, proper air vents must be installed to guarantee an adequate ventilation, with the lower air entering with a cross section of at least 200cm^2 , and the higher air exiting with a cross section of at least 60 cm^2 .

Fastening the top

Every cook-top is equipped with a special washer.

A set of hooks is also supplied for mounting the cook-top.

Depending on the type of mounting surface, the suitable type of mounting hook is supplied (hook A or hook B).

For the installation proceed as follows:

• Remove the racks and burners from the top.
• Turn the appliance upside down and lay the washer S along the external border (fig. 5).
• Introduce and place the cook-top in the hole made in the piece of furniture, then block it with the V screws of the fastening hooks G (fig.6 / 6A).

Installation room

This appliance is not provided with a device for exhausting the products of combustion.

Regarding room ventilation rules where appliance is installed make reference to the legislation, in conformity with the local regulations.

The room where the appliance is installed must have a minimum volume of 20m^3

The influx of air must be through a permanent opening on the walls of the room and communicating with the outside.

Ventilation can also come from an adjoining room, in this case respect the standards in force on this subject.

The openings must have a minimum section of 200 cm^2 .

ATTENTION:

The electrical connection of the cooking hob and the oven must be carried out separately for security issues and to allow easy removal of the oven from the unit

FOR THE U.K. ONLY

The room containing this hotplate should have an air supply in accordance with BS 5440: Part 2:

1989.

• All rooms require an openable window, or equivalent and some rooms will require a permanent vent a well.
• For room volumes up to 5 m ^2 an air vent of 100cm ^2 is required.
• For room volumes between 5 m ^3 and 10 m ^3 an air vent of 50 cm ^2 is required.
• If the room is greater than 5 m ^2 and has a door that opens directly to the outside, then no air vent is required.

If there are other fuel burning appliances in the same room BS 5440: Part 2:1989 should be consulted to determine the air vent requirements.

Gas connection

Choose fixed connections or use a flexible pipe in stainless steel in compliance with the regulation in force. If you use flexible metallic pipes, be careful they do not come in touch with mobile parts or they are not squeezed. Also be careful when the hob is put together with an oven.

ATTENTION: Make sure that the gas supply pressure of the appliance obeys the recommended values

If the supplied pressure has not the specified value, it is necessary to assemble a proper pressure regulator in compliance with the standard UNI EN 88.

For Liquid Gas (LPG) the use of pressure regulator is allowed only if they are in compliance with UNI EN 12864. The adjustable connection is fixed the comprehensive ramp by means of a threaded nut G 1/2". Screw the parts without force, adjust the connection inthe necessary direction and tighten everything (fig.7).

Rigid connection: arry out connection by using metal rigid pipes (copper with mechanical end) (UNICIG 7129).

Flexible connection: Use a flexible pipe in stainless steel (UNI-CIG 9891) with a maximum length 2m.

When installation is complete, make sure that the seal of each pipe fitting is correct.

Use a soapy solution, not a flame

INSTRUCTIONS FOR THE INSTALLER

Electric connection

The connection to the electric grid must be carried out by qualified personnel and in conformity with the regulations in force.

The voltage of the electric system must correspond to the value indicated in the label under the appliance. Make sure that the electric system is provided with an effective ground connection in compliance with the regulations and provisions of the law.

Grounding is compulsory.

GAS TRANSFORMATIONS AND ADJUSTMENTS

Replacing the nozzles

If the equipment is adjusted for a type of gas that is different from the one available, it is necessary to replace the burner nozzles.

The choice of the nozzles to replace must be made according to the table of the “technical characteristics” as enclosed.

Act as follows:

• Remove the racks and burners.

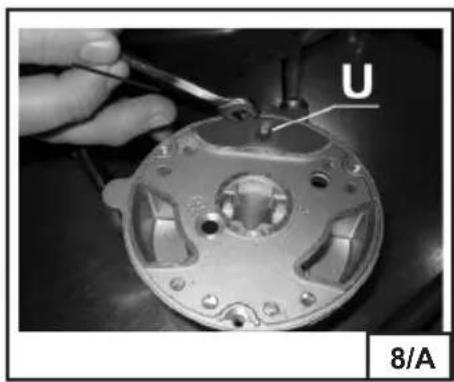

• By means of a straight spanner L, unscrew the nozzle U (fig.8) and substitute it with the corresponding one.
• Tighten the nozzle strongly.

Adjusting the burners

The lowest flame point must always be properly adjusted and the flame must remain on even if there is an abrupt shift from the maximum to the minimum position.

If this is not so, it is necessary to adjust the lowest flame point as follows:

• start the burner up
• turn the tap up to the minimum position (small flame)
• remove the knob from the tap rod
• introduce a flat-tip screwdriver in the hole F of the tap (fig.9-9/A) and turn the by-pass screw up to a proper adjustment of the lowest flame point.

As regards G30 gas burners, the by-pass screw must be tightened completely.

MAINTENANCE

Replacing the power supply cable

If the power supply cable should be replaced, it is necessary to use a cable with a section of 3 × 0.75 mm^2 type H05V2V2-F or H05RR-F for models all gas or 3 × 1.5 mm^2 type H05V2V2-F or H05RR-F for models mixed, complying with the regulations in force.

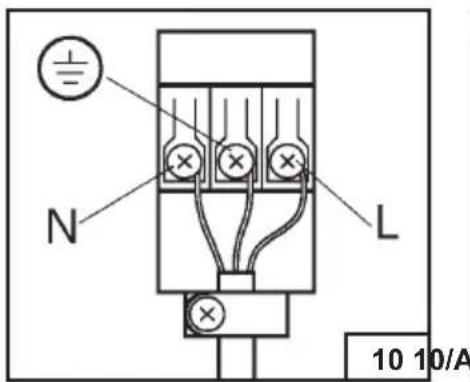

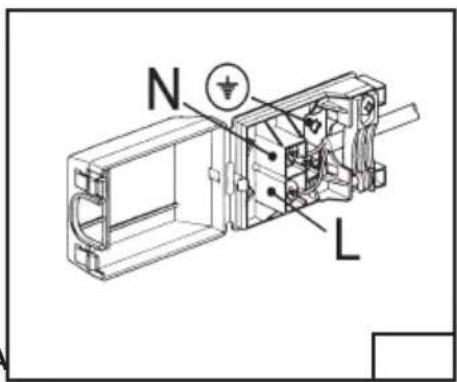

The connection to the terminal board must be effected as shown in fig. 10-10/A:

brown cable L (phase) blue cable N (neutral) green-yellow cable (ground)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The manufacturing firm refuses all responsibility for any possible imprecision in this booklet, due to misprints or clerical errors. It reserves the right to make all the changes that it will consider necessary in its own products, without effecting the essential characteristics of functionality and safety.

TABLE DE CUISSON / KOCHMULDEN / KOOKVLAKKEN

BGGN60BE

2 2 4 3 8

BGGN70BE

1 2 3 4 2 8

1 Rapid burner 3000 W
2 Semi-rapid burner 1750 W
3 Auxiliary burner 1000 W
4 Triple ring burner 3500 W
8 Control knob for burner

TECHNICAL CHARACTERISTIC TABLES

BRULEURSBRENNERBRANDERSBURNERS		GAZGASGASGAS	PRESSIONDE SERVICEBETRIEBS-DRUCKDRUK BIJWERKINGNORMAL PRESSURE	DEBITLEISTUNGVERBRUIKNORMAL RATE		DIAMÈTERINJECTORDUR-CHEMS-SERDÜSENDIAMETERINJECTORINJECTORDIAMETER	DIAMÈTERBY PASSROBINETDUR-CHEMS-SER UM-LEITVENTILDIAMETER BYPASSKRAANTAPE BYPASSDIAMETER	DEBITCALORIFIQUES(W)WÄRMELEISTUNG(W)WARMTEVERMO-DEN (W)NOMINAL HEATINPUT (W)
N°	DESIGNATIONBESCHREIBUNGNAAM		mbar g/h L	1/100 mm	1/100 mm	Max. Min.
1	RAPIDESCHNELL-BRENNERSNELRAPID	G30-G31 30	218 - 87 42	3000 950
		G20 20	- 286	129		42 3000 950
		G25	25		332	132	REG.	3000	950
2	SEMI-RAPIDEMITTLERERBRENNERHALF-SNELSEMI-RAPID	G30-G31 30	126 - 66 31	1750 600
		G20 20	- 167	101		31 1750 600
		G25	25		194	102	REG.	1750	600
3	AUXILIAIREHILFSBRENNERHULPAUXILIARY	G30-G31 30	71	- 50	27 100	0 450
		G20 20	-	95 77	27 1000	450
		G25	25		111	80	REG.	1000	450
4	TRIPLECOURONNE DREIFACHERBRENNKRANZTRIPLE KROONTRIPLE RING	G30-G31 30	278 - 94 60	3500	2100
		G20	20	-	334	137	60	3500	2100
		G25	25		388	137	REG.	3500	2100

Short title or reference to the measurement and calculation methods used to establish compliance with the above requirements.

The performance of each individual burner is calculated according to standard EN 30-2-1 (2015)

The total efficiency of the hob is calculated according to the EU Regulation 66/2014 Par. 2.2

The efficiency is calculated only for the burners with a nominal capacity exceeding 1,16 KW (EN 30-2-1 (2015))

nformation which is relevant to the customer to minimize the energy consumption during usage: Energy Saving Tips: use pots having flat base, Use pots with proper size, use pots with lid, minimize the amount of liquid or fat, when liquid starts boiling reduce the setting.

Fermè - Nullposition Gesloten Maximum Große Flamme Maximum Minimum Kleine Flamme Minimum 1

Two cooking pots with crossed-out lines, one on a stovetop and the other on a gas stove (no text or symbols)

760MIN. 100MIN. L x P 30MIN. 3

10 mm 4

5 6 6/A

V G

Technical diagram showing a mechanical assembly with labeled component 'C' and a screw-like feature

Technical line drawing of two mechanical pipe fittings labeled A and B, with no text or symbols on the parts themselves.

L U 8

Close-up of a hand using a tool to adjust or repair a mechanical component, labeled 'U' and '8/A' (no readable text or symbols beyond labels)

F 9

N L 10 10/A

N L

The manufacturer declines all responsibility for any inaccuracies caused by printing or transcription errors in this manual. He reserves the right to make any changes to his products that he deems appropriate without affecting the essential operating and safety features.

FR

Ce produit est conforme à la Directive EU 2012/19/UE.Cette note informative s'adresse exclusivement aux propriétaires d'appareils présenter le symbole de la figure A sur l'étiquette adhésive montrant les données techniques appliquées sur le produit lui-même (étiquette matricielle): Ce symbole indique que le produit est classées selon la réglementation en vigueur, comme équipement électrique ou électronique et e Se conforme donc à la directive 2012/19 / UE (DEEE), à la fin de sa propre vie utile, doivent être traités séparément des déchets ménagers, le livrer gratuitement à un point de collecte séparé pour l'équipement produits électriques et électroniques ou de le retourner au concessionnaire lors de l'achat d'un nouvel appareil équivalent.L'utilisateur est responsable de l'attribution de l'équipement à la fin de la vie aux installations de collecte désignés, les sanctions prévues par la législation actuelle sur les déchets.Collecte appropriée pour l'envoi ultérieur de l'appareil pour le recyclage, le traitement et l'élimination écologiquement compatible permet d'éviter les effets négatifs possibles sur l'environnement et la santé humaine et favorise le recyclage des matériaux qui composent le produit. Pour plus d'informations sur les systèmes de collecte disponibles, contactez le service d'élimination des déchets local ou le magasin où l'achat a été effectué.Les fabricants et les importateurs se chargent de leur recyclage, de leur traitement et de leur élimination respectueux de l'environnement, soit directement, soit en participant à un système collectif.

DE

Dieses Produkt ist konform mit der EG-Richtlinie 2012/19/UE.Dieser informative Hinweis richtet sich ausschließlich an Besitzer von Geräten, die Auf dem Klebeetikett das Symbol von Abb. A anzeigen, auf dem die technischen Daten angegeben sind auf dem Produkt selbst (Matrikelname): Dieses Symbol zeigt an, dass das Produkt ist klassifiziert nach den geltenden Vorschriften, als elektrische oder elektronische Geräte und e Erfüllt damit die Richtlinie 2012/19 / EU (WEEE) am Ende seiner selbst Nutzungsdauer, muss getrennt von Hausmüll behandelt werden, Lieferung kostenlos an einer separaten Sammelstelle für Geräte Elektro- und Elektronikgeräte oder beim Kauf eines neuen gleichwertigen Geräts an den Händler zurücksenden.Der Benutzer ist verantwortlich für das Gerät am Ende der Lebensdauer zu einer Sammelstelle Zuweisung vorgesehenen Sanktionen durch aktuelle Abfallgesetzgebung.Die angemessene, getrennte Sammlung für den nachfolgenden Versand des Gerätes zur Verwertung, Behandlung und umweltgerechte Entsorgung hilft, mögliche negative Auswirkungen auf die Umwelt und die menschliche Gesundheit zu vermeiden und begünstigt das Recycling der Materialien, die das Produkt bilden. Wenden Sie sich für weitere Informationen zu den verfügbaren Sammelsystemen an den örtlichen Entsorgungsdienst oder an das Geschäft, in dem der Kauf getätigt wurde. Hersteller und Importeur kommen ihrer Verantwortung für eine umweltgerechte Verwertung, Behandlung und Entsorgung entweder direkt oder durch Teilnahme an einem kollektiven System nach.
