Product Type	Cement Mixer
Brand	PowerPlus
Model	POWX0841
Power Supply	220-240 V / 50 Hz
Power	1600 W
No-load speed (speed 1)	150 – 500 min⁻¹
No-load speed (speed 2)	230 – 800 min⁻¹
Mixing paddle diameter	160 mm
Sound pressure level (LpA)	87 dB(A)
Sound power level (LwA)	98 dB(A)
Vibration (aw)	5.5 m/s²
Intended use	Mixing of light liquids (paint, varnish, plaster) and heavy materials (adhesives, fillers, mortar)
Protection class	Class II (double insulation)
Speed selector	2 ranges: 150-500 min⁻¹ and 230-800 min⁻¹
Switch	On/Off with lock-off button
Included accessories	Two-part mixing paddle, 2 wrenches, manual
Maintenance	Clean the ventilation slots with a soft cloth and soapy water
Warranty	36 months
Weight	Approximately 5.5 kg (estimate)

Frequently Asked Questions - POWX0841 PowerPlus

How to assemble the mixing paddle on the mixer?

First unplug the device. Screw the mixing paddle (9a) onto the mixing rod (9b), then screw the assembly into the tool holder (4) using the two provided wrenches. Use the small wrench (8a) to lock the tool holder and the large one (8b) to tighten.

How to change the rotation speed?

The speed selector (7) allows progressive speed adjustment. The selector (5) offers two ranges: speed 1 (150-500 min⁻¹) and speed 2 (230-800 min⁻¹). You can switch speeds while running, but avoid doing so under full load.

What materials can I mix with this mixer?

This mixer is suitable for light liquids and mixtures (paint, varnish, plaster) as well as heavy mixtures (adhesives, wallpaper paste, fillers, mortar). It is not intended for professional use or for mixing food.

Is it necessary to wear protective equipment?

Yes. Wear protective gloves, safety goggles, a dust mask if necessary, and hearing protection as the sound level can reach 87 dB(A).

How to clean the mixer after use?

Unplug the device. Clean the ventilation slots with a soft cloth and soapy water to prevent overheating. Do not use solvents like gasoline or alcohol. Dry thoroughly before storing.

What to do if the mixer does not start?

Check that the lock-off switch (2) is pressed simultaneously with the on/off switch (1). Make sure the socket is powered and the cable is not damaged. If the problem persists, contact after-sales service.

How to store the mixer?

Clean the device and its accessories carefully. Store it in a dry, temperate place, away from direct light and out of reach of children. Do not put it in a nylon bag to avoid moisture.

What is the warranty period and what does it cover?

The warranty is 36 months from the date of purchase. It covers material and manufacturing defects, but not normal wear (bearings, brushes, cables), damage due to incorrect use, or transport costs.

Can I use an extension cord outdoors?

Yes, but only use an extension cord suitable for outdoor use and in good condition. Make sure the extension cord is unrolled and not coiled to avoid overheating. The device is class II, it does not require a grounded outlet.

How to replace the mixing paddle or mixing rod?

First unplug the device. Use the two wrenches: hold the tool holder (4) with the small wrench and unscrew the mixing paddle with the large one counterclockwise. For assembly, proceed in reverse order.

USER MANUAL POWX0841 PowerPlus

Yellow and black power plant with a rotating stirrer and wire, no visible text or symbols on the device itself.

i

NL NEDERLANDS VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING

FR FRANÇAIS TRADUCTION DU MODE D'EMPLOI D'ORIGINE

EN ENGLISH ORIGINAL INSTRUCTION MANUAL

2 BESCHRIJVING (FIG. A)

Hand holding a cylindrical tool with a curved arrow indicating rotational motion (no text or symbols visible)

Simple line drawing of a rounded rectangular shape with a small arrow on top (no text or symbols)

Philippe Vankerkhove

Regelgevings- en compliancemanager

29/06/2022, Lier - Belgium

Hand turning a mechanical component with rotational arrow (no text or symbols visible)

15 DÉCLARATION DE CONFORMITÉ

VARO N.V. - Vic. Van Rompuy N.V.- Joseph Van Instraat 9 - BE2500 Lier - BELGIQUE, déclare que :

Simple hand-drawn sketch of a rounded rectangular shape with a diagonal line (no text or symbols)

Philippe Vankerkhove

29/06/2022, Lier - Belgium

1 INTENDED USE....2
2 DESCRIPTION (FIG A) 2
3 PACKAGE CONTENT LIST....2
4 SYMBOLS....3
5 GENERAL POWER TOOL SAFETY WARNINGS....3
5.1 Working area....3
5.2 Electrical safety....3
5.3 Personal safety .... 3
5.4 Power tool use and care....4
5.5 Service....4
6 SPECIFIC SAFETY INSTRUCTIONS 4
7 OPERATION 5
7.1 Preparation((Fig 1)....5
7.2 Switching on and off....5
7.3 Speed preselection ....5
7.4 Gear selector switch....5
8 MAINTENANCE AND CLEANING....6
8.1 Cleaning....6
9 TECHNICAL DATA....6
10 NOISE 6
11 SERVICE DEPARTMENT 6
12 STORAGE....6
13 WARRANTY....7
14 ENVIRONMENT 7
15 DECLARATION OF CONFORMITY....8

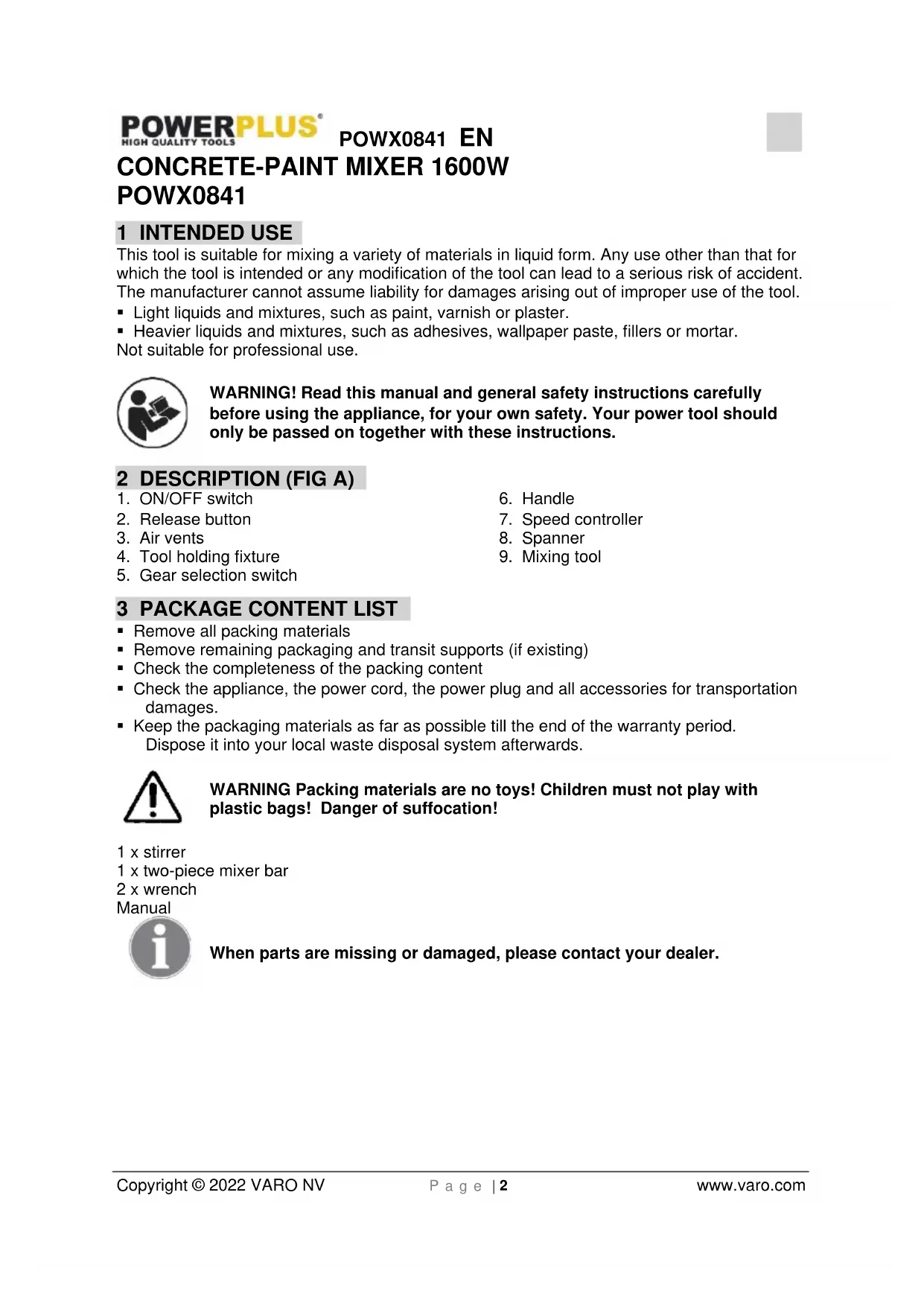

CONCRETE-PAINT MIXER 1600W

POWX0841

1 INTENDED USE

This tool is suitable for mixing a variety of materials in liquid form. Any use other than that for which the tool is intended or any modification of the tool can lead to a serious risk of accident. The manufacturer cannot assume liability for damages arising out of improper use of the tool.

• Light liquids and mixtures, such as paint, varnish or plaster.
• Heavier liquids and mixtures, such as adhesives, wallpaper paste, fillers or mortar. Not suitable for professional use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG A)

1. ON/OFF switch
2. Handle
3. Release button
4. Speed controller
5. Air vents
6. Spanner
7. Tool holding fixture
8. Mixing tool
9. Gear selection switch

3 PACKAGE CONTENT LIST

• Remove all packing materials
  ■ Remove remaining packaging and transit supports (if existing)
• Check the completeness of the packing content
• Check the appliance, the power cord, the power plug and all accessories for transportation damages.
• Keep the packaging materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

1 x stirrer
1 x two-piece mixer bar
2 x wrench
Manual

When parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

	Read manual before usage		Denotes risk of personal injury or damage to the tool.
	Class II - The machine is double insulated; Earthing wire is therefore not necessary.		In accordance with essential applicable safety standards of European directives
	Wear gloves		Wear a mask In dusty conditions
	Wear eye protection

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

■ Always check that the power supply corresponds to the voltage on the rating plate.
- Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.
- Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of an electric shock if your body is earthed.
- Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an electric shock.
- Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.
- When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of an electric shock.
- If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of an electric shock.

5.3 Personal safety

- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.

• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.
• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.
• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.
• If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

- Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.

- Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.

- Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

- Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.

- Maintain power tools. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.

- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

- Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

5.5 Service

- Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

6 SPECIFIC SAFETY INSTRUCTIONS

• Firmly tighten the mixing paddle, and remove the spanner before starting the machine.
  ■ Never mix or stir explosive or inflammable substances.
• When mixing, wear proper personal protection measures for eyes, ears, hands and breathing.
• This appliance is not suitable for mixing foodstuffs. The appliance cannot be adequately cleaned in order to comply with hygiene regulations..

7 OPERATION

7.1 Preparation((Fig 1)

Always unplug the machine from the mains before fitting a mixer bar.

First screw the stirrer (9a) on to the mixer bar (9b), the bolts should be together.

Screw the stir assembly (9a + 9b) into the mixer holder (4) afterwards. Use the two spanners to do this. Use the smallest of the spanners (8a) to hold the mixer holder (4) in place and then use the second spanner (8b) to tighten up the stir assembly. Proceed in the reverse sequence to undo the mixer.

Always use a mixer bar that is suitable for the material to be mixed/stirred. Using an unsuitable mixer bar can unnecessarily overload both the machine and yourself.

Hand holding a vertical pole with a curved arrow indicating rotational motion (no text or symbols)

- To remove the mixer bar, unscrew it from the mixer spindle in an anticlockwise direction. The mixer bar can become rather tight in the holder. In that case, use a spanner to keep the holder from turning.

7.2 Switching on and off

Press the release button (2) and then press and hold the switch (1) to turn on the device. Release the switch (1) to switch off the device.

7.3 Speed preselection

The speed can be preselected steplessly with the speed controller (7).

The necessary speed depends on the type of material you wish to mix; we recommend practical testing to determine the right speed.

7.4 Gear selector switch

Two speed ranges can be selected with the gear selector switch (5) :

Gear 1 150 min-1 to 500 min-1,

Gear 2 230 min-1 to 800 min-1

It is possible to change gear when the machine is running. However, this should not be done when the machine is at full load.

8 MAINTENANCE AND CLEANING

Attention !Before performing any work on the equipment, pull the power plug.

8.1 Cleaning

• Keep the ventilation slots of the machine clean to prevent overheating of the engine.
• Regularly clean the machine housing with a soft cloth, preferably after each use.
• Keep the ventilation slots free from dust and dirt.
• If the dirt does not come off use a soft cloth moistened with soapy water.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

9 TECHNICAL DATA

	POWX0841
voltage / frequency	220-240 V / 50 Hz
Power:	1600W
Idling speed
1st gear	150-500 min-1
2nd gear	230-800 min-1
Mixer diameter:	160 mm

10 NOISE

Noise emission values measured according to relevant standard. (K=3)

Acoustic pressure level LpA	87 dB(A)
Acoustic power level LwA	98 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration)

5,5 m/s²

K = 1,5 ~m / s^2

11 SERVICE DEPARTMENT

• Damaged switches must be replaced by our after-sales service department.
• If the connecting cable (or mains plug) is damaged, it must be replaced by a particular connecting cable which is available from our service department. Replacement of the connecting cable must only be carried out by our service department (see last page) or by a qualified person (qualified electrician).

12 STORAGE

• Thoroughly clean the whole machine and its accessories.
• Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures.
• Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
• Don't keep it in plastic bags to avoid humidity build-up.

13 WARRANTY

- This product is warranted for a 36-month period effective from the date of purchase by the first user.

- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

- We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

- You can always obtain more information at the number 00 32 3 292 92 90.

- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

- Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

- Your purchase receipt must be kept as proof of date of purchase.

- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase..

14 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

15 DECLARATION OF CONFORMITY

VARO N.V. - Vic. Van Rompuy N.V.- Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product : Concrete-Paint Mixer

trade mark : POWERplus

model : POWX0841

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2011/65/EU

2006/42/EC

2014/30/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN62841-1:2015

EN62841-2-10:2017

EN55014-1:2017

EN55014-2:2015

EN IEC 61000-3-2 : 2019

EN61000-3-3:2013

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,,

Simple hand-drawn sketch of a rounded rectangular shape with a diagonal line and a small mark (no text or symbols)

Philippe Vankerkhove

Regulatory Affairs – Compliance Manager

29/06/2022, Lier - Belgium

Hand holding a screwdriver with a curved arrow indicating rotational motion (no text or symbols)

Simple hand-drawn sketch of a rounded rectangular shape with a curved line extending from its top (no text or symbols)

Philippe Vankerkhove Zulassungsabteilung – Compliance Manager 29/06/2022, Lier - Belgium

Hand holding a tool with a curved arrow indicating rotational motion (no text or symbols)

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

29/06/2022, Lier - Belgium

Hand holding a vertical rod with a curved arrow indicating rotational motion (no text or symbols)

Simple line drawing of a rounded rectangular shape with a small arrow on top (no text or symbols)

Philippe Vankerkhove

Regulatory Affairs – Compliance Manager

29/06/2022, Lier - Belgium

Hand holding a vertical rod with a curved arrow indicating rotational motion (no text or symbols visible)

Simple hand-drawn sketch of a rounded rectangular shape with a curved line and arrow (no text or symbols)

Philippe Vankerkhove

29/06/2022, Lier - Belgium

Hand holding a vertical rod with a curved arrow indicating rotational motion (no text or symbols)

Simple hand-drawn sketch of a rounded rectangle with a diagonal line and a small mark (no text or symbols)

Philippe Vankerkhove

Regulatoriske saker - Samsvarsleder

29/06/2022, Lier - Belgium

1 TILSIGTET BRUG....2
2 BESKRIVELSE (FIG. A) 2
3 MEDF∅LGENDE INDHOLD 2
4 SYMBOLER....3
5 GENERELLE SIKKERHEDSFORSKRIFTER .... 3
5.1 Arbejdsområde....3
5.2 Elektrisk sikkerhed ....3
5.3 Personlig sikkerhed....4
5.4 Omhyggelig håndtering og anvendelse af el-værktøjer ....4
5.5 Service....4
6 SPECIFIKKE SIKKERHEDSFORSKRIFTER....4
7 BETJENING 5
7.1 Klargøring (Fig. 1)....5
7.2 Start-stop-kontakt 5
7.3 Forvalg af omdrejningstal ....5
7.4 Gearomskifter....5
8 RENG∅RING OG VEDLIGEHOLDELSE....6
8.1 Rengøring....6
9 TEKNISKE DATA....6
10 ST∅J....6
11 ST∅JSERVICEAFDELING 6
12 OPBEVARING....6
13 GARANTI....7
14 MILJ∅....7
15 KONFORMITETSERKLÆRING....8

M∅RTEL- OG MALINGSBLANDER 1600 W POWX0841

1 TILSIGTET BRUG

Hand holding a tool with a curved arrow, no visible text or symbols

Simple line drawing of a rounded rectangular shape with a small protrusion (no text or symbols)

Philippe Vankerkhove

Regulatory Affairs (afdelingen for juridiske anliggender) – Compliance Manager 29/06/2022, Lier - Belgium

3 FÖRPACKNINGSINNEHÅLL

Hand holding a vertical pole with a curved arrow indicating rotational motion (no text or symbols)

15 KONFORMITETSDEKLARATION

VARO N.V. – Vic. Van Rompuy N.V.- Joseph Van Instraat 9 – BE2500 Lier – Belgien, deklarerar härmed att,

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

29/06/2022, Lier - Belgium

Hand holding a vertical rod with a curved arrow indicating rotational motion (no text or symbols)

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

Hand holding a mechanical lever with a curved arrow indicating rotational motion (no text or symbols)

Simple line drawing of a rounded rectangle with a small protrusion (no text or symbols)

Philippe Vankerkhove

29/06/2022, Lier - Belgium

1 NAMJENA 2
2 OPIS (SL. A)....2
3 POPIS SADRŽAJA PAKIRANJA 2
4 SYMBOLI....3
5 OPĆA UPOZORENJA O ELEKTRIČNIM ALATIMA....3
5.1 Područje za rad....3
5.2 Električna sigurnost....3
5.3 Osobna sigurnost....4
5.4 Korištenje i održavanje električnog alata....4
5.5 Servis....4
6 POSEBNA SIGURNOSNA UPOZORENJA 5
7 KORIŠTENJE....5
7.1 Priprema (Sl. 1)....5
7.2 Uključivanje i isključivanje....5
7.3 Predizbor brzine....5
7.4 Preklopka za izbor stupnja prijenosa 5
8 ČIŠĆENJE I ODRŽAVANJE 6
8.1 Čišćenje....6
9 TEHNIČKI PODACI 6
10 BUKA....6
11 SERVISNI ODJEL 6
12 ČUVANJE....6
13 JAMSTVO....7
14 OKOLIŠ 7
15 IZJAVA O SUKLADNOSTI 8

MIJEŠALICA ZA BOJU I BETON 1600 W POWX0841

1 NAMJENA

Hand turning a valve with rotational arrow (no text or symbols visible)

Simple line drawing of a rounded rectangle with a small arrow on top (no text or symbols)

Philippe Vankerkhove

29/06/2022, Lier - Belgium

1 NAMENJENA UPOTREBA....2
2 OPIS (SL. A) 2
3 LISTA SADRŽAJA PAKETA 2
4 SIMBOLI 3
5 OPŠTA BEZBEDNOSNA UPUTSTVA ZA ELEKTRIČNE ALATE 3
5.1 Radna oblast....3
5.2 Električna bezbednost....3
5.3 Bezbednost osoba....4
5.4 Korišćenje i održavanje električnog alata .... 4
5.5 Servisiranje 4
6 POSEBNA BEZBEDNOSNA UPOZORENJA 5
7 RUKOVANJE 5
7.1 Priprema (SI. 1)....5
7.2 Uključivanje i isključivanje....5
7.3 Predbiranje brzine 5
7.4 Prekidač za izbor stepena prenosa....5
8 ČIŠĆENJE I ODRŽAVANJE 6
8.1 Čišćenje....6
9 TEHNIČKI PODACI 6
10 BUKA....6
11 SERVISNO ODELJENJE....6
12 SKLADIŠTENJE 6
13 GARANCIJA....7
14 ŽIVOTNA SREDINA....7
15 IZJAVA O USKLAĐENOSTI......8

MIKSER ZA BETON I BOJU 1600 W POWX0841

1 NAMENJENA UPOTREBA

Hand holding a cylindrical tool with a curved arrow indicating rotational motion (no text or symbols visible)

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

29/06/2022, Lier - Belgium

Hand holding a vertical rod with a curved arrow indicating rotational motion (no text or symbols)

Simple line drawing of a rounded rectangular shape with a diagonal line (no text or symbols)

Philippe Vankerkhove

29/06/2022, Lier - Belgium

1 ZAMÝŠL'ANÉ POUŽITIE....2
2 POPIS (OBR. A) 2
3 OBSAH BALENIA....2
4 SYMBOLY 3
5 VŠEOBECNÉ BEZPEČNOSTNÉ VAROVANIA PRE ELEKTRICKÉ NÁRADIE .... 3
5.1 Pracovná plocha....3
5.2 Elektrická bezpečnost'....3
5.3 Osobná bezpečnost'......4
5.4 Používanie elektrického náradia a starostlivost' oň ....4
5.5 Servis....5
6 ZVLÁŠTNE BEZPEČNOSTNÉ VAROVANIA 5
7 PREVÁDZKA 5
7.1 Priprava (Obr. 1)....5
7.2 Zapnutie on a vypnutie off ....5
7.3 Predvol'ba rýchlosti otáčok....5
7.4 Vol'ba rýchlosti 5
8 ČISTENIE A ÚDRŽBA 6
8.1 Čistenie 6
9 TECHNICKÉ ÚDAJE 6
10 HLUK 6
11 SERVIS 6
12 USKLADNENIE....6
13 ZÁRUKA 7
14 ŽIVOTNÉ PROSTREDIE....7
15 VYHLÁSENIE O ZHODE 8

MIEŠADLO NA BETÓN A FARBY 1600 W POWX0841

1 ZAMÝŠL'ANÉ POUŽITIE

Hand holding a vertical rod with a curved arrow indicating rotational motion (no text or symbols visible)

Simple hand-drawn sketch of a rounded rectangle with an arrow, no text or symbols present

Philippe Vankerkhove

Regulačné záležitosti – Compliance Manager

29/06/2022, Lier - Belgium

1 PREDVIDENA UPORABA 2
2 OPIS (SLIKA A) 2
3 SEZNAM VSEBINE PAKETA 2
4 SIMBOLI 3
5 SPLOŠNA VARNOSTNA OPOZORILA IN NAVODILA ...... 3
5.1 Delovno mesto....3
5.2 Električna varnost....3
5.3 Osebna varnost....4
5.4 Uporaba in nega električnega orodja....4
5.5 Servisiranje ....4
6 POSEBNA VARNOSTNA NAVODILA....5
7 UPORABA 5
7.1 Priprava (slika 1)....5
7.2 Vklop in izklop....5
7.3 Izbira hitrosti 5
7.4 Stikalo prestavne ročice....5
8 VZDRŽEVANJE IN ČIŠČENJE....6
8.1 Čiščenje....6
9 TEHNIČNI PODATKI 6
10 HRUP 6
11 SERVISNI ODDELEK 6
12 SHRANJEVANJE 6
13 GARANCIJA 7
14 OKOLJE....7
15 IZJAVA O SKLADNOSTI 8

MEŠALNIK ZA BETON IN BARVO 1600 W POWX0841

1 PREDVIDENA UPORABA

Hand holding a vertical rod with a curved arrow indicating rotational motion (no text or symbols)

29/06/2022, Lier - Belgium

Hand holding a cylindrical tool with a curved arrow indicating rotational motion (no text or symbols visible)

Simple line drawing of a rounded rectangular shape with a diagonal line (no text or symbols)

Philippe Vankerkhove

Divizia de reglementare – Director de conformitate

29/06/2022, Lier - Belgium

Hand holding a vertical pole with a curved arrow indicating rotational motion (no text or symbols)

29/06/2022, Lier - Belgium

Hand holding a vertical rod with a curved arrow indicating rotational motion (no text or symbols)

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

29/06/2022, Lier - Belgium

Hand holding a vertical rod with a curved arrow indicating rotational motion (no text or symbols)

Simple line drawing of a rounded rectangle with a diagonal line (no text or symbols)

Philippe Vankerkhove

Hand holding a vertical rod with a curved arrow indicating rotational motion (no text or symbols)

Simple hand-drawn sketch of a rounded rectangular shape with no text or symbols

Philippe Vankerkhove

29/06/2022, Lier - Belgium

Yellow and black handheld water level meter with a coiled wire, shown against a plain background (no text or symbols visible)

varo

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

©copyright by varo

VARO - VIC. VAN ROMPUY nv

JOSEPH VAN INSTRAAT 9 - 2500 LIER - BELGIUM
