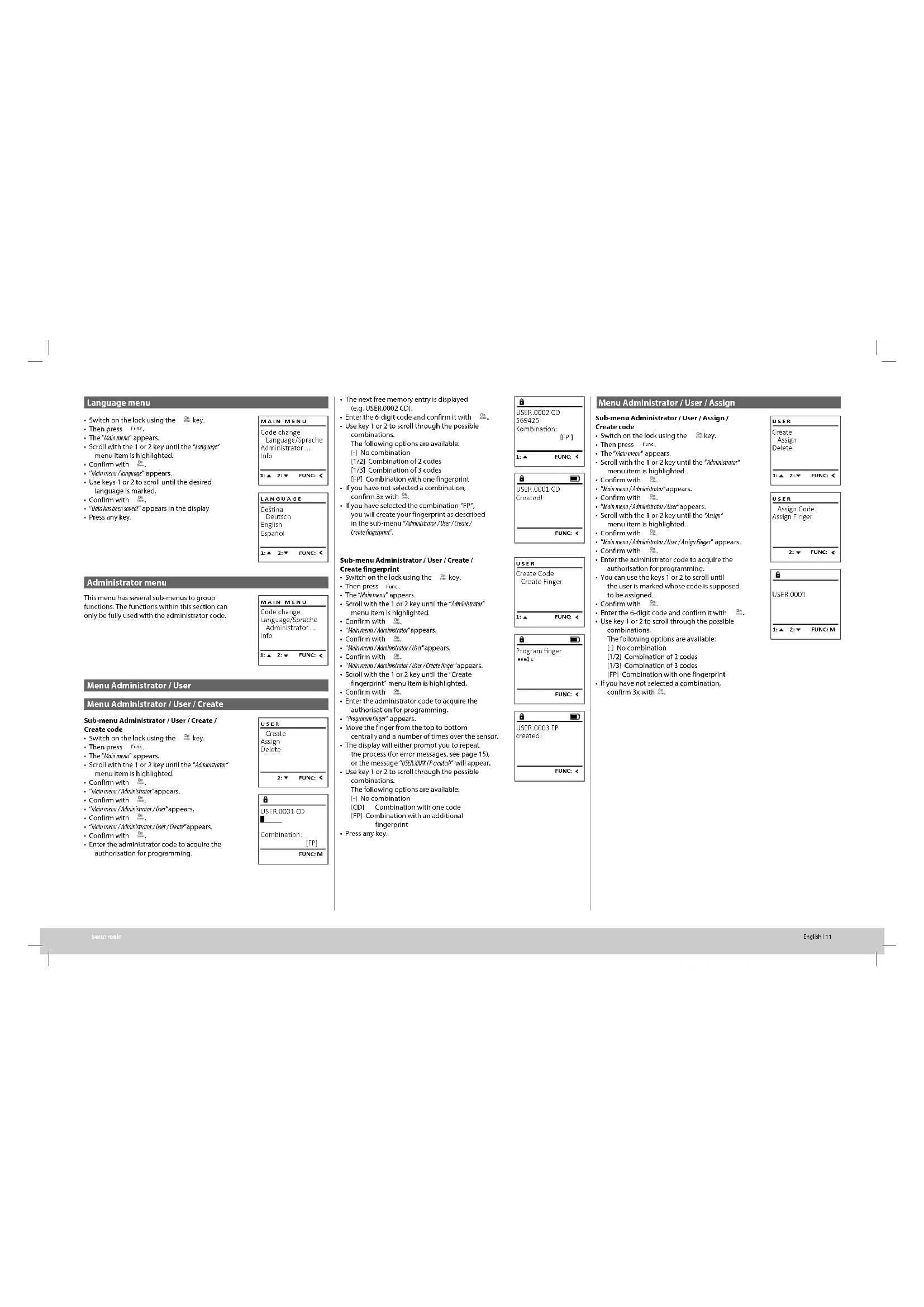

Notice Burg Wächter DualSafe DS 415 E FP - page 11
11 / 32
View the manual : Français FR Deutsch DE English EN Nederlands NL
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Electronic safe with code lock and fingerprint
Brand Burg Wächter
Model DualSafe DS 415 E FP
Power supply 4 AA Mignon LR6 alkaline batteries (1.5 V)
Number of administrator codes 1
Number of user codes 9 maximum
Number of storable fingerprints 20 maximum
Event log capacity 2,000 entries
Lockout time 5 minutes after 15 consecutive incorrect attempts
Opening modes 6-digit PIN, fingerprint, combination of both
Display Backlit display with battery level indicator
Fingerprint sensor Optical sensor
Delay function Adjustable from 0 to 99 minutes
Time and date setting Yes, with automatic daylight saving time adjustment
Firmware update Via microSD card (FAT-32 format)
Menu languages 12 languages
Certification ECB class A, EN 1300:2018
Warranty 2 years (excluding batteries)
Maintenance and cleaning Clean the keypad with a microfiber cloth
Replaceable batteries Yes, by the user (4x AA)

Frequently Asked Questions - DualSafe DS 415 E FP Burg Wächter

How to change the administrator code?
Activate the lock, press Func, select 'Code change', then 'Administrator'. Enter the current code, then the new 6-digit code twice. Confirm with On. Note: perform this operation with the door open.
How to open the safe with a fingerprint?
Activate the lock with the On button, then slide your registered finger from top to bottom on the sensor. The display shows 'Please turn the handle'. Turn the handle to open.
What to do if I forgot my code?
Use the administrator code to reset the user code. If you lost the administrator code, contact customer service. Note that the factory code (1-2-3-4-5-6) must be changed upon first use.
How long does the safe lock after errors?
After 15 consecutive incorrect attempts (code or fingerprint), access is blocked for 5 minutes. A countdown is displayed on the screen.
How to change the menu language?
Activate the lock, press Func, select 'Language/Sprache' (or equivalent), choose the desired language with keys 1/2, confirm with On. Available languages include French, English, German, etc.
How to replace the batteries?
Remove the two Torx T8 screws under the electronics, slide the battery cover, replace the 4 AA batteries with new ones respecting polarity, then screw back. Use branded alkaline batteries, not rechargeable.
How to set the time and date?
Go to administrator menu > 'Timer functions' > 'Time entry' or 'Date entry'. Enter the values with the numeric keypad (2 digits for each field) and confirm with On. Daylight saving time can be enabled automatically.
How to add a new user?
In the administrator menu, select 'User' > 'Create'. Choose 'Create code' or 'Create fingerprint'. Enter the administrator code, then follow the on-screen instructions to set a code or register a fingerprint.
How to delete a user?
In the administrator menu, go to 'User' > 'Delete'. Enter the administrator code, select the user to delete with keys 1/2, confirm with On. The deleted user no longer has access but remains in the history.
How to update the firmware?
Copy the update file to a microSD card formatted in FAT-32, insert it into the slot. In the administrator menu > 'Programming' > 'Firmware update', confirm. Do not cut off power during the update.

User questions about DualSafe DS 415 E FP Burg Wächter

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Safe in PDF format for free! Find your manual DualSafe DS 415 E FP - Burg Wächter and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DualSafe DS 415 E FP by Burg Wächter.

USER MANUAL DualSafe DS 415 E FP Burg Wächter

text_image BUBC NACKETER 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100

The numbers "1" - "0" are used for input e.g. when entering the code.

C"Func"key

Multifunction key which adapts to perform several functions, including: Go back one menu level, delete a entered character, show the Main menu. The display shows the current function of the key (see section 3).

D "On/Enter" key

The "On/Enter" key starts the system or selects the current menu item.

E "1" key

The key can be used to scroll up if there are several menu options. If this is possible, the display shows this (see section 3).

F "2" key

The key can be used to scroll down if there are several menu options. If this is possible, the display shows this (see section 3).

G Fingerprint sensor

Fingerprints can be stored via the fingerprint sensor and used to open the safe.

Dear customer,

Thank you for choosing a safe with a BURG-WÄCHTER SecuTronic lock. This electronic lock is certified according to ECB Class A. You have purchased a product that meets extremely high security requirements and was developed and produced according to current technical standards. This lock is certified according to EN 1300: 2018. (Classified of high-security locks according to their resistance to unauthorised opening).

Important: Please read the entire instruction manual before programming and keep this manual safe so that you can revisit it at a later date.

We hope you enjoy your new BURG-WÄCHTER safe. Your Burg-Wächter KG

General information

Activation

The electronics are switched on using the Ⓞ key on the keyboard. This then lights up. At the same time, the display shows the BURG WÄCHTER logo for a moment before the input graphic for the pin code or fingerprint appears.

Languages

The menu navigation in the display is available in twelve languages and can be set via the "Languages" menu. Please refer to chapter "Menu Language" for a detailed explanation.

Blocking times

To protect against tampering, the lock electronics block access to the safe for five minutes if an incorrect pin code or an incorrect fingerprint has been entered fifteen times in succession. During this blocking time, the remaining time on the display runs countdown. It is not possible to open the safe during this period, even with a valid user or administrator code.

Increasing burglary protection

Please take care to ensure codes do not fall into the wrong hands. Therefore, store the codes in a safe location so that they can only be accessed by authorised persons. In the event you lose a code, the lock must be set to a new code. • The factory code must be changed as soon as the lock is commissioned • Codes that are easy to guess (e.g. 1, -2, -3, -4, -5, -6) must not be used • Personal data (e.g. birthdays) or other data that may be guessed with knowledge of the code owner must not be used as a code • After changing the code, the lock must be checked several times with the safety door opened

Attention: All changes to the administrator code, the factory code and the user code must be carried out with the safe door open! After changing a code, the lock must be operated several times with the new code with the safe door open.

Input options

Number keys:

The numbers "1" - "0" are used for input e.g. when entering the code.

Burg Wächter DualSafe DS 415 E FP - Number keys: - 1

"Func" key:

Multifunction key which adapts to perform several functions, including; Go back one menu level, delete a entered character, show the Main menu. The function of the key.

"On/Enter" key:

The "On/Enter" button starts the system or selects the current menu item.

Keys "1" and "2":

In menus, you can scroll up and down using these keys. If this is possible, the display shows this with the corresponding arrows.

Fingerprint sensor:

Fingerprints can be stored via the fingerprint sensor or used to open the safe

Burg Wächter DualSafe DS 415 E FP - Fingerprint sensor: - 1

Display

A Specifies whether you can use the key to cancel the last entry (◀ or switch to the main menu [M].
B: (2▼) appears when you can scroll down using the "2" key.
c (1:▲) appears when you can scroll up using the "1" key.
D (■) indicates the battery level.
E (☐/☐) Indicates whether the locking mechanism has released the lock and the safe can be opened.

Burg Wächter DualSafe DS 415 E FP - Display - 1

Opening

Opening with PIN code
Burg Wächter DualSafe DS 415 E FP - Opening - 1

Burg Wächter DualSafe DS 415 E FP - Opening - 2

  • Switch on the lock using the on key.
  • Enter the 6-digit PIN code (factory setting "1-2-3-4-5-6").
    • "Please turn the knot" appears in the display

Opening with fingerprint (Convenient opening)
Burg Wächter DualSafe DS 415 E FP - Opening - 3

Burg Wächter DualSafe DS 415 E FP - Opening - 4

  • Switch on the lock using the On key.
  • Move a programmed finger from the top to bottom centrally over
    the sensor.
    • "Please turn the knob!" appears in the display
  • Turn the knob.

Opening with access combinations
Burg Wächter DualSafe DS 415 E FP - Opening - 5

Burg Wächter DualSafe DS 415 E FP - Opening - 6

Burg Wächter DualSafe DS 415 E FP - Opening - 7

  • Switch on the lock using the Bn key.
  • Move a programmed finger from the top to bottom centrally over the sensor.
  • If an additional authorisation request (code or fingerprint) has been set up, the message "enter next authorisation" will appear on the display. Enter the requested additional authorisation (code or fingerprint).
  • If a threefold authorisation request (3 PIN codes) has been set up, the message "Enter next authorisation" will appear on the display. Enter the 6-digit PIN code.
    • "Please turn the knob!" appears in the display
  • Turn the knob.

Setting up the menu structure

- Change code

Language

• Administrator

User

Create

Create code

Create fingerprint

Assign

Assign code

Assign fingerprint

Delete

Time functions

Set time

Set date

Automatic START

Delay time

Progra

Database update

Firmware update

Reorganise

Processes

Display

Save

Setup

Register

FP reset

Generate AES key

- Info

System Info

System check

Description of the menu functions

Code Change menu

Change the administrator code and the user codes. We would like to point out that, for security reasons, the factory set administrator code must be changed to an individually set code.

• Switch on the lock using the on key.
+ Then press Furo.
• The "Main menu" appears.
- Confirm with
• You can use the keys 1 or 2 to scroll until the
administrator/user is displayed and you wish to change the code for.
+ Confirm with on
• Enter the old or factory code that was previously
valid using the keypad and press on
• Enter the new code using the keypad and
confirm with
- Repeat your entry and confirm it again with 50.
• Code change completed is displayed after
a correctly.
• Press any key.
Note: When a safe lock is first started up, additional information on the current date and time are requested:
• Enter the day (2 digits)
• Enter the month (2 digits)
• Enter the year (2 digits)
• Enter the hour (2 digits)
• Enter the minutes (2 digits)

Burg Wächter DualSafe DS 415 E FP - Code Change menu - 1

text_image MAIN MENU Code change Language/Spache Administrator ... Info 2: FUNC: New Code: FUNC: M Code change completed! FUNC:

Language menu

  • Switch on the lock using the ☑ key.
  • Then press Func.
  • The "Main menu" appears.
  • Scroll with the 1 or 2 key until the "Language"
    menu item is highlighted.
  • Confirm with
  • "Main menu/language" appears.
  • Use keys 1 or 2 to scroll until the desired
    language is marked.
  • Confirm with
  • "Data has been saved!" appears in the display
  • Press any key.
MAIN MENU
Code changeLanguage/SpracheAdministrator ...Info
1:▲ 2:▼ FUNC: <
LANGUAGE
ČeštinaDeutschEnglishEspañol
1:▲ 2:▼ FUNC: <

Administrator menu

This menu has several sub-menus to group functions. The functions within this section can only be fully used with the administrator code.

MAIN MENU
Code changeLanguage/SpracheAdministrator ...Info
1: ▲ 2: ▼ FUNC: <

Create code

  • Switch on the lock using the key.
  • Then press Func.
  • The "Main menu" appears.
  • Scroll with the 1 or 2 key until the "Administrator"
    menu item is highlighted.
  • Confirm with
    • "Main menu / Administrator" appears.
  • Confirm with
    • "Nav menu / Administratix / user" appears.
  • Confirm with
    • "Main menu / Administrator / user / Create" appears.
  • Confirm with
  • Enter the administrator code to acquire the authorisation for programming.
USER
Create
Assign
Delete
2: ▼FUNC: ◀
USER.0001 CD
Combination: [FP]
FUNC: M
  • The next free memory entry is displayed (e.g. USER.0002 CD).
  • Enter the 6-digit code and confirm it with
  • Use key 1 or 2 to scroll through the possible
    combinations.
    The following options are available:
    [-] No combination
    [1/2] Combination of 2 codes
    [1/3] Combination of 3 codes
    [FP] Combination with one fingerprint
  • If you have not selected a combination, confirm 7x with On
    with 3x with 10.
  • If you have selected the combination "FP", you will create your fingerprint as described in the sub-menu "Administrator/User/Create/Create fingerprint".

Create fingerprint

- Switch on the lock using the ☑ key.

- Then press Full.

- The "Milk menu" appears.

- Scroll with the 1 or 2 key until the "Administrator"

menu item is highlighted.

- Confirm with

• "Main menu / Administrative" appears.

- Confirm with

• Math menu / Administrator / user appears.

- Confirm with

• "Main menu / Administrator / User / Create finger" appears.

- Scroll with the 1 or 2 key until the 'Create

fingerprint men - Confirm with On

- Enter the administrator code to acquire the

- Enter the administrator code to acquire the authorisation for programming.

• "Program flower" appears

- Move the finger from the top to bottom

centrally and a number of times over the sensor.

• The display will either prompt you to repeat

the process (for error messages, see page 15),

or the message "USERXXXFP created" will appear.

- Use key 1 or 2 to scroll through the possible

combinations.

The following options are available:

[-] No combination

[CD] Combination with one code

[FP] Combination with an additional

fingerprint

- Press any key.

USER.0002 CD569425Kombination:[F]
1:▲FUNC: <
USER
Create CodeCreate Finger
1:▲FUNC: <
Program finger
FUNC:
USER,0003 IPcreated!
FUNC: <

- Switch on the lock using the On key.

+ Then press Fuc.

+ The "Mainmen" appears.

- Scroll with the 1 or 2 key until the "Administrator"

menu item is highlighted.

- Confirm with

• Main menu / Administrator appears.

- Confirm with

• "Data menu /Administrator / other" appears.

- Scroll with the 1 or 2 key until the "assign" menu item is highlighted.

menu item is highlighted.

• Confirm with

- "Main menu/Administrator/user/Assign Finger" appears.

• Confirm with

- Enter the administrator code to acquire the

authorisation for programming.

- You can use the keys 1 or 2 to scroll until

the user is marked whose code is supposed to be assigned.

to be assigned. • Confirm with

• Comm with

- Enter the 6-digit code and confirm it with Use key 1 or 7 to scroll through the possible

- Use key 1 or 2 to scroll through the possible combinations

cumulations. The following

The following options are available.

[-] No combination [1-10]. Combination

[1/2] Combination of 2 codes [1/2]. Combination of 3 codes

[173] Combination of 5 codes

[FP] Combination with one fingerprint

- If you have not selected a combination, confirm 3x with 0m.

USER
Create Assign Delete
1:▲ 2:▼ FUNC: <
USER
Assign Code Assign Finger
2:▼ FUNC: <
8
USER CO01
1:▲ Z:▼ FUNC:M

- Switch on the lock using the on key.

- Then press Func.

• The "Mota men" appears.

- Scroll with the 1 or 2 key until the menu

item "Administrator" is highlighted

- Confirm with 9n

• "Mein may / Administer's" appears

- Tally/Mich/Almanberg Confirm with

- Confirm with

• "Main menu / Administrative / user" appears.

- Scroll with the 1 or 2 key until the "4k8n"

menu item is highlighted.

- Confirm with

- Scroll with the 1 or 2 key until the

"Active Five" menu item is highlighted

- Confirm with

• Confirm with

- Enter the administrator code to acquire

the authorisation for programming.

- "Main menu / Administrator / User / Assign Finger" appears.

- You can use the keys 1 or 2 to scroll until

the user is marked whose fingerprint is

supposed to be assigned.

- Confirm with

- "Cante deponi" appears

• Obles Mgerpili appears.

- Move the finger from the top to bottom

centrally and a number of times over the sensor.

• The display will either prompt you to repeat the

process (for error messages, see page 15), or the message "USER.XOG FP created!" will appear.

- Use key 1 or 2 to scroll through the possible

combinations.

The following options are available:

[-] No combination

[CD]. Combination with one code

[50] Combination with an additional

[FP] Combination fingerprint

• Press any key

USER
Create Assign Delete
1: 2: FUNC:
USER
Assign Code Assign Finger
3: FUNC:
USER,0003 FP created!
FUNC:

Deleted users no longer have access to the safe. However, these remain in the history.

- Switch on the lock using the On key.

- Then press Fam.

• The "Main menu" appears.

- Scroll with the 1 or 2 key until the menu

item "administer" is highlighted.

- Confirm with

- Committances

• Maternal, Administrative

- Confirm with

- "Main menu / Administrator / User" appears.

- Confirm with

- "Main menu /Administrator /User /Delete" appears.

- Scroll with the 1 or 2 key until the menu

item "Oke" is highlighted

Item back is big Comfort with 0%

- Confirm with - Enter the administrator code to acquire the authorisation for programming.

- You can use the keys 1 or 2 to scroll until the

user is marked whose code is supposed to

be deleted

- Confirm with

- Committances

• 2010 has been absent appears.

- Press any key.

USER
Create
Delete
1:▲FUNC: <
USER.0001 CD
1:▲2:▼ FUNC:M
Dataset has been deleted!

Time and date can be set, as well as whether the system should automatically switch between Central European Summer/Winter Time. The delay time prevents quick opening in the event of

time prevents quick opening in the event of

a robbery.

ADMIN
User
Timer functions
Programming
Processes
1:▲ 2:▼ FUNC: <

- Switch on the lock using the 80 key.

- Then press 1ycc.

• The "Mainway" appears.

• Scroll with the 1 or 2 key until the menu

- Scroll with the 1 of 2 key under the menu item "Ministrator" is highlighted.

Cent Aomishaw is highlighted.

• Confirm with

• "Main menu/Administrator" appears.

+ Scroll with the 1 or 2 key until the menu

item "Amerfunctions" is highlighted.

• Confirm with

• "Administrator/Time entry" appears.

+ Confirm with

- Enter the administrator code to acquire

- Enter the administrator code to acquire the authorisation for programming.

the authorisation for programming.

• The time (24-hour format) can be set via

the keypad

+ Confirm with

• "Data has been saved!" appears.

- Press any key.

TIMER FUN ...
Time entryDate entryAutom. ST/WTDelay time
2: ▼ FUNC: <
Time entryH.M 0.00
FUNC: M
  • Switch on the lock using the in key.
  • Then press Func.
  • The "Bolamew" appears.
  • Scroll with the 1 or 2 key until the menu
    Item "Administrator" is highlighted.
  • Confirm with
    • "Main menu / Administrator" appears.
  • Scroll with the 1 or 2 key until the menu
    item "Time functions" is highlighted
  • Confirm with
    • "Power functions" appears.
  • Scroll with the 1 or 2 key until the "Date entry"
    menu item is highlighted
  • Confirm with
  • Enter the administrator code to acquire the
    authorisation for programming.
    • The date can be set via the keynac
  • The date can be set via the keypad.
  • Confirm with on
    • Notable has been saved?
    • Excessive behavior appears.
  • Press any key.
TIMER FUN ...
Time entryDate entryAutom. ST/WTDelay time
1:▲ 2:▼ FUNC: <
Date entryD.M.Y ■0.00.00
FUNC: M

Automatic update between Central European

Summer/Winter Time.

  • Switch on the lock using the 🔒 key.
  • Then press func.
    • The "Main menu" appears.
  • Scroll with the 1 or 2 key until the menu
    item "Administrator" is highlighted.
  • Confirm with 24.
  • "Administrator" appears.
  • Scroll with the 1 or 2 key until the menu
    item "Time functions" is highlighted
  • Confirm with
  • "Base functions" appears.
  • Scroll with the 1 or 2 key until the
  • menu item "Autom. SI/WT" is highlighted
  • Confirm with 2t.
  • Enter the administrator code to acquire the
    authorisation for programming.
    • The automatic time changeover can be
    switched on or off via key 1 or 2.
  • Confirm with
  • "Data has been saved" appears.
  • Press any key.
Time entry
Date entry
Autom. ST/WT
Delay time
1: ▲2: ▼FUNC: <
Autom. ST/WT[ON]
1:▲FUNC: M

tor / Delay time

The delay time sets up a required waiting time before a function is performed and can consequently prevent quick opening in the event of a robbery. After the delay time has elapsed, a valid and fully authorised entry must be repeated in order to gain access.

  • Switch on the lock using the on key.
  • The press
  • The 'Main new' appears.
  • Scroll with the 1 or 2 key until the menu
    item "Administrator" is highlighted.
  • Confirm with
    • "Administrator" appears.
  • Scroll with the 1 or 2 key until the menu item
    "Time functions" is highlighted.
  • Confirm with
    • "Time functions" appears.
  • Scroll with the 1 or 2 key until the
  • menu item "delay time" is highlighted.
  • Confirm with
  • Enter the administrator code to acquire the
    authorisation for programming. Where a delay
    time has already been set, it must first be run
    through.
    • The delay time (0-99 minutes) can be set
    via the keyboard.
  • Confirm with
  • "Data has been saved!" appears.
  • Press any key.

A firmware update installs the latest software version. Reorganise sorts the database.

TIMER FUN ...
Time entry
Date entry
Autom. ST/WT
Delay time
1: ▲ FUNC: ◀
Delay time[00] min
FUNC: M
ADMIN
User
Timer functions
Programming
Processes
1: ▲ 2: ▼ FUNC: ◀

This function is not enabled at present.

PROGRAMMING
Databaseupdate
Firmwareupdate
Restructure
2: ▼FUNC: ◀
  • Please ensure that the batteries are full before updating the firmware.
  • Please copy the new firmware version to a FAT-32 formatted microSD card and insert it
    into the microSD card slot.
  • Switch on the lock using the On key.
    • The press Fund.
    • The "Main menu" appears.
  • Scroll with the 1 or 2 key until the menu
    item "Administrator" is highlighted.
  • Confirm with
  • "Administrator" appears
  • Scroll with the 1 or 2 key until the
    "Programming" menu item is highlighted.
  • Confirm with
    • Programming appears.
  • Scroll with the 1 or 2 key until the menu
    item "Hanswespade" is highlighted.
  • Confirm with
  • Enter the administrator code to acquire the
    authorisation for programming.
    • The message "Custom current signal manufacturer
    An intricate version using Enter" appears.
  • Confirm with - Thereafter there is no
    need to do anything further in the process.
    • The message does not mention power appears.
    • The message on the display disappears for some time
    some time.
  • When the update is complete, the message
    Himvortapine completed appears.

Reorganisation must be carried out cyclically in order to optimise the user database and restructure the user data records.

  • Switch on the lock using the 0r key.
    • The press func.
    • The "Main menu" appears.
  • Scroll with the 1 or 2 key until the menu
    item "Administrator" is highlighted.
  • Confirm with
  • "Administrator" appears.
  • Scroll with the 1 or 2 key until the
    "Programming" menu item is highlighted.
  • Confirm with
  • "Programming" appears.
  • Scroll with the 1 or 2 key until the menu
    item "Restructuring" is highlighted.
  • Confirm with
  • Enter the administrator code to acquire
    the authorisation for programming.
  • "Restructuring in progress" appears.

PROGRAMMING

Databaseupdate

Firmwareupdate

Restructure

(1) 本说明仅供参考。

(No text)

1:▲ 2:▼ FUNC:

(No text)

0

[Conna, Quercu]

commi current original firmware

version with Enter

It is possible to store the history on an inserted microSD card or to output it directly on the display.

ADMIN
User
Timer functions
Programming
Processes
  • Switch on the lock using the _ on key.
    • The press FurlA
    • The "Main menu" appears.
  • Scroll with the 1 or 2 key until the menu
    item "Administrator" is highlighted.
  • Confirm with
  • "Administrator" appears.
  • Scroll with the 1 or 2 key until the menu
    Item "Processes" is highlighted.
  • Confirm with
  • Enter the administrator code to acquire
    the authorisation for programming.
  • Scroll with the 1 or 2 key through the
    data records.
  • Confirm with
Processes
DisplaySave
2: ▼FUNC: ◀
Administrator
Code entry
1: ▲2: ▼
  • Please insert a FAT-32 formatted microSD card into the microSD card slot.
  • Switch on the lock using the 90 key.
    • The press 198c.
  • The "Main menu" appears.
  • Scroll with the 1 or 2 key until the menu
    item "Administrator" is highlighted.
  • Confirm with
    • "Administrator" appears.
  • Scroll with the 1 or 2 key until the menu
    Item "Processes" is highlighted.
  • Confirm with
    • "Places" appears.
  • Scroll with the 1 or 2 key until the menu
    Item "Saw" is highlighted.
  • Confirm with
  • Enter the administrator code to acquire
    the authorisation for programming.
  • "Please and" appears.
  • "Dataset has been stored!" appears.
  • Press any key.
Processes
DisplaySave:
3: FUNC: <
Please wait!
Dataset has been stored!
FUNC: <

The system must be registered for communication within the device.

FP-reset removes all fingerprints.

ADMIN
User
Restructure
Processes
Install
1:▲FUNC: <

In the event of a complete system failure, the electronic control panel may have to be registered again with the locking mechanism.

  • Switch on the lock using the 90 key.
  • The press Func.
  • The "Main menu" appears.
  • Scroll with the 1 or 2 key until the menu item
    "Administrator" is highlighted.
  • Confirm with
    • "Administrator" appears.
  • Scroll with the 1 or 2 key until the menu item
    "Setup" is highlighted.
  • Confirm with
  • Confirm "install" with
  • Enter the administrator code to acquire the
    authorisation for programming.
  • Dataset has been stored" appears in the display
  • Press any key.

After registering, the administrator code must be

changed as described in the Code Change menu.

SETUP
Install
FP Reset
Generate AES-Key
  • Switch on the lock using the on key.
  • The press Func.
  • The "Mai men" appears.
  • Scroll with the 1 or 2 key until the menu
    item "Administrator" is highlighted.
  • Confirm with
  • "Administrator" appears.
  • Scroll with the 1 or 2 key until the menu
    item "Setup" is highlighted.
  • Confirm with
  • Scroll with the 1 or 2 key until the menu
    item "R-Rset" is highlighted.
  • Confirm with
  • Enter the administrator code to acquire
    the authorisation for programming.
    • "Before data with ENIEn key" appears.
  • Confirm with
    • "Meuse Wall" appears.
  • Press any key.
SETUP
InstallFP-ResetGenerate AES-Key
2: ▼ FUNC: ◀
Delete data with ENTER key
FUNC: ◀

This function is not enabled at present.

In this menu, you can have several pieces of information of the system displayed.

MAIN MENU
Code changeLanguage/SpracheAdministrator ...Info
1:▲FUNC: <
  • 5 switch on the lock using the On key.
  • The press Func.
    • The "Main menu" appears.
  • Scroll with the 1 or 2 key until the menu
    item "000" is highlighted.
  • Confirm with
  • "info" appears
    • Confirm with
  • Enter the administrator code to acquire
    the authorisation for programming.
    The system information is displayed.
  • Scroll with key 1 or 2 to view the information.
  • Use the time key to return.
MAIN MENU
Code changeLanguage/SpracheAdministrator ...Info
1:▲FUNC: <
InfoIE-V1.0SN:20.0A.00.00
2:▼FUNC:M

Info / system check menu

  • Switch on the lock using the On key.
    • The press
    • The "Mainmea" appears.
  • Scroll with the 1 or 2 key until the menu item
    "info" is highlighted.
  • Confirm with
  • "info" appears.
  • Scroll with the 1 or 2 key until the menu item
    "Systemcheck" is highlighted.
  • Confirm with
  • Enter the administrator code to acquire the authorization for any marketing
    authorisation for programming.
    • The system check Information is displayed
  • Scroll with key 1 or 2 to view the information.
    • Use the time key to return.
INFO
System infoSystemcheck
1:▲ 2:▼ FUNC: <
EE
√ ADC 5.63V
√ Flash
√ touch con.
2:▼ FUNC:M

Error messages

The illustration below describes the error messages on the display when a fingerprint is created is or when the safe is opened.

Error message Solution

Too fast! Please repeatMove your finger slowly across the sensor.
Too tilted! Please repeatMove your finger flat across the sensor.
Too short! Please repeatMove your finger across the sensor so that more area of your fingerprint can be read.
Position in the middle and repeat!!Position your finger in the middle of the sensor.
Wrong code! Enter a valid code.
No admittance! An unaved fingerprint has been used. Repeat with a fingerprint that has already been created.

Burg Wächter DualSafe DS 415 E FP - Error messages - 1

Burg Wächter DualSafe DS 415 E FP - Error messages - 2

Burg Wächter DualSafe DS 415 E FP - Error messages - 3

Technical details

Number of administrator codes:1
Number of user codes: 9 (max.)
Number of fingerprint codes:20 (max.)
Blocking times: After an Incorrect code/FP is entered 15x, 5 minutes
Power supply: 4x AA MIGNON LR6 ALKALINE
Date/time:√
Updatable (firmware):√
History number: 2,000

Battery replacement

You can see the battery status at any time using the battery level indicator at the top right of the display. If the battery capacity is running low, a corresponding message appears on the display: When this notice appears, change the batteries as soon as possible.

Remove the two screws on the underside of the lock electronics. This will require a Torx T B screwdriver. This is included in the scope of delivery.

Let the cover slide out together with the batteries.

Remove the old batteries and dispose of them according to the disposal instructions on page 15. Replace the batteries with four new 1.5 V AA Mignon batteries and according to the correct polarity. For this purpose, illustrations are shown on the battery holder. Please use branded batteries and no rechargeable batteries.

Push the cover and batteries back into the locking electronics and screw them tight.

Burg Wächter DualSafe DS 415 E FP - Battery replacement - 1

Burg Wächter DualSafe DS 415 E FP - Battery replacement - 2

Burg Wächter DualSafe DS 415 E FP - Battery replacement - 3

Burg Wächter DualSafe DS 415 E FP - Battery replacement - 4

Burg Wächter DualSafe DS 415 E FP - Battery replacement - 5

Warranty

BURG-WACHTER products comply with the technical standards at the time of production and adhere to our own quality standards. The guarantee only covers defects which can be proved to have resulted from production or material defects at the time of purchase. The warranty ends after two years, further claims are excluded. Defects and damage caused by e.g. transport, incorrect operation, improper use, wear etc. are excluded from the warranty. The batteries are not included in the guarantee. A short description of any defects identified must be made in writing and the device returned to the place it was purchased, together with the original packaging. After the device has been tested, and within a appropriate period of time, the guarantor will decide whether or not to repair or exchange the item.

Attention:

In order to deliver a flawless and high quality product to you and to better assist you in case of service or repair, it is necessary that faulty or defective devices along with the valid administrator code be presented to your dealer together with the original documentation.

For returns, all undamaged device parts must furthermore be in the factory setting due to your right of revocation. Failure to comply with this will invalidate the warranty.

Disposal of the device

Dear customer.

please help us avoid unnecessary waste. Should you intend to dispose of this device at any time, please remember that many components of this device contain valuable materials that can be recycled.

Burg Wächter DualSafe DS 415 E FP - Disposal of the device - 1

Please be aware that electrical and electronic equipment and batteries marked in this way must not be disposed of with house hold waste but collected separately. Please obtain information on the collecting points for electrical waste from the responsible authority of your city/municipality.

BURG-WÄCHTER KG hereby declares that this device complies with the Directives 2014/30/EU, (EMC) and 2011/65/EU (RoHS).

The complete text of the EU Declaration of Conformity is available at the following Internet address: www.burg.biz

Safety recommendation

Please clean the keyboard operating surface periodically with a microfibre cloth (e.g. glasses cleaning cloth for spectacles) to remove any fingerprints on the keyboard surface.

Printing and typesetting errors as well as technical changes reserved.

fr Mode d'emploi

Montage
Burg Wächter DualSafe DS 415 E FP - Safety recommendation - 1

text_image A B E F B G BURG WACHTER 1 2345 67890 On C D

A Écran

B Touchesnumériques

USER
Create
Assign
Delete
USER.0001 CD
Combination: [FP]
FUNC: M
USER
Create Assign Delete
1:▲ 2:▼ FUNC: <
USER
Assign Code Assign Finger
2: ▼ FUNC: ◀
USB: R.0001
1:▲2:▼FUNC: M
USER
Create Assign Delete
1: 2: FUNC:
USER
Assign Code Assign Finger
3: FUNC:
USER,0003 FP created!
FUNC:
USER
Create
Delete
1:▲FUNC: <
USER.0001 CD
1:▲ 2:▼FUNC: M
Dataset has been deleted!
ADMIN
User
Timer functions
Programming
Processes
1:▲ 2:▼ FUNC: <
TIMER FUN ...
Time entry
Date entry
Autumn. ST/WT
Delay time
1:▲ 2:▼ FUNC: <
Autom. ST/WT[ON]
1:▲FUNC: M
2017
(in millions)
Carrying valueCarrying valueCarrying value
3,6543,654$3,654
Year Ended December 31,
20182017
Revenues1,4651,394
Costs and expenses(1,058)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
Revenues1,4651,395
Costs and expenses(1,048)(1,013)
Net income1,4651,395
Year Ended December 31,
20182017
Revenues1,4651,394
Costs and expenses(1,038)(1,038)
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,088)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
Revenues1,4691,505
Costs and expenses(1,469)(1,469)
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,088)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
Revenues1,4691,505
Costs and expenses(1,469)(1,469)
Year Ended December 31,
20182017
Revenues1,4651,394
Costs and expenses(1,038)(1,038)
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,088)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,088)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
Revenues1,4691,505
Costs and expenses(1,469)(1,469)
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,088)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
Revenues1,4651,394
Costs and expenses(1,038)(1,038)
Year Ended December 31,
20182017
Revenues1,4691,505
Costs and expenses(1,469)(1,469)
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,088)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,088)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
Revenues1,4651,394
Costs and expenses(1,038)(1,038)
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,088)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,088)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
Revenues1,4651,394
Costs and expenses(1,038)(1,038)
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,088)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
Revenues1,4691,505
Costs and expenses(1,469)(1,469)
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,088)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,395
Costs and expenses(1,038)(1,038)
Net income1,4651,395
Programming
The following:
PTDCESS
ABC
1:▲ 2:▼ FUNC:
20172016
EBITDA3,458 3,458
EBITDA margin1.9%1.9%
so do données
se de données
PROGRAMMING
Databasurwerte
DatabaseUpdate
Firmwareupdate
Restructure
序号名称单位
2:▼FUNC:
Confirm current original firmware version with Enter
FUNC: M
Firmwareupdatecomplete!
FUNC:
1046.4

PROGRAMMING

Databaseupdate
Firmwareupdate
Restructure
1:▲FUNC:
Restructuringin progress!
ADMIN
User
Timer functions
Programming
Processes
Dataset has been stored!
FUNC: <
ADMIN
User
Restructure
Processes
Install
1:▲FUNC: <
Dataset has been stored
FUNC: <
Delete data with ENTER key
FUNC: <
USER
Create
Assign
Delete
USER.0001 CD
Combination: [FP]
FUNC: M

(Huoldner) Administrator/Gebrüker/Tesmiter) wert weaknessen

USER
Create Assign Delete
1:▲ 2:▼ FUNC: <
USER
Assign Code Assign Finger
2:▼ FUNC: <
#
USUR.0001
1:▲2:▼FUNC:M
USER
Create Assign Delete
1:▲ 2:▼ FUNC: <
USER
Assign Code Assign Finger
3:▲ FUNC: <
USER.0003 FP created!
FUNC: <
USER
Create
Delete
1:▲FUNC: <
USER.0001 CD
1:▲ 2:▼FUNC: M
Dataset has been deleted!
ADMIN
UserTimer functionsProgrammingProcesses
1:▲ 2:▼ FUNC: <
20172016
Net earnings per share:
(£)0.430.45
Weighted average shares outstanding0.090.08
Risk-free interest rate0.00%0.00%
20172016
Cost of sales3.43.5
Gross profit(1.8)(1.9)
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,395
Costs and expenses(1,028)(1,008)
Net income1,4651,395
20172016
Cost of sales3.43.5
Gross profit(1.8)(1.9)
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,395
Costs and expenses(1,028)(1,008)
Net income1,4651,395
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,038)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
Revenues1,4651,394
Costs and expenses(1,000)(1,000)
Net income1,4651,394
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,395
Costs and expenses(1,028)(1,008)
Net income1,4651,395
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,395
Costs and expenses(1,028)(1,008)
Net income1,4651,395
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,038)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,395
Costs and expenses(1,028)(1,008)
Net income1,4651,395
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,394
Costs and expenses(1,038)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,395
Costs and expenses(1,028)(1,008)
Net income1,4651,395
Year Ended December 31,
20182017
Revenues1,4651,394
Costs and expenses(1,058)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,395
Costs and expenses(1,038)(1,038)
Net income1,4651,395
Year Ended December
201820172016
Revenues3,459 3,1812,941
Costs and expenses(1,417)(1,184)(1,038)
Net income 3,4593,181 2,941
Year Ended December 31,
20182017
Revenues1,4651,394
Costs and expenses(1,058)(1,038)
Net income1,4651,394
Year Ended December 31,
20182017
(in millions)
Revenues1,4651,395
Costs and expenses(1,048)(1,018)
Net income1,4651,395
20172016
Earnings per share:
(€)1.391.45
Weighted average shares outstanding0.830.88
Confirm current original firmware version with Enterl
Firmwareupdate completed!
FUNC: <
PROGRAMMING
Databaseupdate
Firmwareupdate
Restructure
1:▲FUNC: <
Restructuringin progress!
ADMIN
User
Timer functions
Programming
Processes
1:▲ 2:▼ FUNC: <
ADMIN
User
Restructure
Processes
Install
1:▲FUNC: <
SETUP
InstallFP ResetGenerate AES-Key
2:▼FUNC: <
Dataset has been stored
Processes
DisplaySave:
3: FUNC: <
Please wait!
Dataset has been stored!
FUNC: <
text_image Grid of handwritten or printed mathematical expressions with symbols and numbers, possibly from a technical or academic document.

Burg Wächter DualSafe DS 415 E FP - Menu Administrator / Setup / FP-reset - 1

text_image Grid of handwritten or printed mathematical expressions with symbols and numbers, possibly from a technical or academic document.

Burg Wächter DualSafe DS 415 E FP - Menu Administrator / Setup / FP-reset - 2

BURG

WACHTER

SecuTronic

BURG-WÄCHTER KG

Altenhofer Weg 15

58300 Wetter

Germany

www.burg.biz

SWI 186 SICUSTRONIC MESC 12 LPR KONORCHING Z10622

www.burg.biz

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Burg Wächter

Model : DualSafe DS 415 E FP

Category : Safe
