Product type	Trim kit for microwave oven
Brand	JENN-AIR
Model	MK2220AZ
Compatible models	MK2227, MK2220
Frame width	27 inches (68.6 cm) or 30 inches (76.2 cm)
Frame dimensions (27 inches)	26½" × 29¾" × 2½" (68.2 × 75.6 × 6.4 cm)
Frame dimensions (30 inches)	29¾" × 29¾" × 2¾" (75.6 × 75.6 × 7 cm)
Recommended opening height	17" to 17⅛" (43.2 to 43.5 cm)
Minimum clearance below opening	1½" (4 cm); 3" (7.6 cm) above built-in oven
Minimum clearance above opening	2" (5.1 cm)
Material	Painted steel
Color	Matching finish to JENN-AIR appliances (unspecified)
Weight	Approximately 2 kg (estimated)
Power supply	Not applicable (trim without electrical components)
Main functions	Aesthetic framing for microwave above a built-in oven or alone in a cabinet
Maintenance and cleaning	Clean with a soft cloth and mild detergent; avoid abrasives
Safety	Do not use if damaged; follow installation instructions to avoid tipping hazards
Included parts	Trim frame, spacers (2), short screws (14), long wood screws (6), lower vent spacer
Repairability	Parts available through JENN-AIR after-sales service
General information	Installation above electric or gas built-in oven up to 30" wide; UL certified

Frequently Asked Questions - MK2220AZ JENN-AIR

Which microwave models are compatible with the MK2220AZ trim kit?

The trim is designed for JENN-AIR MK2227 and MK2220 series microwaves.

What are the required cutout opening dimensions?

The height must be between 17" (43.2 cm) and 17⅛" (43.5 cm). The width and depth can vary by ±1/16" (2 mm). A minimum clearance of 1½" (4 cm) below the opening and 2" (5.1 cm) above is required.

Can I install this trim above a built-in oven?

Yes, the trim is designed for installation above an electric or gas built-in oven up to 30" (76.2 cm) wide. Allow a clearance of 3" (7.6 cm) between the lower oven opening and the microwave opening.

Does the trim come with the necessary screws?

Yes, the kit includes 14 short screws (11 for installation + 3 extra) and 6 painted long wood screws (4 + 2 extra).

What tools are needed for installation?

You will need a tape measure, a drill, a pencil, a 7/64" drill bit, and a Phillips screwdriver.

Is the trim available in multiple sizes?

Yes, the trim comes in 27" (68.6 cm) and 30" (76.2 cm) versions. The MK2220AZ model likely corresponds to the 27" version. Check your microwave dimensions.

How to properly install the trim frame?

Place the frame on the opening, with the lower tabs resting on the floor. Drill four pilot holes through the guide rails at 45°, then secure with the painted long wood screws. Do not overtighten to avoid damaging the frame.

Can I install this trim without a built-in oven below?

Yes, the microwave can be installed alone in a cabinet. A height of 36" (91.4 cm) between the floor and the opening is recommended for easy access.

Does the trim require electrical power?

No, the trim is purely aesthetic and has no electrical components. The microwave power must be connected separately to a grounded outlet.

Where can I find replacement parts for the trim?

Replacement parts (screws, spacers, etc.) are available from JENN-AIR after-sales service or through authorized dealers.

USER MANUAL MK2220AZ JENN-AIR

MICROWAVE OVEN BUILT-IN TRIM KIT INSTALLATION INSTRUCTIONS

Built-In Trim Kit Models MK2227 MK2220

UL listed for use over any electric or gas built-in oven, up to 30" (76.2 cm) wide

INSTRUCTIONS D'INSTALLATION GARNITURE ENCASTRÉE POUR FOUR À MICRO-ONDES

INSTALLATION INSTRUCTIONS....2

Tools and Parts 2

Location Requirements....2

Required Cutout Dimensions....2

Trim Kit Frame Dimensions....2

Electrical Requirements 3

Prepare Microwave Oven....3

Prepare Cutout/Cabinet Opening....3

Install the Microwave Oven....4

Install Trim Kit Frame 5

SÉCURITÉ DU FOUR À MICRO-ONDES....7

INSTRUCTIONS D'INSTALLATION....7

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

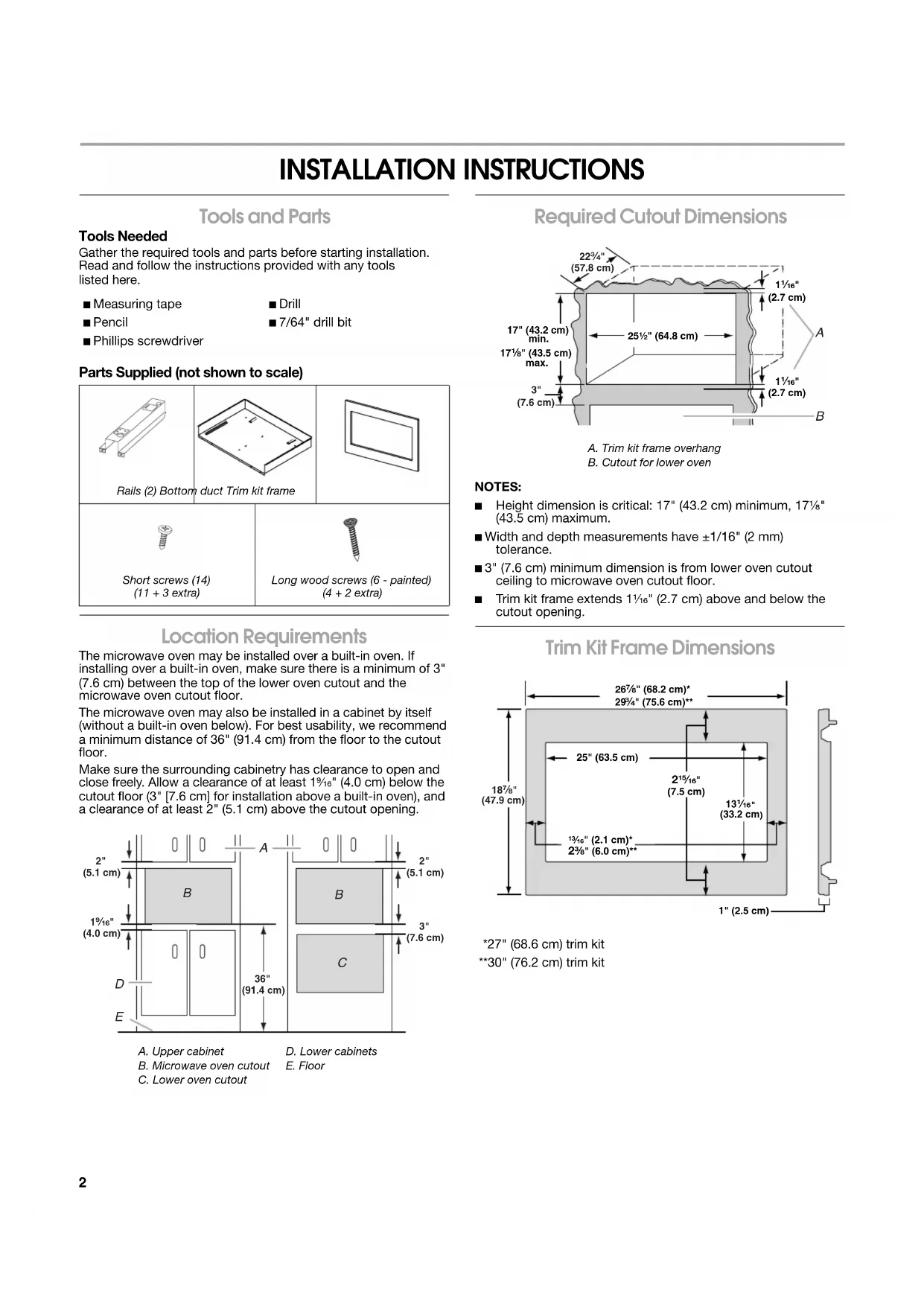

INSTALLATION INSTRUCTIONS

Tools and Parts

Tools Needed

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

■ Measuring tape

Drill

■ Pencil

■ 7/64" drill bit

■ Phillips screwdriver

Parts Supplied (not shown to scale)

Rails (2) Bottom duct Trim kit frame
(a=v1)Short screws (14)(11 + 3 extra)	[HKBX]Long wood screws (6 - painted)(4 + 2 extra)

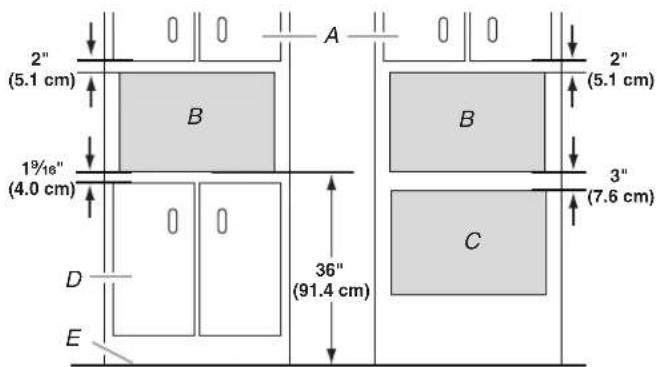

Location Requirements

The microwave oven may be installed over a built-in oven. If installing over a built-in oven, make sure there is a minimum of 3" (7.6 cm) between the top of the lower oven cutout and the microwave oven cutout floor.

The microwave oven may also be installed in a cabinet by itself (without a built-in oven below). For best usability, we recommend a minimum distance of 36" (91.4 cm) from the floor to the cutout floor.

Make sure the surrounding cabinetry has clearance to open and close freely. Allow a clearance of at least 1 ^9/16 " (4.0 cm) below the cutout floor (3" [7.6 cm] for installation above a built-in oven), and a clearance of at least 2" (5.1 cm) above the cutout opening.

2" (5.1 cm) 1% (4.0 cm) B A 36" (91.4 cm) D E C 2" (5.1 cm) 3" (7.6 cm)

A. Upper cabinet

D. Lower cabinets

B. Microwave oven cutout

E. Floor

C. Lower oven cutout

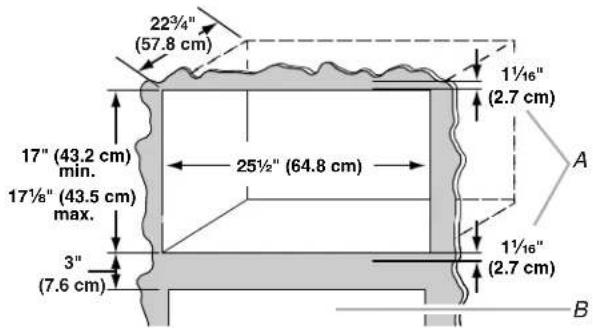

Required Cutout Dimensions

22¾" (57.8 cm) 17" (43.2 cm) min. 17½" (43.5 cm) max. 3" (7.6 cm) 25½" (64.8 cm) 1½" (2.7 cm) 1½" (2.7 cm) A B

A. Trim kit frame overhang

B. Cutout for lower oven

NOTES:

■ Height dimension is critical: 17" (43.2 cm) minimum, 17 ^1/8 " (43.5 cm) maximum.
■ Width and depth measurements have ±1/16" (2 mm) tolerance.
■ 3" (7.6 cm) minimum dimension is from lower oven cutout ceiling to microwave oven cutout floor.
- Trim kit frame extends 1 116 (2.7 cm) above and below the cutout opening.

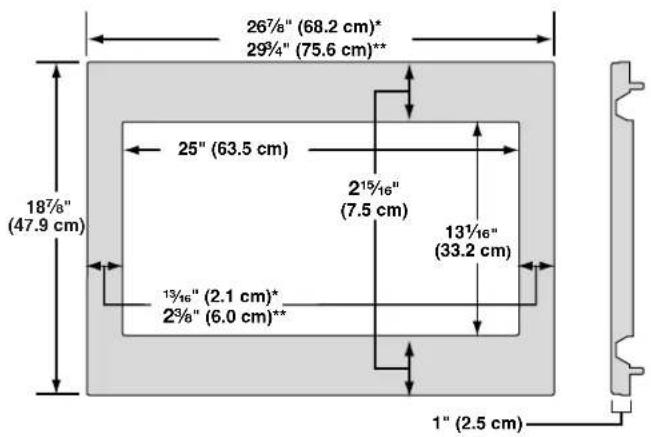

Trim Kit Frame Dimensions

267/8" (68.2 cm)* 293/4" (75.6 cm)** 25" (63.5 cm) 187/8" (47.9 cm) 215/16" (7.5 cm) 131/16" (33.2 cm) 13/16" (2.1 cm)* 23/8" (6.0 cm)** 1" (2.5 cm)

*27" (68.6 cm) trim kit **30" (76.2 cm) trim kit

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Observe all governing codes and ordinances.

Required:

■ A 120 volt, 60 Hz, AC only, 15- or 20-amp electrical supply with a fuse or circuit breaker.

Recommended:

■ A time-delay fuse or time-delay circuit breaker.

■ A separate circuit serving only this microwave oven.

GROUNDING INSTRUCTIONS

■ For all cord connected appliances:

The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.

SAVE THESE INSTRUCTIONS

Prepare Microwave Oven

1. Unplug microwave oven before proceeding with installation.
2. Remove any loose items inside microwave oven.
3. Gently turn microwave oven onto its top, with the door facing forward (toward installer).

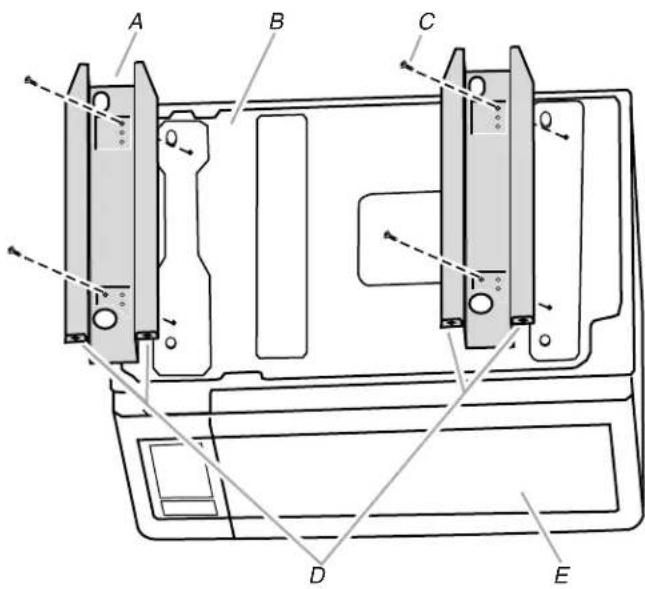

4. Align the #33 holes on the microwave oven bottom with the #33 holes on the rails, as shown, making sure the flanges are forward and pointing up.

A B C D E

A. Rails (2)
B. Microwave oven bottom
C. Short screws (4)

D. Flanges

E. Door

1. Secure the rails to the microwave oven bottom using four short screws through the #33 hole sets.

Prepare Cutout/Cabinet Opening

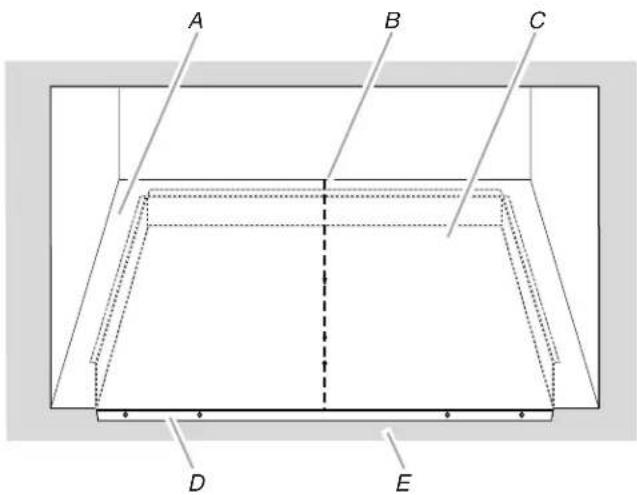

1. On the cutout floor, find and mark the centerline.
2. Place the bottom duct in the opening, with the flange resting against the bottom front facing of the opening.

A B C D E

A. Cutout floor
B. Centerline
C. Bottom duct
D. Bottom duct flange
E. Front facing

1. Align the center arrows on the bottom duct with the centerline drawn in Step 1 above.

Technical line drawing of a mechanical assembly with two circular components labeled A and B, no text or symbols present.

A. Bottom duct
B. Center arrows, aligned with centerline

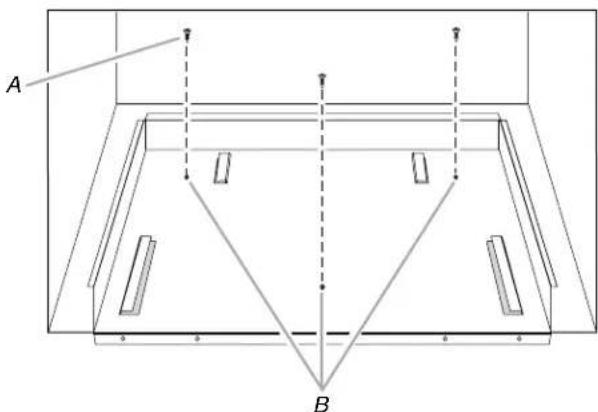

1. Mark the three mounting holes through the bottom duct onto the cutout floor.

Technical line drawing of a mechanical component with labeled points A and B, showing internal structure and alignment lines (no text or symbols beyond labels)

A. Short screws (3)
B. Bottom duct mounting holes

1. Using 7/64" drill, drill pilot holes into the three holes marked in Step 4.
2. Realign and install the bottom duct with three short screws.
3. Using 7/64" drill, drill pilot holes through the four mounting holes of the bottom duct flange into the bottom front facing of the cutout/cabinet opening.

Pure geometric diagram of a truss structure with labeled points A and B, no text or symbols present

A. Bottom duct flange
B. Mounting holes

Install the Microwave Oven

1. Gently return microwave oven to its upright position.
2. Position microwave oven near cutout opening.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug in microwave oven.

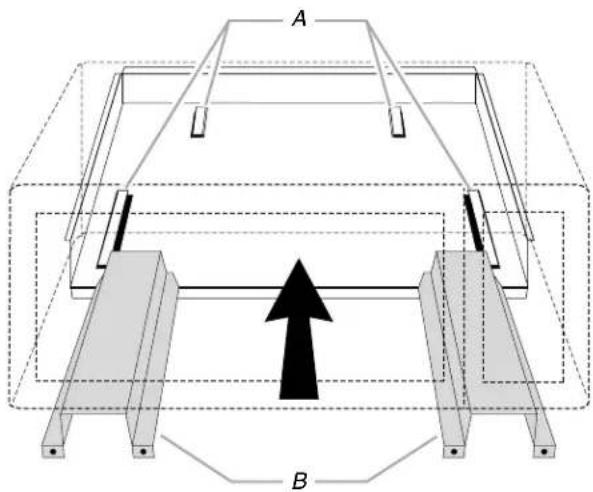

2. Align the rails with the rail guides on the bottom duct.

A B

A. Rail guides
B. Rails

1. Slide the microwave oven back and into place. The mounting holes of the rail flanges and bottom duct flange will align against the bottom front facing of the cutout/cabinet opening.

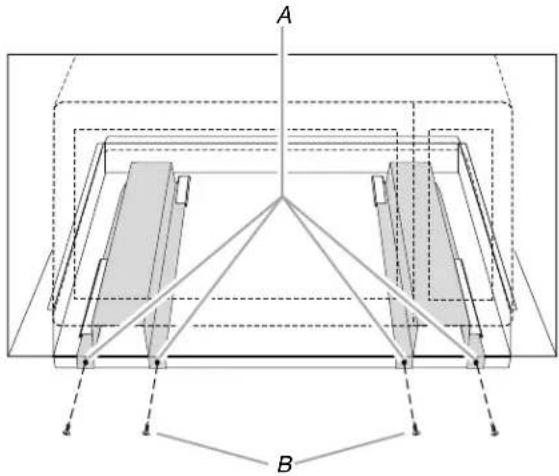

2. Secure the microwave oven to the cutout/cabinet by installing four short screws into the mounting holes.

A B

A. Mounting holes
B. Short screws (4)

Install Trim Kit Frame

1. Position trim kit frame over the opening so that the lower tabs rest on the cutout floor, as shown.

A B C

A. Front of trim kit frame
B. Tabs (upper and lower)
C. Cutout/cabinet floor

1. Holding the trim kit frame in place, use 7/64" drill to drill four pilot holes into the front facing of the cutout/cabinet through the mounting hole guides in the upper and lower corners of the trim kit frame.

NOTES:

■ The holes will be drilled downward from the top, and upward from the bottom at an angle of about 45^ .
■ To avoid damage to the trim kit frame, do not overtighten screws.

A B C D

A. Trim kit frame
B. Mounting hole guide

C. Long wood screw (4 - painted)

D. Cutout ceiling

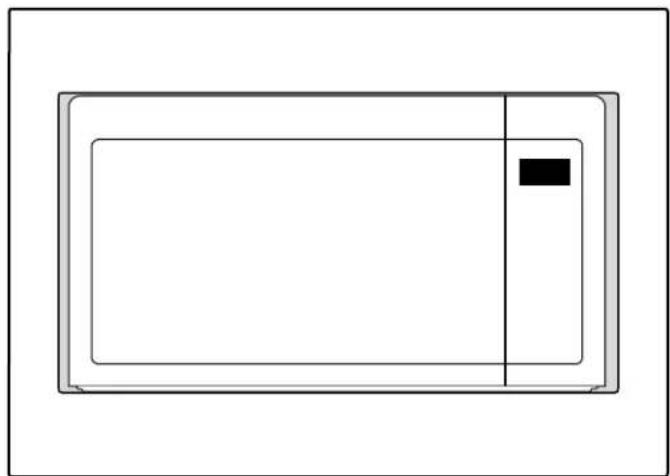

1. Secure trim kit frame to cutout/cabinet by installing four long wood screws (painted) into the pilot holes drilled in Step 2 above.

Simple line drawing of a rectangular device with a black square on the side (no text or symbols)

Installation is now complete. Replace any loose items that have been removed from microwave oven cavity.

Save these Installation Instructions for future reference.
