INTRODUCTION

SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

■ Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Do not use an extension cord.
If power supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.
■ Connect to potable water supply only.

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices, and other working environments; farm houses and by clients in hotels, motels, and other residential-type environments; bed and breakfast-type environments; and catering and similar non-retail applications.
■ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
■ Do not use replacement parts that have not been recommended by the manufacturer (e.g., parts made at home using a 3D printer).
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

■ Do not damage the refrigerant circuit.
■ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
■ Ice maker kit can be added to some models. See serial tag inside the food compartment of appliance for ice maker kit model information.
■ A qualified service technician must install the water line and ice maker. See installation instructions supplied with ice maker kit for complete details.

SAVE THESE INSTRUCTIONS

INTRODUCTION

PROPER DISPOSAL OF YOUR OLD REFRIGERATOR

WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

■Take off the doors.

■Leave the shelves in place so that children may not easily climb inside.

WARNING

Suffocation Hazard

Remove doors from your old refrigerator.

Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for "just a few days." If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

Important information to know about disposal of refrigerants:

Dispose of refrigerator in accordance with Federal and Local regulations. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.

Line drawing of a closed bookshelf with open pages and visible spine (no text or symbols)

INTRODUCTION

REGISTERING YOUR APPLIANCE

Gain access to our concierge-level Customer Support by registering your appliance. We make product registration simple and straightforward so you can start using your exclusive JennAir brand benefits today.

Registering your appliance allows you to:

■ Streamline your warranty service

If we have your appliance information, we can help you faster.

■ Protect your purchase

In case of an insurance loss—such as fire, flood, or theft—your product registration could serve as a proof of purchase.

■ Keep your family safe

We'll notify you in the rare case of a safety notification.

Start taking advantage of these benefits today by going online to register your appliance at jennair.com/customer-care.

PRODUCT IDENTIFICATION

Your product identification, which includes the model and serial numbers, is listed on the product rating plate.

Recording this information below allows us to assist you more easily if your appliance should ever require service from one of our JennAir Authorized Service Providers.

Model Number: ----

Serial Number: ----

Date of Installation: ----

Authorized Dealer: ----

Authorized Dealer Phone #:----

TABLE OF CONTENTS

INTRODUCTION

Safety 3

Proper Disposal Of Your Old Refrigerator 4

Registering Your Appliance....5

Product Identification....5

Product Features....6

Using The Controls....7

GETTING STARTED

Remove The Packaging....11

Clean Before Using....11

Water Supply Requirements....11

Reverse Osmosis Water Supply......1

Water System Preparation....12

Water Filter Status Indicator....13

Refrigerator Use....13

Power On/Off Switch....13

Water and Ice Dispensers

(on some models)....14

CARE AND CLEANING

Ice Maker and Storage Bin

(on some models - Accessory)....17

Clean the Ice Storage Bin....18

Water Filtration System....18

Refrigerator Shelves....19

Temperature Controlled Deli Drawer.....19

Crisper and Covers 2

Freezer Shelf 20

Freezer Basket......21

Door Bins....2

Cleaning 2

Lights 2

Power Interruptions....2

TROUBLESHOOTING

Refrigerator Operation....23

Temperature And Moisture....2

Ice And Water....2

ASSISTANCE

To Order Accessories....26

Performance Data Sheet......27

INTRODUCTION

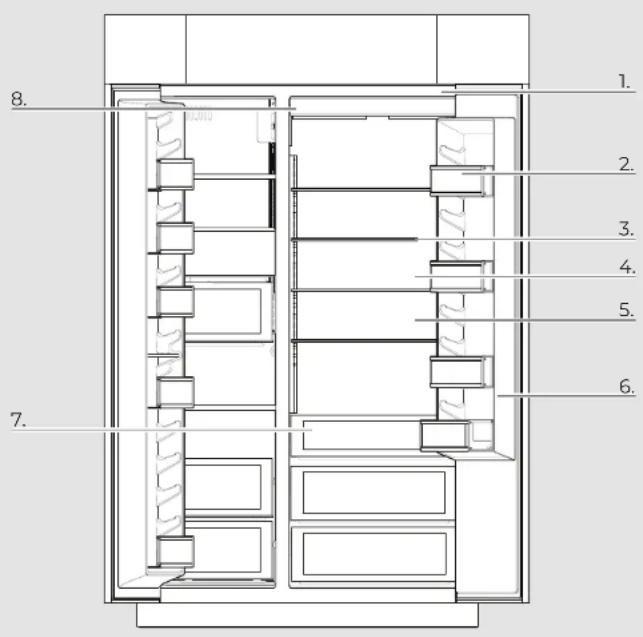

1. 2. 3. 4. 5. 6. 7. 8.

PRODUCT FEATURES

1. Fully Integrated and Flush Design with Articulating Hinge Creates an integrated appearance with custom cabinetry without exposed hinges or trim pieces.
2. Adjustable Door Bins with Metal Accents

Refrigerator and freezer door bins can be positioned to accommodate a variety of container sizes.

1. Adjustable Elegance Shelving

Glass shelves, accented with brushed aluminum, make foods and beverages appear to float, allowing more light to fill the interior.

1. Obsidian Interior

Satisfies consumer's desire to make a design statement with an exclusive color among luxury refrigerators on the market.

1. Multi-Point LED Theater Lighting

Minimizes shadows and evenly distributes light throughout the refrigerator, crisper and freezer.

1. 90°/110° Door Stop Lighting Position

Limits the opening angle of a refrigerator to either 90^ or 110^ .

1. Soft, Auto-Close Crisper Drawers

Provide smooth operation by rolling open even when fully loaded, and feature an innovative auto-close design that pulls the drawer closed.

Electronic Controls with LED Display

Allow independent control of refrigerator and freezer temperatures with an integrated design that is easy-to-clean and responds to touch for easy operation.

1. Water Filter Indicator (On Some Models)

The water filter indicator, located on the control panel, will help you know when to change the water filter.

It is recommended that you replace the filter when "Replace Filter" is displayed or when water flow to your water dispenser and/or ice maker decreases noticeably. See "Changing the Water Filter" later in this section.

After changing the water filter, press and hold FILTER RESET for 3 seconds until the "Replace Filter" indicator light disappears.

INTRODUCTION


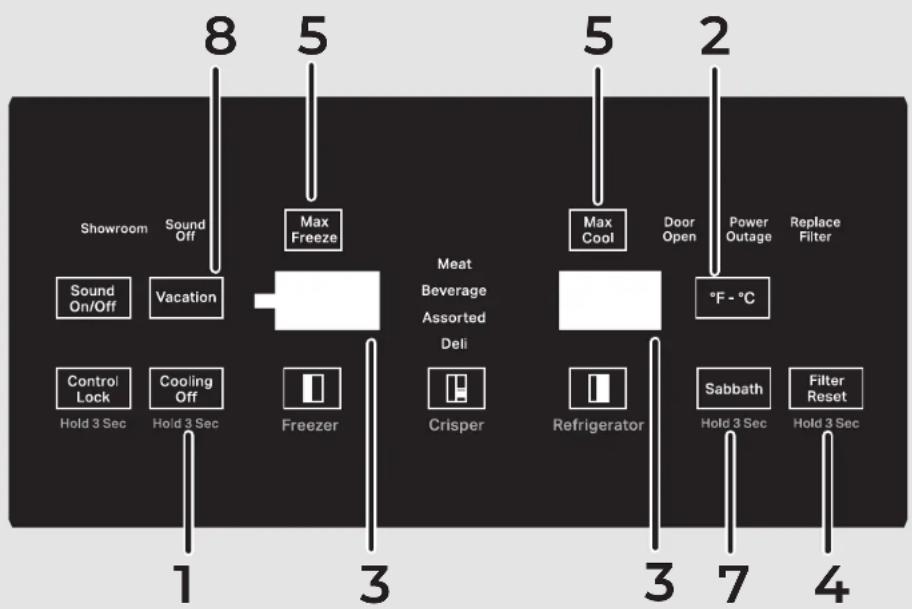

USING THE CONTROLS

IMPORTANT:

■The refrigerator control adjusts the refrigerator compartment temperature. The freezer control adjusts the freezer compartment temperature.
■Wait 24 hours after you turn on the refrigerator before you put food into it. If you add food before the refrigerator has cooled completely, your food may spoil.

NOTE: Adjusting the refrigerator and freezer controls to a lower (colder) setting will not cool the compartments any faster.

■If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked before adjusting the controls.
■The preset settings should be correct for normal household usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.
■The actual temperature may differ from the display when a door is open for an extended period of time.

NOTE: The factory recommended set points are 0^ F ( -18^ C) for the freezer and 37^ F ( 3^ C) for the refrigerator.

INTRODUCTION | 7

INTRODUCTION

1. Turning Refrigerator On and Viewing Set Points

Your refrigerator and freezer will not cool when cooling is turned off. Follow the directions specific to your model.

TURN ON - DISPENSER MODEL

■Press and hold Max Freeze and Max Cool buttons at the same time for 3 seconds
■Cooling Off button blinks twice and remains on.

TURN ON - NON-DISPENSING MODEL

■Press and hold Cooling Off button for 3 seconds.
■Cooling Off button blinks twice and remains on.

NOTE:

■The Cooling ON/OFF touch pad on the control panel shuts down refrigerator functions such as cooling, lighting, fans and compressors. To turn the power off completely, use the power ON/OFF switch located behind the top grille. See "Power On/Off Switch."

2. Setting the Temperature F^/C^ DISPENSING MODELS

.Press and hold the Max Cool and Crisper buttons at the same time for 3 seconds to change between Celsius and Fahrenheit. When activated, the selected temperature option displays. When deactivated, the display is Off.

NON-DISPENSING MODELS

Press F°-C° button to change between Celsius and Fahrenheit. When activated, the selected temperature option displays. When deactivated, the LED is Off.

3. Adjusting Controls

NOTE: Wait at least 24 hours between adjustments. Recheck the temperatures before other adjustments are made.

To Adjust Set Point Temperatures:

■Press the refrigerator or freezer PLUS (+) or MINUS (-) touch pad until the desired temperature is reached.
■Press the Set To Recommended touch pad to reset the set points to the factory recommended temperatures.

NOTE: The set point range for the freezer is -9^ F to -3^ F ( -23^ C to -16^ C). The set point range for the refrigerator is 36^ F to 43^ F ( 2^ C to 6^ C).

CONDITION/REASON:	TEMPERATURE ADJUSTMENT:
REFRIGERATOR too cold	REFRIGERATOR Control 1 ^ higher
REFRIGERATOR too warm	REFRIGERATOR Control 1 ^ lower
FREEZER too cold FREEZER	FREEZER Control 1 ^ higher
FREEZER too warm/too little ice	FREEZER Control 1 ^ lower

4. Water Filter Indicator and Reset

See "Water Filter Indicator" section.

5. Max Cool/ Max Freeze

The Max Cool feature assists with periods of heavy ice usage, full grocery loads, or temporarily warm room temperatures.

■Press MAX COOL to turn on the Max Cool feature. The Max Cool indicator light will remain on for 24 hours unless manually turned off.

NOTE: The temperature display will remain at 34^ F ( 1^ C) and -5^ F (-2 1^ C) for the refrigerator and freezer compartments, respectively, while the Max Cool feature is enabled. After 24 hours, the refrigerator returns to the previous temperature set points.

The Max Freeze feature assists with temporary periods of heavy ice use by increasing ice production.

■Press Max Freeze to set the freezer to the lowest temperature setting. Press the Max Freeze feature touch pad again to return to the normal freezer set point.

NOTE: The Max Freeze feature will shut off automatically in approximately 48 hours.

■While Max Freeze is ON, changing the freezer temperature will deactivate Max Freeze.

6. Alarm Functions

Master Alarm Reset

Pressing Alarm Reset once will turn off the audio alarm and indicator light. The audio alarm will not sound again for the current condition that caused the alarm until a new condition occurs or until a Master Alarm Reset is performed.

INTRODUCTION

A Master Alarm Reset can be performed by pressing Cooling (ON/OFF) twice or by turning the power to the refrigerator off and on again. See "Power On/Off Switch." After performing a Master Alarm Reset, the indicator light will reactivate if the condition that caused the alarm is still present. See "Over Temperature," "Call Service," or "Door Open."

Door Open

The Door Ajar Alarm feature sounds an alarm when the refrigerator or freezer door is open for 5 minutes and the product cooling is turned on. The alarm will repeat every 2 minutes. Close both doors to turn it off. The feature then resets and will reactivate when either door is left open again for 5 minutes.

NOTE: To deactivate the audio alarm and indicator light, see "Master Alarm Reset."

Power Outage

The power outage indicator lets you know if the power supply to the refrigerator has been cut off and the freezer temperature has risen to 18^ F ( -8^ C) or higher. When power has been restored, the button repeatedly flashes and the red Power Outage icon appears. When the indicator is on, all other control and dispenser functions are disabled until you confirm that you are aware of the power outage.

To enable other functions, press Measured Fill to reset the display screen to its normal status.

7. Sabbath Mode

Your refrigerator is equipped with the Sabbath Mode feature, which is designed for those whose religious observances require turning off the lights and ice maker.

By selecting this feature;

■The temperature set points and Deli Pan settings remain unchanged.

■LEDs from the electronic controls will not display.

■The Sabbath button will be the only light displaying.

■Ice and Water will not dispense.

■No alarm will ring

■Interior lights will turn off.

■The product will not change its behavior by opening the door.

For most efficient refrigerator operation, it is recommended to exit Sabbath mode when it is no longer required.

To fully activate Sabbath Mode, you must follow the instructions below for the control panel.

IMPORTANT: If you do not activate Sabbath Mode in both ways listed below, some functions you wish to disable will remain active.

CONTROL PANEL

In Sabbath Mode, the temperature set points remain unchanged and the interior lights turn off.

1. To turn ON the Sabbath Mode, Press the SABBATH button on the dispensing or internal controls.

2. Turn OFF Ice Maker (Refer to the "Ice Maker and Storage Bin" section for further instructions on how to turn the icemaker ON or OFF).

3. Press the SABBATH button again for 3 seconds to turn OFF Sabbath Mode. Turn Ice Maker back ON.

NOTE: If a power outage occurs while in Sabbath Mode the appliance will remain in Sabbath Mode when power returns.

INTRODUCTION

8. Vacation Care

VACATION

If You Choose to Leave the Refrigerator On While You're Away:

1. Use up any perishables and freeze other items.

2. If your refrigerator has an automatic ice maker, and is connected to the household water supply, turn off the water supply to the refrigerator. Property damage can occur if the water supply is not turned off.

3. If you have an automatic ice maker, turn off the ice maker.

■ Refer to the "Ice Maker and Storage Bin" section for further instructions on how to turn the icemaker ON or OFF.

1. Empty the ice bin.

2. Set Vacation Mode.

FOR NON-DISPENSING UNITS:

1. Press Vacation button to turn ON and light displays. Press again to turn OFF.

FOR DISPENSING UNITS:

1. To turn ON Vacation mode, Hold [max freeze] and [Freezer] button for 3 seconds, the Vacation indicator shows 100% bright and blinks twice and remains ON.

2. To turn OFF Vacation mode, Hold [max freeze] and [Freezer] button for 3 seconds, the vacation indicator blinks twice and remains OFF.

NOTE: Activating Vacation mode does not turn off the ice maker.

IF YOU CHOOSE TO TURN OFF THE REFRIGERATOR BEFORE YOU LEAVE:

1. Remove all food from the refrigerator.

2. If your refrigerator has an automatic ice maker:

■ Turn off the water supply to the ice maker at least one day ahead of time.
■ When the last load of ice drops, raise the wire shutoff arm to the Off (up) position or press the switch to Off, depending on your model.

1. Empty the ice bin.

2. Depending on your model, turn the Thermostat Control (or Refrigerator Control) to OFF. See "Using the Controls."

3. Clean refrigerator, wipe it, and dry well.

4. Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

GETTING STARTED

REMOVE THE PACKAGING

NOTE:

■ Remove tape and glue residue from surfaces before turning on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
- Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see "Refrigerator Safety."
■ Dispose of/recycle all packaging materials.

CLEAN BEFORE USING

After you remove all of the packaging materials, clean the inside of your refrigerator before using it. See the cleaning instructions in "Refrigerator Care."

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

WATER SUPPLY REQUIREMENTS

Read all directions before you begin.

IMPORTANT:

■When your refrigerator was installed, the water connection from the water source should have been connected to your refrigerator. If your refrigerator is not connected to a water source, see "Connect to Water Line" in the Installation Instructions. If you have any questions about your water connection, see "Troubleshooting" or call a licensed, qualified plumber.
If you turn the refrigerator on before the water line is connected, turn the ice maker Off. See "Ice Maker and Storage Bin."
■All installations must meet local plumbing code requirements.
■Connect to potable water supply only.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

WATER PRESSURE

A cold water supply with water pressure between 30 psi and 120 psi (207 kPa and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, see "Troubleshooting" or call a licensed, qualified plumber.

NOTE: If the water pressure is less than what is required, the flow of water from the water dispenser could decrease or ice cubes could be hollow or irregular shaped. If you have questions about your water pressure, call a licensed, qualified plumber.

REVERSE OSMOSIS WATER SUPPLY

IMPORTANT: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 psi and 120 psi (207 kPa and 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 psi (276 kPa).

If the water pressure to the reverse osmosis system is less than 40 psi (276 kPa):

■Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
■Allow the storage tank on the reverse osmosis system to refill after heavy usage.
If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See "Water Filtration System."

If you have questions about your water pressure, call a licensed, qualified plumber.

GETTING STARTED

WATER SYSTEM PREPARATION

Please read before using the water system. Follow the directions specific to your model.

STYLE 1 (DISPENSER MODELS)

IMPORTANT: After connecting the refrigerator to a water source or replacing the water filter, follow the steps below to make sure that the water system is properly cleaned. This will flush air from the filter and water dispensing system, and prepare the water filter for use.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

NOTE: If your model has a base grille filter system, make sure the base grille filter is properly installed and the cap is in the horizontal position.

1. Open the freezer door and turn off the ice maker. The On/Off switch is located on the top right side of the freezer compartment. Move the switch to the OFF (right) setting as shown.

Technical diagram showing electrical connection components with labeled arrows and a magnified inset of a component with internal symbols.

1. Use a sturdy container to depress and hold the water dispenser lever for 5 seconds, and then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser lever (5 seconds on, 5 seconds off) until a total of 3 gal. (12 L) has been dispensed. This will flush air from the filter and water dispensing system and prepare the water filter for use. Additional flushing may be required in some households.

NOTE: As air is cleared from the system, water may spurt out of the dispenser.

1. Open the freezer door and turn on the ice maker. Move the switch to the ON (left) position.

NOTE:

• Allow 24 hours to produce the first batch of ice.
  ■ Discard the first three batches of ice produced.
  ■ Allow 3 days to completely fill ice container.

STYLE 2 (NON-DISPENSER MODELS)

IMPORTANT: After connecting the refrigerator to a water source or replacing the water filter, fill and discard two full containers of ice to prepare the water filter for use, before using the ice.

NOTE: If your model has a base grille filter system, make sure the base grille filter is properly installed and the cap is in the horizontal position.

1. Turn on the ice maker. Lower the wire shutoff arm as shown. Please refer to "Ice Maker and Storage Bin" for further instructions on the operation of your ice maker.

Illustration of a hand inserting a device into a drawer with an upward and downward arrow (no text or symbols)

NOTES:

■Allow 24 hours to produce the first batch of ice.
■Allow 3 days to completely fill ice container.

GETTING STARTED

WATER FILTER STATUS INDICATOR

The water filter indicator, located on the control panel, will help you know when to change the water filter.

REPLACE STATUS:

■Replace the water filter cartridge when the water filter status display changes to "Replace."

REPLACE OVERDUE STATUS:

■When the light turns red on the control panel, this tells you that it is time to change the water filter cartridge.
It is recommended that you replace the filter when the status light turns red or water flow to your water dispenser or ice maker decreases noticeably.

NOTE: If water flow to your water dispenser or ice maker decreases noticeably, change the filter sooner. The filter should be replaced at least every 6 months, depending on your water quality and usage.

When dispensing water after the Replace Filter icon is on, the Replace Filter icon blinks

for the duration of dispensing. This applies for both the Replace Filter stars and Replace Overdue status. Fourteen days after the Replace Filter indicator turns On, it shall enter "Replace Overdue" mode.

FILTER RESET

After changing the filter, press and hold Filter Reset button for 3 seconds. The button will no longer display once reset.

REFRIGERATOR USE

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connection end.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

POWER ON/OFF SWITCH

If you need to turn the power to your refrigerator On or Off, you must remove the top grille assembly to access the power switch. Turn the power to the refrigerator Off when cleaning your refrigerator.

INTEGRATED INSTALLATION - FULL HEIGHT / ARMOIRE MACHINE COMPARTMENT COVER

To install the grille panel to the refrigerator:

1. Slide the upper and lower slots in each bracket onto the mounting pins extending upward from the top of the refrigerator.
2. Push the grille panel forward to fully engage the spring clips and fasten the grille panel.

TO REMOVE THE GRILLE PANEL FROM THE REFRIGERATOR:

1. Open the door(s).
2. Place both hands under the grille panel, grasping the bottom edge between your fingers and thumbs.
3. Pull the grille panel straight out until the grille stops. Then, lift up on the grille panel to remove.

GETTING STARTED

TURN POWER ON OR OFF:

1. Remove the top grille panel.
2. Press Power switch to the ON or OFF position.
3. Replace top grille.

IMPORTANT: Be sure the power switch is set to the ON position after cleaning refrigerator or changing light bulbs.

A. Dryer switch

A. Power switch

WATER AND ICE DISPENSERS

(ON SOME MODELS)

IMPORTANT:

■After connecting the refrigerator to a water source or replacing the water filter, flush the water system. Use a sturdy container to depress and hold the water dispenser lever for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser lever (5 seconds on, 5 seconds off) until a total of 3 gal. (12 L) has been dispensed. This will flush air from the filter and water dispensing system, and prepare the water filter for use. Additional flushing may be required in some households.

NOTE: As air is cleared from the system, water may spurt out of the dispenser.

■Allow 24 hours for the refrigerator to cool down and chill water.
■Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced.
■The dispensing system will not operate when the freezer door is open.
■Depending on your model, your water and ice dispensers may have one or more of the following features: a dispenser tray, a special light that turns on when you use the dispenser, or a lock option to avoid unintentional dispensing.

WATER DISPENSER

To Dispense Water by Paddle:

1. Press a sturdy glass against the water dispenser pad.

1. Remove the glass to stop dispensing.

NOTE: Water may have an off-flavor if you do not use the dispenser periodically. Dispense enough water every week to maintain a fresh supply.

To Dispense Water by Control Panel:

NOTE: This function is able only if the Measured Fill function is active.

Measured Fill allows you to dispense a specified amount of water with the touch of a few buttons.

1. Put a sturdy glass under water spout. Touch MEASURED FILL to activate.
   NOTE: The amount of water you select will be dispensed. Make sure the container can hold the entire volume. If ice is in the container, you may need to adjust your selection.
2. Touch MEASURED FILL to turn on, then touch to select 8 oz (0.2 L), 16 oz (0.5 L), or 24 oz (0.7 L). Touch the fourth time to exit Measured Fill display.
3. Touch DISPENSE WATER and the selected amount of water will be dispensed.

GETTING STARTED

NOTES:

■The Measured Fill dispenser will automatically time out after 1 minute of inactivity.
■You can refill several glasses with the same measurement by continuing to touch DISPENSE WATER after each glass fill.

NOTE: Water may have an off-flavor if you do not use the dispenser periodically. Dispense enough water every week to maintain a fresh supply.

For crushed ice, cubes are crushed before being dispensed. This may cause a slight delay when dispensing crushed ice. Noise from the ice crusher is normal, and pieces of ice may vary in size. When changing from crushed to cubed, a few ounces of crushed ice will be dispensed along with the first cubes.

MEASURED FILL

Calibrate Measured Fill

Household water pressure may affect the accuracy of the Measured Fill feature. For optimum performance of your water dispenser, you must first calibrate Measured Fill.

Start Calibration Mode

1. Press and hold the Measured Fill button for 3 seconds to enter Calibration Mode. The button will display along with the 0.2 L or 8oz default settings.
2. Pressing the water pad will dispense water (e.g., into a measuring cup) until the desired amount is dispensed. Releasing the water pad will stop water dispensing.

Save and Exiting Calibration

1.1. If water was dispensed, pressing the Measured Fill button will save the amount dispensed, a tone will play and the calibration amount display will blink twice.
2. 2. If no water was dispensed, Pressing the Measured Fill button will exit Calibration mode without saving the calibration amount.

NOTE: The amount of water you select will be dispensed. Be sure that the container is empty and can hold the entire volume. If ice is in the container, you may need to adjust your selection.

IMPORTANT: Low water pressure may affect the accuracy of this feature.

1.1. Press MEASURED FILL to turn the feature on. When the feature is on, the Measured Fill screen appears on the display.
2.2 To dispense water, press a sturdy glass against the water dispenser pad OR place the glass below the water dispenser and press the MEASURED FILL button. Hold the glass close to the water dispenser spout to ensure that the water dispenses into the glass.

NOTE: The dispenser will automatically turn off Measured Fill after 1 minute of inactivity. When Measured Fill is turned off, any changes you have made will be lost and all defaults will be restored.

NOTES:

■Most coffee cups (commonly 4 to 6 oz [118 to 177 mL] per cup) are not the same size as a measuring cup (8 oz [237 mL]). You may need to adjust the volume to avoid unintentionally overfilling coffee cups. A. Water dispenser spout A Units Default Minimum Maximum Ounces 8 1128 Cups 1 ^1/4 16 Liters 0.25 0.05 4.0.

■While dispensing water, the digital display will count down how much water remains to be dispensed, according to the volume you selected. The flow of water will automatically stop once the desired volume has been dispensed.

To Dispense Ice:

1. Press the button to select the desired type of ice.

WARNING

Cut Hazard

Use a sturdy glass when dispensing ice. Failure to do so can result in cuts.

1. Press a sturdy glass against the ice dispenser pad. Hold the glass close to the dispenser opening so ice does not fall outside of the glass.

IMPORTANT: You do not need to apply a lot of pressure to the pad in order to activate the ice dispenser. Pressing hard will not make the ice dispense faster or in greater quantities.

GETTING STARTED | 15

GETTING STARTED

1. Remove the glass to stop dispensing.

NOTE: Ice may continue to dispense for up to 10 seconds after removing the glass from the pad. The dispenser may continue to make noise for a few seconds after dispensing.

DISPENSER TRAY (ON SOME MODELS)

Some models have a tray at the bottom of the dispenser area. The tray is designed to catch small spills and is removable for easy emptying and cleaning.

NOTE: There is no drain in the tray.

DISPENSER LIGHT (ON SOME MODELS)

When you use the dispenser, the light will automatically turn on. If you want the light to be on continuously, you may choose either ON or AUTO.

ON: Press LIGHT to turn the dispenser light on.

AUTO: Press LIGHT a second time to select AUTO mode. The dispenser light will automatically adjust to become brighter as the room brightens and dimmer as the room darkens.

OFF: Press LIGHT a third time to turn the dispenser light off.

The dispenser lights are LEDs that cannot be changed. If it appears that your dispenser lights are not working, be sure that the light sensor is not blocked (in AUTO mode). See "Troubleshooting" for more information.

DISPENSER LOCK (ON SOME MODELS)

The dispenser can be locked together all control panel in Control Lock function, for easy cleaning or to avoid unintentional dispensing by small children and pets.

Dispensing Models: To activate/deactivate control lock, press and Hold Crisper Menu button and the Lock indicator will blink twice. The Lock indicator remain turned on while function is activated.

NOTE: The lock feature does not shut off power to the refrigerator or the dispenser light. It simply deactivates the controls and dispenser Paddles.

Non Dispensing Model: To activate/deactivate control lock, press and Hold control lock button and the button will blink twice. The Control Lock Button remain turned on while function is activated.

NOTE: The lock feature does not shut off power to the refrigerator or the dispenser light. It simply deactivates the controls.

WATER FILTER REPLACEMENT INDICATOR AND RESET FILTER

The Replace Filter indicator, located on the control panel (top right side), will help you know when to change the water filter.

It is recommended that you replace the filter when "Replace Filter" is displayed or when water flow to your water dispenser and/or ice maker decreases noticeably. See "Changing the Water Filter" section.

After changing the water filter, press and hold Filter Reset for 3 seconds until Replace Filter light turns off. The Filter Reset Button is located on the control panel (bottom right side).

The filter reset control allows you to restart the water filter status tracking feature each time you replace the water filter.

TO TURN THE ICE MAKER ON/OFF:

The On/Off switch is located on the top right side of the freezer compartment.

1. To turn the ice maker on, slide the control to the ON (left) position.

NOTE: Your ice maker has an automatic shutoff. The ice maker sensors will automatically stop ice production, but the control will remain in the ON (left) position.

1. To manually turn the ice maker off, slide the control to the OF F (right) position.

Technical diagram showing electrical connection with labeled components and directional arrows

CARE AND CLEANING

ICE MAKER AND STORAGE BIN

(ON SOME MODELS - ACCESSORY)

IMPORTANT: Flush the water system before turning on the ice maker. See "Water and Ice Dispensers." Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced. Allow 3 days to completely fill the ice container.

STYLE 1

To Turn the Ice Maker On/Off:

The On/Off switch for the ice maker is a wire shutoff arm located on the side of the ice maker.

1. To turn the ice maker on, simply lower the wire shutoff arm.

NOTE: Your ice maker has an automatic shutoff. As ice is made, the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position.

1. To manually turn the ice maker off, lift the wire shutoff arm to the OFF (arm up) position, and listen for the click to make sure the ice maker will not continue to operate.

TO REMOVE AND REPLACE THE ICE BIN:

1. Flip up the covering panel.

Line drawing of a desk setup with monitor and chair (no text or symbols)

A. Ice maker cover

1. Lift the wire shutoff arm so it clicks into the OFF (up) position. Ice can still be dispensed, but no more can be made.
2. Lift up the front of the storage bin and pull the ice bin forward.
3. Replace the bin by pushing it in all the way or the dispenser will not work. Push the wire shutoff arm down to the ON position to restart ice production. Make sure the door is closed tightly.

TO REMOVE AND REPLACE THE ICE STORAGE BIN:

1. Hold the base of the storage bin with both hands and press the release button to lift the storage bin up and out.

NOTE: It is not necessary to turn the ice maker control to the OFF (right) position when removing the storage bin. The sensor cover ("flipper door") on the left wall of the freezer stops the ice maker from producing ice if the door is open or the storage bin is removed.

1. Replace the storage bin on the door and push down to make sure it is securely in place.

CARE AND CLEANING

CLEAN THE ICE STORAGE BIN

NOTE: It is normal for ice to stick together in the ice bin. Ice may be dispensed or used more frequently which will break up the ice. It is recommended that the ice container be emptied and cleaned as needed.

To clean the ice storage bin:

1. Empty the ice container. Use warm water to melt the ice if necessary.

NOTE: Do not use anything sharp to break up the ice in the bin or bucket. This can cause damage to the ice container and the dispenser mechanism.

1. Wash ice bin with a mild detergent, rinse well and dry thoroughly. Do not use harsh or abrasive cleaners or solvents.

REMEMBER:

■Allow 24 hours to produce the first batch of ice. Allow 3 days to completely fill ice container.
■Discard the first three batches of ice produced to avoid impurities that may be flushed out of the system.
■The quality of your ice will be only as good as the quality of the water supplied to your ice maker.
■Avoid connecting the ice maker to a softened water supply.
■Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.
■It is normal for the ice cubes to be attached at the corners. They will break apart easily.
■ For Style 1 ice maker, do not force the wire shutoff arm up or down.
■Do not store anything on top of the ice maker or in the ice storage bin/bucket.

18 | CARE AND CLEANING

WATER FILTRATION SYSTEM

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

CHANGING THE WATER FILTER

The water filter is located in the base grille below the freezer compartment door. It is not necessary to remove the base grille to remove the filter.

1. Remove the filter by pressing the eject button and pulling straight out on the filter cap.

NOTES:

■ Avoid twisting the cap when removing the filter because this could cause the cap to come off. If this occurs, replace the cap and pull the filter straight out.
■ There will be water in the filter. Some spilling may occur.

A B

A. Eject button
B. Filter cap

1. Remove the cap by turning it counterclockwise until it stops.
   IMPORTANT: Do not discard the cap. It is part of your refrigerator. Keep the cap to use with the replacement filter.
2. Align the ridge on the cap with the arrow on the new filter and turn the cap until it snaps into place.

A. Cover
B. O-rings

1. Remove the covers from the O-rings. Be sure the O-rings are still in place after the covers are removed.

CARE AND CLEANING

1. Place the cap (removed in Step 2) on the new filter. Align the ridge on the cap with the arrow on the filter. Turn the cap clockwise until it snaps into place.

Technical diagram showing mechanical assembly with labeled parts A, B, and C, including a magnified inset view.

A. Eject button
B. Arrow on filter
C. Ridge on cap

1. Push the new filter into the opening in the base grille. As the filter is inserted, the eject button will depress. The eject button will pop back out when the filter is fully engaged.
2. Pull gently on the cap to check that the filter is securely in place.
3. Flush the water system. Depending on your model, see "Water and Ice Dispensers" or "Ice Maker and Storage Bin."

REFRIGERATOR SHELVES

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

The shelves in your refrigerator are adjustable to meet your individual storage needs.

Storing similar food items together in your refrigerator and adjusting the shelves to fit different heights of items will make finding the exact item you want easier. It will also reduce the amount of time the refrigerator door is open and help save energy.

SHELVES AND SHELF FRAMES

To remove and replace a shelf/frame:

1. Remove the shelf by tilting it up at the front and lifting it out of the shelf supports. Pull shelf straight out.
2. Reposition the shelf supports in the desired location. Check that they are level and firmly inserted in the support rails.

Diagram showing a mechanical component with an inset close-up of a bracket detail (no text or symbols)

1. Place the back of the shelf in the shelf supports.
2. Lower the front of the shelf and make sure that it is in position.

TEMPERATURE CONTROLLED DELI DRAWER

The control for the deli drawer adjusts the temperature of the drawer. Cold air flows into the drawer through the air duct between the freezer and the refrigerator. Adjusting the control allows more or less cold air through the air duct.

ADJUST THE TEMPERATURE (DISPENSER MODELS)

1. Choose a setting based on the item to be stored in the pan.
2. Push the button that corresponds to that setting.
3. The indicator light for that setting will illuminate to verify that the pan is ready to be loaded.

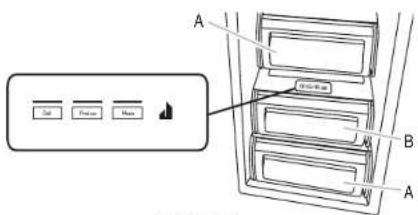

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

A. Crisper
B. Deli drawer

CARE AND CLEANING

REMOVE AND REPLACE THE TOP COVER

1. Remove food from Ingredient Care Center cover. Pull drawer out about 4" (10.16 cm). Reach under the glass shelf with both hands and lift gently upward until back of shelf is free. Tilt the shelf at an angle and remove the shelf from the refrigerator. Be sure not to bump the glass.

1. Replace the cover by holding the glass shelf firmly with both hands. Tilt the shelf at an angle and position it above the support rails. Place shelf gently on support rails on side wall.

MEAT STORAGE GUIDE

Store most meat in original wrapping as long as it is airtight and moisture-proof. Rewrap if necessary. See the following chart for storage times. When storing meat longer than the times given, freeze the meat.

Fresh fish or shellfish .... use same day as purchased

Chicken, ground beef, variety meat

(liver, etc.)....1-2 days

Cold cuts, steaks/roasts 3-5 days

Cured meats 7-10 days

Leftovers - Cover leftovers with plastic wrap, aluminum foil, or plastic containers with tight lids.

CRISPER AND COVERS

TO REMOVE AND REPLACE THE CRISPERS:

1. Slide the crisper drawer straight out to the stop. Lift the front of the drawer with one hand while supporting the bottom of the drawer with your other hand and slide the drawer out the rest of the way.

2. To replace the crisper drawer, place the drawer onto slides and push the drawer back until securely in position.

3. Test the crisper drawer to make sure it has been replaced properly.

Line drawing of a piano keyboard with a slide and stand (no text or symbols)

TO CLEAN CRISPER COVERS:

1. To clean the top crisper cover, remove the Ingredient Care Center located above it.

2. To clean the bottom crisper cover, first remove the top crisper drawer.

FREEZER SHELF

TO REMOVE AND REPLACE THE SHELF:

1. Remove the shelf by lifting it up and pulling it straight out.

2. Replace the shelf by putting it over the supports and lowering it into place.

Illustration of a hand using a tool to clean or install a grid-like structure with a roof above (no text or symbols)

CARE AND CLEANING

FROZEN FOOD STORAGE GUIDE

Storage times will vary according to the quality and type of food, the type of packaging or wrap used (should be airtight and moisture-proof), and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals.

Put no more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 lbs of food per cubic foot [907-1,350 g per 28 L] of freezer space). Leave enough space in the freezer for air to circulate around packages. Be sure to leave enough room for the door to close tightly.

For more information on preparing food for freezing, check a freezer guide or reliable cookbook.

REPLACING THE PRODUCE PRESERVER

The disposable packets should be replaced every 6 months or when the status indicator changes completely from white to red.

To order replacements, see "Accessories" in the User Instructions or User Guide.

1. Remove the used packets from the produce preserver housing.

2. Remove the used status indicator

3. Install the replacement packets and status indicator using the instructions included in the package.

FREEZER BASKET

The freezer basket can be used to store bags of frozen fruits and vegetables that may slide off freezer shelves.

TO REMOVE AND REPLACE THE FREEZER BASKET:

1. Pull the basket straight out to the stop.

2. Lift the front of the basket and slide it out the rest of the way.

Line drawing of a hand holding a metal rack with a ladder (no text or symbols)

1. Replace the basket by positioning it on the side wall guide rails. Lift the basket front slightly while pushing it past the guide rail stops and slide basket in the rest of the way.

DOOR BINS

Large door bins hold gallon containers and the smaller door bins hold 2-liter bottles. The door bins are adjustable and removable for easy cleaning and adjusting.

GALLON DOOR BIN

NOTE: The gallon door bin can only be placed on the lower door support.

1. Position gallon door bin above lowest door adjustment slot.

2. Push down to secure bin.

3. Adjust other bins, as necessary, to allow for milk or beverage container height.

DOOR BINS

To remove and replace the door bins:

1. Remove the bin by lifting it up and pulling it out.
2. Replace the bin by sliding it in above the desired support and pushing it down until it stops.

Illustration of hands holding a rectangular device with an arrow indicating upward motion (no text or symbols)

1. Install the top door bin in the top spot of the door.

Line drawing of a rectangular metal enclosure or housing with internal ribs and side supports (no text or symbols)

1. Install remaining door bins.

CARE AND CLEANING

CLEANING

WARNING

Explosion Hazard

Risk of Fire or Explosion.

Flammable Refrigerant Used.

Do Not Use Mechanical Devices to Defrost Refrigerator.

Do Not Puncture Refrigerant Tubing.

Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid build-up of odors. Wipe up spills immediately.

TO CLEAN YOUR REFRIGERATOR:

1. Remove the top grille. See "Power On/Off Switch."

2. Press power switch to OFF.

3. Remove all removable parts from inside, such as shelves, crispers, etc.

4. Hand wash, rinse, and dry removable parts and interior surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.

■ Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools. These can scratch or damage materials.

22 | CARE AND CLEANING

■ To help remove odors, you can wash interior walls with a mixture of warm water and baking soda (2 tbs to 1 qt [26 g to 0.95 L] of water).

1. Wash stainless steel and painted metal exteriors with a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners, or cleaners containing chlorine. Dry thoroughly with a soft cloth.

WARNING

Explosion Hazard

Risk of Fire or Explosion due to Puncture of Refrigerant Tubing;

Follow Handling Instructions Carefully.

Flammable Refrigerant Used.

1. Clean the condenser coils located behind the top grille ventilation panel regularly. Coils may need to be cleaned as often as every other month. This may help save energy.

■ Use a vacuum cleaner with an extended attachment to clean the condenser coils when they are dusty or dirty.

1. Press the power switch to ON.

2. Replace the top grille. See "Power On/Off Switch."

LIGHTS

The lights in both the refrigerator and freezer compartments are LEDs which do not need to be replaced. If the lights do not illuminate when the door is opened, call 1-800-536-6247 for assistance or service.

POWER INTERRUPTIONS

If the power will be out for 24 hours or less, keep the door or doors closed (depending on your model) to help food stay cold and frozen.

If the power will be out for more than 24 hours, do one of the following:

■Remove all frozen food and store it in a frozen food locker.
■Place 2 lbs (907 g) of dry ice in the freezer for every cubic foot (28 L) of freezer space. This will keep the food frozen for 2 to 4 days.
■If neither a food locker nor dry ice is available, consume or can perishable food at once.

REMEMBER: A full freezer stays cold longer than a partially filled one. A freezer full of meat stays cold longer than a freezer full of baked goods. If you see that food contains ice crystals, it may be refrozen, although the quality and flavor may be affected. If the condition of the food is poor, dispose of it.

TROUBLESHOOTING

NOTE: Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.

WARNING

Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock.

■Power cord unplugged? Plug into a grounded 3 prong outlet.
■Is outlet working? Plug in a lamp to see if the outlet is working.
■Household fuse blown or circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.
■Are controls on? Make sure the refrigerator controls are on. See "Using the Controls."
■Is refrigerator defrosting? Your refrigerator will regularly run an automatic defrost cycle. Recheck in 30 minutes to see if it is operating.

■New installation? Allow 24 hours following installation for the refrigerator to cool completely.

NOTE: Adjusting the temperature controls to the coldest setting will not cool either compartment more quickly.

THE MOTOR SEEMS TO RUN TOO MUCH

Your new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The unit may run even longer if the room is warm, a large food load is added, doors are opened often, or if the doors have been left open.

THE REFRIGERATOR IS NOISY

Refrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with an explanation.

■Buzzing - heard when the water valve opens to fill the ice maker
■Pulsating - fans/compressor adjusting to optimize performance
■Rattling - flow of refrigerant, water line, or from items placed on top of the refrigerator
■Sizzling/Gurgling - water dripping on the heater during defrost cycle
■Popping - contraction/expansion of inside walls, especially during initial cool-down
■Water running - may be heard when water melts during the defrost cycle and runs into the drain pan
■Creaking/Cracking - occurs as ice is being ejected from the ice maker mold.

THERE IS NO AUDIBLE DOOR OPEN ALARM

Has the door been open less than 10 minutes? The door open alarm will only flash when the door has been open for 10 minutes. The audible alarm will sound the first time the door is left open for more than 10 minutes. Subsequent door open alarms will only flash. You must reset the audible alarm each time. See "Using the Controls."

THE DOORS WILL NOT CLOSE COMPLETELY

■Door blocked open? Move food packages away from door.

■Bin or shelf in the way? Push bin or shelf back in the correct position.

THE DOORS ARE DIFFICULT TO OPEN

WARNING Explosion Hazard Use nonflamable cleaner. Failure to do so can result in death, explosion, or fire

■Are the gaskets dirty or sticky? Clean gaskets with mild soap and warm water.

THE LIGHTS DO NOT WORK

■Is the refrigerator in Sabbath mode? See "Using the Controls."
■Has the door been open more than 10 minutes? See "Using the Controls."

TROUBLESHOOTING

TEMPERATURE AND MOISTURE

TEMPERATURE IS TOO WARM

■New installation? Allow 24 hours following installation for the refrigerator to cool completely.
■Door(s) opened often or left open? Allows warm air to enter refrigerator. Minimize door openings and keep doors fully closed.
■Large load of food added? Allow several hours for refrigerator to return to normal temperature.
■Controls set correctly for the surrounding conditions? Adjust the controls a setting colder. Check temperature in 24 hours. See "Using the Controls."
■Refrigerator not cooling? For models with digital controls, turn the refrigerator off and then on to reset. If this does not correct the problem, call for service.
■Air vents blocked? Remove any item from in front of the air vents.

THERE IS INTERIOR MOISTURE BUILDUP

NOTE: Some moisture buildup is normal.
■Humid room? Contributes to moisture buildup.
■Door(s) opened often or left open? Allows humid air to enter refrigerator. Minimize door openings and keep doors fully closed.

ICE AND WATER

THE ICE MAKER IS NOT PRODUCING ICE OR NOT ENOUGH ICE

■Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.
■Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line.
■Ice maker turned on? Make sure wire shutoff arm or switch (depending on model) is in the ON position.
■New installation? Wait 24 hours after ice maker installation for ice production to begin. Wait 72 hours for full ice production.
■Large amount of ice recently removed? Allow 24 hours for ice maker to produce more ice.

■Ice cube jammed in the ice maker ejector arm? Remove ice from the ejector arm with a plastic utensil.

■Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure. See "Water Supply Requirements" in either the Installation Instruction booklet or the Use & Care Guide.

THE ICE CUBES ARE HOLLOW OR SMALL

NOTE: This is an indication of low water pressure.

■Water shutoff valve not fully open? Turn the water shutoff valve fully open.
■Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line.
■Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure. See "Water Supply Requirements."

■Questions remain regarding water pressure? Call a licensed, qualified plumber.

ICE IS STICKING TOGETHER IN THE ICE STORAGE BIN

■It is normal for frost to be on top of the ice storage bin due to normal opening and closing of the freezer.
It is normal for ice to stick together when it is not dispensed or used frequently. It is recommended that the ice storage bin be emptied and cleaned as needed. See "Ice Maker and Storage Bin."

OFF-TASTE, ODOR OR GRAY COLOR IN THE ICE

■New plumbing connections? New plumbing connections can cause discolored or off-flavored ice.
■Ice stored too long? Discard ice. Wash ice bin. Allow 24 hours for ice maker to make new ice.
■Odor transfer from food? Use airtight, moisture proof packaging to store food.
■Are there minerals (such as sulfur) in the water? A water filter may need to be installed to remove the minerals.
■Is there a water filter installed on the refrigerator? Gray or dark discoloration in ice indicates that the water filtration system needs additional flushing.

TROUBLESHOOTING

THE ICE DISPENSER WILL NOT OPERATE PROPERLY

■Freezer door closed completely? Close the door firmly. If it does not close completely, see "The doors will not close completely."
■Ice bin installed correctly? Be sure the ice bin is firmly in position.
■New installation? Wait 24 hours after ice maker installation for ice production to begin. Wait 72 hours for full ice production.
■Ice stuck in the delivery chute? Use a plastic utensil to clear the delivery chute.
■Has the wrong ice been added to the bin? Use only cubes produced by the current ice maker.
■Has the ice melted around the auger (metal spiral) in the ice bin? Empty the ice container. Use warm water to melt the ice if necessary.

WARNING

Cut Hazard

Use a sturdy glass when dispensing ice.

Failure to do so can result in cuts.

■Is the ice dispenser stalling while dispensing "crushed" ice? Change the ice button from "crushed" to "cubed." If cubed ice dispenses correctly, depress the button for "crushed" ice and begin dispensing again.
■Has the dispenser arm been held in too long? Ice will stop dispensing when the arm is held in too long. Wait 3 minutes for dispenser motor to reset before using again.

THE WATER DISPENSER WILL NOT OPERATE PROPERLY

■Freezer door closed completely? Close the door firmly. If it does not close completely, see "The doors will not close completely."
■Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.
■Is the water pressure at least 30 psi (207 kPa)? The water pressure to the home determines the flow from the dispenser. See "Water Supply Requirements."
■Kink in the home water source line? Straighten the water source line.
■New installation? Flush and fill the water system.
■Water filter installed on the refrigerator? The filter may be clogged or incorrectly installed.
■Is a reverse osmosis water filtration system connected to your cold water supply? See "Water Supply Requirements" in either the Installation Instructions or the Use & Care Guide.

WATER IS LEAKING FROM THE DISPENSER

NOTE: One or two drops of water after dispensing is normal.

■Glass not being held under the dispenser long enough? Hold the glass under the dispenser 2 to 3 seconds after releasing the dispenser lever.
■New installation? Flush the water system. See "Prepare the Water System" or "Water and Ice Dispensers."
■Recently changed water filter? Flush the water system. See "Prepare the Water System" or "Water and Ice Dispensers."

THE DISPENSER WATER IS NOT COOL ENOUGH

NOTE: Water from the dispenser is chilled to only 50°F (10°C).

■New installation? Allow 24 hours after installation for the water supply to cool completely.
■Recently dispensed large amount of water? Allow 24 hours for water supply to cool completely.
■Water not been recently dispensed? The first glass of water may not be cool. Discard the first glass of water.
■Refrigerator connected to a cold water pipe? Make sure the refrigerator is connected to a cold water pipe. See "Water Supply Requirements."

ASSISTANCE

CONTACT

For additional information regarding warranty, installation, registration or the overall care of your appliance, visit the US or Canada websites listed as follows.

If You Need Replacement Parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new JennAir® appliance.

To locate factory specified parts in your area, call us or your nearest designated service center.

ACCESSORIES

To order accessories, call 1-800-JENNAIR

(1-800-536-6247), and ask for the appropriate part number listed below or contact your authorized JennAir dealer. In Canada, call 1-800-536-6247.

Replacement Water Filter:

For USA and CANADA Part #EDR3RXD1 Refrigerator Air Filter: W10311524

IN THE U.S.A.

Call the JennAir Customer eXperience Center toll free 1-800-JENNAIR (1-800-536-6247), or visit our website at www.jennair.com.

Our consultants provide assistance with:

■Features and specifications on our full line of appliances.

■Referrals to local JennAir ^® brand dealers.

■Installation information.

■Use and maintenance procedures.

■Accessory and repair parts sales.

■Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

For Further Assistance

If you need further assistance, you can write to JennAir with any questions or concerns at:

JennAir Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

IN CANADA

Call the JennAir Canada LP Customer eXperience Centre toll free 1-800-JENNAIR (1-800-536-6247), or visit our website at www.jennair.ca.

Our consultants provide assistance with:

■Scheduling of service. JennAir ^® appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

■Features and specifications on our full line of appliances.

■Referrals to local JennAir ^8 brand dealers.

■Use and maintenance procedures.

■Accessory and repair parts sales.

For Further Assistance

If you need further assistance, you can write to JennAir Canada with any questions or concerns at:

JennAir Appliances

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

PERFORMANCE DATA SHEET

WATER FILTRATION SYSTEM

MODEL EDR3RXD1B/PIWB2 CAPACITY 200 GALLONS (757 LITERS) WITH PID; 100 GALLONS (378 LITERS) WITHOUT PID REPLACEMENT FILTER EDR3RXD1, EDR3RXD1B, WHR3RXD1, AND KAD3RXD1

System tested and certified by NSF International against NSF/ANSI Standard 42, 53, 401 and CSA B483.1 for the reduction of contaminants specified on the Performance Data Sheet.

This system has been tested according to NSF/ANSI Standards 42, 53, 401 and CSA B483.1 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42, 53, 401 and CSA B483.1.

Substance Reduction Aesthetic Effects Inf	Influent Challenge Concentration Maximum Permissible Product Water Concentration	Average % Reduction
Chlorine Taste/Odor 2.0 mg/L ± 10% 50% reduction >97.5%
Particulate Class I* At least 10,000 particles/mL 85% reduction 99.2%
Contaminant Reduction	Influent Challenge Concentration	Maximum Permissible Product Water Concentration	Average % Reduction
Lead: @ pH 6.5 / @ pH 8.5 0.150 mg/L ± 10% 0	0.010 mg/L >99.3% / >99.3%
Mercury: @ pH 6.5 / @ pH 8.5 0.006 mg/L ± 10% 0.002 mg/L >96.4% / 90.8%
Asbestos 10	^2 to 10^8 fibers/L ^+	99% 99%
Cyst ^	50,000/L min.	99.95%	>99.99%
Turbidity T1 NTU ± 10%	0.5 NTU	>99.1%
Alchor	0.040 mg/L ± 10%	0.002 mg/L	97.6%
Atrazine	0.009 mg/L ± 10% 0.003 mg/L 94.5%
Benzene	0.015 mg/L ± 10%	0.005 mg/L	96.6%
Carbofuran	0.080 mg/L ± 10%	0.040 mg/L	91.1%
Chlorobenzene	2.000 mg/L ± 10%	0.100 mg/L 99%
Endrin	0.006 mg/L + 10%	0.002 mg/L	96.6%
Ethylbenzene	2.100 mg/L ± 10% 0.700 mg/L 99.9%
Lindano	0.002 mg/L ± 10%	0.0002 mg/L	99%
MTBE	0.015 mg/L + 10% 0.005 mg/L 90.6%
O-Dichlorobenzene	1.800 mg/L ± 10%	0.600 mg/L	99.9%
Tetrachloroethylene	0.015 mg/L ± 10%	0.005 mg/L	96.4%
Toxaphene	0.015 mg/L ± 10% 0.003 mg/L >93.7%
TTHM	0.045 mg/L ± 10%	0.080 mg/L	99.5%
Styrene	2.000 mg/L ± 10%	0.100 mg/L 99.9%
VOC	0.300 mg/L ± 10%	0.015 mg/L	99.7%
Atenolol	200 ± 20%	30 ng/L	95.7%
Trimethoprim	140 ± 20%	20 ng/L	96.1%

PERFORMANCEDATASHEET

Linuron 140 ± 20% 20 ng/L 96.3%
Estrone 140 ± 20% 20 ng/L 90.6%
Nonylphenol 1400 ± 20% 200 ng/L 93.7%
Meprobamate 400 ng/L ± 20% 60 ng/L 94.9%
Carbamazepine 1400 ng/L + 20% 200 ng/L 98.6%
DEET 1400 ng/L ± 20% 200 ng/L 98.6%
Metolachlor	1400 ng/L ± 20% 200 ng/L 98.6%
TCEP	5000 ng/L ± 20%	700 ng/L 98.1%
TCPP	5000 ng/L ± 20%	700 ng/L	98.2%
Phenytoin	200 ng/L ± 20%	30 ng/L 94.5%
Ibuprofen	400 ng/L ± 20% 60 ng/L 95.6%
Naproxen	140 ng/L ± 20%	20 ng/L 96.9%
Bisphenol A	2000 ng/L ± 20%	300 ng/L 99.1%

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.89 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters).
The compounds certified under NSF 401 have been deemed as "emerging compounds/incidental contaminants." Emerging compounds/incidental contaminants are those compounds that have been detected in drinking water supplies at trace levels. While occurring at only trace levels, these compounds can affect the public acceptance/perception of drinking water quality.

For installation, operation, and maintenance instructions please refer to the Owners Manual.

It is important that operational, maintenance, and filter replacement requirements be carried out for the product to perform as advertised. Property damage can occur if all instructions are not followed.

■ The disposable cartridge must be changed at least every 6 months.

■ Use replacement filter part #EDR3RXD1/EDR3RXD1B.

The filter monitor system measures the amount of water that passes through the filter and alerts you when it is time to replace the filter. To learn how to check the water filter status, see "Using the Controls" or "Water Filtration System" in the User Instructions or User Guide.

■ After changing the water filter, flush the water system. See "Water and Ice Dispensers" or "Water Dispenser" in the User Instructions or User Guide.

These contaminants are not necessarily in your water supply. While testing was performed under standard laboratory conditions, actual performance may vary.

For installation, operation and maintenance instructions please refer Owner's Manual.

■ The product is for cold water use only.

■ The water system must be installed in compliance with state and local laws and regulations.

*Class I particle size: >0.5 to <1 um

Based on the use of Cryptosporidium parvum oocysts

Fibres greater than 10 um in length

^a NSF is a registered trademark of NSF International

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. EPA Est. No. 082047-TWN-001.

■ Refer to the "Warranty" section (in the User Instructions or User Guide) for the Manufacturer's limited warranty, name and telephone number.

Application Guidelines/Water Supply Parameters

Water Supply	Potable City or Well
Water Pressure	30 psi - 120 psi (207 kPa - 827 kPa)
Water Temperature	33°F - 100°F (0.6°C - 37.8°C)
Service Flow Rate	0.5 gpm (1.89 Lpm) @ 60 psi (413.7 kPa)

• Your water filtration system will withstand up to 120 pounds per square inch (psi) water pressure. If your water supply is higher than 80 psi, install a pressure reducing valve before installing the water filtration system.

Technical line drawing of a cylindrical mechanical component with flanges and ports (no text or symbols)

INTRODUCTION

SÉCURITÉ

Line drawing of a closed bookshelf with visible spine and cover (no text or symbols)

INTRODUCTION

ENREGISTREMENT DE VOTRE APPAREIL

CARACTÉRISTIQUES DU PRODUIT

1. Tablette Elegance ajustable

Diagram showing electrical connection with labeled components and directional arrows, including a magnified inset of a component with internal symbols.

Hand holding a rectangular object with an arrow indicating upward motion (no text or symbols)

REMARQUES :

A Interventur disinfection

Technical diagram showing electrical connection with labeled components and directional arrows

ENTRETIEN ET NETTOYAGE

MACHINE À GLAÇONS ET BAC D'ENTREPOSAGE

(SUR CERTAINS MODÈLES - ACCESSOIRE)

Line drawing of a mechanical assembly or workstation with no visible text, numbers, or symbols.

Technical line drawing of a mechanical assembly with labeled parts A and B (no text or symbols beyond labels)

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Line drawing of a piano keyboard with a slide and stand (no text or symbols)

Illustration of a hand using a tool to clean or install a grid-like structure with a house-shaped roof above (no text or symbols)

ENTRETIEN ET NETTOYAGE

GUIDE DE STOCKAGE DES ALIMENTS SURGELÉS

Line drawing of a hand using a tool to cut or install a metal sheet (no text or symbols)

Illustration of hands holding a rectangular device with an arrow indicating motion (no text or symbols)

Line drawing of a rectangular metal enclosure or housing with internal ribs and mounting feet (no text or symbols)

Customer eXperience Centre

200 - 6750 Century Ave.

MODÈLE EDR3RXD1B/PIWB2 CAPACITÉ DE SERVICE NOMINALE = 200 GAL. (757 L) AVEC INDICATEUR PID, 100 GAL. (378 L) SANS INDICATEUR PID FILTRES DE REMPLACEMENT EDR3RXD1, EDR3RXD1B, WHR3RXD1 ET KAD3RXD1

Technical line drawing of a cylindrical mechanical component with mounting flanges (no text or symbols)

®/TM ©2022 JennAir. All rights reserved. Used under license in Canada.
