DW9340.0E - Range hood Küppersbusch - Free user manual and instructions

Product type	Range hood
Brand	Küppersbusch
Model	DW9340.0E
Installation	Wall mounting, telescopic chimney
Minimum height above cooking surface	650 mm
Air outlet diameter	120 / 150 mm
Version	Extracting or recirculating (filter)
Overall dimensions (W x D x H)	Adjustable width 598-1198 mm x Depth 470 mm x Variable height (telescopic chimney)
Weight (estimated)	15 kg
Power supply	220-240 V, 50/60 Hz
Number of speeds	4 (including one timed 6 minutes)
Lighting	Yes, L button
Grease filters	Self-supporting metal, dishwasher safe
Activated carbon filter	Replace every 4 months (not washable)
Noise level (estimated)	55-60 dB
Protection class	Class I (earthing required)
Material	Stainless steel and glass (likely)
Control	Electronic touch controls
Safety	Bipolar switch required, hot parts marked
Maintenance	Clean with damp cloth and neutral liquid detergent

Frequently Asked Questions - DW9340.0E Küppersbusch

What is the minimum installation height above a gas hob?

The minimum safety distance between the cooking surface and the hood is 650 mm. If the gas hob instructions specify a greater distance, that must be respected.

How to clean the grease filters?

The metal grease filters are dishwasher safe. They should be cleaned approximately every 2 months, or more frequently with heavy use. Remove them by pushing them back and pulling down, then let them dry before reinstalling.

When should the activated carbon filter be replaced?

The activated carbon filter is neither washable nor renewable. It must be replaced every 4 months, or more often with intensive use. To replace it, first remove the grease filters, then unclip the old carbon filter and install the new one.

Can I use the hood in recirculation mode without external evacuation?

Yes, the hood can be used in filter version with an activated carbon filter. In this case, the air is purified and returned to the room. Make sure the carbon filter is installed and replaced regularly.

What diameter of exhaust duct should I use?

The recommended diameter is 150 mm. A reducer is provided to adapt to a 120 mm duct. Use a rigid or flexible tube and secure it with hose clamps.

How to adjust the motor speed?

Use the T2, T3, and T4 buttons to select speeds 1, 2, and 3. Holding T4 for 2 seconds activates intensive speed (4th speed) for 6 minutes, after which the hood returns to the previous speed.

Can the hood be installed above an electric hob?

Yes, but the minimum distance of 650 mm must be respected. For electric hobs, no additional distance is usually required, but check the instructions of your cooking appliance.

What to do if the power cord is damaged?

Do not use the appliance. Contact the manufacturer or an authorized service center for replacement to avoid any risk of accident.

How to turn on the lighting?

Press the L button to turn the lighting on or off. The button stays lit when the lighting is active.

Can I use the hood with an induction hob?

Yes, the hood is compatible with all types of cooking, including induction. Always respect the safety distance of 650 mm between the hood and the hob.

USER MANUAL DW9340.0E Küppersbusch

Simple line drawing of a vertical rectangular structure mounted on a base, with no text or symbols present.

Instructions Manual

RECOMMENDATIONS AND SUGGESTIONS 4

CHARACTERISTICS 7

INSTALLATION....8

USE 11

MAINTENANCE 12

SOMMAIRE

FR

CONSEILS ET SUGGESTIONS.... 13

CARACTERISTIQUES.... 16

INSTALLATION....17

UTILISATION 20

ENTRETIEN 21

INHALTSVERZEICHNIS

DE

The Instructions for Use apply to several versions of this appliance.

Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

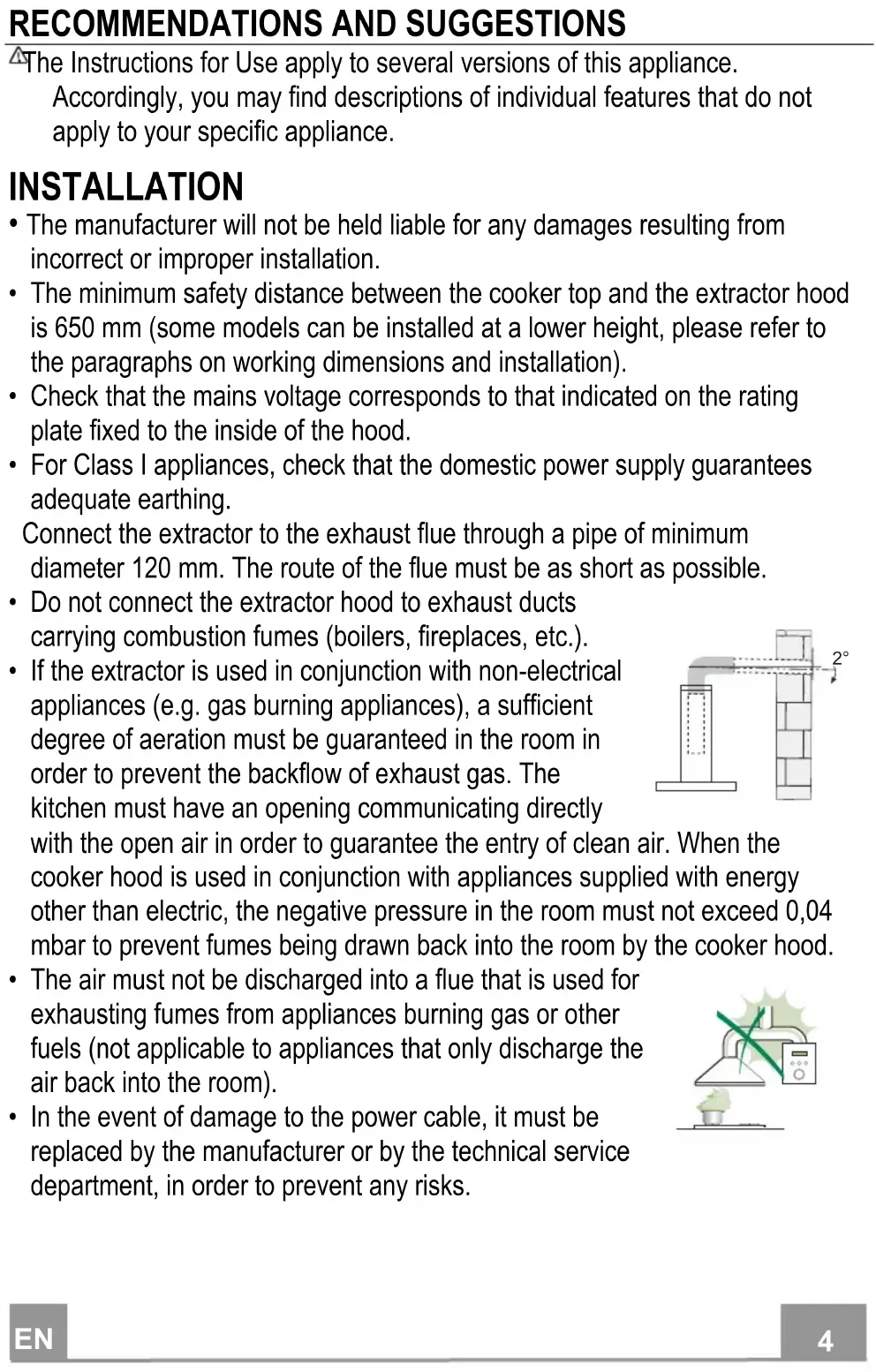

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly

with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.
  Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

Illustration of a greenhouse with a pot and smokestack, crossed by a green X-shaped line against a light green background (no text or symbols)

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- “CAUTION: Accessible parts may become hot when used with cooking appliances.”

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.
