Product type	Condenser tumble dryer
Brand	Hoover
Model	NDE C8TBBEXS
Drying capacity (cotton)	8 kg
Drying capacity (synthetics)	4 kg
Power supply	220-240 V ~ 50 Hz
Recommended fuse	10 A
Drying programs	Whites, Cotton, Synthetics, Wool, Shirts, Denim, Fitness, Gentle Care, Fresh Care, Allergy Care, Care 30'/45'/59', All in One, Auto Care
Drying options	Ready to iron, Hanger dry, Cupboard dry, Extra dry
Delayed start	Up to 24 hours (in 30-minute increments)
Anti-crease	Yes, up to 6 hours after cycle end
Active Dry	Refreshing cycle to remove odours
Remote control (Wi-Fi)	Yes, via hOn app (2.4 GHz band)
Display	Digital screen with remaining time and indicators
Child safety	Control lock
Lint filter cleaning	Required before each cycle
Condenser cleaning	Recommended regularly (washable with water)
Water tank	Empty after each cycle (approx. 6 kg full)
Warranty	According to certificate provided with the product

Frequently Asked Questions - NDE C8TBBEXS HOOVER

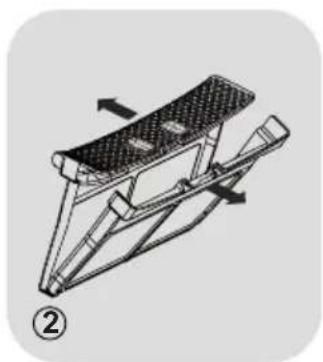

How to clean the lint filter?

Pull the filter upwards, open it, gently remove lint with fingers or a soft brush. You can also wash it under running water, then dry it before putting it back. Clean it before each cycle to avoid blockages.

What to do if the dryer does not start?

Check that the plug is properly connected, the door is correctly closed, and the program has been selected. Make sure there is no power outage or blown fuse. Press the Start/Pause button after closing the door.

How to use the Wi-Fi remote control?

Download the hOn app, create an account, and pair the device following the instructions. Turn the selector to the REMOTE CONTROL (Wi-Fi) position, close the door, then start the cycle via the app. The Wi-Fi network must be on 2.4 GHz band.

How to empty the water tank?

Pull the water container by the handle, tip it to empty the water through the spout, then put it back by pushing the base first then the top. Empty it after each cycle to avoid the full indicator.

What does the filter cleaning indicator mean?

The light comes on to remind you to clean the lint filter. If the laundry does not dry properly, check the filter and clean it if necessary.

How to select a program?

Turn the program selector in either direction to choose the desired cycle. The display shows the program name and estimated duration. Press Start/Pause to start the cycle.

How to delay the start of a cycle?

After selecting the program, press the Delayed start button to choose a delay from 30 minutes to 24 hours. Then press Start/Pause to begin the countdown.

Which clothes should not be machine dried?

Do not dry items made of rubber foam, textiles treated with chemicals (dry cleaning), fiberglass, or garments containing rubber. Always check the care label for machine drying symbols.

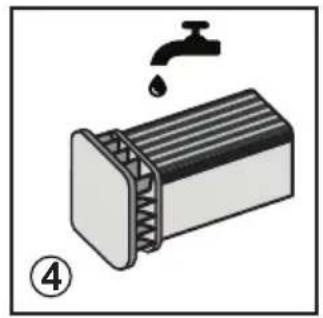

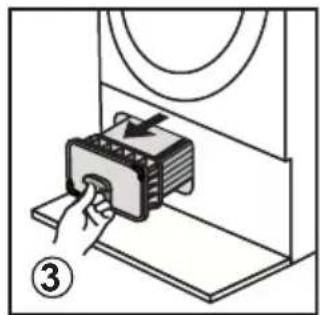

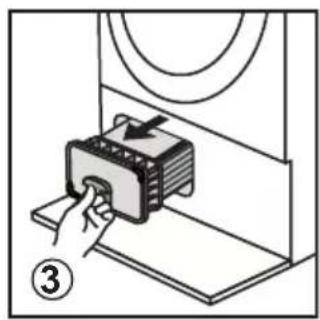

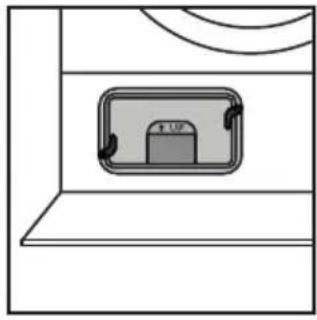

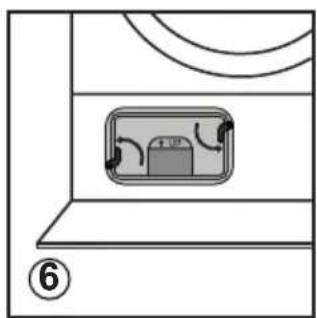

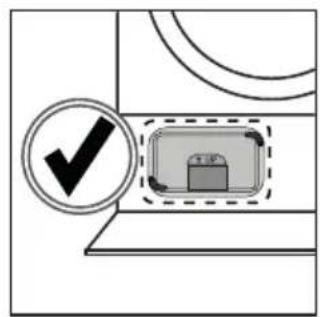

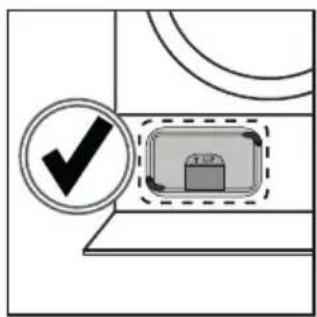

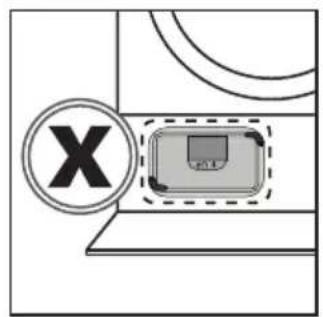

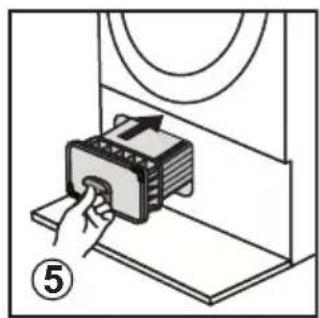

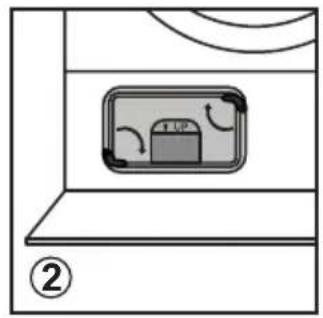

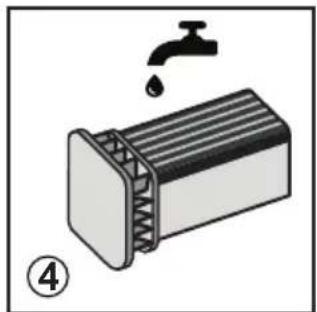

How to clean the condenser?

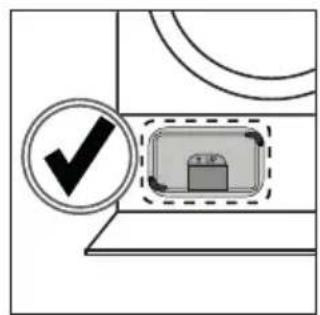

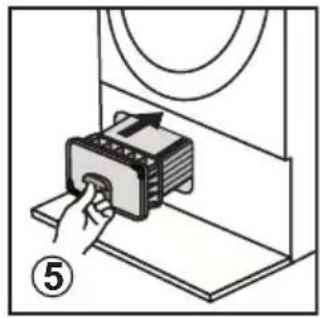

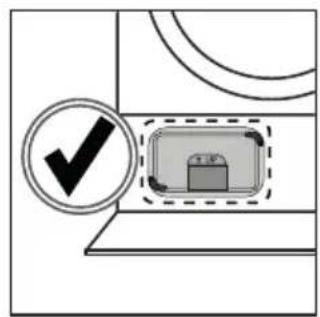

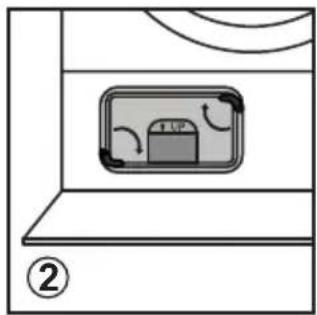

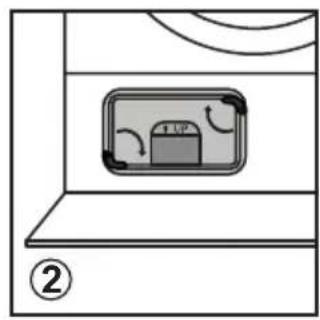

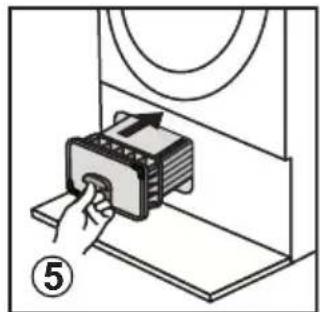

Remove the protective cover, turn the locking levers, take out the condenser block. Remove dust with a soft cloth, then wash it under running water between the plates. Put it back, lock the levers and replace the cover.

What to do if the drying time is too long?

Check that the appropriate program is selected, the clothes are well spun, the filter is clean, the condenser is clean, the machine is not overloaded, and the air inlets/outlets are not blocked. Regular cleaning improves performance.

USER MANUAL NDE C8TBBEXS HOOVER

Illustration of a hand holding a small mechanical component with an arrow indicating rotational motion (no text or symbols)

Line drawing of a washing machine with airflow indicators (no text or symbols)

Cross-sectional diagram of a mechanical component with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a container pouring liquid into a container with a label B (no text or symbols on the diagram itself)

Illustration of hands holding a fan with a circular component, no text or symbols present

Line drawing of a hand holding a rectangular object with a circular mark and a small circular symbol (no text or labels)

Simple line drawing of a hand holding a ring above a wooden surface with two circular holes (no text or symbols)

Line drawing of a hand inserting a cable into a washing machine (no text or symbols)

①

Technical line drawing of a mechanical device with no visible text or symbols

②

Simple line drawing of a room with a recessed door and ceiling, no text or symbols present

Diagram of a device interior with a rectangular box and circular arrows indicating rotation, labeled with number ② (no text or symbols on the diagram itself)

Illustration of a hand pressing a button into a device inside a transparent enclosure (no text or symbols)

Illustration of a water tap with a submerged object, labeled with number 4 (no text or symbols on the diagram itself)

Illustration of a hand inserting a component into a device inside a transparent enclosure (no text or symbols)

Diagram of a room interior with a rectangular opening and circular ceiling, no text or symbols present

Line drawing of a mechanical assembly with hands holding a component, no text or symbols present

4. CONSIGLI PRATICI

oppure accedendo al link: go.haier-europe.com/download-app

METTERE LA MACCHINA IN PAUSA

Illustration of a hand holding a mechanical component with an arrow indicating rotational motion (no text or symbols)

Line drawing of a front-loading washing machine with airflow indicators (no text or symbols)

* Lufteinlass.
** Luftauslass.

Die Wäsche

Cross-sectional diagram of a mechanical component with an upward arrow and labeled point A (no text or symbols beyond label)

Simple line drawing of a container pouring liquid into a container with a label B (no text or symbols on the diagram itself)

* je nach Modell

NUR FÜR MODELLE MIT ABLAUFSCHLAUCH-KIT

Illustration of hands holding a fan with a circular fan inside, next to a circular object (no text or symbols)

Line drawing of a hand holding a rectangular object with a circular mark and a small circular mark, no text or symbols present.

Simple line drawing of a hand holding a ring above a wooden surface with two circular holes (no text or symbols)

* je nach Modell

3. TÜR, SIEB UND KONDENSATOR

Türe

Diagram of a cable being inserted into a socket (no text or symbols present)

Mechanical device diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Simple line drawing of a room with a rectangular opening and curved ceiling lines (no text or symbols)

Diagram of a device with a labeled component and circular motion arrows, no readable text or symbols present.

Illustration of a hand inserting a component into a device inside a container (no text or symbols)

Illustration of a water tap dispensing liquid into a rectangular tank (no text or symbols)

Illustration of a hand inserting a component into a device inside a container (no text or symbols)

Diagram of a device interior with a rectangular chamber and circular top, labeled with number 6 (no text or symbols on the diagram itself)

Diagram showing hands installing a door panel with a circular component above (no text or symbols)

4. PRAKTISCHE TIPPS

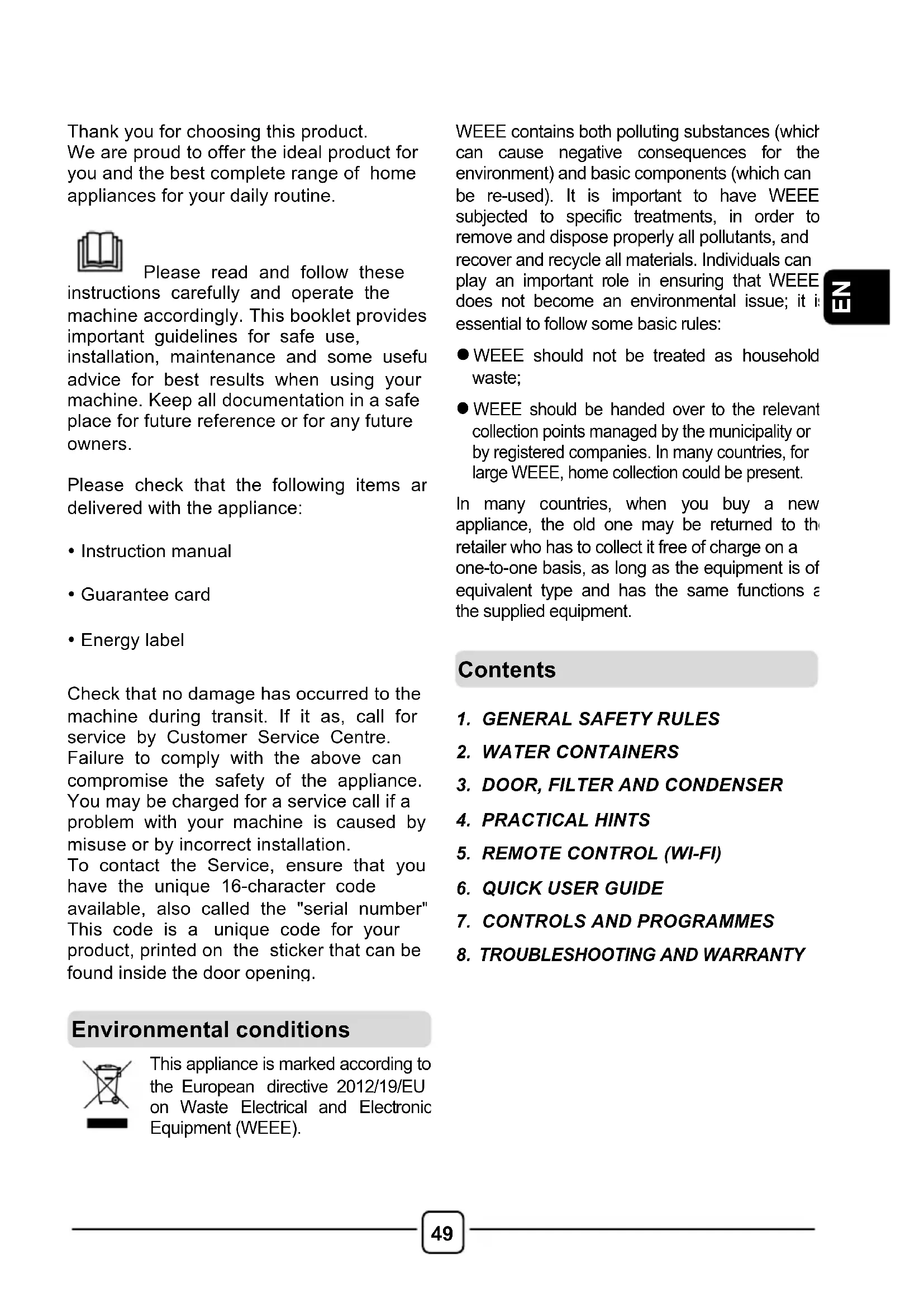

Thank you for choosing this product.

We are proud to offer the ideal product for you and the best complete range of home appliances for your daily routine.

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine. Keep all documentation in a safe place for future reference or for any future owners.

Please check that the following items are delivered with the appliance:

• Instruction manual
• Guarantee card
• Energy label

Check that no damage has occurred to the machine during transit. If it as, call for service by Customer Service Centre. Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse or by incorrect installation. To contact the Service, ensure that you have the unique 16-character code available, also called the "serial number". This code is a unique code for your product, printed on the sticker that can be found inside the door opening.

Environmental conditions

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

● WEEE should not be treated as household waste;
● WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions at the supplied equipment.

Contents

1. GENERAL SAFETY RULES
2. WATER CONTAINERS
3. DOOR, FILTER AND CONDENSER
4. PRACTICAL HINTS
5. REMOTE CONTROL (WI-FI)
6. QUICK USER GUIDE
7. CONTROLS AND PROGRAMMES
8. TROUBLESHOOTING AND WARRANTY

1. GENERAL SAFETY RULES

- This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential type environments;

- Bed and breakfast type environments. A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
  ● Children of less than 3 years should be kept away unless continuously supervised.

WARNING

Misuse of a tumble dryer may create a fire hazard.

● This machine is solely for domestic use, i.e. to dry household textiles and garments.
- Ensure that the instructions for installation and use are fully understood before operating the appliance.
- Do not touch the appliance when hands or feet are damp or wet.
- Do not lean on the door when loading the machine or use the door to lift or move the machine.

• Do not continue to use this machine if it appears to be faulty.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

WARNING

Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.

- Lint and fluff must not be allowed to collect on the floor around the outside of the machine.

WARNING

Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.

● Always remove the plug before cleaning the appliance.
- The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry.

- The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

WARNING

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Installation

- Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between 5-35°C. Please note that operating in cold condition (between +2 and +5°C) might simply some water condensation and water drops on floor.

- In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the configuration of your appliance:

• Stacking kit "standard size": for washing machine with minimum depth of 44 cm;
• Stacking kit "slim size": for washing machine with minimum depth of 40 cm.
• Universal stacking kit with sliding: for washing machine with minimum depth of 47 cm.

The stacking kit shall be obtainable from service. The instructions for installation and any fixing attachments, are provided with the stacking kit.

• NEVER install the dryer up near curtains.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such way that a full opening of the tumble dryer door is restricted.
• For your safety, the appliance must be correctly installed. If there is any doubt about installation, call Service for advice.

- Once the machine is in place the feet should be adjusted to ensure that the machine is level.

Illustration of a hand holding a mechanical component with an arrow indicating rotational motion (no text or symbols)

Electrical connections and safety instructions

• The technical details (supply voltage and power input) are indicated on the product rating plate.
• Make sure that the electrical system is earthed, complies with all applicable law and that the (electricity) socket is compatible with the plug of the appliance. Otherwise, seek qualified professional assistance.

WARNING

The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

• Do not use adapters, multiple connectors and/or extensions.
• The plug should be accessible for disconnection after the appliance has been installed.
• Do not plug the machine in and switch it on at the mains until the installation is completed.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Ventilation

• Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.
  ● Install the rear of the appliance close to a wall or vertical surface.
• There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet air should be kept clear of obstruction.
• Make sure carpets or rugs do not obstruct the base or any of the ventilation openings.

● Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet.
- Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
- Check regularly that the air flowing around the dryer is not restricted, avoiding accumulation of dust and lint.
- Check frequently the fluff filter after use, and clean, if necessary.

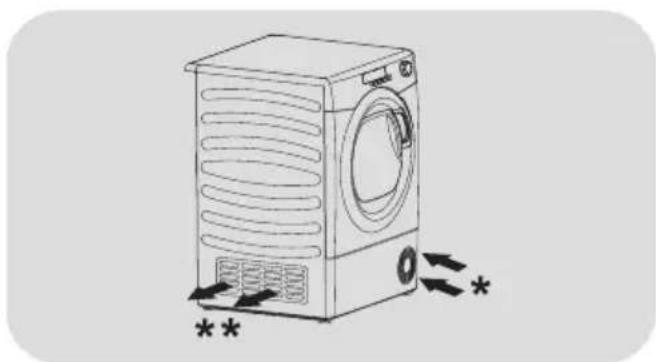

Line drawing of a front-loading washing machine with airflow arrows and warning symbols (no text or labels)

* Air inlet.
**Air outlet.

The Laundry

● Always refer to the laundry care labels for directions on suitability for drying.

• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Do not dry unwashed items in the tumble dryer.
• Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer.
• Clothes that are dripping wet should not be put into the dryer.

WARNING

Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.

WARNING

Do not tumble dry fabrics treated with dry cleaning fluids.

- Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.

• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Remove all objects from pockets such as lighters and matches.
  ● Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.
  ● Maximum load drying weight: see energy label.
• To consult the product technical specification please refer to the manufacturer website.

2. WATER CONTAINERS

The water removed from the laundry during the drying cycle is collected in a container. When the container is full, an indicator light, or on some models a message on the display, will advise you that it MUST be emptied (however, we recommend to empty it after each drying cycle).

Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To remove the container tank in door drawer \*

1. Gently pull out the water container holding the handle (A). When it is full the water container will weigh about 6 kg.

2. Tilt the water container to empty the water out through the spout (B). When empty, replace the water container back as shown; (C) first insert the base of the container into position as shown (1) then gentle push the top into position (2).

3. Press the programme start button to restart the cycle.

Cross-sectional diagram of a mechanical component with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a container pouring liquid into a container on a surface, with no text or symbols present.

*Depending on model

ONLY FOR MODELS WITH DRAIN HOSE KIT If you have the option of drainage near to the dryer you can use the discharge kit to provide a permanent drainage for the water collected in the container of the dryer. This means that you don't have to empty the water container.

To remove the container bottom water drawer \*

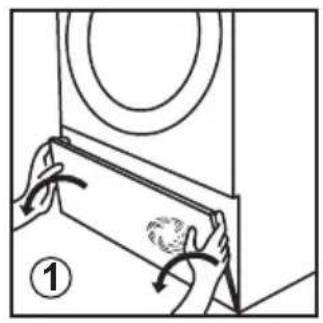

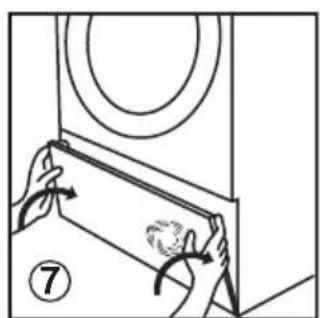

1. Gently pull the top of the kickplate so that it unclips from the dryer. The bottom section can then be unhinged allowing the kickplate to be completely removed (A).

2. Pull firmly on the handgrip and slide the water container out of the dryer (B). Support the container with both hands (C). When full, the water container will weigh about 4 kg.

3. Open the lid located on the top of the container and empty the water at the end of each drying cycle and before starting the next one (D).

4. Refit the lid and slide the water container back into position (D). PUSH FIRMLY INTO PLACE.

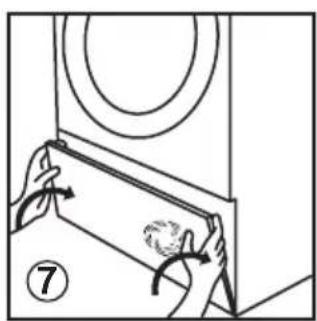

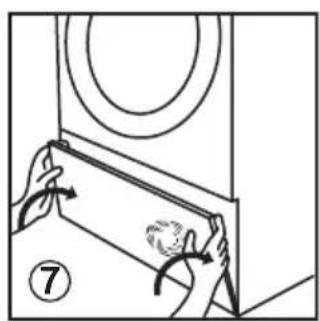

5. Refit the kickplate by engaging the hinges at the top and 'snapping' the lower clips into place.

Illustration of hands holding a fan with a circular fan inside, no text or symbols present

Illustration of a hand inserting a device into a container with a 'UP' label (no text or symbols on the device itself)

Line drawing of a hand holding a rectangular object with a circular mark and a small circular feature, no text or symbols present.

Simple line drawing of a hand holding a ring above a wooden surface with two circular holes (no text or symbols)

*Depending on model

3. DOOR, FILTER AND CONDENSER

Door

• Pull on handle to open the door.
  ● To restart the appliance, close the door and press the programme start button.

WARNING

When the tumble dryer is in use the drum and door may be VERY HOT.

WARNING

If you open the door mid cycle, before the cool-down cycle has completed, the handle may be hot. Please use extreme caution when attempting to empty the water reservoir during the cycle.

Filter

Clogged filters could increase the drying time and cause damages and expensive cleaning operation.

To maintain the efficiency of the dryer check that all filters are clean before each drying cycle.

WARNING

Do not use the tumble dryer without the filters.

Filter cleaning indicator light

It lights up when the cleaning of the filter is requested: check the filter and eventually clean it.

If the laundry is not drying check that the filter is not clogged.

If you clean filter under water, remembe to dry it.

WARNING

Clean the filter before every cycle.

To clean the lint filter

1. Pull the filter upwards.
2. Open filter as shown.
3. Gently remove lint from filter using your fingertips or a soft brush, a cloth or under water running.
4. Snap the filter together and push back into place.

Line drawing of a hand inserting a cable into a washing machine (no text or symbols)

1

Technical line drawing of a mechanical device with no visible text or symbols

②

To clean the condenser

1. Remove the kickplate.

2. Turn the locking levers clockwise and pull out the condenser.

3. Pull out the condenser unit.

4. Gently remove any dust or fluff with a cloth, then wash the unit by holding it under a running tap turning it so that water flows between the plates, to remove any dust or fluff.

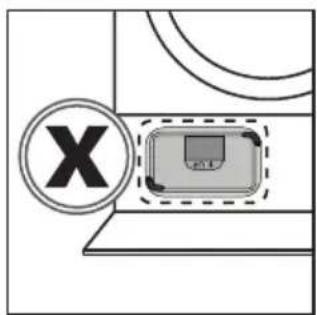

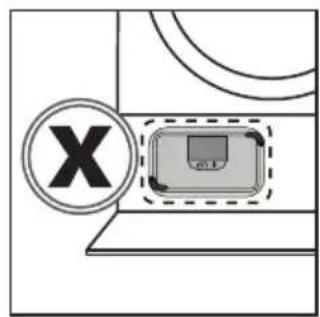

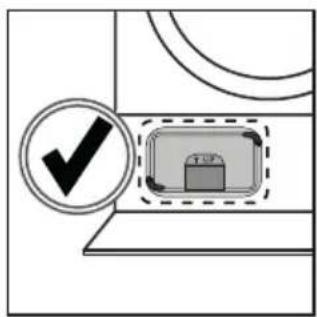

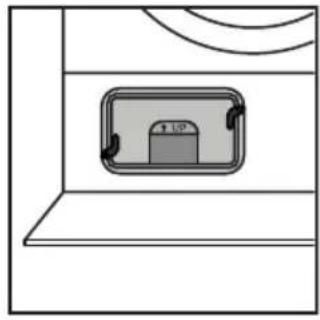

5. Refit the condenser ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place.

6. Lock the levers by turning them anti-clockwise. Be sure that condenser unit fixed to the basement tightly.

7. Refit the kickplate.

Simple line drawing of a rectangular enclosure with a label '4 LP' on its side, enclosed in a corner frame (no text or symbols beyond the label)

Diagram of a room interior with a central rectangular device and curved arrows indicating rotation or movement (no text or symbols)

Illustration of a hand pressing a button into a device inside a container (no text or symbols visible)

Illustration of a water tap dispensing liquid into a rectangular tank (no text or symbols)

Illustration of a hand inserting a component into a device inside a transparent enclosure (no text or symbols)

Diagram of a device interior with a rectangular housing and circular components, no text or symbols present

Line drawing of a mechanical assembly with hands holding a component, no text or symbols present

4. PRACTICAL HINTS

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum.
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item. Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do not tumble dry

Silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings.

WARNING

Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

- Check that the filter is clean before every drying cycle.

NEVER

- Put dripping wet items into the tumble dryer, this may damage the appliance.

Sort the load as follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

● By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

● By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

WARNING

Do not overload the drum, large items when wet exceed the maximum admissible clothes load (for example sleeping bags, duvets).

Cleaning the dryer

• Clean the filter and empty the water container after every drying cycle.
  ● Regularly clean the condenser.
  ● After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
  ● Wipe the outside of the machine and the door with a soft cloth.
  ● DO NOT use abrasive pads or cleaning agents.
  ● To prevent the door sticking or the buildup of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING

The drum, door and load may be very hot.

WARNING

Always switch off and remove the plug from the electricity supply before cleaning this appliance.

WARNING

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

5. REMOTE CONTROL (WI-FI)

This appliance is equipped with Wi-Fi technology that allows you to control it remotely via App.

APPLIANCE PAIRING (ON APP)

- Download the hOn App on your device by framing the following QR code:

or by the link: go.haier-europe.com/download-app

The App is available for devices running both Android and iOS, both for tablets and for smartphones.

Get all the details of the Wi-Fi functions by browsing the App in DEMO mode.

The frequency of the home Wi-Fi network has to be set on the 2.4 GHz band. You can not configure the machine if your home network is set to the 5 GHz band.

- Open the App, create the user profile (or log-in if it is already created previously) and pairing the appliance following the instructions on the device display.

TO ENABLE REMOTE CONTROL

• Check that the router is switched on and connected to the Internet.
• Load the laundry and close the door.
• Turn the programme selector to the REMOTE CONTROL (Wi-Fi) position: the controls on the control panel will be disabled.

- Start the cycle using the app. When the cycle has been completed, turn off the machine by turning the programme selector to the OFF position.

TO DISABLE REMOTE CONTROL

• To exit REMOTE CONTROL mode while a cycle is underway, turn the programme selector to any position other than REMOTE CONTROL (Wi-Fi), without going through the OFF. The control panel on the appliance will be operative once again.
• With the door closed, turn the programme selector to the REMOTE CONTROL (Wi-Fi) position to control the appliance using the app once again. If there is a cycle underway, it will continue.

With the door opened, the REMOTI CONTROL will be disabled. To enable it again, close the door, turn the programme selector to any position other than REMOTE CONTROL and then select it again.

6. QUICK USER GUIDE

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. Gently close the door pushing it slowly until you hear the door 'click' shut.
3. Turn the programme selector dial to select the required drying programme (see the table of programmes).
4. Press the programme start button. The dryer will start automatically.
5. If the door is opened during the programme to check the laundry, it is necessary to press programme start to recommence drying after the door has been closed.
6. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.
7. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Do not open the door during the automatic programmes in order to obtain a proper drying.

Technical data

Power input / Power current fuse amp/

Supply voltage: see rating plate.

Maximum load: see energy label.

Energy class: see energy label.

7. CONTROLS AND PROGRAMMES

A PROGRAMME SELECTOR with OFF position

Don't touch the buttons while inserting the plug because the machines calibrates the systems during the first seconds: touching the buttons, the machine couldn't work property. In this case, remove the plug and repeat the operation.

PROGRAMME SELECTOR with OFF position

• Rotating the programme selector in both directions it's possible to select the desired drying programme.
• To cancel the selections or switch off the appliance rotate the programme selector on OFF (remember to unplug the appliance).

First starting

- Language setting

• After connecting the machine to the network and turning it on, press the button "D" or "E" to see on the display the available languages. ENGLISH is always the first language shown.
• Select the desired language pressing the START/PAUSE button.

- Change the language

If you want to change the setting language you will have to press simultaneously "D" and "E" buttons for about 5 seconds. ENGLISH will appear on the display, and you will be able to choose a new language.

START/PAUSE button

Close the porthole BEFORE pressing the START/PAUSE button.

• To start the selected cycle with the preset parameters, press START/PAUSE. When the programme is running, the display will show the time to elapse.
• Moreover, if you want to modify the chosen programme, press the desired options buttons, modify the default parameters and then press START/PAUSE button to start the cycle.

Only the options compatible with the set programme can be selected.

● After switching on the appliance, wait a few seconds for the programme to start running.

PROGRAMME DURATION

• When a programme is selected the display automatically shows the cycle duration, which can vary, depending on the options selected.
• Once the programme has started you will be kept informed constantly of the time remaining to the end of the drying cycle.
  ● The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to the humidity level of the load.

PROGRAMME END

• "END" ("End" on some models) will appear in the display at the end of the programme, it is now possible to open the door.
• At the end of the cycle, turn off the appliance by turning the programme selector to the OFF position.

The programme selector must ALWAYS be put in the OFF position at the end of the drying cycle before a new one can be selected.

PAUSING THE MACHINE

• Keep the START/PAUSE button pressed for about 2 seconds (the name of the programme and the residual time display will flash, showing that the machine is paused).
• Press the START/PAUSE button again to re-start the programme from the point it had been paused at.

CANCELLING THE SET PROGRAMME

- To cancel the programme, turn the programme selector to the OFF position.

If there is a break in the power supply whilst the machine is operating, when the power is restored, by pressing the START/PAUSE button, the machine will restart from the beginning of the phase it was in when the power was lost.

DELAY START button

• This button allows to delay the start of the programme from 30 minutes (1 hour on some models) to 24 hours in 30 minutes intervals (1 hour on some models). The delay selected is shown on the display.
  ● After pressing the START/PAUSE button the time showed decrease minute after minute.

Opening of the porthole with delayed start set, after re-closing the porthole, press start again to resume the counting.

TIME CYCLE SELECTION/RAPIDS button

- It's possible transform a cycle from automatic to programmed, up to 3 minutes after the start of the cycle.

● The progressive pressure increases the time in 10 minute intervals. After this selection to reset the automatic drying functioning is necessary to switch off the dryer.
- In case of incompatibility, all indicator lights flash quickly for 3 times.
- If the programme selector is positioned on the rapid programmes CARE (30'/45'/59') the progressive pressure of the button allows you to choose one of three durations indicated.

ACTIVE DRY button

●ACTIVE DRY is the perfect cycle to use if you want to remove bad smells from the linens smoothing creases. This cycle can quickly refresh the garments that you need, ensuring the best compromise between time and drying performance.
- If you want to select this option, press the ACTIVE DRY button once. It is available only during program selection. This option overwrites the program selected with a dedicated one.
- If you want to deselect the ACTIVE DRY option, press the ACTIVE DRY button. When you deselect the option, the machine will show again the original program name.

DRYING SELECTION button

- This button allows to set the desired dryness level editable option up to 3 minutes after the starting of the cycle:

Ready to Iron: it leaves the garments slightly wet to facilitate ironing.

Dry Hanger: to get garment ready to be hang.

Dry wardrobe: for laundry that can be directly stored.

Extra-dry: to get completely dry garments, ideal for full load.

● This appliances is equipped with Drying Manager function. On automatic cycles, each level of intermediate drying, prior to the reaching the selected one, is indicated by flashing the light indicator corresponding to the degree of drying reached.

In case of incompatibility, all indicator lights flash quickly for 3 times.

ANTI CREASE button

• During the cycle the option sets alternate movements of the drum to reduce the folds and automatically sets the drying level to "Ready to Iron". Moreover this option activate an anti-creases movement of the drum pre cycle in case of activation of the delay and at the end of drying cycle. It is activated every 10 minutes, up to 6 hours after the end of the drying cycle.
• To stop the movements set the programme selector to OFF. Useful when it's not possible to remove immediately the laundry.

CHILD LOCK

• Pressing simultaneously the buttons "F" and "G" for about 2 seconds, the machine allows you to lock the keys. In this way, you can avoid making accidental or unwanted changes if a button on the display is pressed accidentally during a cycle.
• The key lock can be simply cancelled by pressing the two buttons simultaneously again.
• In case of opening of porthole with activated CHILD LOCK, the cycle stops but the lock is kept: to restart the cycle, you must remove the lock and press START/PAUSE again.

- CHILD LOCK can be modified at any time of the cycle.

Display

The display shows the remaining time for drying, the postponed time in case of delayed start selection and other notifications setting.

1) DRYING SELECTION INDICATOR LIGHTS

The indicator lights display the degrees of dryness that can be selected by the relevant button.

2) ANTI CREASE INDICATOR LIGHT

The indicator light shows the selection of the relevant option.

3) FILTER CLEANING INDICATOR LIGHT

It lights up when the cleaning of the filter is requested.

4) Wi-Fi INDICATOR LIGHT

• On models equipped with Wi-Fi, it indicates the status of the connection. It could be:
• FIXED ON: remote control enabled.
• SLOW FLASHING: remote control disabled.

• QUICK FLASHING FOR 3 SECONDS, THEN OFF: the machine cannot connect to the home Wi-Fi network or has not yet been associated with the App.

• SLOW BLINKING FOR 3 TIMES, THEN OFF FOR 2 SECONDS: reset of the Wi-Fi network (during the association with the App).

• ON FOR 1 SECOND, THEN OFF FOR 3 SECONDS: the door is open. Remote control cannot be activated.
• For all the information about the functionality and the instructions for an easy configuration of the Wi-Fi, please refer to: go.he.services/htd-5d

Drying Guide

The standard cycle COTTON DRY ( ) is the most energy efficient and best suited for drying normal wet cotton laundry.

Maximum Drying Weight
Cottons	Max. capacity declared
Synthetics or Delicates	Max. 4 kg

Information for Test Laboratory

EN 61121 - Programme To Use

• STANDARD DRY COTTON →
• IRON DRY COTTON (WHITES - Ready to Iron)
• EASY-CARE TEXTILE (SYNTHETICS - Dry Hanger)

WARNING

Clean the filter before every cycle.

WARNING

The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

Table of programmes

PROGRAMMES		Selectable Options					CAPACITY (kg)	DRYING TIME (min)
	WHITES	√	√	√	√	√	Full	*
	ECO COTTON	√	-	-	-	-	Full	*
	WOOLMARK	√	-	-	-	-	1	70'
	WATERPROOF REVITALIZE	√	-	√	-	-	2	*
[ZZSD]	SYNTHETICS	√	√	√	√	√	4	*
	SHIRTS	√	-	√	√	√	2,5	*
	JEANS	√	-	-	-	-	4	*
[HS3Z]	FITNESS	√	-	√	√	-	4	*
	SOFT CARE	√	-	√	-	-	2	*
[4ASK]	FRESH CARE	√	-	√	-	-	3,5	*
[BYH3]	ALLERGY CARE	√	√	√	-	-	4	Max 220'
	CARE 30-45-59	√	√	√	-	-	2,5	*
	ALL IN ONE	√	-	√	-	-	6	*
[8HSZ]	AUTO CARE	√	-	√	√	√	4	*
	REMOTE CONTROL (Wi-Fi)Position that you have to select when you want to enable remote control through the App (via Wi-Fi).

* The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

Description of programmes

To dry different types of fabrics and colors, the tumble dryer has specific programs to meet every need of drying (see table 6 programmes).

REMOTE CONTROL (Wi-Fi)

Position that you have to select when you want to enable / disable remote control through the App, via Wi-Fi.

In this case, the start of cycle will take place through the App commands.

More details in the REMOTE CONTROL (Wi-Fi) section.

WHITES

The right cycle to dry cottons, sponges and towels.

ECO COTTON

The cotton program (hang dry) is the most efficient program in energy consumption.

Suitable for cottons and linens.

WOOLMARK

Woolen clothes: the program can be used to dry up to 1 kg of laundry (around 3 jumpers).

It is recommended to reverse all clothes before drying.

Timing can change due to dimensions and thickness of load and to spinning chosen during washing.

At the end of the cycle, clothes are ready to be worn, but if they are heavier, edges can be a big wet: it is suggested to dry their naturally.

It is recommended to unload clothes at the very end of the cycle.

Attention: felting process of wool is irreversible; please dry exclusively with symbol "ok tumble" on the garment label. This programme is not indicated for acrylic clothes.

APPAREL CARE

The wool drying cycle of this machine has been approved by the Woolmark Company for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issues by the manufacturer of this machine M1524.

In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

WATERPROOF REVITALIZE

A special service to revitalize the waterproofing treatment of the linens.

SYNTHETICS

To dry synthetic fabrics that need an accurate and specific treatment.

SHIRTS

This specifics cycle has been conceived to dry shirts minimizing tangles and folds thanks specific movements of the drum. It's recommended to take out the linens immediately after drying cycle.

JEANS

Dedicated to dry uniformly fabrics like jeans or denim. It's recommended flip over the garments before drying.

FITNESS

The Fitness program takes care of your technical garments used for sport and fitness: the machine dries gently with special care to avoid shrinking and deterioration of elastic fibers.

SOFT CARE

With the Soft Care program and a small load, the machine will take care of your most delicate garments.

FRESH CARE

Thanks to Fresh Care cycle, the machine can take care of your different fabrics together (cotton and synthetic), drying them out even in 59'. If the load is less than the recommended one or with a low level of residual humidity, the cycle is shortened for not over-drying the garments.

ALLERGY CARE

One specific cycle that dries and in the same time helps to reduce the main allergens as dust mites, pet hair, pollens and residual of powder detergents.

CARE 30'/45'/59'

This drying cycle allows you to have items ready in a short time, you can choose to dry them in 30, 45, 59 minutes.

ALL IN ONE

A new innovative cycle to dry different kinds of fabrics in the same time.

The dryer provides an alert when the lightweight fabrics are dry and ready to are taking out (on the display the text AIO blinks for 3 minutes and an acoustic sound i emitted).

After this step it's necessary to press sta again to complete the drying for the leftovers heavier linens.

AUTO CARE

The new Auto Care cycle is the new exclusive program that is capable to adapt its drying technology to the capacity and typology of clothes automatically.

8. TROUBLESHOOTING AND WARRANTY

What might be the cause of...

Defects you can remedy yourself

Before calling Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

● Have you selected the correct drying time/programme?
● Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
- Does the filter need cleaning?
● Is the dryer overloaded?

The dryer does not operate...

• Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.
• Is the plug properly connected to the mains supply?

• Is there a power failure?
  ● Has the fuse blown?
  ● Is the door fully closed?

• Is the dryer switched on, both at the mains supply and at the machine?
  ● Has the drying time or the programme been selected?
  ● Has the machine been switched on again after opening the door?

• Has the machine stopped working because the water container is full and must be emptied?

The dryer is noisy...

- Switch off the dryer and contact Service for advice.

The filter cleaning indicator light is on...

- Does the filter need cleaning?

The water container indicator light is on\*...

- Does the water container need emptying?

* In some models, this will be indicated with a message appearing on the display.

Customer Service

Should there still be a problem with your dryer after completing all the recommended checks, please call Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.
• Has not been installed in accordance with the installation instructions.
  ● Has been used incorrectly.

Spares

Always use genuine spares, available direct from Service.

Service

To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an Authorised Service engineer.

Warranty

The product is guaranteed under the terms and conditions stated on the certificate included with the product. The certificate has to be stored so as to be shown to the Authorized Customer Service Centre in case of need. You can also check the warranty conditions on our web site. To obtain assistance, please fill in the form on-line or contact us at the number indicated on the support page of our web site.

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

The manufacturer declines all responsibility for any printing errors in the booklet included with this product. Moreover, it also reserves the right to make any changes deemed useful to its products without changing their essential characteristics.

Illustration of a hand holding a small mechanical component with an arrow indicating rotational motion (no text or symbols)

Line drawing of a washing machine with airflow indicators (no text or symbols)

Technical diagram of a mechanical component with an arrow indicating upward motion, labeled 'A' (no text or symbols beyond label)

Simple line drawing of a container pouring liquid into a container with a label B (no text or symbols on the diagram itself)

Illustration of hands holding a rectangular panel with a circular pattern inside, next to a circular object (no text or symbols)

Line drawing of a hand holding a rectangular object with a circular mark on the left (no text or symbols)

Simple line drawing of a hand holding a ring over a wooden surface with two circular holes (no text or symbols)

Diagram of a cable outlet with a hand inserting a cable into the socket (no text or symbols)

Mechanical device diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Simple line drawing of a room with a recessed door and ceiling, no text or symbols present

Illustration of a hand inserting a button into a device inside a container (no text or symbols)

Illustration of a water tap above a rectangular tank with a drop, labeled with number 4 (no text or symbols on the diagram itself)

Illustration of a hand inserting a component into a device inside a transparent enclosure (no text or symbols)

Diagram of a device interior with a rectangular chamber and circular top, no text or symbols present

Line drawing of a washing machine with hands adjusting the panel (no text or symbols)

4. CONSEJOS PRÁCTICOS

Illustration of a hand holding a small mechanical component with an arrow indicating rotational motion (no text or symbols)

Line drawing of a washing machine with airflow indicators (no text or symbols)

Cross-sectional diagram of a mechanical component with an upward arrow and circular housing (no text or symbols)

Simple line drawing of a container pouring liquid into a container with a label B (no text or symbols on the diagram itself)

Illustration of hands cleaning a wall-mounted fan with a circular component, no text or symbols present

Illustration of a hand inserting a device into a container with a label B (no text or symbols on the diagram itself)

Line drawing of a hand holding a rectangular object with a circular mark and a small circular mark, no text or symbols present.

Hand holding a ring on a wooden surface with two circular holes, no text or symbols present

Line drawing of a hand inserting cables into a device (no text or symbols)

①

Technical line drawing of a mechanical support structure with no visible text or symbols

②

Simple line drawing of a rectangular enclosure with a label '4 LP' on its side, enclosed in a corner frame (no text or symbols beyond the label)

Diagram of a device with a rectangular box and circular arrows indicating rotation or movement (no text or symbols)

Illustration of a hand pressing a button into a device inside a transparent enclosure (no text or symbols)

Illustration of a water tap with a submerged object, labeled with number 4 (no text or symbols on the diagram itself)

Illustration of a hand pressing a button on a device inside a transparent enclosure (no text or symbols)

Diagram of a room interior with a rectangular chamber and circular ceiling, no text or symbols present

Diagram showing a hand holding a device with a circular component above, labeled with number 7 (no text or symbols on the device itself)

4. CONSEILS PRATIQUES

A SÉLECTEUR DE PROGRAMME avec position ARRÊT
B Bouton DÉPART/PAUSE
C Bouton DÉPART DIFFÉRÉ
D Bouton SÉLECTION DU TEMPS DE CYCLE/RAPIDES
E Bouton ACTIVE DRY
F Bouton de SÉLECTION DU SÉCHAGE
G Bouton ANTI-FROISSAGE
H AFFICHEUR
F+G SÉCURITÉ ENFANT

ATTENTION

ANNULATION DU PROGRAMME CONFIGURE

REVITALISER IMPERMÉABLE
