USER MANUAL HB 3160C NE HOTPOINT

Download the complete instruction manual on http://docs.hotpoint.eu or call the phone number shown on the warranty booklet. Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

WARNING: If the hob surface is cracked, do not

use the appliance - risk of electric shock.

WARNING: Danger of re: Do not store items on

the cooking surfaces. CAUTION: The cooking process has to be supervised. A short cooking process has to be supervised continuously.

WARNING: Unattended cooking on a hob with fat

or oil can be dangerous - risk of re. NEVER try to extinguish a re with water: instead, switch o the appliance and then cover ame e.g. with a lid or a re blanket. Do not use the hob as a work surface or support. Keep clothes or other ammable materials away from the appliance, until all the components have cooled down completely - risk of re. Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. Very young children (0-3 years) should be kept away from the appliance. Young children (3-8years) should be kept away from the appliance unless continuously supervised. Children from 8years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision. After use, switch o the hob element by its control and do not rely on the pan detector.

WARNING: The appliance and its accessible parts

become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. PERMITTED USE CAUTION: the appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system. This appliance is intended to be used in household and similar applications such as: sta kitchen areas in shops, oces and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments. No other use is permitted (e.g. heating rooms). This appliance is not for professional use. Do not use the appliance outdoors. INSTALLATION The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts. Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualied technician. Do not repair or replace any part of the appliance unless specically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of re or electric shock. Only activate the appliance when the installation has been completed. Carry out all cabinet cutting operations before tting the appliance and remove all wood chips and sawdust. If the appliance is not installed above an oven, a separator panel (not included) must be installed in the compartment under the appliance. ELECTRICAL WARNINGS It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards. Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped. Installation using a power cable plug is not allowed unless the product is already equipped with the one provided by the Manufacturer. SAFETY INSTRUCTIONS

IMPORTANT TO BE READ AND OBSERVED

ENIf the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard - risk of electric shock.

CLEANING AND MAINTENANCE

WARNING: Ensure that the appliance is switched

o and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock. Do not use abrasive or corrosive products, chlorine-based cleaners or pan scourers.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol

The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE) and with the Waste Electrical and Electronic Equipment regulations 2013 (as amended). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health. The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

Make the most of your hot plate’s residual heat by switching it o a few minutes before you nish cooking. The base of your pot or pan should cover the hot plate completely; a container that is smaller than the hot plate will cause energy to be wasted. Cover your pots and pans with tight-tting lids while cooking and use as little water as possible. Cooking with the lid o will greatly increase energy consumption. Use only at-bottomed pots and pans.

DECLARATION OF CONFORMITY

This appliance meets Ecodesign requirements of European Regulation 66/2014 and The Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019 in compliance with the European standard EN 60350-2. NOTE People with a pacemaker or similar medical device should use care when standing near this induction cooktop while it is on. The electromagnetic eld may aect the pacemaker or similar device. Consult your doctor, or the manufacturer of the pacemaker or similar medical device for additional information about its eects with electromagnetic elds of the induction cooktop.INSTALLATION

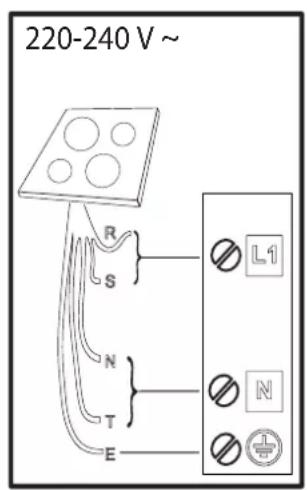

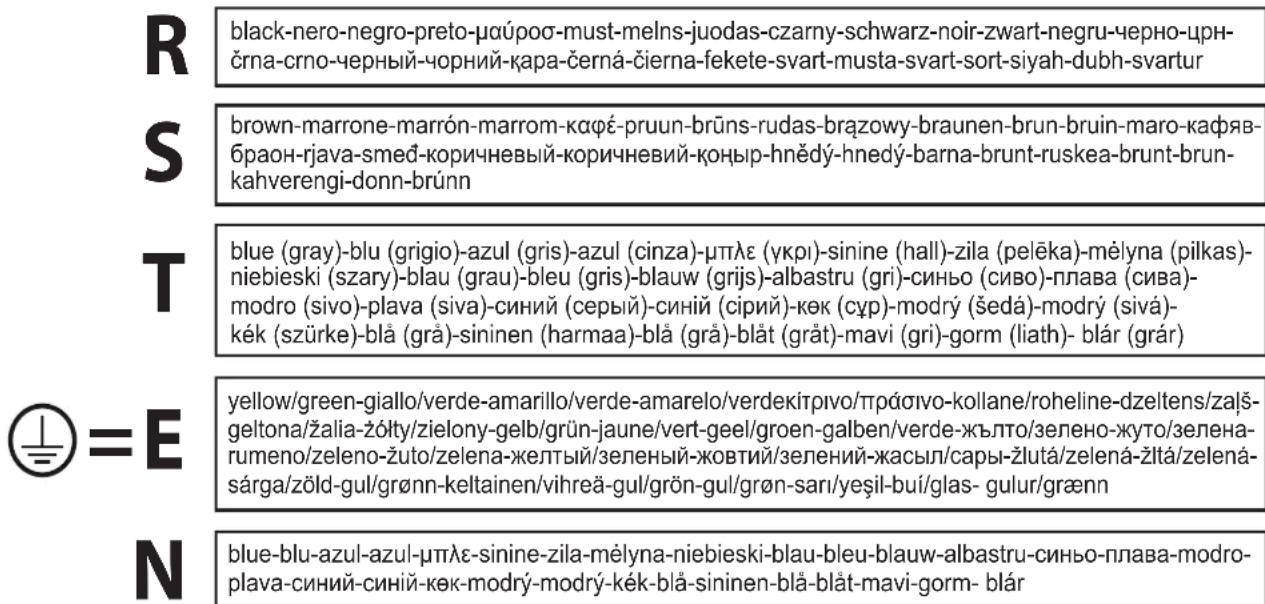

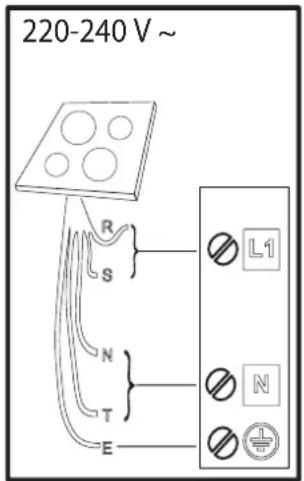

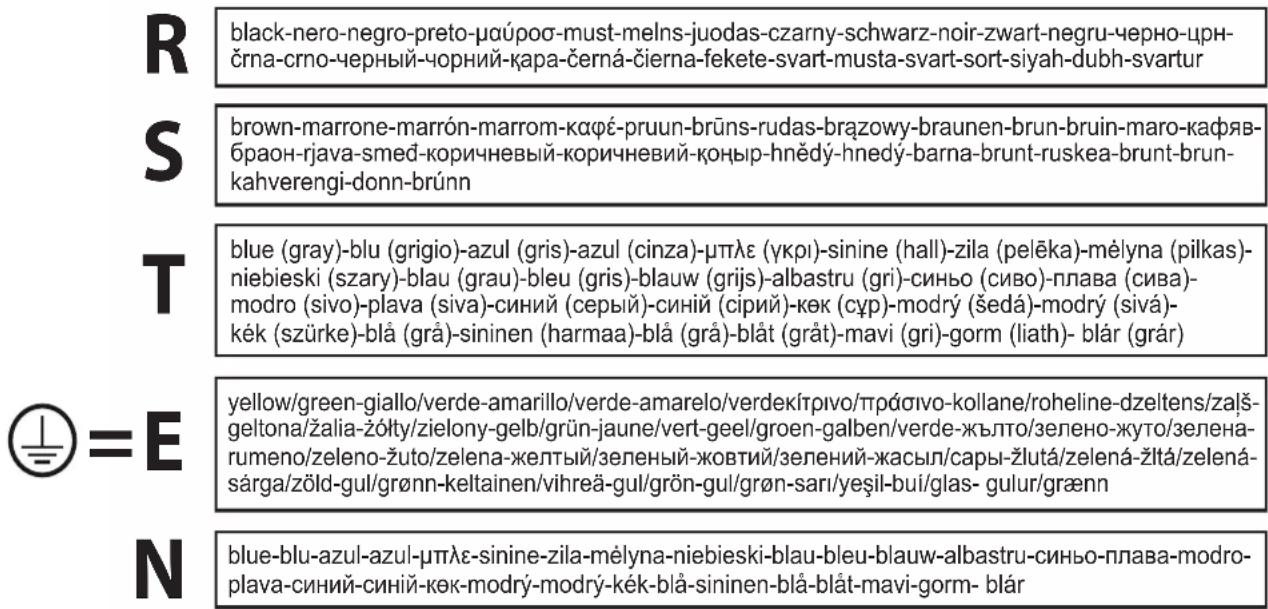

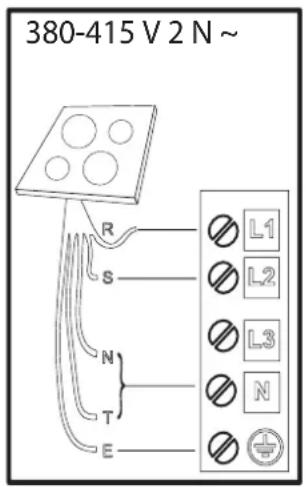

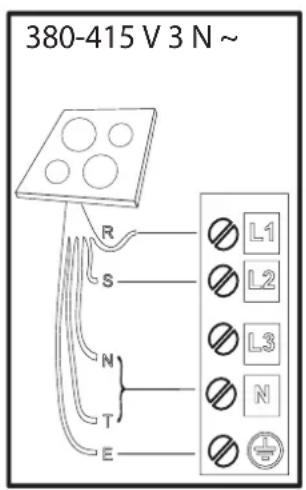

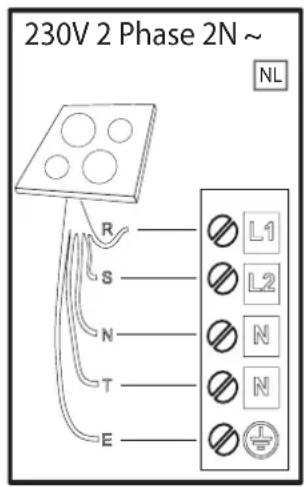

ENELECTRICAL CONNECTION Electrical connection must be made before connecting the appliance to the electricity supply. Installation must be carried out by qualied personnel who know the current safety and installation regulations. Specically, installation must be carried out in compliance with the regulations of the local electricity supply company. Make sure the voltage specied on the data plate located on the bottom of the appliance is the same as that of the home. Regulations require that the appliance be earthed: use conductors (including the earth conductor) of the appropriate size only. blue-blu-azul-azul-μπλε-sinine-zila-mėlyna-niebieski-blau-bleu-blauw-albastru-синьо-плава-modro- plava-синий-синій-көк-modrý-modrý-kék-blå-sininen-blå-blåt-mavi-gorm- blár

POWER MANAGEMENT At the time of purchase, the hob is set to the maximum possible power. Adjust the setting concerning the limits of your home's electrical system as described in the following paragraph. N.B: Depending on the power selected for the hob, some of the cooking zone power levels and functions (e.g. boil or fast heating) could be automatically limited to prevent the selected limit from being exceeded. To set the power of the hob: Once you have connected the device to the mains power supply, you can set the power level within 60seconds. Press the far right timer ”+” button for at least 5 seconds. The display shows ”PL”. Press the 3 sec

button to conrm. Use the “+“ and

buttons to select the desired power level. The power levels available are: 2.5 kW – 4.0 kW – 6.0 kW – 7.2 kW. Conrm by pressing 3 sec

The power level selected will stay in the memory even if the power supply is interrupted. To change the power level, disconnect the appliance from the mains for at least 60 seconds, plug it back in, and repeat the above steps. If an error occurs during the setting sequence, the ”EE” symbol will appear, and you will hear a beep. If this happens, repeat the operation. If the error persists, contact the After-Sales Service.

ACOUSTIC SIGNAL ON/OFF

To switch the acoustic signal on/o:

• Connect the hob to the power supply;

• Wait for the switch-on sequence;

• Press the “P“ button of the rst keypad at the top left for 5seconds. Any alarms set will remain active. DEMO MODE (reheating deactivated, see the section on ”Troubleshooting”) To switch the demo mode on and o:

• Connect the hob to the power supply;

• Wait for the switch-on sequence;

• Within the rst minute, press the fast heating button “P“ of the bottom left keypad for 5seconds (as shown below).

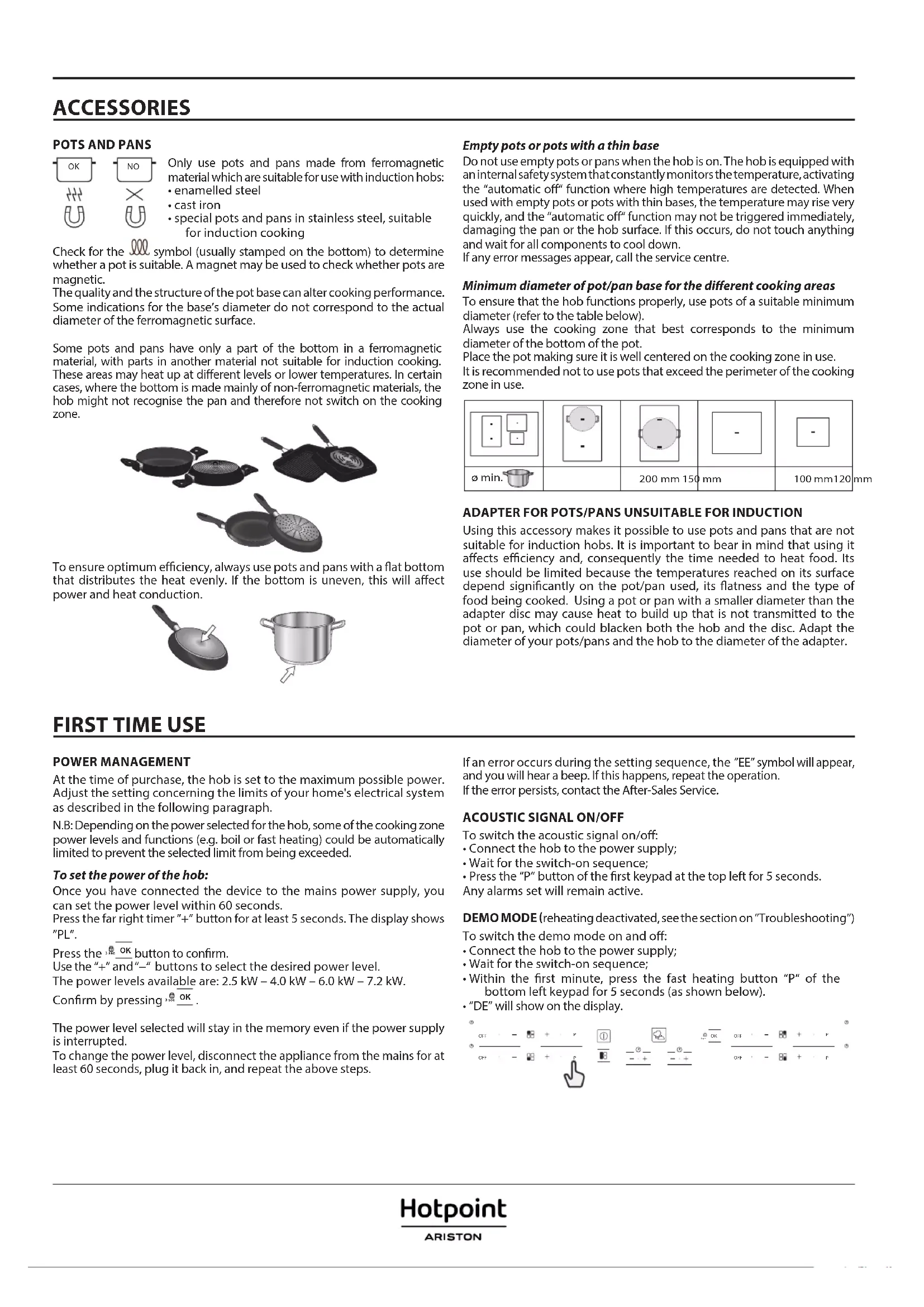

Only use pots and pans made from ferromagnetic material which are suitable for use with induction hobs:

• special pots and pans in stainless steel, suitable for induction cooking Check for the symbol (usually stamped on the bottom) to determine whether a pot is suitable. A magnet may be used to check whether pots are magnetic. The quality and the structure of the pot base can alter cooking performance. Some indications for the base’s diameter do not correspond to the actual diameter of the ferromagnetic surface. Some pots and pans have only a part of the bottom in a ferromagnetic material, with parts in another material not suitable for induction cooking. These areas may heat up at dierent levels or lower temperatures. In certain cases, where the bottom is made mainly of non-ferromagnetic materials, the hob might not recognise the pan and therefore not switch on the cooking zone. To ensure optimum eciency, always use pots and pans with a at bottom that distributes the heat evenly. If the bottom is uneven, this will aect power and heat conduction. NOOK Empty pots or pots with a thin base Do not use empty pots or pans when the hob is on. The hob is equipped with an internal safety system that constantly monitors the temperature, activating the “automatic o“ function where high temperatures are detected. When used with empty pots or pots with thin bases, the temperature may rise very quickly, and the “automatic o“ function may not be triggered immediately, damaging the pan or the hob surface. If this occurs, do not touch anything and wait for all components to cool down. If any error messages appear, call the service centre. Minimum diameter of pot/pan base for the dierent cooking areas To ensure that the hob functions properly, use pots of a suitable minimum diameter (refer to the table below). Always use the cooking zone that best corresponds to the minimum diameter of the bottom of the pot. Place the pot making sure it is well centered on the cooking zone in use. It is recommended not to use pots that exceed the perimeter of the cooking zone in use. 100 mm120 mm

mm 150 mm ø min. ADAPTER FOR POTS/PANS UNSUITABLE FOR INDUCTION Using this accessory makes it possible to use pots and pans that are not suitable for induction hobs. It is important to bear in mind that using it aects eciency and, consequently the time needed to heat food. Its use should be limited because the temperatures reached on its surface depend signicantly on the pot/pan used, its atness and the type of food being cooked. Using a pot or pan with a smaller diameter than the adapter disc may cause heat to build up that is not transmitted to the pot or pan, which could blacken both the hob and the disc. Adapt the diameter of your pots/pans and the hob to the diameter of the adapter.DAILY USE

SWITCHING THE HOB ON/OFF

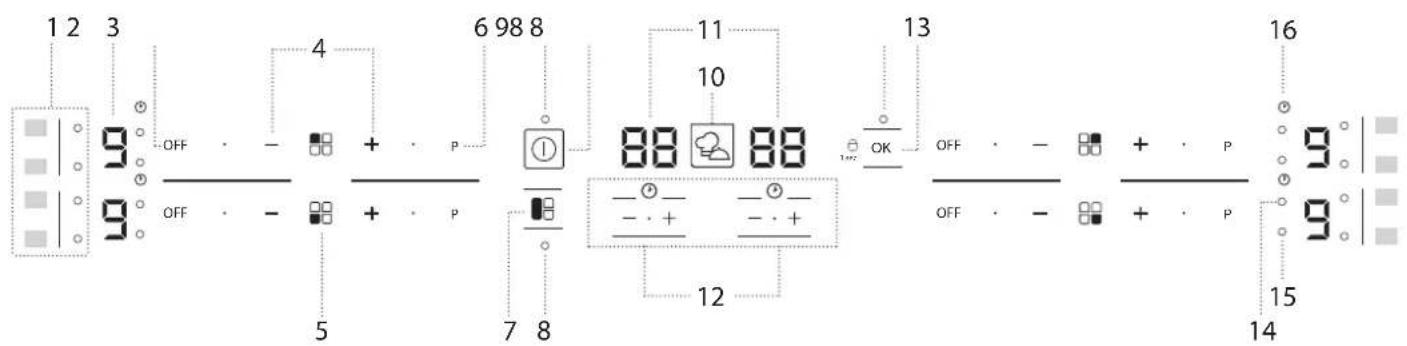

To turn the hob on, press the power button for around 1 second. To turn the hob o, press the same button again, and all cooking zones will be deactivated. POSITIONING Locate the desired cooking zone by referring to the position symbols. Do not cover the control panel symbols with the cooking pot. Please note: In the cooking zones close to the control panel, it is advisable to keep pots and pans inside the markings (taking both the bottom of the pan and the upper edge into consideration, as this tends to be larger). This prevents excessive overheating of the keypad. When grilling or frying, please use the rear cooking zones wherever possible.

To activate the cooking zones: Press the “+“ or “−“ button of the required cooking zone to activate it and adjust the power. The level will be shown in line with the area and the indicator light identifying the active cooking zone. The ”P” button can be used to select the fast heating function (Booster). To deactivate the cooking zones: Press the “OFF“ button to the left of the power adjustment. 3 sec

To lock the settings and prevent it from accidentally switching on, press and hold the OK/Key lock button for 3seconds. A beep and a warning light above the symbol indicate that this function has been activated. The control panel is locked except for the switching o function ( ). To unlock the controls, repeat the activation procedure. TIMER There are two timers - one controls the left-hand cooking zones, while the other controls the right-hand cooking zones. To activate the timer: Press the “+“ or “−“ button to set the desired time on the cooking zone in use. An indicator light will be activated in line with the specic symbol . Once the set time has elapsed, a beep will sound, and the cooking zone will switch o automatically. The time can be changed at any point, and several timers can be activated simultaneously. In case 2 timers on the same side of the hob are activated simultaneously, “Zone selection indicator“ ashes and the relative cooking time selected is displayed on the central display“. To deactivate the timer: Press the

buttons together until the timer is deactivated. TIMER INDICATOR This LED (when ON) indicates that the timer has been set for the cooking zone. FUNCTIONS FLEXI DUO By selecting the “ FLEXI DUO “ button, you can combine two cooking zones and use them at the same power by covering the entire surface with a large pot or partially with a round/oval pot. The function always remains on and, when using only one pot, can be moved over the entire area. In this case, both left-hand keypads can be used indierently. Ideal for cooking with oval or rectangular pots or with pan supports. To deactivate the function, press the ” FLEXI DUO ” button. N.B. Special functions cannot be selected when using this feature. IMPORTANT: Place the pots in the center of the cooking zone so that they cover at least one of the reference points (as shown below). MYMENU The “Mymenu“ button activates the special functions. Place the pot in position and select the cooking zone. Press the “Mymenu“ button. The display of the selected area will show ”A”. The indicator for the rst special feature available for the cooking zone will light up. Select the desired special function by pressing the “Mymenu“ button one or more times. The function is activated once the 3 sec

button has been pressed to conrm. To select another special function, press ”OFF” and then the ”Mymenu” button to choose the required function. To deactivate the special functions and return to manual mode, press ”OFF”. The power level when using special functions is pre-set by the hob and cannot be modied. MELTING This function allows you to bring food to the ideal temperature for melting and maintain the food condition without the risk of burning. This method is ideal, as it does not damage delicate foods such as chocolate and prevents them from sticking to the pot. ENKEEP WARM This feature allows you to keep your food at an ideal temperature, usually after cooking is complete or reducing liquids very slowly. Ideal for serving foods at the perfect temperature. SLOW COOKING This function is ideal for maintaining a simmering temperature, allowing you to cook food for long periods with no risk of burning. Ideal for long-cooking recipes (rice, sauces, roasts) with liquid sauces. BOILING This function allows you to bring water to the boil and keep it boiling, with lower energy consumption. About 2 litres of water (preferably at room temperature) should be placed in the pan. In all cases, users are advised to monitor the boiling water closely and check the amount of water remaining regularly. If the pots are big and the water quantity is higher than 2 litres, we recommend using a lid to optimize boiling time.

POWER LEVEL TYPE OF COOKING

LEVEL USE (indicating cooking experience and habits) Maximum power P Fast heating/Booster Ideal for rapidly increasing food temperature to a fast boil (for water) or for rapidly heating cooking liquids.

boiling Ideal for browning, starting to cook, frying deep frozen products, fast boiling. High power

grilling Ideal for sautéing, maintaining a lively boil, cooking and grilling (for a short period of time, 5-10 minutes).

grilling Ideal for sautéing, maintaining a light boil, cooking and grilling (for a medium period of time, 10-20 minutes), preheating accessories. Medium power

grilling Ideal for stewing, maintaining a gentle boil, cooking (for a long period of time). Creaming pasta.

creaming Ideal for long-cooking recipes (rice, sauces, roasts, sh) with liquids (e.g. water, wines, broth, milk), creaming pasta.

Ideal for long-cooking recipes (less than a litre in volume: rice, sauces, roasts, sh) with liquids (e.g. water, wines, broth, milk). Low power

creaming Ideal for softening butter, gently melting chocolate, thawing small products and keeping just-cooked food warm (e.g. sauces, soups, minestrone).

Ideal for keeping just-cooked food warm, for creaming risottos and for keeping serving dishes warm (with induction-suitable accessory). Zero power OFF Support surface Hob in stand-by or o mode (possible end-of-cooking residual heat, indicated by an “H“). COOKING TABLE INDICATORS RESIDUAL HEAT If “H“ appears on the display, this means that the cooking zone is hot. The indicator lights up even if the zone has not been activated but has been heated due to the adjacent zones' use or because a hot pot has been placed on it. When the cooking zone has cooled down, the ”H” disappears.

POT INCORRECTLY POSITIONED OR MISSING

This symbol appears if the pot is not suitable for induction cooking, is not positioned correctly or is not of an appropriate size for the cooking zone selected. If no pot is detected within 30seconds of making the selection, the cooking zone switches o. The cooking table oers an example of the cooking type for each power level. The actual delivered power of each power level depends on the cooking zone dimension.MAINTENANCE AND CLEANING

• Do not use steam cleaning equipment.

• Before cleaning, make sure the cooking zones are switched o and that the residual heat indicator (”H”) is not displayed. Important:

• Do not use abrasive sponges or scouring pads as they may damage the glass.

• After each use, clean the hob (when it is cool) to remove any deposits and stains from food residue.

• A surface that is not kept suitably clean may reduce the sensitivity of control panel buttons.

• Use a scraper only if residues are stuck to the hob. Follow the scraper manufacturer's instructions to avoid scratching the glass.

• Sugar or foods with high sugar content can damage the hob and must be immediately removed.

• Salt, sugar and sand could scratch the glass surface.

• Use a soft cloth, absorbent kitchen paper or a special hob cleaner (follow the Manufacturer’s instructions).

• Spills of liquid in the cooking zones can cause the pots to move or vibrate.

• After cleaning the hob, dry thoroughly. TROUBLESHOOTING

• Check that the electricity supply has not been shut o.

• If you cannot turn the hob o after using it, disconnect it from the power supply.

• If alphanumeric codes appear on the display when the hob is switched on, consult the following table for instructions. Please note: The presence of water, liquid spilled from pots or any objects resting on any of the hob buttons can accidentally activate or deactivate the control panel lock function.

DISPLAY CODE DESCRIPTION POSSIBLE CAUSES SOLUTION

F0E1 Cookware is detected but it is not compatible with requested operation. The cookware is not well positioned on the cooking zone, or it is not compatible with one or more cooking zones. Press On/O button twice to remove the F0E1 code and restore the functionality of the cooking zone. Then, try to use the cookware with a dierent cooking zone, or use dierent cookware. F0E7 Wrong power cord connection. The power supply connection is not exactly as indicated in “ELECTRICAL CONNECTION“ paragraph

Adjust the power supply connection according to “ELECTRICAL CONNECTION“ paragraph

F0EA The control panel switches o because of excessively high temperatures. The internal temperature of electronic parts is too high. Wait for the hob to cool down before using it again. F0E9 The cooking zone turns o when the temperatures are too high. The internal temperature of electronic parts is too high. Wait until the cooking area has cooled o before using it again. F0E2, F0E4, F0E6, F0E8, F0EC, F1E1, F2E1, F6E1, F6E3, F7E5, F7E6 Disconnect the hob from the power supply. Wait a few seconds then reconnect the hob to the power supply. If the problem persists, call the service centre and specify the error code that appears on the display. d E [when the hob is off] The hob does not switch heat up. The functions do not come on. DEMO MODE on. Follow the instructions in the “DEMO MODE“ paragraph. e.g.

The hob does not allow a special function to be activated. The power regulator limits the power levels in accordance with the maximum value set for the hob. See paragraph “Power management“. e.g.

Power level lower than level requested

The hob automatically sets a minimum power level to ensure that the cooking zone can be used. The power regulator limits the power levels in accordance with the maximum value set for the hob. See paragraph “Power management“. EN400011660884 Induction hobs may whistle or creak during normal operation. These noises actually come from the cookware and are linked to the pan bottoms' characteristics (for example, when the bottoms are made from dierent layers of material or are irregular). These noises may vary according to the type of cookware used, and to the amount of food, it contains and are not the symptom of something wrong.

SOUNDS PRODUCED DURING OPERATION

AFTERSALES SERVICE To receive complete assistance, please register your product on www.hotpoint.eu/register. BEFORE CALLING THE AFTER-SALES SERVICE:

1. See if you can solve the problem by yourself with the help of the

TROUBLESHOOTING suggestions.

2. Switch the appliance o and back on again to see if the fault persists.

IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH WITH THE NEAREST AFTER-SALES SERVICE. To receive assistance, call the number shown on the warranty booklet or follow the website's instructions on www.hotpoint.eu . When contacting our Client After sales service, always specify:

• a brief description of the fault;

• the type and exact model of the appliance; XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXMade in X Type: XXXMod.: XXX
