Product Type	Roof Snow Rake
Brand	Snow Joe
Model	RJ205M
Blade Material	Aluminum
Handle Material	Aluminum
Telescopic Handle Length	1.9 m to 6.4 m
Clearing Width	63.5 cm
Rake Head Height	15.2 cm
Height Reach	3.7 m to 8.2 m
Net Weight	2.6 kg
Power Source	Manual (non-motorized)
Usage	Outdoor, roof snow removal
Warranty	2 years (residential use)
Assembly Required	Yes, attachment of head and telescopic handle
Maintenance	Clean after use, store with protective cap
Included Parts	Handle, rake head, metal spacers, Allen key, fork wrench, screws, lock nuts
Customer Service	1-866-SNOWJOE (1-866-766-9563)
Product Registration	Recommended at snowjoe.com/register

Frequently Asked Questions - RJ205M Snow Joe

How to assemble the RJ205M roof snow rake?

Remove the shipping cap from the handle, unscrew the handle knob, and extend the handle until the holes appear. Press the buttons at the end of the handle to insert it into the rake head. Secure the metal spacers with the screws and Allen key, then the long screw with the fork wrench.

How to adjust the telescopic handle length?

Turn the handle knob clockwise to extend the handle, then counterclockwise to lock it at the desired length.

What is the weight of the unit?

The net weight of the Snow Joe RJ205M rake is 2.6 kg.

What is the maximum height reach?

The height reach is adjustable from 3.7 m to 8.2 m thanks to the telescopic handle.

What material is the blade made of?

The rake head blade is made of aluminum, as is the handle.

How to maintain the rake after use?

Clean the blade and handle, then replace the shipping cap on the end of the handle to protect the rake during storage.

What to do if a part is missing or defective?

Contact Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE (1-866-766-9563) or by email at [e-mail] to get a free replacement part under warranty.

Does the warranty cover wear parts?

No, the 2-year limited warranty does not cover wear parts such as belts, augers, chains, and tines. These can be purchased at snowjoe.com.

Can I use this rake on surfaces other than roofs?

This rake is designed for roof snow removal. Use on other surfaces is not recommended and may damage the tool or the surface.

Where can I buy replacement parts?

Replacement parts can be purchased online at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

USER MANUAL RJ205M Snow Joe

Abstract black and white logo design resembling a stylized 'S' or wave (no text or symbols)

21-FOOT TWIST-N-LOCK TELESCOPING

SNOW SHOVEL ROOF RAKE

WITH ALUMINUM HEAD

Line drawing of a hand-cockled tool with a handle and metal chain (no text or symbols)

If you have any questions or comments, please call the Snow Joe® + Sun Joe® customer service department at:

Technical line drawing of a two-legged mop handle with metal bands and a separate handle, labeled with number 1 (no text or symbols on the diagram itself)

Technical diagram of a mechanical component with numbered parts for identification

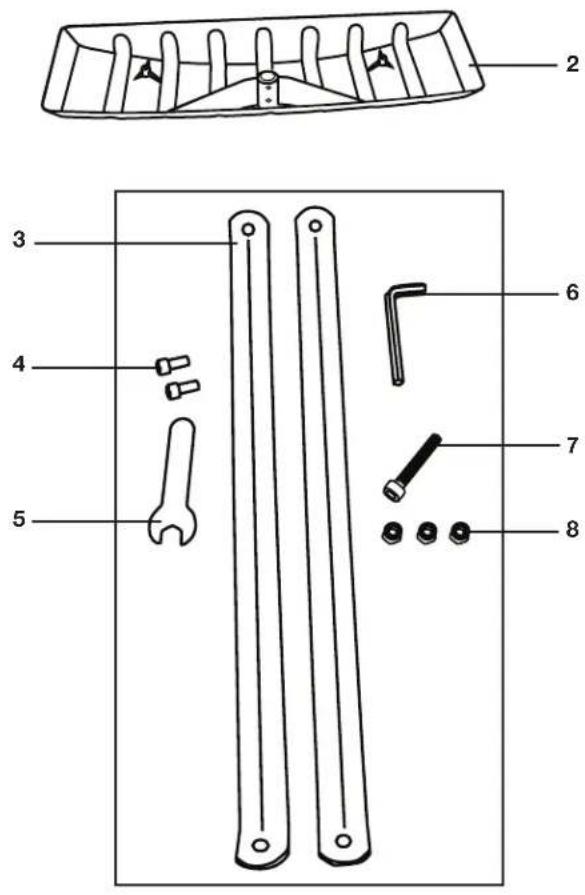

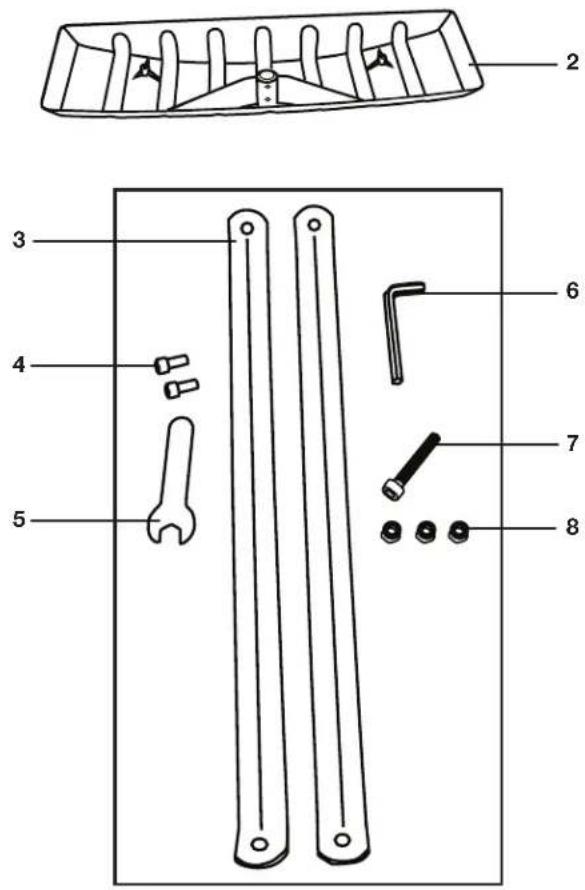

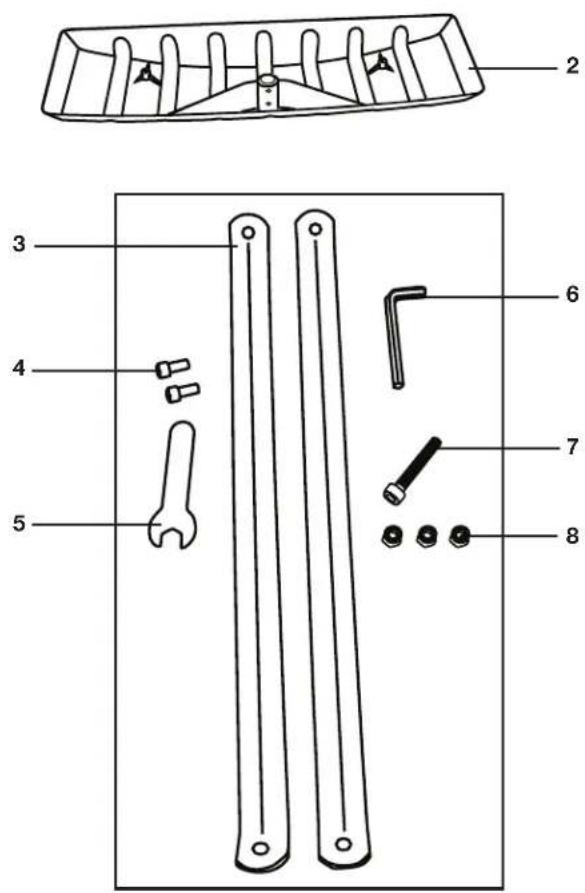

1. Handle 5. Open end wrench
2. Roof rake head 6. Hex key wrench
3. Metal braces (2) 7. Long hex screw
4. Short hex screws (2) 8. Locking nuts (3)

Technical Data

Blade Material ...... Aluminum

Pole Material....Aluminum

Telescopic Pole 6.2 ft to 21 ft (1.9 m to 6.4 m)

Clearing Width.... 25 in. (63.5 cm)

Rake Head Height 6 in. (15.2 cm)

Overhead Reach....12.2 ft to 27 ft (3.7 m to 8.2 m)

Net Weight.... 5.7 lbs (2.6 kg)

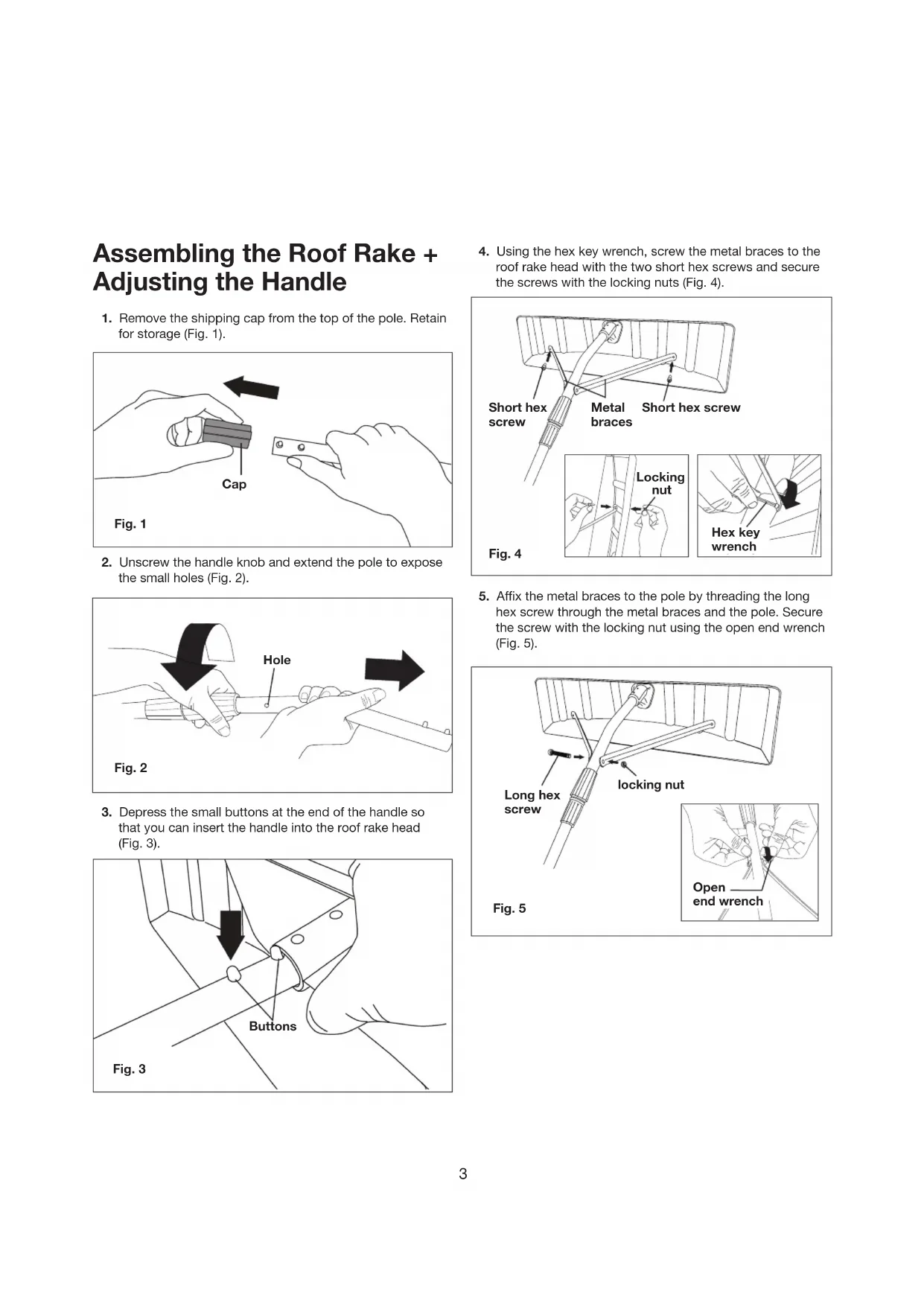

Assembling the Roof Rake + Adjusting the Handle

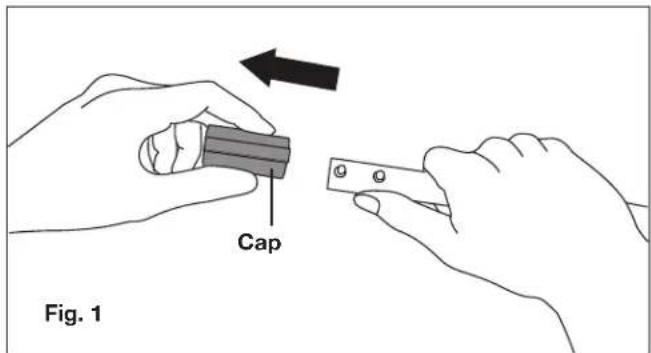

1. Remove the shipping cap from the top of the pole. Retain for storage (Fig. 1).

Cap Fig. 1

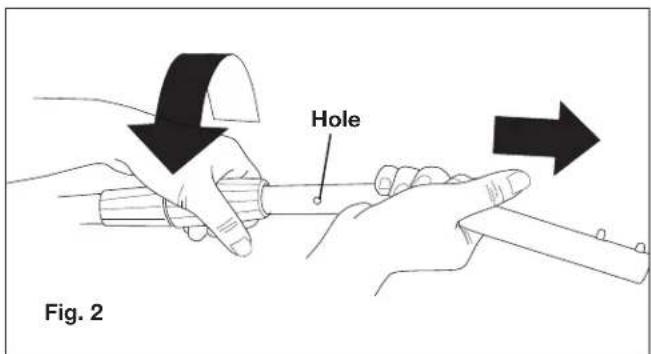

1. Unscrew the handle knob and extend the pole to expose the small holes (Fig. 2).

Hole Fig. 2

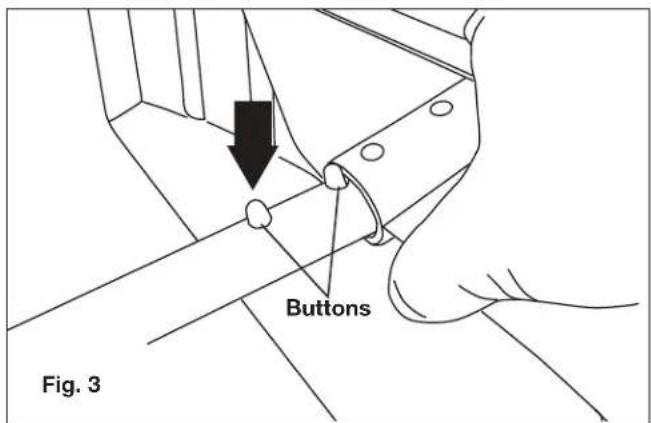

1. Depress the small buttons at the end of the handle so that you can insert the handle into the roof rake head (Fig. 3).

Buttons Fig. 3

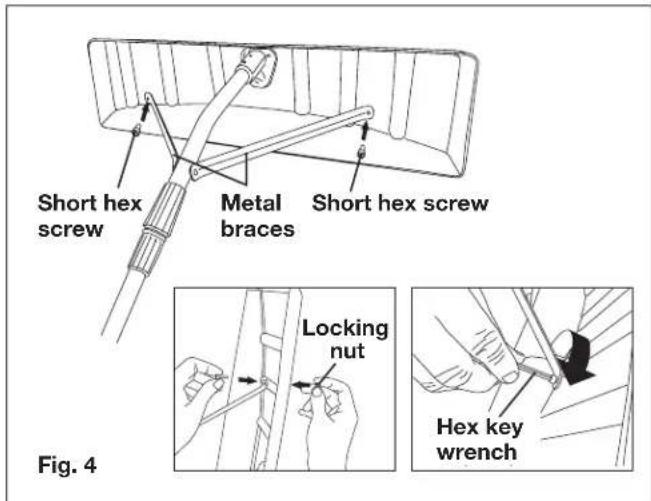

1. Using the hex key wrench, screw the metal braces to the roof rake head with the two short hex screws and secure the screws with the locking nuts (Fig. 4).

Short hex screw Metal braces Short hex screw Locking nut Hex key wrench Fig. 4

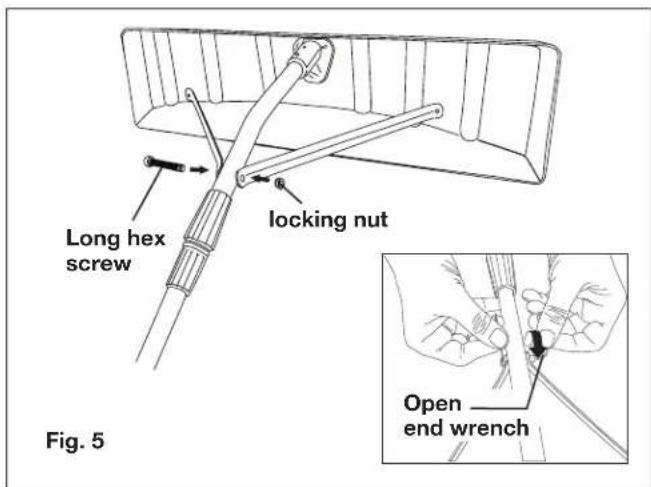

1. Affix the metal braces to the pole by threading the long hex screw through the metal braces and the pole. Secure the screw with the locking nut using the open end wrench (Fig. 5).

Long hex screw locking nut Fig. 5 Open end wrench

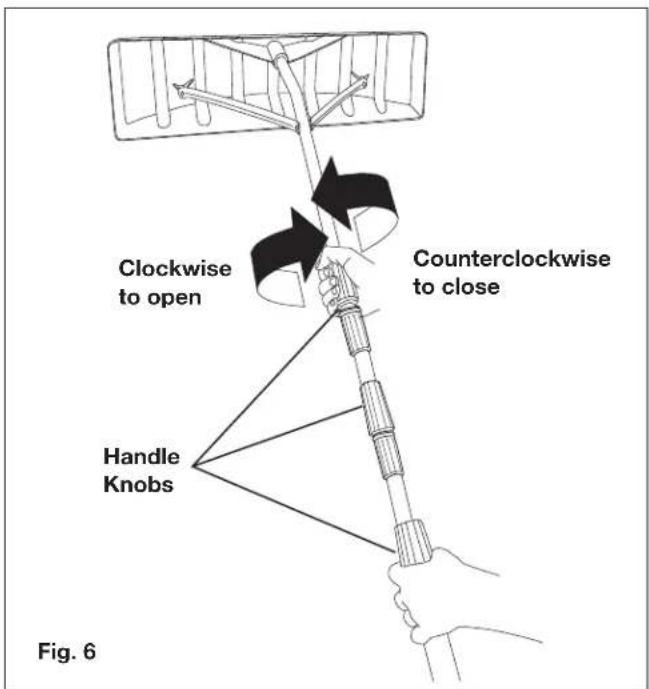

1. Lengthen the telescopic pole by rotating the handle knob clockwise and extending the pole to the desired length. Secure in position by twisting the knob counterclockwise (Fig. 6).

Clockwise to open Counterclockwise to close Handle Knobs Fig. 6

NOTE: If you have any questions, please call the Snow Joe® + Sun Joe® customer service department at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Abstract gray logo design with a stylized 'S' inside an oval shape (no text or symbols)

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

Technical line drawing of a two-legged mop handle with a handle, shown from top and side views (no text or symbols)

Technical diagram of a mechanical component with numbered parts for identification

Abstract gray logo design with a stylized 'S' inside an oval shape (no text or symbols)

LA PROMESA DE SNOW JOE® + SUN JOE® AL CLIENTE

Technical line drawing of a two-legged mop handle and a vertical rod with a handle, shown from different angles (no text or symbols)

Technical diagram of a mechanical component with numbered parts for identification

Abstract gray logo design with a stylized 'S' inside an oval (no text or symbols)

LA PROMESSE DE SNOW JOE® + SUN JOE® À SES CLIENTS
