USER MANUAL U325000IND Tripp Lite
Industrial Connectivity Solutions
Model Series: N206-XXX-IND, P569-XXX-IND, U325-XXX-IND, N200P-XXX-IND, N455-XXX-IND, N820-XXX-IND See page 2 for a complete model listing.
Tripp Lite's industrial connectivity solutions comply with the IP44 standard for protection against water intrusion on all sides, as well the IP68 standard for protection against invasive dust, dirt and sand, and submersion in up to 1.5m of water for up to 60 minutes.
Note: Certain product combinations are needed to achieve IP44 and/or IP68 standards. See section 4. Product Combinations for IP44 and IP68 Protection for more information. IP68 Protection rating is based on manufacturer's guarantee.
Espanol 13 • Français 25 • Pycckn 37
WARRANTY REGISTRATION
Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!
tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Table of Contents
Industrial Connectivity Solutions Complete Product Listing 3
- N206-SB01-IND Surface Box Dimensions 4
- Industrial Bulkhead Coupler Installation 5 (N206-BC01-IND, U325-000-IND, P569-000-FF-IND, N455-BC01-IND)
- Industrial Keystone Jack Installation (N206-KJ01-IND) 7
- Product Combinations for IP44 and IP68 Protection 10 Warranty and Product Registration 11
Industrial Connectivity Solutions
Complete Product Listing
Industrial Faceplates
N206-FP01-IND (1 Cutout)
N206-FP02-IND (2 Cutouts)
N206-FP04-IND (4 Cutouts)
Industrial Surface Mount Box
N206-SB01-IND
Bulkhead Couplers and
Keystone Jacks
N206-BC01-IND
(Cat5e/6 Bulkhead Coupler)
N206-KJ01-IND (Keystone Jack)
U325-000-IND (USB 3.0 Coupler)
P569-000-FF-IND (4K HDMI Coupler)
N455-BC01-IND
(Multimode Fiber LC/LC Coupler)
Industrial Patch Cables & 4PPoE (90W) Cables
N206-PC03-IND
(3 ft. Cat5e/6 Patch Cable)
N206-PC10-IND
(10 ft. Cat5e/6 Patch Cable)
N206-PC16-IND
(16 ft. Cat5e/6 Patch Cable)
N206-PC23-IND
(23 ft. Cat5e/6 Patch Cable)
N206-PC33-IND
(33 ft. Cat5e/6 Patch Cable)
N206-PC50-IND
(50 ft. Cat5e/6 Patch Cable)
N200P-003BL-IND
(3 ft. Cat6 4PPoE Cables)
N200P-01OBL-IND
(10 ft. Cat6 4PPoE Cables)
N200P-016BL-IND
(16 ft. Cat6 4PPoE Cables)
N200P-023BL-IND
(23 ft. Cat6 4PPoE Cables)
N200P-033BL-IND
(33 ft. Cat6 4PPoE Cables)
Industrial Patch Cables &
4PPoE (90W) Cables (continued)
N200P-050BL-IND
(50 ft. Cat6 4PPoE Cables)
Industrial USB 3.0 Cables
U325-003-IND (3 ft. USB 3.0 Cable)
U325-006-IND (6 ft. USB 3.0 Cable)
U325-010-IND (10 ft. USB 3.0 Cable)
U325-013-IND (13 ft. USB 3.0 Cable)
Industrial 4K HDMI Cables
P569-003-IND (3 ft. 4K HDMI Cable, 1 water-resistant connector)
P569-006-IND (6 ft. 4K HDMI Cable, 1 water-resistant connector)
P569-010-IND (10 ft. 4K HDMI Cable, 1 water-resistant connector)
P569-012-IND (12 ft. 4K HDMI Cable, 1 water-resistant connector)
P569-003-IND2 (3 ft. 4K HDMI Cable, 2 water-resistant connectors)
P569-006-IND2 (6 ft. 4K HDMI Cable, 2 water-resistant connectors)
P569-010-IND2 (10 ft. 4K HDMI
Cable, 2 water-resistant connectors)
P569-012-IND2 (12 ft. 4K HDMI
Cable, 2 water-resistant connectors)
Industrial Duplex Multimode Fiber Patch Cables
N820-01M-IND
(1 m LC/LC Fiber Patch Cables)
N820-02M-IND
(2 m LC/LC Fiber Patch Cables)
N820-05M-IND
(5 m LC/LC Fiber Patch Cables)
N820-10M-IND
(10 m LC/LC Fiber Patch Cables)
Waterproof Cable Assembly Kit
N206-WK01-IND

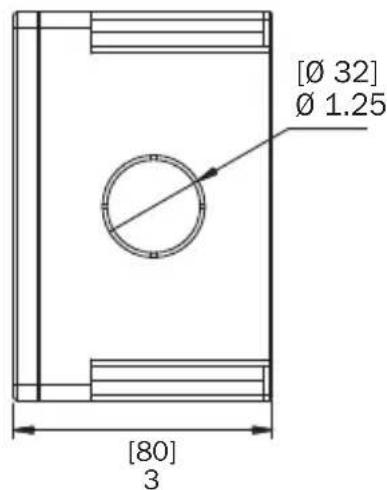

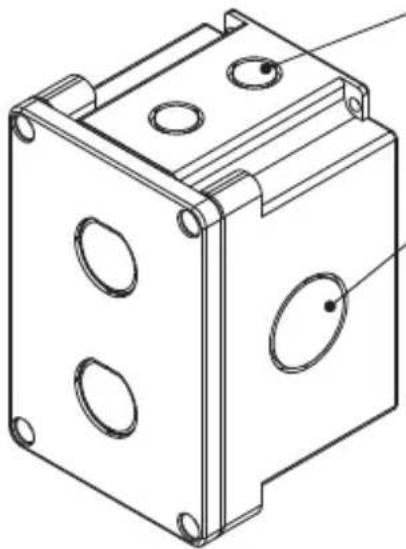

1. N206-SB01-IND Surface Mount Box Dimensions
Dimensions: [mm] INCHES
Knockout for 0.5"
(M16) Cable
Knockout for 1.25"
(M32) Conduit

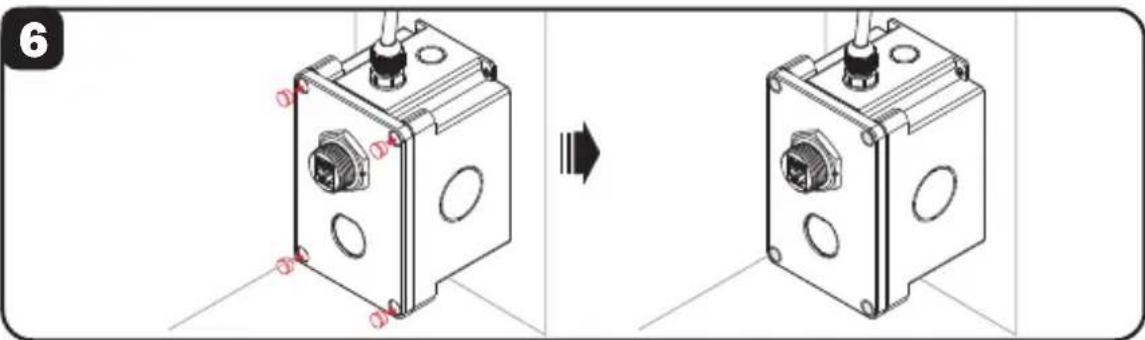

2. Industrial Bulkhead Coupler Installation (N206-BC01-IND, U325-000-IND, P569-000-FF-IND and N455-BC01-IND)
Note: USB, HDMI and fiber solutions are also available. Screwdriver not included. Additional tools may be required to remove knockouts.
2. Industrial Bulkhead Coupler Installation (N206-BC01-IND, U325-000-IND, P569-000-FF-IND and N455-BC01-IND)

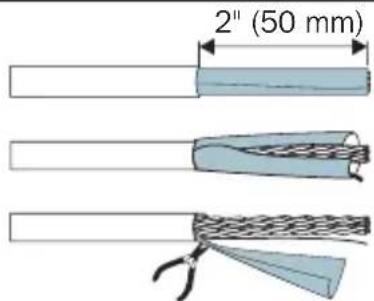

3. Industrial Keystone Jack Installation (N206-KJ01-IND)

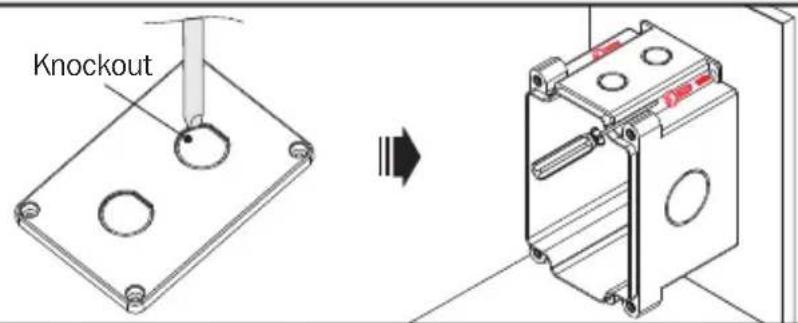

Note: Additional tools may be required to remove knockouts.
1
2

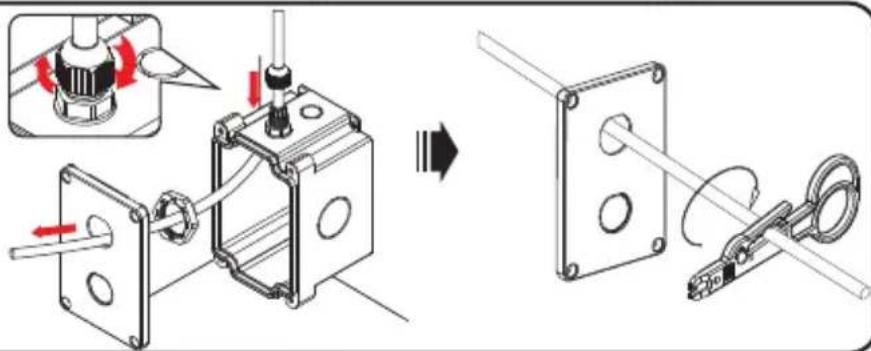

Note: Use the included 0.5^ (M16) cable glands to complete this step.
3
4

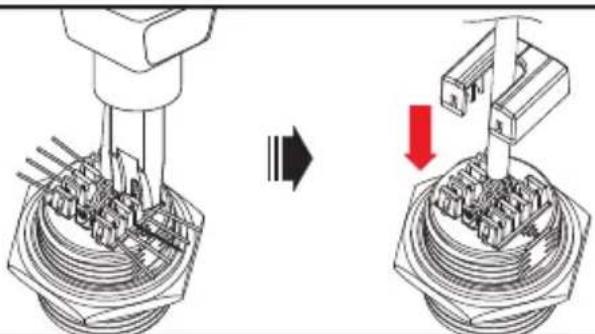

3. Industrial Keystone Jack Installation
(N206-KJ01-IND)

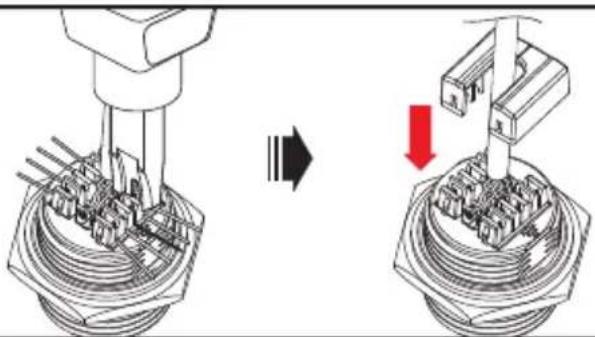

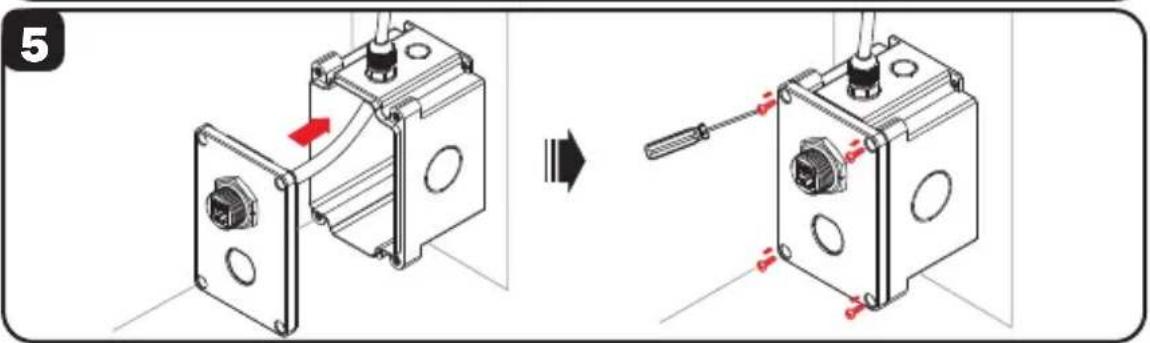

5
6

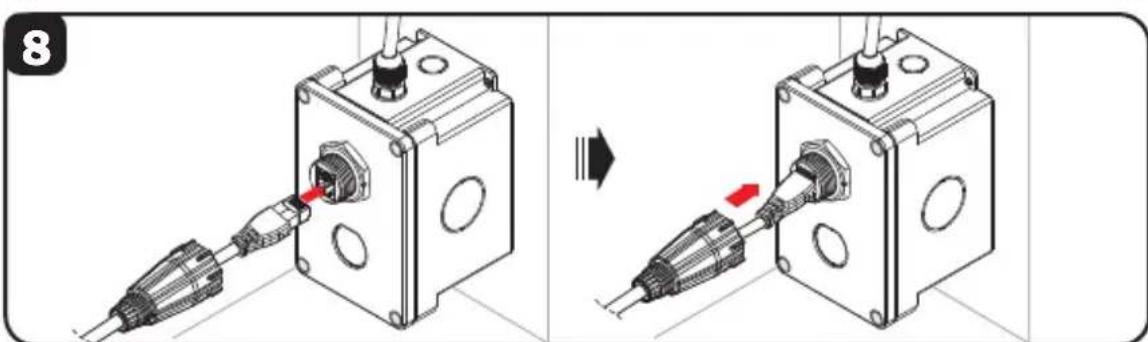

7
8

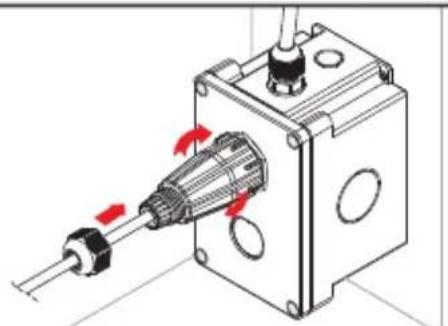

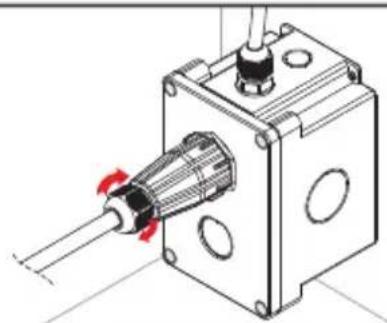

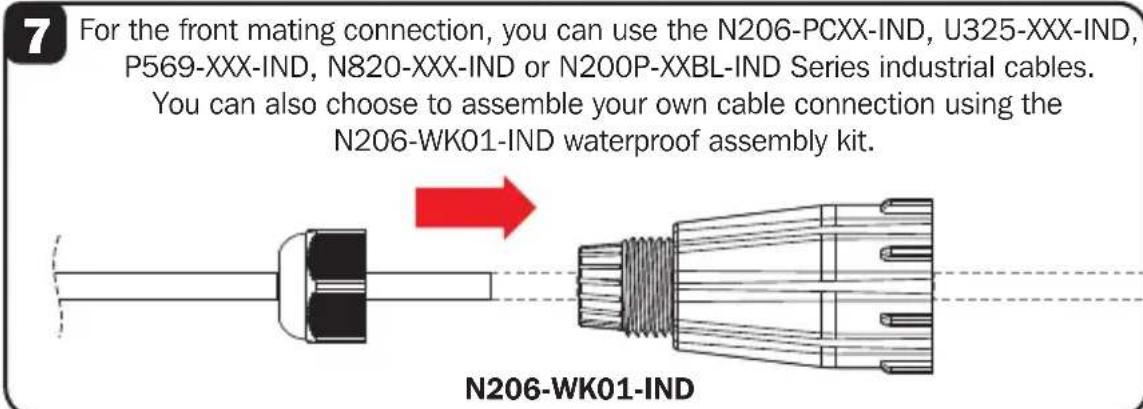

For the front mating connection, you can use N206-PCXX-IND Series industrial cables. You can also choose to assemble your own cable connection using the N206-WK01-IND waterproof assembly kit.

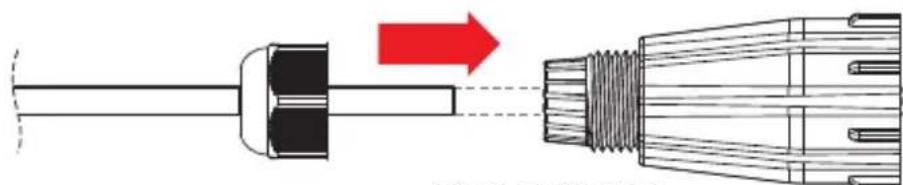

N206-WK01-IND

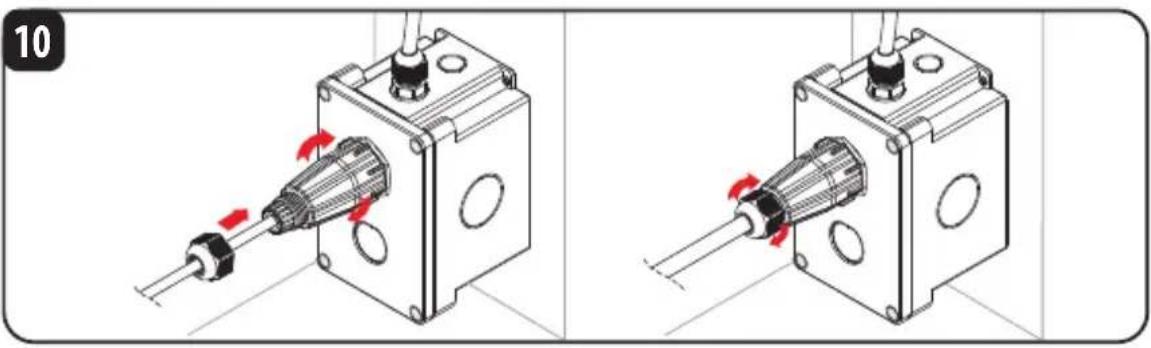

3. Industrial Keystone Jack Installation
(N206-KJ01-IND)

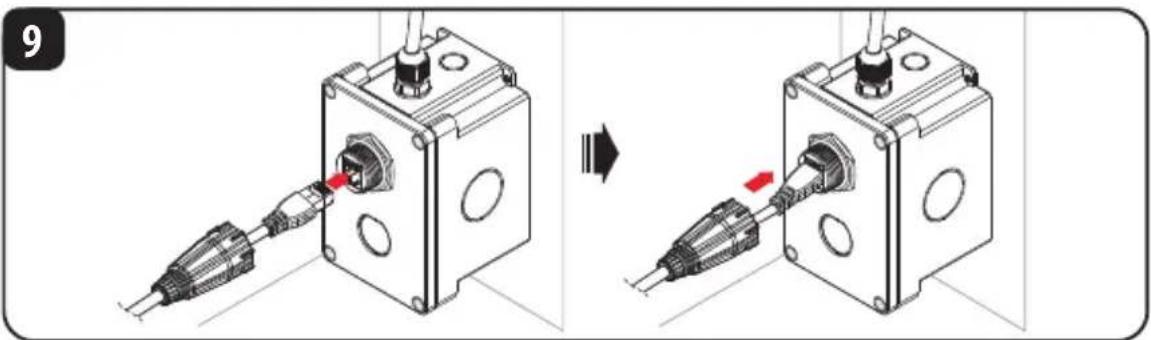

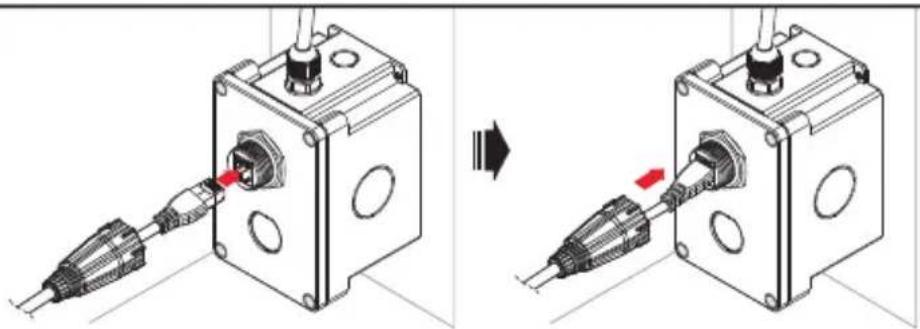

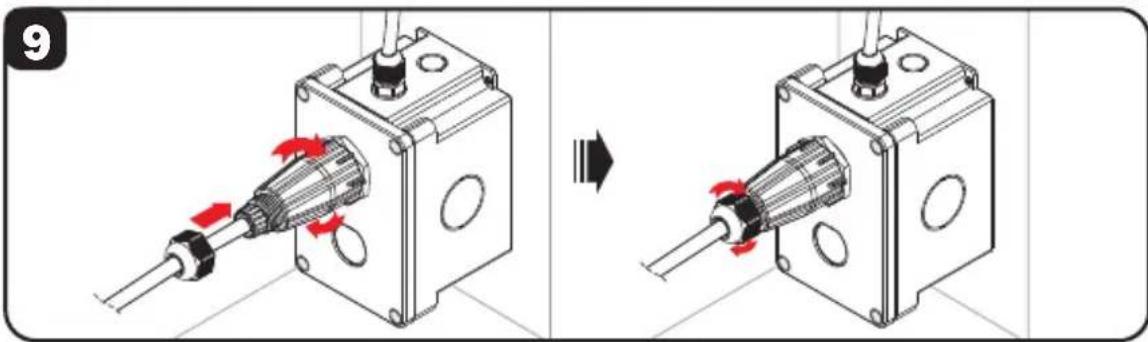

9
10
4. Product Combinations for IP44 and IP68 Protection
Note: For IP68 environments (submersion in up to 1.5 m of water for 60 minutes), the N206-SB01-IND should be used (not the N206-FPXX-IND). IP68 rating of up to 1.5 m of water for up to 60 minutes is based on manufacturer's guarantee.
| Faceplate | Bulkhead Couplers/ Keystone Jacks | Industrial Patch Cables/ Industrial USB 3.0 Cables | Waterproof Cable Assembly Kit | |
| N206-FPXX-IND N | 206-BC01-IND (Bulkhead Coupler) | N206-PCXX-IND (Cat5e/6 Cable) | or | N206-WK01-IND |
| N206-FPXX-IND N | 206-KJ01-IND (Keystone Jack) | N206-PCXX-IND (Cat5e/6 Cable) | N206-WK01-IND | |
| N206-FPXX-IND N | 206-BC01-IND (Bulkhead Coupler) | N200P-XXX-IND (Cat6 4PPoE Cables) | N206-WK01-IND | |
| N206-FPXX-IND U | 325-000-IND (USB 3.0 Coupler) | U325-XXX-IND (USB 3.0 Cable) | ||
| N206-FPXX-IND P | 569-000-FF-IND (4K HDMI Coupler) | P569-XXX-IND/ P569-XXX-IND2 (4K HDMI Cable) | ||
| N206-FPXX-IND N | 455-BC01-IND (LC/LC Fiber Coupler) | N820-XXM-IND (LC/LC Fiber Cable) | ||
| Surface Mount Box | Bulkhead Couplers/ Keystone Jacks | Industrial Patch Cables/ Industrial USB 3.0 Cables | Waterproof Cable Assembly Kit | |
| N206-SB01-IND | N206-BC01-IND (Bulkhead Coupler) | N206-PCXX-IND (Cat5e/6 Cable) | or | N206-WK01-IND |
| N206-SB01-IND | N206-KJ01-IND (Keystone Jack) | N206-PCXX-IND (Cat5e/6 Cable) | N206-WK01-IND | |
| N206-SB01-IND | N206-BC01-IND (Bulkhead Coupler) | N200P-XXX-IND (Cat6 4PPoE Cables) | N206-WK01-IND | |
| N206-SB01-IND | U325-000-IND (USB 3.0 Coupler) | U325-XXX-IND (USB 3.0 Cable) | ||
| N206-SB01-IND | P569-000-FF-IND (4K HDMI Coupler) | P569-XXX-IND/ P569-XXX-IND2 (4K HDMI Cable) | ||
| N206-SB01-IND | N455-BC01-IND (LC/LC Fiber Coupler) | N820-XXM-IND (LC/LC Fiber Cable) | ||
Warranty and Product Registration
Limited Lifetime Warranty
Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for its lifetime. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion. Service under this Warranty can only be obtained by Buyer delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609. Seller will pay return shipping charges. Visit tripplite.com/support before sending any equipment back for repair.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY ISSUES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES.
(Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).
WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
- No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:
- Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
- Send the new equipment back for recycling when this ultimately becomes waste
Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
The Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
KpaTKoe pyKOBoDCTBO nOJIb30BaTeIa
(coeHHTbHaMyΦTa MHOrOMoBOr BOJOKHOOnTueckoro Ka6ena LC/LC)
PpmbuHneHHbe coeHHTeIbHbIe Ka6eNn Ka6eN4PPoE (90 Br)
N206-PC03-IND

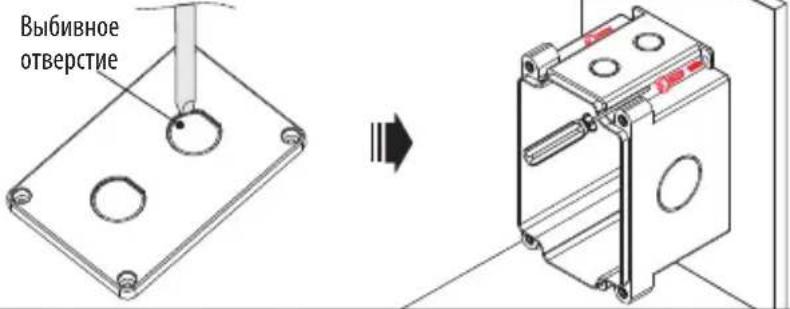

PpMueaHHe. Iy Bb6BbAHn OTBepCTm MOYr Ntpe6BaTbc DOONIHHTeBhIe IHCTpyMeHTbl.
1
2
PpimMeaHne.
Дя ВиноHeHnI
DaHHoTeiCTBn
ncnoIb3yIre
ka6eIbHbIe
BtynKn0,5" (M16),
BXOДЯПСЕВ
KOMПЛЕКТ.
3
4

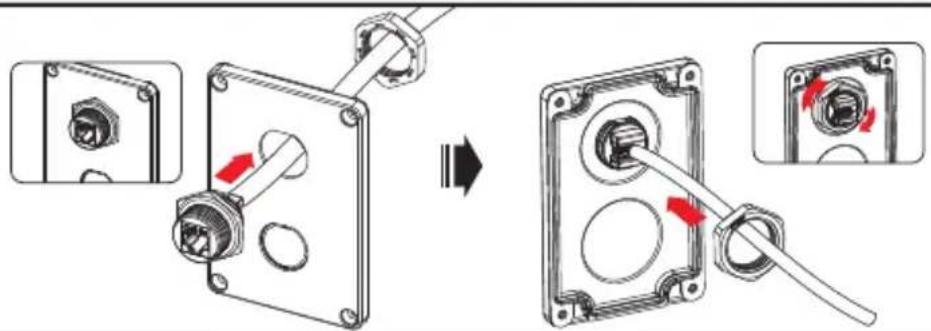

3. Помышления установka paэбемов Keystone (N206-KJ01-IND)
5
6
7
8
ДяnapHoro coeHHeNcIueBoCTopoHbMOxHO NcNoB3OBAbT npMbIWeHbIe Ka6eN cepH N206-PCXX-IND.Kpme toro,Bo3MoXHa c6OpKa c6cTBeHHoro Ka6eJIbHoro CoeHHeNc NcNoJb3OBAHnEM KOMIIeKta dЯ c6OpKn BOdoHepOnucaembIX Ka6eNe N206-WK01-IND.
N206-WK01-IND

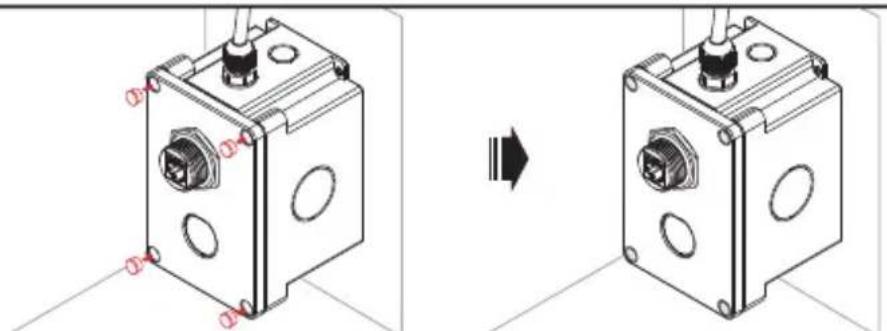

3. Помышления установka paэбемов Keystone (N206-KJ01-IND)
