S3M30KXDNIB - Inverter Tripp Lite - Free user manual and instructions

Product type	Three-phase double conversion UPS (VFI)
Brand	Tripp Lite
Model	S3M30KXDNIB
Rated power	30 kVA / 27 kW
Input voltage	380/400/415 V three-phase + neutral (Ph-Ph)
Output voltage	380/400/415 V three-phase + neutral (adjustable 220/230/240 V Ph-N)
Frequency	50/60 Hz (automatic selection)
Topology	Double conversion On-line (VFI) with zero transfer time
Dimensions (H x W x D)	1000 x 300 x 815 mm
Weight (without batteries)	60 kg
Batteries	External only (battery cabinets BP480V10, BP480V09, etc.)
Runtime	Varies according to external battery capacity
Parallel capability	Up to 3 units for capacity or redundancy
ECO mode	Yes (instantaneous transfer in case of deviation)
Bypass	Automatic and manual (for maintenance)
Display	62 mm LCD screen + 4 LEDs (LINE, BYPASS, BATTERY, FAULT)
Communications	RS-232, USB, SNMP slot for WEBCARDLX card
Emergency power off (EPO)	Yes (normally closed)
Safety standards	IEC 62040-1:2008+A1:2013, EN 62040-2 (C3)
Warranty	2 years (with authorized startup service)

Frequently Asked Questions - S3M30KXDNIB Tripp Lite

How to start the S3M30KXDNIB UPS in normal mode?

Make sure the mains power is correct. Turn the UPS input circuit breaker to ON. The UPS switches to Bypass mode. Press and hold the ON button for 0.5 seconds to activate the inverter. After a few seconds, it switches to On-line mode.

Which external batteries are compatible with this model?

Tripp Lite external battery cabinets such as BP480V10, BP480V09, BP480V65 or BP480V100 are compatible. This model (NIB) does not contain internal batteries and requires an external cabinet for backup operation.

How to parallel two S3M30KXDNIB UPS units?

Use the provided parallel and current-sharing cables. Connect the parallel ports between the units. Ensure that the input and output cables are of the same length. Follow the wiring procedure in section 3.5 of the manual. Parallel operation supports up to 3 units.

What does the FAULT LED continuously lit mean?

A continuously lit FAULT LED indicates a UPS failure. Check the LCD screen for the error code. The audible alarm emits a continuous beep. Disconnect the load and contact Tripp Lite technical support.

How to test the batteries?

In On-line or Frequency Converter mode, press and hold the Test/Up button for 0.5 seconds. The UPS performs an automatic test. Results are displayed on the LCD screen.

Can I use the UPS without batteries?

Yes, this model can operate in On-line mode without batteries, but it will not provide backup in case of a mains failure. The Hot Standby function (program 11) allows automatic restart after a power outage even without batteries.

How to adjust the output voltage?

Access the configuration menu by pressing Test/Up and Mute/Down simultaneously for 1 second. Use program 01 (Output voltage) to choose between 220V, 230V or 240V. Confirm with the Enter button.

What to do in case of overload?

The audible alarm emits two beeps per second. The screen displays an overload. Immediately disconnect non-critical loads. If the overload persists, the UPS switches to Bypass mode and then shuts down if the overload time exceeds limits.

How to install an SNMP network management card?

The WEBCARDLX card plugs into the SNMP slot located on the back of the UPS (item 6 on the panel). Remove the cover, insert the card and secure it. The web interface allows remote monitoring and control.

What is the procedure for an emergency shutdown?

The UPS has an EPO (Emergency Power Off) connector on the back. By connecting a normally closed contact to this connector, the UPS immediately cuts the output and shuts down. This device is intended for emergency situations.

USER MANUAL S3M30KXDNIB Tripp Lite

Models: S3M30KX, S3M30KXD, S3M30KX-NIB, S3M30KXD-NIB, S3M40KX, S3M40KXD, S3M40KX-NIB, S3M40KXD-NIB, S3M60KX, S3M60KXD, S3M80KX, S3M80KXD

Input: 220/230/240V (Ph-N), 380/400/415V (Ph-Ph), 3∅ 4-Wire + PE

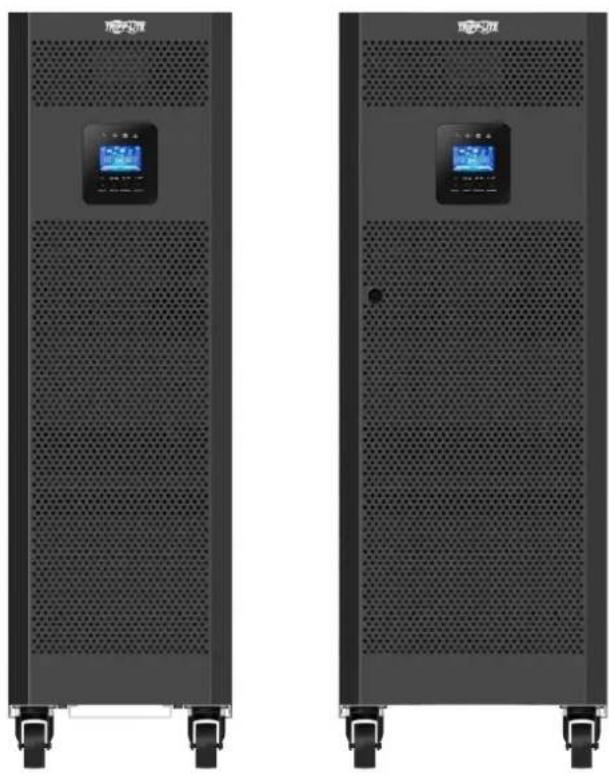

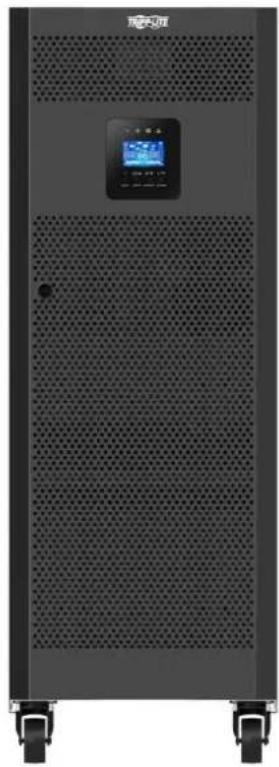

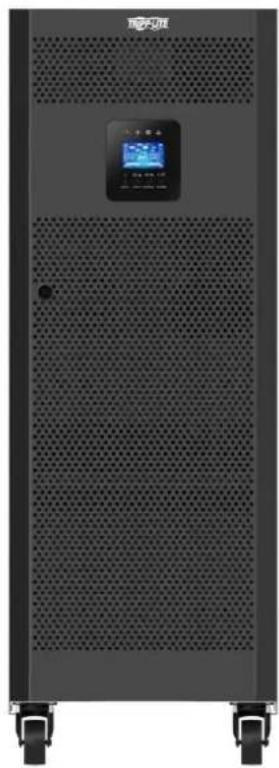

Two identical black industrial server racks with ventilation grilles and control panels, no visible text or symbols.

TRIPP·LITE

Table of Contents

1. Introduction 3

2. Important Safety Warnings 4

2.1 UPS Location Warnings 4
2.2 Equipment Connection Warnings 4
2.3 Battery Warnings 4
2.4 Transportation and Storage 5

2.5 Preparation 5

2.6 Installation 5

2.7 Connection Warnings 5

2.8 Operation 6
2.9 Standards

6

3. Installation and Setup

3.1 Unpacking and Inspection 7

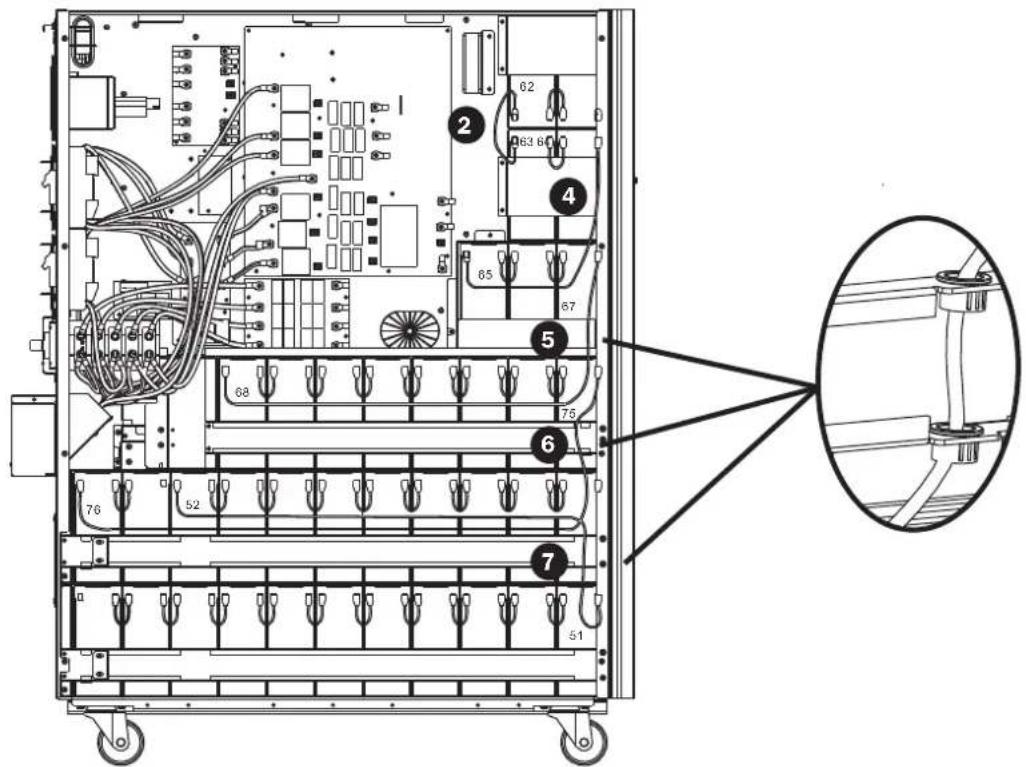

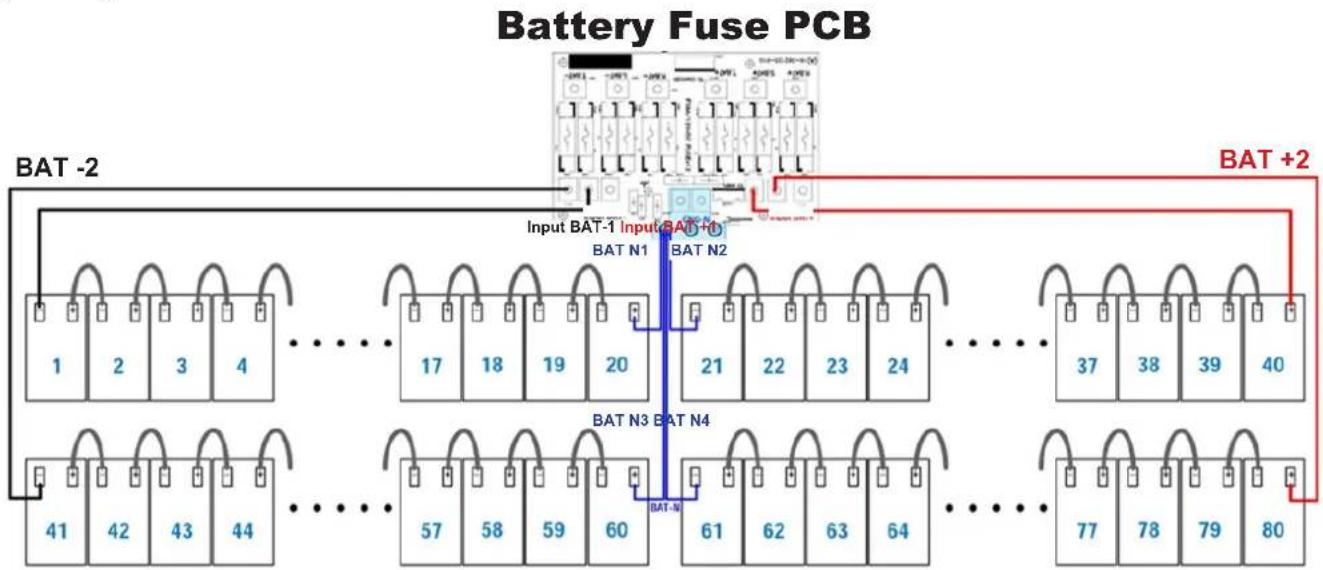

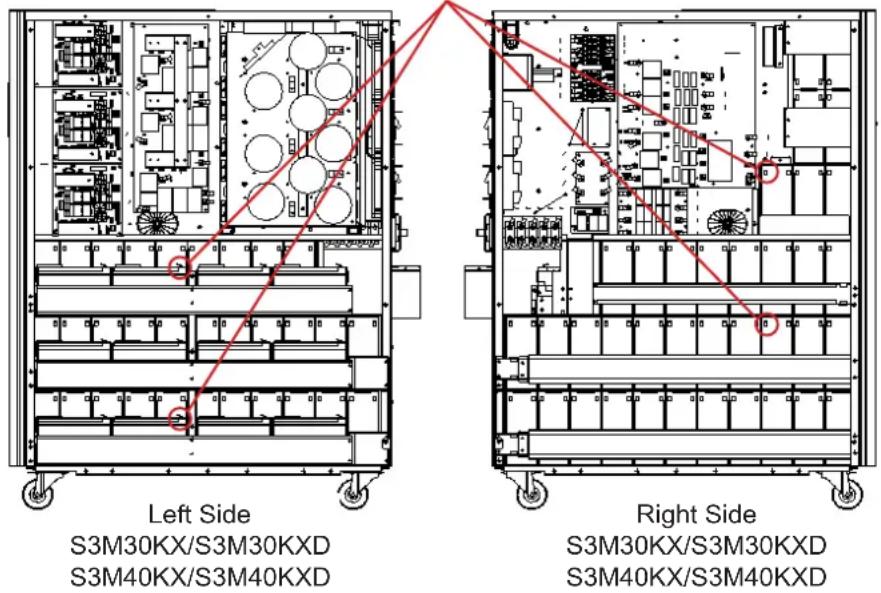

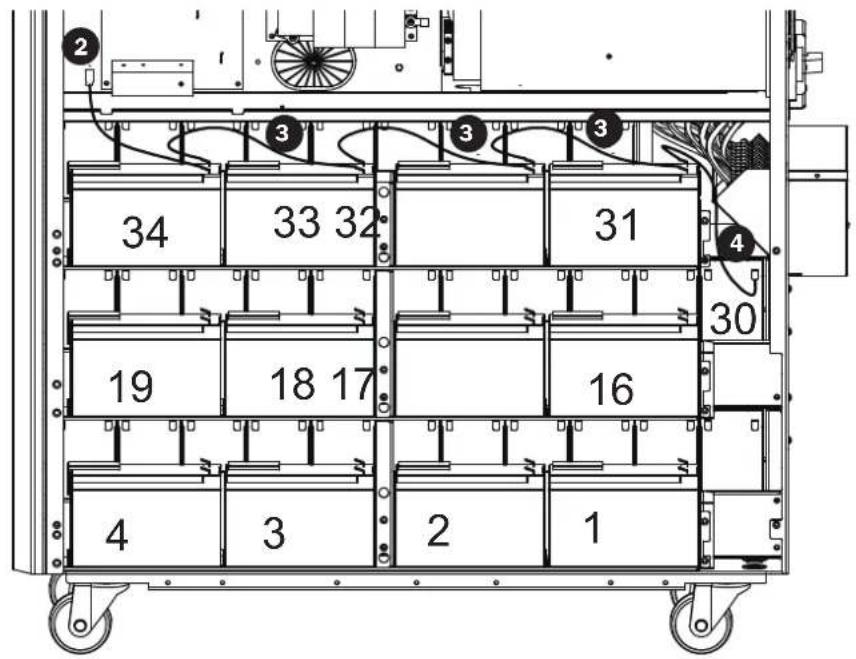

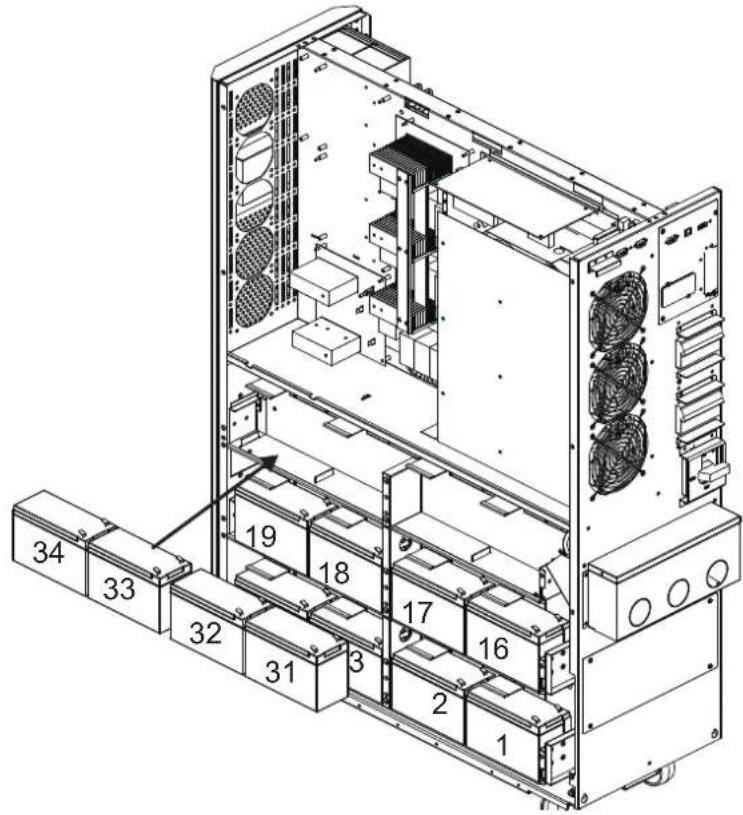

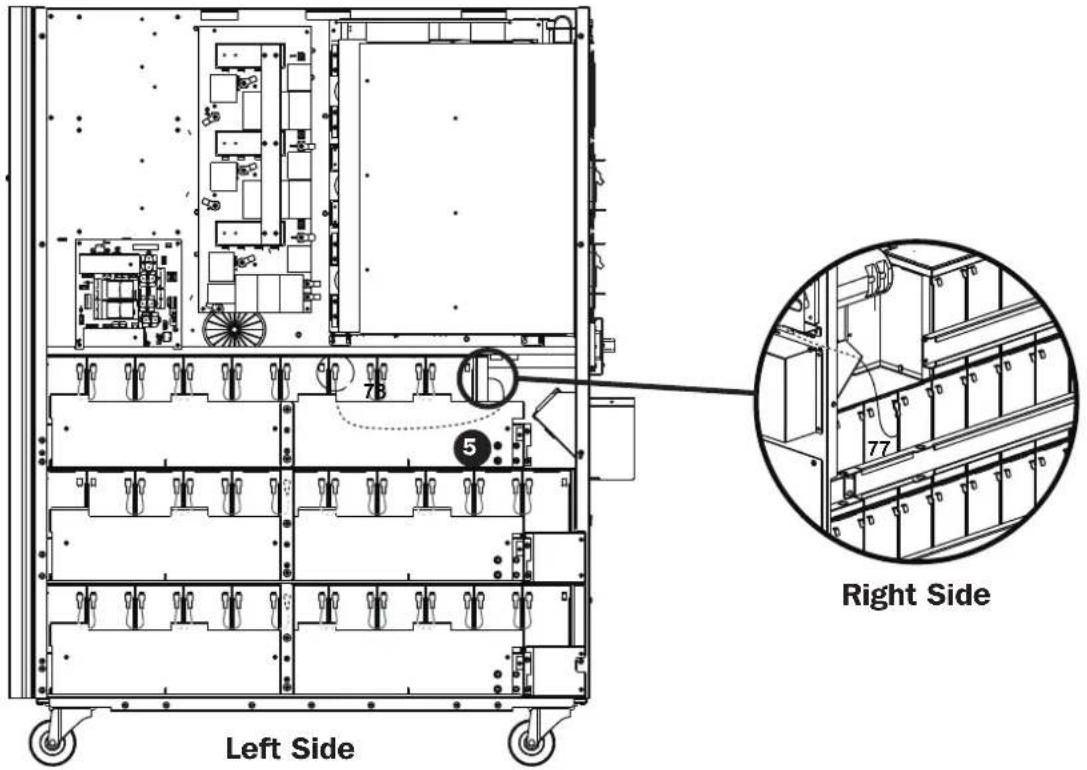

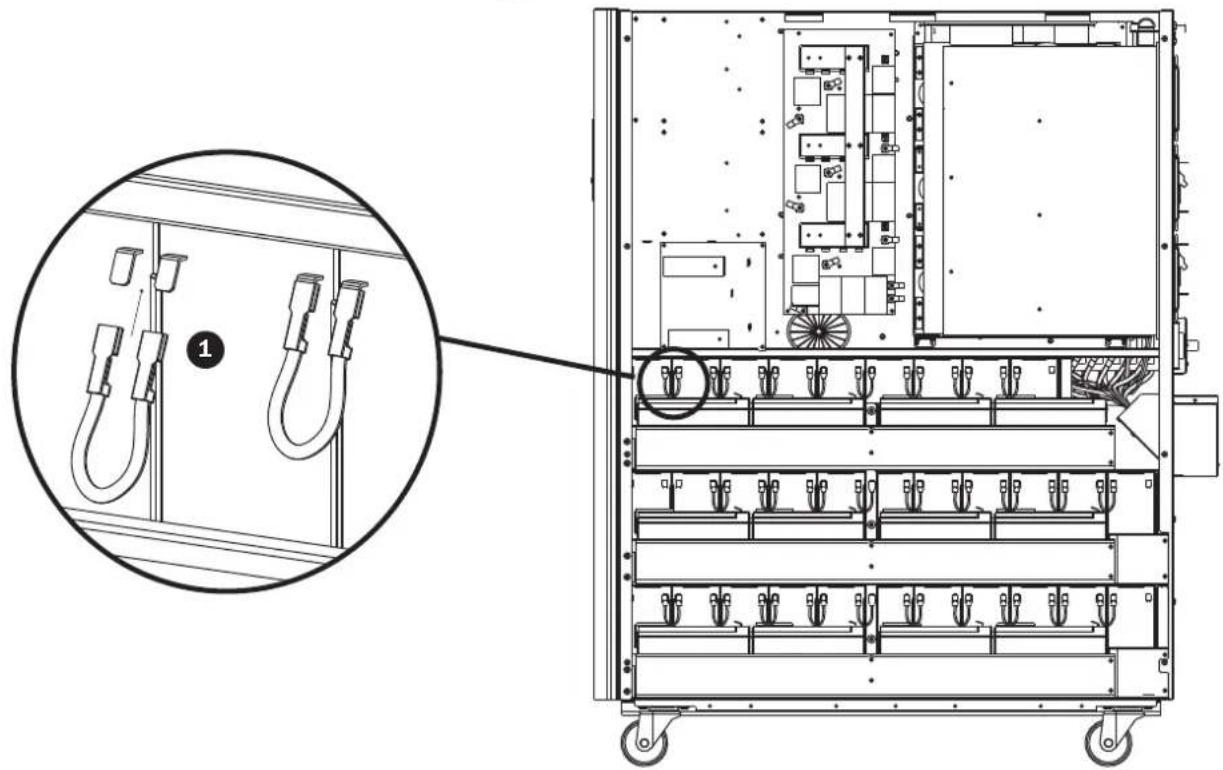

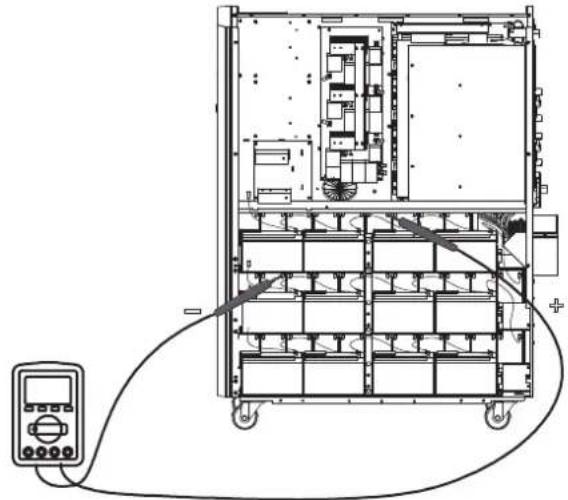

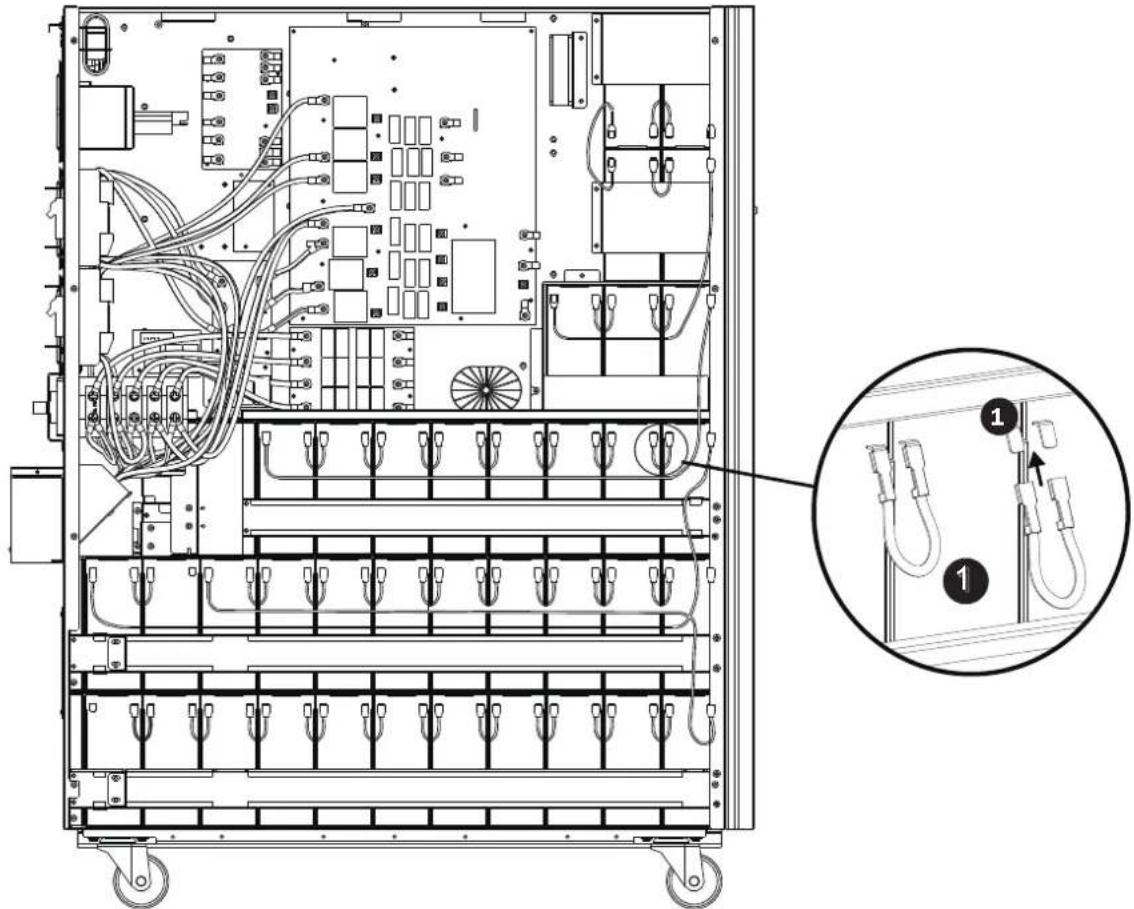

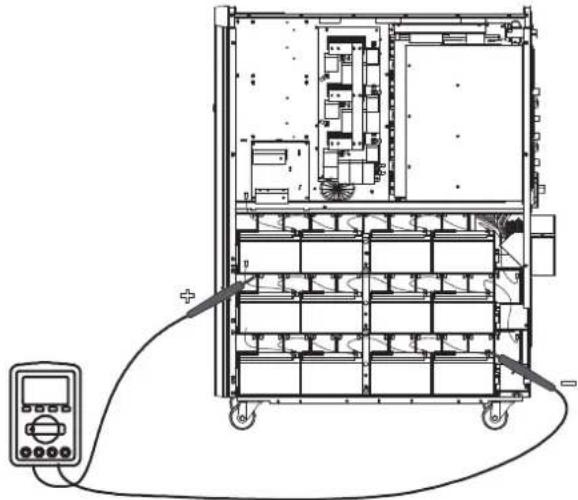

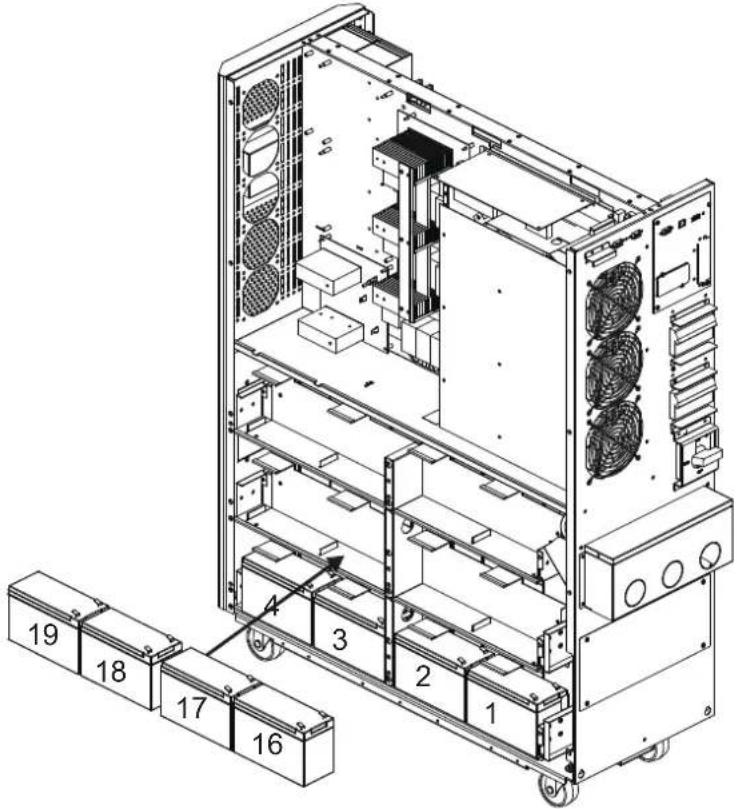

3.2 Internal Battery Connection Procedure for S3M30KX/KXD and S3M40KX/KXD Models 9

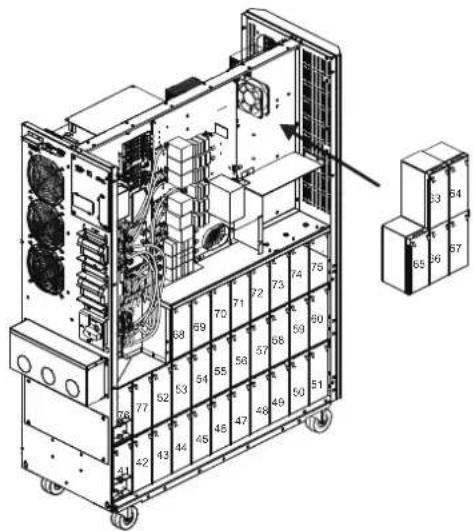

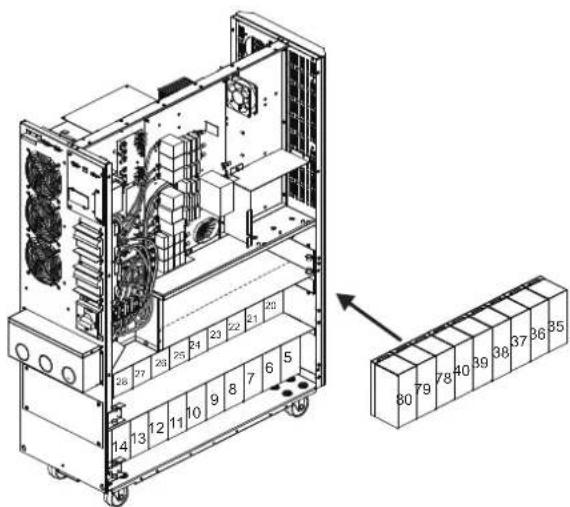

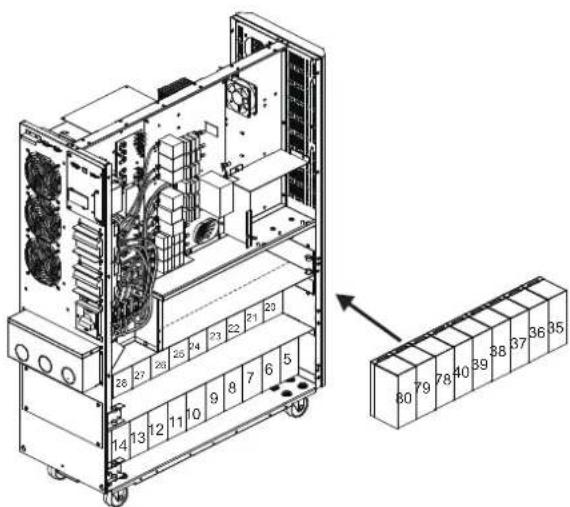

3.3 Installation of Internal Batteries in 10 S3M30KX-NIB/KXD-NIB and S3M40KX-NIB/KXD-NIB Models
3.4 Single UPS Installation 22
3.5 UPS Installation for Parallel Systems 24

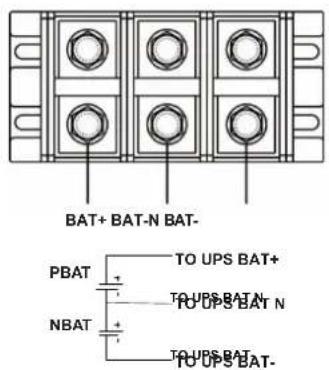

3.6 External Battery Connection 25

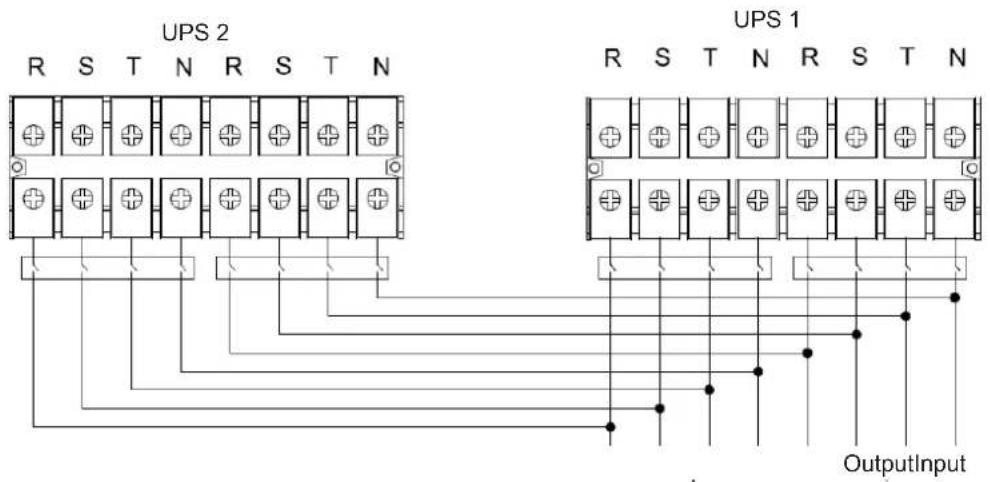

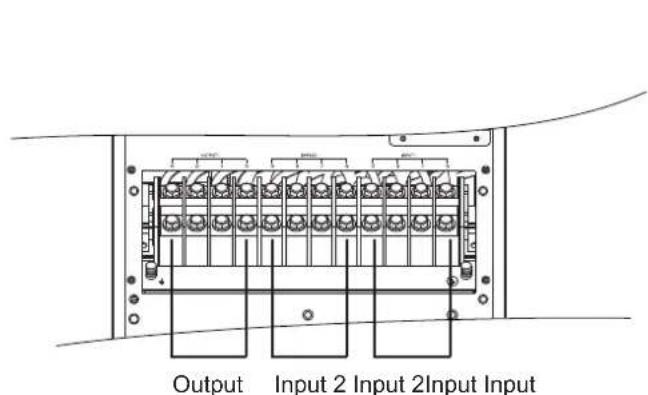

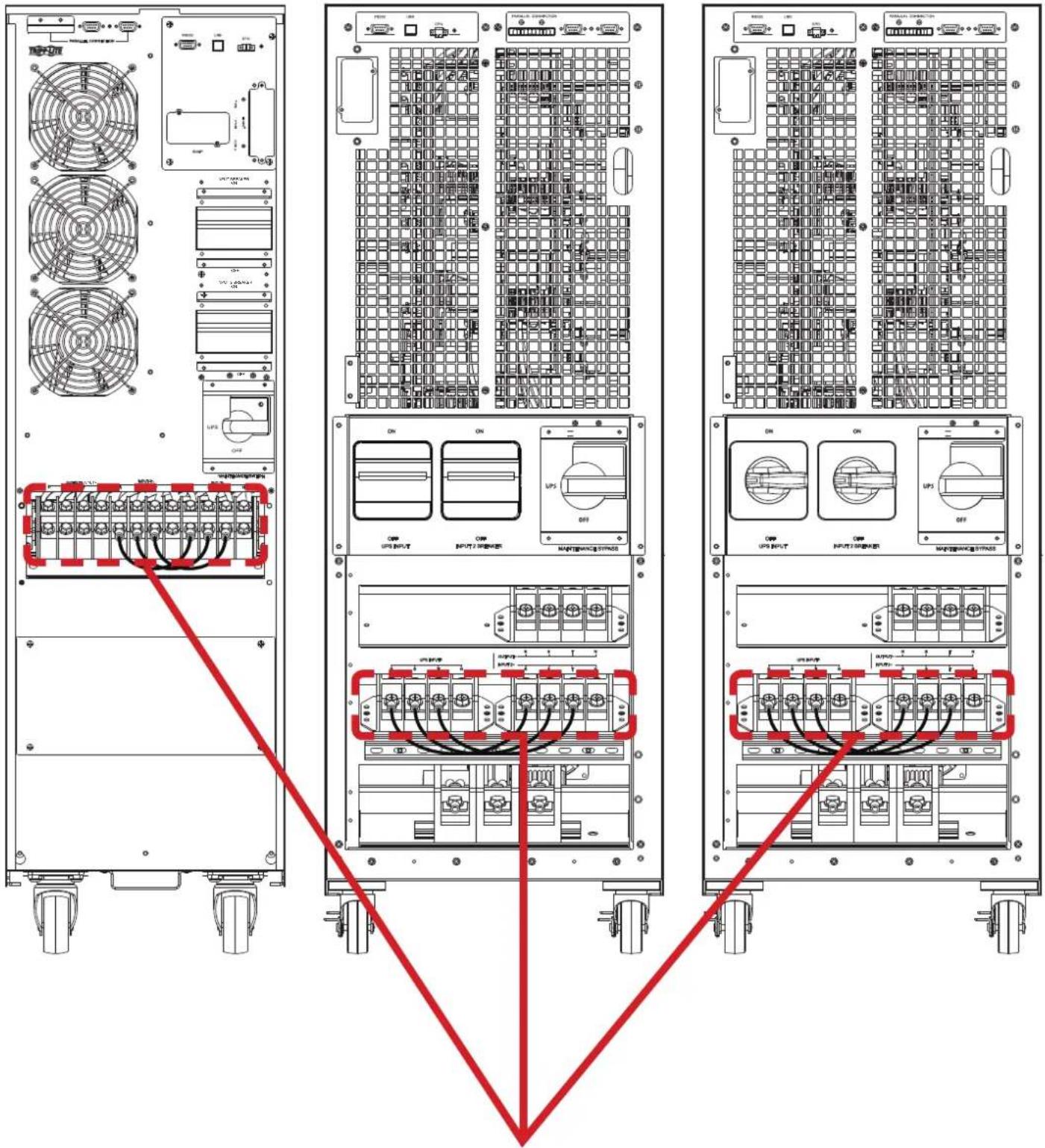

3.7 Dual AC Input Installation 26

4. Operation 27

4.1 Display Button Operation 27

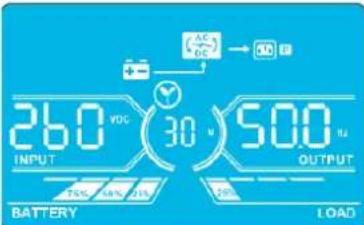

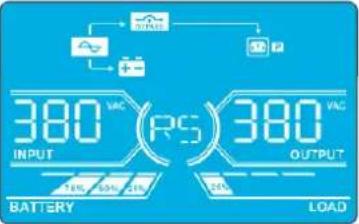

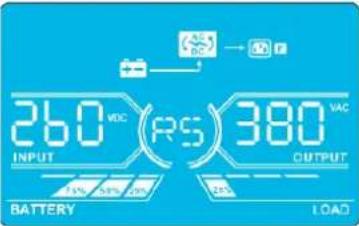

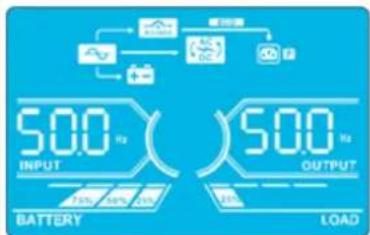

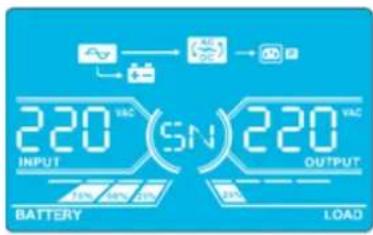

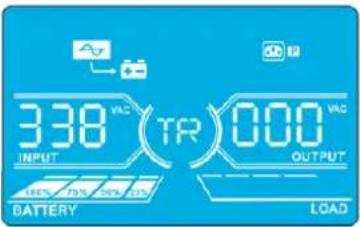

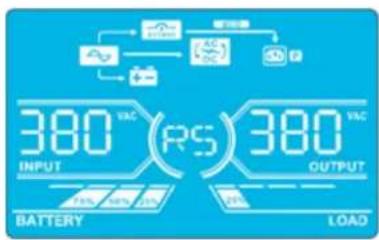

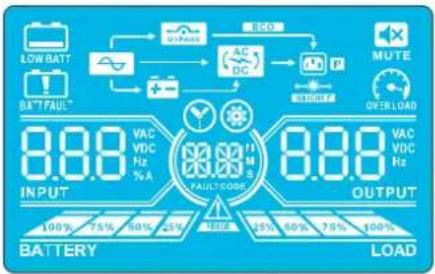

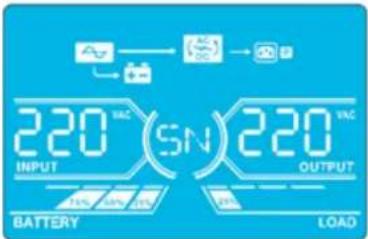

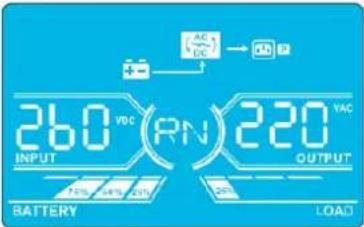

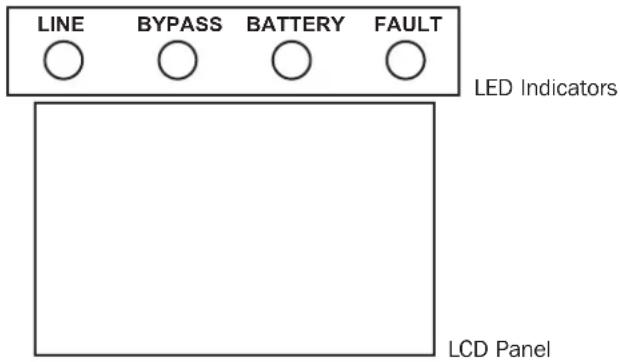

4.2 LED Indicators and LCD Panel 27
4.3 Audible Alarm 29
4.4 Single UPS Operation 29
4.5 Parallel UPS Operation 32
4.6 LCD Panel Abbreviations 34
4.7 Setup Menu 34

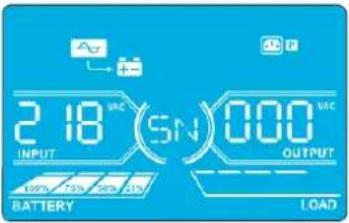

4.8 Operating Mode/Status Description 41
4.9 Fault Codes 46
4.10 Warning Indicator 47
4.11 Warning Code 47

5. Communication 48

5.1 SNMP Monitoring Slot 48
5.2 EPO Connector 48
5.3 RS-232 Port 48
5.4 USB Port 48

6. Troubleshooting 49

7. Storage and Maintenance 50

7.1 Storage 50
7.2 Maintenance 50
7.3 Battery 50
7.4 Fan 50

8. Specifications 51

9. Warranty 54

Español 55

Français 109

Русский 163

Deutsch 217

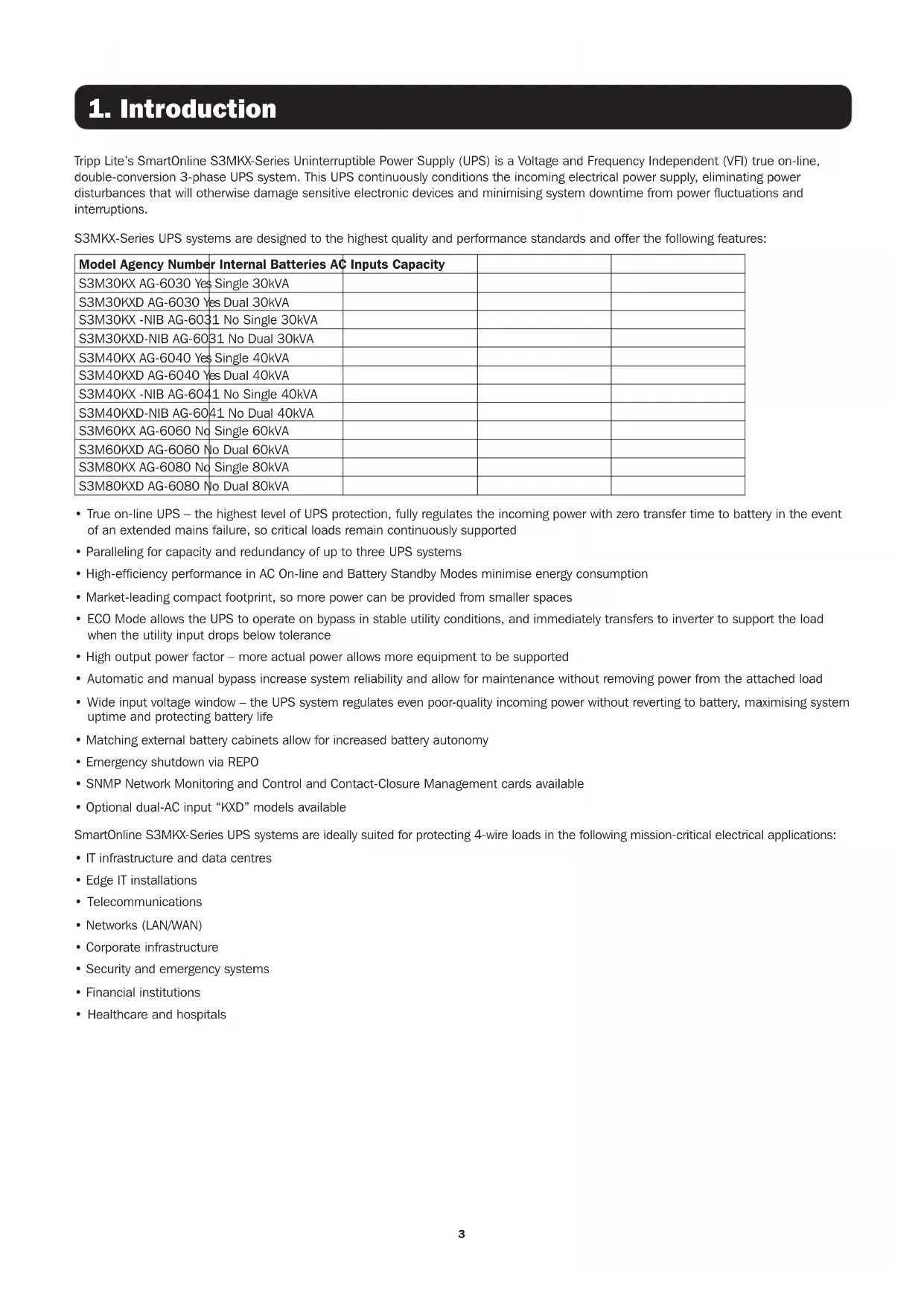

1. Introduction

Tripp Lite's SmartOnline S3MKX-Series Uninterruptible Power Supply (UPS) is a Voltage and Frequency Independent (VFI) true on-line, double-conversion 3-phase UPS system. This UPS continuously conditions the incoming electrical power supply, eliminating power disturbances that will otherwise damage sensitive electronic devices and minimising system downtime from power fluctuations and interruptions.

S3MKX-Series UPS systems are designed to the highest quality and performance standards and offer the following features:

Model Agency Number	Internal Batteries AC	Inputs Capacity
S3M30KX AG-6030 Yes	Single 30kVA
S3M30KXD AG-6030 Yes	Dual 30kVA
S3M30KX -NIB AG-6031 No	Single 30kVA
S3M30KXD-NIB AG-6031 No	Dual 30kVA
S3M40KX AG-6040 Yes	Single 40kVA
S3M40KXD AG-6040 Yes	Dual 40kVA
S3M40KX -NIB AG-6041 No	Single 40kVA
S3M40KXD-NIB AG-6041 No	Dual 40kVA
S3M60KX AG-6060 No	Single 60kVA
S3M60KXD AG-6060 No	Dual 60kVA
S3M80KX AG-6080 No	Single 80kVA
S3M80KXD AG-6080 No	Dual 80kVA

• True on-line UPS – the highest level of UPS protection, fully regulates the incoming power with zero transfer time to battery in the event of an extended mains failure, so critical loads remain continuously supported
• Paralleling for capacity and redundancy of up to three UPS systems
• High-efficiency performance in AC On-line and Battery Standby Modes minimise energy consumption
• Market-leading compact footprint, so more power can be provided from smaller spaces
• ECO Mode allows the UPS to operate on bypass in stable utility conditions, and immediately transfers to inverter to support the load when the utility input drops below tolerance
• High output power factor – more actual power allows more equipment to be supported
  • Automatic and manual bypass increase system reliability and allow for maintenance without removing power from the attached load
• Wide input voltage window – the UPS system regulates even poor-quality incoming power without reverting to battery, maximising system uptime and protecting battery life
• Matching external battery cabinets allow for increased battery autonomy
  • Emergency shutdown via REPO
  • SNMP Network Monitoring and Control and Contact-Closure Management cards available
• Optional dual-AC input "KXD" models available

SmartOnline S3MKX-Series UPS systems are ideally suited for protecting 4-wire loads in the following mission-critical electrical applications:

• IT infrastructure and data centres
- Edge IT installations
• Telecommunications
- Networks (LAN/WAN)
• Corporate infrastructure
• Security and emergency systems
• Financial institutions
• Healthcare and hospitals

2. Important Safety Warnings

SAVE THESE INSTRUCTIONS

This manual contains important instructions and warnings that should be followed during the installation and maintenance of all Tripp Lite SmartOnline S3MX 3-Phase 30kVA, 40kVA, 60kVA and 80kVA UPS Systems and their batteries. Failure to heed these warnings may affect your warranty.

2.1 UPS Location Warnings

• Install the UPS indoors, away from heat, direct sunlight, dust and excess moisture or other conductive contaminants.
• Install the UPS in a structurally sound area. The UPS is extremely heavy; take care when moving and lifting the unit.
- Only operate the UPS at indoor temperatures between 0^ and 40^ .
- Optimum UPS performance and maximum battery life is obtained when the operating temperature is maintained between 17^ and 25^ .
- Ensure the installation area has sufficient space for maintenance and ventilation of the UPS system. Maintain a minimum clearance of 50 cm from the rear, front and both sides of the UPS for maintenance and ventilation.
- Do not install the UPS near magnetic storage media, as this may result in data corruption.

2.2 Equipment Connection Warnings

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
• The UPS system contains its own energy source (battery). The output terminals may be live, even when the UPS is not connected to an AC supply.
• The UPS models covered in this manual are not compatible with loads that do not have a Neutral Reference or Delta load.

2.3 Battery Warnings

This UPS contains LETHAL VOLTAGES. The UPS is designed to supply power, even when disconnected from utility power. Only AUTHORISED SERVICE PERSONNEL should access the interior of the UPS after disconnecting utility and DC power.

Batteries present a risk of electrical shock and burns from high short-circuit current. Battery connection or replacement should be performed only by qualified service personnel, observing proper precautions. Turn off the UPS before connecting or disconnecting internal batteries. Use tools with insulated handles. Do not open the batteries. Do not short or bridge the battery terminals with any object.

• The batteries are recyclable. Refer to local codes for disposal requirements or visit tripplite.com/support/recycling-program for recycling information.
• Do not dispose of the batteries in a fire, mutilate the batteries or open the battery coverings. Escaping electrolytes may be toxic and cause injury to skin and eyes.

- Do not disconnect the batteries while the UPS is in Battery Mode.

- Disconnect the charging source prior to connecting or disconnecting terminals.

- The following precautions should be observed:

1) Remove watches, rings and other metal objects.
2) Use tools with insulated handles.
3) Wear rubber gloves and electrical-grade boots.
4) Use an electrical-grade rubber mat while servicing batteries.
5) Do not lay tools or metal parts on top of batteries or battery cabinets.
6) Determine whether the battery supply (+, -, N) is inadvertently grounded. If it is, remove the source of the ground. Contact with any part of a grounded battery can result in electric shock. The likelihood of an electric shock is reduced if such grounds are removed during installation and maintenance.
- Battery replacement should be performed only by authorised service personnel, using the same number and type of batteries (sealed lead acid).

WARNING: In order to avoid any hazardous conditions during UPS installation and maintenance, these tasks may be performed only by qualified and experienced electricians.

Please read this Owner's Manual and the safety instructions carefully before installing or using the unit.

2. Important Safety Warnings

2.4 Transportation and Storage

⚠️ To protect against shock and impact, transport the UPS system only in the original packaging.
The UPS must be stored in a room that is dry and ventilated.

2.5 Preparation

⚠️ Condensation may occur if the UPS system is moved directly from a cold to a warm environment. The UPS system must be completely dry before being installed. Please allow at least two hours for the UPS system to adjust to the environment.
Do not install the UPS system near water or in moist environments.
⚠️ Do not install the UPS system in direct sunlight or near heat sources.
Do not block the ventilation holes on the UPS system's housing.

2.6 Installation

Do not connect appliances or devices that could overload the UPS (i.e., equipment with large electrical motors) to the UPS output sockets or terminal.
⚠️ Carefully arrange cables so no one can step on or trip over them.
Do not block the UPS system's air vents. The UPS must be installed in a location with good ventilation. Ensure adequate ventilation space on each side of the unit.
The UPS contains an earthed terminal. In the final installed system configuration, ensure equipotential earth grounding to the external UPS battery cabinet by connecting the earth terminals of both cabinets together.
The UPS should only be installed by qualified maintenance electrical service personnel.
An appropriate disconnect device such as short-circuit backup protection must be provided in the building wiring installation.
⚠ An integral single-emergency switching device should be included in the building wiring installation.
Connect the earth ground before connecting to the building wiring terminal.
⚠️ Installation and wiring must be performed in accordance with local electrical codes and regulations.

2.7 Connection Warnings

The UPS system does not contain standard backfeed protection inside. Isolate the UPS before working on this circuit. The isolation device must be able to carry the UPS input current.

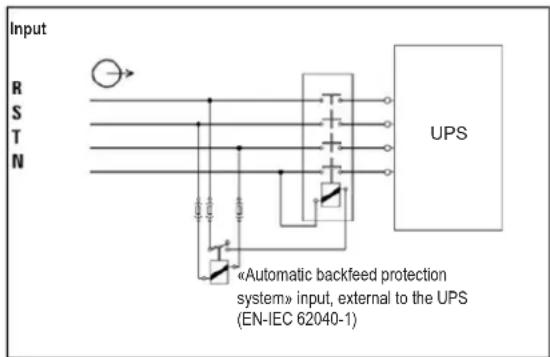

Input R S T N UPS «Automatic backfeed protection system» input, external to the UPS (EN-IEC 62040-1)

• This UPS should be connected with TN earthing system.
• The power supply for this unit must be 3-phase rated in accordance with the equipment nameplate. It also must be suitably grounded.
• The input power to 3-phase UPS models requires a 4-pole breaker.
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
• Connect the UPS power module's grounding terminal to a grounding electrode conductor.
• The UPS is connected to a DC energy source (battery). The output terminals may still be live even when the UPS is not connected to an AC supply.

2. Important Safety Warnings

When installing the unit, verify that any maintenance bypass panel used is configured correctly before applying power to the unit.

- Be sure to place a warning label on all primary power isolators installed remotely from the UPS area and on any external access points between such isolators and the UPS. The warning label shall carry the following wording or equivalent.

Before working on this circuit

- Isolate Uninterruptible Power System (UPS)

- Then check for Hazardous Voltage between all terminals including the protective earth.

Risk of Voltage Backfeed

2.8 Operation

Do not disconnect the earth conductor cable on the UPS or the building wiring terminals at any time, as this will cancel the protective earth of the UPS system.
⚠ In order to fully disconnect the UPS system, first press the "OFF" button, then disconnect the mains.
⚠ Ensure no liquid or other foreign objects can enter into the UPS system.

2.9 Standards

*Safety
IEC 62040-1: 2008+A1:2013
*EMI
Conducted Emission......EN 62040-2: 2006	Category C3
Radiated Emission ......EN 62040-2: 2006 C	category C3
*EMS
ESD......EN 61000-4-2 Level 4
RS ......EN 61000-4-3 Level 3
EFT......EN 61000-4-4	Level 4
SURGE ......EN 61000-4-5 Level 4
CS ......EN 61000-4-6	Level 3
Power-Frequency Magnetic Field......EN 61000-4-8 Level 4
Low-Frequency Signals ......EN 61000-2-2
Warning: This is a product for commercial applications. Installation restrictions or additional precautions may be needed to prevent disturbances.

3. Installation and Setup

3.1 Unpacking and Inspection

Unpack the unit and inspect the contents. Packaging may include additional accessories and components, depending on specific customer orders.

• One (1) UPS
  • One (1) Owner's Manual
• One (1) RS-232 Cable
  • One (1) 1.5 m battery cable kit extension (included with 30K and 40K models only)

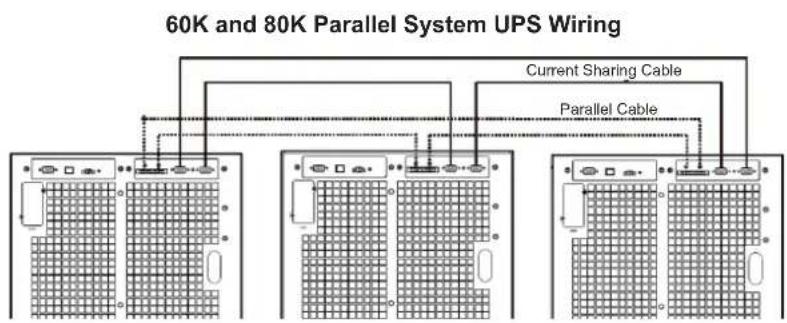

Cabling for UPS Paralleling:

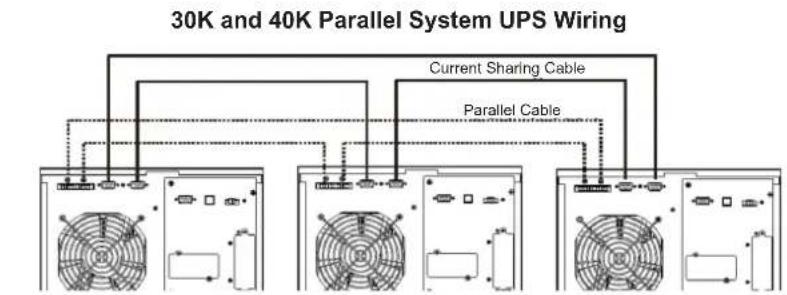

• One (1) parallel cable (only available for parallel model) for every set of UPS units being paralleled
• One (1) shared current cable (only available for parallel model) for every set of UPS units being paralleled

Other Accesory and Component Options Available

Additional Charging Board to increase the battery charger capacity:

- 4A charger boards may be paralleled to increase the charger's current capacity. For more information, refer to ACCESSORIES in section 8. Specifications.

Note: Do not turn on the unit. Make sure to inspect the unit prior to installation. Ensure nothing inside the package was damaged during transportation. Notify the carrier and dealer immediately if there is any damage or missing parts. Please keep the original packaging in a safe place for future use.

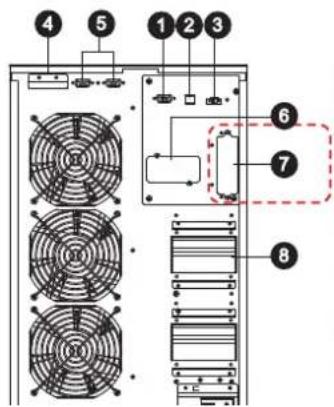

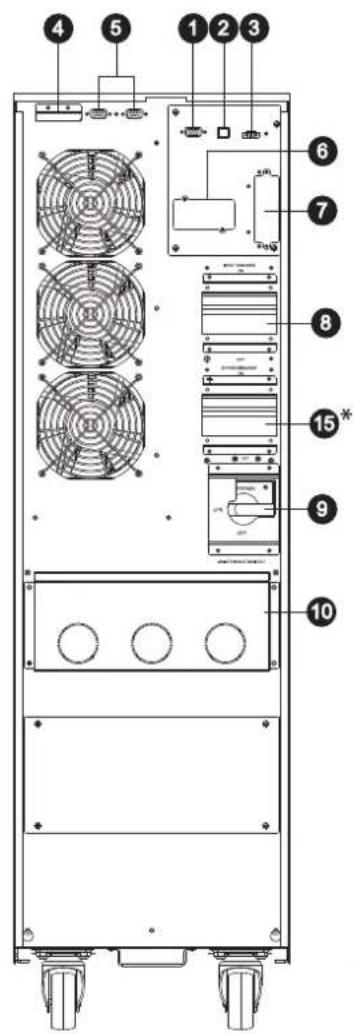

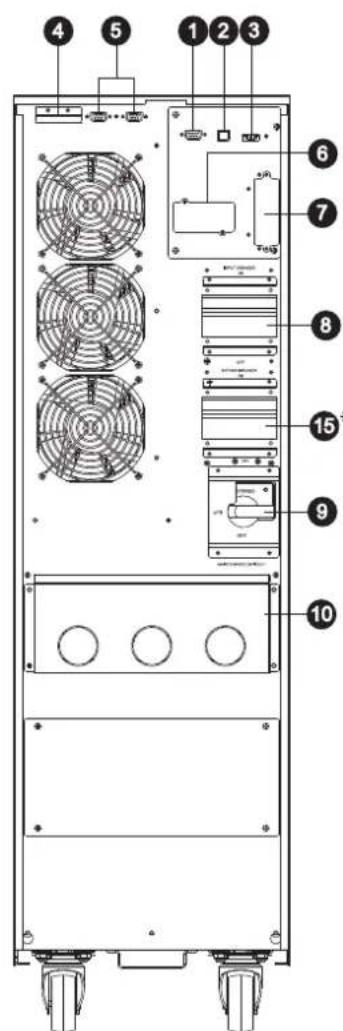

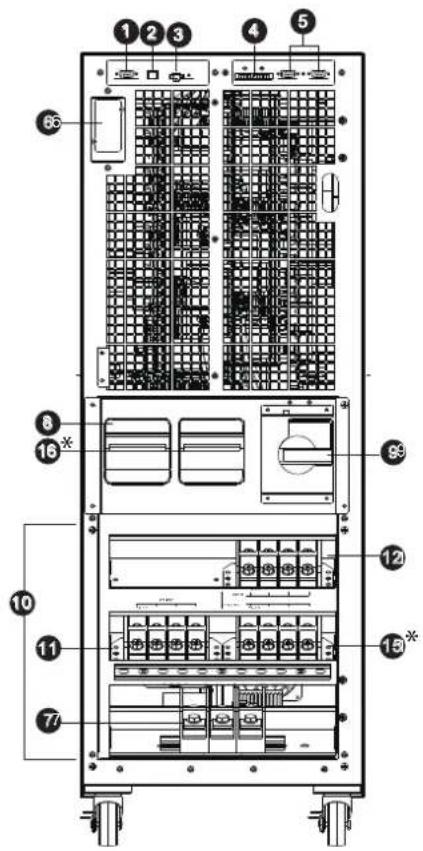

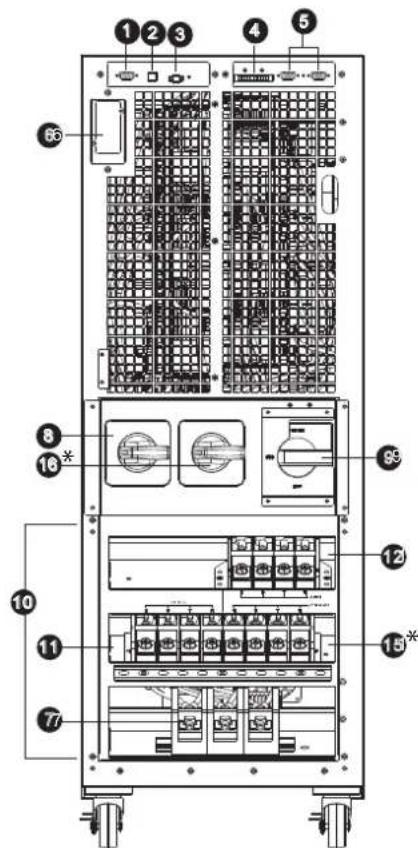

Rear Panel View - 30K and 40K Models

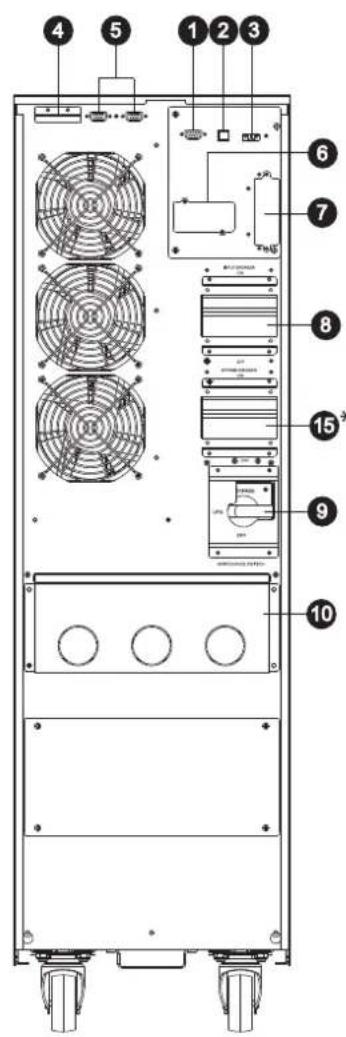

Technical diagram of an industrial control unit with numbered components and fan layout

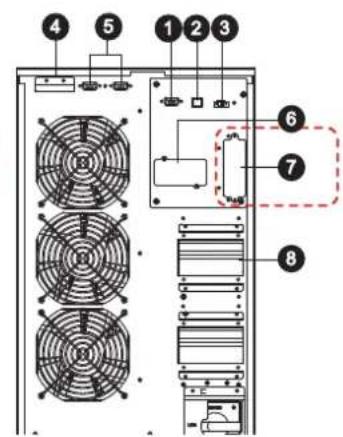

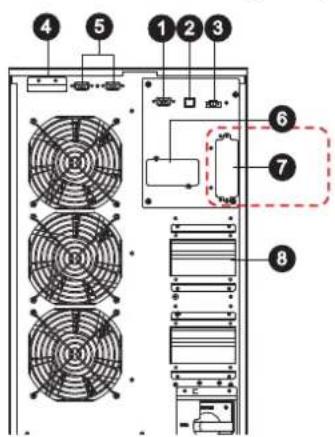

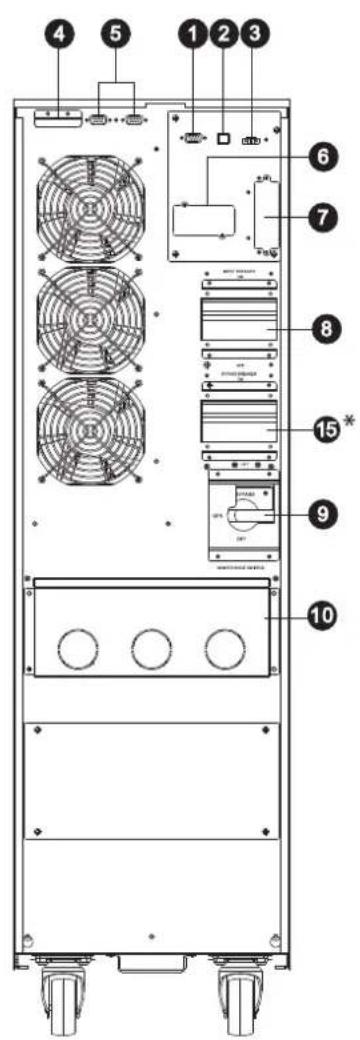

4 5 1 2 3 6 7 8 15* 9 10

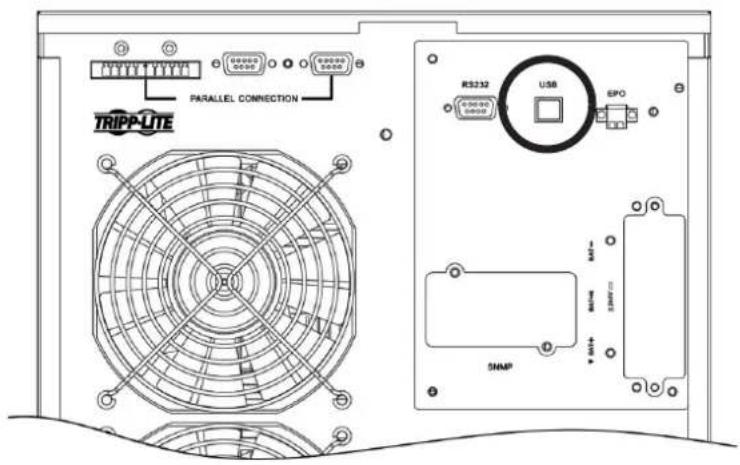

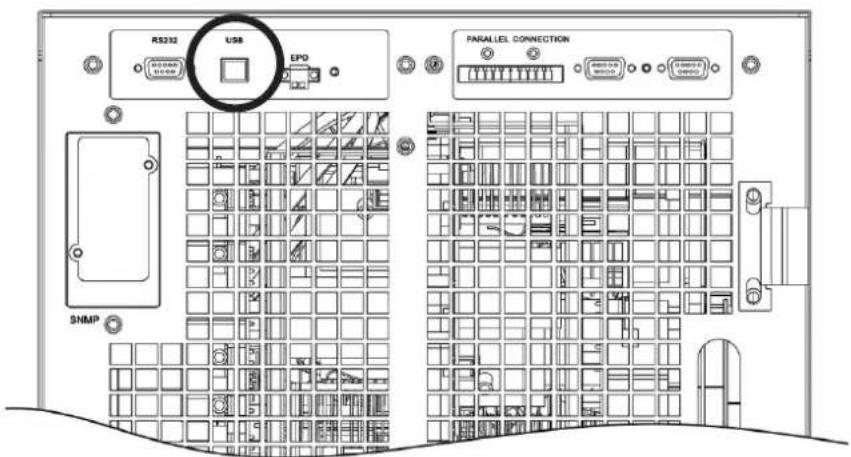

1 RS-232 Communications Port
2 USB Communications Port
3 Emergency Power Off (EPO) Connector
4 Share Current Port for Paralleling Units
5 Parallel Ports for Paralleling Units
6 SNMP Slot for Network Monitoring using (Optional WEBCARDLX)

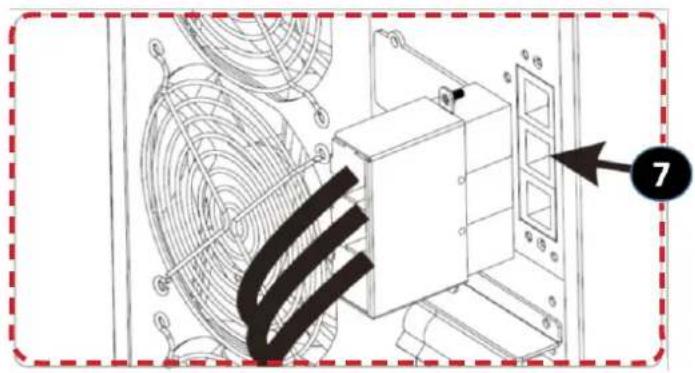

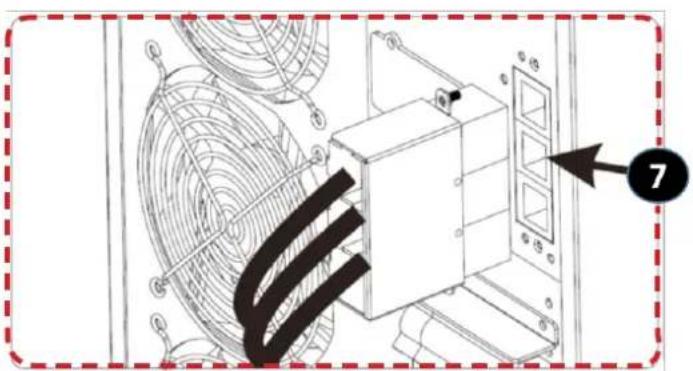

7 External Battery Cabinet Connector
8 Input Circuit Breaker
9 Maintenance Bypass Switch (for Service Personnel Use Only)
10 Input/Output Terminal (Refer to 11 and 12 for Details)
11 Input Terminal
12 Output Terminal (Connects to Mission-critical Loads)
13 Input Grounding Terminal
14 Output Grounding Terminal
15* Input 2 Circuit Breaker
16* Input 2 Terminal (Bypass Input)

*Input 2 (Bypass Input) and Input 2 Circuit Breaker for "KXD" dual input models only.

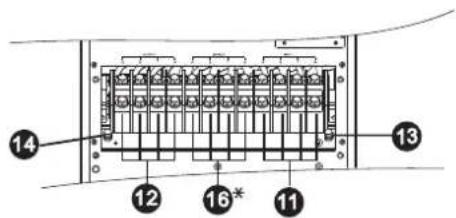

14 12 16* 11 13

30K Rear Panel 40K Rear Panel 30K and 40K Input/Output Terminals

3. Installation and Setup

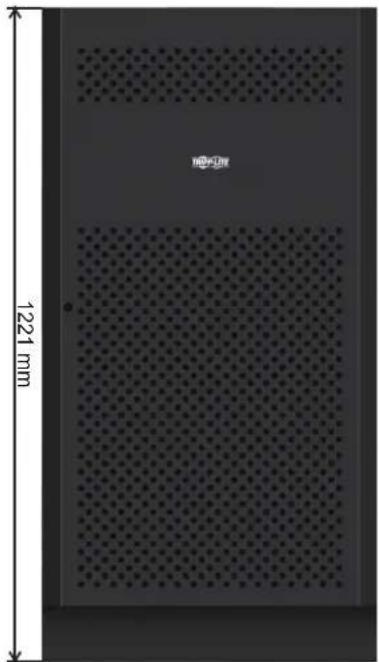

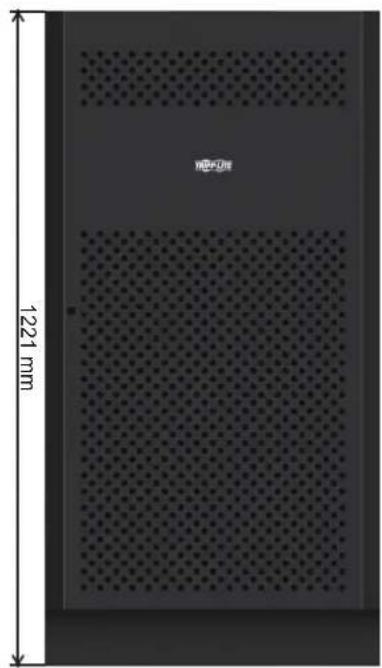

Front Panel View - 60K Model

Technical diagram of a server rack with numbered components and labeled ports

60KXD Front View with Door Open

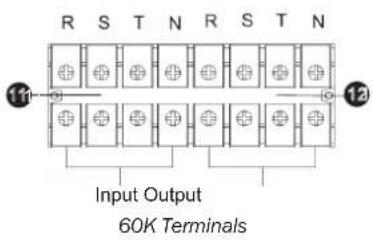

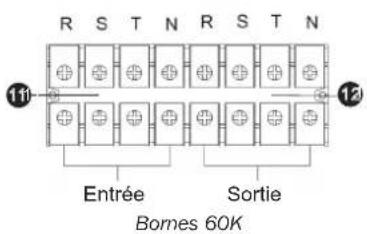

R S T N R S T N 11 Input Output 60K Terminals

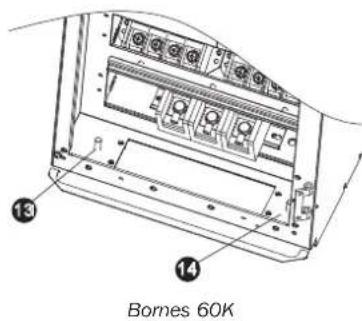

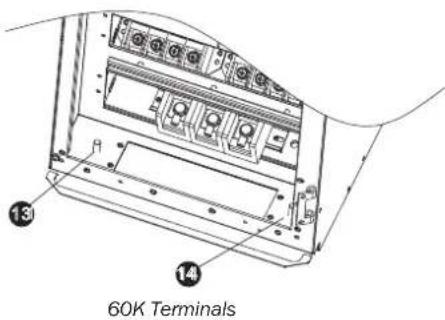

13 14 60K Terminals

Front Panel View - 80K Model

Technical diagram of a server rack with numbered components and labeled ports

80KXD Front View with Door Open

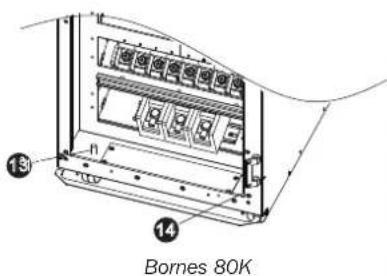

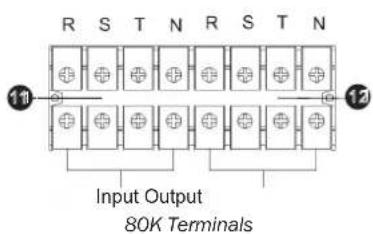

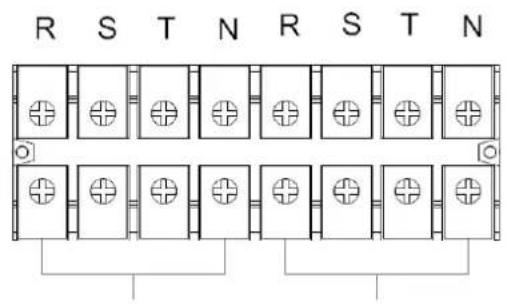

R S T N R S T N 11 Input Output 80K Terminals

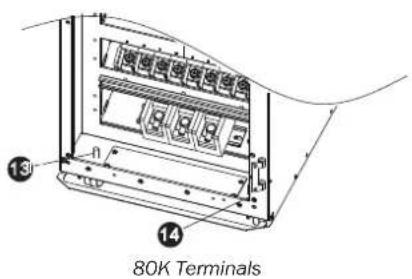

13 n 14 80K Terminals

1 RS-232 Communications Port
2 USB Communications Port
3 Emergency Power Off (EPO) Connector
4 Share Current Port for Paralleling Units
5 Parallel Ports for Paralleling Units
6 SNMP Slot for Network Monitoring using (Optional WEBCARDLX)
7 External Battery Cabinet Connector
8 UPS Input Circuit Breaker
9 Maintenance Bypass Switch (for service personnel use only)
10 Input/Output Terminal (Refer to 11 and 12 for details)
11 UPS Input Terminal
12 Output Terminal (Connects to Mission-critical Loads)
13 Input Grounding Terminal
14 Output Grounding Terminal
15* Input 2 Terminal (Bypass Input)
16* Input 2 Circuit Breaker

Input 2 (Bypass Input) and Input 2 Circuit Breaker for "KXD" dual input models only.

1 RS-232 Communications Port
2 USB Communications Port
3 Emergency Power Off (EPO) Connector
4 Share Current Port for Paralleling Units
5 Parallel Ports for Paralleling Units
6 SNMP Slot for Network Monitoring using (Optional WEBCARDLX)
7 External Battery Cabinet Connector
8 UPS Input Switch
9 Maintenance Bypass Switch (for Service Personnel Use Only)
10 Input/Output Terminal (Refer to 11 and 12 for Details)
11 Line Input Terminal
12 Output Terminal (Connects to Mission-critical Loads)
13 Input Grounding Terminal
14 Output Grounding Terminal
15* Input 2 Terminal (Bypass Input)
16* Input 2 Switch

* Input 2 (Bypass Input) and Input 2 Switch for "KXD" dual input models only.

3. Installation and Setup

3.2 Internal Battery Connection Procedure for S3M30KX, S3M30KXD, S3M40KX, S3M40KXD Models

DANGER! LETHAL HIGH VOLTAGE HAZARD!

Potentially lethal high voltage exists within the batteries, even when not connected to a UPS system. Battery connection should be performed by qualified service personnel only, following all the precautions listed in this manual and adhering to local electrical codes. Refer to section 2.3 Battery Warnings.

Internal Battery Connection Procedure

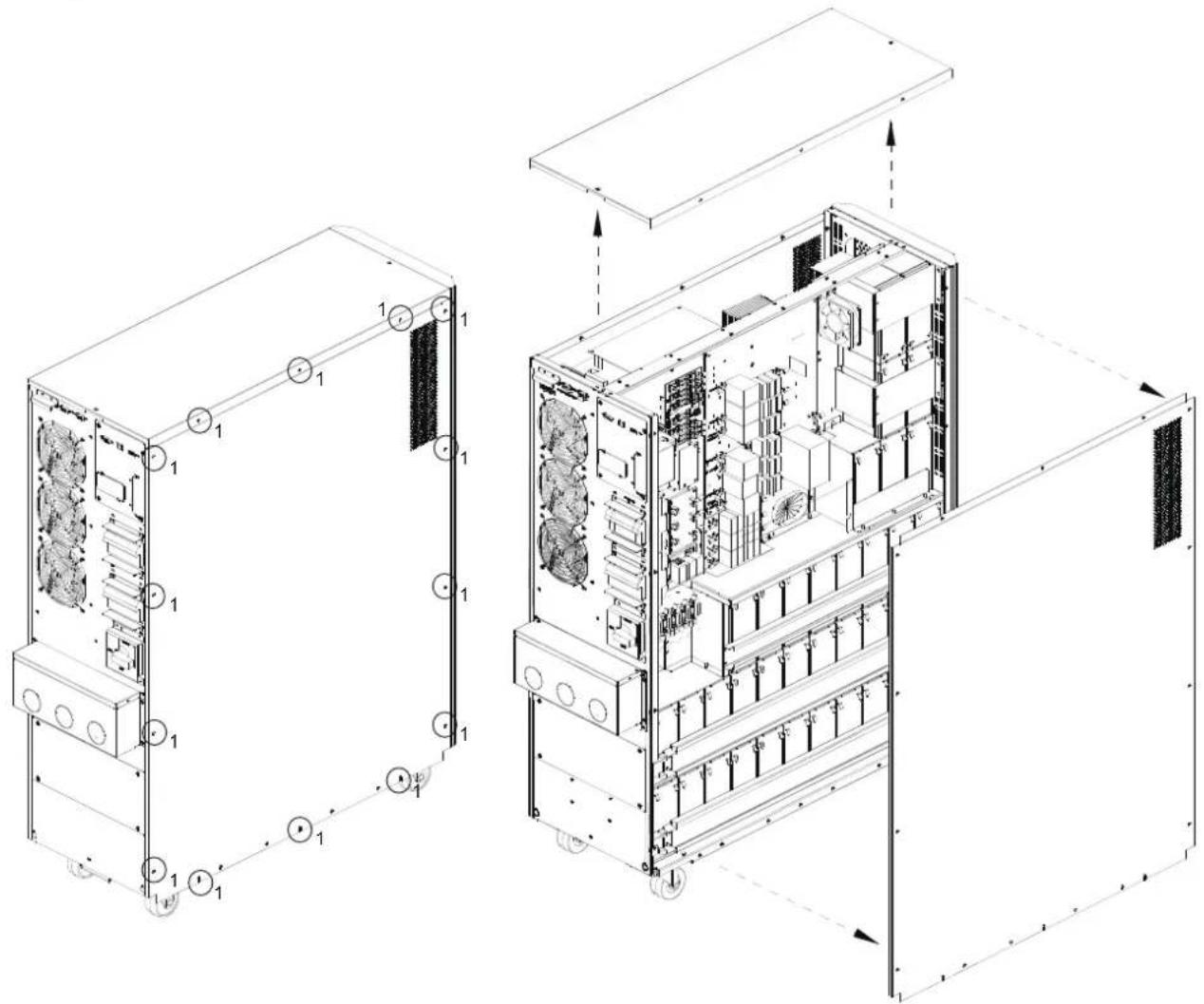

1) Remove all screws labeled 1 (Figure 3.1).

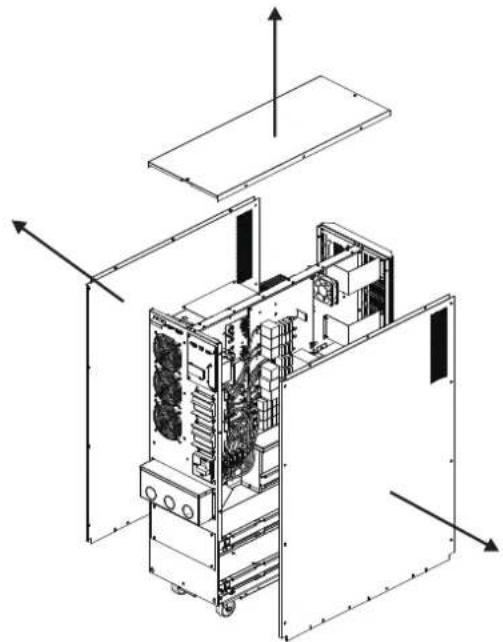

2) Remove top plate, right side and left side plates (Figure 3.2).

See next page for steps 3-5.

Technical line drawing of an internal server rack unit with multiple ports and ventilation grilles (no text or labels)

Figure 3.1 Figure 3.2

3. Installation and Setup

3) For 30kVA and 40kVA units with internal batteries, there are four battery cable points that are disconnected for shipping purposes (refer to Figures 3.3 and 3.4). These four cables (two on the right side and two on the left side) will need to be reconnected for proper battery cabinet operation.

Battery cables that need to be reconnected before proper operation of battery cabinet

Left Side S3M30KX/S3M30KXD S3M40KX/S3M40KXD Right Side S3M30KX/S3M30KXD S3M40KX/S3M40KXD

Figure 3.3 Figure 3.4

4) Re-Install the top and side panels from Step 2.
5) Re-Install and tighten all screws from Step 1 with a torque of 1 N·m.

3.3 Installation of Internal Batteries in S3M30KX-NIB, S3M30KXD-NIB, S3M40KX-NIB, and S3M40KXD-NIB Models

DANGER! LETHAL HIGH VOLTAGE HAZARD!

Be careful to observe all safety warnings in the manual, especially those in section 2.3 Battery Warnings.

Battery installation should be performed by qualified electrical service personnel only.

Items needed:

1) Protective equipment (rubber gloves, electrical rated boots, electrical rated rubber floor mat, etc. as outlined in section 2.3 Battery Warnings).
2) 80x Sealed Lead Acid Batteries: 12V 9Ah (Non-Spillable VRLA AGM/GEL). Batteries must be UL-recognised to UL 1989, UL CCN: BARZ2.
3) Tripp Lite Wiring Kit PN: ACC-0442. Check the wiring kit to make sure all necessary items are there. This kit includes:

Pure electrical circuit lines without any symbols

CABLE CABLE LENGTH QUANTITY
1	75 mm 56
2	160 mm 4
3	250 mm 9
4	350 mm 3
5	700 mm 2
6	800 mm 1
7	930 mm 1

3. Installation and Setup

1) Take off top and side panels by removing all screws.

Technical line drawing of an internal server or rack unit with visible internal components and directional arrows (no text or labels)

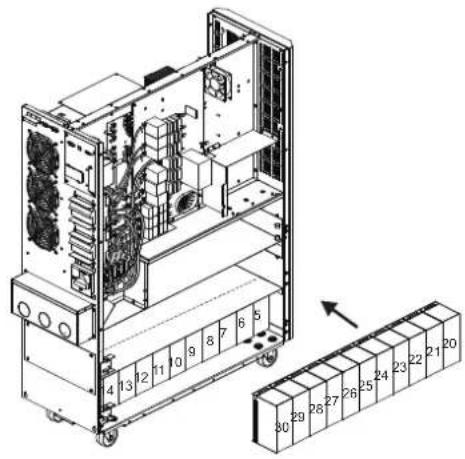

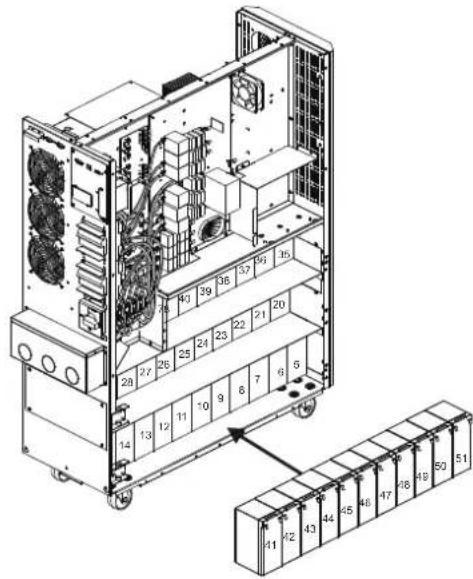

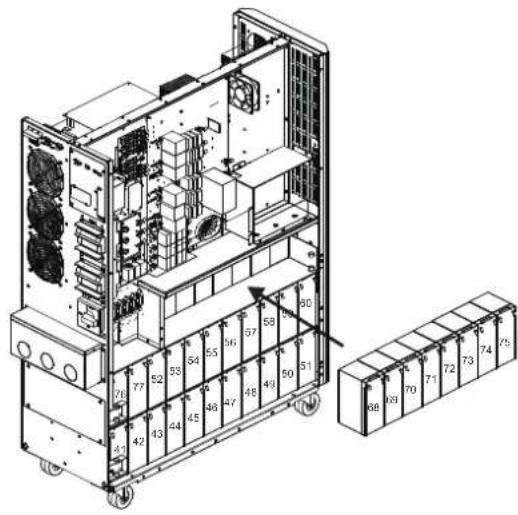

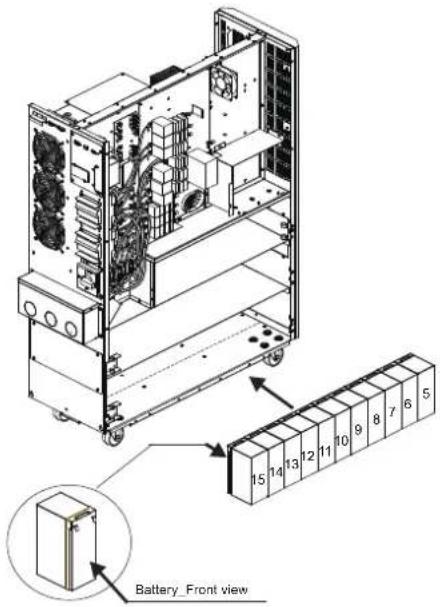

3) Install 11 battery packs to the layer (L1-a). Be sure to keep terminal sides of all batteries up.

Battery_Front view

5) Install another 9 battery packs to the layer (L3-a). Be sure to keep terminal sides of all batteries up.

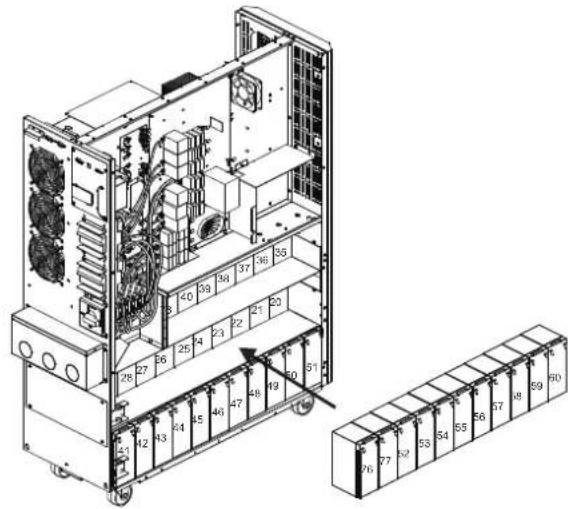

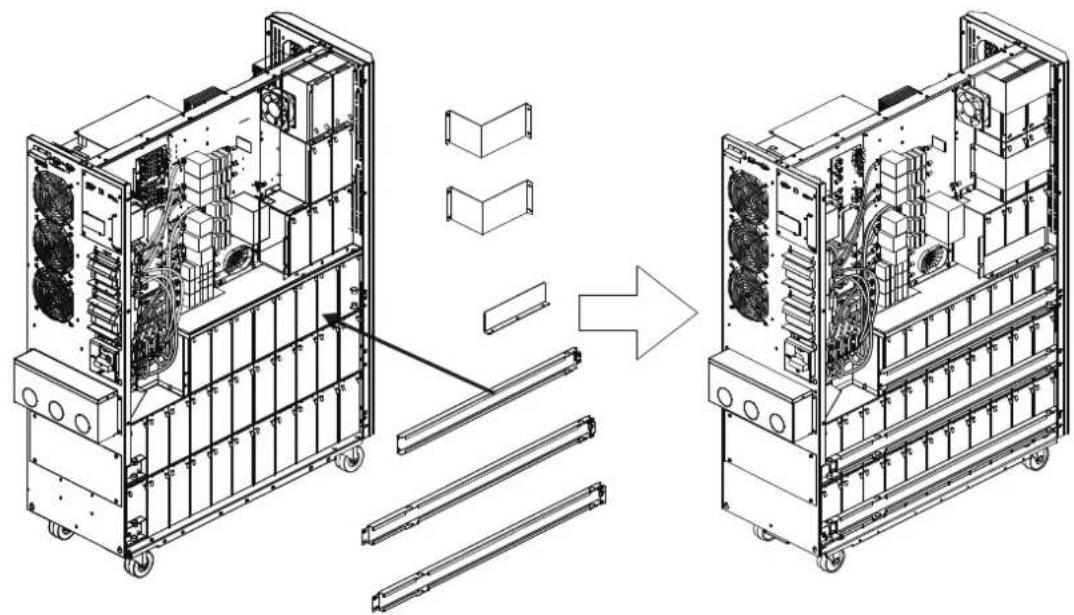

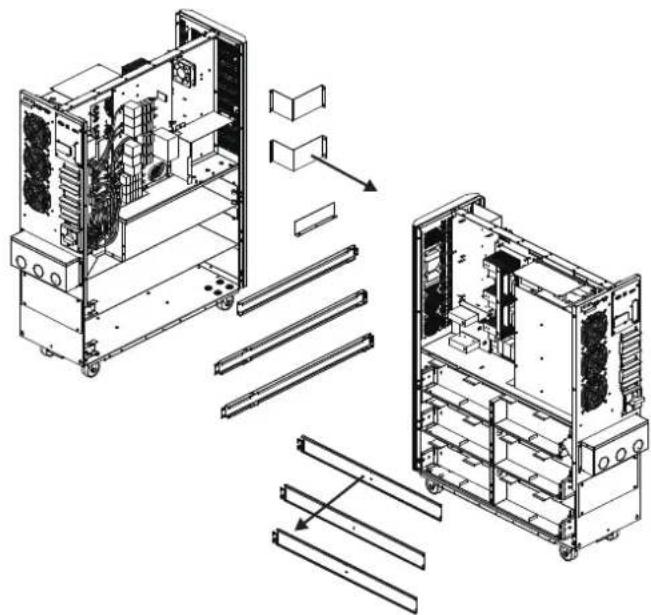

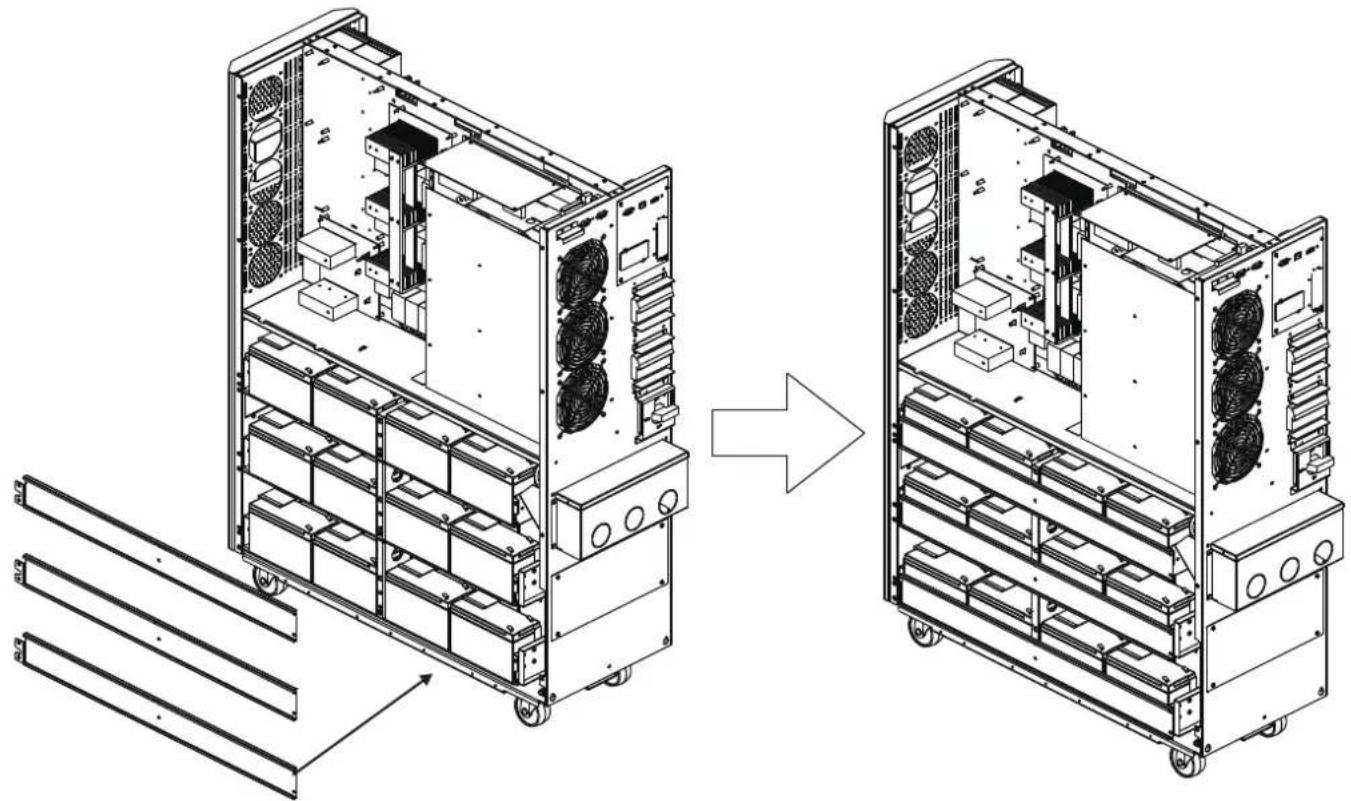

2) Remove the battery bracket bars on the right and left sides of the UPS.

Technical line drawing of an electronic device chassis showing internal components and assembly (no text or symbols)

4) Install another 11 battery packs to the layer (L2-a). Be sure to keep terminal sides of all batteries up.

Technical diagram of an industrial server rack with numbered components and a separate storage unit layout

Technical diagram of an electronic device chassis with numbered components and a 3D layout view showing internal structure.

3. Installation and Setup

6) Install another 11 battery packs to the layer (L1-b). Be sure to keep terminal sides of all batteries up.

Technical diagram of an industrial rack system with numbered components and a zoomed-in view showing internal layout and component arrangement.

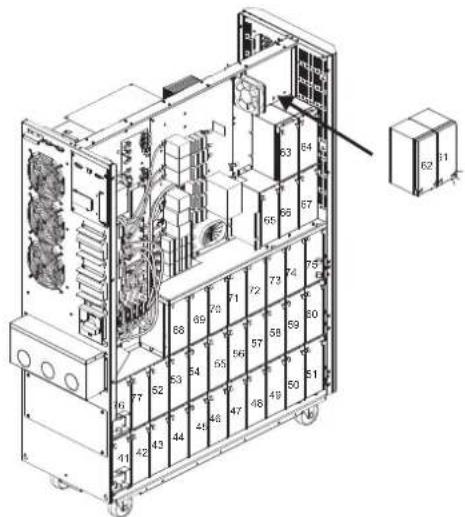

8) Install another 8 battery packs to the layer (L3-b). Be sure to keep terminal sides of all batteries up.

Technical diagram of an internal server rack with numbered components and a separate storage unit panel labeled with numbers.

10) Install another 2 battery packs to the layer (L6). Be sure to keep terminal sides of all batteries down.

7) Install another 11 battery packs to the layer (L2-b). Be sure to keep terminal sides of all batteries up.

Technical diagram of an internal server rack with numbered components and a separate row of labeled connectors

9) Install another 5 battery packs to the layer (L4 and L5). Be sure to keep terminal sides of all batteries up.

Technical diagram of an industrial machine with numbered components and a separate inset showing labeled parts.

Technical diagram of an industrial control unit with numbered components and a separate box labeled with part numbers 62, 61, 51.

3. Installation and Setup

11) Reattach the six battery bracket bars removed in step 2.

Technical line drawing of an industrial rack system with internal components and assembly lines (no text or symbols)

12) On the right side of the UPS, use 30 pieces of cable 1 to connect two terminals on all batteries shown below.

Technical line drawing of an electronic server rack with cable routing and a close-up inset showing internal components (no text or symbols)

3. Installation and Setup

13) • Use one cable 7 to connect #51 and #52 batteries.
- Use one cable 6 to connect #75 and #76 batteries.
- Use one cable 5 to connect #67 and #68 batteries.
- Use one cable 4 to connect #64 and #65 batteries.
- Use one cable 2 to connect #62 and #63 batteries.

Technical diagram of an electronic control panel with numbered components and a magnified inset showing internal structure.

14) On the left side of the UPS, use 26 pieces of cable 1 to connect two terminals on all batteries.

Technical line drawing of an electrical enclosure with labeled components and a magnified inset showing internal wiring connections (no text or symbols present)

3. Installation and Setup

15) Use one cable 5 to connect #77 and #78 batteries.

Left Side 7B 5 Right Side 77

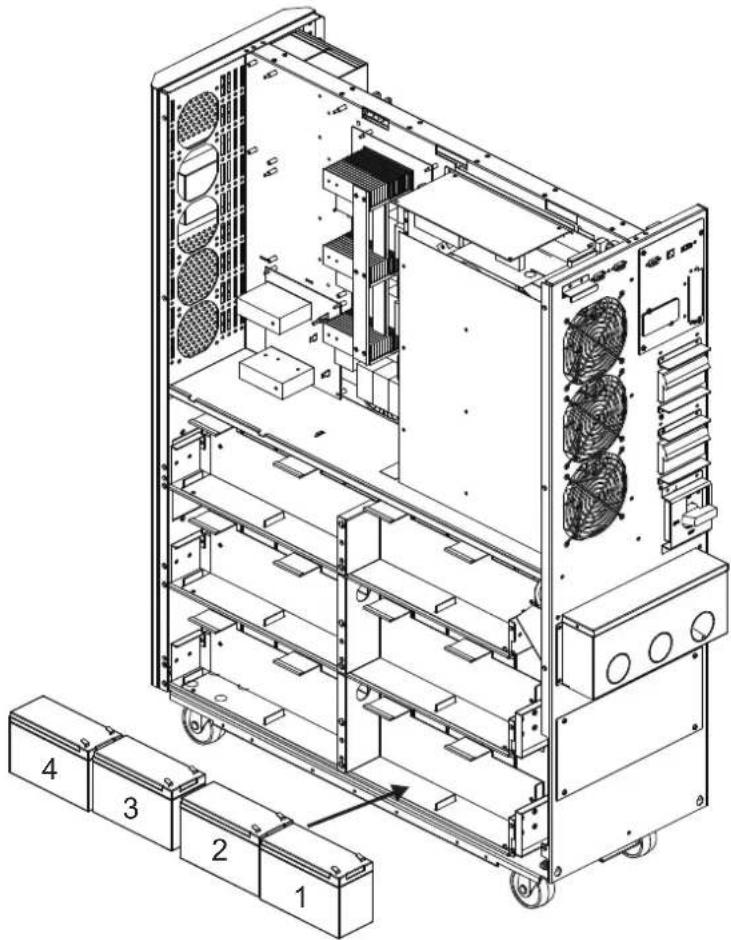

16) Install another 4 battery packs to the layer (L1). Be sure to keep terminal sides of all batteries up.

Technical line drawing of an internal server rack with numbered components (1-4), showing internal compartments and ventilation ducts (no text or symbols present)

3. Installation and Setup

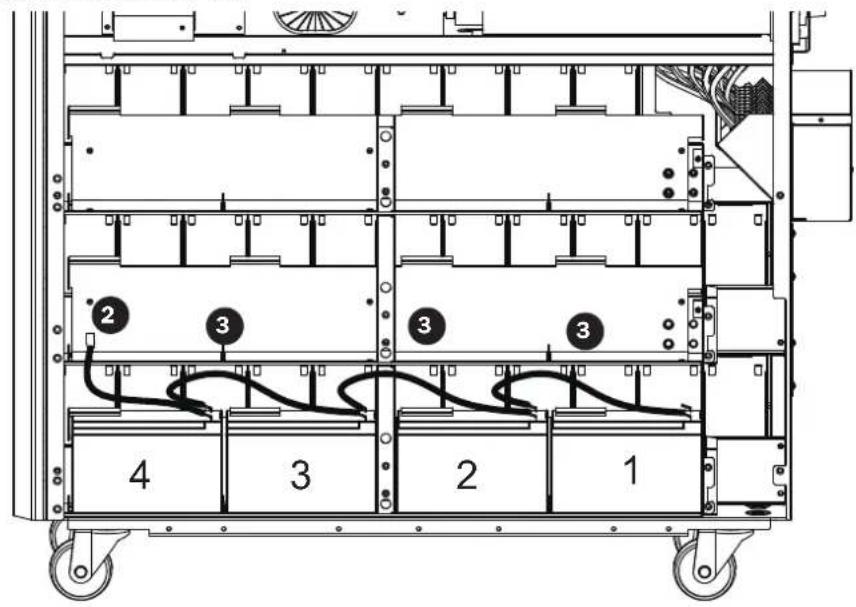

17) • Use one cable 2 to connect #4 and #5 batteries.

• Use one cable 3 to connect #3 and #4 batteries.
• Use one cable 3 to connect #2 and #3 batteries.
• Use one cable 3 to connect #1 and #2.

2 3 3 3 4 3 2 1

18) Install another 4 battery packs to the layer (L2). Be sure to keep terminal sides of all batteries up.

Technical diagram of a server rack with numbered components and ventilation system layout

3. Installation and Setup

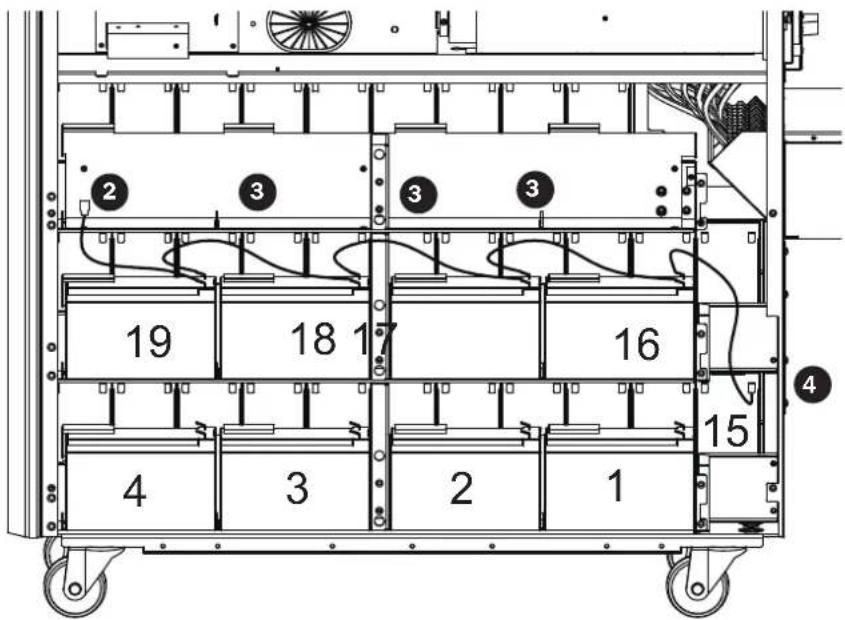

19) • Use one cable 2 to connect #19 and #20 batteries.

• Use one cable 3 to connect #18 and #19 batteries.
• Use one cable 3 to connect #17 and #18 batteries.
• Use one cable 3 to connect #16 and #17 batteries.
- Use one cable 4 to connect #15 and #16 batteries.

19 18 17 16 4 3 2 1 ② ③ ③ ③ ④ 15

20) Install another 4 battery packs to the layer (L3). Be sure to keep terminal sides of all batteries up.

34 33 19 18 17 16 32 31 3 2 1

3. Installation and Setup

21) • Use one cable ② to connect #34 and #35 batteries.

• Use one cable 3 to connect #33 and #34 batteries.
- Use one cable 3 to connect #32 and #33 batteries.
- Use one cable 3 to connect #31 and #32 batteries.
- Use one cable 4 to connect #30 and #31 batteries.

34 33 32 31 30 19 18 17 16 4 3 2 1

22) Reattach the battery brackets.

Technical line drawing of a dual-chamber industrial rack system with heat exchangers and cooling fans (no text or symbols)

3. Installation and Setup

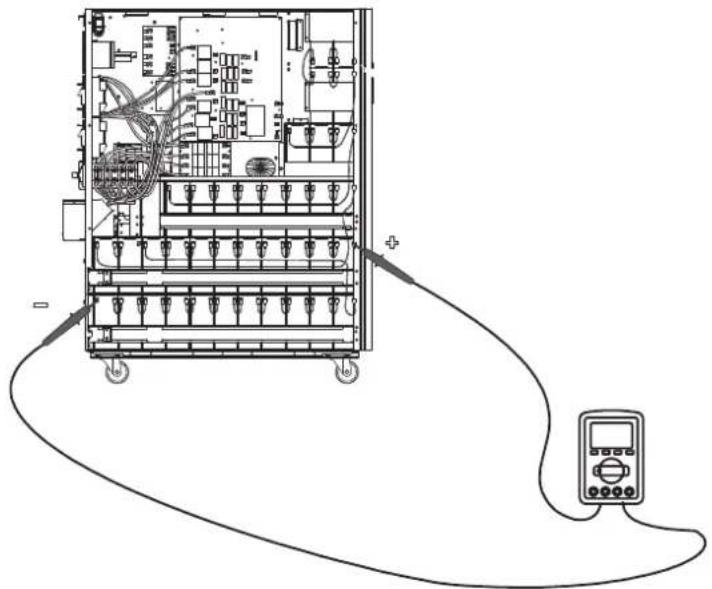

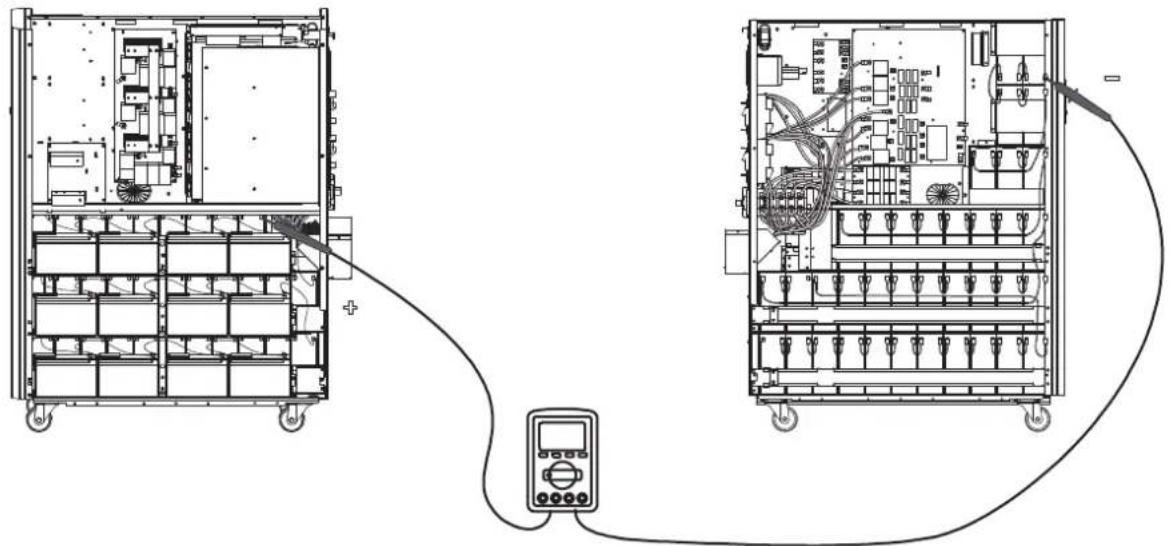

23) Use a meter to measure the positive pole of #20 battery and the negative pole of #1 battery. (DC voltage should be within 240V\~270V)

Technical line drawing of a multi-level electronic device with labeled components and connections (no readable text or symbols)

24) Use a meter to measure the positive pole of #40 battery and the negative pole of #21 battery. (DC voltage should be within 240V\~270V)

Technical line drawing of an electrical enclosure with a multimeter connected to the front panel (no text or symbols present)

25) Use a meter to measure the positive pole of #80 battery and the negative pole of #61 battery. (DC voltage should be within 240V\~270V)

Technical line drawing of an electrical control room with two views: front view and side view, connected by a multimeter (no text or symbols present)

26) Use one meter to measure the positive pole of #60 battery and the negative pole of#41 battery. (DC voltage should be within 240V\~270V)

Technical line drawing of an electrical control unit with connected cables and a digital multimeter (no text or symbols)

3. Installation and Setup

27) Use the Battery Fuse PCB to connect batteries and refer to the Figures 3.5, 3.6 and 3.7. Refer to Table 3.1 for a complete battery wiring listing.

BAT +1 cable to positive pole of #40 battery. BAT -1 cable to negative pole of #1 battery.

BAT +2 cable to positive pole of #80 battery.

BAT N1 cable to positive pole of #20 battery.

BAT N3 cable to positive pole of #60 battery.

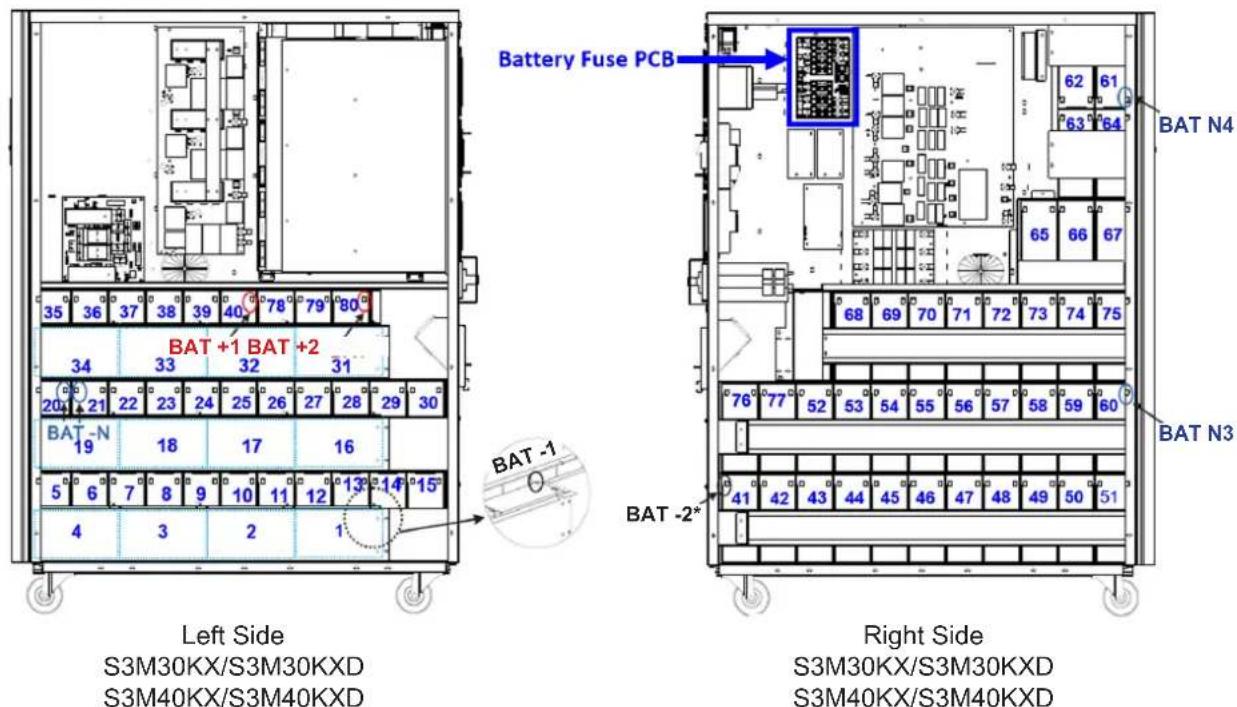

Battery Fuse PCB BAT +1 BAT +2 BAT -1 BAT -2* Left Side S3M30KX/S3M30KXD S3M40KX/S3M40KXD Right Side S3M30KX/S3M30KXD S3M40KX/S3M40KXD

* Only the BAT -2 cable and connector is routed through the cable grommet.

Figure 3.5 Figure 3.6

Figure 3.7

Notes:

• The blue numbers in above figures are "Battery Numbers" from 1 to 80, which are used for battery position identification.
  • There are 2 red wires, 2 black wires and 4 blue wires, which connect the battery fuse board and batteries.
  • S3M30KX/KXD/NIB battery fuse board part number: 71-303365-XXG.
  • S3M40KX/KXD/NIB battery fuse board part number: 71-303366-XXG.

3. Installation and Setup

Table 3.1 Battery Wiring for S3M30KX/KXD/NIB and S3M40KX/KXD/NIB

BATNumber 1

2 3 4 5 6 7 8 9 10

Terminal

-

+

-

+

-

+

-

+

-

+

-

+

-

+

-

+

-

+

-

+

Connection Wire

1050 mm Black Wire from Fuse Holder

250mm Wire

250mm Wire

250mm Wire

160mm Wire

75mm Wire

75mm Wire

75mm Wire

75mm Wire

75mm Wire

See Below

BATNumber 10 11 12 13 14 15 16 17 18 19

Terminal

-

+

-

+

-

+

-

+

-

+

-

+

-

+

-

+

-

+

-

+

Connection Wire

75 mm Wire

75 mm Wire

75 mm Wire

75 mm Wire

75 mm Wire

350 mm Wire

250 mm Wire

250 mm Wire

250 mm Wire

See Below

BAT Number	19		20		21		22		23		24		25		26		27		28
Terminal	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+
Connection Wire		160 mm Wire		1350 mm Blue Wire from Fuse Holder	1350 mm Blue Wire from Fuse Holder	75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		See Below

BAT Number	28		29		30		31		32		33		34		35		36		37
Terminal	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+
Connection Wire		75 mm Wire		75 mm Wire		350 mm Wire		250 mm Wire		250 mm Wire		250 mm Wire		160 mm Wire		75 mm Wire		75 mm Wire		See Below

BAT Number	37		38		39		40
Terminal	-	+	-	+	-	+	-	+
Connection Wire		75 mm Wire		75 mm Wire		75 mm Wire		1050 mm Red Wire from Fuse Holder

BAT Number	41		42		43		44		45		46		47		48		49		50
Terminal	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+
Connection Wire	900 mm BlackWire from Fuse Holder	75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		See Below

BATNumber 50	51	52	53	54	55	56	57	58	59
Terminal	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	+
Connection Wire		75 mm Wire		800 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		See Below

BAT Number	59		60		61		62		63		64		65		66		67		68
Terminal	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+
Connection Wire		75 mm Wire		1350mm Blue Wire from Fuse Holder	1150mm Blue Wire from Fuse Holder	75 mm Wire		160 mm Wire		75 mm Wire		350 mm Wire		75 mm Wire		75 mm Wire		700 mm Wire		See Below

BAT Number	68		69		70		71		72		73		74		75		76		77
Terminal	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+	-	+
Connection Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		75 mm Wire		930 mm Wire		75 mm Wire		See Below

BAT Number	77		78		79		80
Terminal	-	+	-	+	-	+	-	+
Connection Wire		700 mm Wire		75 mm Wire		75 mm Wire		850 mm Red Wire from Fuse Holder

28) Reinstall the top and side panels per step 1). Tighten all screws with a torque of 1 N·m.

3. Installation and Setup

3.4 Single UPS Installation

Installation and wiring must be performed in accordance with local electrical codes/regulations and should only be performed by qualified personnel.

1) Make sure the mains wire and breakers in the building can sustain the rated capacity of the UPS to avoid electric shock or fire hazard. Note: Using a wall receptacle as the input power source for the UPS may result in the receptacle burning or being destroyed.
2) Switch off the mains switch in the building prior to installation.
3) Turn off all the connected devices before connecting to the UPS.
4) Prepare the power cables according to Table 3.2. Refer to Table 3.3 for UPS Input Breaker sizes and Table 3.4 for Battery Cabinet Batteries and Breaker sizes.

WARNING:

- Before connecting any wires, make sure the AC input and battery power are completely shut off.

Table 3.2 Power Cables

Model	Wiring Specification				GroundInput
S3M30KX/KXD 8	AWG [8 mm ^2 ] 8	AWG [8 mm ^2 ] 4	AWG [21 mm ^2 ] N/A, when using only internal batteries 4 AWG [21 mm ^2 ]	N/A, when using only internal batteries 4 AWG [21 mm ^2 ]
S3M30KX/KXD 8	AWG [8 mm ^2 ] 8	AWG [8 mm ^2 ] 4	AWG [21 mm ^2 ]	4 AWG [21 mm ^2 ], for external battery pack	4 AWG [21 mm ^2 ]
S3M30KX-NIB S3M30KXD-NIB	8 AWG [8 mm ^2 ] 8	AWG [8 mm ^2 ] 4	AWG [21 mm ^2 ]	4 AWG [21 mm ^2 ], for external battery pack	4 AWG [21 mm ^2 ]
S3M40KX/KXD 6	AWG [13 mm ^2 ] 6	AWG [13 mm ^2 ] 4	AWG [21 mm ^2 ] N/A, when using only internal batteries 4 AWG [21 mm ^2 ]	N/A, when using only internal batteries 4 AWG [21 mm ^2 ]
S3M40KX/KXD 6	AWG [13 mm ^2 ] 6	AWG [13 mm ^2 ] 4	AWG [21 mm ^2 ]	4 AWG [21 mm ^2 ], for external battery pack	4 AWG [21 mm ^2 ]
S3M40KX-NIB S3M40KXD-NIB	6 AWG [13 mm ^2 ] 6	AWG [13 mm ^2 ] 4	AWG [21 mm ^2 ]	4 AWG [21 mm ^2 ], for external battery pack	4 AWG [21 mm ^2 ]
S3M60KX/KXD 4	AWG [21 mm ^2 ] 4	AWG [21 mm ^2 ] 1	AWG [42.4 mm ^2 ] 1	AWG [42.4 mm ^2 ]	4 AWG [21 mm ^2 ]
S3M80KX/KXD 2	AWG [34 mm ^2 ] 2	AWG [34 mm ^2 ] 1/0 AWG [54 mm ^2 ]		1/0 AWG [54 mm ^2 ]	2 AWG [34 mm ^2 ]

(Ph) Ou

Table 3.3 UPS Input Breakers

Model (Agency Number)	Breaker Size
S3M30KX (AG-6030)	63A, 3-Pole
S3M30KXD (AG-6030)	63A, 3-Pole
S3M30KX-NIB (AG-6031)	63A, 3-Pole
S3M30KXD-NIB (AG-6031)	63A, 3-Pole
S3M40KX (AG-6040)	80A, 3-Pole
S3M40KXD (AG-6040)	80A, 3-Pole
S3M40KX-NIB (AG-6041)	80A, 3-Pole
S3M40KXD-NIB (AG-6041)	80A, 3-Pole
S3M60KX (AG-6060)	150A, 3-Pole
S3M60KXD (AG-6060)	150A, 3-Pole
S3M80KX (AG-6080)	6 x 30A Fuses/Phase
S3M80KXD (AG-6080)	6 x 30A Fuses/Phase

Table 3.4 Battery Cabinet Batteries and Breakers

Model	Batteries Included	Battery Size and Qty.	Breaker Size
BP480V100	Yes	100Ah x 40	400A, 3-Pole
BP480V65		65Ah x 40	300A, 3-Pole
BP480V40		40Ah x 40	200A, 3-Pole
BP480V100-NIB	No	(Designed For) 100Ah x 40	400A, 3-Pole
BP480V65-NIB		(Designed For) 65Ah x 40	300A, 3-Pole
BP480V40-NIB		(Designed For) 40Ah x 40	200A, 3-Pole
BP480V10	Yes	10Ah x 80	100A (Fuse)
BP480V09		9Ah x 80	100A (Fuse)
BP480V10-NIB	No	(Designed For) 10Ah/9Ah x 80	100A (Fuse)

Notes:

• The S3M30KX/KXD/NIB cable should be able to withstand over 63A current. It is recommended to use 8 AWG (8 mm ^2 ) or thicker wire for Phase and 4 AWG (21 mm ^2 ) or thicker wire for Neutral for safety and efficiency.
• The S3M40KX/KXD/NIB cable should be able to withstand over 80A current. It is recommended to use 6 AWG (13 mm ^2 ) or thicker wire for Phase and 4 AWG (21 mm ^2 ) or thicker wire for Neutral for safety and efficiency.
• The S3M60KX/KXD cable should be able to withstand over 122A current. It is recommended to use 4 AWG (21 mm ^2 ) or thicker wire for Phase and 1 AWG (42 mm ^2 ) or thicker wire for Neutral for safety and efficiency.
• The S3M80KX/KXD cable should be able to withstand over 160A current. It is recommended to use 2 AWG (34 mm ^2 ) or thicker wire for Phase and 1/0 AWG (54 mm ^2 ) or thicker wire for Neutral for safety and efficiency.

3. Installation and Setup

5) Remove the terminal block cover to access the UPS system's input, output and grounding connection terminals. Then connect the wires according to the terminal block diagram shown below. Connect the grounding/earthing wires first when making other wire connections.

Notes:

• Ensure the wires are tightly and securely connected to the terminals.
  • Install the output breaker between the output terminal and the load. The breaker should be qualified with leakage current protective function.
• Cabling should be protected by flexible conduit and routed through the appropriate knockouts in the terminal block cover.

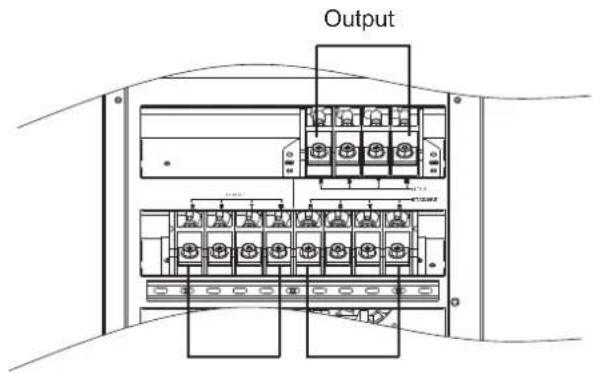

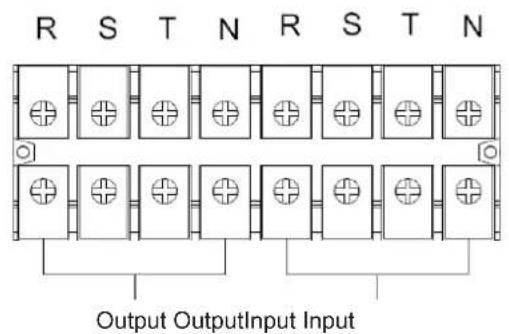

R S T N R S T N Output OutputInput Input

Single Input Terminal Block Wiring Diagram for S3M30KX and S3M40KX

R S T N R S T N

Single Input Terminal Block Wiring Diagram for S3M60K and S3M80K

Output Input 2 Input 2Input Input

Output

Dual Input Terminal Block Wiring Diagram for S3M30KXD and S3M40KXD
Dual Input Terminal Block Wiring Diagram for S3M60KXD and S3M80KXD

BAT+ BAT-N BAT- PBAT + - TO UPS BAT+ TO UPS BAT N NBAT + - TO UPS BAT-

±240V Battery Connection Wiring

Note: Be sure to also add an equipotential bonding wire between the UPS and the External Battery Cabinets.

6) Re-attach the terminal block cover to the rear panel of the UPS.

3. Installation and Setup

WARNING:

Make sure the UPS is not turned on prior to installation. The UPS should not be turned on until all wiring has been completed and checked.

WARNING:

If an external battery pack is installed, switch off the battery breaker before installation.

Note: Set the battery pack breaker in the "OFF" position, then install the battery pack.

• Pay close attention to the rated battery voltage posted on the rear panel. Connecting battery packs with the incorrect voltage may cause permanent damage to the UPS.
• Pay close attention to the polarity markings on the external battery terminal block and make sure the correct battery polarity is connected. Wrong connection may cause permanent damage to the UPS.
• Ensure the protective earth ground wiring is correct. The wire current spec, colour, position, connection and conductance reliability should be carefully observed.
• Ensure the utility input and output wiring is correct. The wire current spec, colour, position, connection and conductance reliability should be checked carefully. Make sure the R, S, T and N wiring is correct, not reversed and not short-circuited.

3.5 UPS Installation for Parallel Systems

WARNING:

Installation and wiring must be performed in accordance with the local codes/regulations and installed using the following instructions by a qualified electrical service technician only.

If the UPS is only used for single operation, you may skip this section and proceed to section 3.7.

1) Parallel configuration supports up to three UPS systems. Do not attempt to link more than three UPS systems via parallel configuration.
2) Install and wire the UPS system according to section 3.5 guidelines.
3) When installing the parallel system, the length of input wires (R, S, T, N) in one UPS must be equal to the input wires of the other UPS. Likewise, the length of output wires (R, S, T, N) must also be in equal length. If not, it will cause unbalance current on the output load.
4) Connect the input wiring of each UPS to an input breaker.
5) Connect all input breaker wiring to a main input breaker.
6) Connect the output wiring of each UPS to an output breaker.
7) Connect all output breakers to a main output breaker. This main output breaker will directly connect to the loads.
8) If an external battery pack is used, each UPS must be connected to an independent battery pack or a common battery pack.
Note: The parallel system cannot use a common external battery pack. Doing so will cause permanent damage to the entire system.
9) Refer to the following wiring diagram for parallel installation:

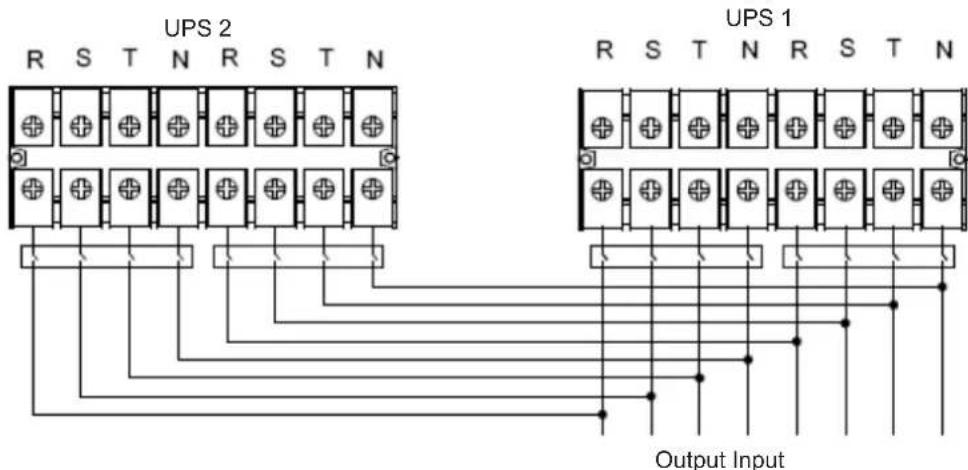

UPS 2 R S T N R S T N UPS 1 R S T N R S T N Output Input

Wiring Diagram of Parallel System (S3M30KX, S3M30KXD, S3M40KX, S3M40KXD, S3M30KX/KXD/NIB and S3M40KX/KXD/NIB Models)

3. Installation and Setup

UPS 2 UPS 1 R S T N R S T N OutputInput

Wiring Diagram of Parallel System (S3M60KX/KXD and S3M80KX/KXD Models)

3.6 External Battery Connection

The S3M30KX/S3M30KXD and S3M40KX/S3M40KXD UPS models include a robust internal battery system. The S3M60KX and S3M80KX models require external battery packs. External battery packs may be used with all models to extend runtime. Adding external batteries will increase runtime and require additional recharge time.*

The illustrations below show the location of the UPS system's external battery connector for the 30K and 40K model where the battery pack connects 7. The illustration at the bottom shows the connection for the 60K and 80K models. Follow the installation instructions for your battery pack as they appear in your battery pack Owner's Manual. Ensure the cables are fully inserted into their connectors. Small sparks may occur during battery connection; this is normal.

Do not connect or disconnect battery packs when the UPS is running on battery power.

*Limit three external battery packs per UPS.

Technical diagram of an industrial fan assembly with numbered components and labeled parts

Technical diagram of an industrial fan system with numbered components and labeled parts

External Battery Connector for the S3M30KX/KXD/NIB and S3M40KX/KXD/NIB Models

Technical diagram showing a fan assembly with labeled component '7' and numbered callout arrow

S3M30KX/KXD/NIB and S3M40KX/KXD/NIB External Battery Connection

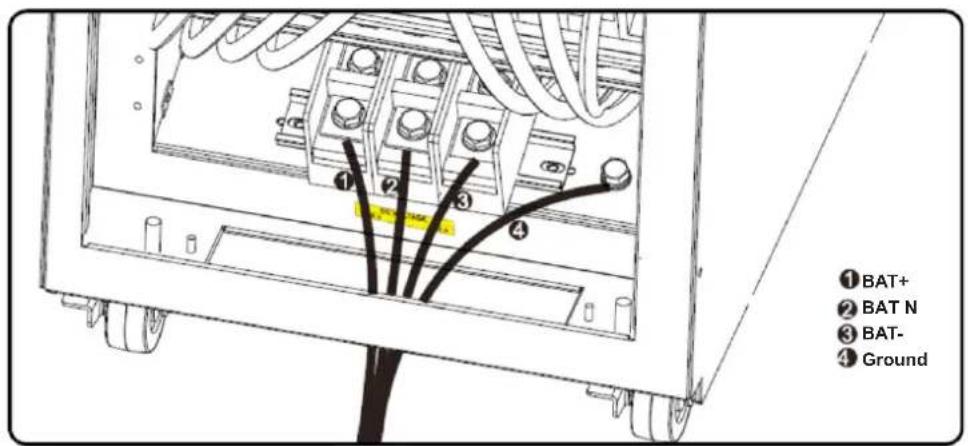

①BAT+ ②BAT N ③BAT- ④Ground

S3M60KX/KXD and S3M80KX/KXD External Battery Connection

3. Installation and Setup

3.7 Dual AC Input Installation

Dual AC Input UPS (or suffix "KXD") models are defaulted to a Single AC Input configuration via the placement of three shorting jumpers between AC Input 1 and AC Input 2. If you desire to operate the "KXD" models in a dual AC configuration, remove these three jumpers, and wire AC input 1 and AC Input 2 accordingly.

Technical diagram of a server rack system with labeled components and red annotations indicating connection points.

Jumpers on "KXD" dual-AC input models.
Note: Input neutrals are tied together internally.

80K Model60K Model30-40K Model

4. Operation

4.1 Display Button Operation

Button Function
ON/Enter Button	Turn on the UPS:Press and hold for more than 0.5 seconds to turn on the UPS.Enter Button:Press to confirm a selection in the settings menu.
OFF/ESC Button	Turn off the UPS:Press and hold for more than 0.5 seconds to turn off the UPS.Esc Button:Press to return to the previous menu in the settings menu.
Test/Up Button	Battery Test:Press and hold for more than 0.5 seconds to test the battery while in On-line Mode and Freq. Converter* Mode.UP Button:Press to display the next selection in the settings menu.
Mute/Down Button	Mute the alarm:Press and hold for more than 0.5 seconds to mute the alarm. Refer to section 4.4.9 for details.Down Button:Press to display the previous selection in the settings menu.
Test/Up + Mute/Down Button	Press and hold the two buttons simultaneously for more than 1 second to enter/exit the setup menu.Refer to section 4.7 Setup Menu for details.

* Freq. Converter means Constant Output Voltage and Constant Output Frequency.

4.2 LED Indicators and LCD Panel

LINE BYPASS BATTERY FAULT LED Indicators LCD Panel

LED Indicators:

There are four LEDs on front panel to show the UPS operation status:

Mode / LED Line Bypass	Battery Fault
Initialization • • • •
Standby Mode o o o o
Bypass Mode o • o o
On-line Mode • o o o
Battery Mode o o • o
Freq. Converter* Mode • o o
Battery test • • • o
ECO Mode	• • o o
Fault	o o o •

Note: • means LED is glowing, and o means LED is off.

4. Operation

LCD Panel

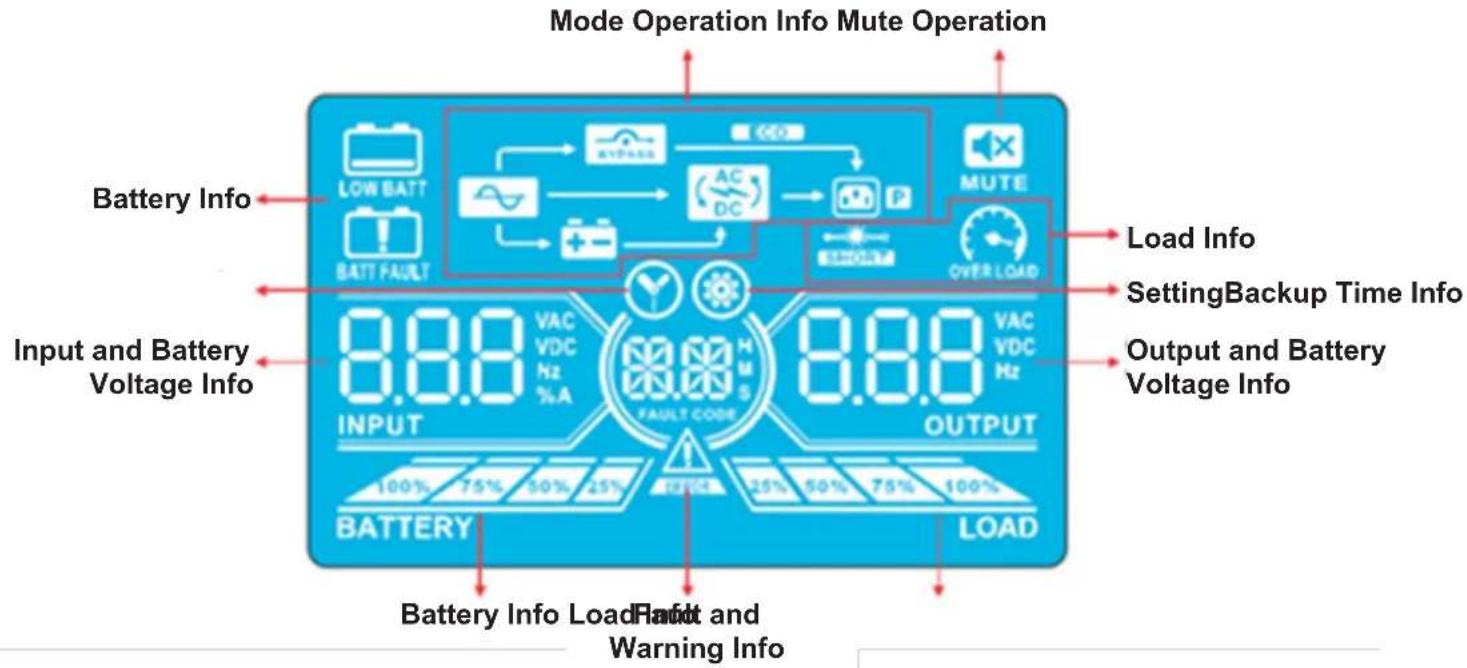

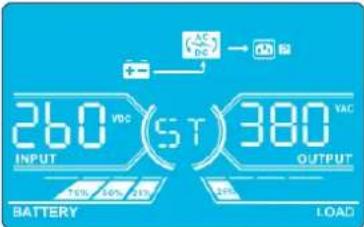

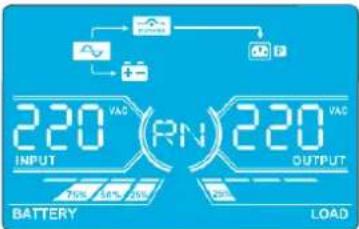

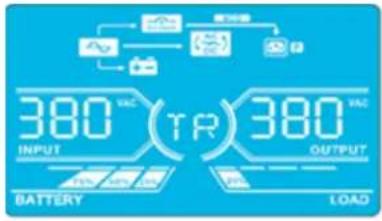

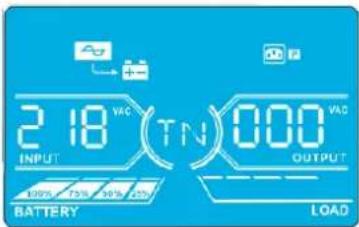

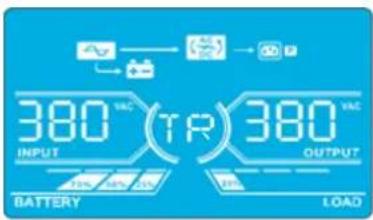

Mode Operation Info Mute Operation Battery Info LOW BATT BATT FAULT CO2 AC DC MUTE OVER LOAD Load Info SettingBackup Time Info Output and Battery Voltage Info Input and Battery Voltage Info 8.8.0 VAC VDC Hz % A FAULT CODE 8.8.0 VAC VDC Hz OUTPUT 100% 75% 50% 25% 25% 50% 75% 100% BATTERY LOAD Battery Info Load Fault and Warning Info

Display Function
Backup time information
	Indicates the battery discharge time in numbersH: hours, M: minutes, S: seconds
Fault and Warning information
	Indicates a Warning when this icon is flashing and a Fault when this icon is steady.
	When the Fault and Warning Icon is steady, refer to the Fault code description in section 4.9. When the icon is flashing, refer to the Warning code description in section 4.11.
Mute operation
	Indicates the UPS alarm is disabled.
Output & Battery voltage information
	Indicates the output voltage, frequency or battery voltage.VAC: Output Voltage, VDC: Battery Voltage, Hz: Frequency
Load information
	Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%.
	Indicates overload.
	Indicates the load or the output is short.
Mode operation information
	Indicates the UPS is connected to the mains.
	Indicates the battery is working.
	Indicates the bypass circuit is working.
	Indicates ECO Mode is enabled.
	Indicates the inverter circuit is working.
	Indicates the output is working.

4. Operation

Battery information
	Indicates the battery capacity by 0-25%, 26-50%, 51-75% and 76-100%.
	Indicates the battery is not connected.
	Indicates low battery level and low battery voltage.
Input & Battery voltage information
	Indicates the input voltage, frequency or battery voltage.VAC: Input Voltage, VDC: Battery Voltage, Hz: Input Frequency

4.3 Audible Alarm

Description Alarm Status Mutable
UPS Status
Bypass Mode Beeps once every 2 minutes.		YesBattery Mode Beeps once every 4 seconds.
Fault Mode Beeps continuously.
Warning
Overload Beeps twice per second.		No
All other warnings Beeps once per second.
Fault
All Beeps continuously. Yes

4.4 Single UPS Operation

4.4.1 Turning On the UPS (On-line Mode)

1) Make sure the power supply is correctly connected.
2) If you have an external battery pack, set the breaker of the battery pack to the "ON" position.
3) Switch the UPS Input breaker/switch (and Input 2 breaker/switch for dual mode models) to the "ON" position. At this time, the fan will be running and the UPS will proceed to power-on for initialization. Several seconds later, the UPS will operate in Bypass Mode and supply power to the connected loads via the bypass.

Note: In Bypass Mode, the load is not protected by the UPS. To protect connected devices, turn on the UPS as shown in Step 2.

4) Press and hold the "ON" button for 0.5 seconds to turn on the UPS. The alarm will beep once.
5) A few seconds later, the UPS will enter On-line Mode. If utility power is abnormal, the UPS will operate in Battery Mode without interruption.

Note: When the UPS is running low on battery power, it will automatically shut down in Battery Mode. The UPS will auto restart in On-line Mode once utility power is restored.

4.4.2 Turning On the UPS without Utility Power (Battery Mode)

1) When using an external battery pack, make sure the two battery strings are correctly connected before switching the battery pack breaker to the "ON" position.
2) Switch the battery pack breaker to the "ON" position.
3) Press the "ON" button to set up the power supply for the UPS. The UPS will enter Power-on Mode. After initialization, the UPS will enter "No Output Mode"/Standby Mode. When this happens, press and hold the "ON" button for 0.5 seconds to turn on the UPS. The alarm will beep once.
4) A few seconds later, the UPS will turn on and enter Battery Mode.
5) Switch the UPS Input breaker/switch (and Input 2 breaker/switch for dual models) to the "ON" position when utility power is restored and verified OK.

4. Operation

4.4.3 Connecting Devices to UPS

1) After the UPS has been turned on, devices may be connected and powered on one at a time. The UPS system's LCD panel will display the total load level.
2) When connecting devices with inductive loads (such as a printer), the in-rush current should be calculated carefully to confirm it meets the capacity of the UPS. Power consumption of such loads may cause an overload.
3) If the UPS is overloaded, the alarm will beep twice every second.
4) In case of overload, remove non-essential devices immediately. To prevent overload and ensure system safety, it is recommended to have the total load connected to the UPS at no more than 80% of its nominal power capacity.
5) If the overload time is higher than the acceptable time listed in On-line Mode, the UPS will automatically transfer to Bypass Mode. After the overload is removed, the UPS will return to On-line Mode. If the overload time is higher than the acceptable time listed in Battery Mode, the UPS will go to fault status. At this time, if the bypass is enabled, the UPS will supply power to the load via bypass. If the bypass function is disabled or the input power is not within acceptable bypass range, it will directly cut off output.

4.4.4 Charging the Batteries

1) After the UPS is connected to utility power, the charger will automatically charge the batteries (except when in Battery Mode, during a battery self-test, overload or when the batteries are fully charged).
2) It is recommended to charge the batteries at least 10 hours prior to use. Otherwise, the backup time may be shorter than expected.

4.4.5 Battery Mode Operation

1) The default value is 990 minutes, or 16.5 hours. The UPS will automatically shut down to protect the battery after discharging for 16.5 hours. This battery discharge protection can be enabled or disabled through the LCD control panel (refer to section 4.7 for more information).

4.4.6 Testing the Batteries

1) To check the battery status when the UPS is in On-line Mode/Freq. Converter Mode, press the "Test" button for the UPS to perform a battery self-test.
2) Users may set battery self-tests through the network management card.

4.4.7 Turning Off the UPS with Utility Power Present in On-line Mode

WARNING: The UPS system shutdown procedure will eliminate AC power output for all loads. Before shutdown, confirm all power loads are turned off.

1) Turn off the UPS inverter by pressing the "OFF" button for at least 0.5 seconds. The alarm will beep once and the UPS will enter Bypass Mode. Notes:

• If the UPS has been set to bypass output, it will bypass voltage from utility power to the output terminal, even though the UPS inverter has been turned off.
  • After turning off the UPS, be aware that the UPS is operating in Bypass Mode and there is risk of power loss for connected devices.

2) In Bypass Mode, UPS output voltage is still present. In order to cut off the output, switch off the UPS Input breaker/switch (and Input 2 breaker switch for dual mode models). Within a few seconds, the unit's LCD panel will be blank and the UPS will be completely off.

4.4.8 Turning Off the UPS with No Utility Power Present in Battery Mode

1) Turn off the UPS by pressing the "OFF" button for at least 0.5 seconds. The alarm will sound once.
2) The UPS will cut off power to output and the LCD panel will be blank.
3) Switch off the UPS Input breaker/switch (and Input 2 breaker/switch for dual mode models)

4.4.9 Muting the Alarm

1) To mute the alarm, press the "Mute" button for at least 0.5 seconds. If the Mute button is pressed after the alarm is muted, the alarm will reactivate.
2) Some warning alarms cannot be muted unless the error is fixed. Refer to section 4.3 for details.

4.4.10 Operation in Warning Status

1) When the Fault LED flashes and the alarm sounds once every second, the UPS is encountering problems with its operation. Users may view the warning indicator from the LCD panel. Check the troubleshooting table in section 6 for more information.
2) Some warning alarms cannot be muted until the error is fixed. Refer to section 4.3 for details.

4. Operation

4.4.11 Operation in Fault Mode

1) When the Fault LED illuminates and the alarm sounds continuously, there is a fatal error in the UPS. Users can view the fault code from the LCD panel. Refer to the table in section 6. Troubleshooting for more information.
2) Check the loads, wiring, ventilation, utility, battery, etc. after a fault occurs. Do not attempt to turn on the UPS again until the problem is resolved. If the problem cannot be fixed, please contact Tripp Lite Tech Support.
3) In the event of an emergency, immediately cut off the utility connection, external battery, and output to avoid further risk or danger.

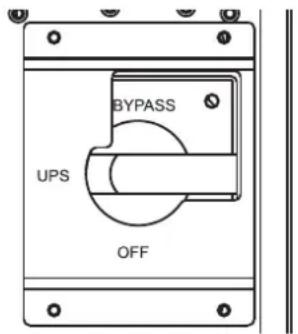

4.4.12 Transfer Critical Load from Line Mode to Maintenance Bypass

WARNING: This operation should only be performed by maintenance personnel or qualified technicians. When the UPS needs to be repaired or serviced and the load cannot be shut off, the UPS should be put in Maintenance Mode (repairs limited; some repairs may require the unit to be shutdown and power disconnected).

1) Remove the cover of the Maintenance Bypass Switch.

BYPASS UPS OFF

2) Confirm the UPS is operating in Bypass Mode.
3) Turn the Maintenance Bypass Switch to the "BYPASS" position.
4) Turn off the UPS Input Breaker/Switch (for dual input models turn off both the UPS Input Breaker/Switch and the Input 2 Breaker/Switch).
5) The UPS will enter Shutdown Mode and will slowly de-energise. After the UPS powers off, turn off the battery breaker (external battery cabinet).
6) The critical load is now supported in Maintenance Bypass Mode.

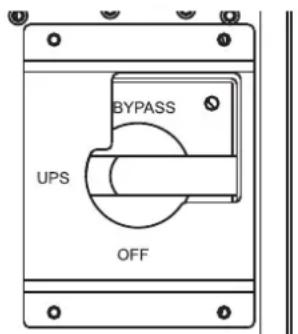

4.4.13 Transfer Critical Load from Maintenance Bypass to Line Mode

WARNING: This operation should only be performed by maintenance personnel or qualified technicians.

1) Turn on the battery breaker (external battery cabinet).
2) Turn on the UPS Input Breaker/Switch (for dual input models turn on both the UPS Input Breaker/Switch and the Input 2 Breaker/Switch).
3) Confirm the UPS is operating in Bypass Mode.
4) Turn the Maintenance Bypass Switch to the "UPS" position.
5) Install the cover of the Maintenance Bypass Switch.

BYPASS UPS OFF

6) Press Power ON/OFF button for 2 seconds until a beep is heard, then release to start the inverter.
7) The critical load is now supported in Line Mode.

4. Operation

4.5 Parallel UPS Operation

4.5.1 Parallel System Initial Startup

Note: This procedure should be performed only by qualified service personnel.

Before initial startup, ensure all UPS systems have the same configuration and can be connected in parallel.

1) Turn on each UPS to On-line Mode (refer to section 4.4.1). Using a multimeter, measure the inverter output voltage of each phase for each UPS to confirm that the inverter voltage difference between actual output and setting value is less than 1.5V (typically 1V). If the difference is greater than 1.5V, calibrate the voltage by configuring the inverter voltage adjustment (refer to Program Codes 15, 16 and 17, in section 4.7) in the LCD setting. If the voltage difference after calibration remains greater than 1.5V, contact Tripp Lite Technical Support for further assistance.
2) Calibrate the output voltage measurement by configuring the output voltage calibration (refer to Program Codes 18, 19, and 20, in section 4.7) in the LCD panel to ensure the difference between the real output voltage and the detected value of the UPS is less than 1V.
3) Turn off each UPS (refer to section 4.4.7), then follow the wiring procedure in section 3.4.
4) Remove the metal cover to access the parallel communication ports on the UPS. Connect each UPS one at a time (maximum of three units for parallel installation) with the parallel cable and shared current cable. Follow the parallel communication cable configuration in the figure below, then reinstall the metal cover.

4.5.2 Turning On a Parallel System in On-line Mode

1) Confirm the Maintenance Bypass Switch of each UPS is in the "UPS" position.
2) Turn on the battery breaker (external battery cabinet) of each UPS.
3) Turn on the UPS Input Breaker/Switch of each UPS (for dual input models turn on both the UPS Input Breaker/Switch and the Input 2 Breaker/Switch).
4) When all UPS systems enter Bypass Mode, measure the output voltage between two UPS systems for the same phase to ensure the phase sequence is correct. If these two voltage differences are near zero, then all connections are correct. If not, check to see if the wirings are connected correctly.
5) Turn on each UPS one at a time. Press the Power ON/OFF button for 2 seconds until a beep is heard, then release to start the inverter on each UPS.
6) The UPS systems will then enter On-line Mode synchronously. The parallel system is completed.

4. Operation

4.5.3 Turning On the Parallel System in Battery Mode

1) Confirm the Maintenance Bypass Switch of each UPS is in the "UPS" position.
2) Turn on the battery breaker (external battery cabinet) of each UPS.

Note: UPS may share the same battery bank or use separate battery banks while in a parallel system.

3) Turn on any UPS. Press Power ON/OFF button for 2 seconds until a beep is heard, then release to start the inverter. A few seconds later, the UPS will enter Battery Mode.
4) Turn on another UPS. Press Power ON/OFF button for 2 seconds until a beep is heard, then release to start the inverter. A few seconds later, the UPS will enter Battery Mode and add to the parallel system.
5) If there is a third UPS in the setup, follow the same procedure as outlined above.
6) Turn on the UPS Input Breaker/Switch of each UPS (for dual input models turn on both the UPS Input Breaker/Switch and the Input 2 Breaker/Switch) when utility power is restored and verified OK.
7) The parallel system is complete.

4.5.4 Adding a New Unit to the Parallel System

Note: It is recommended this procedure be performed by only qualified service personnel.

1) A new unit cannot be added to the parallel system when the whole system is in operation. The load must be powered off and the UPS system shut down.
2) Make sure all UPS systems can be connected in parallel. Follow the wiring instructions in section 3.4.

4.5.5 Removing a Unit from the Parallel System

Note: It is recommended this procedure be performed by only qualified service personnel.

There are two methods to remove a unit from the parallel system:

Method 1: Isolating a single unit from a parallel system

1) Turn the Maintenance Bypass Switch to the "OFF" positon.
2) Press the "OFF" key twice, each time for more than 0.5 seconds. The UPS will enter into Bypass Mode or Standby Mode without output.
3) Turn Off the UPS Input Breaker/Switch (for dual input models turn off both the UPS Input Breaker/Switch and the Input 2 Breaker/Switch).
4) The UPS will enter Shutdown Mode and will slowly de-energise. After the UPS powers off, turn OFF the battery breaker (external battery cabinet).
5) Turn off the unit's output breaker and input breaker.
6) After the unit shuts down, turn off the battery breaker and remove the parallel cable and shared current cables. Remove the unit from the parallel system.

Method 2:

1) If the UPS indicates a bypass abnormal error code, you cannot remove the UPS without interruption and must first power down the load and the UPS system.
2) Make sure the bypass setting is enabled in each UPS, then turn off the running system. All UPS systems will transfer to Bypass Mode. Remove all the maintenance bypass covers and set the maintenance switches from "UPS" to "BPS". Turn off all input breakers and battery breakers in the parallel system.
3) Turn off the output breaker and remove the parallel cable and shared current cable of the UPS to be removed. Remove the unit from the parallel system.
4) Turn on the input breaker of the remaining UPS system(s), then turn on the external main input breaker. The system(s) will transfer to Bypass Mode. Set the maintenance switches from "BPS" to "UPS" and reattach the maintenance bypass covers.
5) Turn on the remaining UPS systems.

Warning: (for Parallel System Setups Only)

• Before turning on the parallel system to activate the inverter, make sure all UPS maintenance switches are set to the same position.
• When the parallel system is turned on to work through the inverter, do not operate the maintenance switch of any unit.
• The parallel system DOES NOT support ECO Mode. DO NOT enable ECO Mode in any unit.

4. Operation

4.6 LCD Panel Abbreviations

Abbreviation Display content Meaning
ENA		Enable
DIS		Disable
ATO		Auto
BAT		Battery
NCF		Normal Mode (not CVCF Mode)
CF		CVCF Mode
SUB		Subtract
ADD		Add
ON		On
OFF		Off
FBD		Not allowed
OPN		Allow
RES		Reserved

Abbreviation Display content Meaning
N.L		Neutral line loss
CHE		Check
OP.V		Output voltage
PAR		Parallel, 001 means the first UPS
RN		The first phase
SN		The second phase
TN		The third phase
RS		The first line
ST		The second line
TR		The third line
HS.H		Hot standby
TOL		Total UPS Number
RED		Redundancy Number

4.7 Setup Menu

Press and hold the Test/Up and Mute/Down buttons simultaneously for longer than one second to enter/exit the Setup Menu.

There are three parameters to set up the UPS. Refer to the illustration below.

Parameter 1 is for program alternatives. Refer to below tables for the programs to set up.

Parameter 2 and Parameter 3 are the setting options or values for each program.

The display will time out after 10 minutes of inactivity. This feature is always enabled.

Note: Use the "Up" or "Down" button to change the programs or parameters.

Parameter 1

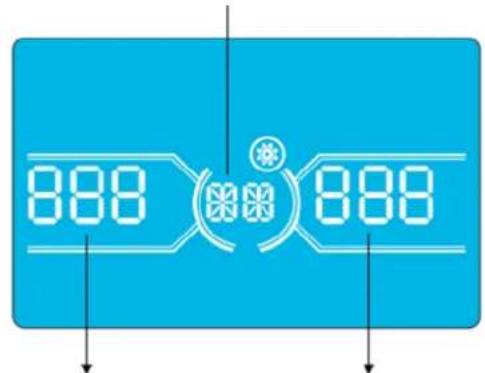

888 888

Parameter 2 Parameter 3

4. Operation

Programs Available List for Parameter 1:

Code Description	Bypass / No Output Mode	AC Mode	ECO Mode	CVCF Mode	Battery Mode	Battery Test
01 Output voltage Y*
02 Output frequency Y
03 Voltage range for bypass Y
04 Frequency range for bypass Y
05 ECO Mode enable/disable Y
06 Voltage range for ECO Mode Y
07 Frequency range for ECO Mode Y
08 Bypass Mode setting YY
09 Maximum battery discharge time setting YYYYYY
10 Reserved Reserved for future options
11 Hot standby function setting	Y
12 Neutral loss detection	YYYYYY
13 Battery voltage calibration	YYYYYY
14 Charger voltage adjustment YYYYYY
15 Inverter A voltage adjustment		Y		YY
16 Inverter B voltage adjustment		Y		YY
17 Inverter C voltage adjustment		Y		YY
18 Output A voltage calibration		Y		YY
19 Output B voltage calibration		Y		YY
20 Output C voltage calibration		Y		YY
21 Charger current setting	Y
22 Charging boards quantity setting	Y
23 Redundancy setting	YYYYYY

*Y means that this program can be set in this mode.
Note: All parameter settings will be saved only when the UPS shuts down normally with an internal or external battery connection. Normal UPS shutdown means turning off input breaker in Bypass/No Output Mode.

01: Output Voltage

Interface	Setting
	Parameter 3: Output voltageFor 220/230/240V AC models, you may choose the following output voltage:220: Output voltage is 220V AC.230: Output voltage is 230V AC (Default).240: Output voltage is 240V AC.

4. Operation

02: Output Frequency

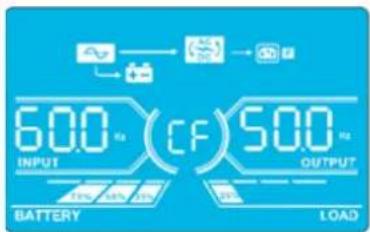

Interface Setting

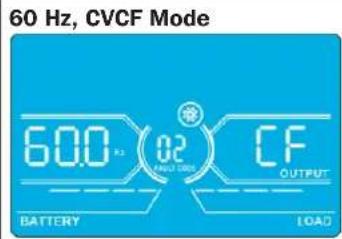

60 Hz, CVCF Mode 60.0 kΩ 02 BATTERY CF OUTPUT LOAD

50 Hz, Normal Mode

500 Hz 02 ACF OUTPUT BATTERY LOAD

ATO

RE0 02 500 BATTERY LOAD

Parameter 2: Output Frequency

Setting the output frequency. You may choose three options in Parameter 2:

50.0 Hz: The output frequency setting is 50.0 Hz.

60.0 Hz: The output frequency setting is 60.0 Hz.

ATO: If selected, output frequency will be decided according to the latest normal utility frequency. If it is from 46 Hz to 54 Hz, the output frequency will be 50.0 Hz. If it is from 56 Hz to 64 Hz, the output frequency will be 60.0 Hz. ATO is the default setting.

Parameter 3: Frequency Mode

Setting output frequency at CVCF Mode or not CVCF Mode. You may choose following two options in Parameter 3:

CF: Setting UPS to CVCF Mode. If selected, the output frequency will be fixed at 50 Hz or 60 Hz according to the setting in Parameter 2. The input frequency could be from 46 Hz to 64 Hz.

NCF: Setting UPS to Normal Mode (not CVCF Mode). If selected, the output frequency will synchronise with the input frequency within 46\~54 Hz at 50 Hz or within 56\~64 Hz at 60 Hz according to setting the in parameter 2. If 50 Hz is selected in Parameter 2, the UPS will transfer to Battery Mode when the input frequency is not within 46\~54 Hz. If 60 Hz is selected in Parameter 2, the UPS will transfer to Battery Mode when the input frequency is not within 56\~64 Hz. *If Parameter 2 is ATO, Parameter 3 will show the current frequency.

03: Voltage Range for Bypass

Interface Setting

176 03 264 BATTERY LOAD

Parameter 2: Set the acceptable low voltage for bypass. For 220/230/240V AC models, setting range is from 176V to 209V and the default value is 176V.

Parameter 3: Set the acceptable high voltage for bypass. For 220/230/240V AC models, setting range is from 231V to 276V and the default value is 264V.

04: Frequency Range for Bypass

Interface Setting

46.8 V (04) 53.8 V BATTERY LOAD

Parameter 2: Set the acceptable low frequency for bypass.

50 Hz system: Setting range is from 46.0 Hz to 49.0 Hz. 60 Hz system: Setting range is from 56.0 Hz to 59.0 Hz. The default value is 46.0 Hz/56.0 Hz.

Parameter 3: Set the acceptable high frequency for bypass.

50 Hz: Setting range is from 51.0 Hz to 54.0 Hz. 60 Hz: Setting range is from 61.0 Hz to 64.0 Hz.

The default value is 54.0 Hz/64.0 Hz.

05: ECO Mode Enable/Disable

Interface Setting

05 BATTERY 15 LOAD

Parameter 3: Enable or disable the ECO function. You may choose the following two options:

DIS: Disable ECO function (Default).

ENA: Enable ECO function.

If the ECO function is disabled, the voltage range and frequency range for ECO Mode still can be set, but is void unless the ECO function is enabled.

*If the system is running in parallel, be sure to set "DIS" only.

4. Operation

06: Voltage Range for ECO Mode

Interface Setting
	Parameter 2: Low voltage point in ECO Mode. The setting range is from -5% to -10% of the nominal voltage.Parameter 3: High voltage point in ECO Mode. The setting range is from +5% to +10% of the nominal voltage.

07: Frequency Range for ECO Mode

Interface Setting
	Parameter 2:Set the low frequency point for ECO Mode.50 Hz system: Setting range is from 46.0 Hz to 48.0 Hz.60 Hz system: Setting range is from 56.0 Hz to 58.0 Hz.The default value is 48.0 Hz/58.0 Hz.Parameter 3:Set high frequency point for ECO Mode.50 Hz: Setting range is from 52.0 Hz to 54.0 Hz.60 Hz: Setting range is from 62.0 Hz to 64.0 Hz.The default value is 52.0 Hz/62.0 Hz.

08: Bypass Mode Setting

Interface Setting

Parameter 2:OPN:Bypass allowed. When selected, the UPS will run in Bypass Mode depending on whether the bypass setting is enabled/disabled.FBD:Bypass not allowed. When selected, Bypass Mode is not allowed in any situation.Parameter 3:ENA:Bypass enabled. When selected, Bypass Mode is activated (Default).DIS:Bypass disabled. When selected, automatic bypass is acceptable, but manual bypass is not allowed. Manual bypass means users manually operate UPS for Bypass Mode. For example, pressing OFF button in AC Mode to turn into Bypass Mode.

09: Maximum Battery Discharge Time Setting

Interface Setting
	Parameter 3:000~999:Set the maximum discharge time from 0 to 999 min. The UPS will shut down to the protect battery if the discharge time arrives before the battery is under voltage. The default value is 990 min.DIS:Disable battery discharge protection and backup time will depend on battery capacity.

10: Reserved

Interface Setting
	Reserve for future options.

4. Operation

11: Hot Standby Function Setting

Interface Setting
	Parameter 2:HS.H: Indicates hot standby function.Parameter 3: Enable or disable hot standby function.YES: Hot standby function is enabled. The current UPS is set to host the hot standby function and will restart after AC recovery, even without the battery connected.NO: Hot standby function is disabled. The UPS is running in Normal Mode and cannot restart without battery.

12: Neutral Loss Detection

Interface Setting

Parameter 2:N.L: Indicates neutral loss detection function.Parameter 3:DIS: Disable the neutral loss detection function. The UPS will not detect a neutral loss.ATO: The UPS will automatically detect whether or not the neutral is lost. If neutral loss is detected, an alarm will be generated. If the UPS is turned on, it will transfer to Battery Mode. When neutral is restored and detected, the alarm will automatically be muted and the UPS will automatically return to Normal Mode.CHE: The UPS will automatically detect the neutral loss. If neutral loss is detected, an alarm will be generated. If the UPS is turned on, it will transfer to Battery Mode. When neutral is restored, the alarm will NOT be muted automatically and the UPS will NOT return to Normal Mode automatically.Here, you must mute the alarm and make the UPS manually return to Normal Mode. The operation is: First, enter this menu and press the “Enter” key to make the “CHE” flash. Second, press the “Enter” key again to activate the neutral detection (check). If neutral is detected, the alarm will be muted and the UPS will return to Normal Mode. If neutral is not detected, the alarm will continue to go off until the neutral is detected at the next manual checking operation.CHE is the default setting.

13: Battery Voltage Calibration

Interface Setting
	Parameter 2: Select “Add” or “Sub” function to adjust battery voltage.Parameter 3: The voltage range is 0V to 9.9V. The default value is 0V.

14: Charger Voltage Adjustment

Interface Setting
	Parameter 2: Choose Add or Sub to adjust charger voltage.Parameter 3: The voltage range is 0V to 9.9V. The default value is 0V.Notes:*Before making voltage adjustments, be sure to disconnect all batteries first to get the accurate charger voltage.* Any modification should be suitable to battery specifications.

4. Operation

15: Inverter-A Voltage Adjustment

Interface Setting
	Parameter 2: Choose Add or Sub to adjust inverter-A voltage.*Parameter 3: The voltage range is 0V to 9.9V. The default value is 0V.* Add or Sub is according to the output voltage that you set.

16: Inverter-B Voltage Adjustment

Interface Setting
	Parameter 2: Choose Add or Sub to adjust inverter-B voltage*. Parameter 3: The voltage range is 0V to 9.9V. The default value is 0V.*It will display number 1 under R+SUB to represent inverter-B voltage.

17: Inverter-C Voltage Adjustment

Interface Setting
	Parameter 2: Choose Add or Sub to adjust inverter-C voltage*. Parameter 3: The voltage range is 0V to 9.9V. The default value is 0V.*It will display number 2 under Add to represent inverter-C voltage.

18: Output-A Voltage Calibration

Interface Setting
	Parameter 2: Always shows OP.V as output voltage.Parameter 3: Shows the internal measurement value of the output-A voltage. You can calibrate it by pressing Up or Down according to the measurement from an external voltage meter. The calibration result will be effective by pressing Enter. The calibration range is limited within +/-9V. This function is normally used for parallel operation.

19: Output-B Voltage Calibration

Interface Setting

Parameter 2: Always shows OP.V as output voltage*. Parameter 3: Shows the internal measurement value of the output-B voltage. You can calibrate it by pressing Up or Down according to the measurement from an external voltage meter. The calibration result will be effective by pressing Enter. The calibration range is limited within +/-9V. This function is normally used for parallel operation.*It will display number 1 under OPU to represent the output B voltage.

4. Operation

20: Output-C Voltage Calibration

Interface Setting

Parameter 2: Always shows OP.V as output voltage.Parameter 3: Shows the internal measurement value of the output-C voltage. You can calibrate it by pressing Up or Down according to the measurement from an external voltage meter. The calibration result will be effective by pressing Enter. The calibration range is limited within +/-9V. This function is normally used for parallel operation.*It will display number 2 under OP.U to represent the output C voltage.

21: Current Charger Setting

Interface Setting

Parameter 2: CHG indicates adjust charger current function.Parameter 3:Set the charger current. The setting range is 1A to 4A. The default value is 2A for 30K/40K and 4A for 60K/80K.• 30K-40K: Adjust the charger current function only for one charger board installed on UPS. This feature will not work when more than one charger board is installed.• 60K-80K: Adjust charger current function for only two charger boards installed on UPS. This feature will not work when more than two charger boards are installed.Note:Once the charger board is extended, all installed charger boards will charge the battery at the maximum power of 4A current. Extension board kits are available for the S3M30KX and S3M40KX models (CBKIT30-40) and the S3M60KX and S3M80KX models (CBKIT30-80).

22: Charging Boards Number Setting

Interface Setting

Parameter 2: CHG indicates adjust charging boards quantity function.Parameter 3: Set the charging boards quantity. The setting range is from 1 to 3 and the default value is 1.• 60K-80K: Two charger boards are one group. If the UPS installs four charger boards, it needs to be set to 2. If the UPS installs six charger boards, it needs set to 3.Note: Once the charger board is extended, this parameter has to be changed accordingly.

23: Redundancy setting

Interface Setting
	Parameter 2: TOL it indicates the quantity of UPS. The setting range is from 1 to 3 and the default value is 1.Parameter 3: RED it indicates the quantity of redundant UPS. The setting range is from 0 to 2 and the default value is 0.Note: The setting quantity of each UPS needs to equal the quantity of the UPS connected in parallel for redundancy. If setting quantity is not equal to the quantity of UPS in the system, the UPS will generate a warning.

4. Operation

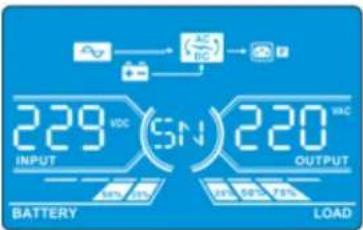

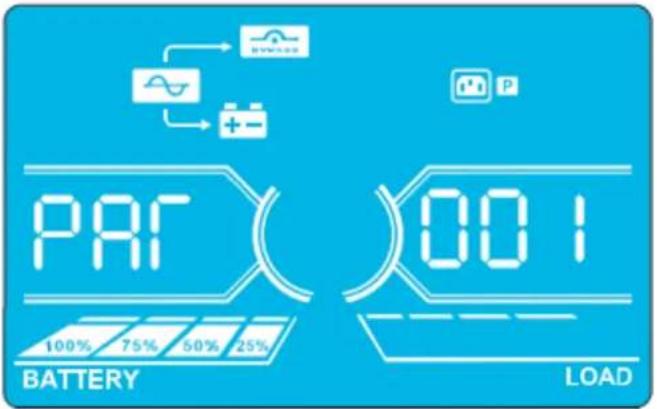

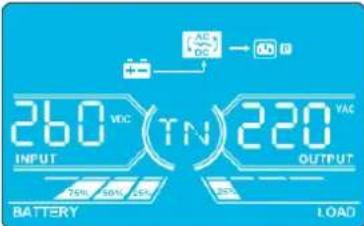

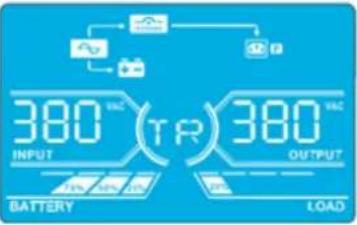

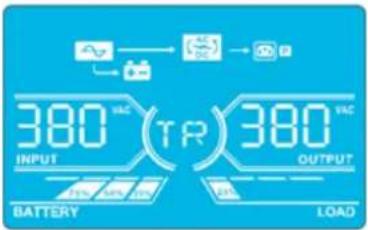

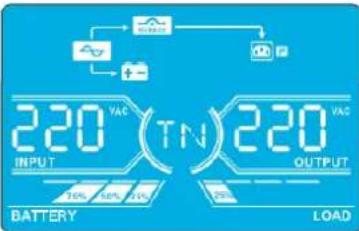

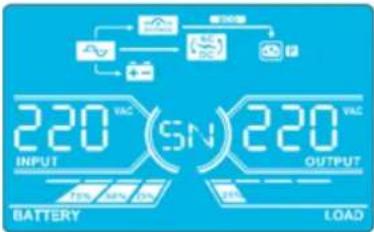

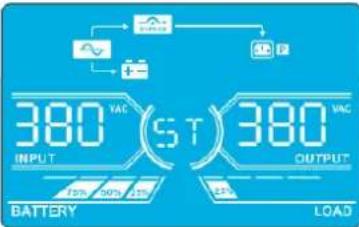

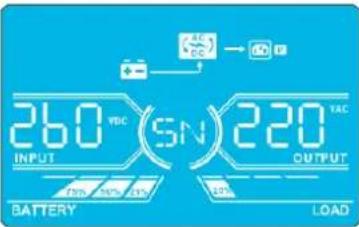

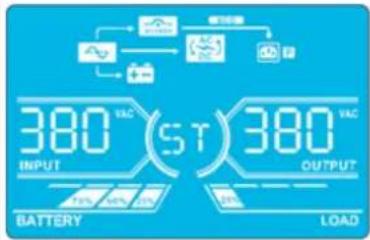

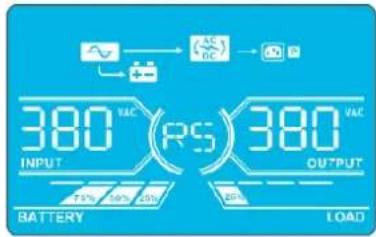

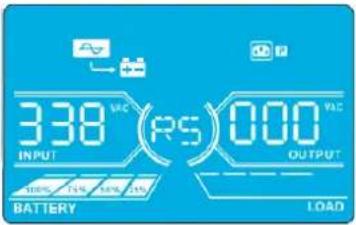

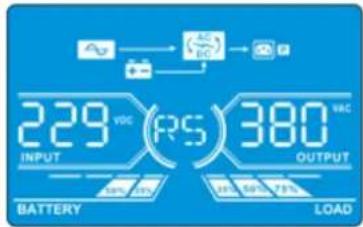

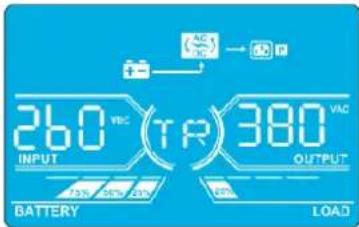

4.8 Operating Mode/Status Description

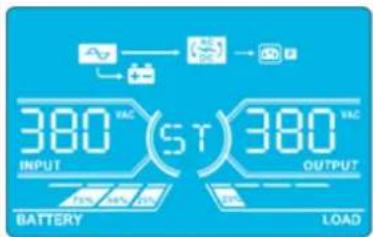

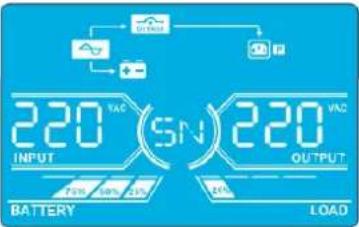

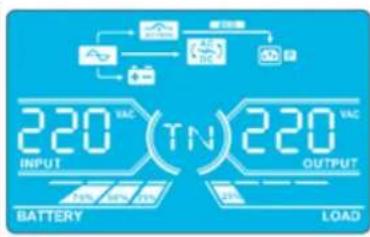

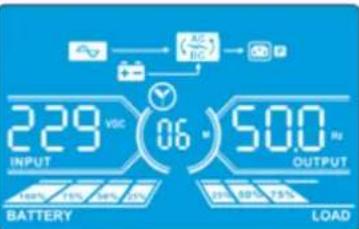

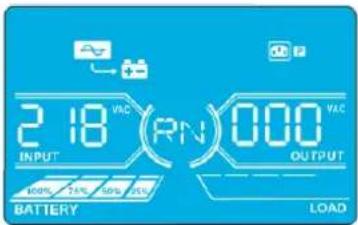

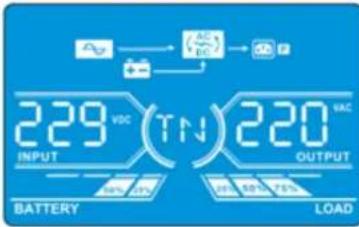

The following table shows the LCD screen for operating modes and status.

(1) If the UPS is in normal operation, it will show seven screens one-by-one, which represents 3-phase input voltages (An, bn, Cn), 3-line input voltages (Ab, bC, CA) and frequency in turns.
(2) If parallel UPS systems are successfully set up, it will show one more screen with "PAR" in Parameter 2 and assigned number in Parameter 3 (as shown in the below parallel screen illustration). The primary UPS will be assigned automatically as "001". Secondary UPS systems will be assigned as either "002" or "003". The assigned numbers may be changed dynamically in the operation.

PRF 100% 75% 50% 25% BATTERY 001 LOAD

Parallel Screen

Operating Mode/Status
UPS Power On	Description	When the UPS is powered on, it will enter into this mode for a few seconds as the CPU and system initialise.
	LCD Panel
No-output Mode	Description When bypass voltage/frequency is out of acceptable range or bypass is disabled (or forbidden), the UPS will enter No-output Mode if powering on or turning off the UPS. This means the UPS has no output. The alarm will beep every two minutes.
	LCD Panel

4. Operation

No-output Mode(continued)
AC Mode Description When input voltage is within acceptable range, the UPS will provide pure and stable AC power to output. The UPS will also charge the battery at AC Mode.
	LCD Panel
ECO Mode	Description	When the input voltage is within voltage regulation range and ECO Mode is enabled, UPS will bypass voltage to output for energy saving.
	LCD Panel

4. Operation

ECO Mode (continued)

220 VAC INPUT (TN) 220 VAC BATTERY OUTPUT LOAD

380 VAC INPUT RS 380 VAC OUTPUT BATTERY LOAD

380 VAC INPUT 5T 380 VAC OUTPUT BATTERY LOAD

380 VEC (TR) 380 VEC INPUT BATTERY OUTPUT LOAD

50.0 Hz INPUT BATTERY 32% 44% 38% 50.0 Hz OUTPUT LOAD

CVCF Mode Description When the output frequency is set to "CF", the inverter will output constant frequency (50 Hz or 60 Hz). In this mode, the UPS will have no bypass output but still charge the battery.

LCD Panel

A7 → AC → 3D 220 VAC INPUT (RN) 220 VAC OUTPUT BATTERY LOAD

220 VAC INPUT SN 220 VAC OUTPUT BATTERY LOAD

220 VAC INPUT TIN 220 VAC OUTPUT BATTERY LOAD

380 VAC INPUT (RS) 380 VAC BATTERY OUTPUT 15% 16% 20h 20h LOAD

380 VAC INPUT (ST) 380 VAC BATTERY OUTPUT LOAD

380 VAC INPUT TR 380 VAC BATTERY OUTPUT LOAD

600 INPUT CF 500 OUTPUT BATTERY LOAD

4. Operation

Battery Mode	Description	When the input voltage/frequency is beyond the acceptable range or experiences a power failure, the UPS will provide backup power from the battery. The alarm will beep every 4 seconds.
	LCD Panel
Bypass Mode	Description	When input voltage is within acceptable range and bypass is enabled, turn off the UPS and it will enter Bypass Mode. The alarm will beep every two minutes.
	LCD Panel

4. Operation

Bypass Mode (continued)
Battery Test	Description	When the UPS is in AC Mode or CVCF Mode, press the “Test” button for more than 0.5 seconds. The UPS will beep once. The line between I/P and inverter icons will blink to remind users this operation is used to check the battery status.
	LCD Panel
Warning Status	Description	If some errors occur in the UPS (but it is still operating normally), it will show one more screen to represent the warning situation. In the warning screen, the △on will be flashing. It can show up to 3 error codes, with each code indicating one error. The code meaning can be found in the warning code table in section 4.11.
	LCD Panel

4. Operation

Fault Status	Description	When a UPS fault occurs, the inverter will be blocked. The fault code will display on the screen, and the △on will light up solid (it will not flash). The code meaning can be found in the fault code table in section 4.9.
	LCD Panel

4.9 Fault Codes - When Icon is Solid (Not Flashing)

Fault code Fault Event Icon Fault Code Fault Event Icon
01 Bus start failure None 42 DSP communication failure		None
02 Bus over None 43 Overload
03 Bus under None 46 Incorrect UPS setting		None
04 Bus unbalance None 47 MCU communication failure				None
06 Converter over current None 48				Two DSP firmware versions are incompatible in parallel system	None
11 Inverter soft start failure None 60 Bypass phase short circuited
12 High inverter voltage None 61 Bypass SCR short circuited				None
14	Inverter R output (line to neutral) short circuited		62 Bypass SCR open circuited	None
15	Inverter S output (line to neutral) short circuited		63 Voltage waveform abnormal in R phase	None
16	Inverter T output (line to neutral) short circuited		64 Voltage waveform abnormal in S phase	None
17	Inverter R-S output (line to line) short circuited		65 Voltage waveform abnormal in T phase	None
18	Inverter S-T output (line to line) short circuited		66 Inverter current sample abnormal	None
19	Inverter T-R output (line to line) short circuited		67 Bypass O/P short circuited
1A	Inverter A negative power fault	None	68	Bypass O/P line to line short circuited
1B	Inverter B negative power fault	None	69	Inverter SCR short circuited	None
1C	Inverter C negative power fault	None	6C	BUS voltage drops too fast	None
21	Battery SCR short circuited	None	6D	Current sampling error value	None
23	Inverter relay open circuited	None	6E	SPS power error	None
24	Inverter relay short circuited	None	6F	Battery polarity reverse	None
25	Line wiring fault	None	71	PFC IGBT over-current in R phase	None
31	Parallel communication failure	None	72	PFC IGBT over-current in S phase	None
32	Host signal failure	None	73	PFC IGBT over-current in T phase	None
33	Synchronous signal failure	None	74	INV IGBT over-current in R phase	None
34	Synchronous trigger signal failure	None	75	INV IGBT over-current in S phase	None
35	Parallel communication loss	None	76	INV IGBT over-current in T phase	None
36 Parallel output current unbalance None
41 Over temperature None

4. Operation

4.10 Warning Indicator- When is Flashing

Warning Icon (flashing) Alarm
Battery low		Beeping every second
Overload		Beeping twice every second
Battery unconnected		Beeping every second
Over charge		Beeping every second
EPO enable		Beeping every second
Fan failure/Over temperature		Beeping every second
Charger failure		Beeping every second
I/P fuse broken		Beeping every second
Other warnings (refer tosection 4-11)		Beeping every second

4.11 Warning Codes - When Icon is Flashing

If errors occur in the UPS but it continues to run normally, the LCD screen will show a warning. In the warning screen, the icon will flash. Up to three error codes may display, with each code indicating one error.

WarningCode Warning Event			WarningCode Warning Event
01 Battery disconnected 22 Bypass situations are different in parallel system
02 IP Neutral loss 33 Locked in bypass after overload 3 times in 30 minutes
04 IP phase abnormal 34 Converter current unbalanced
05 Bypass phase abnormal 3A Cover of maintenance switch is open
07 Over charge 3C Utility power extremely unstable
08 Low battery 3D Bypass is unstable
09 Overload	3E Battery voltage too high
0A	Fan failure		3F Battery voltage unbalanced
0B EPO enable	40 Charger short circuited
0D Over temperature	44 Redundancy setting fail
0E	Charger failure		24 Parallel output load different
21 Line situations are different in parallel system	35 Battery Fuse open

5. Communication

5.1 Smart Monitoring Slot: SNMP Monitoring using the WEBCARDLX card or Contact Closure Mangement using RELAYCARDSV (Optional cards)

Install an optional WEBCARDLX card in this slot to remotely monitor and control the UPS via a network. The RELAYCARDSV may also be inserted in this slot to provide dry contact communication functionality. Refer to the WEBCARDLX and RELAYCARDSV manuals at tripplite.com for further details.

Note: Only one card may be used at a time.

5.2 EPO Connector

The EPO is included as standard for site safety. Its default setting is Normally Closed (N.C.), with pins 1 and 2 closed for normal UPS operation. To enable EPO function, open contacts with pins 1 and 2.

5.3 RS-232 Port

The RS-232 port is built into the UPS system's rear panel (S3M30KX and S3M40KX models) or behind the front door (S3M60KX and S3M80KX models) to provide service support when upgrading the UPS system software.

5.4 USB Port

This port is for service purposes only.

30kVA and 40kVA Models

TRIPP-LITE PARALLEL CONNECTION RS232 USB EPO SNAP

60kVA and 80kVA Models

RS232 USB EPO SNMP PARALLEL CONNECTION

6. Troubleshooting

If the UPS system does not operate correctly, identify the problem using the table below.

Symptom Possible Cause Remedy
No indication and alarm in the front display panel even though the mains is normal.	The AC input power is not connected correctly or securely.	Check to make sure input cable is firmly connected to the mains.
The icon and the warning code flash on LCD display. The alarm beeps every second.	EPO function is activated. At this time, the EPO switch is set to “OFF” or the jumper is open.	Set the circuit in closed position to disable the EPO function.
The icon and flash on the LCD display. The alarm beeps every second.	The external or internal battery is incorrectly connected.	Check to make sure all batteries are securely and correctly connected.
The icon and flash on the LCD display. The alarm beeps twice every second.	UPS is overloaded. Remove excess loads from UPS output.
	UPS is overloaded. Devices connected to the UPS are fed directly by the electrical network via the Bypass.	Remove excess loads from UPS output.
	After repetitive overloads, the UPS is locked in Bypass Mode. Connected devices are fed directly by the mains.	Remove excess loads from UPS output, then shut down the UPS and restart.
Fault code is shown as 43. The icon displays on the LCD. The alarm beeps continuously.	UPS is overloaded for too long and becomes fault. The UPS automatically shuts down.	Remove excess loads from the UPS output and restart.
Fault code is shown as 14, 15, 16, 17, 18 or 19, the icon displays on the LCD. The alarm beeps continuously.	The UPS automatically shuts down due to a short circuit on the UPS output.	Check output wiring and if connected devices are in short circuit status.
Other fault codes are shown on the LCD. The alarm beeps continuously.	A UPS internal fault has occurred. Contact your dealer.
Battery backup time is shorter than the nominal value.	Batteries are not fully charged. Charge the batteries for at least 7 hours, then check capacity. If the problem still persists, consult your dealer.
	Batteries are defective. Contact your dealer to replace the battery.
The icon and flash on the LCD. The alarm beeps every second.	Fan is locked or not working, or the UPS temperature is too high.	Check fans and notify dealer.
The warning code 02 and the icon flash on the LCD. The alarm beeps every second.	The input neutral wire is disconnected. Check	and correct the input neutral connection. If the connection is ok and the warning still displays, refer to section 4.7. To enter the neutral loss check menu, first check that parameter 3 is “CHE”. If it is, press the “Enter” key to make “CHE” flash, then press “Enter” again to clear the alarm. If the warning still exists, check input fuses of L2 and L3.
	The L2 or L3 input fuse is broken. Replace the fuse.
The warning code 44 and the icon flash on the LCD. The alarm beeps every second.	The Redundancy setting is in error. Check Redundancy setting. The setting quantity needs to be set equal to the quantity of UPS systems. The UPS setting quantity needs to be set greater than the setting quantity of redundant UPS systems.

7. Storage and Maintenance

7.1 Storage

The UPS system must be stored in a clean, secure environment with a temperature less than 40^ C and a relative humidity less than 90% (non-condensing). Store the UPS system in its original shipping container, if possible. If installation occurs more than 6 months after you receive the UPS system, recharge the batteries for at least 24 hours prior to use. Do not rely on the UPS system to provide backup power to connected equipment until the batteries are fully charged.

Note: If the UPS system remains off for an extended period of time, it should be turned on periodically to allow the batteries to recharge. The UPS system should be turned on and the batteries should be recharged at least one uninterrupted 24-hour period every 3 months. Failure to recharge the batteries periodically may cause irreversible battery damage.

7.2 Maintenance

• The UPS system operates with hazardous voltages. Repairs should only be performed by qualified maintenance personnel.
• Even after the unit is disconnected from the mains, potentially dangerous components inside the UPS system are still connected to the battery packs.
• Before carrying out any kind of service and/or maintenance, disconnect the batteries and verify no current is present and no hazardous voltage exists in the terminals of high-capability capacitors, such as BUS-capacitors.
• Only qualified technicians taking the required precautionary measures may replace batteries and supervise operations. Unauthorised persons should not perform battery maintenance.
• Verify no voltage between the battery terminals and the ground is present before maintenance or repair. The battery circuit is not isolated from the input voltage. Hazardous voltages may occur between the battery terminals and the ground.
• Batteries may cause electric shock and have a high short-circuit current. Remove all wristwatches, rings and other metal personal objects before maintenance or repair, and only use tools with insulated grips and handles for maintenance or repair.
• When replacing the batteries, install the same number, type and battery capacity.
• Do not attempt to dispose of batteries by burning them. This could cause a battery explosion. Batteries must be appropriately deposed of according to local regulations.
• Do not open or destroy batteries. Escaping electrolytes may be toxic and can cause injury to the skin and eyes.
• To avoid fire hazards, replace the fuse only with the same type and amperage.
• Do not disassemble the UPS system.

7.3 Battery

Tripp Lite's S3MX-Series UPS systems use sealed lead-acid batteries. The battery life depends on operating temperature, the usage, and the charging/discharging frequency. High temperature environments and high charging/discharging frequency will quickly shorten the battery life. Please follow the suggestions below to ensure a normal battery lifetime.

1. Keep operating temperature between 0^ C\~ 40^ C.
2. For optimum battery performance and life, operate at a regulated 25^ C.
3. When the UPS needs to be stored for an extended period of time, the batteries must be recharged once every three months and the charging time must be at least 24 hours each time.

7.4 Fan

Higher temperatures shorten fan life. When the UPS is running, make sure all fans are working normally and make sure air can move freely around and through the UPS. If not, replace the fans.

Note: Contact Tripp Lite Technical Support for more maintenance information. Do not perform maintenance if you are not qualified to do so.

8. Specifications

MODELS S3M30KX/KXD* S3M40KX/KXD* S3M60KX/KXD* S3M80KX/KXD*
Capacity (VA) 30 kVA 40 kVA 60 kVA 80 kVA
Capacity (Watts) 27 kW 36 kW 54 kW 72 kW
INPUT
Nominal Voltage Ph-Ph 380V/400V/415V (Ph-N 220V/230V/240V)
Voltage Range	Ph-Ph 208-478V at < 50% Load; Ph-Ph 208-478V to 305-478V at 50% to 80% Load(Voltage Range Varies with Load); Ph-Ph 305-478V at > 80% Load
Voltage Comeback Low-Loss Voltage +10V;	High-Loss Voltage -10V
Nominal Frequency 50/60 Hz (Auto-Selectable)
Frequency Range 46-54 Hz (50 Hz System);	56-64 Hz (60 Hz System)
Phase 3-Phase with Neutral (3-Phase, Neutral + Ground)
Power Factor (100% Load) ≥ 0,99
Harmonic Distortion (THDi; 100% Load) < 3%
OUTPUT
Phase 3-Phase with Neutral (3-Phase, Neutral** + Ground)
Nominal Voltage Ph-Ph 380V/400V/415V (Ph-N 220V/230V/240V)
AC Voltage Regulation(Double-Conversion Mode)	±1% (Balanced Load)
AC Voltage Regulation(Converter Mode or Battery Mode)	±1%
Power Factor 0,9
AC Voltage Regulation (ECO Mode)	± 11V of Nominal
Frequency	46-54 Hz (50 Hz System); 56-64 Hz (60 Hz System)
Frequency Regulation(Converter Mode or Battery Mode)	± 0,1 Hz
Frequency Range (Battery Mode)	50 Hz ± 0,1 Hz or 60 Hz ± 0,1 Hz
Overload (AC Mode)	Up to 110% = 10 min; Up to 130% = 1 min; > 130% = 1 s
Overload (Battery Mode)	Up to 110% = 30 s; Up to 130% = 10 s; > 130% = 1 s
Current Crest Ratio	3:1 Maximum
Harmonic Distortion (100% Load)	≤ 2% THD (Linear Load); ≤ 4% THD (Non-Linear Load)
Transfer Time (Line ↔ Battery)	0 ms
Transfer Time (Inverter ↔ Bypass)	Synchronous = 0 ms; Asynchronous < 4 ms
Transfer Time (Inverter ↔ ECO)	< 10 ms
BYPASS INPUT
Nominal Voltage	Ph-Ph 380V/400V/415V
Phase 3-Phase with Neutral (3-Phase, Neutral + Ground)
Voltage Range	Upper Limit: Ph-N 231-264VLower Limit: Ph-N 176-209V
Nominal Frequency 50/60 Hz (Auto-Selectable)
Frequency Range	Selectable: ± 1-4 Hz (Default: ± 4 Hz)
Overload (Bypass Mode)	< 150% = 1 min
EFFICIENCY
AC Line Mode	94% at 100% Resistive Load; 93.5% at 50% Resistive Load
ECO Mode	98%, at 100% Resistive Load; 97.5% at 50% Resistive Load
Battery Mode	93.5% at 100% Resistive Load; 93% at 50% Resistive Load
PARALLEL
Parallel for Capacity and Redundancy Up to 3 Units
INTERNAL BATTERIES (S3M30KX/KXD* and S3M40KX/KXD* include internal batteries. Versions are also available withoutinternal batteries installed: S3M30KX-NIB/KXD-NIB* and S3M40KX-NIB/KXD-NIB*.)
Type	12V Non-Spillable VRLA AGM/GEL		No Internal BatteriesExternal Batteries Required forS3M30KX-NIB/KXD-NIB,S3M40KX-NIB/KXD-NIB,S3M60KX/KXD, S3M80KX/KXD,S3M100KX/KXD, S3M120KX/KXD,S3M160KX/KXD and S3M200KX/KXD
Capacity	9 Ah	10 Ah
Quantity	80 (2 x Strings of 20 + 20)
Runtime (50% / 100% Load)	17/5.7 min	15/5 min
Recharge Time	9 h to 90%
Maximum Charging Current	2A ± 10%
Float Voltage	13,65V/Battery; 2,27V/Cell
Boost Charging	14,1V/Battery; 2,35V/Cell
End of Discharge	10V/Battery; 1,67V/Cell

* "KXD" and "KXD-NIB" models are dual-AC input capable. **The UPS output Neutral must be connected to the Load Neutral at all times.

8. Specifications

MODELS S3M30KX/KXD* S3M40KX/KXD* S3M60KX/KXD* S3M80KX/KXD*
EXTERNAL BATTERIES (S3M60KX/KXD*, S3M80KX/KXD* require external batteries for backup. S3M30KX-NIB/KXD-NIB*, S3M40KX-NIB/KXD-NIB* [without internal batteries installed], require external batteries for backup).
Type 12V Non-Spillable VRLA AGM/GEL
DC Nominal Acceptance Voltage ± 240 VDC
Quantity 40N (N ≥ 1 x Strings of 20 + 20)
Maximum Charging Current	Adjustable up to 4A ± 10%(Max 12A with 2 x CBKIT30-40.)	Adjustable up to 8A ± 10%(Max 24A with 2 x CBKIT30-80.)
Float Voltage 13,65V/Battery; 2,27V/Cell
Boost Charging 14,1V/Battery; 2,35V/Cell
End of Discharge 10V/Battery; 1,67V/Cell
Charger Temperature Compensation N/A
PHYSICAL
Dimensions (H x W x D) 1000 x 300 x 815 mm 1010 x 360 x 790 mm
Unit Weight (With Internal Batteries) 265 kg 316 kg	N/A	N/A
Unit Weight (Without Internal Batteries) 60 kg	61 kg 108 kg 113 kg
ENVIRONMENT
Operating Temperature	0 to 40°C (≤ 25°C for optimal battery lifespan.)
Storage Temperature	0 to 35°C (UPS with Batteries), -15 to 60°C (UPS without Batteries)
Operating Humidity	0 to 95% (Non-Condensing)
Operating Altitude	< 1000 m (Derate output power by 1% per 100 m above 1000 m.)
Audible Noise	< 60 dBA at 1 m	< 70 dBA at 1 m	< 75 dBA at 1 m
Heat Dissipation (100% Load)	5527 BTU/h	7362 BTU/h	11054 BTU/h
Heat Dissipation (50% Load)	2994 BTU/h	3992 BTU/h	5998 BTU/h
MANAGEMENT
Network Management Interface	Requires optional WEBCARDLX. (Monitor, control and reboot the UPS using HTML5 web, SSH/telnet and SNMP interfaces. Supports centralised management through integration with a wide range of Network Management Systems and DCIM platforms.)
Control Panel	62 mm LCD with supplemental LEDs.
Contact Closure Interface	Requires Optional RELAYCARDSV Programmable Relay I/O Card
Remote Emergency Power Off (REPO)	Feature Included (Default: Normally Closed)
RS-232	Included (Service Only)
STANDARDS
Safety	IEC 62040-1:2008+A1:2013 (TUV Approval)
EMC/EMI	EN 62040-2:2006 (Category C3) (TUV Approval)
Ingress Protection Rating	IP20
CE Marking	Yes
RoHS Compliant	Yes
Quality Management System	ISO 9001
OTHER INFORMATION
Colour	RAL 9005 Jet Black
Mobility	Casters
ACCESSORIES (Sold Separately)
Scalable Battery Cabinets	Available models include BP480V100-NIB, BP480V100, BP480V65-NIB, BP480V65, BP480V40-NIB, BP480V40, BP480V10-NIB, BP480V10, BP480V09.(NIB=No internal batteries.)
Network Management Card	WEBCARDLX (Monitor, control and reboot the UPS using HTML5 web, SSH/telnet and SNMP interfaces. Supports centralised management through integration with a wide range of Network Management Systems and DCIM platforms.)
Battery Temperature Compensation Thermostat Kit	MODBUSCARDSV (Modbus protocol via RS-485 interface.)
Remote Environmental Sensors (Require WEBCARDLX.)	E2MT (Temperature Sensor); E2MTDO (Temperature Sensor with Digital Outputs); E2MTDI (Temperature Sensor with Digital Inputs); E2MTHDI (Temperature/Humidity Sensor with Digital Inputs)
Contact Closure Card	RELAYCARDSV
External Bypass Panel	Contact your local sales representative or distributor for more information.
Scalable Charger Board Kits	CBKIT30-40 (Adds 4A; Max 2)	CBKIT30-80 (Adds 8A; Max 2)

* "KXD" and "KXD-NIB" models are dual-AC input capable.

8. Specifications

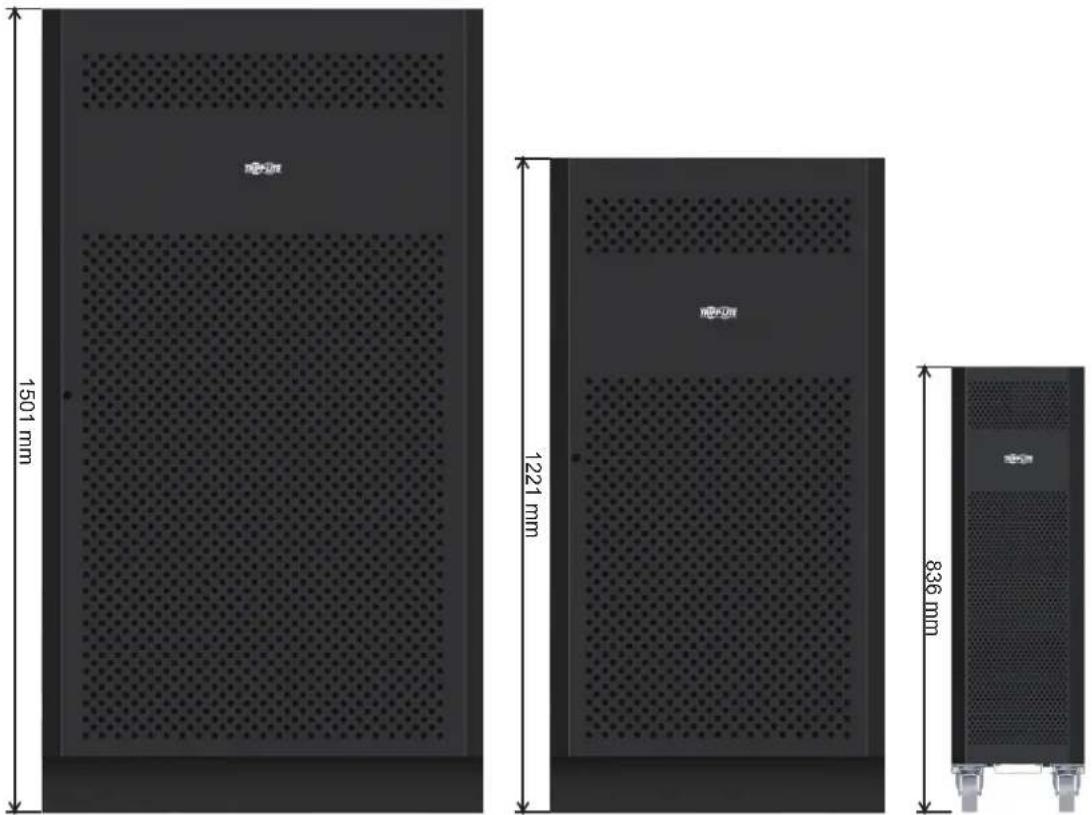

Battery Cabinet Dimensions

12V 9/10Ah x 80pcs12V 40Ah x 40pcs1

Battery Cabinet Models Breaker Included		Dimensions (H x W x D) mm Description
BP480V100	400A, 3-Pole	1501 x 826 x 1136	Battery Cabinet with 40 x 100Ah batteries
BP480V100-NIB			Battery Cabinet without batteries, but designed for 40 x 100Ah batteries (includes battery cabling and breaker)
BP480V65	300A, 3-Pole		Battery Cabinet with 40 x 65Ah batteries
BP480V65-NIB			Battery Cabinet without batteries, but designed for 40 x 65Ah batteries (includes battery cabling and breaker)
BP480V40	200A, 3-Pole 1220 x 626 x 900		Battery Cabinet with 40 x 40Ah batteries
BP480V40-NIB			Battery Cabinet without batteries, but designed for 40 x 40Ah batteries (includes battery cabling and breaker)
BP480V10	with 80 x 9Ah batteriesFuse, 100 Amps 836 x 250 x 779		Battery Cabinet with 80 x 10Ah batteries
BP480V09 Battery Cabinet
BP480V10-NIB			Battery Cabinet without batteries, but designed for 80 x 10Ah/9Ah batteries (includes battery cabling and fuse)

9. Warranty

Your SmartOnline 3-Phase UPS System is covered by the limited warranty described below. Extended warranty (3- and 4-year) and start-up service programs are available. For more information, call Tripp Lite Customer Service at +1.773.869.1234 or visit tripplite.com/support.

3-Phase UPS System Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions as verified by Tripp Lite's "Start-up" service, to be free from original defects in material and workmanship for a period of two (2) years from the date of start-up. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the defective parts without charge for labor or parts. If the product was not started up by authorised Tripp Lite service, replacement parts will be provided but labor charges will apply based on published Tripp Lite Time and Material Rates. Tripp Lite will assign to you any warranties provided by the manufacturers of components of the Tripp Lite product. Tripp Lite makes no representations as to the extent of these warranties and assumes no responsibility for warranties of these components. Service under this Warranty can only be obtained by contacting: Tripp Lite Customer Service; 1111 W. 35th Street; Chicago IL 60609; +1.773.869.1234; [e-mail].

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, IMPROPER INSTALLATION, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Modelos: S3M30KX, S3M30KXD, S3M30KX-NIB, S3M30KXD-NIB, S3M40KX, S3M40KXD, S3M40KX-NIB, S3M40KXD-NIB, S3M60KX, S3M60KXD, S3M80KX, S3M80KXD

Entrada: 220V / 230V / 240V (Fase - Neutro) 380V / 400V / 415V (Fase - Fase), 3∅ 4 Hilos + Tierra Física

Exterior view of a black industrial vacuum cleaner with ventilation grille and digital display (no visible text or symbols)

Exterior view of a black industrial vacuum cleaner with perforated panel and digital display (no visible text or symbols)

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 EE. UU. • tripplite.com/support

Technical diagram of a server rack with numbered components and fan layout

Panel Posterior del 30K

Technical diagram of an industrial control unit with numbered components and fan layout

Panel Posterior del 40K

Technical diagram of an internal server rack with labeled components and internal layout

Figura 3.1 Figura 3.2

Lado Izquierdo S3M30KX/S3M30KXD S3M40KX/S3M40KXD Lado Derecho S3M30KX/S3M30KXD S3M40KX/S3M40KXD

Figura 3.3 Figura 3.4

Pure electrical circuit lines without any symbols

CABLE LONGITUD DE CABLE CANTIDAD
1	75 mm 56
2	160 mm 4
3	250 mm 9
4	350 mm 3
5	700 mm 2
6	800 mm 1
7	930 mm 1

Isometric technical diagram of an internal server or rack unit with labeled components and directional arrows (no text or symbols present)

Battery_Front view

Technical line drawing of an electronic device chassis showing internal components and assembly (no text or symbols)

Technical diagram of an electronic device with numbered components and a separate row of labeled blocks, showing internal wiring and mounting points.

Technical diagram of an electronic device chassis with numbered components and a separate 3D block layout showing labeled sections.

Technical diagram of an internal server rack with numbered components and a separate 3D layout showing labeled modules.

Technical diagram of an industrial equipment cabinet with numbered components and labeled parts

Technical diagram of an industrial server rack with numbered components and a separate storage unit panel

Technical diagram of an industrial rack system with numbered components and a separate inset showing labeled parts.

Technical diagram of an industrial control room with numbered compartments and labeled components

Technical line drawing of an industrial machine chassis with internal components and assembly lines (no text or symbols)

Technical diagram of an electrical cabinet with wiring and labeled components, including a zoomed-in inset showing cable connections.

Technical diagram of an electronic control panel with numbered components and a magnified inset showing internal wiring connections.

Technical line drawing of an electrical enclosure with labeled components and a magnified inset showing internal wiring connections (no text or symbols present)

Technical line drawing of an internal server rack with numbered components (1-4), showing internal storage and ventilation system (no text or symbols)

Technical diagram of an internal server rack with numbered components, showing internal layout and labeled parts.

Technical diagram of a server rack with numbered components, showing internal layout and ventilation system.

Technical line drawing of a server rack system before and after assembly, showing internal components and fan array (no text or labels)

Technical line drawing of a multi-level industrial or warehouse unit with internal compartments and control panel (no text or symbols)

Technical line drawing of a multi-chamber industrial or electrical enclosure with a digital meter connected to the lower portion (no text or symbols present)

Technical line drawing of an electrical control room with connected components and a multimeter (no text or symbols)

Technical line drawing of an electrical control panel with connected cables and a multimeter (no text or symbols)

R S T N R S T N

UPS 2 R S T N R S T N UPS 1 R S T N R S T N SalidaEntrada

Technical diagram showing exploded view and close-up of a fan assembly with numbered components and a magnified detail view.

Technical diagram of a server rack system with labeled components and red annotations indicating connection points.

BYPASS UPS OFF

BYPASS UPS OFF

50.0 Hz (02) NCF BATTERY LOAD

ATO

AC 02 500Ω BATTERY LOAD

00:123 FEC

4. Operación

Pure diagram of a rectangular grid pattern with no text, numbers, or symbols

Interior view of a perforated metal panel with 1221 mm height dimension and 'MOWOW' label (no other text or symbols)

Black rectangular device with perforated top and side-mounted base, labeled 836 mm (no other text or symbols)

12V 9/10Ah x 80pcs12V 40Ah x 40pcs1

Modèles : S3M30KX, S3M30KXD, S3M30KX-NIB, S3M30KXD-NIB, S3M40KX, S3M40KXD, S3M40KX-NIB, S3M40KXD-NIB, S3M60KX, S3M60KXD, S3M80KX, S3M80KXD

Two identical black industrial server racks with ventilation grilles and control panels, no visible text or symbols.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical diagram of a server rack with numbered components and fan layout

Technical diagram of a server rack with numbered components and fan layout

Technical diagram of a server rack with numbered components and labeled ports

R S T N R S T N 111 Entrée Sortie Bornes 60K

13 14 Bomes 60K

Technical diagram of a server rack with numbered components and labeled ports

R S T N R S T N 11 5 12 Input Output Entire Sortie Bomes 80K

Bornes 80K

Technical diagram of an internal server rack with labeled components and assembly lines

Figure 3.1 Figure 3.2

3. Installation et configuration

Figure 3.3 Figure 3.4

Pure electrical circuit lines without any symbols

CÂBLE LONGUEUR DE CÂBLE QUANTITÉ
1	75 mm 56
2	160 mm 4
3	250 mm 9
4	350 mm 3
5	700 mm 2
6	800 mm 1
7	930 mm 1

3. Installation et configuration

Isometric technical diagram of an internal server or rack unit with labeled components and directional arrows (no text or symbols present)

Battery_Front view

Technical line drawing of an electronic device chassis showing internal components and assembly (no text or labels)

Technical diagram of an electronic device with numbered components and a schematic view showing internal layout and assembly.

Technical diagram of an industrial rack system with numbered components and a separate 3D block layout showing labeled sections.

3. Installation et configuration

Technical diagram of an electronic device with numbered components and a schematic view of its internal structure.

Technical diagram of an industrial rack system with numbered components and a separate storage unit box labeled with numbers.

Technical diagram of an industrial rack system with numbered components and a separate storage unit block labeled with numbers.

Technical diagram of an electronic device with numbered components and a separate inset showing labeled parts.

Technical diagram of an industrial or server rack system with numbered components and a cabinet labeled 62-51

3. Installation et configuration

Technical line drawing of an industrial machine chassis with internal components and assembly lines (no text or symbols)

Technical line drawing of an internal server rack with cable routing and a close-up inset showing component details (no text or symbols)

3. Installation et configuration

Technical diagram of an electronic control panel with numbered components and a magnified inset showing internal structure.

Technical line drawing of an electrical enclosure with labeled components and a magnified inset showing internal wiring connections (no text or symbols present)

3. Installation et configuration

Technical line drawing of an internal server rack with numbered components (1-4), showing internal compartments and ventilation ducts (no text or symbols present)

3. Installation et configuration

Technical diagram of a multi-chamber electric heating unit with numbered components and labeled parts

3. Installation et configuration

Technical diagram of a server rack with numbered components, showing internal layout and ventilation system

3. Installation et configuration

Technical line drawing of a dual-chamber industrial rack system with heat exchangers and cooling fans (no text or symbols)

3. Installation et configuration

Technical line drawing of a multi-level industrial or electrical enclosure with a digital meter connected to its base (no text or symbols present)

Technical line drawing of a multi-chamber industrial control unit with a digital meter connected to the left (no text or symbols present)

Technical line drawing of an electrical control room with two views: front view and side view, connected by a multimeter (no text or symbols present)

Technical line drawing of an electrical control panel connected to a multimeter (no text or symbols present)

3. Installation et configuration

Figure 3.5 Figure 3.6

R S T N R S T N

R S T N R S T N

Technical diagram showing fan installation and cooling system with numbered components and a magnified view of the air conditioning unit.

Technical diagram showing three views of an industrial control unit with labeled components and a red arrow indicating assembly or connection.

BYPASS UPS OFF

BYPASS UPS OFF

Microscopic view of a perforated material with uniform dot pattern, scale bar indicating 1501 mm (no text or symbols)

Exterior view of a perforated metal panel with 1221 mm height dimension (no text or symbols on the panel itself)

Black rectangular device with perforated top and side-mounted legs, labeled 836 mm (no text or symbols on the device itself)

12V 9/10Ah x 80pcs12V 40Ah x 40pcs1

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Модели: S3M30KX, S3M30KXD, S3M30KX-NIB, S3M30KXD-NIB, S3M40KX, S3M40KXD, S3M40KX-NIB, S3M40KXD-NIB, S3M60KX, S3M60KXD, S3M80KX, S3M80KXD

Two identical black industrial server racks with ventilation grilles and a digital display (no visible text or symbols)

ERC

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA · tripplite.com/support

Technical diagram of an industrial air conditioning unit with numbered components and fan layout

Technical diagram of an industrial control panel with numbered components and fan layout

Technical diagram of an internal server rack with labeled components and assembly lines

Рис. 3.1 Рис. 3.2

Pure electrical circuit lines without any symbols

Isometric technical diagram of an internal device with labeled components and directional arrows (no text or symbols)

Battery_Front view

Technical line drawing of an electronic device chassis showing internal components and assembly (no text or symbols)

Technical diagram of an electronic device with numbered components and a schematic view showing internal structure and assembly.

Technical diagram of an electronic device chassis with numbered components and a separate labeled rack unit showing internal structure.

Technical diagram of an industrial machine with numbered components and a zoomed-in view showing internal structure.

Technical diagram of an industrial control unit with numbered components and a separate storage unit panel

Technical diagram of an electronic device with numbered components and a separate row of labeled modules.

Technical diagram of an industrial machine with numbered components and a separate inset showing labeled parts.

Technical diagram of an industrial server rack with numbered compartments and labeled ports

Technical line drawing of an industrial rack system with internal components and assembly lines (no text or symbols)

Technical line drawing of an electronic server rack with cable routing and a close-up inset showing internal components (no text or symbols)

Technical diagram of an electronic control panel with numbered components and a magnified inset showing internal wiring connections.

Technical line drawing of an electrical enclosure with labeled components and a magnified inset showing internal wiring connections (no text or symbols present)

Technical line drawing of an internal server rack with numbered components (1-4), showing internal storage and ventilation system (no text or symbols beyond component labels)

Technical diagram of a multi-level electrical or mechanical device with numbered components and wiring connections

Technical diagram of a server rack with numbered components and ventilation fans, showing internal layout and mounting hardware.

Technical diagram of a server rack with numbered components, showing internal layout and ventilation system.

Technical line drawing of a multi-chamber industrial rack system before and after assembly, showing internal components and fan-like structures (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal compartments and wiring, connected to a digital meter (no text or symbols present)

Technical line drawing of an electrical enclosure with a multimeter connected to the front panel (no text or symbols present)

Technical line drawing of an electrical control room with connected devices and a multimeter (no text or labels)

Technical line drawing of an electrical control panel with connected cables and a multimeter (no text or symbols)

R S T N R S T N

R S T N R S T N

Technical line drawing of a multi-pin electrical connector or terminal block (no text or symbols)

Technical diagram of an industrial fan assembly with numbered components and a highlighted section labeled 7

Technical diagram of a multi-chamber HVAC system with numbered components and labeled parts

Technical diagram showing a fan assembly with numbered components and an arrow pointing to component 7

Technical diagram showing three views of an industrial control unit with labeled components and a red arrow indicating connection points.

BYPASS UPS OFF

BYPASS UPS OFF

Interior view of a perforated metal panel with a 1901 mm height dimension label (no text or symbols on the panel itself)

Interior view of a rectangular device with perforated panel and measurement scale (no text or symbols on the diagram itself)

Exterior view of a black server rack with ventilation grilles and mounting feet (no text or symbols visible)

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Bedienungsanleitung

Modelle: S3M30KX, S3M30KXD, S3M30KX-NIB, S3M30KXD-NIB, S3M40KX, S3M40KXD, S3M40KX-NIB, S3M40KXD-NIB, S3M60KX, S3M60KXD, S3M80KX, S3M80KXD

Exterior view of a black industrial vacuum cleaner with ventilation grille and digital display (no visible text or symbols)

Exterior view of a black industrial vacuum cleaner with ventilation grille and digital display (no visible text or symbols)

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

3.5 USV-Parallelinstallation 240

Technical diagram of an industrial air conditioning unit with numbered components and fan layout

Technical diagram of a server rack with labeled components and fan layout

Technical diagram of an internal server rack with labeled components and internal layout

Abb. 3.1 Abb. 3.2

Pure electrical circuit lines without any symbols

KABEL KABELLÄNGE MENGE
1	75 mm 56
2	160 mm 4
3	250 mm 9
4	350 mm 3
5	700 mm 2
6	800 mm 1
7	930 mm 1

Isometric technical diagram of an internal server or rack unit with labeled components and directional arrows (no text or symbols present)

Battery_Front view

Technical line drawing of an electronic device chassis showing internal components and assembly (no text or symbols)

Technical diagram of an industrial machine with numbered components and a schematic view showing internal structure and assembly.

Technical diagram of an electronic device chassis with numbered components and a separate labeled storage unit box.

Technical diagram of an internal server rack with numbered components and a separate 3D layout showing labeled parts.

Technical diagram of an industrial rack system with numbered components and a separate storage unit box labeled with numbers.

Technical diagram of an industrial server rack with numbered components and a separate storage unit panel

Technical diagram of an industrial server rack with numbered components and a separate inset showing labeled parts.

Technical schematic diagram of an industrial or server rack system with numbered components and a separate box labeled with part numbers.

Technical line drawing of an industrial machine chassis with internal components and assembly lines (no text or symbols)

Technical diagram of an electrical control cabinet with labeled components and a magnified inset showing internal wiring connections.

Technical diagram of an electronic device rear panel with numbered components and a magnified inset showing internal wiring connections.

Technical line drawing of an electrical enclosure with labeled components and a magnified inset showing internal wiring connections (no text or symbols present)

Technical line drawing of an internal server rack with numbered components (1-4), showing internal layout and ventilation ducts (no text or symbols)

Technical diagram of a server rack with numbered components, showing internal layout and labeled parts.

Technical line drawing of an industrial rack system before and after assembly, showing internal components and fan mechanisms (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with labeled components and connections (no readable text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal compartments and a connected meter (no text or symbols)

Technical line drawing of an electrical control room with two views: front view and side view, connected by a multimeter (no text or symbols present)

Technical line drawing of an electrical control panel with connected cables and a multimeter (no text or symbols)

R S T N R S T N

3.5 USV-Parallelinstallation

WARNHINWEIS:

USV 2 R S T N R S T N USV 1 R S T N R S T N AusgangEingang

Technical diagram showing exploded view and close-up of a server rack with fan components and ventilation system details.

Technical diagram showing three views of a server rack with labeled components and red annotations highlighting internal connections.

BYPASS UPS OFF

BYPASS UPS OFF
