USER MANUAL U44406NH4K6WC Tripp Lite

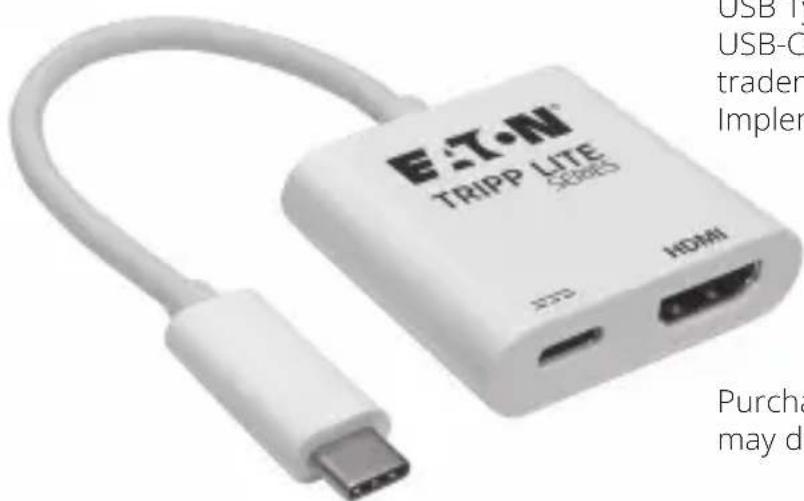

USB 3.2 Gen 1 USB-C to 4K HDMI Adapter with PD Charging
Models: U444-06N-H4K6WC U444-06N-H4K6BC
USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.
Purchased product may differ from image.
Espanol 8
Français 14
Deutsch 20
Italiano 26
EAT-N
Powering Business Worldwide
Package Includes
U444-06N-H4K6WC (White) or U444-06N-H4K6BC (Black)
- Owner's Manual
Optional Accessories
P568-Series High-Speed HDMI Cables
- U420-003 USB 3.2 Gen 1 USB-C Male/Male Cable - 3 ft.
Product Features
Supports USB DisplayPort Alternate Mode for connecting a 4K HDMI monitor via a USB-C port
Supports 4K x 2K Ultra High Definition (UHD) resolutions up to 3840 x 2160 (60 Hz)
HDCP 2.2 protection
- USB-C hub ports support data transfer rates up to 5 Gbps; backward compatible with previous USB generations
- USB-C port supports both data transfer and USB Power Delivery (PD) charging with power input up to 20V 3A (60W)
- Plug and play; no software or drivers required
2
Installation
- Connect the adapter's USB Type-C connector to the USB-C port on your laptop, tablet or other compatible device.
- Connect the adapter's HDMI port to the monitor's HDMI port using an HDMI cable (such as P568-Series HDMI cables).
- Charge your device by connecting its USB-C charger to the adapter's USB-C port.
Specifications
| Input Connectors | |
| USB USB-C (Male) | |
| USB-C Port Charging Support | Yes, with Power Delivery (PD) 3.0 |
| USB-C Port Data Support | No |
| Output Connectors | |
| 4K HDMI HDMI (Female) | |
| Environmental | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Operating Humidity 10% to 85% RH, Non-Condensing | |
| Storage Temperature 14°F to 158°F (-10°C to 70°C) | |
| Storage Humidity 5% to 90% RH, Non-Condensing | |
| Power Requirements | |
| USB-C Charging Port Su | supports up to 20V 3A (60W) Input and Power Delivery (PD) 3.0 |
Warranty
3-YEAR LIMITED WARRANTY
We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
Warranty
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.
Warranty
WEEE Compliance Information for Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:
- Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
- Send the new equipment back for recycling when this ultimately becomes waste
Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
Eaton has a policy of continuous improvement. Specifications are subject to change without notice.
Powering Business Worldwide
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
© 2024 Eaton
All Rights Reserved
Publication No.
23-08-057 /
93-37A4_ReB
October 2024
9337A4
Eaton is a registered trademark.
All trademarks are property of their respective owners.
7
