SmartRack® Enclosures

(Series Numbers: AG-039A, AGAC7006, AGAC7761, AG-0324, AG-00BE, AG-0325, AGAC7454, AG-0534, AG-0535, AG-0536, AG-076F)

Important Safety Instructions 2

Overview 3

Feature Identification 4

Enclosure Installation 5

Preparation 5

Unpacking 5

Placement 6

Leveling 7

Ground Connection 7

Enclosure Configuration 8

Adding or Removing Front and Rear Doors 8

Reversing Front Door 8

Adding or Removing Roof Panel 10

Adding or Removing Side Panels 10

Adjusting Mounting Rails and Cable Management Rails 11

Combining (Baying) Enclosures 12

Equipment Installation 12

Installing or Removing Cage Nuts 13

Specifications 14

Storage and Service 16

Warranty and Product Registration 16

Espanol 17

Français 33

Pycckn 49

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

triplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

Copyright © 2023 Tripp Lite. All rights reserved.

SAVE THESE INSTRUCTIONS

All sections of this manual contain instructions and warnings that should be followed during the installation and use of the SmartRack Enclosures described in this manual. Read all instructions and warnings thoroughly before attempting to move, install or use the SmartRack Enclosures described in this manual. Failure to comply will create a risk of personal injury and property damage and may invalidate the warranty.

• Keep the enclosure in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight.
• Leave adequate space at the front and rear of the enclosure for proper ventilation. Do not block, cover or insert objects into the external ventilation openings of the enclosure.
  The enclosure is extremely heavy. Use caution when handling the enclosure. Do not attempt to unpack, move or install it unassisted. Use a mechanical device such as a forklift or pallet jack to move the enclosure in the shipping container.
• Do not place any object on the enclosure, especially containers of liquid, and do not attempt to stack the enclosures.
• Inspect the shipping container and the enclosure for shipping damage. Do not use the enclosure if it is damaged
• Leave the enclosure in the shipping container until it has been moved as close to the final installation location as possible. The casters are designed for minor position adjustments within the final installation area only. The casters are not designed for moving the enclosure over longer distances.
  The casters are not designed to provide long-term support for the enclosure after final installation. Use the levelers to provide long-term support.
• Install the enclosure in a structurally sound area with a level floor that is able to bear the weight of the enclosure, all equipment that will be installed in the enclosure and any other enclosures and/or equipment that will be installed nearby.
• Install the cabinet securely to the building structure, using the shipping brackets as illustrated in the Enclosure Installation section of this manual.
• Do not push the enclosure from the side panels to move it. Pushing from the side panels will cause a tipping hazard.
• When rolling the enclosure on its casters, always push it from behind, never pull it toward you.
• A rolling enclosure can cause personal injury and property damage if not properly supervised. If rolling the enclosure down a ramp is required, use extreme caution. Do not attempt to use ramps that have a slope steeper than 1:12.
• Use caution when cutting packing materials. The enclosure could be scratched, causing damage not covered by the warranty.
• Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product damage that will void the warranty.
• Do not re-ship the enclosure with additional equipment unless the enclosure was shipped with a special shock pallet ("SP1" models only). The combined weight of the enclosure and installed equipment must not exceed the load capacity of the pallet. Tripp Lite is not responsible for any damage that occurs during re-shipment.
  DANGER: STABILITY HAZARD, RACKS ARE TO BE INSTALLED BY QUALIFIED SERVICE PERSONNEL ONLY.
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Overview

SmartRack Enclosures accommodate all standard 19-inch rackmount equipment, regardless of vendor, and ship fully assembled for quick and easy deployment. They feature adaptable, heavy-duty cabinets in 24U, 42U, 45U, 47U and 48U heights, with or without side panels. Several models are available with an integrated shock pallet that allows resellers, integrators and enterprise customers to pre-configure equipment and re-ship the enclosures to the final installation site.

SmartRack Enclosures have variable mounting depths, ideal for servers. Integrated baying hardware enables cost-effective, orderly and efficient expansion. The cabinets include quick-release doors and side panels for convenient maintenance and split rear doors for improved access and reduced clearance requirements. Front access doors are reversible for installation flexibility. Front and rear doors and side panels are lockable.

Available SmartRack Enclosures

Model # Rack Height Side Panels Shock Pallet
SR24UB 24U Yes No
SR24UBEXP 24U No No
SR24UBEXPSP1 24U No Yes
SR24UBSP1 24U Yes Yes
SR25UB 25U Yes Yes
SR42UB 42U Yes No
SRX42UB*	42U Yes No
SR42UBCL	42U Yes No
SR42UBDP	42U Yes No
SRX42UBDP*	42U Yes No
SRX42UBDPEXP*	42U No No
SR42UBDPWD	42U Yes No
SRX42UBDPWD*	42U Yes No
SRX42UBDPWDEXP*	42U No No
SR42UBEXP 42U No No
SRX42UBEXP*	42U No No
SR42UBEXPND	42U No No
SR42UBEXPSP1 42U No Yes
SR42UBSP1 42U Yes Yes
SR42UBWD	42U Yes No
SRX42UBWD*	42U Yes No
SRX42UBWDEXP*	42U No No
SR42UBWDCL	42U Yes No

^* SRX-Series SmartRack Enclosure

Model # Rack Height	Side Panels	Shock Pallet
SR45UB 45U	Yes No
SRX47UB*	47U	Yes No
SRX47UBEXP*	47U No No
SRX47UBDP*	47U	Yes No
SRX47UBDPEXP*	47U No No
SRX47UBWD*	47U	Yes No
SRX47UBWDEXP*	47U No No
SRX47UBDPWD*	47U	Yes No
SRX47UBDPWDEXP*	47U No No
SR48UB 48U	Yes No
SR48UBCL	48U	Yes No
SR48UBDP	48U	Yes No
SR48UBDPEXPND	48U No No
SR48UBDPWD	48U	Yes No
SR48UBEXP 48U No No
SR48UBEXPSP1 48U No Yes
SR48UBSP1 48U	Yes	Yes
SRX48UBDPWD	48U	Yes No
SRX48UBDPWDEXPND	48U No No
SRX48UBWD	48U	Yes No
SRX48UBWDEXPND	48U No No
SR50UB 50U	Yes No
SR52UB 52U	Yes No
SR52UBDP	52U	Yes No
SR55UB 55U	Yes No

See the Specifications section for more information.

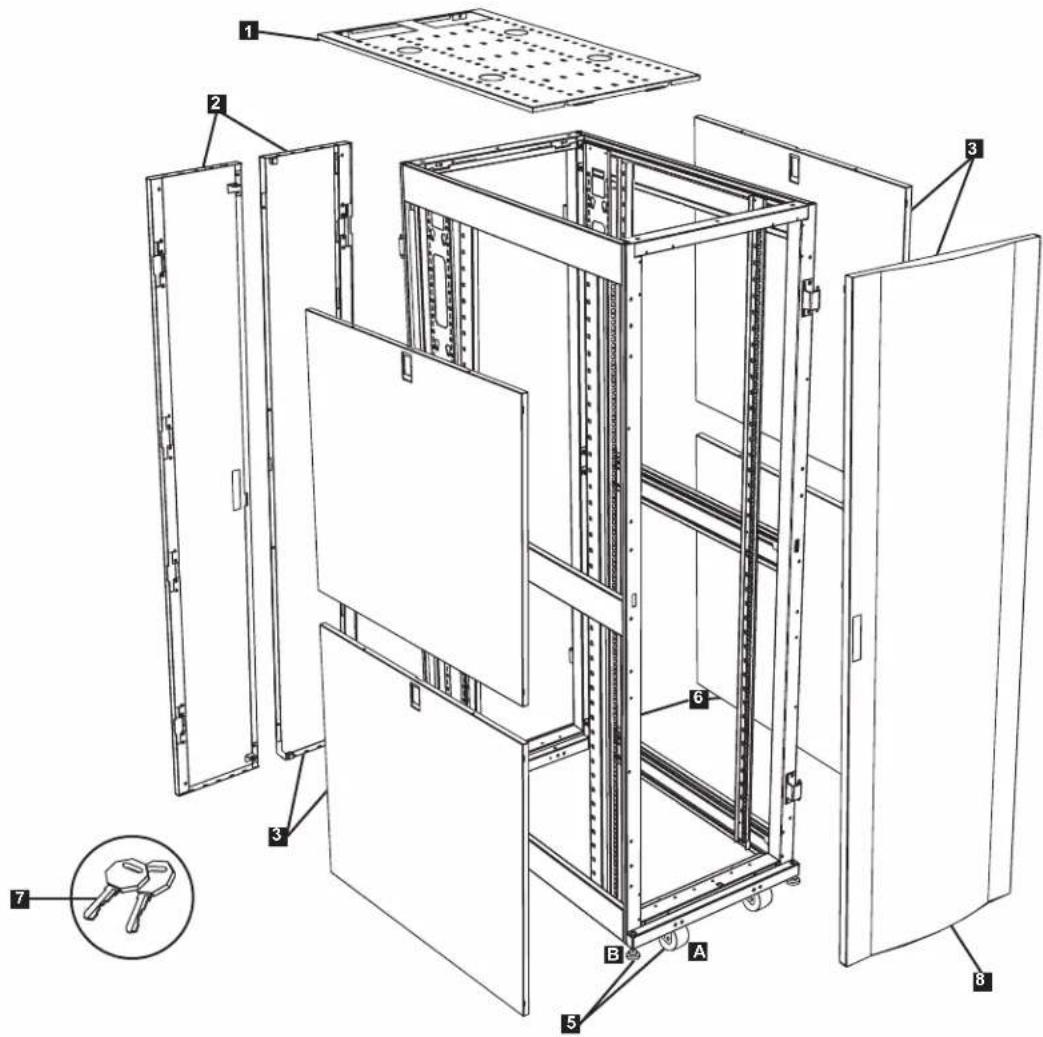

Feature Identification

Model SR42UB is shown. The other models have similar features, with the differences noted.

1 Roof Panel
2 Locking Split Rear Doors
3 Locking Side Panels (24U enclosures use 2 side panels instead of 4. Side panels are not included with "EXP" models.)
4 Cable Management Rails
5 Casters A and Levelers B
6 Mounting Rails (Provide horizontal and vertical mounting points for equipment.)
7 Keys (One for the doors and one for the side panels.)
8 Locking Reversible Front Door

Not Shown: Mounting hardware, documentation, shipping brackets and other shipping materials.

Enclosure Installation

Caution! Read All Instructions andWarnings Before Installation!

WARNING: The rack enclosure is extremely heavy. Do not attempt to unpack, move or install the enclosure without assistance. Until it has been properly installed and stabilized, the enclosure is prone to tipping and could cause property damage and/or personal injury. Use extreme caution when handling the enclosure and be sure to follow all handling and installation instructions. Do not attempt to install equipment without first stabilizing the enclosure.

Preparation

The enclosure must be installed in a structurally sound area with a level floor that is able to bear the weight of the enclosure, all the equipment that will be installed in the enclosure and any other enclosures and/or equipment that will be installed nearby. Before unpacking the enclosure, you should transport the shipping container closer to the final installation location to minimize the distance you will need to move the unit after the protective packaging has been removed. If you plan to store the enclosure for an extended period before installation, follow the instructions in the Storage and Service section.

You need several tools (user-supplied):

You also need the following hardware (included):

13 mm Open-end Wrench
(60) Phillips-head Mounting Screws (M6 x 5/8")
18 mm Open-end Wrench
(60) Cage Nuts (M6)
- Utility Blade
(60) Nylon Cup Washers
Carpenter's Level
- Phillips-head Screwdriver
5/32" Allen Wrench

Unpacking

Note: If the enclosure is an "SP1" model with a shock pallet, follow the special unpacking instructions attached to the shipping container instead of the unpacking instructions in this section. All warnings still apply.

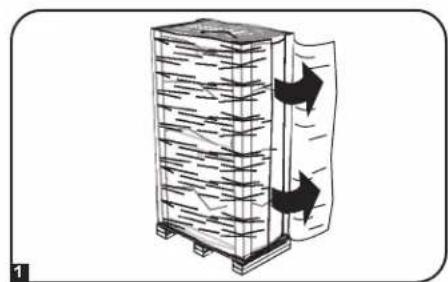

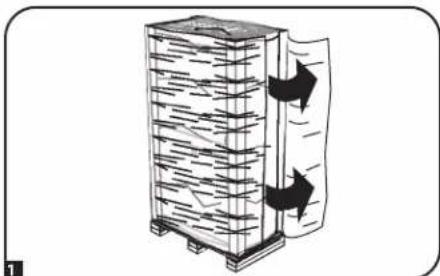

1 Confirm that the shipping container is upright and stable, then use a utility blade to cut the shrink-wrap securing the corner protectors. Apply the utility blade directly over the corner protectors to prevent the utility blade from scratching the enclosure or cutting the heavy protective plastic bag beneath the shrink-wrap. WARNING: Do not scratch the enclosure or cut the heavy plastic bag beneath the shrink-wrap. Do not push or pull the enclosure while unpacking.

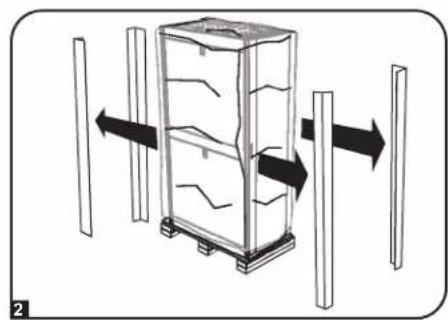

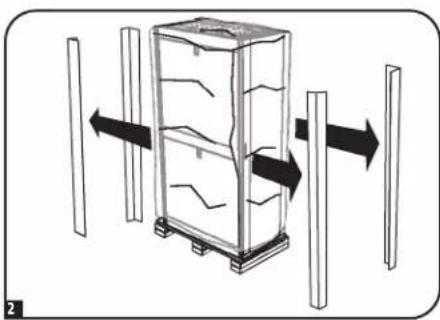

2 Remove the corner protectors. Save all packing materials (including the pallet) for later use unless you are certain they will not be required. The packing materials are recyclable.

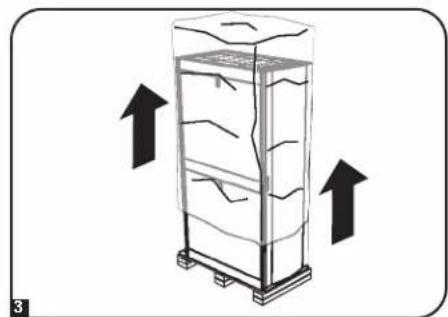

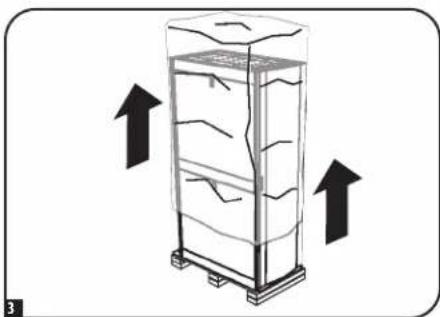

3 Remove the heavy plastic bag surrounding the enclosure. Examine the enclosure for any damage or loose parts. Confirm that all parts are present. If anything is missing or damaged, contact Tripp Lite for assistance. Do not attempt to use the enclosure if it has been damaged.

Enclosure Installation

Unpacking (continued)

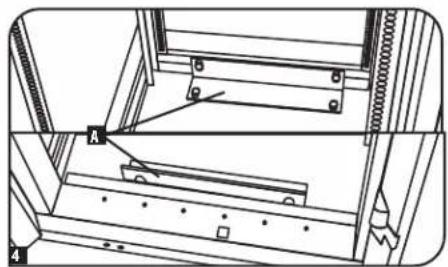

Use the key to open the enclosure's doors and locate the 2 shipping brackets A that attach the enclosure to the shipping pallet. The brackets are located inside the enclosure.

Note: The keys are attached to the front of the enclosure.

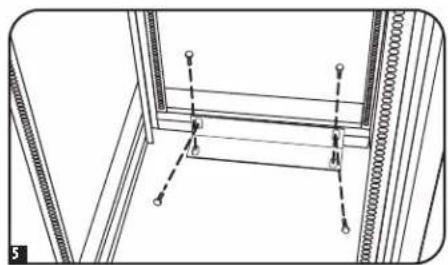

Use a 13 mm open-end wrench to remove the shipping brackets. Be extremely careful, as the enclosure could shift unexpectedly after bracket removal. Save the brackets and bracket hardware for later use.

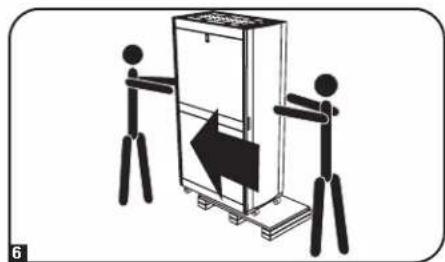

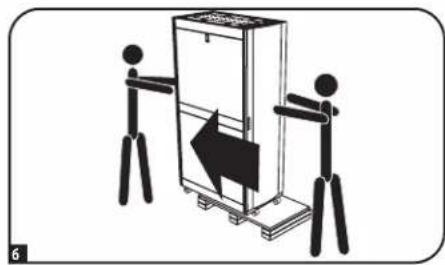

6 Position at least one person at the front of the enclosure and one person at the rear of the enclosure. Slowly push the enclosure toward the back of the shipping pallet until all four casters go over the edge of the pallet and touch the floor. WARNING: Use at least one assistant when removing the enclosure from the pallet. Be extremely careful when moving the enclosure.

Placement

1 Use the casters to move the enclosure for a short distance over a level, smooth, stable surface by pushing it from the front or rear (not the side panels). Do not attempt to roll the enclosure over long distances. The enclosure should be moved close to its installation location inside its shipping container before it is unpacked. (Use a forklift or pallet jack to move the shipping container.) WARNING: Do not push or pull the enclosure at the side panels or pull the enclosure toward you.

If required, the enclosure can be lifted by attaching 4 user-supplied M8 diameter eye bolts to the threaded holes near the upper corners of the enclosure frame. Use steel bolts with an ISO strength rating of 8.8 or higher. The 4 bolts can support the weight of the enclosure and up to 1000 lb (450 kg) of installed equipment. WARNING: Only experienced equipment operators should attempt to lift the enclosure. Use appropriate equipment and follow all applicable safety procedures and regulations.

Enclosure Installation

Leveling

WARNING: Level the enclosure before attempting to install equipment. The casters are not designed to provide long-term support for the enclosure. Use the levelers to provide long-term support. Install the enclosure in a structurally sound area with a level floor that is able to bear the weight of the enclosure, all equipment that will be installed in the enclosure and any other enclosures and/or equipment that will be installed nearby.

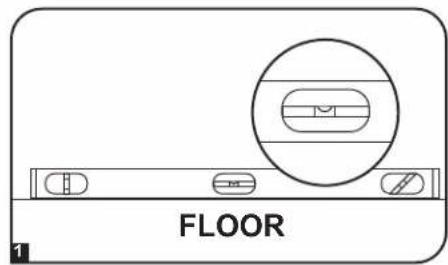

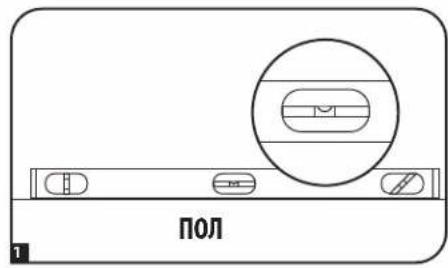

1 After the enclosure has been moved to the installation location, use a carpenter's level to check the slope of the floor. If the floor slopes more than 1% , choose an alternate installation site.

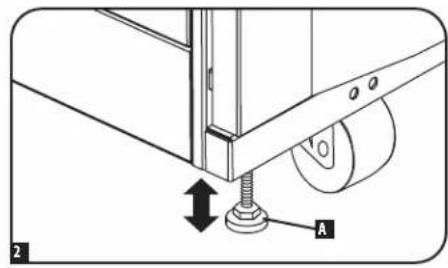

Use an 18 mm open-end wrench to lower each leveler until it reaches the floor. (There are 4 levelers, 2 at the front and 2 at the rear.) Make sure each leveler contacts the floor solidly. Note: Lower a leveler by turning it clockwise; raise a leveler by turning it counter-clockwise.

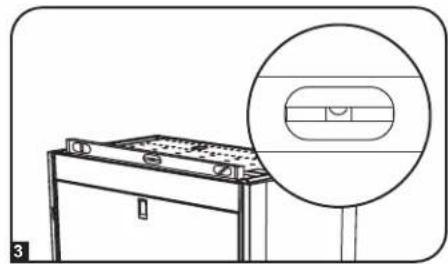

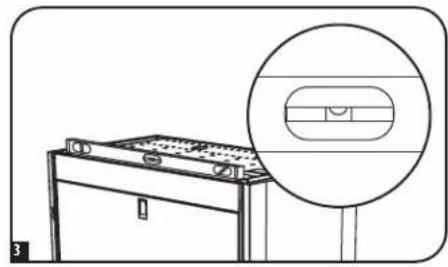

After lowering each leveler, use the carpenter's level to confirm that the enclosure is level in all directions. Adjust the levelers as required until the enclosure is level.

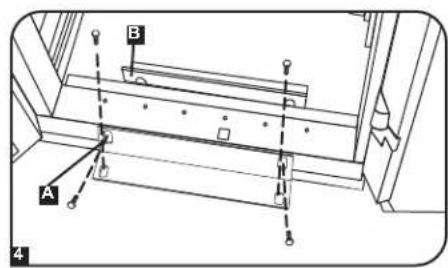

4 In order to secure the cabinet to the building structure for stability, attach the 2 shipping brackets using the hardware that attached the enclosure to the shipping pallet. Use a 13mm open-end wrench to connect the brackets to the outer A or inner B bracket mounting points of the enclosure. Attach the brackets to secure mounting points in the floor using user-supplied hardware or Tripp Lite's SmartRack Bolt-Down Kit (Model: SRBOLTDOWN).

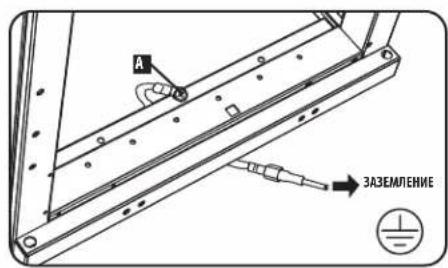

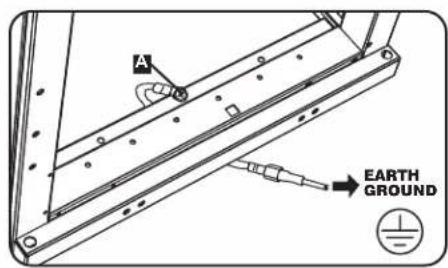

Ground Connection

All the parts of the enclosure are grounded to the frame of the enclosure. Use the enclosure's front or rear threaded grounding point A and an M6 screw (included) to connect the frame of the enclosure directly to your facility's earth ground connection with an 8 AWG (3.264 mm) wire. Route the ground wire under the enclosure's frame to ensure unhindered door operation. WARNING: Attach each enclosure to earth ground separately. Do not use the enclosure without an earth ground connection.

Enclosure Configuration

Adding or Removing Front and Rear Doors

WARNING: Do not attempt to add or remove doors without assistance.

Removing Door

1 Disconnect the door's ground wire.

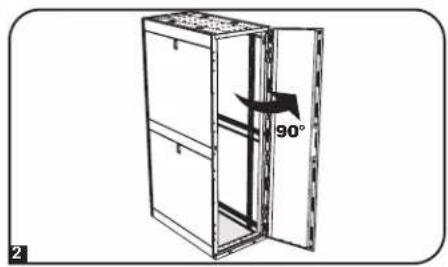

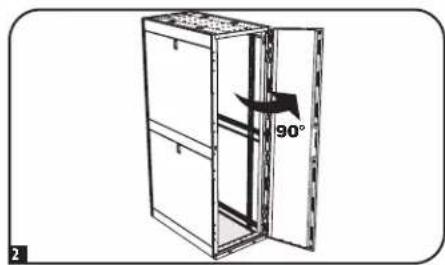

2 Open the door until it is perpendicular (90 degrees) to the front of the enclosure.

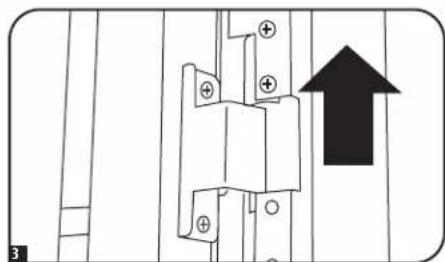

3 Lift the door from the hinges and remove it from the enclosure.

To Reinstall Door, Reverse Steps 1-3

(Optional) If the enclosure is joined to another enclosure, turn the door back toward the enclosure as you lift it from the hinges.

Reversing Front Door

WARNING: Do not attempt to reverse the front door without assistance.

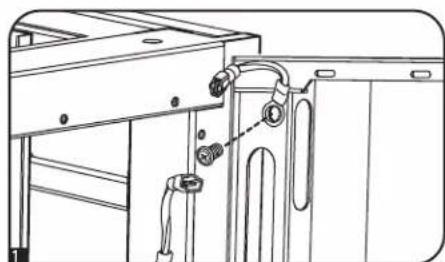

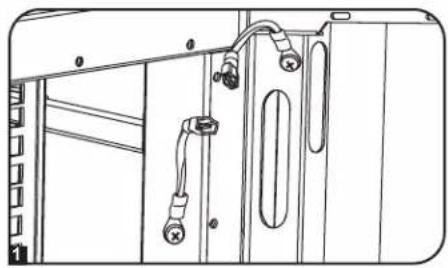

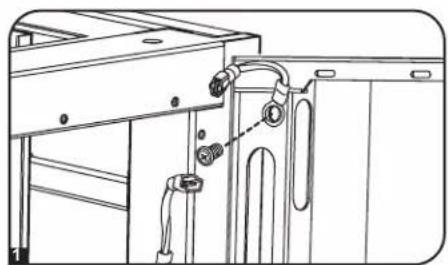

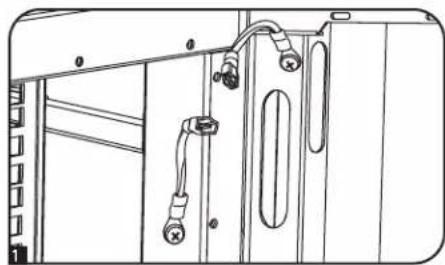

1 Remove the screw connecting the ground wire to the inside of the door.

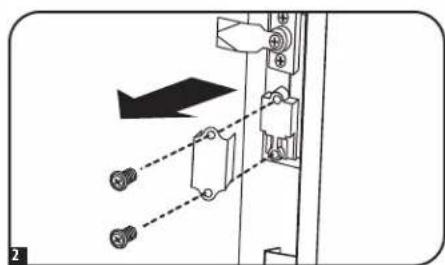

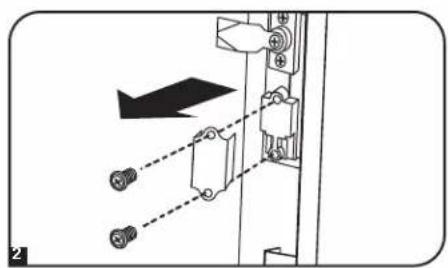

2 Remove the 2 screws connecting the door handle to the door. Remove the door handle.

Enclosure Configuration

Reversing Front Door (continued)

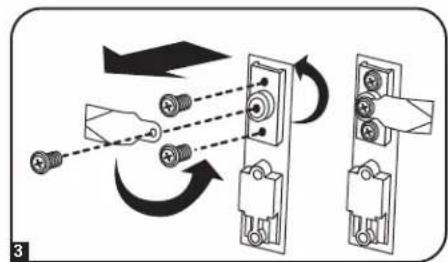

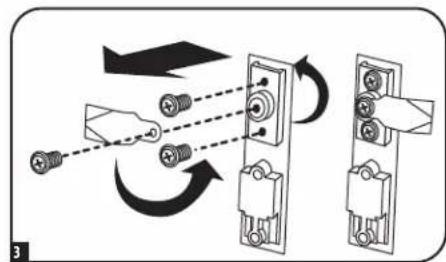

3 Remove the screw and washer from the rear of the door handle and remove the latching mechanism. Rotate the latch washer counter-clockwise 90 degrees and reverse the latch so it points in the opposite direction, then use the screw and washer to re-attach the latch to the rear of the door handle.

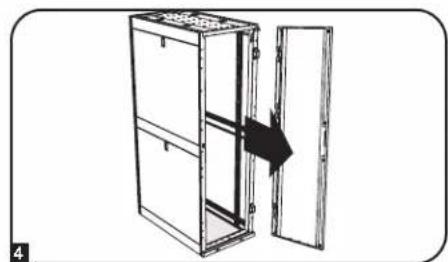

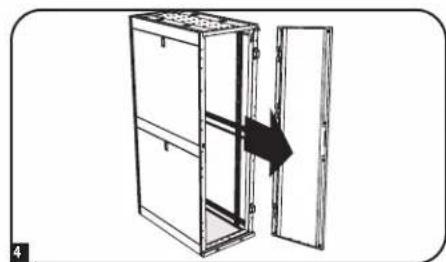

4 Remove the door by following the steps in the previous section.

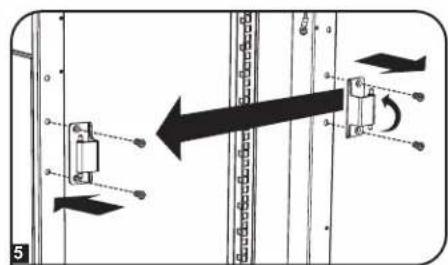

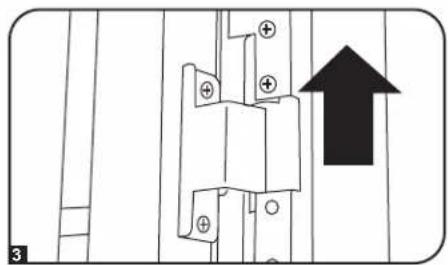

Remove the door hinges from the enclosure, rotate them 180 degrees and attach them on the opposite side of the enclosure.

Note: The alternate door hinge attachment points have plastic plugs in the screw holes. Remove the plugs and insert them in the original door hinge attachment points.

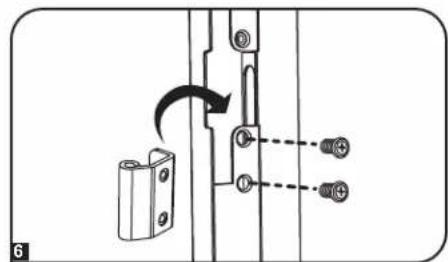

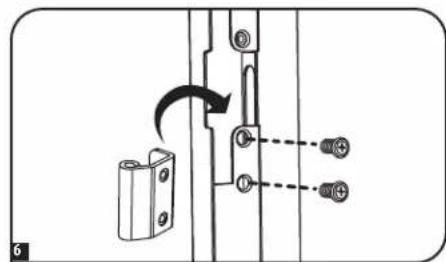

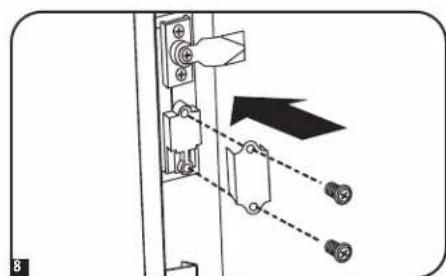

6 Unscrew the 2 hinge mechanisms from the hinge openings inside the door, then reattach each of them using the set of screw holes immediately opposite their original position.

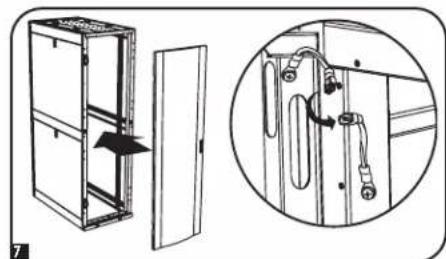

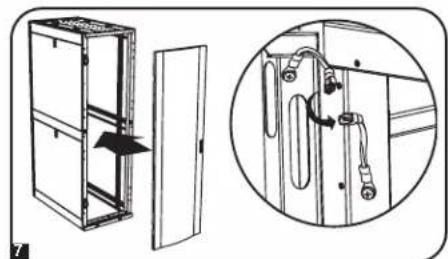

7 Rotate the door 180 degrees and reinstall it on the enclosure. Remember to connect the ground wire to the inside of the door, using the attachment point nearest the hinge at the top of the door. The attachment point is marked with the ground connection symbol:

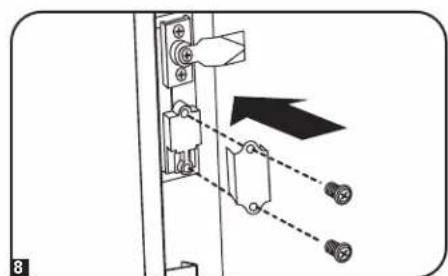

Reinstall the door handle.

Enclosure Configuration

Adding or Removing Roof Panel

WARNING: Do not attempt to use the roof panel for weight-bearing purposes other than those explicitly described and approved by Tripp Lite. Do not attempt to add or remove the roof panel without assistance.

Removing Roof Panel

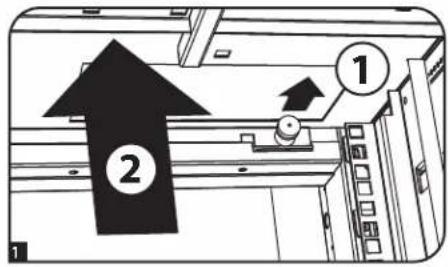

Pull the 2 pins near the rear of the roof panel. While holding the pins, push the roof panel upward.

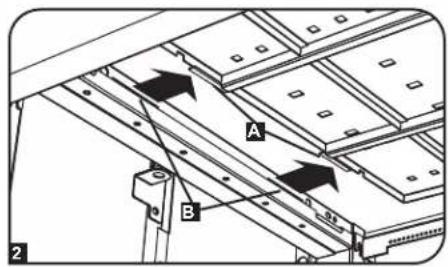

2 Remove the roof panel tabs A from the roof panel attachment slots B in the enclosure frame.

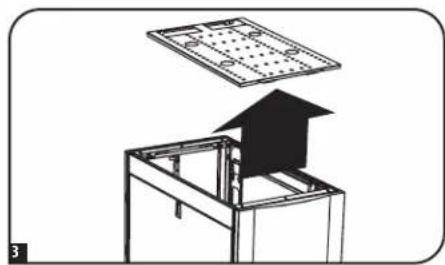

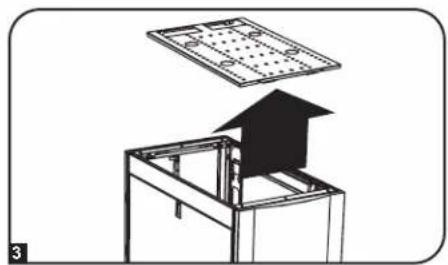

3 Lift the roof panel from the enclosure.

To Reinstall Roof Panel, Reverse Steps 1-3

Adding or Removing Side Panels

Removing Side Panel

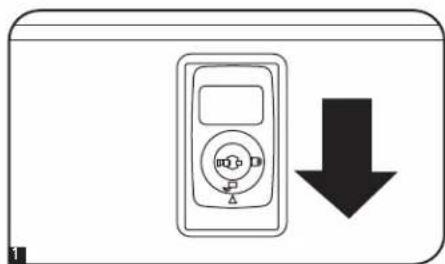

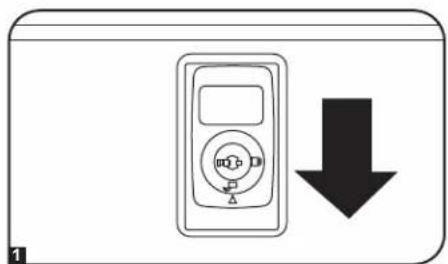

1 Open the latch by sliding it downward.

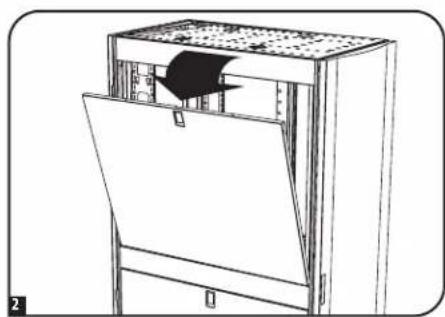

2 Tilt the top of the panel away from the enclosure.

Enclosure Configuration

Adding or Removing Side Panels (continued)

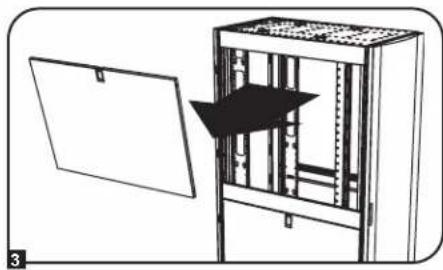

3 Lift the panel away from the brace that supports it.

To Reinstall Side Panel, Reverse Steps 1-3

Adjusting Mounting Rails and Cable Management Rails

WARNING: Do not attempt to adjust rails without assistance. Do not attempt to adjust rails while equipment is installed in the enclosure. Do not attempt to use rails without screws installed (6 per rail).

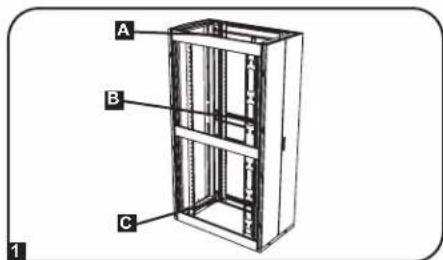

The 4 mounting rails are pre-installed to accommodate equipment with a mounting depth of 30 inches (762 mm). Do not adjust the mounting rails unless your equipment requires a different mounting depth. The front and rear sets of rails can be adjusted independently in 1/4-inch (6 mm) increments for mounting depths between 4 inches (101.6 mm) and 42 inches (1066.8 mm).

1 Each rail is connected to the enclosure with 6 screws - 1 pair at the upper beam A, 1 pair at the middle beam B and 1 pair at the lower beam C.

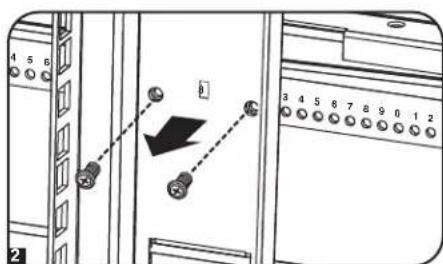

2 Remove the screws fastening each of the rear mounting rails to the enclosure. (If adjustment of the front rails is required, you can also remove the screws from the front rails.)

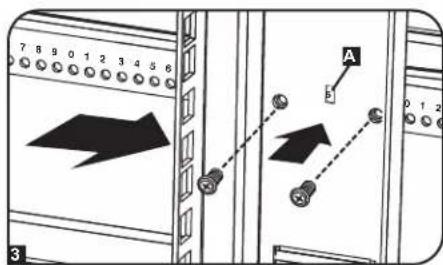

3 Slide the mounting rails to the desired depth and reattach them using the screws you removed in Step 2. The rail attachment points are numbered A to help you align each pair of rails at the same depth.

The depth of the 2 cable management rails can be adjusted using the same method.

Enclosure Configuration

Combining (Baying) Enclosures

WARNING: Combining enclosures is not a substitute for stabilizing the enclosures. Each enclosure in a bay of combined enclosures requires the same stabilizing measures as a standalone enclosure.

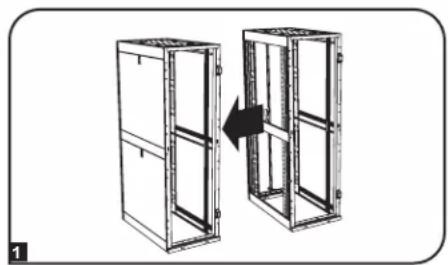

1 Arrange the enclosures in the correct position for baying.

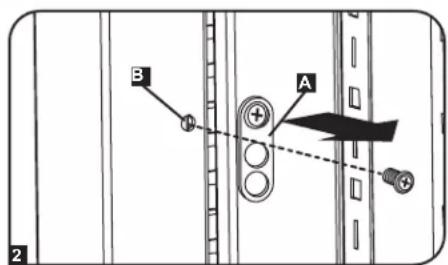

2 Each enclosure includes 4 baying brackets A that correspond to baying connection points B on the adjoining enclosure. The baying connection points already contain screws. Remove the screw from each baying connection point in the adjoining enclosure.

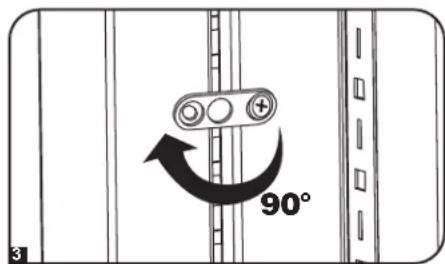

3 Loosen the screw in each baying bracket and turn each bracket 90 degrees toward the adjoining enclosure, aligning each bracket with the corresponding baying connection point on the adjoining enclosure.

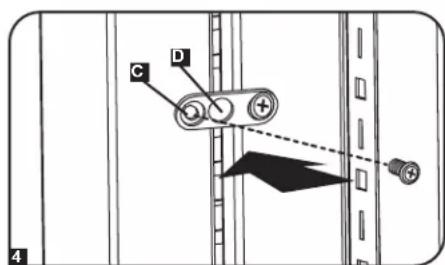

4 Connect each bracket to the adjoining enclosure using the screws you removed in step 2, but do not tighten the screws completely. Adjust the position of the enclosures as needed. If you want the centers of the enclosures to be 24 inches (61 cm) apart/29.9 inches (76 cm) for the SR42UBWD, use the outside hole of the bracket C. If you want the centers to be 60 cm (23.6 inches) apart/75 cm (29.5 inches) for the SR42UBWD, use the middle hole of the bracket D. After connecting all brackets and confirming that the enclosures do not need further adjustment, tighten all screws.

Note: You may wish to remove the doors from the enclosures before combining them. Reinstalling the doors afterward is optional. Remove the interior side panels before baying enclosures if you wish to enable access between enclosures.

Equipment Installation

WARNING: Do not install equipment until you have stabilized the enclosure. Install heavier equipment first and install it toward the bottom of the enclosure. Install equipment starting from the bottom of the enclosure and proceeding toward the top of the enclosure - never the reverse. If using sliding equipment rails, be careful when extending the rails. Do not extend more than one set of sliding equipment rails at one time. Avoid extending sliding equipment rails near the top of the enclosure.

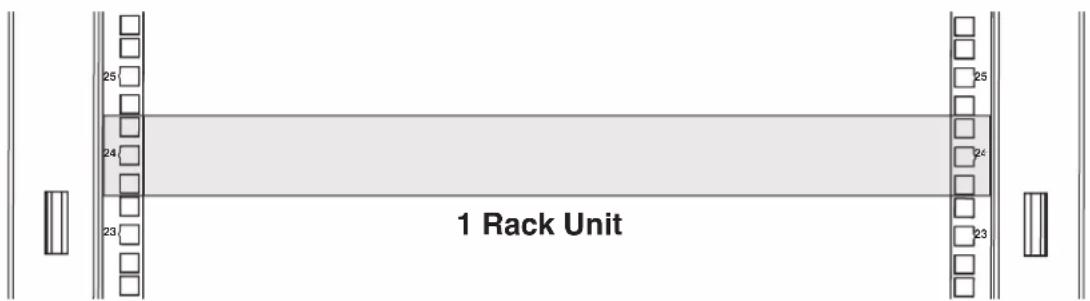

Note: The square holes at the middle of each rack unit are numbered and also include a small notch to aid identification. A single rack unit includes the space occupied by the numbered hole and the holes directly above and below.

Equipment Installation

Installing or Removing Cage Nuts

WARNING: The flanges of the cage nuts should engage the sides of the square opening in the rail, not the top and bottom. Follow the instructions in your equipment documentation to ensure proper installation of your equipment.

Installing Cage Nuts

1 Locate the numbered square openings in the mounting rails where you plan to install your equipment. You will install cage nuts (included) into the square openings in order to provide an attachment point for the mounting screws (included).
Note: Consult your equipment documentation to determine how many cage nuts will be required and where they will need to be installed.
2 From the inside of the mounting rail, insert one of the flanges of the cage nut through the square opening. Press it against the side of the square opening. Each flange should engage one side of the square opening, not the top or bottom.
3 Compress the cage nut at the sides slightly to allow the remaining flange to fit through the square opening. When the cage nut is properly installed, both flanges will protrude through the square opening and will be visible on the outer surface of the mounting rail. Repeat steps 1-3 until all required cage nuts are installed.

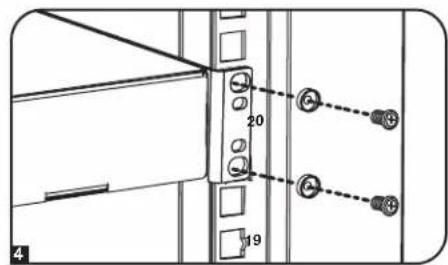

After installing the required cage nuts, use the included mounting screws and cup washers to secure your equipment to the rack rail. Place the cup washers between the screws and the equipment mounting brackets.

Note: Your equipment may also include mounting hardware. Read the mounting instructions that came with your equipment before installing your equipment.

To Remove Cage Nuts, Reverse Steps 1-3

Note: You may wish to use a cage nut tool (user-supplied) to aid cage nut installation and removal.

Specifications

Model Static Rolling Height Width Depth Weight Height Width Depth Weight
SR24UB 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	47.25 in. (1200 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	190 lb. (86 kg)	51.4 in. (1306 mm)	26 in. (660 mm)	45 in. (1140 mm)	232 lb. (105 kg)
SR24UBEXP 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	47.25 in. (1200 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	145 lb. (66 kg)	51.4 in. (1306 mm)	26 in. (660 mm)	45 in. (1140 mm)	187 lb. (85 kg)
SR24UBSP1 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	47.25 in. (1200 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	190 lb. (86 kg)	51.4 in. (1306 mm)	28 in. (705 mm)	47 in. (1194 mm)	240 lb. (109 kg)
SR24UBEX- PSP1	3000 lb. (1363 kg)	2250 lb. (1022 kg)	47.25 in. (1200 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	145 lb. (66 kg)	51.4 in. (1306 mm)	28 in. (705 mm)	47 in. (1194 mm)	195 lb. (88 kg)
SR25UB 3000 lb	(1363 kg)	2250 lb. (1022 kg)	49.00 in. (1245 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	195 lb. (88.6 kg)	53.5 in. (1358.9 mm)	24 in. (609.6 mm)	43.0 in. (1092.2 mm)	237.0 lb. (107.5 kg)
SR42UB 3000 lb	(1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	286 lb. (130 kg)	85 in. (2149 mm)	26 in. (660 mm)	45 in. (1140 mm)	328 lb. (149 kg)
SRX42UB** 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	23.63 in. (600 mm)	41.25 in. (1048 mm)	298.98 lb. (135.62 kg)	83.43 in. (2118 mm)	25.75 in. (654 mm)	42.85 in. (1088.4 mm)	331.06 lb. (150.17 kg)
SR42UBCL 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	305 lb. (138 kg)	85 in. (2149 mm)	26 in. (660 mm)	45 in. (1140 mm)	347 lb. (157 kg)
SR42UBDP 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	23.63 in. (600 mm)	47.3 in. (1200 mm)	315 lb. (143 kg)	85 in. (2149 mm)	26 in. (660 mm)	50.72 in. (1288.4 mm)	367 lb. (167 kg)
SRX42UBDP** 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	23.63 in. (600 mm)	49 in. (1246 mm)	323.20 lb. (146.60 kg)	83.43 in. (2118 mm)	25.75 in. (654 mm)	50.72 in. (1288.4 mm)	358.74 lb. (162.72 kg)
SRX42UBDP- EXP**	3000 lb. (1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	23.63 in. (600 mm)	49 in. (1246 mm)	234.51 lb. (106.37 kg)	83.43 in. (2118 mm)	25.75 in. (654 mm)	50.72 in. (1288.4 mm)	270.05 lb. (122.49 kg)
SR42UBDPWD 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	29.53 in. (750 mm)	47.3 in. (1200 mm)	342 lb. (155 kg)	85 in. (2149 mm)	26 in. (660 mm)	50.72 in. (1288.4 mm)	404 lb. (183 kg)
SRX42UBDP- WD**	3000 lb. (1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	31.5 in. (800 mm)	49 in. (1246 mm)	374.58 lb. (169.91 kg)	83.43 in. (2118 mm)	33.46 in. (850 mm)	50.72 in. (1288.4 mm)	422.55 lb. (191.65 kg)
SRX42UBDPW- DEXP**	3000 lb. (1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	31.5 in. (800 mm)	49 in. (1246 mm)	285.27 lb. (129.39 kg)	83.43 in. (2118 mm)	33.46 in. (850 mm)	50.72 in. (1288.4 mm)	333.23 lb. (151.15 kg)
SR42UBEXP 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	209 lb. (95 kg)	85 in. (2149 mm)	26 in. (660 mm)	45 in. (1140 mm)	251 lb. (114 kg)
SRX42UBEXP**	3000 lb. (1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	23.63 in. (600 mm)	41.25 in. (1048 mm)	224.75 lb. (101.94 kg)	83.43 in. (2118 mm)	25.75 in. (654 mm)	42.85 in. (1088.4 mm)	256.82 lb. (116.50 kg)
SRX42UBEXPND	3000 lb. (1363 kg)	2250 lb. (1022 kg)	78.5 in. (2261 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	161 lb. (73.03 kg)	84 in. (2133.6 mm)	28 in. (711.2 mm)	47 in. (1193.8 mm)	211 lb. (95.7 kg)
SRX42UBEX- PSP1	3000 lb. (1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	203 lb. (92 kg)	84 in. (2146 mm)	28 in. (705 mm)	47 in. (1194 mm)	253 lb. (115 kg)
SRX42UBSP1 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	286 lb. (130 kg)	84 in. (2146 mm)	28 in. (705 mm)	47 in. (1194 mm)	336 lb. (152 kg)
SRX42UBWD	3000 lb. (1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	29.53 in. (750 mm)	43 in. (1092 mm)	313 lb. (142 kg)	85 in. (2149 mm)	26 in. (660 mm)	45 in. (1140 mm)	365 lb. (166 kg)
SRX42UBWD**	3000 lb. (1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	31.5 in. (800 mm)	41.25 in. (1048 mm)	349.53 lb. (158.55 kg)	83.43 in. (2118 mm)	33.46 in. (850 mm)	42.85 in. (1088.4 mm)	392.72 lb. (178.14 k)
SRX42UBWD- EXP**	3000 lb. (1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	31.5 in. (800 mm)	41.25 in. (1048 mm)	275.30 lb. (124.87 kg)	83.43 in. (2118 mm)	33.46 in. (850 mm)	42.85 in. (1088.4 mm)	318.49 lb. (144.46 kg)
SRX42UBWDCL	3000 lb. (1363 kg)	2250 lb. (1022 kg)	78.5 in. (1994 mm)	29.53 in. (750 mm)	43 in. (1092 mm)	304 lb. (138 kg)	85 in. (2149 mm)	26 in. (660 mm)	45 in. (1140 mm)	346 lb. (157 kg)
SRX45UB 3000 lb	(1363 kg)	2250 lb. (1022 kg)	84 in. (2133.6 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	305 lb. (138 kg)	92.5 in. (2298.7 mm)	26 in. (660 mm)	45 in. (1140 mm)	347 lb. (157 kg)
SRX47UB** 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	87.2 in. (2215 mm)	23.63 in. (600 mm)	41.25 in. (1048 mm)	326.23 lb. (147.98 kg)	87.2 in. (2215 mm)	25.75 in. (654 mm)	42.85 in. (1088.4 mm)	358.31 lb. (162.53 kg)
SRX47UBEXP**	3000 lb. (1363 kg)	2250 lb. (1022 kg)	87.2 in. (2215 mm)	23.63 in. (600 mm)	41.25 in. (1048 mm)	326.23 lb. (147.98 kg)	87.2 in. (2215 mm)	25.45 in. (654 mm)	42.85 in. (1088.4 mm)	358.31 lb. (162.53 kg)
SRX47UBDP** 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	87.2 in. (2215 mm)	23.63 in. (600 mm)	41.25 in. (1048 mm)	326.23 lb. (147.98 kg)	87.2 in. (654 mm)	25.75 in. (654 mm)	42.85 in. (1088.4 mm)	358.31 lb. (162.53 kg)
SRX47UBDP** 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	87.2 in. (2215 mm)	29.53 in. (750 mm)	49 in. (1246 mm)	242.90 lb. (110.18 kg)	87.2 in. (2215 mm)	25.75 in. (654 mm)	50.72 in. (1288.4 mm)	274.98 lb. (124.73 kg)
SRX47UBDP- EXP**	3000 lb. (1363 kg)	2250 lb. (1022 kg)	87.2 in. (2215 mm)	23.63 in. (600 mm)	49 in. (1246 mm)	352.29 lb. (159.80 kg)	87.2 in. (2215 mm)	25.75 in. (654 mm)	50.72 in. (1288.4 mm)	387.83 lb. (175.92 kg)
SRX47UBWD**	3000 lb. (1363 kg)	2250 lb. (1022 kg)	87.2 in. (2215 mm)	23.63 in. (600 mm)	49 in. (1246 mm)	252.04 lb. (114.33 kg)	87.2 in. (2215 mm)	25.75 in. (654 mm)	50.72 in. (1288.4 mm)	287.58 lb. (130.45 kg)
SRX47UBWD**	3000 lb. (1363 kg)	2250 lb. (1022 kg)	87.2 in. (2215 mm)	31.5 in. (800 mm)	41.25 in. (1048 mm)	381.42 lb. (173.01 kg)	87.2 in. (2215 mm)	33.46 in. (850 mm)	42.85 in. (1088.4 mm)	424.60 lb. (192.60 kg)
SRX47UBDP- WD**	3000 lb. (1363 kg)	2250 lb. (1022 kg)	87.2 in. (2215 mm)	31.5 in. (800 mm)	49 in. (1246 mm)	298.09 lb. (135.21 kg)	87.2 in. (2215 mm)	33.46 in. (850 mm)	50.72 in. (1288.4 mm)	341.27 lb. (154.80 kg)
SRX47UBDPW- DEXP**	3000 lb. (1363 kg)	2250 lb. (1022 kg)	87.2 in. (2215 mm)	31.5 in. (800 mm)	49 in. (1246 mm)	408.30 lb. (185.20 kg)	87.2 in. (2215 mm)	33.46 in. (850 mm)	50.72 in. (1288.4 mm)	456.27 lb. (206.96 kg)

Specifications

Load Capacity* Unit Dimensions Shipping Dimensions

Model Static Rolling Height Width Depth Weight Height Width Depth Weight
SR48UBDPEXPND	3000 lb. (1363 kg)	2250 lb. (1022 kg)	89 in. (2261 mm)	23.63 in. (600 mm)	47.3 in. (1200 mm)	170 lb. (77 kg)	95 in. (2416 mm)	26 in. (660 mm)	50.72 in. (1288.4 mm)	260 lb. (118 kg)
SRX48UBWCD 3000	3000 lb. (1363 kg)	2250 lb. (1022 kg)	89 in. (2261 mm)	31.5 in. (800 mm)	43 in. (1092 mm)	393 lb. (178 kg)	95 in. (2416 mm)	33.46 in. (850 mm)	45 in. (1140 mm)	460 lb. (209 kg)
SRX48UB-DPWD	3000 lb. (1363 kg)	2250 lb. (1022 kg)	89 in. (2261 mm)	31.5 in. (800 mm)	47.3 in. (1200 mm)	411 lb. (187 kg)	95 in. (2416 mm)	33.46 in. (850 mm)	50.72 in. (1288.4 mm)	483 lb. (219 kg)
SRX48UBDPW-DEXPND	3000 lb. (1363 kg)	2250 lb. (1022 kg)	89 in. (2261 mm)	31.5 in. (800 mm)	47.3 in. (1200 mm)	204 lb. (93 kg)	95 in. (2416 mm)	33.46 in. (850 mm)	50.72 in. (1288.4 mm)	276 lb. (125 kg)
SRX48UBWD-EXPND	3000 lb. (1363 kg)	2250 lb. (1022 kg)	89 in. (2261 mm)	31.5 in. (800 mm)	43 in. (1092 mm)	198 lb. (90 kg)	95 in. (2416 mm)	33.46 in. (850 mm)	45 in. (1140 mm)	264 lb. (120 kg)
SR48UB 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	89 in. (2261 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	315 lb. (143 kg)	95 in. (2416 mm)	26 in. (660 mm)	45 in. (1140 mm)	357 lb. (162 kg)
SR48UBCL 3000	lb. (1363 kg)	2250 lb. (1022 kg)	89 in. (2261 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	334 lb. (151 kg)	95 in. (2416 mm)	26 in. (660 mm)	45 in. (1140 mm)	376 lb. (171 kg)
SR48UBDPWD 3000	3000 lb. (1363 kg)	2250 lb. (1022 kg)	89 in. (2261 mm)	29.53 in. (750 mm)	47.3 in. (1200 mm)	378 lb. (171.5 kg)	95 in. (2416 mm)	33.46 in. (850 mm)	53 in. (1340 mm)	440 lb. (200 kg)
SR48UBEXP 3000	lb. (1363 kg)	2250 lb. (1022 kg)	89 in. (2261 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	225 lb. (102 kg)	95 in. (2416 mm)	26 in. (660 mm)	45 in. (1140 mm)	267 lb. (121 kg)
SR48UBEX-PSP1	3000 lb. (1363 kg)	2250 lb. (1022 kg)	89 in. (2261 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	225 lb. (102 kg)	95 in. (2416 mm)	28 in. (705 mm)	47 in. (1194 mm)	213 lb. (96.6 kg)
SR48UBSP1 3000	lb. (1363 kg)	2250 lb. (1022 kg)	89 in. (2261 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	315 lb. (143 kg)	95 in. (2416 mm)	26 in. (660 mm)	45 in. (0140 mm)	365 lb. (166 kg)
SR48UBWD 3000	lb. (1363 kg)	2250 lb. (1022 kg)	89 in. (2261 mm)	29.53 in. (750 mm)	43 in. (1092 mm)	343 lb. (156 kg)	95 in. (2416 mm)	26 in. (660 mm)	45 in. (1140 mm)	395 lb. (179 kg)
SR50UB 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	93 in. (2323 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	347 lb. (157.5 kg)	98 in. (2489 mm)	26 in. (660 mm)	45 in. (1140 mm)	400 lb. (182 kg)
SR52UB 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	96 in. (2443 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	358.5 lb. (163 kg)	101 in. (2570 mm)	26 in. (660 mm)	45 in. (1140 mm)	413 lb. (187 kg)
SR52UBDP	3000 lb. (1363 kg)	2250 lb. (1022 kg)	96 in. (2443 mm)	23.63 in. (600 mm)	47.3 in. (1200 mm)	379 lb. (172 kg)	101 in. (2570 mm)	33.5 in. (850 mm)	49.75 in. (1264 mm)	449 lb. (204 kg)
SR55UB 3000 lb.	(1363 kg)	2250 lb. (1022 kg)	101.5 in. (2577 mm)	23.63 in. (600 mm)	43 in. (1092 mm)	375 lb. (170 kg)	106.5 in. (2703 mm)	26 in. (660 mm)	45 in. (1140 mm)	431 lb. (195 kg)

SP1" models include a shock pallet that allows the enclosure to be shipped with pre-installed equipment. The maximum shipping capacity is 1250 lb (568 kg), including the weight of the enclosure and the pre-installed equipment.

Storage and Service

Storage

The enclosure should be stored in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight. Store the enclosure in its original shipping container if possible.

Service

Your Tripp Lite product is covered by the warranty described in this manual. A variety of Extended Warranty and On-Site Service Programs are also available from Tripp Lite. For more information on service, visit tripplite.com/support. Before returning your product for service, follow these steps:

1. Review the installation and operation procedures in this manual to insure that the service problem does not originate from a misreading of the instructions.
2. If the problem continues, do not contact or return the product to the dealer. Instead, visit triplite.com/support.
3. If the problem requires service, visit triplite.com/support and click the Product Returns link. From here you can request a Returned Material Authorization (RMA) number, which is required for service. This simple on-line form will ask for your unit's model and serial numbers, along with other general purchaser information. The RMA number, along with shipping instructions will be emailed to you. Any damages (direct, indirect, special or consequential) to the product incurred during shipment to Tripp Lite or an authorized Tripp Lite service center is not covered under warranty. Products shipped to Tripp Lite or an authorized Tripp Lite service center must have transportation charges prepaid. Mark the RMA number on the outside of the package. If the product is within its warranty period, enclose a copy of your sales receipt. Return the product for service using an insured carrier to the address given to you when you request the RMA.

Warranty and Product Registration

5-Year Limited Warranty

Sellw r t f the product should prove defective in material or workmanship within that period, Selter will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTYES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!

• No purchase necessary. Void where prohibited. Some restrictions apply. See Web site for details.

Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Note on Labeling

This symbol is used on the product: Ground Connection

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

PykoBODCTBO N0Ib30BaTeJia

Kkaфы cepи SmartRack

(CepiHbIe Homepa: AG-039A, AGAC7006, AGAC7761, AG-0324, AG-00BE, AG-0325, AGAC7454, AG-0534, AG-0535, AG-0536, AG-076F)

Baxhblye yka3aHnno To texHnke 6e3oNachoctn 50

KpaTkoe onncanne 51

Cxema paCnoJoxKeHHaYHKnOHaJIbHbIx 3neMeHTOB 52

Iopadok yctahOBkn kka 53

IoprotoBka 53

PacnaKobka 53

Pa3MeueHne 54

BbipabHnBaHne 55

3a3eMJIeHne 55

KomnohOBka uKaΦa 56

UcTaHOBka/ChrTne nepeDHeN u 3aDHeN DBepeu 56

IpectaHOBka nepeDnei DBepu5 56

UcTaHOBka/ChTne BepXhen nanein 58

UcTaHOBKa/CHrTHe 60KOBbIX nHaHeIe 58

PerynpoBka MoTataXbIx I Ka6eJIbHbIX HAnpaBIAIOxix 59

CobmeueHne ukafoB (yctahOBb Bpa) 60

YctaHObKa 06OpyObaHn8 60

YcTaHOBKa HnH ChTHe 3aKlaIhblX Raek 61

Texnueckne XapaKtepncn6 62

XpaHHeHne I TexHnueckoe 6cbnyKbHaHne 63

Tapaantna nperehctpaunn 3dennn 63

English 1

Espanol 17

Français 33

1111 W. 35th Street, Chicago, IL 60609 USA - triplite.com/support

OxpaHReTcABTOpCKM npabOM 2023 Tripp Lite. Bce npaba zauuunenbI.

COXPAHNTE HACTOJIUE YKA3AHNA

Bo cex pa3enax hactoery pyko0dctba codepjatc yka3aHn npdeynpeckedn, kotopbte heooxmo co6hodatb B npocce cyeTahOBK n 3knnyataun onncaHHbB hem ukaob cepinn SmartRack. BHmaterbno 03nakomtbecb co BCEMu yka3aHnMM npdeynpeckednmpneB bblonHemE mkbix dectbn, CBA3HNbIX c npemcseHem, yctahOBKnnn 3knpyataun wkaofb cepinn SmartRack, onncaHHbX b Hactoery pyko0dctbe. Hec6noeHema daHHO Tpe60BaHnco3dA tOnyehn TpABM nn BO3NHkOBHeHMaMyIeCTBeHHoro yuePbMoKt npBbTeN aHHnuPBOAHIO rapaHTHM.

KoHnHbM NkPOMyEMbIM MKNPOKMAtom BdaIOT HcOHHOB bAaH, 3KCTpeMaIbHbIX TeMnepaTp, BocNlAmehHOxKxJHKOcTeHra3OB, 3NeKTpnpOboHbIX 3aP3HTeE, PbHm npMRTO conHeHOrO CBeta.
IpeepuK4oMnIOaDmHrnoEoo6OmoMo ooeNtMbTOcTAtouHO CBOOOHOro IPOCTpaHCTBa dna erO HauJeKaUero IPOBETPBAHn. He 3aropaxBaTe n He NaKpbBaTe BHeuMe BEHTHnAIOHnBte OBeptTHn 1kKa4a, a TAKKe HE BCTaBnTE BHX KAAe-JIb0 PpeIMTe.
K 100000000000000000000000000000000000000000000000000000000000000
He KnaIaTe Ha 1kaKa KaKHe-1n6o PnpMeTb, oO6eHNO eMkOCTc XJiIKoCTMa, a TaKHe YeCtHaBnBaIte IkaKafoI dyTt Ha npTa.
OcmtpntepaHcnpopboohn KOHTHepe H KaHnpeMeT HnneuHnnoBpeKHeHH, noyueHHbX npT pTaHcnpopBoke. He nob3yteBkaFom B cnyae ero nobpeJeHm.
He 138nekaite Wkaa H TpAHTOpTPOBvOHO KOhteHepa do erpepeMeHHa MaKcImalbHo bI3Koe paccToHHe K MeCTy oKOHaTeNbHO yTaHOBKn. POnknpedHa3NaHcybI ToIbKO He3HaHTebHix KoppeKTHPOBOK nOIOKeHMHa M CeTe OKOHaTeNbHO yCTaHOBKn. POnkHe paccuTaNbHa hpepeMeHHe WkaFa ha 60bUHe paccToHnA.
Ponikn taKHe npaccuHbHa dOnIOBpeMeHHoe HcNolb3OBaHMe B KaueCTBe onOpbl dIra IkaKaFa nocne erO OKOHateNBHO uCTaHOBKn. B KaueCTBe dOnIOBpeMeHHoI onOpbl McNolb3yIte pncnco6neHmIpaBbHbVAHIM.
Ikaqdojkeh6btyctahOBHeB KONCTpyKIOHOHIOPOOHmMeCTeCPOBbIMOCHOBAHHeM,ClOcObHBMBeDpEKMBAeBCAMOro 0ka,BCeroobopyBaHnKOTOpoeyCTAHOBHeBOHTPMHrOaTakKeIIObIXdpyTHXkAfoBn/INIOOBpyOBAHn,KOTOpbe6dytYCTAHOBHeBbN3H Hero.
IpoHIOyCTaHOBHTeKHa TcPOTeBHyO KOHCTpyKuHIO C NMOoBbTO TaHcNOpTIpOBOHybX KPOHtEINOB, KaN POKa3aHO HpCHyKe B pA3JeYcTAHOBka KaPdAHHOrO pyKOBoDCTBa.
IpnpeMeuen Hkaa He cneDyet ToKbTa ero co StOPOHb60OBXbnaHene.IpnToKanHHKopnyCa co StOPOHb60OBXbnaHene cyueCTBye tonacHOe ornpoknblbHaHn.
-Пипенихыншkaфа на рогамкхобястьно Толковая сддл и в В Костсуге Н.TанHTe Na ce6a.
IpeekabHme 6ka63 hndkauo KOHTPOJ MOKeT PmBcTn K pMmHmHO TpaBM NmMMyuCEbHHOrO yuepa. PpN He0xOIMOCTH cKaTaBaHna 6kaa BHH3 NO HAKIOHNO IIOCKOCTM co6Hoaai Te npedbHyoo octopoknoctb. He noh3yMeTcb HAKIOHbMM NIOKocTMA CykHOHm Kpyue 1:12.
Pn pa3e3aHm ynaKoOyHbIX MaTeepNaOB c6bIOaIte OTOPOKHOCTb. 3To MoKet npBcETM K HaeCEHNu cApAIN Ha NOpeXHOCTb 6kaFa, 0TO pNekTabreTcO60y Uyepe, He NOKpbIAEeMbI DeJeCTByUoei rapaHTMeI.
Coxpahnte Bce ynaokobhne MaepanbIy nocneJeUoero hcnloB3oBaHm. NobtopraynakOBKa ItpaHcnpTnPOBka 6ka 6e3 HcnoIb3OBAHm opnrHaJIbHbIX ynaokobuHx MaepnAIOB MoKET npmbctn K nobpeJcknmo H3dnn, KOtope NOBNEET 3a coboi anhynpobAm dEchCTbyooi TapaTHM.
He npckaa Tnncnyuaua TpnaCnpTnpoBka uka cdo nnoHntelbHM o6pOyOBAHmE 3a ucknoeHmC nyueB npeBoHaalbHou noCTABK uka a co cneuaJIbHbM yap03aunuHBM moDIOH (toIbKO IIMoJen SP1). Cmmapnh Bec uka a uctahOBENHO r Hem o6pOyOBAHmHE ne Dokhen npeBbIaht przOnOpBemHcTb noDOnHa. KomnHa Tripp Lite He hecet OTBeTcBHeHcTn 3a Kaokn-Ni6o yUep6, pnuMHHeHbB inpocece noCnneDuoue TpnaCnpTnpoBkn.
- ONACHOCTb: BO IN3BEXKAHNE IOTEPN YCTOINHBOCTN YCTAHOBKA IOKAFOB DONJXHA IPOIN3BOIDTCBTOIbKO KBAIIMIOPOBAHHbIM CEPBNCbIM IPEPCOHAIOM.
He peKoMeHEnyETcNIOJIb3OBAHnme DaHnHOro OobpyOBaHnna B CInCTeMaX KIm3Heo6CneChenra, ITe erO BbIXoI N3 CTPOR IpEaIOJIOXHTeBnHO MoKeT npNBecTH K Ipe6oMn B paBoTe OobpyOBaHnna KIm3Heo6CneChenma NIMB 3HaunTeBHoH Mepe ChnBtB erO Be3OaHCHOTb IIN 3000ekTINBHOCTb.

KpaTkoe onncahne

KcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBcBc

KcbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcHbHcH

Bbinyckaemble moenu kaoob cepn SmartRack

Модень № Велиота вда kaфы Бokовные панели	П troйноюарный поюн
SR24UB 24U Дa Нет
SR24UBEXP 24U Нет Нет
SR24UBEXPSP1 24U Нет Дa
SR24UBSP1 24U Дa Дa
SR25UB 25U Дa Дa
SR42UB 42U Дa Нет
SRX42UB* 42U Дa Нет
SR42UBCL 42U Дa Нет
SR42UBDP 42U Дa Нет
SRX42UBDP* 42U Дa Нет
SRX42UBDPXD* 42U Дa Hét
SRX42UBDPWD 42U Дa Hét
SRX42UBDPWD* 42U Дa Hét
SRX42UBDPWDEXP* 42U Hét Hét
SR42UBEXP 42U Hét Hét
SRX42UBEXP* 42U Hét Hét
SR42UBEXPND 42U Hét Hét
SR42UBEXPSP1 42U Hét Дa
SR42UBSP1 42U Дa Дa
SR42UBWD 42U Дa Hét
SRX42UBWD* 42U Дa Hét
SRX42UBWDEXP* 42U Hét Hét
SR42UBWDCL 42U Дa Hét

*UkaF SmartRank cepin SRX

Моель № Велиcaшkaфы Бokовны палу	Празноюарный подом
SR45UB 45U ДaНeT
SRX47UB* 47U ДaНeT
SRX47UBEXP*	47UНeTНeT
SRX47UBDP* 47UДaНeT
SRX47UBDPEXP* 47UНeTнeT
SRX47UBWD* 47UДaНeT
SRX47UBWDEXP*	47UНeTНeT
SRX47UBDPWD*	47UДaНeT
SRX47UBDPWDEXP*	47UНeTНeT
SR48UBCL 48UДaНeT
SR48UBDP 48UДaНeT
SR48UBDPEXPND	48UНeTНeT
SR48UBDPWD	48UДaНeT
SR48UBEXP 48UНeTнeT
SR48UBEXPSP1 48UНeTДa
SR48UBSP1 48UДaДa
SRX48UBDPWD	48UДaНeT
SRX48UBDPWDEXPND	48UНeTНeT
SRX48UBWD	48UДaНeT
SRX48UBWDEXPND	48UНeTНeT
SR48UBSP1 48UДaДa
SR50UB 50UДaНeT
SR52UB 52UДaНeT
SR52UBDP 52UДaНeT
SR55UB 55UДaНeT

Bone noIpo6HyIo HhOphiMaIcM. Bpa3JeTe XeHHueckHe XapAKeTpHCTNk.

Ha pucyHke npedcmaBneHa Modenb SR42UB. Dpyue modeu umeoh ananoouyhie dykuuaHOHBhe 3nemehmby ckaa3AHbIM pa3nuuM

1 BépXHa nHaHb
3aHpaOuIeC3aHneDBepeBpa3pe3HOKoHCTpykun
3aHpaiouece60Kobbe naHenn (Bkaqax BbCOTOn 24U nTnObn3yOTc DBe 60Kobbe naHenn BmecTo cheTpex. Moen "EXP" 60Kobbmm NaHann He KOMnEeYTOCTca).
Hapabnloounne gnOnmnaaun Kaebnbix coeHHenH
PonmKn A nperynpoobouhhe HoKKn B
6 MoTakxhble HanpaBnKouHe (MmckToTOxH KpEJIeHnI DnI ToPn30HTaJIbHO I BcPTMkaJIbHO mOHTaKa 06OpyDobHNA).
7 Knou (OaHH dAepeu OaHH dAe 60KobBx naHenei).
3aHpaMa/NepeCTabMaPeepnDaBepuA

Ha unnocmpaaau He npedcmaenb: MoMaHnaH a Ochacnka, DokymeHmaua, mpancpnpuOBOHbckpohumelhUpdyue mpancpnpoOBOHbke Mamepaia.

Iopaok yctahOBkn ukaΦa

BhMaHHe! Npey cTaHOBKO BnMaTeNbHO 03HaKoMbTeCb CO BcEMN yKa3aHnMn npeynpeXeHNMyn

BHMAHNEI KkaaF ABnTcra KpaHne TAKENOBecbHIM. He nbltaTcEpbacnakobbAba, nepemeaB Hn yctahabnBaTB Ka a ODHNOy. Do MoMeHa Hndexauey cTAHOBKN uypABHOeunBAHHaKa a CyueCTBye ToaCHObTe erO npOKmDbaHn C Bo3MOKHeHm npuHHeHm TpAM H/In HmUyceCTBeHHo Yuepe6a.BydtpeNdeHbO octopokhHi npn nepemaehnKka a H 603aTeBn CneTyte Bcem Ya3aHnM no opaeeHHo Co Ka aom H erO cTaHOBKe. He npOn3BOJte YcTAHOBky o6OpDobHn B Ka a do nnHoro o6ceNeHHaero yctOHBOCTH.

IodroTobka

KJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJ HJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI J1

BamNoTpe6yOToCHeckoNbKoHHTpyMeHTOB（BKOmnEeKTHoCTaBKnHe6xOdnt）;

Kpome toro,notpe6yETcJneDkyOuaa OCHACTKa (noCTABnRErTa B KOMnNeKeT):

KlnouraeHbDpokkOBblHa13MM
KnHuaeHbipoKOBbHa 18 MM
BnHTbKpeJekHbIeCKpeTo06pa3HbIMuHmEeM(M6x5/8")-60wT.
YHMBepcAnbHbHHOX
-Ⅲa6b4a7ae0e03bHe HeNoHOBBie-60wT.
CtpounenbHbIypoBHeB
Kpeo06pa3naOyTeBpTKa
TopeBoiKnHc5/32

PacnaKOBka

IaHkaΦaOHOH M3 MoDene SP1 cyapao3aunueHHbIM IOdoHom CneyIe CteuaanbHbIM yka3aHHM NO paCnAOBKe, pInaraaEBIM K TpaHCnOPTnpOBOHMy KOHTHepy, BmecTo aHaONWbIX yka3aHHN, 3IOXeHHbX B HactoAeM pa3dJe. PpN 30m BCpeDpyPekdHn octaiOTB D JeCTBn.

1y6eHtcbbTom,TO TpAHCNOpTIPOBOHybKOHTHeHep HaxoDHTCBYc0THuBOM BepTKaIbHM NOIOKeHHN,NOcne YeroC nMOoBbYHBMepKbHO HOKa p3peKbTe yCaDOHyIONeHky,ΦHKnpyOuyy rTOBMB aMOPTAtaTbp.Bo N36EkaHne HAHECEHN aPapAnHn Ha NOBEPXHOCTb KHaФa MNI p43eZAHMy NIOTHORO 3aHTHTHO NIOmTHNEHOBO MEUka NOD yCaDOHn PIIeHKn POBOdTe NE3BHeM HOKa HENOpCeTBeHHNo NOBEPXHOCTbN0BbX AMOPTAtaTOpB.BHMAMHe! He HauOHTe UAPANH Na NOBepxHOctb KHaΦa H e p43eAte NIOThb NIOmTHNeYOBbMeUok,pacnoNOeHHb NOD yCaDOHn PIIeHKn. He TonKaIte WkaΦn H TeHHTE erHa c6Ba Bnpcece paNaKOBKn.

CHMMITE ytnoBbIe amOpTH3aTOpbl. CoxpaHITe BCE ynakoOBuHHe MaTePnAbI (Bknouy noDIOH) nnoocnyuioero nCnObn3oBaHN, cNn BBy He y6ekdHer bTom, YTO OHn 00ne He NoTpeSyOTc. YnakOBOUHbIe MaTePnAbI noDneKAT BtPOHNO nepepa60Ke.

3 CHMMTE co ⅢKAPA PnOTHb NnONH3TNHeOBb MWe0K. OCMOTPte ⅢKAPa HnPnEMT HnNnHnKaKnx-Nn6o NobpeKdHnn HnHnE3aKnpeHHbExTeanei.Y6eIMTCb B HnHNB CEX Deanei.B Cnyae oTcYCTBnM Nn NobpeKdHnn KaHX-Nn6o DeTanei Obpatntecb 3a NOMUbB KOMNaHHIO Tripp Lite.HneNb3yInTeCb ⅢKAPoBmO B CNYae erO nobpeKdHnn

Iopraok yctahOBkn ukaΦa

PacnaKobka (npoDoljekne)

4 0TkoIpeKIOHOM DBeepu IkaKaHa HAIaTe 2 TpaHcIopTbOPOUHyBHX KPOHtEHa A CnMOoBu KOTpBx OH nPKpenHe K TpaHcIopTbOPOUHOMy NOdHOy. Yka3AHHe BKOHTeHb paCnONarAOTc BHTpyk KaKa.

PpmeHne. Knou npkpennne k nepehe noepxocmu Ka.

CHMMTE TpaHcnpTHPOBOHbIe KPOHTeHbIc NOMOuBIO POKkoBOro RaOHoro KNHOHa 13 MM. CoNIOaIte npedeJIbHyIOCTOPOKHOCT, NOCKOBky NOCE CHTMA KPOHTeHbIa BO3MOxHO HnpePBDENHO npeMeueHne WkaΦa. CoXPAHITe KPOHTeHbIe DeTAMIN IIN KpENNEHnC CEBly NOCEyIOUero MNOJb3OBAHNA.

6IIO MeHbWe Mepe OINH YeOBek DOnJKeHN HaxOaHTbCn Peep WkaFOM NOOH YenOBek -no3aHI Hero. MeDneHNO TOLKaite WkaΦB CTOpOHy 3ADHe NACTn TpaHCnptNPOBOuHOrO NoDOHa Do TEx np, NOKA BCE YeTipe POIIKA He BbIyT 3a Kpai NoDOHa n HE KOCHyTCa nona.BHHMAHNE! IIN CHATN WkaFa C noDOHa Tpe6yTeCn He MeHee DByx YenOBek. PInn pepeMeENH WkaFa coBIOJaTe NepeJIbHyo OCTopoKHOCTb.

Pazmeuenie

1 POnHKn npEaHa3aHneBn IINpeMeueHHe WkaFa h KaOpToKoe paccToHHe No POBHO, rAaKOIO NCTOHNBOI NOBEPXHOCTNpyTEM TOnKAHnNOcNEIeRrno Cpeepn Hnn 3aDn (He coTcPOHb6 K0KBoBH NaHEe). HepeKaTaBaIte WkaKa HAnHHbIe paccTOHn. WkaC nCNeYET OCTABTB KAK MoKHO bMck E YoCTAOHBN BHTy TPAcNtPOPBOVHO ROKOTHEpBA YNAKOABHMnDE. (JINH peMeueHHe TpaHCnptNPoBOHOrO KOHTeHepa HNoBCHNORpy3uNNH INH BINOHOUY TpApBnueCKyo TeneKKy BHUMAHIE! He ToKanHe H Te TaHIne WkaCo CTPOBHO6kOBxNaHae, a TAKKe HE TAnthe Ho c6ea.

Pnheo6xohmocTH WkaM KOHNO pnpnoaHT bYTe M BEEpTbAHnn 4 bpM-60NTOB dHameTpom M8 (B KOMNNEKT NOCTABKN HE BxoATB) BP3e6bOBE bOteCPHN B6bHNI BEXHPXyTNOB KAPKa cKa. DInh TOnI cENI cNeYET NcNOBtob CTaNBJIE CkNACCO mPOHYCHT no ISO HHEK8.8,4 TAKHX bTa cNoC6bHb BcEpeKbBc Bc WkaHa No 450 Kyt cHAnHBOHrHO HEM oOpdyOBAHn. BHMAHNE! POnbem KaQaONJHek OcyueCTBnBa TOnBo kOnBtHm CneHANCTAMn No cbOnCyKBHAnIO oOpdyOBAHn.

Cnnyte BcM npmehMbIM K DaHMO cyuao yka3aHMM NO TEXHKe 6e3oNaCHOCTN HOpMaTHBbIM PpeHNCAHAM, NnOsbry IINrTO COOTBETCTBYouee oobopyOBaHHe H OChACTKy.

Iopraok yctahOBkn ukaΦa

BbipabHbHaHne

BHIMAHME! BbipOBHnIe ukaqpepeyctahOBKoB H eror o6OpDyOBaHN. POnkNtakKe He paccHTaHbHa NdoTROBpeMeHOe HcnoB3OBAHne B KauCTBe onopbl Iu KaQa.
B kaueCTBe nOtroBpeMeHHoH onopbl HcNoB3yTe npncoc6bnHe Hn Dn BbpaBHBaHN. UkaqdoXeH 6bItb yctahOBnE H KOcTpykuHNO HnpOHm MeCe CpoHBIM OCHOBHEM,
CnocobM BbIepKbBaTb Bec camoro ukaqha, Bcero o6OpDyOBaHN, KOTOpoe 6dET YcTaHOBNeHO BHTPNrH eRrA TAKKe NIObIX dpyTHx uKaQoB H/nn O6OpDyOBaHN, KOTOpbe 6dyT
yctahOBnHbIb6nHn Hero.

I Pnoe nepemueHn IkaF a K MeCy tYcTahOBKn npOepeBy yKNOH nona c nmooubIO cTPOHTeBHorO ypOBHa. Ecnu yKNOH nona npEbbnaer 1%, BblbePeTe dny cTahOBKn apyroe MecTo.
2 Pn nOmoa pOKoBOrO KNoUa Ha 18 MM BbIeHInTe KaKIOoe npHCNOcOBeNHm Ia BbIpaBnHbAHn A Do erO cOnpIKoCHOBEnH C noIOM. (IIkaFMMeT 4 pncIOcObeNHm Ia BbIpaBnHBnHn - No 2 cnepeHn C3aH). Y6eINTEcb TOM, yTO KaKIOoe H NHX NIOHO conpHKACAETC nONM.
PnmeHneIg6beepmbhaun (onyckan) npncnoobenea dna bypabhuaba e2c cedeym opauamnb no yacoboucmpenke, a da 3abeepmbhaun (ndHMuaun) -npomue yacoboucmpenku.
10nce BbBepTbBAHmKaKJrO npCnOCobHeIg DnBaBpAHBaHmI pOBepTe C nOMoUb cTPOHTeHOrO yOBH, TcO6blu KaPacnolaranc poBO HO BoCEx HapBaNHeHX. PerynupyTe BicOTy npCnOCobHeI dI BAbpAHBaHmIO Mepe Heo6XOnMocTn DoTex nop, noKa uKaΦ He 6yET YCTAHOBn PBHO.
4 DnKpENHnI KKaA C TPOINBHO KOHCTpyuHc C zebIO o6eCneHnry CYoTHNBOCT npKNPHTE 3 TpaHCNOPTNPOBOHbX KpOHHTHe h c nOMOBtKpENKHNx pncno6beHn, HcNtB3OBABHXCAI nKpENHnI KKaA K TPAHCNOPTNPOBOHOMY NOdHOy. C nOMOBtPOKKBOHO KHOHa 13 MM 3aKpENTHE KpOHHTHe b BO BHEHn A Hm BHytEHn B TOkXk KpENHnIK KhoHTHe H K KaCy. 3aKpENTHE KpOHHTHe b TOckX MONTaXHO R KpENHnK N Ony npn noMOU OHCTKn (B KOMNNEKT HE BXODT) INnpednaermo KOMNAHc Tripp Lite KOMNNeKT dra KpENHnIkaFos SmartRack K nony (Moenb: SRBOLTDOWN)

3a3eMJIeHne

Bce deTAnn Ikaa 3a3EmnHOTcpe3 erop kapaI. dI npmHO rcoeHHHkapKa cka a c HHOI 3a3emHnBaWero obokeTa n
noomooipo npOoDA kaNp608 AWG(3,264 MM) CneyET NcnpbO batpeHIO HIN 3aHIO TOUY 3a3emHnA IN BHT M6 (noctabnnEmy B KOMnNEKe). DnO bcneueHMy bcePnENTCBHeHO OTKpbBAHn N 3akpbBAHn DBepu IpOBeNTe 3a3emHIOHN
npoD NO dpKacAM oHa. BHMAHNE! KAckbM KO pONEN NOcOeHNrBC K WnHE 3a3emHnNO OTdEBHOCTN.
NoIb3OBAHNe He3a3emHnBIM KaFOM HeOnyckaTe.

KomnohoBka ukafoa

UcTaHOBKa/ChTne nepeDHeu 3aDHeu DBepeu

BHIMAHHE! He nItaiTeCb HabeWbAtb NH CMMAtb DBepuI WkaB OINHOOKY

ChTne DBepubl

1OTcoeHNHTpe npBOoIa3aemnHmIaBepu.

0TkoHrE DBepuy do Toro noLoXeHnB, B KOTOPOM OHa OKaKeTc nepneHnKynpHnO (noD ymom 90 rpayncoB k) nepedHe nnocKoTHn

1IpoHHMMTEBepuyHCHMMTEe cneTebWkaFa.

IyctaHOBKn DBepubl Ha MeTo CneDyeT NOBtOpntb warr 1-3 B o6paTHOM npRdke

(Onmohhbo) Ecn 3OT WkafoeHN H CpyHM WkafoM, NOBepHnTe Dbpuy ObaPHTo B cTOpOHy Wkafoa npE eCHTM nTeTb.

IpeceTahOBKa nepeDnei DBepebl

BHIMAHHE! He nbitraitebc nepebeWbA bpepeHIO DBepyu Ha dpyrO CTOpOHy B OINHOYK.

1BbIeHPHNTBEHT,coeHHHOIOINPOBOID3aEBMENHcBHTpeHHNOBEPXHOCTbODBepu.

2BbIeBHnTe 2 BnHTa, o6ceNcHbAioJIe KpeIeHHe DBeHPO pyKu K DBePcE. CmHMTe DBePHyO pyKy.

KomnohoBka ukaq

IpeceTaHOBKa nepeDnei DBepubl (npoJolJeHne)

BbBepHtE BnHT H CnMMNtE 5aHbC TbIbHO CTOpBOH DBePbHpyKu, Noce Yero BbHte 3anOpbH MEXAH3M. IobepHtE 5aHb6y 3anOpHOro MEXaHn3Ma Ha 90 rpaDCOB IpOTMB YacoBOH CTpeKN H paBcPbHTe 3aueKny TaKIM o6pa3OM, Yo6bl Oha 6bln 6paueHa B pOITBnONIOXHyTO CTOpOHy, A 3aTeM C nOMOsBu BnTHA H aIb6bl PnPKpENHe 3aueKny 6paTHO K TbIbHO CTOpOHe DBePbHpyKu.
1 CHMMTE DBePuy B NopJaK, H3NoJKeHHOM B nppeBdyuem pa3dJe.
5 CHMMTE DeBPhIe NtTN Co 1kAka,pa3BeBHnTe Hx Ha 180 rpaDycoB n 3akpeHnTe H npOTMBOIOnIOKHOI CTOpOHe 1kAka.

PnmeH. B moKx Kpennnue Deepbix nemnb Ha npomubonnoJHO cmope HaxoDMnnaocBne 3a2nyu, BcmaenHe B pe36bOBe IMbepcmua. BInbme 3a2nyu u bcmabme ux 8 ombepcmua, nepboaayho ucnlon3obawuee da Kpennneur Deepbix nemnb.

BbEBPHNTE 2 netnBEx MEXAHMMA u3 neTbeBx naOB C BYTPENHE CTOpObl BepuH 3AkapnITE Kaxd HmH, NcnoIb ynn AIN 301 Tcnpnype360bXbOTBepCTW, paONIOKENHHy HnocpcTeBHO HanpOTBE Tx, KOtOble MCNOB30BaNc nepBOHaayHo.
7 Pa3BepHnTe DBepu Ha 180 rpaucOB u cyaTHoNEe ee 6paTHo HA uKa. He 3a6yIbe nOcEduHtB npoBD 3a3EmHeK B HHTpeHHe NOBepxHOCTn DBePbB TOUKe KpENHeH, paCIOIOKeHHO BkXe BcEx K nette B BepxHe JAcTH DBePb. 3Ta TOKA KpENHeH O603HAueHa CMMBOJLOM 3a3EMIIIOUcEO CoEDHEHMA:
3 YCTAHOBHTe Ha MeTo DBepyKy

KomnohoBka ukafoa

YcTaHOBka/chrTne BepXHe nHaHn

BHMAHHe He nbTaeBcNcNoB3oBaTb BepxHIOI naHEn bkaFa Ira pa3MeueHH TaKeBix IpeMToB 3a HckHoueHem CnyAEB, ABHbIM o6pa3OM onncaHbIX Odo6peHHbx KOMnHaMe Tripp. He nbTaeTcB yTaHabNBA t b ChMaTb BepxHIOI naHEn bkaFa BOHNooKy.

ChraTueBepxne naheN

1 NotaHHe Ha c6e 2 WtNpTa, paccnoIOkeHHbE B 3aDHe Nactn BepxHn NaHeH. YepxHBaA WtNpTb, BbToIKHnTe BepxHIO NaHeB no HappaBcHmIO BBcpx.

2BbHbTea3bYkMBePxHeNnAeHnA V3eMoTAtKbHbIXn3oB B KApKaE WkaΦa.

3 CHIMMITE BEPXHIO NAHEI BO WKApa.

IyctaHOBKn BepxHei NaHEn Ha MeTo CneDyeT NOBtOpHTb 1-3 B o6paTHOM npAke

YCTAHOBKa/CHTAthe 60KOBbIX nHaHeIe

Chrtne6okobon nahe

1 OTKpoIte 3aIeNky, cBbHbY ee no HanpaBnEHMO BnH3.

2 HakoHnHTe BepxHNO TaCTb NaHEn No HanpAbNEHNO OT Wka.

KomnohOBka ukaq

YcTaHOBkA/chTne 60KOBbIX naHeJe (npdoJXeHnE)

1 BbHbTe NaHbIaNΦKcTaOpa.

Pepaepaaepaepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepepe pe

E 1000000000000000000000000000000000000000000000000000000000000000000000000000000

HbHMAHEI Ho Haua Hcnoa 0eBn BAHnHO yctpoTbTa 1oBbOBeBaTe bdoNtBcB Ta To, 40o HO aRcA pntO hBm, COOBCTyOoOaM HA 6eobAnbHrMa IpnePOnBaTeoHOrp OpeMeHHe.8CB3N CboBampaNaObePmeHHKoKgEhXpnpMeHHe HPOBAtDHTHeHa Na KAKn KAnBaBnKnI TaepanHOTbHnO pnnO DnAeHn DaHnKn JdKANO KOKePHTOIO PpMeCHeMn MNN COOBCTkHer KaKm NIOKOKePHTbM TpeBOBAHn. BcHnHn BnD paBbHx XeKnD MoKET HeckBoHn OToHATbCtO pIepaTehtHeHa No dOtoarpoTnx XeKnOeT

PpHMeyAHHe OTHoCHTenbHo MapKpOboBKn

Ha daHnoe n3dne HnHeCen CnEduoin CMBON: 3aemneHne

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support
