Product Type	Electric fireplace (electric insert)
Power supply	220-240 V ~ 50 Hz
Heating power	1000 W / 2000 W (adjustable)
Flame effects	3 effects, with backlighting
Controls	Manual (switches) and remote control
Timer	Programmable up to 9 hours
Temperature range	16 °C to 28 °C (adjustable in 1 °C increments)
Display	Digital, switchable °C/°F
Thermostat	Adjustable (manually or via remote control)
Safety	Electronic safety system (E.S.) with automatic shut-off in case of overheating
Installation	Wall-mounted, near a grounded power outlet
Box contents	Electric fireplace, remote control, instruction manual
Warranty	2 years (manufacturing defect, upon proof of purchase)
Maintenance	Clean with a soft, damp cloth without abrasives; replace remote control batteries (2× AAA)
Repairability	Repairs only by approved technician; resettable thermal safety switch

Frequently Asked Questions - Jesse Manor House

How to install the Manor House Jesse electric fireplace?

Installation must be done by at least two people. Place the fireplace near a grounded wall outlet, at least 1 meter away from flammable materials. Follow the assembly instructions provided in the manual. Do not plug in the appliance until installation is complete.

What are the different heating settings?

You have two heating levels: 1000 W (Low) and 2000 W (High). Use the heat button on the appliance or the Low and High buttons on the remote control. The thermostat allows you to set the desired temperature between 16 °C and 28 °C.

How to use the remote control?

Make sure two AAA batteries are installed correctly. The range is 4 meters. Use the buttons: On/Off to turn on/off, Flame to change flame effects, High/Low for heating, TEMP to set the temperature (press 3 seconds to switch °C/°F), and TIMER to program the shutdown (up to 9 hours).

What to do if the fireplace suddenly turns off?

This may be due to overheating. The electronic safety system (E.S.) cuts off the power. Let the appliance cool for 10 to 15 minutes, unplug it, remove any obstruction (e.g., near the fans), then plug it back in and turn it on. If the problem persists, contact an approved technician.

How to clean the electric fireplace?

Always unplug the appliance and wait for it to cool down. Use a soft, damp cloth for the exterior surface. For the front glass, a non-abrasive glass cleaner and a soft cloth are suitable. Never use abrasive detergents and do not spray liquid directly onto the appliance.

Can I use the fireplace without heating, only the flames?

Yes, you can use only the flame effect without activating the heating. On the remote control, press the Heating button until the heating turns off (the indicators turn off). The flames remain visible independently.

How to set the timer?

Use the TIMER button on the remote control. Press repeatedly to choose among durations: OFF, 0.5H, 1H, 2H, ... up to 9H. Once the duration is selected, the appliance will turn off automatically after that time.

What type of outlet is needed?

The fireplace must be plugged into a standard grounded wall outlet. The mains voltage must match that of the appliance (220-240 V ~ 50 Hz). Do not plug the appliance into a timer or dimmer.

Can children use this appliance?

No, use by children is prohibited. Supervise children to ensure they do not play with the fireplace. The appliance is not intended for use by persons (including children) with reduced capabilities without supervision.

What to do in case of failure or damage?

If the power cord is damaged, it must be replaced by the manufacturer or an approved technician. For any repair, contact a qualified professional. The 2-year warranty covers manufacturing defects upon presentation of proof of purchase.

USER MANUAL Jesse Manor House

Specifications techniques

Alimentation: 220V - 240V 50Hz

Puissance: 1800-2000W

Dimensions: 640mm L × 190mm I × 540mm H

Manor House

Assembly instructions and operating manual

Jesse

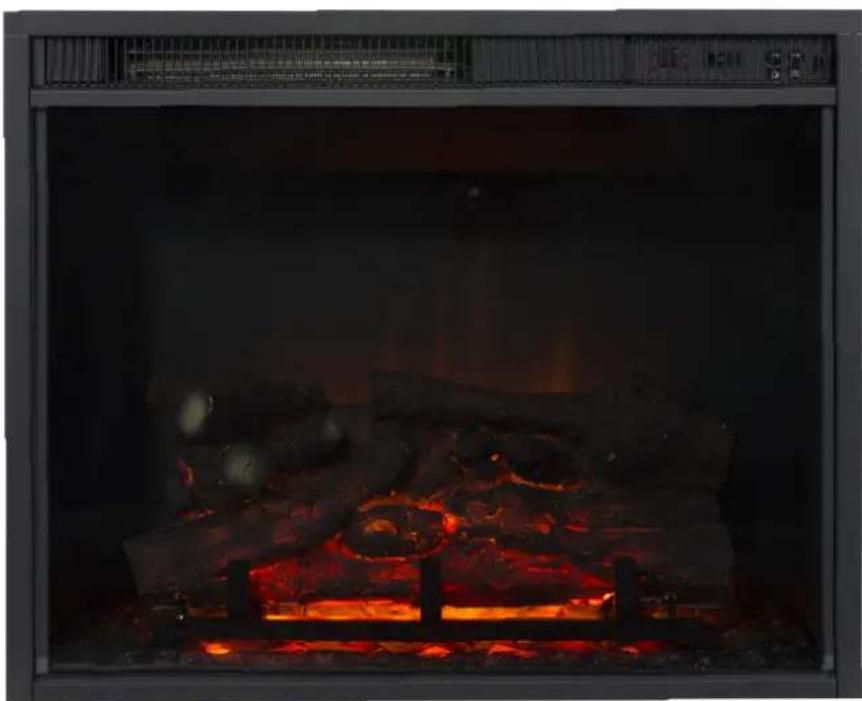

Electric insert fireplace with remote

Important:

Please read the instructions and manual carefully before installation or use of the electric fire and retained for future reference.

This manual is part of the device and should be stored with it. In case of sale to a third party, these instructions for use should be supplied with the product.

Liability will not be accepted and the warrant shall not apply in cases of improper use or failure to follow the safety instructions.

For assistance or additional information, contact a qualified technician, help desk, or sales address.

Important safety instructions

When using this electrical appliance, basic precautions should be followed to reduce the risk of fire, electric shock, and injury to person, including the following:

• This heater must be used on an AC supply only and the voltage marked on the heater must correspond to the supply voltage.
• Do not switch the appliance on until it properly installed as described in this manual.
• The heater must not be located immediately below a socket outlet.
• Keep furniture, curtains and other flammable material at least 1 meter away from the appliance.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• This appliance is intended for household use and should not be used for industrial purposes.
• Do not operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way. From time to time, check the cord for damage. Never use the appliance if the cord or any part of the appliance shows signs of damage.
• Do not operate with a damaged cord.
• Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place the user at serious risk.
• Do not run the mains cable under carpets, rugs etc.
• Do not allow the mains cable to hang over sharp edges or come into contact with hot surfaces.
• If the cord is damaged, unplug the electric fireplace to be repaired by the manufacturer or authorized service center or qualified technician
• Do not cover or obstruct the heater in any way. Overheating will result if it is accidentally covered.
• Never immerse the product in water or any other liquids.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use if you have wet hands.
• Never use the electric fireplace outdoors.
• Never use the electric fireplace on or near hot surfaces.
  Before cleaning the appliance, ensure it is unplugged from the power and that it is completely cooled.
• Do not clean the appliance with abrasive chemicals.
• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.
• Never use accessories that are not recommended by Livin'Flame. It could cause danger to the user or damage to the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not lift the appliance by the front panel.
• Do not connect the electric fireplace on a timer or a power supply that regularly switch on and off by a program.

Getting started

• Remove the appliance from the box.
• Remove any packaging from the product.
• Place the packaging inside the box and either store or dispose of safely.

Contents of Carton

• Electric wall mount fireplace
• Remote control
• Instruction Manual

Helpful Advice Before Fitting

• Please retain all packaging until you have checked and counted all the parts and the contents of the fixing pack against the parts list.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect and to replace any part of the electrical system if necessary.
• Keep little children away before and during installation. Be aware that the little children do not be in contact with the parts.
• The electric fireplace can be installed almost anywhere in your home. Please, read and follow the instructions carefully by choosing a location. For the best result, install the electric fireplace not in direct sunlight.

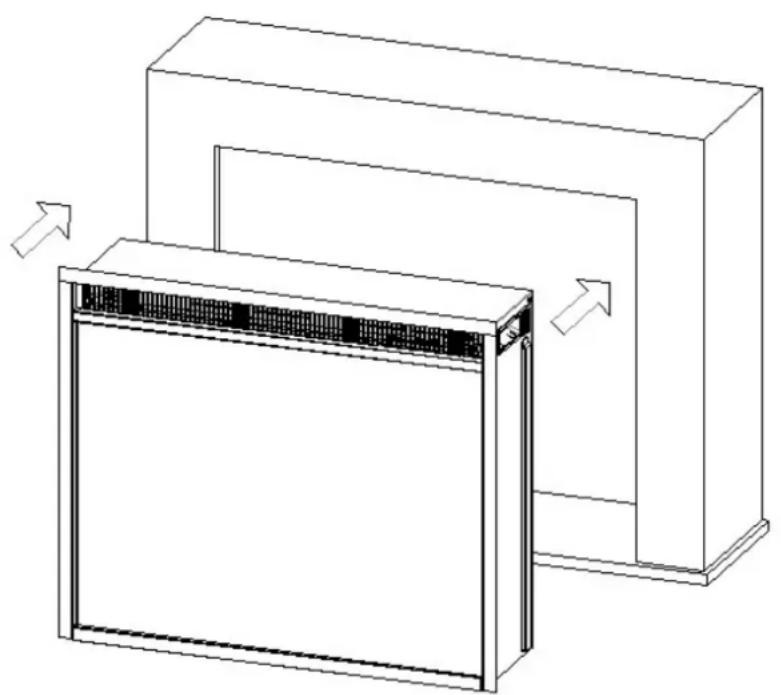

Installation

• It's recommended at least 2 or more people install the fireplace.
• Do not switch the appliance on until it properly installed as described in this manual.
• Please note that before the electric fireplace will be installed on the wall, care must be taken not to damage concealed cables.
• The electric fireplace should be located close to a suitable mains socket to enable connection. The electrical socket must be easily accessible to allow disconnection.

Operating instructions

This appliance can be operated by both remote control and manual button. Once the unit has been properly connected to an earthed electrical outlet, turn on the main switch located on the left hand side of the appliance. A beep should be heard when the power is first applied.

Operating by Manual Button

• Manual on/off switch: This switch turns heater on/off, and permit/prohibits use of remote and panel push buttons.
• Flame button: By pressing the flame effect button the unit will cycle through three flames.
• Heater button: Press once turns 1000W power on. Press again turns 2000W power on.
• Thermostat setting: The knob is marked with numbers to indicate the maximum and minimum temperature positions. Start with setting 9 and to decrease the temperature turn knob to left to a lower setting. To increase the temperature, turn knob to right to a higher setting.

Operating by Remote Handset

• Make sure the battery are installed properly in the remote control.
• The effective range of the remote control is up to 4 meters or 13 feet.
• Power On/Off button: Press once turns appliance on. Press again turns appliance off.
• Flame effect button: The fire has three flame effects, by pressing the flame effect button the unit will cycle through each effect.
• High button: Press once turns 2000W heater on. Press again turns 2000W heater off.
• Low button: Press once turns 1000W heater on. Press again turns 1000W heater off.
• Back light button: The fire has three back light effects, by pressing the back light button the unit will cycle through each effect.

ICON	TITLE	FUNCTION
	POWER	Press once turns appliance on. Press again turns appliance off.
	FLAME	The fire has four flame effects, by pressing the flame effect button the unit will cycle through each effect.
	HEATER	Press once turns Fan on, and 8s later Low heat on. (Pilot lights illuminated ⋅ ○) Press again turns on High heat. (Pilot lights illuminated ⋅ ⋅) Press third time turns heat off. 8s later fan off (Pilot lights illuminated ○○) There are 3 levels you can cycle through including the OFF setting.
	TEMP	Digital display shows the TEMP setting 23°C (default), with 14 settings circle from "OFF", "16°C" to "28°C". The TEMP will increase by 1°C up to 28°C when pressed each time. By pressing the TEMP for 3S, the digital display can show between °C and °F.
	TIMER	Cycles from OFF, 0.5H, 1H, 2H, 3H, 4H, 5H, 6H, 7H, 8H, to 9H.

Maintenance

Warning: Before any maintenance and/or cleaning the exterior of the fireplace, disconnect the unit from the power supply and leave until cooled off.

Remote Handset Battery Replacement: Replace with two AAA batteries. Make sure the batteries are installed correctly in the remote control.

Maintenance of Motors: The motors used on the fan and flame effect are pre-lubricated for extended bearing life and require no further lubrication. However, periodic cleaning/vacuuming of the fan/heater unit is recommended.

Resetting the Thermal Cutout Switch: The appliance is fitted with an Electronic Safety Control (E.S.). This is a safety device, which switches off the fire if, for any reason, the appliance overheats, e.g. when covered. If the heater stops operating whilst the flame effect continues normally, this indicates that the E.S. Control is in operation. The E.S. Control can only be re-set after the appliance has cooled down, in order to re-set the E.S. Control proceed as follows:

• Switch off the appliance (Manual On/Off switch) and leave for approximately 10-15 minutes.
• Remove any obstruction to the fan heater outlet or fan blades etc. Make sure that the power supply is disconnected at the plug socket outlet whilst you do this.
• Switch on appliance and the E.S. Control will re-set.
• Ensure that the appliance is functioning correctly.

Cleaning the fireplace

You can clean the exterior of the fireplace with a soft, damp, lint-free cloth. Do not use cleaning or polishing products. To remove fingerprints or other remarks on the front glass panel, use a soft, damp, lint-free cloth with a good quality household glass cleaner. The front glass panel should always be completely dried with a clean, lint-free cloth or paper towel.

Caution: Do not use abrasive cleaners on the glass panel. Do not spray liquids directly onto any surface of the unit.

Warning: An authorized service representative should perform any other servicing.

Warranty

Your fireplace has two year warranty against manufacturing defect, beginning at the date of purchase. In case of a problem, contact the store that it sold to you.

Warranty will be honored when you present a dated invoice and is strictly limited to recognized faulty part.

Installation costs cannot, under any circumstance, be reimbursed for damages.

The manufacturer can't be held responsible for direct or indirect defect consequences, either towards person or property.

The warranty will be voided if the fireplace was misused or used for other purpose than what they were built for. The warranty will also be voided in case of deterioration or accident that occur following neglect, bad supervision or form altered parts.

Technical specifications

Voltage: 220V-240V~50Hz

Total Watts: 1800-2000W

Dimensions: 640mm L x 190mm W x 540mm H
