USER MANUAL 74312 PROCTOR SILEX

Line drawing of a pair of elongated objects resembling a tool or tool, with no visible text or symbols.

proctorsilex.com

For recipes, tips and product information.

proctorsilex.ca

QR code image containing encoded data, no visible human-readable text

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, base, or motor in water or other liquid. Do not operate knife in water or under running water.
6. Turn the appliance off, then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. Disconnect when changing blades. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts.
8. Carefully route the power supply cord to avoid damage from the knife blades while cutting.
9. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.
10. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or personal injury.

11. Do not use outdoors.

12. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.

13. Do not place on or near a hot gas or electric burner, or in a heated oven.
14. Check that the appliance is off before plugging cord into wall outlet. To disconnect, turn the control to off; then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
15. Do not use appliance for other than intended purpose.
16. Blades are sharp. Handle carefully. Always handle blades with hand away from cutting edge. (See illustration in "How to Assemble and Use.") Always store blades with cutting edge away from you.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

Parts and Features

To order parts, visit: proctorsilex.com

Before first use: Handle carefully. Blades are sharp. Wash blades in hot, soapy water. Rinse, then dry thoroughly.

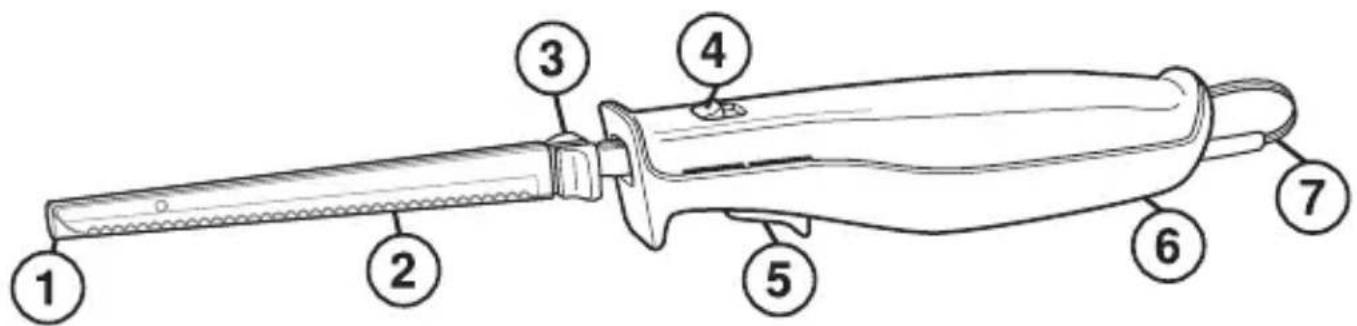

Labeled diagram of a tool with numbered parts for identification

1. Protective Sleeve for Blades – Always keep on Blades when not in use

2. Blades

3. Plastic Guard

4. Blade Release Switch

5. ON/OFF Switch

6. Handle

7. Cord

How to Assemble and Use

This Electric Knife comes with stainless steel, reciprocating, serrated blades. It is perfect for slicing a variety of foods including cooked meats, poultry, fresh fish, fruits, vegetables and bakery items.

CAUTION Be sure cord is not connected to electric outlet when removing or inserting blades and when knife is not in use. Blades are extremely sharp. Always handle by side opposite cutting edge, as illustrated.

How to Assemble and Use (cont.)

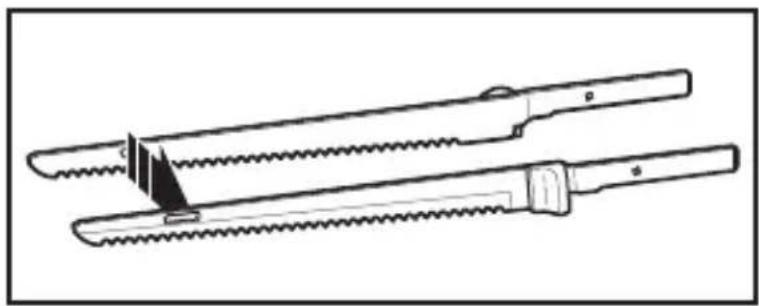

1. If Blades are separated, pick up by Plastic Guard. Slide rivet on one Blade into keyhole slot in other Blade until they are locked together.

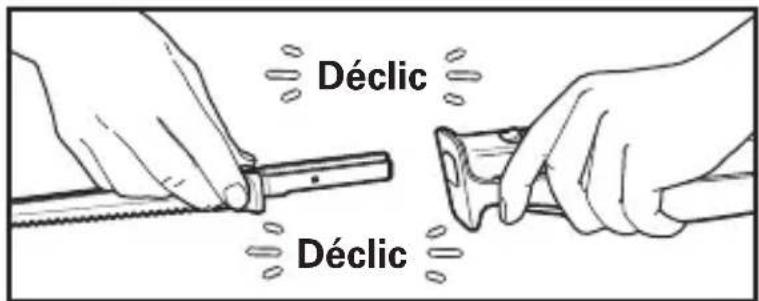

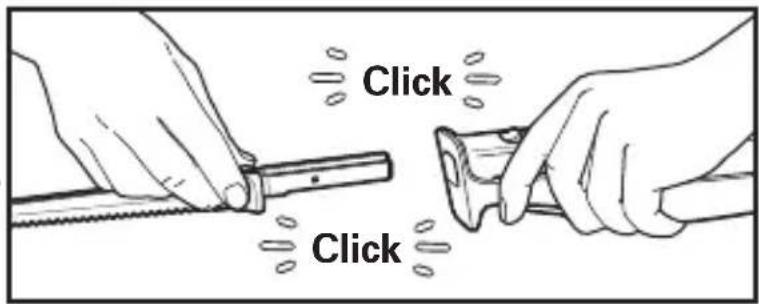

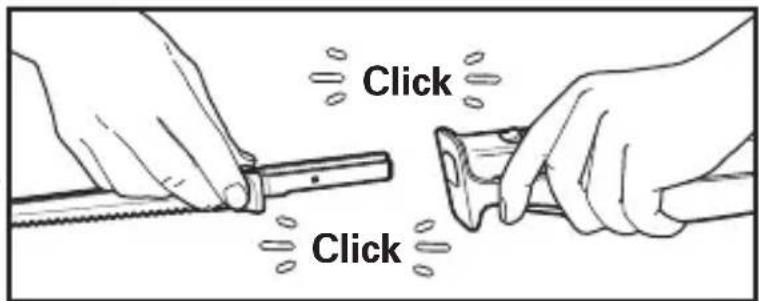

2. Holding Blades together at base of Blade with cutting edge down, slide onto motor housing until both Blades click into place.

3. Plug into outlet.

4. Hold Knife by Handle. Pull ON/OFF Switch like a trigger to operate. You must hold ON Switch for Knife to operate.

5. To stop, release ON Switch.

Line drawing of two saw tools with different blade profiles (no text or symbols)

Click Click

How To Clean and Store

WARNING To reduce risk of personal injury, always disconnect cord from electric outlet before inserting, removing or cleaning blades. Blades are sharp; handle carefully.

1. Unplug.
2. Firmly pull back Blade Release Switch. Grasp Plastic Guard, with hand away from cutting edge, and carefully pull until Blades release.

How To Clean and Store (cont.)

1. Carefully separate Blades by sliding apart to disengage rivet from keyhole.
2. Wash Blades in hot, soapy water. Rinse and dry thoroughly.
3. After washing and drying, immediately place Blades into Protective Sleeve for storage.
4. To clean motor housing and cord, wipe with a damp cloth and then dry thoroughly.

Hints For Best Results

• Move Knife through food. Do not use a back and forth sawing motion.
• Let meats stand about 15 minutes after cooking and before slicing.
• Slice down to and around bone. Do not attempt to slice through bone.
• Do not cut through frozen foods.
• Stainless steel serrated blades should stay sharp. Do not attempt to sharpen serrated Blades. Replacement Blades may be purchased at proctorsilex.com.
  • Always clean Blades between cuttings of different food items to avoid cross contamination of foods.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of three (3) years from the date of original purchase. During this period, your exclusive remedy is replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with our returning a product or component under this warranty to you. If the product or component is unavailable, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit proctorsilex.com/customer-service in the U.S. or proctorsilex.ca/customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Labeled diagram of a knife with numbered parts for identification

Line drawing of two saw cutting tools with no text or symbols

Déclic Déclic

Labeled diagram of a knife with numbered parts for identification

Line drawing of two saw cutting tools with no text or symbols

Click Click
