CEB1801P - Electric heating blanket Carmen - Free user manual and instructions

Product type	Electric heated blanket
Brand	Carmen
Model	CEB1801P
Dimensions	180 x 130 cm
Weight	1.5 kg (estimated)
Power	160 W
Voltage	220-240 V ~ 50-60 Hz
Number of temperature settings	9
Automatic shut-off	Yes, after 20 minutes (adjustable up to 3h)
Material	Fleece
Machine washable	Yes, at 30 °C (wool program)
Number of persons	1 person
Safety system	Automatic shut-off in case of overheating
Removable cord	Yes
Protection class	II (double insulation)
Certifications	Oeko-Tex Standard 100
Warranty	24 months
Cleaning and maintenance	Do not iron, do not tumble dry, do not bleach, do not dry clean
Repairability	Do not open, repair by manufacturer only
Use	On a bed or as a throw

Frequently Asked Questions - CEB1801P Carmen

Can I use the heated blanket all night?

Yes, but it is recommended to set the switch to the lowest temperature level (position 1) for continuous use. The blanket turns off automatically after 20 minutes, but you can extend up to 3 hours with the automatic shut-off function.

How to wash the heated blanket?

Always unplug the switch before washing. Machine wash at 30 °C on a wool program, with a delicate laundry detergent. Do not machine wash more than 5 times during its lifespan. Do not iron, do not tumble dry.

Is the heated blanket safe for children?

It should not be used by children aged 0 to 3 years. Children aged 3 to 8 can use it under supervision, with the switch set to the lowest temperature. Children over 8 can use it if they understand the safety instructions.

What to do if the blanket no longer heats?

First check that the switch is properly connected and that the outlet works. If the lights do not come on, the safety system may have deactivated the blanket. In this case, contact customer service; do not attempt to repair it yourself.

How to set the automatic shut-off timer?

Press the automatic shut-off button (✅) several times to set the operating time. Positions with a dot (e.g., 1.) indicate the duration. Position 1. = 20 minutes, and you can go up to 3 hours. The default setting is 20 minutes.

Can I use the blanket on an adjustable bed?

Yes, but before use, check that the blanket and cables are not pinched in the hinges or caught. Do not fold the blanket during use.

How to store the heated blanket?

Unplug the switch and let the blanket cool completely. Store it in its original packaging, without excessively folding the wiring. Do not place any heavy objects on it.

Does the switch heat up normally?

Yes, the electronic components of the switch can heat up during use. Never cover the switch and do not place it on the heated blanket.

What is the meaning of the symbols on the label?

The symbols include: do not insert pins, do not iron, do not tumble dry, do not bleach, do not dry clean, wash at 30 °C wool program, and the protection class II symbol.

Is the blanket compatible with a pacemaker?

The electric and magnetic fields are very low, but if you wear a pacemaker, consult your doctor and the pacemaker manufacturer before use.

USER MANUAL CEB1801P Carmen

Folded pink blanket with a white digital thermometer placed on its side (no text or symbols visible)

CEB1801P • ELECTRIC OVERBLANKET

Close-up of a white USB flash drive on a pink fabric background (no text or symbols visible)

OPGELET!

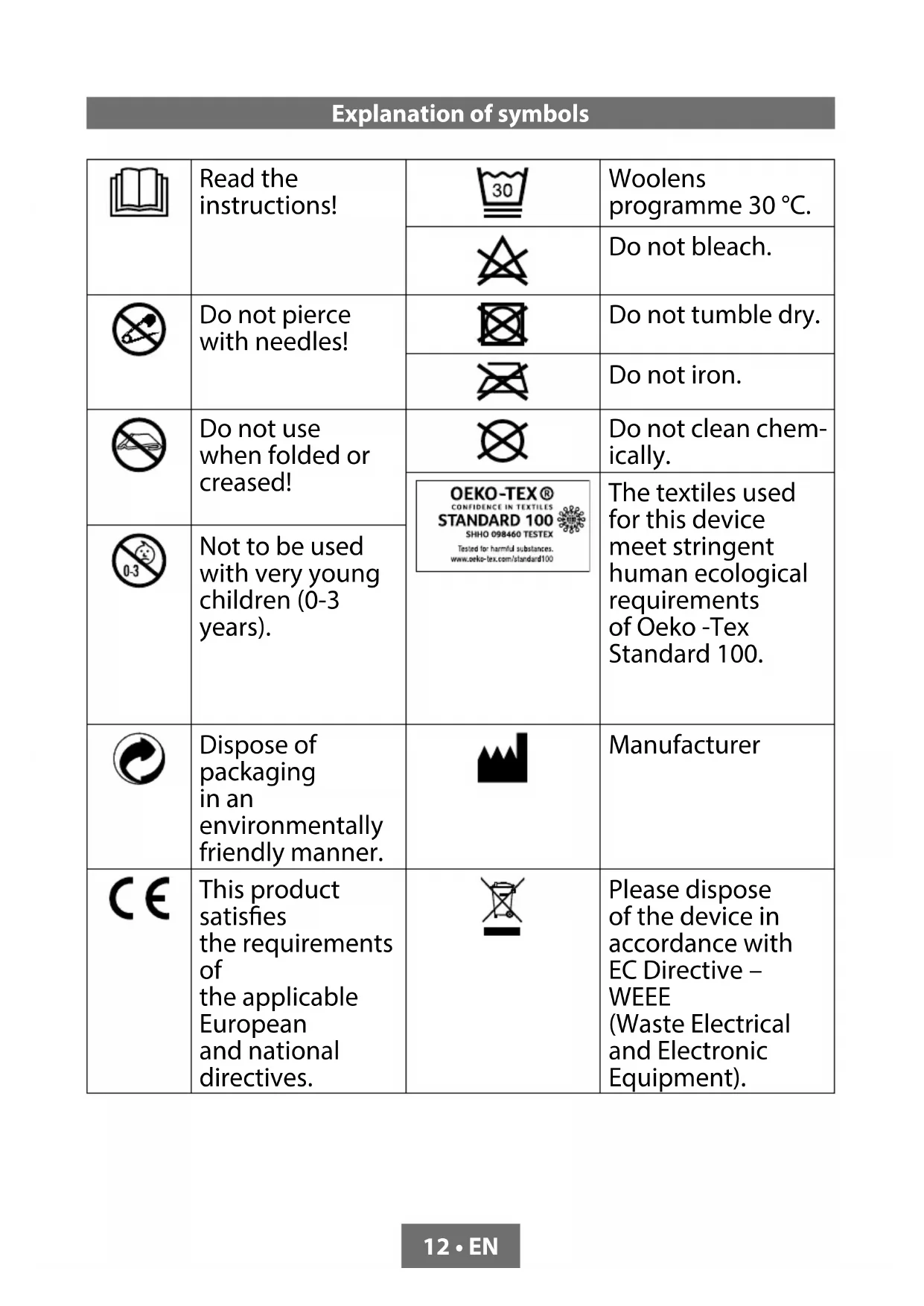

Explanation of symbols

	Read the instructions!		Woolens programme 30 °C.
			Do not bleach.
	Do not pierce with needles!		Do not tumble dry.
			Do not iron.
	Do not use when folded or creased!		Do not clean chem-ically.
		OEKO-TEX®CONFI STAN SHIO 098400 TESTEXTested for harmful substances.www.oeko-tex.com/standard100	The textiles used for this device meet stringent human ecological requirements of Oeko -Tex Standard 100.
	Not to be used with very young children (0-3 years).
	Dispose of packaging in an environmentally friendly manner.		Manufacturer
	This product satisfies the requirements of the applicable European and national directives.		Please dispose of the device in accordance with EC Directive – WEEE(Waste Electrical and Electronic Equipment).
	The device has double protective insulation and therefore complies with protection class 2.	[BYK3]	The electric blanket is suitable for 1 person.
	WARNING; Warning of risk of injury or danger to your health.
	CAUTION; Safety information about possible damage to the device/accessories.
	ATTENTION; Refers to important information.

Important safety instructions - read carefully and keep for later reference!

WARNING

• Non-observance of the following notes may result in personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product. For this reason, pay attention to these safety notes and include these instructions when handing over the product to others.
• This heated overblanket must not be used by persons who are not sensitive to heat or by other vulnerable persons who may not be able to react to overheating (e.g. diabetics, people with skin alterations due to illness or scarred tissue in the application area, after taking pain relief medication or alcohol).
• This heated overblanket must not be used by very young children (0-3 years old) as they are unable to respond to overheating.
• The heated overblanket can be used by children older than 3 and younger than 8 years of age provided they are supervised. For this, the control must always be set to the minimum temperature.
• This heated overblanket may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised and have been instructed on how to use the heated overblanket safely, and are fully aware of the consequent risks of use.
  • Children must not play with the heated overblanket.
• Cleaning and user maintenance must not be performed by children unless supervised.
• This heated overblanket is not designed for use in hospitals.
• This heated overblanket is only intended for domestic/private use, not for commercial use.
• Do not insert needles.
• Do not use when folded or bunched up.
• Do not use if wet.

• Before using it on an adjustable bed, check that the heated overblanket and the cables are not, for example, trapped in a hinge or bunched up.

• This heated overblanket may only be used in conjunction with the control specified on the label.

• This heated overblanket must only be connected to the mains voltage that is specified on the label.
• The electrical and magnetic fields emitted by this heated overblanket may interfere with the function of a pacemaker. However, they are still well below the limits: electrical field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m, magnetic flux density: max. 0.1 millitesla. Please therefore consult your doctor and the manufacturer of your pacemaker before using this heated overblanket.
• Do not pull, twist or make sharp bends in the cables.
• If they are not positioned properly, there may be a risk of becoming entangled in, being strangled by, tripping over, or stepping on the cable and control of the heated overblanket. The user must ensure that excess lengths of cable, and cables in general, are safely routed.
• Please check this heated overblanket frequently for signs of wear and tear or damage. If any such signs are evident, if the heated overblanket has been used incorrectly or if it no longer heats up, it must be checked by the manufacturer before being switched on again.
• Under no circumstances should you open or repair the heated overblanket (including the accessories) yourself because faultless functionality can no longer be guaranteed thereafter. Failure to observe this will invalidate the warranty.
• The appliance may not be used with an external timer or a separate remote control.
• If the mains connection cable of this heated overblanket is damaged, it must be disposed of. If it cannot be removed, the heated overblanket must be disposed of.
• When this heated overblanket is switched on:

- Do not place any sharp objects on it

- Do not place any heat sources, such as hot water bottles, heat pads or similar, on it

- The electronic components in the control warm up when the heated overblanket is in use. For this reason, the control must never be covered or placed on the heated overblanket when it is in use.

- It is essential to observe the information relating to the following chapters: Operation, Cleaning and maintenance, Storage.

- If you should have any questions about using our devices, please contact our Customer Services department.

Appliance description

1. Electric overblanket
2. Switch

1-person electric overblanket Dimensions: 180 x 130 cm Switch with 9 settings Detachable cord Machine washable, 30 °C 160 Watt Material: completely made from fleece

Folded pink blanket with a medical thermometer placed on top, labeled with parts 1 and 2 (no text or symbols on the blanket itself)

Intended use

CAUTION!

The electric overblanket is only intended for heating the human body.

Operation

Safety

CAUTION!

• This heated overblanket is equipped with a SAFETY SYSTEM. This sensor technology prevents the entire surface of the heated overblanket from overheating by automatically switching off the heated overblanket in the event of a fault. If the safety system has switched off the heated overblanket, the temperature setting is not illuminated any more even when the heated overblanket is switched on.
• Please note that the heated overblanket is not operable any more due to safety reasons in this case and has to be sent to the service address indicated.
• Do not connect the defective heated overblanket with another control of the same type. This would trigger a permanent switch off via the control's safety system.

Initial use

The electric overblanket can be used as overblanket, plaid or overblanket on the bed.

• First connect the switch to the connection point in the blanket by connecting the plug.
• Then insert the plug in the socket.

Switching on

Press the ON/OFF button ⏻ to switch on the blanket. The display switches on. Press the temperature button ⏻ to set the required heating position from 1 to 9.

Setting the heating position

Position 1: minimum heating - suitable for continuous use

Positions 2-3: gradual heating - suitable for heating up the blanket

Position 4-8: separately adjustable heating

Position 9: maximum heating

CAUTION

If the electric overblanket is used for several hours, we recommend setting the lowest heating position (position 1) to prevent the user from overheating.

Automatic deactivation function

This electric overblanket is switched off automatically after 20 minutes. If you want to use the blanket for a longer period of time, you can extend the deactivation time by up to 3 hours. The deactivation time is indicated in 9 positions with a point - 1. - 2. etc.

Repeatedly press the AUTO OFF button ⏰ to delay the deactivation time.

Position 1. = 20 minutes - standard setting

Position 2. = 40 minutes

Position 3. = 60 minutes

Position 4. = 80 minutes

Position 5. = 100 minutes

Position 6. = 120 minutes

Position 7. = 140 minutes

Position 8. = 160 minutes

Position 9. = 180 minutes - maximum

When the electric overblanket is switched off, it is no longer heated and the display is off.

The switch on the overblanket again, press the ON/OFF button and set the electric overblanket to the required heating position.

Switching off

Press the ON/OFF button ⏻ to switch off the blanket. The display no longer lights up.

ATTENTION

If the electric overblanket is not used for a number of days, you must switch it off with the ON/OFF button and remove the plug from the socket. Then disconnect the switch from the electric overblanket by removing the plug.

Cleaning and maintenance

WARNING

Before cleaning the electric overblanket, always remove the plug from the socket. Then disconnect the control from the electric overblanket by removing the plug. Otherwise you will run the risk of an electric shock.

Close-up of a white medical or dental device against a pink background (no text or symbols visible)

CAUTION!

The control must never get in contact to water or other liquids. Otherwise, the control may be damaged.

• To clean the control, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.
- Small marks on the electric overblanket can be removed with a damp cloth or sponge, or if necessary, with a little liquid detergent for delicate laundry.

CAUTION!

The electric overblanket should not be dry cleaned, wrung out, dried in the machine, mangled or ironed. Otherwise the electric overblanket could get damaged.

• In case of heavier soiling, this electric blanket can be washed in a washing machine.
- Set the washing machine to a particularly gentle, 30 °C cycle (woolens programme). Use a wool laundry detergent and follow the manufacturer's instructions.

CAUTION!

Note that excessive washing will wear out the electric blanket. For this reason, the electric blanket should only be machine-washed a maximum of 5 times throughout its entire life.

- While the electric blanket is still damp after washing, shape it to its original form and size and place it flat over a clothes drying rack to dry.

CAUTION!

• Do not attach the electric overblanket to washing lines with washing pegs or similar. Otherwise the electric overblanket may be damaged.
• Only reconnect the control to the electric overblanket after the connector and the electric overblanket are completely dry. Otherwise the electric overblanket may be damaged.

WARNING

Under no circumstances switch on the electric overblanket to dry it. Otherwise, there is a risk of an electric shock.

Storing

When not in use we recommend to store the electric overblanket in its original packaging. For this purpose, disconnect the control from the electric overblanket by unplugging the plug-in coupling.

CAUTION!

• Please allow the electric overblanket to cool down first. Otherwise, the electric overblanket may be damaged.
  • To avoid sharp folds in the electric overblanket, do not place any objects on top of it while it is being stored.

Recycling

This symbol means that this product should not be disposed of with regular household waste (2012/19/EU). Observe the rules that apply in your country for the separated collection of electric and electronic products. Correct disposal of the product prevents negative consequences for the environment and for public health. The packaging material of this product can be recycled 100%, return packaging material separately.

Close-up of a white circular object with a white plug against a pink background (no text or symbols visible)

ACHTUNG

Position 2. = 40 minutes

Position 3. = 60 minutes

Position 4. = 80 minutes

Position 5. = 100 minutes

Position 6. = 120 minutes

Position 7. = 140 minutes

Position 8. = 160 minutes

Position 9. = 180 minutes - temps maximum

Close-up of a white USB port with a cable, against a solid pink background (no text or symbols visible)

ATTENTION!

Ordering Accessories - EN

Go to www.carmen.nl/support to purchase accessories or spare parts.

Warranty conditions - EN

A 24 month warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the user instructions and for the purpose for which it was made. Also the original proof of purchase must be submitted, stating the date of purchase, the name of the retailer and the item number of the product. For extensive warranty information you are referred to our website: www.carmen.nl/support

Download the most recent

manual from www.carmen.nl
