Product type	Extractor hood
Brand	EICO
Model	Aida 80 LED W SM
Width	80 cm
Color	White
Material	Stainless steel and painted
Power supply	220-240 V ~ 50/60 Hz
Motor power	150 W (estimate)
Number of speeds	4 (including intensive)
Control	Soft touch and remote control
Lighting	LED (spot)
Metal filter	Washable, clean every 2-3 months
Charcoal filter	Replaceable, optional (recirculating mode)
Timer function	Yes, automatic shut-off after 10 minutes
Installation mode	Extracting or recirculating (recycling)
Minimum safety distance	65 cm above the cooking surface
Power cable	H05W-F 3x0,75 mm²
Net weight	Approximately 15 kg
Maintenance	Periodic cleaning with soft cloth and mild detergent

Frequently Asked Questions - Aida 80 LED W SM EICO

What is the minimum installation distance between the hood and the cooking surface?

The minimum safety distance from the lower edge of the hood to the cooking surface is 65 cm. Shorter distances require exclusive approval from the manufacturer.

How to use the remote control provided with the hood?

The remote control is already configured. It has buttons to turn the light on/off, to activate the 2nd speed or stop the motor, and + and - buttons to adjust speeds. Pressing the TIMER button turns off the motor after 10 minutes. For the 4th speed (intensive), the LED flashes and after 5 minutes, the 2nd speed automatically re-engages.

How to clean the metal filters of the hood?

The metal filters should be washed every 2 to 3 months depending on use. Use hot water and a non-aggressive liquid detergent. To remove them, pull the handle downward while unhooking the front part.

When and how to replace the charcoal filters?

Polyester charcoal filters cannot be washed and must be replaced periodically, about every 4 months if the hood is used 2 hours per day. The LONG LIFE filter can be cleaned in the dishwasher and regenerated in the oven at 100°C for 10 minutes. Replace it when it no longer absorbs odors.

How to activate the intensive mode (4th speed)?

Use the + and - buttons to increase the speed to the 4th (intensive). The LED then flashes rapidly. After 5 minutes, the hood automatically returns to 2nd speed.

Why is there condensation on the hood and how to fix it?

Condensation can be due to a temperature difference between the steam and the cold hood, or to an exhaust duct with insufficient diameter. Turn on the hood 10 minutes before cooking and let it run after cooking. Clean the filters regularly.

How to replace the LED lighting of the hood?

Replacement of LED spots must be carried out only by a qualified technician, using original spare parts. Before any intervention, disconnect the power supply.

Can I use the hood in recirculation mode with a charcoal filter?

Yes, the hood can operate in recirculation mode if you install activated charcoal filters. Make sure to use filters suitable for your model and replace them periodically.

What to do if the remote control no longer works or is lost?

For a new remote control, pairing is necessary: turn off the hood, hold the + button until the LED flashes, then press the on/off button on the remote control within one minute.

How to clean the exterior of the hood?

For painted or copper surfaces, use a soft cloth with warm water and a mild detergent. For stainless steel, use a special product for satin stainless steel, non-abrasive and chlorine-free, following the direction of the satin finish. Avoid aggressive products.

USER MANUAL Aida 80 LED W SM EICO

AIDA 60/80 - LINK AIDA RC 60/80 - LINK

eico

Diagram showing a vertical line above a circular diagram with four symbols: a star, minus sign, a four-petal flower, and a plus sign.

BRUG OG VEDLIGEHOLDELSE

Diagram of a solar panel installation with two panels and a cable, no text or symbols present

Diagram showing a vertical line above a circular diagram with five symbols: a bell, minus sign, four-pole flower, plus sign, and minus sign.

DRIFT OCH UNDERHÅLL

Diagram of a solar panel installation with two panels and a cable, no text or symbols present

Diagram showing five circular symbols: light bulb, minus sign, plus sign, minus symbol, and circle, arranged horizontally within a rectangular border.

SOFT TOUCH SÄÄDIN

Diagram showing five circular icons with symbols: minus, minus sign, four-pole fan, plus sign, and minus clock symbol

KÄYTTÖ JA HUOLTO

Diagram of a solar panel installation with two panels and a cable, no text or symbols present

Diagram showing five circular symbols with directional arrows and a central flower-like symbol, possibly indicating a control or logic function.

BRUK OG VEDLIKEHOLD

Diagram of a solar panel installation with two panels and a cable, no text or symbols present


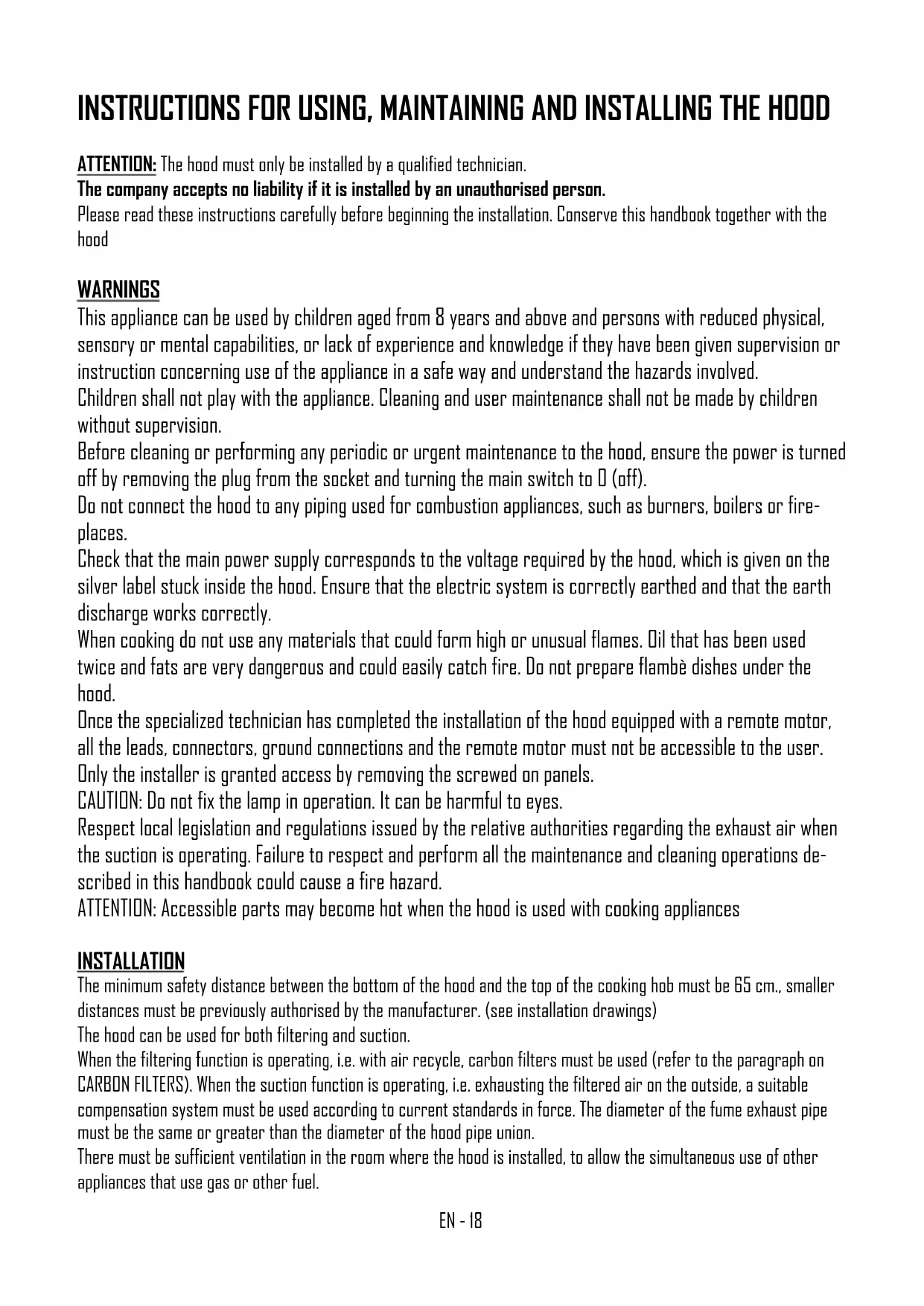

INSTRUCTIONS FOR USING, MAINTAINING AND INSTALLING THE HOOD

ATTENTION: The hood must only be installed by a qualified technician.

The company accepts no liability if it is installed by an unauthorised person.

Please read these instructions carefully before beginning the installation. Conserve this handbook together with the hood

WARNINGS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Before cleaning or performing any periodic or urgent maintenance to the hood, ensure the power is turned off by removing the plug from the socket and turning the main switch to 0 (off).

Do not connect the hood to any piping used for combustion appliances, such as burners, boilers or fireplaces.

Check that the main power supply corresponds to the voltage required by the hood, which is given on the silver label stuck inside the hood. Ensure that the electric system is correctly earthed and that the earth discharge works correctly.

When cooking do not use any materials that could form high or unusual flames. Oil that has been used twice and fats are very dangerous and could easily catch fire. Do not prepare flambè dishes under the hood.

Once the specialized technician has completed the installation of the hood equipped with a remote motor, all the leads, connectors, ground connections and the remote motor must not be accessible to the user.

Only the installer is granted access by removing the screwed on panels.

CAUTION: Do not fix the lamp in operation. It can be harmful to eyes.

Respect local legislation and regulations issued by the relative authorities regarding the exhaust air when the suction is operating. Failure to respect and perform all the maintenance and cleaning operations described in this handbook could cause a fire hazard.

ATTENTION: Accessible parts may become hot when the hood is used with cooking appliances

INSTALLATION

The minimum safety distance between the bottom of the hood and the top of the cooking hob must be 65 cm., smaller distances must be previously authorised by the manufacturer. (see installation drawings)

The hood can be used for both filtering and suction.

When the filtering function is operating, i.e. with air recycle, carbon filters must be used (refer to the paragraph on CARBON FILTERS). When the suction function is operating, i.e. exhausting the filtered air on the outside, a suitable compensation system must be used according to current standards in force. The diameter of the fume exhaust pipe must be the same or greater than the diameter of the hood pipe union.

There must be sufficient ventilation in the room where the hood is installed, to allow the simultaneous use of other appliances that use gas or other fuel.

Hoods equipped for remote motors

The hoods equipped for remote motors have a specific connector for the remote motor lead connection. The connector is situated inside the hood. Pass the remote motor lead into the hood through the aperture in the hood itself (usually near the fume exit hole) and join the two connectors. Refer to the figures in the remote motor instruction book when performing this operation.

Hoods without motor (Art.*0***) must only be installed and connected with extraction units with a max. output of 690W, as supplied and indicated by the manufacturer.

Once the specialized technician has completed the installation of the hood equipped with a remote motor, all the leads, connectors, ground connections and the remote motor must not be accessible to the user. Only the installer is granted access by removing the screwed on panels.

ASSEMBLY INSTRUCTIONS

Attention: Before proceeding with the installation, make sure that the screws and the anchors already supplied, are suitable for the type of wall the hood must be fixed to.

To assemble the hood use the accessories that are supplied and follow the instructions given in the enclosed handbook.

ELECTRIC WIRING

The electric wiring must be performed by a specialised electrician fully respecting current standards and legislation in force. Check that the power supply corresponds to the voltage requested by the hood, which is given on the silver label stuck inside the hood. Ensure that the wiring system conforms to current standards and the earth discharge works efficiently. Pay special attention to the hood power cable, ensure that it does not pass through any holes without a cable clamp. For direct connection to the electrical mains is necessary to provide a device that ensures disconnection from the electrical mains, with an opening distance of the contacts that allows the complete disconnection under the conditions of overvoltage category III, in accordance with the rules of installation.

The plug or omnipolar switch must be accessible when the unit is installed

If the power cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. The cable used must be of type H05VV-F 3 x 0.75 mm2 minimum cross-section.

The manufacturer declines all responsibility if the current accident prevention standards in force are not respected, which are needed for the wiring system to operate correctly

CONTROLS

Diagram showing five circular symbols: light bulb, minus sign, plus sign, minus symbol, and circle with cross

SOFT TOUCH CONTROL

There are four soft touch buttons on this version and a variable colour led (green min. speed, red max. speed).

One button for turning the lights on and off.

One button for turning on at 2nd speed and for turning the motor off.

N.B. If this button is kept depressed for more than three seconds, the automatic function is activated to turn the hood off function after 10 minutes, the led flashes slowly.

Two buttons + and - for increasing and reducing the motor speed. At the 4th motor speed (intense) the led flashes quickly and after 5 minutes the 2nd speed is automatically set.

RADIO CONTROL

ATTENTION:

The hoods with the standard remote control are already configured.

For optional and/or replacement remote controls it is necessary to start the activation process:

1. Press and hold the + button on the hood, (while it is off) until the LED starts flashing (release button)
2. When flashing, press on / off light on the remote control within 1 minute.

Control buttons:

One button for turning the lights on and off.
One button for turning on at 2nd speed and for turning the motor off.
Two buttons + and - for increasing and decreasing the motor speed. At the 4th motor speed (intense) the led flashes and after 5 minutes the 2nd speed is automatically set.
A TIMER button for turning the motor off after 10 minutes.

Diagram showing a vertical line above a circular diagram with symbols including a star, minus sign, four circles with a flower-like symbol, and plus sign.

USE AND MAINTENANCE

Before beginning any sort of cleaning or maintenance work, turn power off to the hood by turning the main switch to 0 (OFF).

Changing the light bulbs

LED spotlight replacement should only be carried out by qualified technicians using only original spare parts.

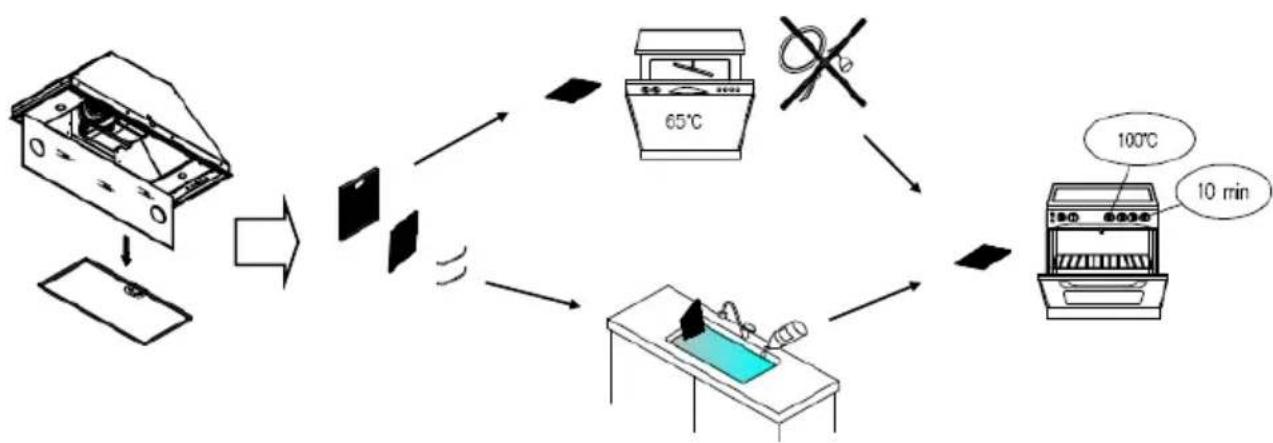

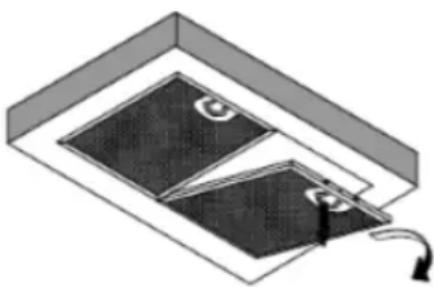

Cleaning the metal filters:

The metal filters fitted in the hood should be washed every 2-3 months, depending on how much the hood is used, using hot water and a liquid detergent that is not too aggressive. The metal filters can be removed by the special handle, unhooking the front part of the filter and pulling it downwards

Diagram of a solar panel installation with two panels and a cable, no text or symbols present

Carbon filters

If the hood is used with an internal recycle filtering system, then active carbon filters must be used. The active carbon in the filters traps the cooking smells. To remove and change the filters, refer to fig.

POLYESTER carbon filters cannot be reused or washed and must be periodically changed (every 4 months if the hood is used for 2 hours every day). Saturate filters could be a fire hazard.

Depending on the hood model, the carbon filters are round or rectangular.

LONG LIFE carbon filter can be cleaned and reactivated. The filter should be cleaned every other month if used normally. The filter is best cleaned in a dishwasher at the highest temperature using normal washer detergent. The filter should be washed on its own to prevent particles of food from fastening in it and then causing an unpleasant smell later on. To reactivate the carbon the filter should be dried in the oven. Chose upper/ lower heat and maximum 100 °C and try the filter for 10 minutes. When the filter has cooled down, put it back in the hood.

The filter must be changed when it no longer absorbs the cooking smells sufficiently.

Condensation in the hood

Induction or glass ceramic hobs heat food up very quickly, creating cooking steam before the glass or steel surface of the hood has heated up, which causes condensation on the hood that then drips. Another cause for condensation could be that the fume pipe is not the size we recommend (see INSTALLATION). The steam that remains inside the hood while it is cooling down condensates and drips. Therefore it is advisable to turn the hood on ten minutes before starting to cook and when you have finished, leave it on so that all the fumes in the pipe are expelled.

Furthermore, it is important to clean the filters frequently and if they are worn they should be replaced (see CLEANING THE METAL FILTERS).

Cleaning the hood

The surfaces of the hood should be cleaned frequently, to avoid the risk of having to remove built up and encrusted deposits and stains.

For the painted or copper plated hoods just use a soft cloth with warm water and a neutral detergent. Do not pour the detergent directly onto the hood or use powdery or abrasive products

For the stainless steel hood, use special products and cloths for satin finish stainless steel (not abrasive, corrosive detergents or detergents containing chloride), ensuring to clean in the same direction as the satin finish.

Do not use aggressive products, chemical solvents or derivatives of oil distillates that could leave oily traces which could cause oxidation and polymerisation.

The manufacturer accepts no responsibility for damage to the surface of the hood due to failure to respect these instructions.

BEDIENUNGS-, WARTUNGS- UND INSTALLATIONSHANDBUCH ABZUGSHAUBE

Diagram showing five circular symbols: light bulb, minus sign, plus sign, minus symbol, and circle, arranged horizontally within a rectangular frame.

COMMANDE SOFT TOUCH

Diagram showing five circular icons with symbols: star, minus sign, four-pole valve, plus sign, and minus sign, arranged around a central circle.

UTILISATION ET ENTRETIEN

Diagram of a device with two panels and a cable, no visible text or symbols

Filtres au carbone

Diagram showing five circular symbols with directional arrows and a central star-like symbol, possibly representing electrical or mechanical components.

GEBRUIK EN ONDERHOUD

Diagram of a solar panel installation with two panels and a cable, no text or symbols present

Koolfilters

Condensatie in de kap

Diagram showing five circular symbols: lightbulb, minus sign, plus sign, minus sign with cross, and circle, arranged horizontally within a rectangular frame.

Diagram showing five circular symbols with directional arrows and a central star-like symbol, possibly indicating a basic electrical or mechanical system.

USO Y MANTENIMIENTO

