WSLCEVCP1 - Lamp CHAMBERLAIN - Free user manual and instructions

Product Type	Smart Light Switch
Brand	Chamberlain
Model	WSLCEVCP1
Compatible Bulb Type	Incandescent, compact fluorescent, LED
Maximum Load (incandescent)	300 watts
Maximum Load (compact fluorescent)	2.5 amps
Supply Voltage	120 V AC
Usage	Indoor only
Remote Control Operation	Yes, with Security+ 2.0® remotes (up to 8)
Smartphone Operation	Yes, via Chamberlain MyQ® app (requires MyQ® device)
Garage Door Opener Compatibility	Yes, with MyQ® enabled opener (up to 8)
Installation	Requires grounding, turn off power before installation
Box Contents	Switch, wire connectors (3), screws (2)
Material	Plastic and electronic components
Dimensions (approx.)	4.2 x 4.2 x 2.5 cm (standard switch)
Weight (approx.)	50 g
Care and Cleaning	Clean with soft dry cloth. Do not use abrasive products.
Safety	Turn off power before installation. Indoor use only. Follow local electrical codes.
Repairability	No user-serviceable parts
Regulatory Information	Complies with FCC Part 15 and IC RSS-210
Warranty	See manufacturer (not specified)

Frequently Asked Questions - WSLCEVCP1 CHAMBERLAIN

How to program the switch with a remote?

Lift the cover to access the Learn button. Press and hold the remote button, then briefly press the Learn button. The LED and lamp flash once to confirm.

What to do if the light does not turn on from the manual switch?

Check that power is restored, the bulb works, and the circuit breaker has not tripped. Ensure the switch is in the ON position and grounding is correct. If necessary, reverse the line and load wire connections.

Can I use this switch with LED bulbs?

Yes, the switch is compatible with LED bulbs, as well as incandescent and compact fluorescent bulbs.

How to clear all codes from memory?

Press and hold the Learn button until the LED flashes (about 6 seconds). All programmed devices will be erased.

Does this switch work with a 3-way or 4-way system?

No, it is not recommended for use with 3-way or 4-way switches.

Do I need to turn off power before installation?

Yes, it is imperative to turn off power at the main fuse or circuit breaker panel before any intervention to avoid risk of electric shock.

How to connect the switch wires?

Connect the green wire to ground, the red wire to the load wire, and the black wire to the line wire. Use the supplied wire connectors and wrap them with electrical tape.

What is the range of the remote?

Range varies depending on house construction. It may be reduced by metal lath, aluminum insulation, or aluminum siding. Test in different locations.

What does the LED flashing for more than 10 minutes mean?

This indicates a low voltage problem or faulty grounding. Check grounding and contact a qualified electrician.

Where can I download the MyQ app?

The Chamberlain MyQ app is available on the App Store (iOS) and Google Play (Android). Create an account and follow the instructions to add the switch.

USER MANUAL WSLCEVCP1 CHAMBERLAIN

The Smart Light Switch offers a convenient way to control the lights in your home. It can be programmed to be controlled from anywhere with your smartphone and the Chamberlain MyQ® App+. The Smart Light Switch is also compatible with up to 8 Security+ 2.0® remote controls OR a combination of up to 8 MyQ® enabled garage door openers. This product is NOT recommended for control of household appliances or fans. Not for use with 3-way or 4-way switch combinations.

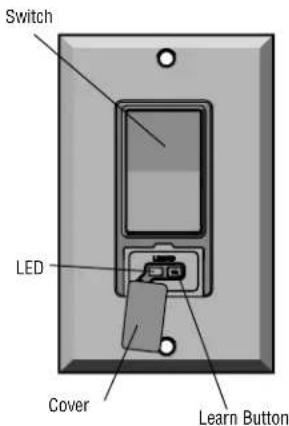

Switch LED Cover Learn Button

NOTE: The wall plate is not provided.

SPECIFICATIONS

Bulb Type: .... Compact fluorescent, incandescent, or LED

Max Load Rating: 300 Watts

Incandescent Lamp 300 Watts

Compact Fluorescent Lamp (CFL) 2.5 Amps

Voltage 120 Vac

WARNING

To prevent possible SERIOUS INJURY or DEATH from electrocution or fire:

• Turn off power at the fuse box or circuit breaker BEFORE proceeding.
  • The light control is ONLY for indoor use.
  • Installation and wiring MUST be in compliance with ALL local electrical and building codes.

NOTICE: To comply with FCC and/or Industry Canada (IC) rules, adjustment or modifications of this transceiver are prohibited. THERE ARE NO USER SERVICEABLE PARTS.

This device complies with Part 15 of the FCC rules and IC RSS-210. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

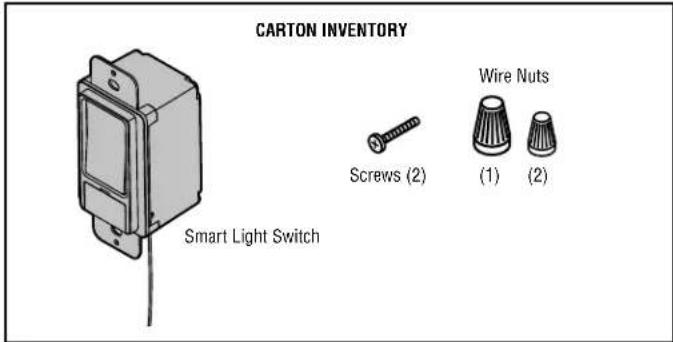

CARTON INVENTORY Smart Light Switch Screws (2) Wire Nuts (1) (2)

MODES OF OPERATION

The Smart Light Switch can be programmed to the MyQ® app*, to a Security+ 2.0® remote control, or to a MyQ® enabled garage door opener.

REMOTE CONTROL OPERATION:

Allows you to activate the Smart Light Switch from a remote control.

NOTE: If your remote control is already programmed to your garage door opener, choose a different remote control button to program to the Smart Light Switch.

Allows you to activate the Smart Light Switch from your smartphone or tablet, set schedules to switch your lights on/off at customized times, and receive notifications when your light remains on.

GARAGE DOOR OPENER OPERATION:

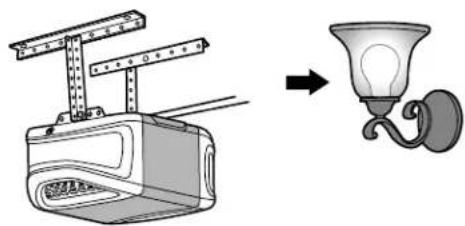

Allows you to synchronize the Smart Light Switch with your garage door opener light bulbs. The synchronization with the garage door opener lights is disabled if you manually turn the light switch on. The light switch must be OFF to synchronize the garage door opener with the light switch.

Example: The garage door opener light bulbs are set to automatically turn off after 4 ½ minutes, the Smart Light Switch will also turn off after 4 ½ minutes.

INSTALLATION

BEFORE YOU BEGIN:

This device REQUIRES a ground; if a ground is not available, contact a qualified electrician. If you are not experienced and familiar with electrical wiring and electrical codes, contact a qualified electrician. Some codes require installation by a qualified electrician. Install in accordance with all national and local codes. Ensure the existing switch and light is working prior to installing the new switch.

1. Disconnect power at the circuit breaker or fuse box BEFORE proceeding.
2. Remove the wall plate and set aside for re-assembly.

REMOVE OLD WALL SWITCH:

1. Remove switch from switch box.
2. During removal, identify or label the load and line wires.

NOTE: Typically a line wire is the incoming hot wire from the circuit breaker. The load wire is the wire supplying power between the switch and the light.

1. Keep all load wires separated from line wires.

INSTALL NEW SWITCH (Figure 1):

1. Identify the antenna routing (Figure 1).
2. Connect the wires (Figure 2). NOTE: If your wiring includes a neutral wire this wire is not required, combine neutral wire(s) and cap with wire nut (not provided).

- Green wire to ground.

Connect the green wire on the new switch to the exposed copper ground, green wire, or to the ground connection within metal switch box. NOTE: If ground doesn't exist contact an electrician to add a ground. This product will not function without a proper ground.

• Red wire to load.

• Black wire to line.

• Secure connections with a wire nut and wrap each wire nut with electrical tape.

NOTE: Turn all wire nuts clockwise, making sure the bare wires are covered. Tug on each wire nut to make sure the connections are good.

1. Carefully pack the wiring back into switch box. Make sure the wires are not pinched or strained. Make sure the antenna is hanging straight down between the switch box and the drywall.
2. Fasten the Smart Light Switch to the switch box with the screws (provided).
3. Fasten the wall plate securely over the switch box with the original screws from the wall plate.

TEST

1. Turn on the power to circuit at fuse box or circuit breaker.
2. Test the light switch, manually press the light switch to ensure the light is functional (Figure 3). If it is not functional, see Troubleshooting.

Figure 3

Press the switch to the ON position. The light should turn on.

Press the switch to the OFF position. The light should turn off.

Illustration showing a hand pressing a button next to a wall-mounted lamp (no text or symbols present)

Illustration showing a hand pressing a button next to a decorative lamp (no text or symbols present)

WARNING

To prevent possible SERIOUS INJURY or DEATH from electrocution or fire:

• Turn off power at the fuse box or circuit breaker BEFORE proceeding.
  • The light control is ONLY for indoor use.
• Installation and wiring MUST be in compliance with ALL local electrical and building codes.

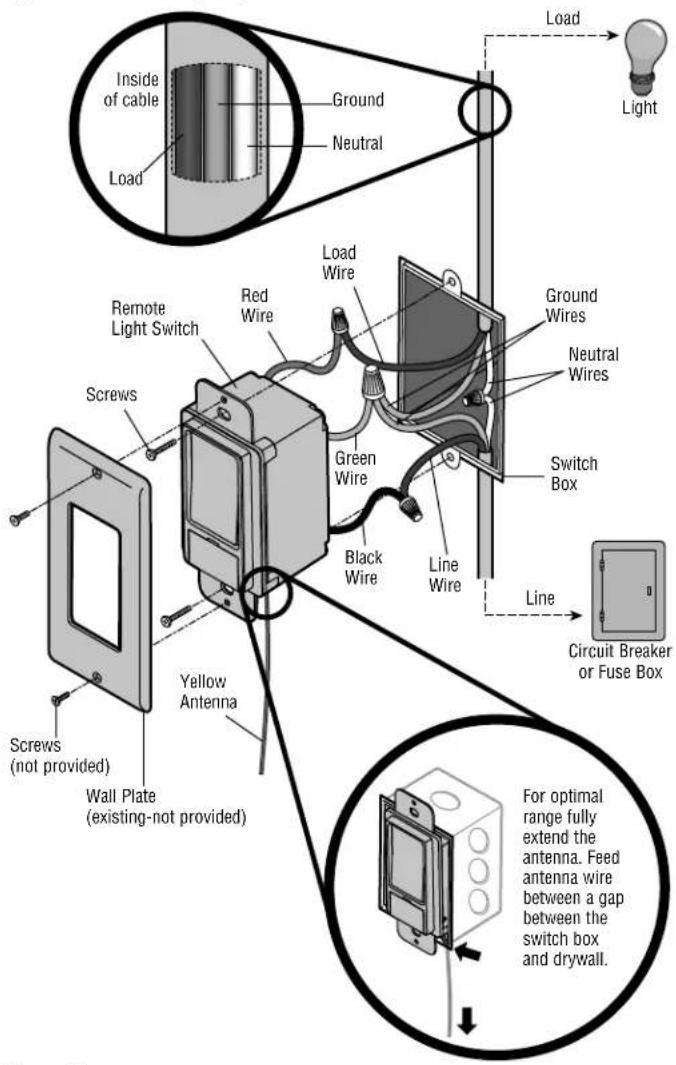

Figure 1

IMPORTANT NOTE: This illustration is ONLY an example and your application and wiring may be different.

Inside of cable Load Ground Neutral Load Remote Light Switch Red Wire Screws Yellow Antenna Screws (not provided) Wall Plate (existing-not provided) Green Wire Black Wire Line Wire Switch Box Ground Wires Neutral Wires Line Circuit Breaker or Fuse Box For optimal range fully extend the antenna. Feed antenna wire between a gap between the switch box and drywall.

Figure 2

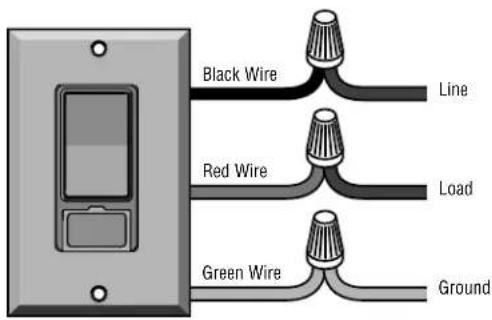

Black Wire Red Wire Green Wire Line Load Ground

INSTALLATION (CONTINUED)

1. Open the cover on the light switch so you can view the LED (Figure 4).
2. Allow up to 10 minutes for Smart Light Switch to power up properly, when the LED stops flashing proceed to Programming.

Figure 4

Cover

PROGRAMMING

IMPORTANT NOTE: When the LED has stopped flashing (up to 10 minutes), proceed to Programming.

1

Lift the cover on the Smart Light Switch to access the "LEARN" button.

Diagram showing a device being inserted into a panel, with a magnified inset highlighting the insertion point (no text or symbols present)

2

• Download the Chamberlain MyQ® App*.
• Create or sign-in to your account and follow the in-app instructions to add the Smart Light Switch to your MyQ® account.
  * Smartphone control requires a MyQ® Garage, Smart Garage Hub, MyQ® Internet Gateway, or Wi-Fi® Garage Door Opener.

OR

Press and HOLD the remote control button.

OR

Press and release the Learn button on the garage door opener.

opener.

3

Then press and release the "LEARN" button. Both the LED on the Smart Light Switch and the light will flash once indicating the programming is complete.

NOTE: If needed, press and release the "LEARN" button with a narrow instrument.

Diagram showing a device with an attached port and a magnified view of the port's internal structure (no text or symbols)

TEST

Testing the Smart Light Switch will vary depending on your application.

REMOTE CONTROL

Press the remote control button. The light should turn on.

Illustration showing a hand holding a small device next to a decorative funnel (no text or symbols)

Press again and the light should turn off.

Test the remote control operation at various locations within your home for convenience and range. The remote control range will vary depending on your house and wiring construction. The range may be reduced by metal lath, foil-backed insulation or aluminum siding.

GARAGE DOOR OPENER

Activate the garage door opener. The light should turn on. The light will stay on for the same length of time as your garage door opener lights.

Illustration of a wall-mounted device next to a light bulb, showing structural components and an arrow indicating direction (no text or symbols present)

NOTE: If the light does not turn on and off, repeat programming steps.

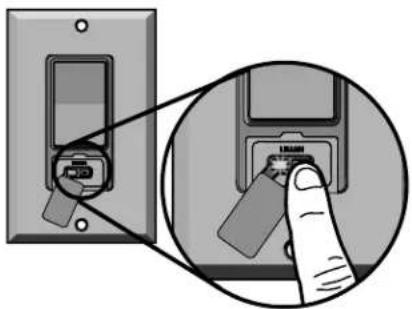

TO ERASE ALL CODES FROM MEMORY

Press and HOLD the "LEARN" button until the LED flashes (approximately 6 seconds). All codes are now erased.

IMPORTANT NOTE: If multiple devices are programmed to the switch, ALL devices will be erased.

Diagram showing a hand inserting a USB into a memory slot, with magnified view highlighting the component.

TROUBLESHOOTING

If the light does not operate, below are some troubleshooting suggestions.

Symptom Solution
The light does not operate from the switch.	Verify the power is ON. Check the fuse box or circuit breaker.Verify the light bulb is “good”.Press the top half of the Smart Light Switch to make sure it is ON.Ensure the device is properly grounded.Verify the electrical Line and Load wiring is correct. If you are unsure which wires are Line and Load, reverse the Line and Load wire connections.
The light does not operate from the remote control.	Make sure you are pressing the remote control button selected to operate the light control.The LED on the remote control should glow when the button is pressed, if not replace the battery.Program the remote control to the Smart Light Switch.
The LED flashes for more than 10 minutes and cannot enter the programming mode.	This indicates an issue with low voltage or improper grounding. Ensure the device is properly grounded. Contact a qualified electrician.

CAUTION

To avoid electric shock, press the switch to the OFF position when changing the light bulb.

DESCRIPTION GÉNÉRALE

Illustration showing a hand pressing a button next to a wall-mounted lamp (no text or symbols present)

Illustration showing a hand pressing a button next to a decorative lamp (no text or symbols present)

⚠️! AVERTISSEMENT

INSTALLATION (CONTINU)

Diagram showing a device with an attached port and a close-up of its internal component (no text or symbols visible)

Illustration of a hand pressing a button on a device (no text or symbols visible)

3

Diagram showing a hand inserting a USB into a device panel, with no visible text or symbols.

ESSAI

Illustration of a device with a funnel-shaped lamp and a magnified view of its internal structure (no text or symbols)

Diagram showing a hand inserting a USB into a floppy disk, with magnified view highlighting the component.

DÉPANNAGE

© 2013, The Chamberlain Group, Inc.

All Rights Reserved
