| Product Type | Ventilation duct (make-up air kit) for kitchen range hood |
| Reference | W10446915 (6-inch round kit) |
| Brand | JENN-AIR |
| Duct Diameter | 6 in (15.2 cm) |
| Duct Dimensions (L x W x H) | 6 13/16 x 7 1/2 x 6 15/16 in (17.2 x 18 x 17.6 cm) |
| Motorized Damper Dimensions (diameter x length) | 6 x 9 1/2 in (15.2 x 24 cm) |
| Power Supply | 120 V, AC, 60 Hz, 15 A, fused |
| Main Function | Make-up air: brings in outside air to balance hood exhaust |
| Activation | Motorized damper opens when hood is set to medium or high speed; closes at low speed or off |
| Included Parts | 6-inch round air flow switch duct, 6-inch motorized damper, Torx T10 adapter |
| Installation | Requires 6-inch diameter metal duct; must be performed by qualified technician according to local codes |
| Outside Air Intake Location | At least 10 ft (3.05 m) from gas appliance vents, chimneys, etc.; at least 1 ft (30.5 cm) above ground |

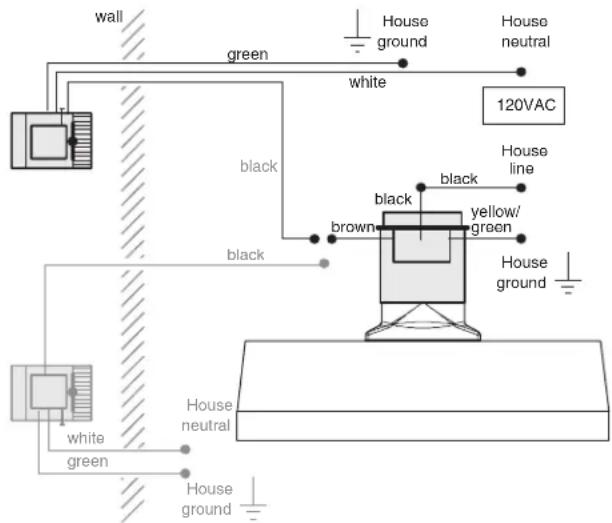

| Electrical Connection | Conductors: green (ground), brown (duct), black (line), white (neutral); use UL listed wire connectors |
| Regular Maintenance | Clean or replace filters; check that outdoor vent cap is not blocked (snow, leaves) |

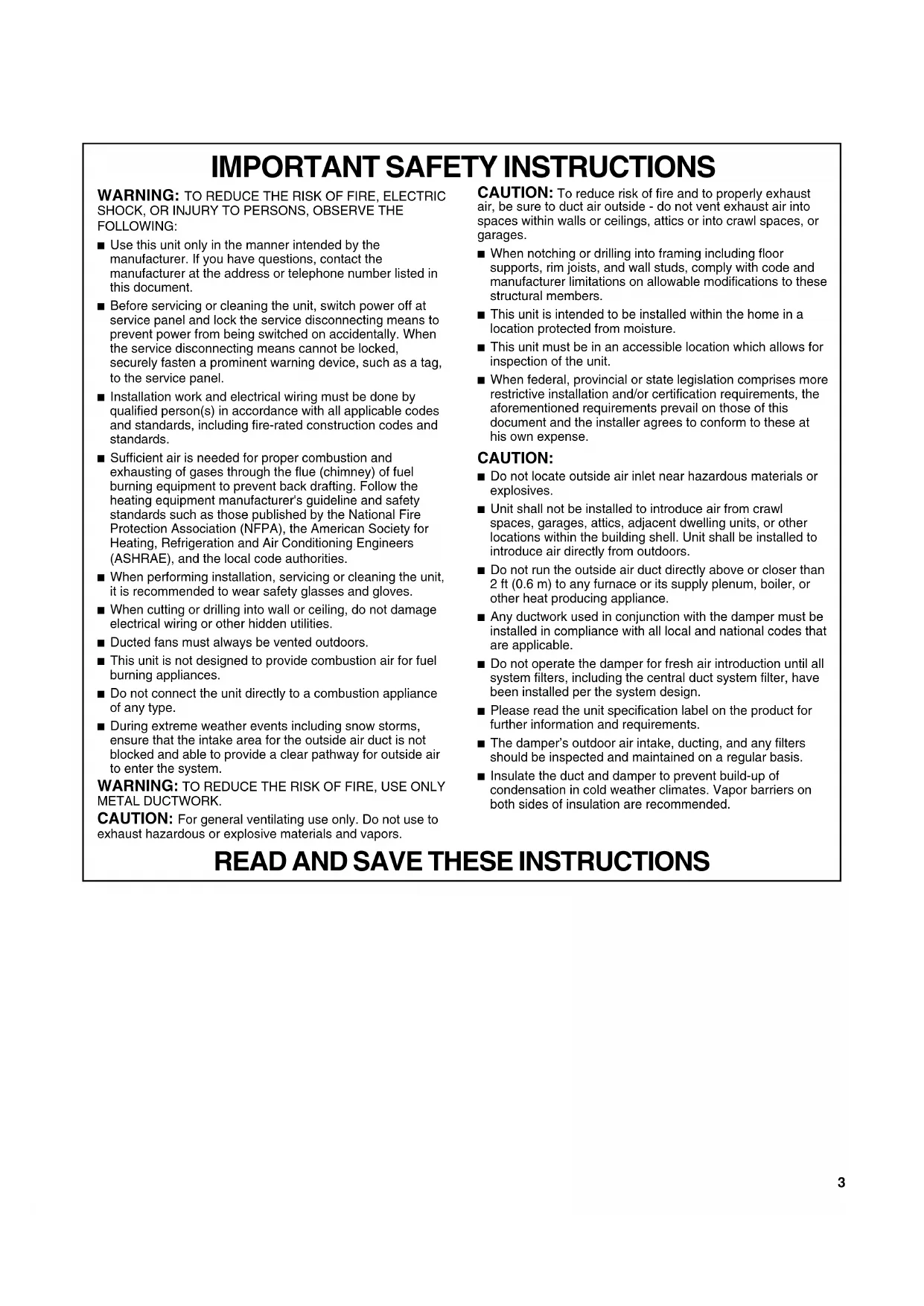

| Safety | Disconnect power at panel before servicing; wear gloves and safety glasses |
| Warranty | 1 year (parts only, labor not included) |
| Compliance | UL/CSA listed; complies with ANSI/NFPA 70 and CSA C22.1 electrical codes |
Frequently Asked Questions - W10446915 JENN-AIR
What is the duct diameter of the W10446915 kit?
The duct is 6 inches (15.2 cm) in diameter, round.
Is this make-up air kit compatible with all range hoods?
It is designed for vented range hoods and must match the size of the hood's transition collar. Check the dimensions in your hood's manual.
How to install the motorized damper?
The motorized damper connects to the outside air duct. It must be installed to draw air directly from outdoors, at a minimum height of 1 ft (30.5 cm) above ground and at least 10 ft (3.05 m) from gas appliance vents. Follow the installation diagrams in the manual.
What are the required electrical specifications?
The unit requires a power supply of 120 V, AC, 60 Hz, 15 A on a fused circuit. Use a UL listed 1/2 in (12.7 mm) wire connector.
How to test operation after installation?
Set the hood to medium or high speed: the motorized damper must open. On low speed or off, it must close. Have gas appliance venting checked by a specialist.
What tools are needed for installation?
Drill, 1 1/4 in (3 cm) drill bit, Phillips and flat-blade screwdrivers, pliers, tin snips, caulking gun, tape measure, etc. See the complete list in the manual.
When should the filters be replaced?
Filters should be cleaned or replaced regularly depending on usage frequency to ensure good air quality. Inspect them during routine maintenance.
What to do if the motorized damper malfunctions?
First check the power supply and connections. If the problem persists, contact a qualified technician or Whirlpool customer service at 1-800-807-6777 (Canada).
Can I install this kit myself?
Installation must be performed by a qualified technician following building and safety codes. Incorrect installation can cause fire or electric shock hazards.
Where to find replacement parts?
Use only factory specified parts. Contact Whirlpool customer service at 1-800-807-6777 (Canada) or 1-800-253-1301 (United States) to order parts or find an authorized service center.
