USER MANUAL SKSIT3601G LG

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

SKSIT3601G

TABLE OF CONTENTS

3 IMPORTANT SAFETY INSTRUCTIONS

9 INTRODUCTION TO INDUCTION COOKING

9 Induction Cookware

13 PARTS AND FEATURES

13 Parts and Features of the Cooktop

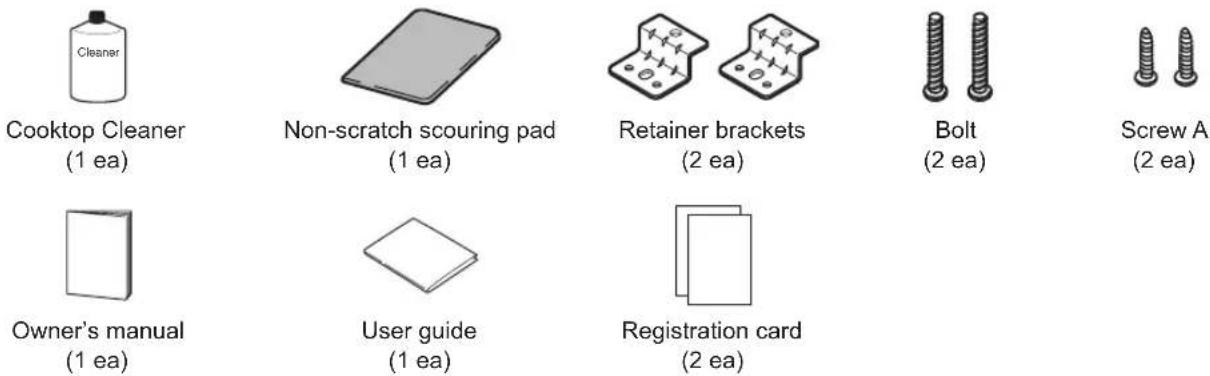

13 Accessories
14 Touch Control Features

15 OPERATING INSTRUCTIONS

15 First Operation

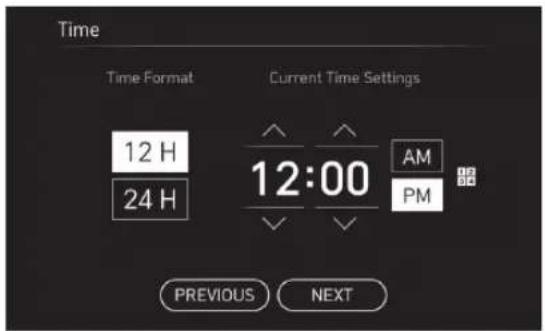

15 Getting Started

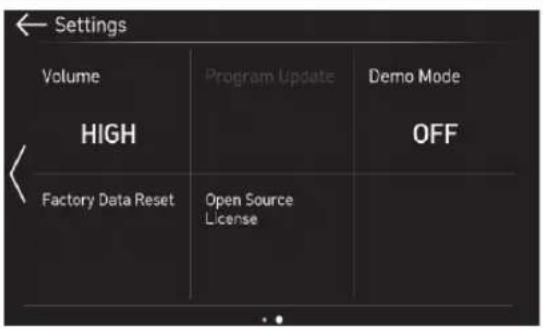

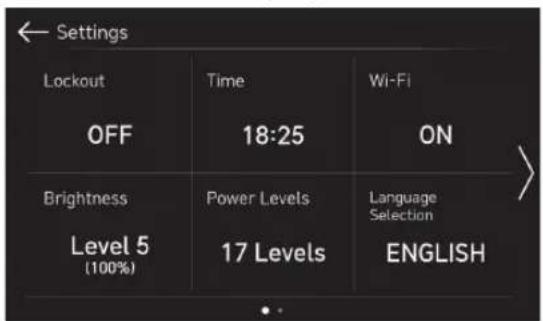

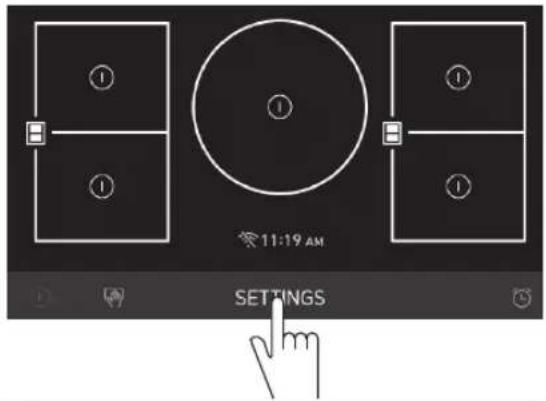

15 Changing Cooktop Settings
17 Before Using the Cooktop
18 Activating the Cooktop
20 Tips for Induction Cooking
22 Using the Cook Modes

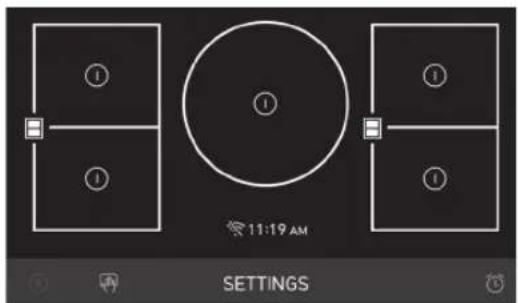

23 Using the Flexible Cooking Zone

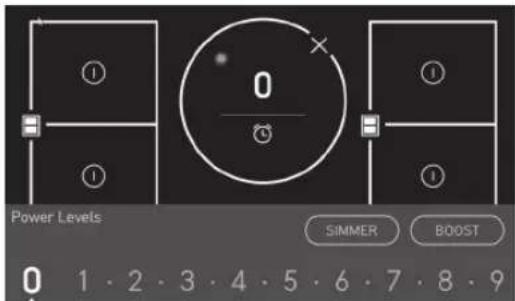

23 Using the Dual Cooking Zone
24 Other Functions

27 SMART FUNCTIONS

27 SIGNATURE KITCHEN SUITE Application
28 FCC Notice
28 FCC RF Radiation Exposure Statement
29 Industry Canada Statement
29 IC Radiation Exposure Statement

30 CARE AND CLEANING

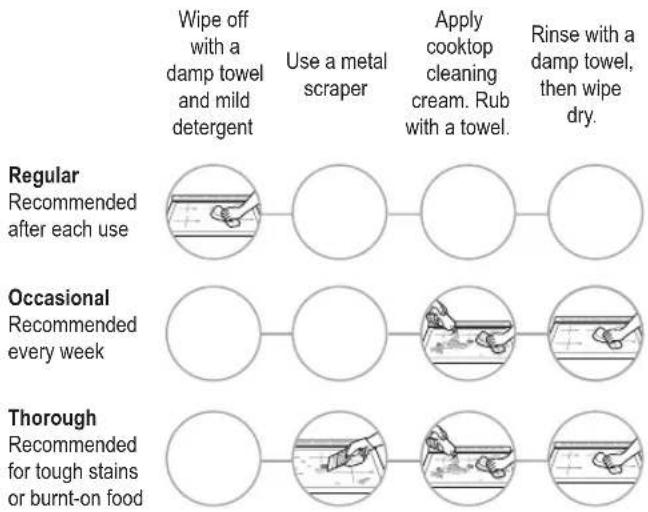

30 Cleaning the Cooktop

32 INSTALLATION INSTRUCTIONS

32 Before You Begin
32 Unpacking the Cooktop
33 Technical Specifications

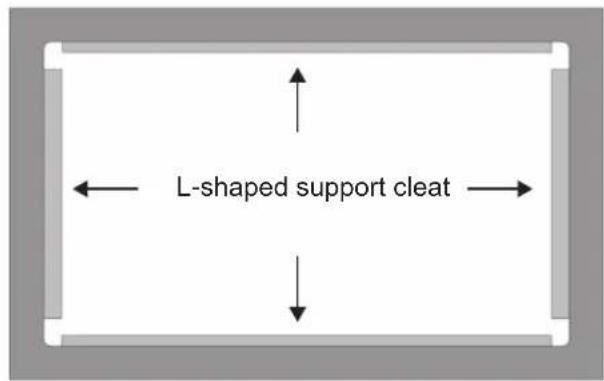

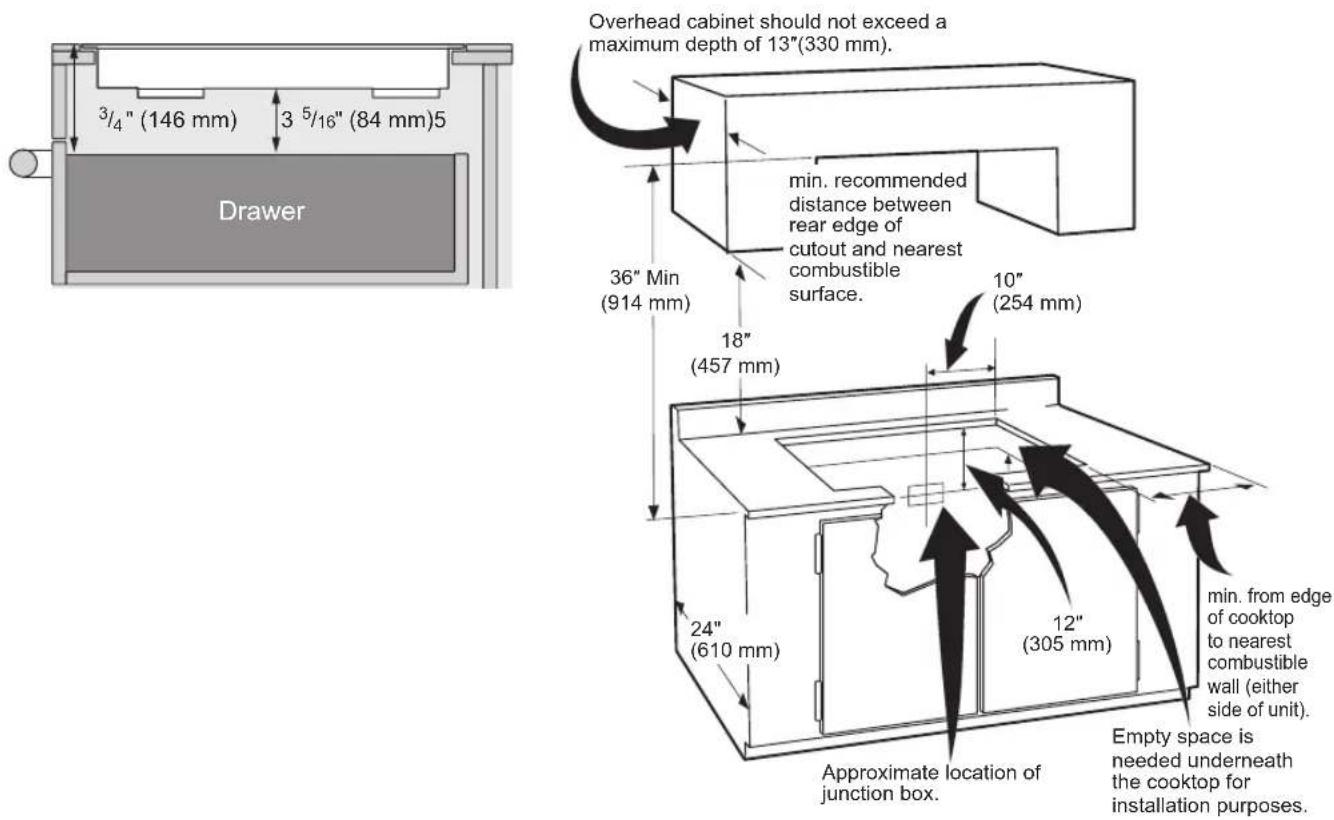

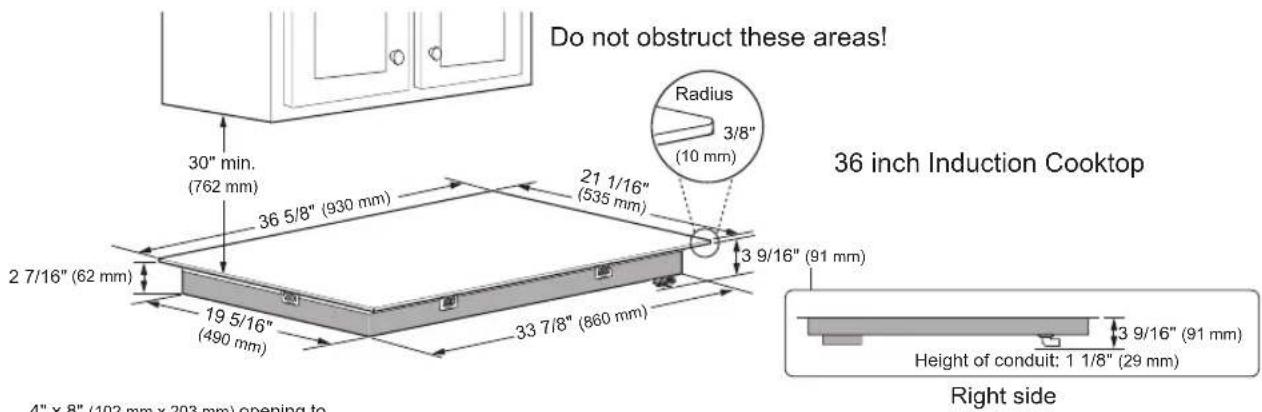

34 Preparing the Installation Location

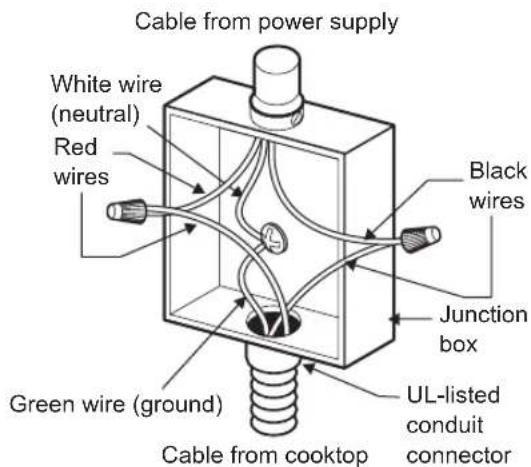

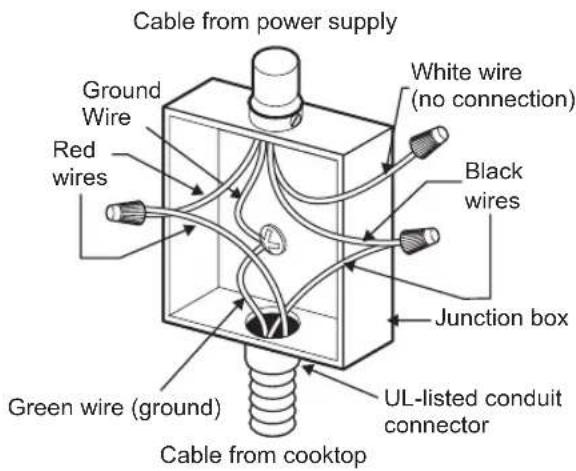

37 Electrical Connections

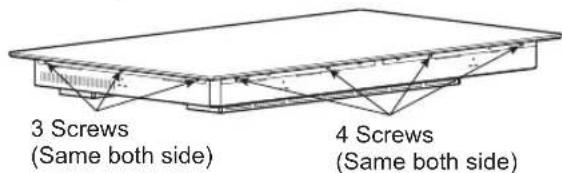

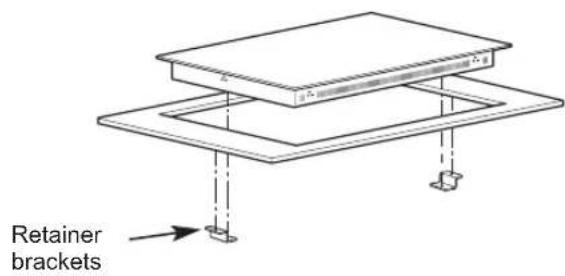

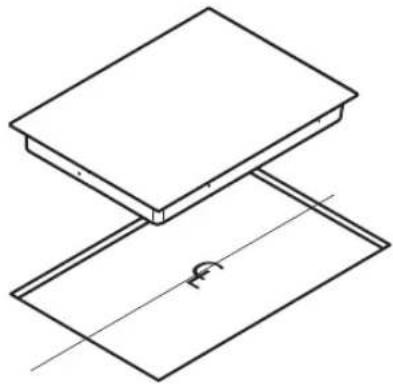

39 Cooktop Installation
39 Final Check

40 TROUBLESHOOTING

40 Before Calling for Service

42 LIMITED WARRANTY

42 USA

45 LIMITED WARRANTY

45 CANADA

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions when using the range to prevent the risk of fire, electric shock, personal injury, or damage. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

Download this owner's manual at: www.signaturekitchensuite.com

This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage and/or serious bodily harm or death.

All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION. These words mean:

WARNING - Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION - Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

WARNING

- For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock, or to prevent property damage, personal injury, or death.

SAFETY PRECAUTIONS

• Proper Installation: Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the National Electrical Code ANSI/NFPA No. 70, latest edition in the United States, and all local code requirements. Install only per installation instructions.
• The safety aspects of this appliance comply with accepted technical standards.
• Know how to disconnect the electrical power to the appliance at the circuit breaker or fuse box in case of an emergency. Mark the breaker or fuse for ease of identification and swift action if necessary.
• Do not repair or replace any part of the appliance. All servicing should be done only by a qualified technician to avoid the risk of personal injury and damage to the appliance.
• Never modify or alter the construction of an appliance such as removal of panels, wire covers or any other permanent part of the product.

WARNING

- Never use your appliance for warming or heating a room.

WARNING

- Persons with a pacemaker or similar medical device should exercise caution using or standing near an induction unit while it is in operation, as the electromagnetic field may affect the working of the pacemaker or similar medical device. It would be advisable to consult your doctor or the pacemaker or medical device manufacturer about your particular situation.

CAUTION

• DO NOT touch cooking zones or areas near these surfaces. Cooking zones may be hot from residual heat even though they are dark in color. Areas near the cooking zones may become hot enough to cause burns. During and after use, do not touch or let clothing or other flammable materials touch these areas until they have had sufficient time to cool.
• Never wear loose fitting or hanging garments while using this appliance.
  • Take care to avoid steam burns if using a wet sponge or cloth to wipe spills on a hot cooking area.
• Wait for cooktop to cool before using cooktopcleaners. Some cleaners can produce NOXIOUS FUMES if applied to a hot surface.

• Always turn off all controls when cooking is completed.
- Do not use water or flour on grease fires. Smother the fire with a pan lid, or use baking soda, a dry chemical or foam-type extinguisher.
- Use only dry pot holders. Moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot surface units. Do not use a towel or other bulky cloth instead of a pot holder.
- Do not heat unopened food containers. A buildup of pressure may cause the container to burst and result in injury.

FLAMMABLE MATERIAL

• Remove all tape and packaging wrap before using the appliance. Destroy the carton and plastic bags after unpacking the appliance.
  Never allow children to play with packaging material.

- Storage on appliance: Flammable materials should not be stored near or on the cooking surface. This includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance. Flammable materials may explode and result in fire or property damage.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

- Never place combustible items on the cooktop.

- Never keep any combustible items or aerosol cans in a drawer located under the cooktop.

DEEP FAT FRYER

- When heating fat or grease, watch it closely. Fat or grease may catch fire if allowed to become too hot.

• Overheated fats and oils catch fire quickly. You should supervise cooking when preparing foods in fat or oil.

- Use a deep fat thermometer, if possible, to prevent overheating fat beyond the smoking point.

ELECTRICAL SAFETY

WARNING

• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. Do not reuse your COOKTOP until the glass surface has been changed.
• When using the COOKTOP, never use aluminum foil, products wrapped in aluminum foil, or deep-frozen food in aluminum cookware.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• The installation and connection of the new appliance must only be carried out by qualified personnel.

• Flush-mounted appliances may only be operated following installation in suitable cabinets and workplaces which conform to the relevant standards. This ensures sufficient protection against electric shock as required by certification agencies.
• If your appliance malfunctions or fractures, switch off all cooking zones, and contact the Signature Kitchen Suite Customer Information Center for service.

CHILD SAFETY

WARNING

• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.
• Young children should be supervised to ensure that they do not play with the appliance.
• Accessible parts may become hot during use. Young children should be kept away.

CAUTION

• Items of interest to children should not be stored in cabinets above a cooktop or on the backsplash of a cooktop – children climbing on the cooktop to reach items could be seriously injured.
• Do not leave children alone. Children should not be left alone or unattended in the area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

SAFETY DURING USE

• This appliance may only be used for normal cooking and frying in the home. It is not designed for commercial or industrial purposes.
  • Take care when plugging in electric appliances near the cooktop. Cords must not come into contact with the hot surface. This could cause damage to the cooktop and cable insulation.
  • After use, switch off the hob element by its control and do not rely on the pan detector.
  • Always keep the control display panel clean and dry.
  Do not let liquids or grease remain on the cooktop display area. Spilled or burnt-on foods can activate or deactivate the appliance. Clean the display area thoroughly to resume normal operation of the appliance.

• Avoid placing metal cooking utensils on the cooking surface areas. Metal objects can become hot and cause burns.

• Clean the appliance regularly to keep all parts free of grease that could catch fire. Exhaust fan ventilation hoods and grease filters should be kept clean. Do not allow grease to accumulate on hood or filter. Greasy deposits in the fan could catch fire. Refer to hood manufacturer's instructions for cleaning.

• Use Proper Pan Sizes. This appliance is equipped with one or more surface units of different size.
• Select utensils having flat bottoms large enough to cover the cooking zones. The pan detection sensors will not allow the affected cooking zones to operate without a pan present.
• Do not place any object on or near the display area in order to prevent accidental activation of the cooktop controls.
• Cookware handles should be turned inward and not extend over adjacent surface units. To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the cookware, the handles of cookware should be positioned so that they are turned inward, and do not extend over adjacent surface units.
• Never leave prepared food on the cooking zones. Boilovers cause smoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt or become damaged.
• Protective liners: Do not use aluminum foil to line any part of the cooktop. Only use aluminum foil as recommended after the cooking process, if used as a cover to be placed over the food. Any other use of aluminum foil may result in the risk of electric shock, fire or short circuit.
• Glazed cookware: Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed cookware are suitable for rangetop service without breaking due to the sudden change in temperature. Check the manufacturer's recommendations for cooktop use.
• Do not clean or operate a broken cooktop. If cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately.
• Do not place hot cookware on cold cooktop glass. This could cause glass to break.
• Do not slide pans across the cooktop surface. They may scratch the cooktop surface.
• Do not let pans boil dry. This may cause permanent damage in the form of breakage, fusion, or marking that can affect the ceramic-glass cooktop. (This type of damage is not covered by your warranty.)
• Never leave surface units unattended at high heat settings. Boilover causes smoking and greasy spillovers that may ignite.
  • Always turn off all controls when cooking is completed.

NOTE

Keep pets away from the product to avoid risk of fire or burns. Do not allow pets to climb on the product even when it is not in operation.

- Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling, due to surface tension of the liquid. Visible bubbling or boiling is not always present when the container is removed from the cooktop. This could result in very hot liquids suddenly boiling over when the container is disturbed or a spoon or other utensil is inserted into the liquid.

To reduce the risk of injury to persons.

• Do not overheat the liquid.
• Stir the liquid both before and halfway through heating it.
• Do not use straight-sided containers with narrow necks.
• After heating, allow the container to stand on the cooktop for a short time before moving the container.
• Use extreme care when inserting a spoon or other utensil into the container after heating.

SAFETY WHEN CLEANING

• Always switch off the appliance before cleaning.
- For safety reasons, do not clean the appliance with a steam jet or high-pressure cleaner.
- Clean the cooktop in accordance with the maintenance and cleaning instructions in this manual.
- Do not use harsh abrasive cleaners or rough metal scrapers to clean the cooktop glass since they can scratch the surface, which may result in shattering of the glass.
- Clean cooktop cautiously. Do not use sponges or cloth to wipe spills on a hot cooking area. Use a proper metal scraper.

COOK MEAT AND POULTRY THOROUGHLY

- Cook meat and poultry thoroughly-meat to at least an INTERNAL temperature of 160°F and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against food-borne illnesses.

HOW TO AVOID DAMAGE TO THE APPLIANCE

- Prior to using the cooktop for the first time, apply the recommended cooktop cleaning cream to the ceramic surface. Buff with a non-abrasive cloth or pad. This will make cleaning easier when soiled from cooking.

The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.

• Do not use the cooktop as a worksurface or storage space.
• Please be careful at the edges when moving pots and pans.
• Do not operate the cooking zones with empty pots or pans.
• Do not turn on the cooking zones with no pots or pans on the element.
• Ceramic glass is very tough, and impervious to sharp temperature changes but is not unbreakable. It can be damaged if hard or sharp objects fall on it.
• Be very cautious if using pots made of cast iron, or other pots with rough edges or burrs. Moving these can cause scratches on glass.
• If sugar or a mixture containing sugar falls onto a hot cooking zone and melts, remove immediately, while still hot. If left to cool down, it may damage the surface when removed.
• Do not slide metal or glass across the cooktop surface.
• Keep meltable objects or materials away from the ceramic glass surface, for example, plastic utensils, aluminum foil, or cooking wraps.

If any materials or foodstuffs melt on the ceramic-glass surface, these should be cleaned up immediately.

NOTE

There is a risk of burning yourself when the glass scraper is used on a hot cooking zone!

• Do not use cookware with any dirt buildup on the bottom.
• Do not use cookware with rough or uneven bottoms. This cookware can mark and scratch the cooktop surface.
• Refer to the owner's manual for proper cleaning and maintenance of the cooktop.
• Do not use the glass cooktop surface as a cutting board.

DISPOSAL OF OLD APPLIANCES

To protect the environment, it is important that worn-out appliances are disposed of in the correct manner.

• The appliance must not be disposed of with household rubbish.
• You can obtain information about collection dates or public refuse disposal sites from your local government offices or state environmental protection agency.

CAUTION

Before disposing of old appliances please make them inoperable so they cannot be a source of danger. To do this, have a qualified person disconnect the appliance from the house circuitry.

Read and follow this safety information carefully.

SAVE THESE INSTRUCTIONS

INTRODUCTION TO INDUCTION COOKING

How Induction Cooking Works

An induction coil beneath the ceramic glass cooking surface generates magnetic fields, which act directly on the base of the pots and pans.

Simple line drawing of a heating setup with a cylindrical tank on a base, connected to a power source and heating element (no text or symbols)

Instead of heating the ceramic glass, this method heats the base of the pan immediately, saving time and energy. Since the heat required for cooking is generated directly in the base of the pan, the cooking zone itself warms up only slightly. The cooktop does become hot when heat is transferred from the cookware.

IMPORTANT

• Electromagnetic fields can affect electronic circuits and interfere with portable radios and phones.
• Do not put magnetically active objects (e.g., credit cards, computer diskettes, cassettes) on or near the ceramic glass surface while one or more induction cooking zones are in use.
• Do not put any metal objects (e.g., spoons, pan lids) on the cooking zones as they can become hot when the cooking zones are in use.

Induction Cookware

NOTE

Before using the induction cooking elements, carefully read and follow these cookware recommendations and the instructions in the pan sensing sections.

When purchasing pans for use on the induction cooktop, look for cookware identified by the manufacturer as "induction ready" or "induction capable", or that is marked by the manufacturer as specifically designed for induction cooking.

The base material of the cookware must be magnetic for the cooking elements to activate. Use a magnet to check if the cookware base material is suitable. If the magnet sticks to the bottom of the cookware, the cookware can be used for induction cooking.

For the best possible surface cooking results, use only high-quality, heavy gauge steel cookware on the induction cooking elements. Follow manufacturer's recommendations when using induction cookware.

Induction Cookware Types

The three most common induction cookware types available are stainless steel, cast iron, and porcelain-enamel-coated metals.

- Stainless Steel is generally excellent for induction cooking. It is durable, easy to clean, and resists staining.

NOTE

Not all stainless steel cookware is magnetic; stainless steel is not always suitable for induction cooking.

• Cast iron cooks evenly and is also good for induction cooking. Do not slide cast iron cookware on the cooktop; cast iron cookware with a rough surface will scratch the ceramic cooktop.
• Porcelain-enamel-coated metals have variable heating characteristics depending on the quality of the base metal. Make sure the porcelain-enamel coating is smooth to avoid scratching the ceramic cooktop.

Incompatible Cookware

• Aluminum, nickel-silver pots
- Heat-resistant glass pots
- Roasting pans
- Stone pots
- Stainless steel pots (without the IH mark)
- Without the IH mark, heating may not work well.
- Pots with partially magnetic base

- Even if there is an IH mark, a container that only has magnetic material on part of the bottom of the container may not be automatically detected or the product may not work properly.

M M

Material that sticks to the magnet Material that does not stick to magnet

- A pot with legs

- A pot with a round bottom

- The smaller contact area may give poor results.

- Do not use a container with a flat bottom surface smaller than the burner size.

Pan Preheat Recommendations

Induction cooking may decrease the amount of time required to preheat cookware compared to cooking on a radiant element cooktop or gas surface burner.

Pay close attention to all food items while cooking on the cooktop and until all cooking processes are complete.

CAUTION

Remember that induction surface cooking initially heats the cookware VERY QUICKLY if the cookware does not contain food.

Noises during Cooktop Operation

The electronic processes involved with induction cooking may create some background noises. You may hear a slight buzzing sound when cooking on the cooktop. These noises are part of the induction cooking process and are considered normal.

Some cookware will buzz, depending on the construction or base material. The buzz may be more noticeable if the contents of the pan are cold. As the pan heats up, the noise will decrease. The noise will also decrease if the power level setting is reduced.

NOTE

• When using the induction cooktop, operational noises are more noticeable while cooking in Boost mode. But very loud noises are not normal when induction cooking.
• The cooktop fan may turn on to reduce the temperature of the product, even when the surface elements are not being used.
• Cookware that is not marked "IH" may make a loud noise.
• Under certain conditions, your cookware may produce a high-pitched whistling noise when two elements are in use at the same time. The power levels at which this occurs may vary depending on the kind of cookware being used. Change the power level to eliminate the noise or reduce its volume.

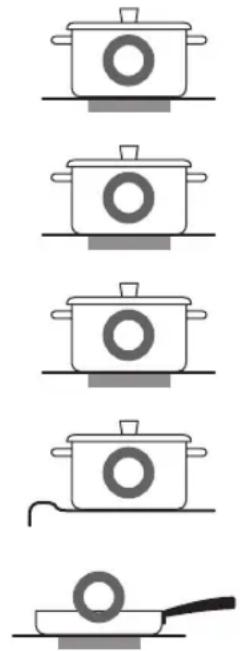

Use Flat-Bottomed Cookware

Cookware must fully contact the surface of the cooking element. Use flat-bottomed pans sized to fit the cooking element and amount of food being prepared. Check for flatness by rotating a ruler across the bottom of the cookware.

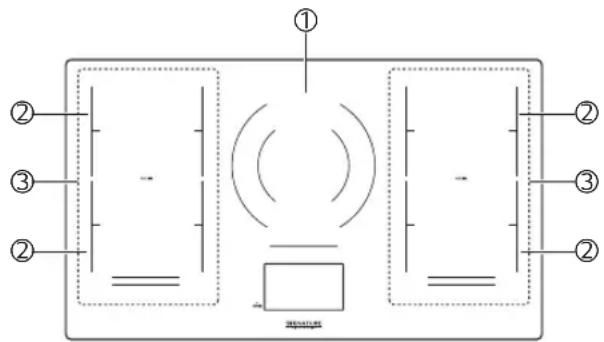

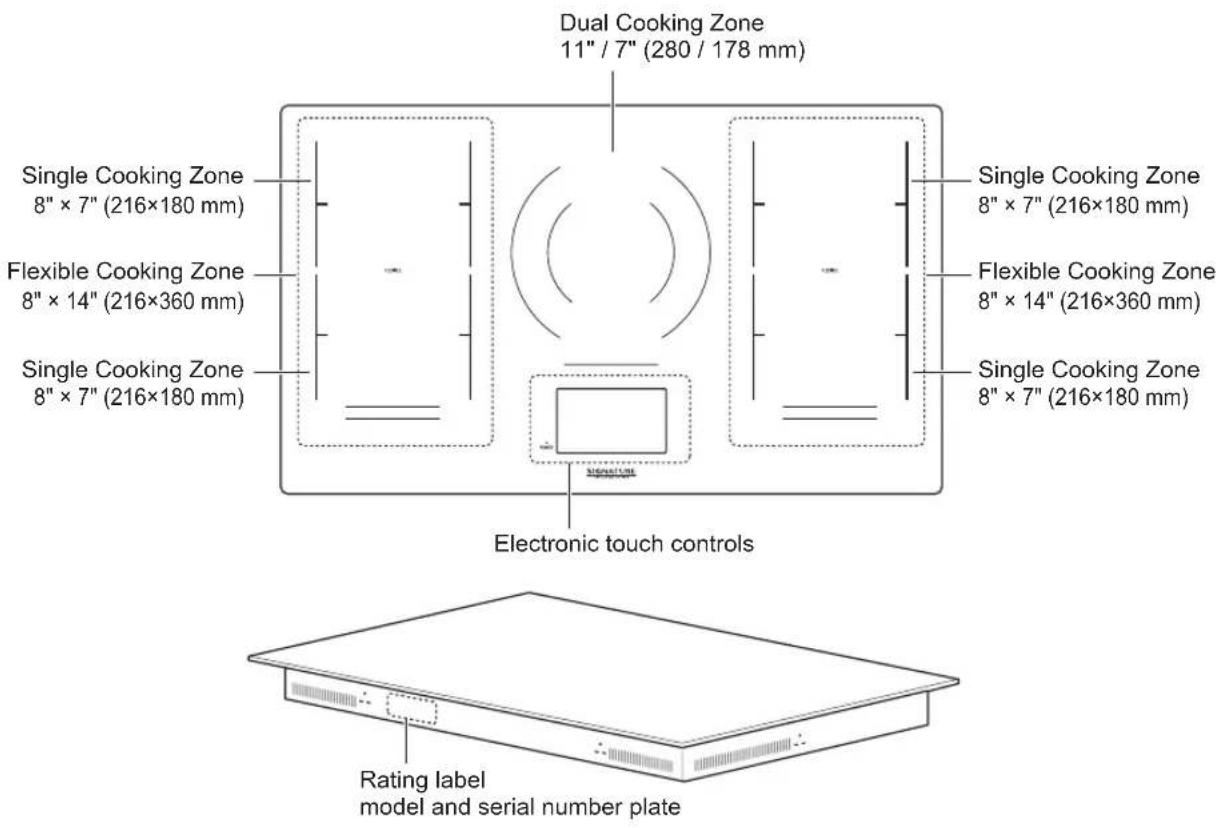

Recommended Cookware Size

Diagram of a speaker setup with labeled components and sound wave indicators

	Pan Size
1 Dual cooking zone	Single: 5.5" - 8.0" (140 mm - 203 mm)Dual: 9.0" - 11.0" (228 mm - 280 mm)
2 Single cooking zone	5.5" - 7.1"(140 mm - 180 mm)
3 Flexible cooking zone	4.7" x 10.6"(120 mm x 270 mm)

• The Center area is a Dual Cooking Zone which activates single or dual elements depending on pot/pan size. If the cooktop detects cookware that is less than 9" in diameter, only the inner ring (single element) will activate. If it detects cookware larger than 9" in diameter, it will activate both the inner and outer rings (dual element)
• To quickly boil a very large quantity of water, set the center element to Boost, use a pot that is at least 9" in diameter so that the center dual element is activated, and turn off all other elements.

Minimum Cookware Size

• Use cookware with a bottom surface diameter of 5.5" (140 mm) or greater.
• For Flexible Cooking Zone, minimum cookware size is 4.7" x 10.6" (120 mm x 270 mm)

Cookware Placement

Use the proper cookware and place it correctly on the cooktop. One or more of the cooking elements will not heat if any of the incorrect conditions shown is detected by the sensors located below the ceramic cooktop surface. Correct the problem before attempting to use the cooktop.

Correct

• Cookware is centered correctly on surface of cooking element.
- Pan has flat bottom and straight sides.
- Pan size meets or exceeds the recommended minimum size for the cooking element.
- Pan rests completely on the cooktop surface.
- Pan is properly balanced.

Incorrect

• Cookware is not centered on surface of cooking element.
- Pan has curved or warped bottom or sides.
- Pan does not meet the minimum size required for the cooking element used.
- Pan bottom rests on cooktop trim or does not rest completely on the cooktop surface.
- Pan is unbalanced by heavy handle.

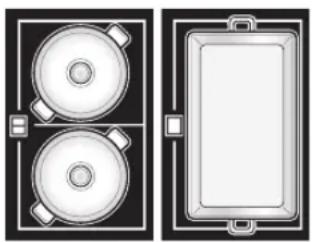

Cookware placement in Flexible Cooking Zones

Top-down architectural diagram showing two circular components mounted on a black square base, with a rectangular frame and small square markers (no text or symbols)

Compatible

Two identical diagrams showing a circular object with handles, placed side by side on dark background (no text or symbols)

Not compatible

Avoiding Scratches

Use heavier gauge stainless steel cookware on your ceramic cooktop surface. This will help reduce the possibility of developing scratches on the ceramic surface.

Low-quality cookware can scratch the cooktop surface.

Cookware should always be lifted over the ceramic cooktop surface to prevent scratching.

Over time, sliding ANY type of cookware over the ceramic cooktop may alter the overall appearance of the cooktop. Eventually, the buildup of scratches can make cleaning the surface difficult and degrade the overall appearance of the cooktop.

Scratches can also result from grains of sand (e.g., after washing vegetables) which are dragged with the pot across the cooking surface.

Diagram showing a hand holding a magnifying glass over a circular object, with directional arrows and a cross symbol indicating action or measurement.

For Best Results:

Always follow the recommendations for proper cookware type and size. In addition:

• Do not use dirty pans with grease buildup. Always use pans that are easy to clean after cooking, and make sure that the bottoms of the pans are clean and dry.
• When cooking with large amounts of liquid, use large pots so that nothing can boil over.
• Do not let pans boil dry. This may cause permanent damage in the form of breakage, fusion, or marring that can affect the ceramic cooktop. (This type of damage is not covered by your warranty.)
• Match the pan size and cooking zone to the amount of food being prepared.

Tips for Saving Energy:

- Always position pots and pans before switching on the cooking zone.

Three cooking pots with X marks placed on different bases, one being cut with a knife (no text or symbols)

not aligned bottom not flat handle too heavy

• Dirty cooking zones and cookware use more electricity.
• Whenever possible, place lids firmly on pots and pans so that they are completely covered.

Illustration showing three cooking pots with different symbols: a pot with 'X' and a lid, a pot with 'O', and a pot with 'X'.

- The base of the pot should be the same size as the cooking zone.

Two cooking pots with symbols: one with a 'O' and the other with an 'X', likely indicating cooking or cooking process.

PARTS AND FEATURES

Parts and Features of the Cooktop

Throughout this manual, features and appearance may vary from your model.

Induction Cooktop

Dual Cooking Zone 11" / 7" (280 / 178 mm) Single Cooking Zone 8" × 7" (216×180 mm) Flexible Cooking Zone 8" × 14" (216×360 mm) Single Cooking Zone 8" × 7" (216×180 mm) Electronic touch controls Single Cooking Zone 8" × 7" (216×180 mm) Flexible Cooking Zone 8" × 14" (216×360 mm) Single Cooking Zone 8" × 7" (216×180 mm) Rating label model and serial number plate

CAUTION

Burn Hazard: The cooking zones may appear cool when turned ON and after they have been turned OFF.

Accessories

Included Accessories

Cleaner Cooktop Cleaner (1 ea) Non-scratch scouring pad (1 ea) Retainer brackets (2 ea) Bolt (2 ea) Screw A (2 ea) Owner's manual (1 ea) User guide (1 ea) Registration card (2 ea)

Touch Control Features

Locations of Surface Elements and Controls

The surface burner elements are positioned in the same locations on the cooktop and the control panel for ease of use.

6 11:19 AM POWER SETTINGS 1 2 3 4 5

1 Power

Touch and hold for 1 second to turn the entire cooktop ON. When it is ON, the cooktop is in standby mode until a cooking zone is activated.

② Pause

Sets the active cooking zone to minimum output. Touch to activate or deactivate.

③ Clean Lock

Touch to lock the touch screen before cleaning it.

4 Settings

Touch to adjust settings.

For a list of configurable settings, see "Operating Instructions".

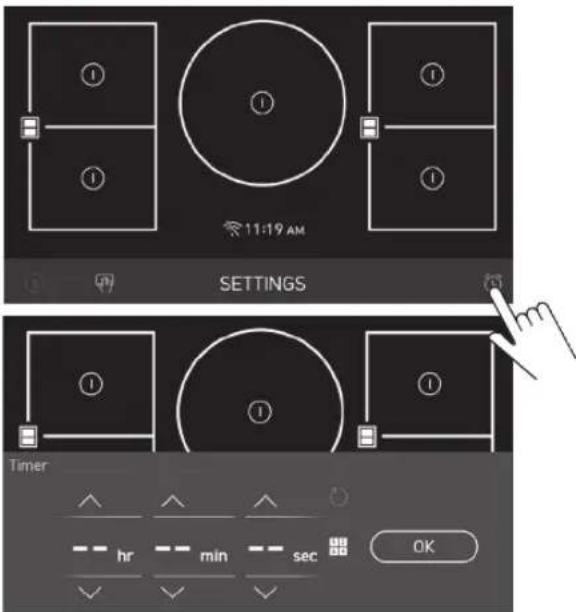

⑤ Kitchen Timer

Touch to set a kitchen timer.

For details, see "Operating Instructions".

⑥ Cooktop Control

To check the status of cooking zone and adjust the cooking zone.

For details, see "Operating Instructions".

To set the element power level

Select the number on the element power settings for the active cooking zone to adjust the power level from 1 to 9. If you've set 17 power levels in the Settings menu, touch the dots between the numbers to adjust the power level up or down half a step.

• It is displayed when the ceramic glass surface is hot, indicating caution.
• If it is displayed on the screen, be careful because the ceramic glass surface is hot.

- Failure to do so may result in burns or injuries.

• After turning off the burner, it is displayed continuously until the ceramic glass surface cools down.

- If the temperature near the product is high, it may take longer for the ceramic glass surface to cool down.

• Even after the indicator light has turned off, be careful since the surface may still be hot.

OPERATING INSTRUCTIONS

To operate the touch control pads, touch the pad firmly with the flat part of your fingertip.

First Operation

The first time that power is supplied to the cooktop, the Signature Kitchen Suite logo is displayed for 1 second.

Getting Started

After turning on the cooktop for the first time, adjust the settings to suit your preferences.

1 Touch POWER on the LCD display.

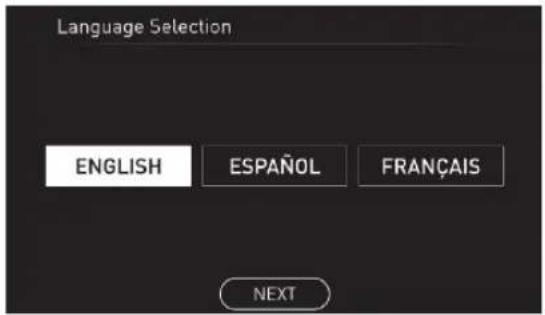

2 After the startup animation, select the desired language and touch NEXT.

Language Selection ENGLISH ESPAÑOL FRANÇAIS NEXT

3 Set the correct time of day and choose between a 12-hour or 24-hour time format, then touch NEXT.

Time Time Format Current Time Settings 12 H 24 H 12:00 AM PM 暗 PREVIOUS NEXT

4 Read through the application guide in the display and touch DONE.

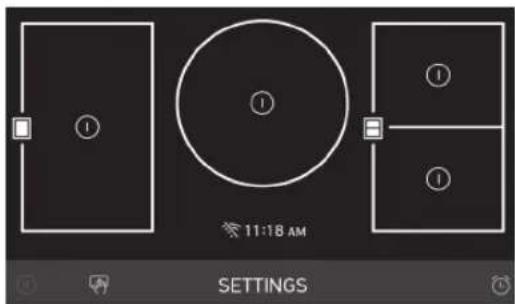

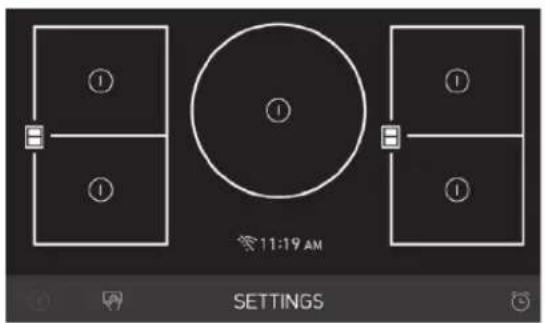

5 The Main screen appears in the display.

① ① ① 11:19 AM SETTINGS

Changing Cooktop Settings Settings

To adjust settings after the initial setup, touch the display to open the Main screen. Touch Settings at the bottom center of the Main screen. Swipe the screen or touch the "<, >" arrow keys to navigate through the Settings screens.

11:19 AM SETTINGS

Settings Lockout OFF Time 18:25 Wi-Fi ON Brightness Level 5 (100%) Power Levels 17 Levels Language Selection ENGLISH

Settings Volume Program Update Demo Mode HIGH OFF Factory Data Reset Open Source License

Location of Settings

• Page 1: Lockout, Time, Wi-Fi, Brightness, Power Levels, Language Selection
• Page 2: Volume, Program Update, Demo Mode, Factory Data Reset, Open Source License

Lockout

The Lockout feature automatically prevents most cooktop controls from being turned on. It does not disable the clock or timer.

- If Lockout is turned on, all cooktop functions are disabled except the POWER button.

Lock

1 Touch Settings at the center bottom of the Main screen.
2 Touch Lockout on the first Settings screen.
3 Touch LOCK on the screen.
4 When Lockout is turned on, the lock icon 📋 appears at the center bottom of the display.

Unlock

1 Touch any part of screen while Lockout is on.
2 A popup screen appears. Touch Unlock for 3 seconds.
3 The lock icon disappears from the bottom of the display.

Time

The time is displayed on the LCD display when the cooktop is turned on.

Setting Time of Day

1 Touch Settings at the center bottom of the Main screen.
2 Touch Time, then set the correct hour and minutes by scrolling. You can also touch the number pad icon and enter the desired numbers.
3 Select either a 12-hour or 24-hour clock mode (12H/24H).
4 Touch OK.

Wi-Fi

Connect the appliance to a home Wi-Fi network.

Setting Up Wi-Fi

1 Touch Settings at the center bottom of the Main screen, and then touch Wi-Fi in the first Settings screen.
2 Follow the instructions in the Wi-Fi Guide in the display.
3 Select ON, OFF, or RESET and touch OK.
4 If ON is selected, the Wi-Fi icon 📤 appears at the bottom of the display.
5 If you select RESET, you will have to re-enter the Wi-Fi password.

Brightness

Adjust the brightness of the LCD display from 20 % to 100 % in increments of 20 %.

Setting Display Brightness

1 Touch Settings at the center bottom of the Main screen, and touch Brightness.
2 Adjust the display brightness by touching and dragging the dot across the bar, by tapping anywhere on the bar, or by touching + or -.
3 Touch OK.

Level 2 (40%)

Power Levels

1 Touch Settings at the center bottom of the Main screen, and touch Power Levels.
2 Choose between 17 levels and 9 levels. (the output of each maximum level is the same)
3 Touch OK.

Language Selection

Set the display language to English, Spanish, or French.

Selecting a Language

1 Touch Settings at the center bottom of the Main screen, and touch Language Selection.
2 Select the desired language.
3 Touch OK.

Volume

Adjust the volume of the cooktop controls.

Setting the Volume

1 Touch Settings at the center bottom of the Main screen, swipe to the second Settings screen, and touch Volume.
2 Select Mute, Low, or High.
3 Touch OK.

Program Update

Once the appliance is connected to a home Wi-Fi network, use this setting to check for available programming updates and install them.

1 Touch Settings at the center bottom of the Main screen, swipe to the second Settings screen, and touch Program Update.
2 The display shows available programming updates. Touch UPDATE to download and install the new version.

Demo Mode

The Demo Mode is for showroom use only. It prevents the cooking zones from heating up.

1 Touch Settings at the center bottom of the Main screen, swipe to the second Settings screen, then touch Demo Mode on the Settings screen.
2 Select either ON or OFF.

3 Touch OK.

DEMO 06:21

NOTE

• When Demo Mode is on, the appliance will not heat up.
• The cooktop Demo Mode icon appears in the display if the Demo Mode is on.

Factory Data Reset

This function returns all settings to the factory defaults.

1 Touch Settings at the center bottom of the Main screen, swipe to the second Settings screen, and touch Factory Data Reset.
2 If you want to reset data to the factory defaults, touch RESET and then OK.

NOTE

- All stored data will be deleted.

Open Source License

This screen contains open source software licensing information.

1 Touch Settings at the center bottom of the Main screen and swipe to the second Settings screen.
2 Touch Open Source License.

Before Using the Cooktop

Before using the cooktop for the first time, clean it thoroughly with the included cleaner or ceramic cooktop cleaner according to the Care and Cleaning instructions in this guide. This will help protect the ceramic surface and make future cleanup easier.

CAUTION

Never use abrasive scrubbing pads or cleaners. They can cause permanent damage to the cooktop surface.

Activating the Cooktop

To turn ON the cooktop, touch the POWER key for approximately 1 second. The LCD panel will turn on.

To turn OFF the cooktop, touch the POWER key.

NOTE

After turning on the cooktop with the POWER key, you must select one of the cooking zones within 60 seconds. If no selection is made, the cooktop will turn off for safety.

Automatic Detection

• The automatic detection is the function that checks whether or not a container is placed on top of the burner.

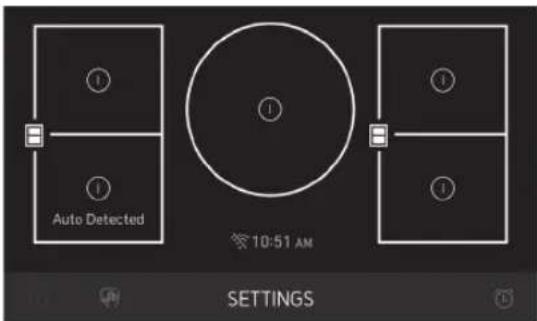

• When a container is placed on the burner, the words "Auto Detected" will be displayed. (The words "Auto Detected" will disappear after 30 seconds or when the burner is running.)
• The words "Auto Detected" will not be displayed if a container is not placed on the burner, and this function is activated initially only once after the power is turned on.
• Depending on the conditions of use (whether the burner is being used, the container material, status of the container base, etc.), the automatic detection time may differ or the cookware may not be detected automatically.

Auto Detected 10:51 AM SETTINGS

NOTE

• If the cookware is too small, the words "Auto Detected" may not be displayed.
  • Minimum Cookware Size
• Use cookware with a bottom surface diameter of 5.5" (140 mm) or greater.
• For Flexible Cooking Zone, minimum cookware size is 4.7" x 10.6" (120 mm x 270 mm)

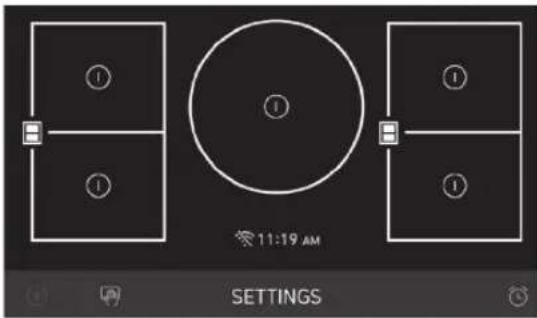

Selecting the Cooking Zone

Place an induction-compatible pan on top of the desired cooking zone.

11:19 AM SETTINGS

Touch the 📷 on in the desired cooking zone to set the power level.

Once the cooking zone has been selected the power level must be selected within 3 seconds with the element power settings. Otherwise, the power settings will turn off for safety.

Setting the Power Level

The power level for the selected cooking zone can be set from 1 to 9.

Selecting the Power Level

1 Touch a number in the Power Level popup to set the power level from 1 to 9. If you've set 17 power levels in the Settings menu, touch the dots between the numbers to adjust the power level up or down half a step.

11:19 AM SETTINGS

Power Levels 0 1·2·3·4·5·6·7·8·9 A B

2 Selecting a power level turns on the cooking zone. The cooking zone indicator remains lit and the power level is stored.

5.0 11:29 AM SETTINGS

8.5 11:14 AM SETTINGS

Figure BFigure A

NOTE

If power level is not selected, the power settings will turn off after 3 seconds.

Readjusting the Power Level

1 Touch the desired cooking zone to bring up the Power Level popup.

5.0 Power Levels 1 5 6 7 8 9 SUMMER BOOST

4.0 11:15 AM SETTINGS

Readjusting power level 5 to 4

2 Touch the desired level in the Power Level popup. If no selection is made, the Power Level popup disappears after 3 seconds and the power level remains the same.

NOTE

Once the power level is changed, the burner operation is temporarily stopped and then restarted at the changed power level.

Power Level Indicator

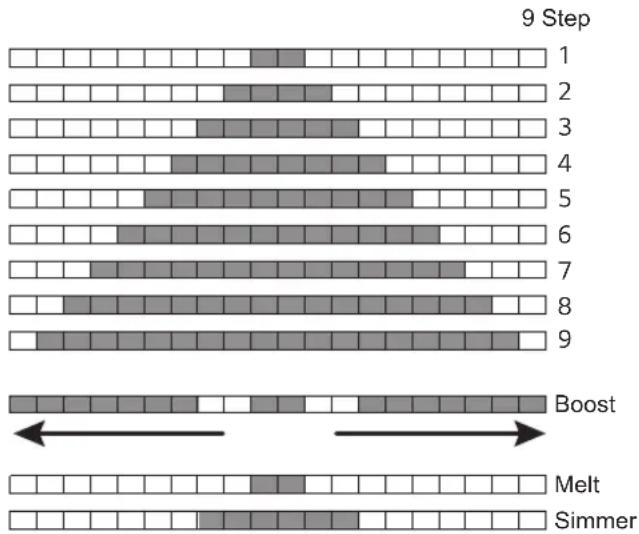

- Cooking Element LED Bar

The range provides an LED bar for each cooking element on the cooktop.

Check the display and use the LEDs to monitor the power levels of the elements.

• Available Power Level Settings

The cooktop control's LED bar displays the element's power level settings, ranging from Level 1 to Level 9 to Boost.

Turning OFF the Cooking Zone

1 After the cooking is complete, touch the x icon to turn off the cooking zone.

5.0

2 The corresponding cooking zone display will turn off.
3 To turn off all cooking zones, touch the POWER key.

WARNING

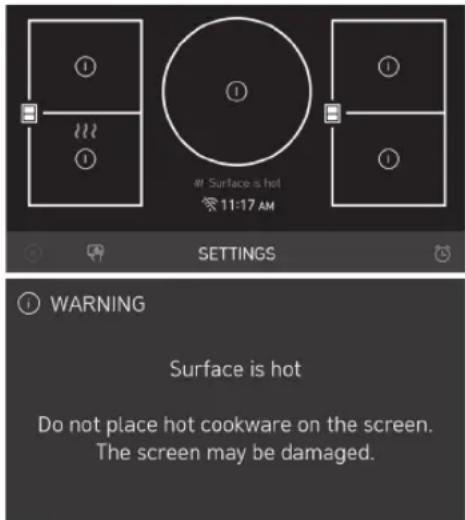

Your cooktop has a residual heat indicator for each cooking zone. This indicator will warn that this area has been used and is still giving off enough heat to cause burns. Avoid touching the cooking zone when this indicator is shown. Although the cooktop is OFF, the popup message will stay lit until the cooktop has cooled down.

Surface is hot 11:17 AM SETTINGS WARNING Surface is hot Do not place hot cookware on the screen. The screen may be damaged.

NOTE

If the following pop-up screen appears during operation, check the following.

• The cookware is not centered within the cooking zone.
• The cookware is not compatible with induction cooking.
• There is no cookware on the cooking zone.

Please confirm whether an appropriate container is placed on the cooktop.

Tips for Induction Cooking

Getting the results you want when cooking can take a bit of time and effort. If you are not familiar with induction cooking, it may take a bit of practice or adjusting of your usual methods to achieve the expected results. Using the cooking chart and these cooking tips as a guide, you will soon be enjoying the benefits of induction cooking.

• The quantity or quality of some foods can affect their cooking times.
• When safe, allow food to come to room temperature before cooking to take advantage of induction's ability to heat food quickly.
• Cookware heats up very quickly when induction cooking. Check food or liquids occasionally and stir or reduce heat to avoid scorching, overcooking, splattering, or boilovers.

- Sauces, soups, and stews may heat up more quickly than you are used to and boil over if not watched. For best results, stir frequently.

- Overcooked food loses moisture and tastes dry, while undercooked food can cause illness. For best results, use a thermometer to ensure that food is heated to a safe internal temperature.

- Use nonstick or seasoned pans when cooking to reduce the amount of additional fat added to a recipe.

- Don't overcrowd cookware. To avoid slow cooking times and poor results, use cookware that is appropriately sized for the amount of food you are cooking.

- When boiling water on the center element, an 11" diameter pot gives the best performance and saves the most time.

- Use the Boost setting to quickly boil water, or whenever you need extra heating power in one element.

- To quickly boil a very large quantity of water, set the center element to Boost, use a pot that is at least 9" in diameter so that the center dual element is activated, and turn off all other elements.

- To prevent damage to the product, if one of the right-side elements is turned on when the center dual element is using the Boost setting, the power setting of the center dual element is automatically reduced to power level 9. To maintain the Boost setting on the center dual element, use any of the left-side elements instead.

Boost Boost X X

Boost Boost

Boost Boost X

Cooking Function	Example Food Item Power Level Notes/Comments
Melting	Chocolate Over Direct Heat	1 or Melt	Stir continuously to prevent scorching.If using a double boiler to melt chocolate, use power level 2.
	Butter 2 Monitor carefully to prevent poor results.
Reheating	Soups & Stews 3-4		Monitor carefully and stir frequently to achieve desired results.
Sweating Vegetables	OnionsCarrotsCeleryPeppers	5-6	To sweat vegetables, cook them until they release moisture, without browning.
Simmering	Tomato SauceCheese Sauce	Simmer	Monitor carefully to prevent spillovers.To steam vegetables or grains, bring cooking liquid to a simmer, cover the pot, and reduce heat to power level 2.
	Potatoes	4-5-6
	Grains
	Stocks/Broths or Stews
Sautéing or Other	Steaks/Chops	5-6-7	Monitor carefully and stir frequently to achieve desired results.
	Eggs
	Breakfast Meats
	Frozen Vegetables
	Stir Frying
Searing/Browning	Browning Beef For Chili or StewsSteaks or Chops	8-9	Room temperature meats will sear and brown more effectively.Fat may splatter if power level is too high.
Frying/Deep Frying	Fried ChickenFrench FriesBattered Fish/Shellfish	7-8 Fat may splatter if power level is too high.
Blanching Vegetables	BroccoliCauliflowerGreen Beans	8-9 Monitor carefully to prevent spillovers.
Boiling	Pasta WaterShellfish	8-9-Boost	Do not fill pot to rim. Water can boil over if the power level is too high.

NOTE

These settings are recommended guidelines for cooking. You may need to adjust the power level for the type of food and pan. Cooking times for some foods will vary depending on quantity or quality.

Using the Cook Modes

SIMMER

Use SIMMER to simmer sauces or stews.

Turning Simmer On

Place the cookware on any cooking zone except for the rear right cooking zone. Activate the Power Level popup and touch the SIMMER key.

S

MELT

Use MELT to melt items such as chocolate or butter without scorching.

Turning Melt On

Place the cookware on the rear right cooking zone. Activate the Power Level popup and touch the MELT key.

M ×

BOOST

Use the Boost function to boil water or heat up large quantities of food quickly.

To prevent damage to the product, if one of the right-side elements is turned on when the center dual element is using the Boost setting, the power setting of the center dual element is automatically reduced to power level 9. To maintain the Boost setting on the center dual element, use any of the left-side elements instead.

For safety, after 6 minutes the Boost setting will automatically revert to either power level 9 or the previously set power level.

Boost Boost X X

Boost Boost

Boost Boost X

Turning Boost On

Place the cookware on a cooking zone. Activate the Power Level popup and touch the BOOST key.

B

WARNING

Never use the Boost mode to preheat empty cookware or to heat oil, butter or lard. The cookware may be damaged and the fat or grease may catch fire if overheated.

NOTE

• Under certain conditions, the Boost function will turn off automatically to protect electronic elements inside the cooktop.
• This can occur if the product is used for long periods, when frying, or if cookware is lifted or moved in the Boost mode.

Using the Flexible Cooking Zone

Adjoining cooking zones can be combined to create one large cooking zone with the Flex function. This is especially convenient when cooking in Dutch ovens or other large oblong pans.

Activating the Flexible Cooking Zone

1 Place the cookware over 2 side cooking zones and make sure both cooking zones are activated. The Flex icon will show 2 divided zones.

11:19 AM SETTINGS

NOTE

If one of the two burners in the Flex Cooking Zone is functioning, cancel the burner and use the Flex feature.

2 To merge the 2 cooking zones, touch the Flex icon. The icon will change to show one combined zone.

11:18 AM SETTINGS

3 Select the desired power level.

4 Touch the Flex icon again to turn off Flex mode.

Using the Dual Cooking Zone

The dual element, located in the center position, offers two different sized elements to accommodate different pan sizes. Depending on the material and the properties of the cookware, the cooking zone automatically activates the single or double cooking zone, supplying the proper power to obtain good cooking results.

1 1 1 1 11:19 AM SETTINGS

Activating the Dual Cooking Zone

1 To activate the larger cooking zone, place a pan that is at least 9" (23 cm) in diameter on the cooking zone.

2 Select the desired power level.

The pause function reduces the power level of a cooking zone to level 1 and maintains it at that level until deactivated. To use the pause function, touch the Pause icon. To turn off the pause function, touch Pause again to return the cooking zone to the previous power level.

Clean Lock

Use this function when cleaning the screen area of the cooktop. Touch the Clean Lock icon to lock the controls for 30 seconds. To unlock the controls, wait 30 seconds or touch the Clean Lock icon for 1 second.

Clean Lock ON To cancel the Clean Lock function, press Clean Lock for 1 second.

Timer

Kitchen Timer

The Kitchen Timer acts as a simple timer and does not turn off the cooking zone. This function informs you that the set cooking time has passed using an alarm.

- Touch the Kitchen Timer icon. Scroll (or use the keypad icon) to set the desired hours, minutes, and seconds, then touch OK.

11:19 AM SETTINGS Timer hr min sec OK

- When the set time has passed, a popup screen with "Timer Finished" appears with the alarm sound.

Timer finished OK

Cooking Timer

The Cooking Timer also acts as a simple timer and does not automatically turn off the cooking zone. This function informs you that the set cooking time of each cooking zone has passed using an alarm.

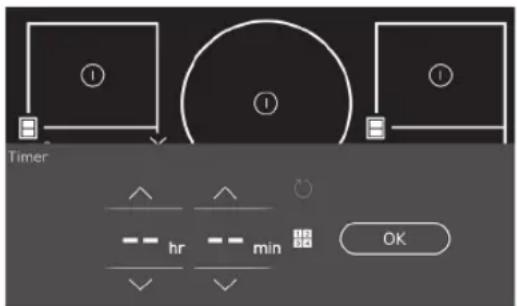

- If the cooking zone is in use, touch the Cooking Timer icon on the active cooking zone. Scroll (or use the keypad icon) to set the desired hours and minutes, then touch OK.

7.0

Timer hr min OK

• When the set time has passed, a popup screen appears with the alarm sound.
• Touch YES to turn off the cooking zone.

Timer has finished. Turn off the heat? NO YES

WARNING

The Timer function does not automatically turn off the cooktop or cooking zones. Be sure to touch the Power key to turn the cooktop off after cooking.

Automatic Power Level Control

The power level displayed may be different from the actual power level at the high end of the temperature range. To prevent the cooktop from overheating, the power level is controlled automatically.

NOTE

- Power Cycling

- It is normal for heating elements to cycle On/Off during use to control output power.

Cookware Heating Index

The container heating index can be used to determine if a container will heat well on an induction burner.

• The heating index may vary due to conditions such as voltage, cookware size, or cookware temperature. Use cookware with a bottom diameter that is suitable for the burner size.
• The heating index may vary depending on the burner.
• The cookware heating index displayed on this product is based on internal manufacturer standards. Environmental conditions may cause inaccurate or variable results. Use the results only as a reference point.

Using the Heating Index

1 Turn off all burners.
- If more than one burner is running, this function will not work.
2 Place the cookware on the burner you want to use.
- Place cookware in the center of the burner.
3 Set the output level to 9.
4 Long press (more than 3 seconds) on the power level area to display the cookware heating index.

9.0

Long press (more than 3 seconds) on level 9.

100%

The cookware heating index is displayed.

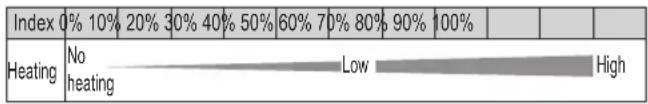

• The higher the index, the better the cookware heats up (in the range of 0 to 100% , in 10% increments).
• If the index is low, check the material, size and shape of the cookware base.

- Even if the cookware has an IH mark, if the index is low it may not heat properly on this appliance.

SMART FUNCTIONS

SIGNATURE KITCHEN SUITE Application

The SIGNATURE KITCHEN SUITE application allows you to communicate with the appliance using a smartphone.

Before Using SIGNATURE KITCHEN SUITE

1 Use a smartphone to check the strength of the wireless router (Wi-Fi network) near the appliance.

- If the distance between the appliance and the wireless router is too far, the signal strength becomes weak. It may take a long time to register or installation may fail.

2 Turn off the Mobile data or Cellular Data on your smartphone.

- For iPhones, turn data off by going to Settings → Cellular → Cellular Data.

Diagram showing hand gesture pointing to a circle with an upward arrow, followed by a rightward arrow.

3 Connect your smartphone to the wireless router.

Diagram showing a hand interacting with wireless signals to form a Wi-Fi symbol

NOTE

• To verify the Wi-Fi connection, check that Wi-Fi icon on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
• SIGNATURE KITCHEN SUITE is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
• The surrounding wireless environment can make the wireless network service run slowly.
• If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
• The network connection may not work properly depending on the Internet service provider.
• The Wi-Fi connection may not connect or may be interrupted because of the home network environment.
• If the appliance cannot be registered due to problems with the wireless signal transmission, unplug the appliance and wait about a minute before trying again.
• If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.
• The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP, network setup may fail. Change the security protocol (WPA2 is recommended), and register the product again.

Installing the SIGNATURE KITCHEN SUITE Application

Search for the SIGNATURE KITCHEN SUITE application from the Google Play Store or Apple App Store on a smart phone. Follow instructions to download and install the application.

SIGNATURE KITCHEN SUITE Application Features

Monitoring

Use this function to check the current status and operating time from one screen.

Push Alerts

Turn on the Push Alerts to receive appliance status notifications.

The notifications are triggered even if the SIGNATURE KITCHEN SUITE application is off.

Interworking Function

The Signature Kitchen Suite hood automatically turns on/off the vent fan when paired with the cooktop. Both products must be connected to the Signature Kitchen Suite application and have an interworking function.

NOTE

• The appliance is not intended to be operated by means of remote control system.
• To disconnect the appliance from the Wi-Fi network, delete the cooktop from the list of connected products in the Signature Kitchen Suite application.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource. signaturekitchensuite.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

SIGNATURE KITCHEN SUITE will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

Wireless LAN Module Specifications

Model LCW-009
Frequency Range 2412 MHz – 2462 MHz
Output Power (max.) < 30 dBm

FCC Notice

The following notice covers the transmitter module contained in this product.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and also Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15, Part 18 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference and
2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Industry Canada Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body.

NOTE

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

CARE AND CLEANING

Cleaning the Cooktop

Normal Daily Use Cleaning

ONLY use Ceramic Cooktop Cleaner on the glass cooktop. Other creams may not be as effective or they might damage the surface with scratches or permanent staining.

To maintain and protect the surface of the glass cooktop, follow these steps:

1 Before using the cooktop for the first time, clean it with Ceramic Cooktop Cleaner. This helps protect the top and makes cleanup easier.
2 Daily use of Ceramic Cooktop Cleaner will help keep the cooktop looking new.
3 Shake the cleaning cream well. Apply a few drops of cleaner directly to the cooktop.
4 Use a paper towel to clean the entire cooktop surface.
5 Rinse with clear water and use a dry cloth or paper towel to remove all cleaning residue.

NOTE

It is very important that you DO NOT heat the cooktop until it has been cleaned thoroughly.

CAUTION

• DO NOT use scrub pads or abrasive cleaning pads. They may damage the glass cooktop surface.
• For your safety please wear an oven mitt or pot holder while cleaning the hot cooking surface.

Burned-On Residue

1 While the cooktop is still warm, remove any burnt on deposits or spilled food from the glass-ceramic cooking surface with a suitable metal razor scraper. To prevent burns, wear an oven mitt or pot holder while using the metal scraper.

Illustration of a hand using a tool to brush or mark on a flat surface with abstract shapes (no text or symbols)

NOTE

• Do not use a dull or nicked blade.
• Hold the scraper at approximately a 30^ angle to the cooktop.
• The razor scraper will not damage the markings on the cooking surface.

2 When the cooking surface has completely cooled, apply a few dime-sized dabs of a ceramic glass cooktop cleaner in each burner area. Work the cleaning cream over the cooktop surface with a damp paper towel. Leave the cleaner on for 10 minutes before rinsing it off.

Illustration of two hands performing a hand-drawn sketch on a flat surface (no text or symbols)

3 Rinse with clean water and wipe the cooktop surface with a clean, dry paper towel.

Illustration of a hand pressing down on a flat surface with motion lines (no text or symbols)

IMPORTANT

• If any sugar or food containing sugar spills, or plastic or foil melts on the cooktop, remove the material IMMEDIATELY with a metal razor scraper while the cooking surface is still hot to avoid the risk of damage to the glass-ceramic surface.
  When used correctly, the scraper will not damage the cooktop surface. For your safety, please use an oven mitt or pot holder while scraping the hot cooking surface.
• If water or food containing water spills, remove the spill IMMEDIATELY with a dry paper towel.

NOTE

ANY DAMAGE OR FAILURE OF THE PRODUCT RESULTING FROM 1 OR 2 BELOW MAY NOT BE COVERED UNDER THE LIMITED WARRANTY.

1. Sugary spillovers (such as preserves, ketchup, tomato sauce, jellies, fudge, candy, syrups, or chocolate) or melted plastics can cause pitting on the surface of your cooktop.
2. If food or water containing calcium (such as baking powder, wine, milk, spinach, or broccoli) is spilled on the cooktop, it can permanently stain or discolor the surface.

Maintaining the Cooktop

DO NOT use chlorine bleach, ammonia, or other cleaners not specifically recommended for use on glass-ceramic cooktops.

Let your glass-ceramic cooking surface cool off before cleaning.

    subgraph Regular
        E["Regular Recommended after each use"] --> F[" "]
    end

    subgraph Occasional
        G["Occasional Recommended every week"] --> H[" "]
    end

    subgraph Thorough
        I["Thorough Recommended for tough stains or burnt-on food"] --> J[" "]
    end

For additional product information, visit our website at www.signaturekitchensuite.com

Metal Marks and Scratches

ANY DAMAGE OR FAILURE OF THE PRODUCT RESULTING FROM 1 OR 2 BELOW MAY NOT BE COVERED UNDER THE LIMITED WARRANTY.

1. Be careful not to slide pots and pans across the cooktop. Doing so will leave metal markings on the cooktop surface. To help remove these marks, use a ceramic cooktop cleaner with a cleaning pad for ceramic cooktops.
2. If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave a black discoloration on the cooktop. This should be removed immediately before heating again or the discoloration may be permanent.

CAUTION

Cookware with rough or uneven bottoms can mark or scratch the cooktop surface.

Diagram showing a hand using a tool to interact with a bowl on a surface, with directional arrows indicating movement or force.

• Do not slide metal or glass across the cooktop surface.
• Do not use cookware with any dirt buildup on the bottom.
• Do not use cookware if there is foreign material on the cooktop surface. Always clean the cooktop surface before cooking.

INSTALLATION INSTRUCTIONS

Installation and service must be performed by qualified personnel.

IMPORTANT:

Save these instructions for local electrical inspector's use. Read and save these instructions for future reference.

Before You Begin

Read these instructions completely and carefully.

Notes to Installer:

• Read through the entire installation instructions before installing the cooktop.
• Remove all packing material before connecting the electrical supply to the cooktop.
• Observe all governing codes and ordinances.
• Only certain cooktop models may be installed over certain built-in electric oven models.
• Be sure to leave these instructions with the consumer.

Note to Consumer:

Keep the Owner's Manual and Installation Instructions for future reference.

NOTE

• This appliance must be properly grounded.
- Damage caused by failure to follow these instructions is not covered by the cooktop warranty.

CAUTION

If storage is located under the cooktop, do not use it to store flammable or heat-sensitive items such as detergents, aerosols, cleaners, water, food, or plastics.

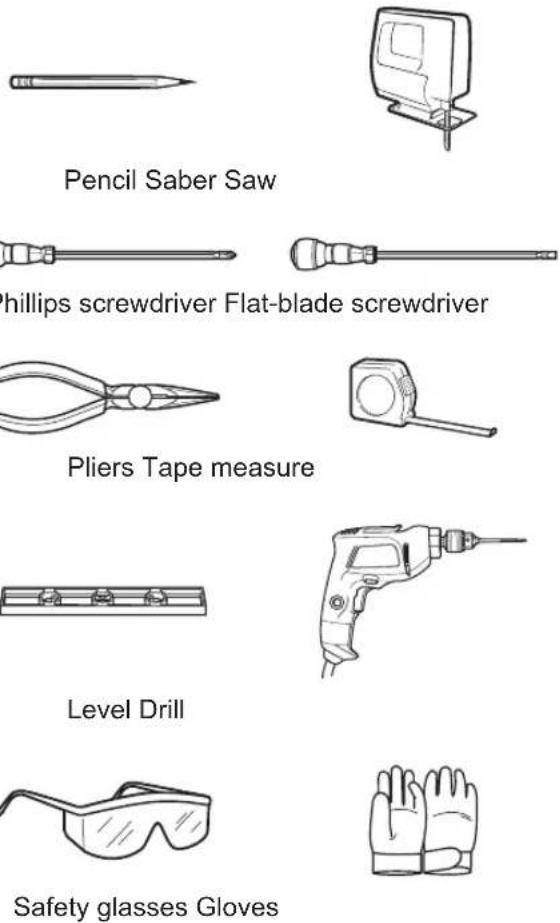

Tools Needed

Unpacking the Cooktop

1 Unpack and visually inspect the cooktop for any damage or missing components.
2 Be sure the bottle of cleaner and conditioner packed in the literature bag is left where the user can find it easily. It is important that the ceramic-glass cooktop be pretreated before use. See CARE AND CLEANING.

Model and Serial Number Location

The model and serial numbers are located on a plate on the right rear side of the cooktop. Please record them in this guide; you will need them for warranty registration.

Technical Specifications

Models SKSIT3601G
Description Induction Cooktop
Electrical Specifications	Connection voltage	240/208 VAC 60 Hz., 46.3 A / 43.3 A
	Maximum connected power load	11100 W / 9000 W
Cooktop Dimensions 36		^5/_8" (930 mm) (W) × 3^9/_16" (91 mm) (H) × 21^1/_16" (535 mm) (D)
Countertop Cutout Dimensions		Standard Installation -34 ^3/_8" (873 mm) (W) × 6^3/_4" (172 mm) (H) × 19^5/_64" (503 mm) (D)Flush Installation -36 \( ^27/_32" (936 mm) (W) × 6^3/_4" (172 mm) (H) × 21^19/_64" (541 mm) (D)
Cooking Zones		Position Size Power(Level 9 / Boost)
		Front Left 8	^1/_2" × 7^3/_32" (216 × 180 mm) 1500/3000 W (208 V)	1850/3700 W (240 V)
		Front Right 8	^1/_2" × 7^3/_32" (216 × 180 mm) 1500/3000 W (208 V)	1850/3700 W (240 V)
		Flex Left 8	^1/_2" × 14^11/_64" (216 × 360 mm) 2700/3000 W (208 V)	3300/3700 W (240 V)
		Rear Left 8	^1/_2" × 7^3/_32" (216 × 180 mm) 1500/3000 W (208 V)	1850/3700 W (240 V)
		Rear Right 8	^1/_2" × 7^3/_32" (216 × 180 mm) 1500/3000 W (208 V)	1850/3700 W (240 V)
		Flex Right 8	^1/_2" × 14^11/_64" (216 × 360 mm) 2700/3000 W (208 V)	3300/3700 W (240 V)
		Center	11", 7" (280, 178 mm)	Inner Burner :1500/3000 W (208 V)1850/3700 W (240 V)Dual Burner :3000/5700 W (208 V)3700/7000 W (240 V)

NOTE

- The maximum power of each cooking zone depends on the size and material of the cookware used.

Preparing the Installation Location

Important Installation Information

• All electric cooktops run off a single phase, three-wire or four-wire cable, 240/208 volt, 60 hertz, AC-only electrical supply with ground.
• Minimum distance between cooktop and overhead cabinetry is 30" (762 mm).
• Make sure the cabinets and wall coverings around the cooktop can withstand the temperatures (up to 93°C [200°F]) generated by the cooktop.

CAUTION

To eliminate the risk of burns or fire by reaching over heated surfaces, cabinet storage space located above the cooktop should be avoided. If cabinet storage is provided, risk can be reduced by installing a range hood that projects horizontally a minimum of 5" (127 mm) beyond the face of the cabinets.

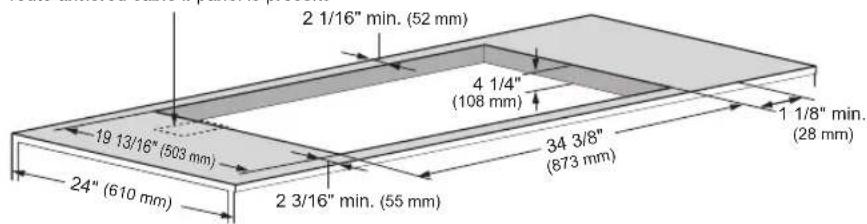

1. Standard Installation

Do not obstruct these areas! Radius 3/8" (10 mm) 30" min. (762 mm) 36 5/8" (930 mm) 21 1/16" (535 mm) 2 7/16" (62 mm) 19 5/16" (490 mm) 33 7/8" (860 mm) 3 9/16" (91 mm) 3 9/16" (91 mm) Height of conduit: 1 1/8" (29 mm) Right side 36 inch Induction Cooktop 4" x 8" (102 mm x 203 mm) opening to

4" x 8" (102 mm x 203 mm) opening to route armored cable if panel is present

2 1/16" min. (52 mm) 4 1/4" (108 mm) 19 13/16" (503 mm) 34 3/8" (873 mm) 2 3/16" min. (55 mm) 24" (610 mm) 1 1/8" min. (28 mm)

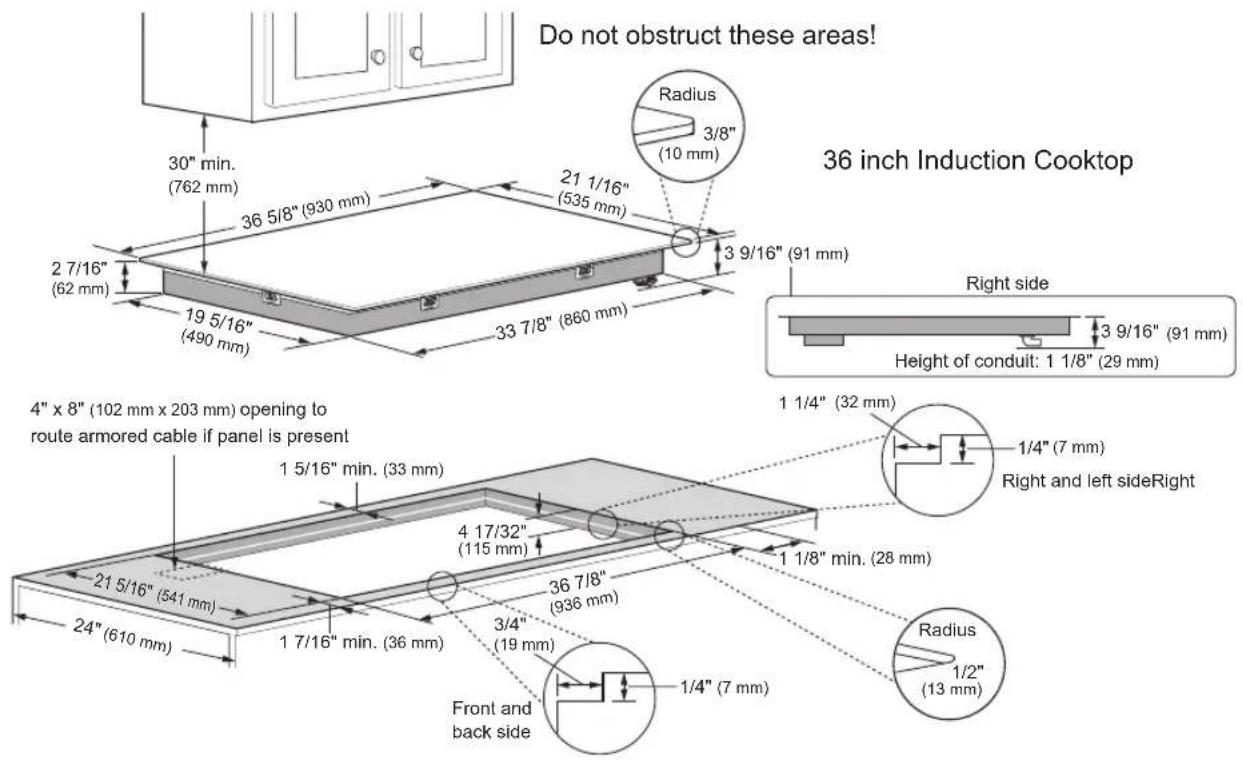

2. Flush Installation

Do not obstruct these areas! 36 inch Induction Cooktop Radius 3/8" (10 mm) 30" min. (762 mm) 36 5/8" (930 mm) 21 1/16" (535 mm) 2 7/16" (62 mm) 19 5/16" (490 mm) 33 7/8" (860 mm) 3 9/16" (91 mm) Right side 3 9/16" (91 mm) Height of conduit: 1 1/8" (29 mm) 4" x 8" (102 mm x 203 mm) opening to route armored cable if panel is present 1 5/16" min. (33 mm) 4 17/32" (115 mm) 36 7/8" (936 mm) 1 1/4" (32 mm) 1/4" (7 mm) Right and left sideRight 21 5/16" (541 mm) 1 7/16" min. (36 mm) 3/4" (19 mm) Front and back side 1/4" (7 mm) Radius 1/2" (13 mm)

L-shaped support cleat

CLEAT OPTION

For this installation, the countertop cut-out will be the same size as the outer edge of the cooktop glass.

Attach L-shaped cleats to the perimeter of the countertop cut-out.

The top edge of the cleat will be attached 1/4" (7 mm) below the surface of the countertop.

Refer to the Illustration below. Attach the cleats to the countertop. Consult a countertop supplier for proper methods of attachment.

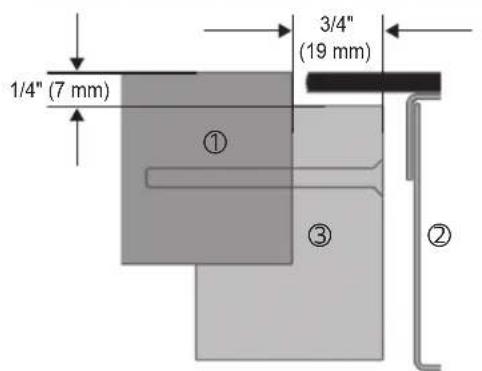

1/4" (7 mm) ① ③ 3/4" (19 mm) ②

L-shaped cleat (Front and Back)

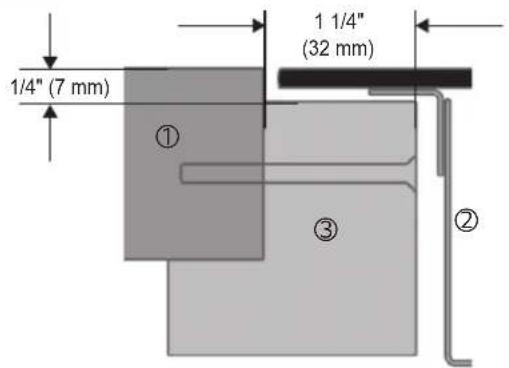

1/4" (7 mm) ① ③ 1 1/4" (32 mm) ②

L-shaped cleat (Right and Left)

① Countertop
② Cooktop
③ L-Shaped Cleat

- All dimensions are stated in inches and millimeters (mm).

Recommended Spacing between Cooktop and Drawer

CAUTION

It is very important to keep 3^5/_16 " (84 mm) distance between the cooktop and the drawer.

Overhead cabinet should not exceed a maximum depth of 13"(330 mm). min. recommended distance between rear edge of cutout and nearest combustible surface. 36" Min (914 mm) 18" (457 mm) 10" (254 mm) 24" (610 mm) 12" (305 mm) Approximate location of junction box. min. from edge of cooktop to nearest combustible wall (either side of unit). Empty space is needed underneath the cooktop for installation purposes.

- Allow 2" (50 mm) space below the armored cable opening to clear the electric cable and allow space for installation of the junction box on the wall at the back of the cooktop.

Electrical Connections

Important Safety Instructions

• Be sure the cooktop is installed and grounded properly by a qualified installer or service technician.
• This cooktop must be electrically grounded in accordance with local codes or, in their absence, with the National Electrical Code ANSI/NFPA No. 70, latest edition in the United States.

WARNING

The electrical power to the cooktop must be shut off while line connections are being made. Failure to do so could result in serious injury or death.

Providing the Electrical Connection

Install the junction box under the cabinet and run 120/240 or 120/208 Volt, AC wire from the main circuit panel.

NOTE

DO NOT connect the wire to the circuit panel at this time.

Electrical Requirements

Observe all governing codes and local ordinances.

1 A 3-wire or 4-wire single-phase 120/240 or 120/208 Volt, 60 Hz AC-only electrical supply is required on a separate circuit fused on both sides of the line (time-delay fuse or circuit breaker is recommended). DO NOT fuse neutral. The fuse size must not exceed the circuit rating of the appliance specified on the nameplate.

2 36" Induction cooktop can consume up to 11,100 W at 240 VAC. A 50 Amp circuit breaker with wire guage #8 AWG must be used.

NOTE

Wire sizes and connections must conform to the fuse size and rating of the appliance in accordance with the National Electrical Code ANSI/NFPA No. 70, latest edition, and local codes and ordinances.

WARNING

Do not use an extension cord with this appliance. Such use may result in a fire, electrical shock, or other personal injury.

3 The appliance should be connected to the fused disconnect (or circuit breaker) box through flexible armored or nonmetallic sheathed cable. The flexible armored cable extending from this appliance should be connected directly to the grounded junction box. The junction box should be located as shown on page 36 with as much slack as possible remaining in the cable between the box and the appliance, so it can be moved if servicing is ever necessary.

4 A suitable strain relief must be provided to attach the flexible armored cable to the junction box.

Electrical Connection

Connect the flexible armored cable that extends from the surface unit to the junction box using a suitable strain relief at the point the armored cable enters the junction box. Then make the electrical connection as follows.

Electrical ground is required on this appliance.

This appliance is manufactured with a supply wire and a frame-connected green or bare copper grounding wire.

NOTE TO ELECTRICIAN

The armored cable leads supplied with the appliance are UL-listed for connection to larger gauge household wiring. The insulation of the leads is rated at temperatures much higher than the temperature rating of household wiring. The current-carrying capacity of the conductor wire is governed by the temperature rating of the insulation around the wire, rather than the wire gauge alone.

WARNING

• DO NOT ground to a gas supply pipe. DO NOT connect to electrical power supply until appliance is permanently grounded. Connect the ground wire before turning on the power.
• This appliance is equipped with a copper conductor flexible cable. If connection is made to aluminum house wiring, use only special connectors which are approved for joining copper and aluminum wires in accordance with the National Electrical Code and local codes and ordinances. Improper connection of aluminum house wiring to copper leads can result in a short circuit or fire. Follow the connector manufacturer's recommended procedure closely.

Where Local Codes Permit Connecting the Appliance-Grounding Conductor to the Neutral (White) Wire

Observe all governing codes and local ordinances.

1 Disconnect the power supply.
2 At the circuit breaker box, fuse box or junction box, connect appliance and power supply cable wires as shown.

WARNING

You may not ground the cooktop through the neutral (white) wire if cooktop is used in a new branch circuit installation (1996 NEC), mobile home, recreational vehicle, or where local codes do not permit grounding to the neutral (white) wire. When grounding to the neutral (white) wire is prohibited, you must use a 4-wire power supply cable. Failure to heed this warning may result in electrocution or other serious personal injury.

3-Wire Grounded Junction Box

Cable from power supply White wire (neutral) Red wires Black wires Junction box Green wire (ground) UL-listed conduit connector Cable from cooktop

If Cooktop is Used in a New Branch Circuit Installation (1996 NEC), Mobile Home, Recreational Vehicle, or where Local Codes Do Not Permit Grounding to the Neutral (White) Wire

Observe all governing codes and local ordinances.

1 Disconnect the power supply.

2 At the circuit breaker box, fuse box or junction box, connect appliance and power supply cable wires as shown.

WARNING

If connecting to a 4-wire power supply cable electrical system, the appliance frame connected ground wire MUST NOT be connected to the neutral wire of the 4-wire electrical system.

4-Wire Grounded Junction Box

Cable from power supply Ground Wire Red wires White wire (no connection) Black wires Junction box Green wire (ground) UL-listed conduit connector Cable from cooktop

Cooktop Installation

1 Visually inspect the cooktop for damage. Make sure all cooktop screws are tight (see below for locations).

3 Screws (Same both side) 4 Screws (Same both side)

2 Check and prepare the installation location.

• See pages 34 to 36 for the required dimensions and clearances

NOTE

- For flush installation.

- Before flush installing the cooktop, remove the 6 installation brackets.

Technical line drawing of a rectangular electronic device with mounting holes and internal structure (no text or symbols)

3 Carefully lower the cooktop into the countertop cutout, making sure not to trap any wires.

Isometric line drawing of two stacked rectangular panels with a diagonal line and a small symbol at the bottom (no text or labels)

NOTE

Do not use caulking compound. The cooktop must be removable, should service be required.

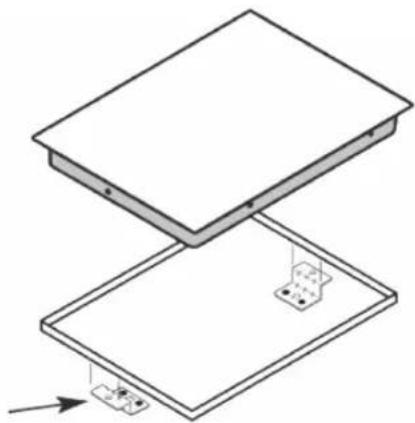

4 Attach the retainer brackets to the bottom of the cooktop; then snug the bolts against the bottom of the countertop as shown.

Isometric diagram of two stacked panels with a small component and an arrow indicating direction (no text or symbols)

NOTE

- The retainer brackets MUST be installed to meet local codes or, in their absence, with the National Electrical Code ANSI/NFPA No. 70, latest edition.

- For flush installation.

- Finish a flush installation by running sealant around the edges of the cooktop.

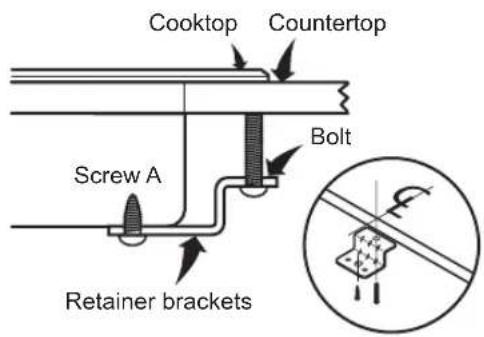

Retainer brackets

Cooktop Countertop Screw A Bolt Retainer brackets

Final Check

Perform a final operational check of the cooktop, making sure the cooktop powers on properly and that each cooking zone operates correctly.

Refer to the Operating Instructions in this guide for details.

TROUBLESHOOTING

Before Calling for Service

Before you call for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of a defect in workmanship or materials.

Symptoms Possible Cause / Solutions
Cooktop does not work.	Cooktop controls are locked.- See Clean Lock to turn off the Clean Lock feature.Circuit breaker has tripped or fuse is blown.- Reset the circuit breaker.Power outage.- Check house lights to confirm power outage.Installation wiring not complete.- Contact the installer or dealer.
Cooktop does not heat.	Incorrect cooking zone selected.- Make sure the correct control is ON for the cooking zone being used.No power to cooktop.- See “Cooktop does not work” above.
Element turns off while cooking.	Cooktop inner temperature too high.- Check that cooktop has been installed according to the installation instructions.
Elements do not get hot enough.	Touch controls may not be set properly.- Check the power level.Cookware that is not marked "IH" or convection compatible may not heat properly.- Use cookware with the IH mark.Cookware may not be flat or the correct shape or size.- Use cookware with a flat bottom.- Minimum Cookware Size1. Use cookware with a bottom surface diameter of 5.5" (140mm) or greater.2. For Flexible Cooking Zone, minimum cookware size is 4.7" x 10.6" (120 mm x 270 mm)- For best results when using the Dual cooking zone, use cookware with a bottom surface that is 9" in diameter or larger.- Use the recommended cookware. See "Induction Cookware".
A fan sound can be heard.	Cooktop inner temperature is high.- This is normal.The cooling fan will run when any element is turned on. With heavy use the fan may continue to run after the controls are turned off until the cooktop has cooled.

Symptoms Possible Cause / Solutions

Noises are heard during cooking.	The following noises are normal.Humming/buzzing sound- Caused by the magnetic field transmitting power to the cookware. It is most noticeable at high power settings and becomes quieter if the power is reduced.Whistling sound- Most noticeable with lighter weight cookware or when cookware is empty.- Under certain conditions, your cookware may produce a high-pitched whistling noise when two elements are in use at the same time. The power levels at which this occurs may vary depending on the kind of cookware being used.Change the power level to eliminate the noise or reduce its volume.Cracking sound- May occur when using composite cookware as the different materials resonate and heat at different rates. This will not damage or impair the performance of the cookware.Clicking sound- Caused by the electrical switches.- It is normal to hear a clicking noise when operating burners below power level 6.Ticking sound- Caused by the cookware detection.
The Boost function has been deactivated or cannot be activated.	To prevent damage to the product, if one of the right-side elements is turned on when the center dual element is using the Boost setting, the power setting of the center dual element is automatically reduced to power level 9. To maintain the Boost setting on the center dual element, use any of the left-side elements instead.For safety, after 6 minutes the Boost setting will automatically revert to either power level 9 or the previously set power level.
The cookware cannot be detected automatically.	The words "Auto Detected" will not be displayed if there is no cookware on the burner. Auto Detection is only active when the cooktop is initially turned on.Cookware is not compatible with induction cooktop.- Use only cookware that is compatible with the induction cooktop. For details of compatible cookware, see "Induction Cookware".
Cookware has been damaged.	Never use the Boost mode to preheat empty cookware or to heat oil, butter or lard. If cookware is overheated, it may be damaged, and the fat or grease may catch fire.- Use the Boost function to boil water or heat up large quantities of food quickly.
Output power is different when the same type of burner is used.	The power level displayed may be different from the actual power level at the high end of the temperature range. To prevent the cooktop from overheating, the power level is controlled automatically.
Power Cycling	It is normal for heating elements to cycle On/Off during use to control output power.
The LCD screen does not work properly.	Placing hot cookware on top of the LCD screen can cause the screen to malfunction.
Timer does not turn off the cooking zone.	The Kitchen Timer/Cooking Timer acts as a simple timer and does not turn off the cooking zone.
The Hot Surface indicator stays on after the burners are turned off.	After you turn off the burners, the indicator remains on until the ceramic glass surface cools down.- If the temperature near the product is high, it may take longer for the ceramic glass surface to cool down.
Error code FC, F1, or F5 appears on the display.	Turn the power off and then on again to turn off the error code.If the issue recurs, call for service.

LIMITED WARRANTY

USA

TERMS AND CONDITIONS

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND SIGNATURE KITCHEN SUITE, A DIVISION OF LG ELECTRONICS (“SIGNATURE KITCHEN SUITE”), TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW.

Should your SIGNATURE KITCHEN SUITE Induction Cooktop (“Product”) fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product (“You”) and applies only when purchased lawfully and used within the United States including U.S. Territories.

WARRANTY PERIOD WHAT IS COVERED
Three (3) years from the date of original retail purchase.	Parts and Labor (internal/functional parts only)

• Replacement Products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement Products and parts may be new, reconditioned, refurbished, or other Any part of the cooktop which fails due to a defect in materials or wise factory remanufactured.
• Replaced Product or part(s) will be the property of SIGNATURE KITCHEN SUITE.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this limited warranty.
• Warranty start date will be ninety (90) days from manufacture date absent valid proof of purchase.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES SHALL SIGNATURE KITCHEN SUITE OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. SIGNATURE KITCHEN SUITE'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized repairs.
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service.
• Damage or failure of the Product resulting from operating the Product in a corrosive atmosphere or contrary to the Product owner's manual.
• Damage or failure of the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, pandemics, acts of nature, or any other causes beyond the control of SIGNATURE KITCHEN SUITE.

• Damage or failure of the Product caused by unauthorized modification or alteration, or if the Product is used for other than the intended purpose.

• Damage or failure of the Product caused by incorrect electrical current, voltage.

• Damage or failure of the Product caused by transportation, storage, and/or handling, including scratches, dents, chips, and/or other damage to the finish of the Product, unless such damage is reported within one (1) week of delivery.
• Damage or missing items to any display, open box, or discounted Product.
• Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or similar disclaimer.
• Products with original serial numbers that have been removed, altered, or cannot be readily determined.
• Increases in utility costs and additional utility expenses.
• Any noises associated with normal operation.
• Products used for other than normal and proper household use (e.g. commercial or industrial use, offices, and recreational facilities or vehicles) or contrary to the Product owner's manual.
• Costs associated with removal and reinstallation of the Product for repairs.
• Replacement of any consumable parts.
• The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with the Product owner's manual.
• Damage or failure of the Product resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes the use of parts not authorized by SIGNATURE KITCHEN SUITE. Improper installation or maintenance includes installation or maintenance contrary to the Product owner's manual.
• Damage or failure of the Product caused by the use of parts, components, accessories, consumable cleaning products, any other products, or services that are not authorized by SIGNATURE KITCHEN SUITE.
• Accessories, except for internal/functional parts covered under this limited warranty.

The cost of repair or replacement under these excluded circumstances shall be borne by You.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION

Call 1-855-790-6655 and select the appropriate option from the menu.

Or visit our website at http://www.signaturekitchensuite.com

Or by mail: SIGNATURE KITCHEN SUITE

Attn: LG Electronics Customer Service

P.O. Box 240007

Huntsville, AL 35813

PROCEDURE FOR RESOLVING DISPUTES:

ALL DISPUTES BETWEEN YOU AND SIGNATURE KITCHEN SUITE ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND SIGNATURE KITCHEN SUITE ARE EACH WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to “SIGNATURE KITCHEN SUITE” mean Signature Kitchen Suite, a division of LG Electronics U.S.A., Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify SIGNATURE KITCHEN SUITE in writing at least 30 days in advance of initiating the arbitration by sending a letter to SIGNATURE KITCHEN SUITE at Signature Kitchen Suite Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. You and SIGNATURE KITCHEN SUITE agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and SIGNATURE KITCHEN SUITE are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to SIGNATURE KITCHEN SUITE, you and SIGNATURE KITCHEN SUITE agree to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute between you and SIGNATURE KITCHEN SUITE shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, any dispute between you and SIGNATURE KITCHEN SUITE shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or SIGNATURE KITCHEN SUITE must make a written demand for arbitration. The arbitration will be administered by the American Arbitration Association (“AAA”) and will be conducted before a single arbitrator under the AAA’s Consumer Arbitration Rules that are in effect at the time the arbitration is initiated (referred to as the “AAA Rules”) and under the procedures set forth in this section. The AAA Rules are available online at www.adr.org/consumer. Send a copy of your written demand for arbitration, as well as a copy of this provision, to the AAA in the manner described in the AAA Rules. You must also send a copy of your written demand to SIGNATURE KITCHEN SUITE at Signature Kitchen Suite Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. If there is a conflict between the AAA Rules and the rules set forth in this section, the rules set forth in this section will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered on the arbitrator’s award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us except to the extent that such law is preempted by or inconsistent with applicable federal law.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, SIGNATURE KITCHEN SUITE will promptly pay all arbitration filing fees to the AAA unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the AAA Rules. Except as otherwise provided for herein, SIGNATURE KITCHEN SUITE will pay all AAA filing, administration and arbitrator fees for any arbitration initiated in accordance with the AAA Rules and this arbitration provision. If you prevail in the arbitration, SIGNATURE KITCHEN SUITE will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will be governed by the AAA Rules. In such a situation, you agree to reimburse SIGNATURE KITCHEN SUITE for all monies previously disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as otherwise provided for, SIGNATURE KITCHEN SUITE waives any rights it may have to seek attorneys' fees and expenses from you if SIGNATURE KITCHEN SUITE prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely on the basis of (1) documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds \25,000, the right to a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a location within the federal judicial district in which you reside unless we both agree to another location or we agree to a telephonic arbitration.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor SIGNATURE KITCHEN SUITE can require the other to participate in an arbitration proceeding. To opt out, you must send notice to SIGNATURE KITCHEN SUITE no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either: (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out" or (ii) calling 1-855-790-6655. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.signaturekitchensuite.com/us/support/repair-service/schedule-repair continued and clicking on "Find My Model & Serial Number").

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure.

Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

LIMITED WARRANTY

CANADA

TERMS AND CONDITIONS

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND SIGNATURE KITCHEN SUITE, A DIVISION OF LG ELECTRONICS ("SIGNATURE KITCHEN SUITE"), TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

Should your SIGNATURE KITCHEN SUITE Induction Cooktop ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, Signature Kitchen Suite, a division of LG Electronics Canada, Inc. will, at its option, repair or replace the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased and used within Canada, as determined at the sole discretion of SIGNATURE KITCHEN SUITE.

WARRANTY PERIOD WHAT IS COVERED
Three (3) years from the date of original retail purchase.	Parts and Labor (internal/functional parts only)

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of SIGNATURE KITCHEN SUITE.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty.

SIGNATURE KITCHEN SUITE'S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, SIGNATURE KITCHEN SUITE MAKES NO, AND HEREBY DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON SIGNATURE KITCHEN SUITE. SIGNATURE KITCHEN SUITE DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL SIGNATURE KITCHEN SUITE, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. SIGNATURE KITCHEN SUITE'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with such provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;
• Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual;
• Damage or failure of the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, pandemics, acts of nature, or any other causes beyond the control of SIGNATURE KITCHEN SUITE.
• Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by SIGNATURE KITCHEN SUITE. Improper installation or maintenance includes installation or maintenance contrary to the Product's owner's manual;
• Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;
• Damage or failure caused by incorrect electrical current, voltage or plumbing codes;
• Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product's owner's manual;
• Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to SIGNATURE KITCHEN SUITE within one (1) week of delivery of the Products;
• Damage or missing items to any display, open box, refurbished or discounted Product;
• Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or any similar disclaimer;
• Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of SIGNATURE KITCHEN SUITE;
• Increases in utility costs and additional utility expenses in any way associated with the Product;
• Any noises associated with normal operation of the Product;
• Replacement of any consumable parts;
• Replacement of any part that was not originally included with the Product;
• Costs associated with removal and/or reinstallation of the Product for repairs;
• Accessories, except for internal/functional parts covered under this limited warranty.
• Coverage for “in Home” repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by SIGNATURE KITCHEN SUITE. If your Product is located outside a 150 km radius from a ASC, as determined by SIGNATURE KITCHEN SUITE, it will be your responsibility to bring the Product, at your sole expense, to the ASC for inwarranty repair.

All costs and expenses associated with the above excluded circumstances, listed under the heading, This Limited Warranty Does Not Cover, shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE: Call 1-888-289-2802 (7 A.M. to 12 A.M., 365 days a year) and select the appropriate option from the menu, or visit our website at https://www.signaturekitchensuite.ca

PROCEDURE FOR RESOLVING DISPUTES:

EXCEPT WHERE PROHIBITED AT LAW, ALL DISPUTES BETWEEN YOU AND SIGNATURE KITCHEN SUITE ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW, YOU AND SIGNATURE KITCHEN SUITE BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to “SIGNATURE KITCHEN SUITE” mean Signature Kitchen Suite, a division of LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to “dispute” or “claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify SIGNATURE KITCHEN SUITE in writing at least 30 days in advance of initiating the arbitration by sending a letter to SIGNATURE KITCHEN SUITE Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the "Notice of Dispute"). You and SIGNATURE KITCHEN SUITE agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and SIGNATURE KITCHEN SUITE are unable to resolve the dispute within 30 days of SIGNATURE KITCHEN SUITE's receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and SIGNATURE KITCHEN SUITE both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or SIGNATURE KITCHEN SUITE will not be disclosed to the arbitrator until the arbitrator determines the dispute.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after SIGNATURE KITCHEN SUITE's receipt of the Notice of Dispute, you and SIGNATURE KITCHEN SUITE agree to resolve any claims between you and SIGNATURE KITCHEN SUITE only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and SIGNATURE KITCHEN SUITE shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and SIGNATURE KITCHEN SUITE shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and SIGNATURE KITCHEN SUITE.

MEMO

SIGNATURE

KITCHEN SUITE

MANUAL DEL PROPIETARIO

Simple line drawing of a heating setup with a cylindrical tank on a base, connected to a power source and a switch (no text or symbols)

Diagram of a sound wave setup with labeled components and directional indicators

Diagram showing a hand holding a magnifying glass over a circular object, with directional arrows and a cross symbol indicating unknown or incorrect behavior.

DEMO 06:21

NOTA

9.0 ↓ 100%

Diagram showing hand gesture pointing up and down with directional arrows, indicating movement or navigation

Diagram showing a hand interacting with wireless signals to form a Wi-Fi symbol

NOTA

Illustration of a hand using a brush to brush the paint onto a grid surface with abstract shapes (no text or symbols)

NOTA

Illustration of two hands using a tool to interact with a surface, no text or symbols present

Illustration of a hand pressing down on a flat surface with motion lines (no text or symbols)

IMPORTANTE

Diagram showing a hand using a tool to brush a bowl on a table with directional arrows and a cross mark indicating an unknown object.

1/4" (7 mm) ① ③ 3/4" (19 mm) ②

1/4" (7 mm) ① ② ③ 1 1/4" (32 mm)

Pure technical line drawing of a structural beam or support frame without any text, numbers, or symbols

Technical line drawing of a rectangular electronic device with mounting holes and internal structure (no text or symbols)

Isometric line drawing of two stacked rectangular plates with a diagonal line and a circular symbol at the base (no text or labels)

NOTA

Diagram of two stacked electronic components with a small component and directional arrow (no text or symbols)

NOTA

Attn: LG Electronics Customer Service

P.O. Box 240007

Huntsville, AL 35813

PROCEDIMIENTO PARA RESOLVER CONTROVERSIAS:

TODAS LAS CONTROVERSIAS ENTRE USTED Y SIGNATURE KITCHEN SUITE QUE SURJAN O SE RELACIONEN DE CUALQUIER MANERA CON ESTA GARANTÍA LIMITADA O CON EL PRODUCTO DEBERÁN RESOLVERSE EXCLUSIVAMENTE A TRAVÉS DE ARBITRAJE VINCULANTE, Y NO EN UN TRIBUNAL DE JURISDICCIÓN GENERAL. ARBITRAJE VINCULANTE SIGNIFICA QUE USTED Y SIGNATURE KITCHEN SUITE RENUNCIAN AL DERECHO DE JUICIO CON JURADO Y A PRESENTAR O PARTICIPAR EN UNA DEMANDA COLECTIVA.

Simple line drawing of a heating setup with a cylindrical tank on a base and a power source (no text or symbols)

Three identical gray line-drawn icons of a container with 'X' symbols, no text or labels present.

Diagram of a sound wave setup with labeled components and directional indicators

Diagram showing a hand holding a magnifying glass over a circular object, with directional arrows and a cross symbol below.

DEMO 06:21

REMARQUE

9.0 ↓ 100%

Diagram showing hand finger pressing up and down arrows, indicating press or navigation instruction

Diagram showing a hand interacting with wireless signals to form a Wi-Fi symbol

REMARQUE

Illustration of a hand using a brush to mark a surface with abstract patterns (no text or symbols)

REMARQUE

Illustration of two hands performing a hand-drawn sketch on a flat surface, with abstract shapes and no visible text or symbols.

Illustration of a hand using a tool to mark a grid pattern (no text or symbols)

IMPORTANT

Diagram showing a hand using a tool to interact with a bowl on a table, with directional arrows indicating movement or force.

1/4" (7 mm) ① ③ 3/4" (19 mm) ②

1/4" (7 mm) ① ② ③ 1 1/4" (32 mm)

Technical line drawing of a rectangular electronic device with mounting holes and internal structure (no text or symbols)

Isometric line drawing of two stacked rectangular blocks with a diagonal line and a curved arrow, no text or symbols present.

REMARQUE

Diagram of two stacked electronic components with an arrow indicating direction (no text or symbols)

REMARQUE

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION

Customer Information Center

1-855-790-6655 USA

1-888-289-2802 CANADA

Register your product Online!

www.signaturekitchensuite.com USA

www.signaturekitchensuite.ca CANADA
