USER MANUAL F4WM309WE LG

Smart Diagnosis ....34

ONDERHOUD

Reinigen na elke wasbeurt....35

Voor u service belt 39

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

ZORG VOOR HET MILIEU

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

4 ZORG VOOR HET MILIEU

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

6 VEILIGHEIDSVOORSCHRIFTEN

VEILIGHEIDSVOORSCHRIFTEN

LEES ALLE INSTRUCTIES VOORAFGAAND AAN HET GEBRUIK

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

8 VEILIGHEIDSVOORSCHRIFTEN

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

VEILIGHEIDSVOORSCHRIFTEN

9

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

10 VEILIGHEIDSVOORSCHRIFTEN

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

INSTALLATIE

Technical diagram of a mechanical device with numbered components and an inset close-up view labeled 6-7.

Technical diagram of a mechanical or electrical component with labeled parts 1, 2, and 3

① Stekker
② Transportbouten
③ Afvoerslang

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

nl_main.book.book Page 12 Monday, January 17, 2022 4:04 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

12 INSTALLATIE

Specifications

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Accessoires

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

14 INSTALLATIE

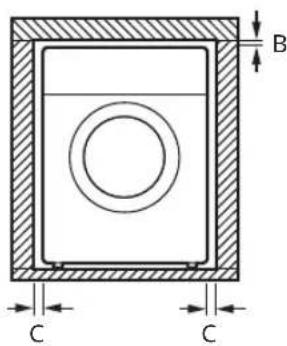

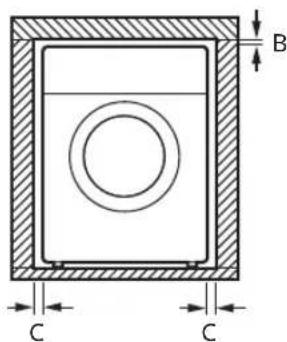

Cross-sectional diagram of a rectangular frame with hatched sides and dimension line labeled A (no text or symbols beyond label)

B C C

Index Speling (mm)
A	100
B	5
C	20

⚠ WAARSCHUWING

Technical line drawing of two mechanical components: a circular component with a pin and a hexagonal bolt (no text or symbols)

Diagram showing a device component with labeled parts and directional arrows indicating movement or assembly.

Technical diagram showing a pipe joint with rotation and force application, alongside a 3D block with directional arrows indicating movement.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a magnified inset showing a circular component.

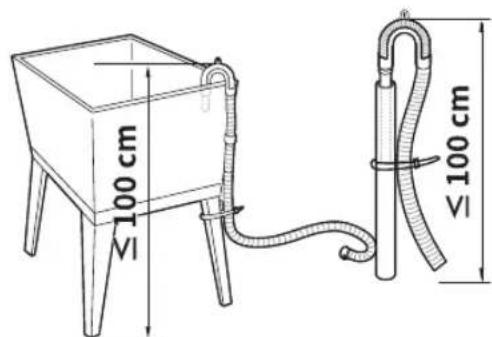

OPMERKING

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

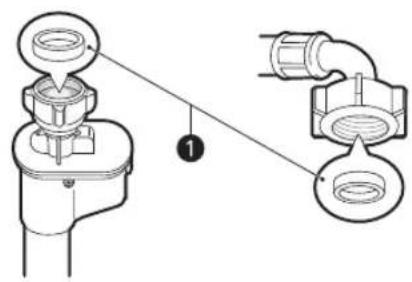

OPMERKING

Line drawing of a washing machine with a top-mounted stand and control buttons (no text or symbols)

Technical diagram showing mechanical assembly with labeled component 2 and directional arrow indicating motion

Illustration of a hand holding a card with a triangular ruler and a numbered label (1), no text or symbols present.

Technical diagram showing two mechanical assembly steps with labeled components and connection point 1

Technical diagram showing a mechanical assembly with labeled component 1 and connection point

Diagram of a faucet with a valve inserted into a pipe, showing fluid flow direction (no text or symbols)

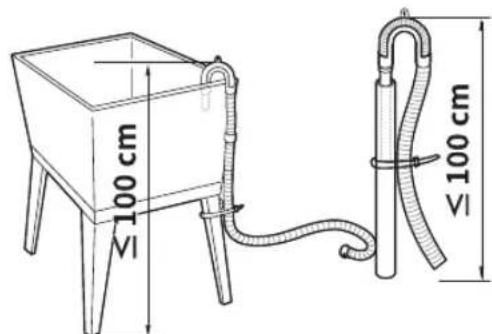

OPMERKING

Illustration showing a hand using a tool to inspect or inspect a device, with no visible text or symbols.

≤100 cm ≤145 cm ≤100 cm ≤105 cm

100 cm VI 100 cm VI

Pure electrical circuit lines without any symbols

nl_main.book.book Page 20 Monday, January 17, 2022 4:04 PM

20 INSTALLATIE

Line drawing of a kitchen sink with faucet and handle (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

GEBRUIK

Basisgebruik

Diagram of a washing machine with a circular vent and attached bracket (no text or symbols)

3 Sluit de deur.

LET OP

Line drawing of a hand holding a tool over a car interior (no text or symbols)

Line drawing of a refrigerator interior with labeled compartments (no text or symbols)

Hand pressing a button with an icon for playback (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

22 GEBRUIK

Diagram of a circular mechanical component with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Bedieningspaneel

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

24 GEBRUIK

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Diagram illustrating the process of adjusting a shirt collar with labeled parts including key, pad, and card.

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

26 GEBRUIK

Technical diagram of a mechanical device with numbered components and labeled parts

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

28 GEBRUIK

Programmatabel

Wasprogramma

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 GEBRUIK

Selecteerbare maximale centrifugeer-snelheid

Pure geometric lines and symbols without any text, numbers, or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Programma	kg	u:mm	kWu	°C	Liters	tpm	%
Katoen 60 °C 9 3:38	1,962 53 87	8 1350 50,0
Mix	4 1:21	0,454 34 58	5 1000 61,9
Snel 30 min	2 0:30	0,169 29 45	7 800 80,5
Katoen 40 °C + Intensief	9 3:58	1,083 35 11	1,5 1350 50,0
Eco 40-60 (Vol)*1	9 3:48	1,280 44 67	0 1360 52,0
Eco 40-60 (Helft)*1	4,5 2:51	0,730 38 45	0 1360 53,0
Eco 40-60 (Kwart)*1	2,5 2:45	0,340 28 40	0 1360 55,0

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Einduitstel

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

34 SMART FUNCTIONS

SMART FUNCTIONS

LG ThinQ applicatie

Illustration of hands cleaning a circular object with a cloth, showing motion and shading (no text or symbols)

WAARSCHUWING

Diagram of a pipe fitting with a rotating knob, showing fluid flow direction (no text or symbols)

Diagram illustrating the process of a mechanical tool with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand holding a folder with a scroll, showing a scroll being inserted (no text or symbols present)

Diagram illustrating food preparation steps: adding a cheese to a bowl, adding 50g to a plate, and adding 1g to a bed.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

nl_main.book.book Page 38 Monday, January 17, 2022 4:04 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

38 ONDERHOUD

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

PROBLEEMOPLOSSING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

40 PROBLEEMOPLOSSING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Geluiden die u kunt horen

42 PROBLEEMOPLOSSING

44 PROBLEEMOPLOSSING

Prestatie

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

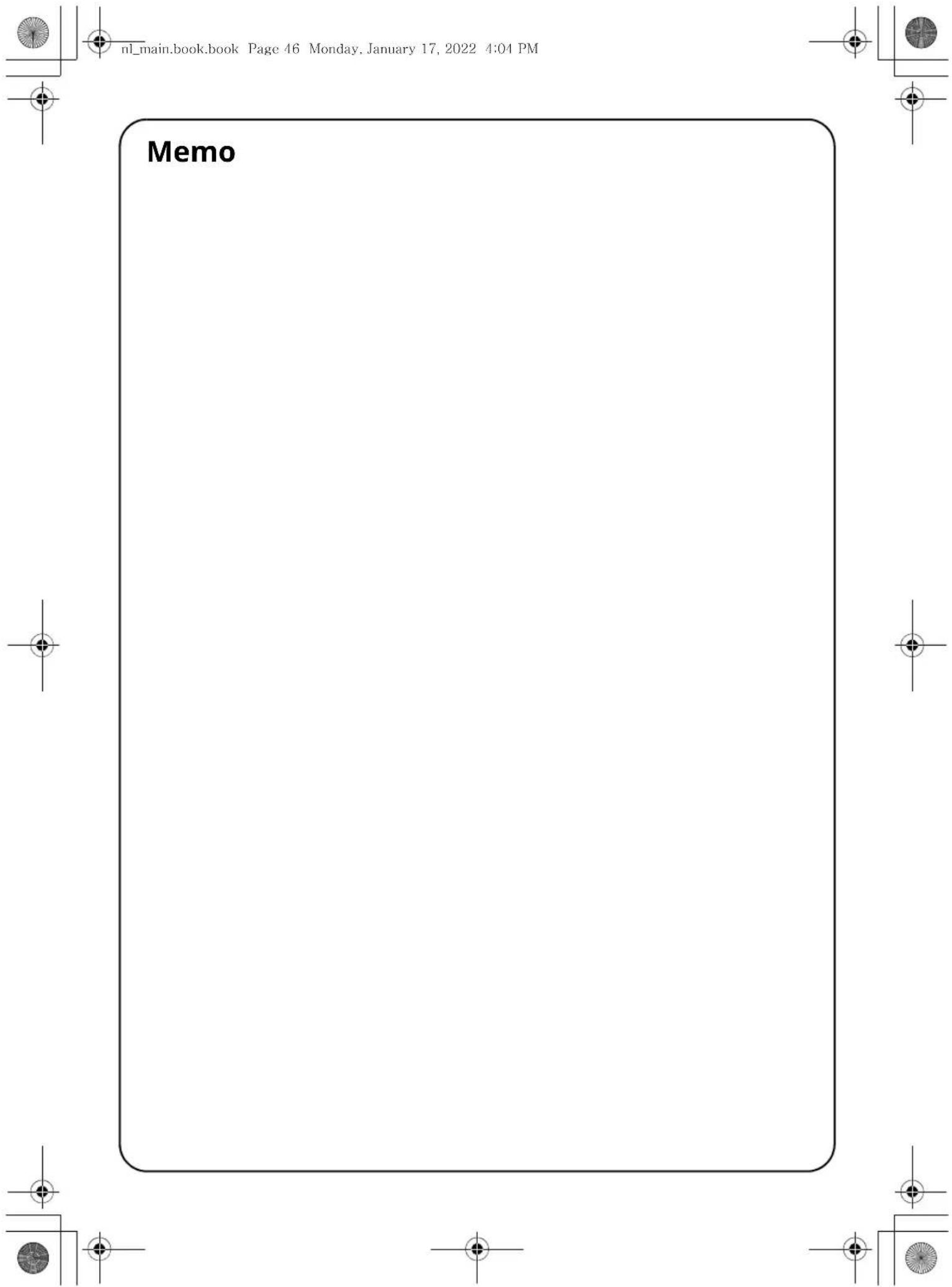

nl_main.book.book Page 46 Monday. January 17, 2022 4:04 PM Memo

MANUEL DU PROPRIÉTAIRE

LAVE-LINGE

Smart Diagnosis (Diagnostic intelligent)....36

MAINTENANCE

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

PRENDRE SOIN DE L'ENVIRONNEMENT

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circles, no text or symbols present

4 PRENDRE SOIN DE L'ENVIRONNEMENT

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

6 CONSIGNES DE SÉCURITÉ

CONSIGNES DE SÉCURITÉ

LISEZ TOUTES LES INSTRUCTIONS AVANT UTILISATION

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

8 CONSIGNES DE SÉCURITÉ

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

CONSIGNES DE SÉCURITÉ

9

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

10 CONSIGNES DE SÉCURITÉ

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Élimination

Pure electrical circuit lines without any symbols

Pure geometric lines and circular shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 INSTALLATION

INSTALLATION

Technical diagram of a mechanical device with numbered components and an inset close-up view labeled 6-7.

Technical diagram of a mechanical or electrical component with labeled parts 1, 2, and 3

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Caractéristiques

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

14 INSTALLATION

Accessoires

Pure technical diagram of a rectangular frame with hatched sides and dimension line A (no text or symbols)

B C C

Index Dégagement (mm)
A	100
B	5
C	20

AVERTISSEMENT

Technical illustration of two mechanical components: a circular component with a pin and a hexagonal bolt (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

16 INSTALLATION

ATTENTION

Diagram showing a device with labeled components and directional arrows indicating movement or assembly.

Pure geometric lines and circular shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Technical diagram showing a mechanical component with rotation and assembly, including a magnified inset view.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a magnified inset showing a circular component.

REMARQUE

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

18 INSTALLATION

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

REMARQUE

Line drawing of a washing machine with a door and top-mounted control panel (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or force

Illustration of a hand holding a card with a triangular ruler and a numbered label (1), no text or symbols present.

Technical diagram showing two mechanical or fluidic device configurations with labeled connection point 1

Technical diagram showing a mechanical assembly with labeled component 1, likely illustrating a valve or pump mechanism.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

20 INSTALLATION

Diagram of a faucet with a valve and a valve assembly (no text or symbols)

REMARQUE

Illustration showing a hand using a tool to interact with a device, with an inset magnified view of the device's tip (no text or symbols present)

≤100 cm ≤145 cm ≤100 cm ≤105 cm

100 cm VI 100 cm VI

Pure electrical circuit lines without any symbols

fr_main.book.book Page 21 Monday, January 17, 2022 4:23 PM

INSTALLATION

21

Line drawing of a kitchen sink with faucet and handle (no text or symbols)

FRANÇAIS

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

22 UTILISATION

UTILISATION

Diagram of a washing machine with a circular dial and mounting bracket, showing internal components (no text or symbols)

3 Fermer la porte.

ATTENTION

Line drawing of a hand holding a small object over a surface with curved lines and circular patterns (no text or symbols)

Hand pressing a button with an icon for playback (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Diagram of a circular mechanical component with two curved arrows indicating rotational or feedback motion (no text or symbols)

7 Commencez programme.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

24 UTILISATION

Panneau de commande

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

18:88 2 °C

Diagram illustrating the process of clothing turnover with labeled parts including key, pen, and card.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Technical diagram of a mechanical device with numbered components and labeled parts

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

28 UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Programme Intensief (Intensif) Voorwas (Prélavage)
Snel 30 min (Rapide 30)	●
Spoelen+Centrifugeren (Rinçage+Essorage)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

32 UTILISATION

Pure electrical circuit lines without any symbols

fr_main.book.book Page 33 Monday, January 17, 2022 4:23 PM

UTILISATION

33

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

34 UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

UTILISATION

35

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

36 FONCTIONS SMART

FONCTIONS SMART

Application LG ThinQ

Smart Diagnosis (Diagnostic intelligent)

Smart Diagnosis (Diagnostic intelligent)

Illustration of hands cleaning a circular object with arrows indicating motion (no text or symbols)

AVERTISSEMENT

Diagram of a pipe valve with a rotating knob, showing fluid flow direction (no text or symbols)

Illustration of mechanical tools and components (no text or symbols)

Illustration of a hand holding a folder with a scroll, showing a rotation arrow (no text or symbols)

Diagram illustrating food preparation steps: adding 500g coins to a bowl, with labeled components and directional arrows.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

fr_main.book.book Page 40 Monday, January 17, 2022 4:23 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

40 MAINTENANCE

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

DÉPANNAGE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

42 DÉPANNAGE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and circular shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Odeur

fr_main.book.book Page 48 Monday. January 17. 2022 4:23 PM Note

fr_main.book.book Page 49 Monday. January 17. 2022 4:23 PM Note

fr_main.book.book Page 50 Monday. January 17. 2022 4:23 PM Note

fr_main.book.book Page 51 Monday. January 17. 2022 4:23 PM Note

fr_main.book.book Page 50 Monday. January 17. 2022 4:23 PM Note

fr_main.book.book Page 51 Monday. January 17. 2022 4:23 PM Note

fr_main.book.book Page 48 Monday, January 17, 2022 4:23 PM

LG

Life's Good
