USER MANUAL F4WV308S3E LG

Smart Diagnosis ....38

ONDERHOUD

Reinigen na elke wasbeurt....40

Voor u service belt 44

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

VEILIGHEIDSVOORSCHRIFTEN

LEES ALLE INSTRUCTIES VOORAFGAAND AAN HET GEBRUIK

Pure geometric lines and symbols without any text, numbers, or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

VEILIGHEIDSVOORSCHRIFTEN

5

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

6 VEILIGHEIDSVOORSCHRIFTEN

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

8 VEILIGHEIDSVOORSCHRIFTEN

ZORG VOOR HET MILIEU

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

- Minimum lading: 1/3 van de volle lading.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

10 INSTALLATIE

INSTALLATIE

Technical diagram of a mechanical device with numbered components and an inset close-up view labeled 6-7.

Technical diagram of a mechanical or electrical component with labeled parts 1, 2, and 3

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Accessoires

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 INSTALLATIE

Technical line drawing of two mechanical components: a circular component with a pin and a hexagonal bolt (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

14 INSTALLATIE

⚠ WAARSCHUWING

Diagram showing a device with labeled components and directional arrows indicating movement or assembly.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a magnified inset showing the joint detail.

OPMERKING

Two diagrams showing a mechanical lever mechanism with rotational arrows, no text or symbols present

OPMERKING

Simple diagram of a mechanical or electrical component with two plates and a curved base, no text or symbols present.

Mechanical diagram showing a bolt and nut assembly with a curved arrow indicating motion (no text or symbols)

Illustration of a hand holding a card with a triangular ruler, no text or symbols present

Technical diagram showing two mechanical assembly steps with labeled components and connection point 1

Technical diagram showing a mechanical assembly with labeled components and connection point 1

Illustration of a faucet with a valve and pipe fitting, showing fluid flow direction (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

18 INSTALLATIE

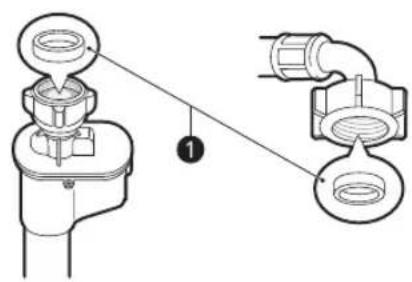

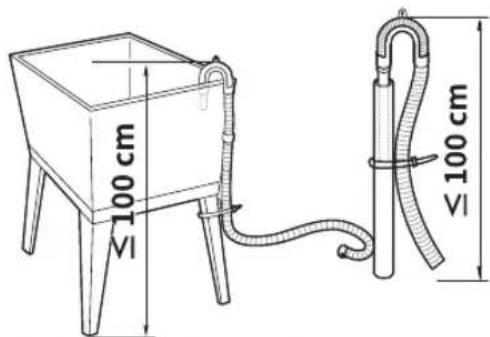

OPMERKING

Illustration showing a hand holding a tool near a device, with an inset magnified view of the tool interacting with a box (no text or symbols present)

≤100 cm ≤145 cm ≤100 cm ≤105 cm

100 cm VI 100 cm VI

Pure electrical circuit lines without any symbols

nl_main.book.book Page 19 Monday, August 24, 2020 5:14 PM

INSTALLATIE

19

Line drawing of a kitchen sink with faucet and plate (no text or symbols)

NEDERLANDS

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

GEBRUIK

Gebruiksoverzicht

Diagram of a biological structure inside a circular container with a cross mark, no text or symbols present

3 Sluit de deur.

LET OP

Medical illustration showing a hand holding a device near the lower left, and another hand pointing at a device on the right (no text or symbols present)

Line drawing of a cabinet interior with shelves and doors (no text or symbols)

Simple circular diagram with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

22 GEBRUIK

Bedieningspaneel

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

24 GEBRUIK

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with numbered components labeled 1, 2, and 3.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

28 GEBRUIK

OPMERKING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Programmatabel

Wasprogramma

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 GEBRUIK

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

34 GEBRUIK

Programma	kg	u:mm	kWu	°C	Liters	rpm	%
Eco 40-60 (Helft) ^*1	4	2:48	0,640	37 46,0	1360	53,0
Eco 40-60 (Kwart) ^*1	2	2:25	0,320	26 38,0	1360	53,0

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

SMART FUNCTIONS

LG ThinQ applicatie

Pure electrical circuit lines without any symbols

SMART FUNCTIONS

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

ONDERHOUD

⚠ WAARSCHUWING

Illustration of two hands cleaning a circular object with arrows indicating direction (no text or symbols)

WAARSCHUWING

Diagram showing a cable being inserted into a wire with an arrow indicating direction (no text or symbols)

Illustration of a tool being cut with scissors, showing motion and movement (no text or symbols)

Illustration of a hand holding a folder with a scroll, showing a hand holding a pen and a scroll (no text or symbols present)

Diagram illustrating food preparation steps with labeled components and a magnified view of raw food items.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

PROBLEEMOPLOSSING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

46 PROBLEEMOPLOSSING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

48 PROBLEEMOPLOSSING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

50 PROBLEEMOPLOSSING

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

nl_main.book.book Page 52 Monday, August 24, 2020 5:14 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

52 PROBLEEMOPLOSSING

Klantenservice

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

nl_main.book.book Page 53 Monday. August 24, 2020 5:14 PM Memo

nl_main.book.book Page 54 Monday. August 24, 2020 5:14 PM Memo

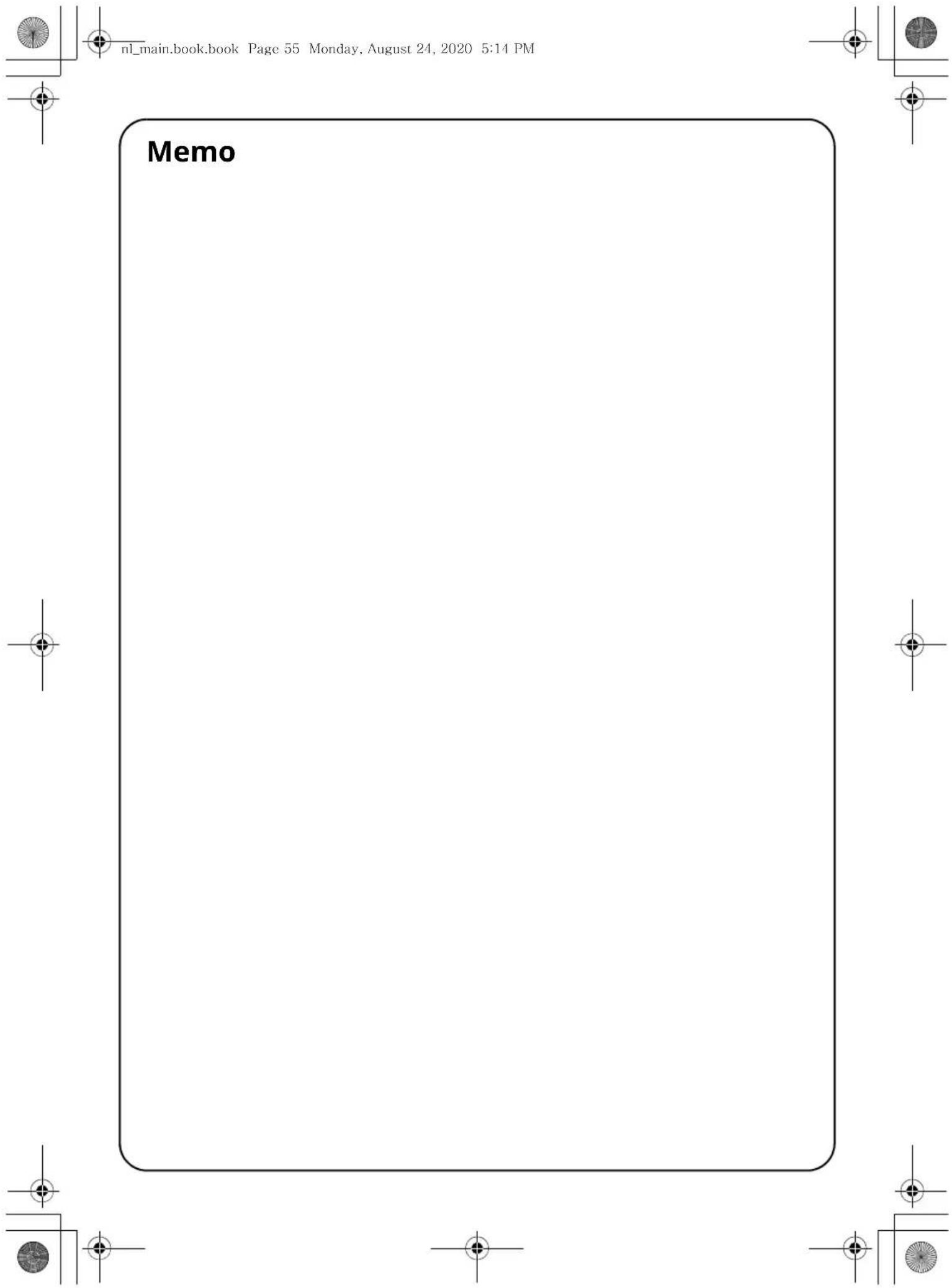

nl_main.book.book Page 55 Monday. August 24, 2020 5:14 PM Memo

nl_main.book.book Page 53 Monday, August 24, 2020 5:14 PM

LG

Life's Good

MANUEL DU PROPRIÉTAIRE

LAVE-LINGE

Application LG ThinQ....40

Smart Diagnosis (Diagnostic intelligent)......40

MAINTENANCE

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

CONSIGNES DE SÉCURITÉ

LISEZ TOUTES LES INSTRUCTIONS AVANT UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

CONSIGNES DE SÉCURITÉ

5

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

6 CONSIGNES DE SÉCURITÉ

Pure geometric lines and circular shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

8 CONSIGNES DE SÉCURITÉ

Élimination

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

CONSIGNES DE SÉCURITÉ

9

- Charge minimale: 1/3 charge.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

10 CONSIGNES DE SÉCURITÉ

Technical diagram of a washing machine with numbered components and an inset close-up view

Technical diagram of a mechanical or electrical component with labeled parts 1, 2, and 3

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

12 INSTALLATION

Accessoires

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Technical line drawing of two mechanical components: a flanged circular component and a threaded bolt (no text or symbols)

Diagram showing a device component with labeled parts and directional arrows indicating assembly or movement.

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or force.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a magnified inset showing the joint detail.

REMARQUE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

INSTALLATION

Two diagrams showing a mechanical lever mechanism with rotational arrows indicating motion (no text or symbols)

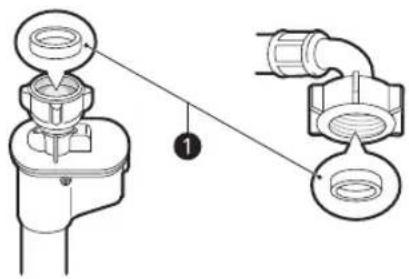

REMARQUE

Simple diagram of a mechanical or electrical component with three mounting holes and a curved base (no text or symbols)

Mechanical diagram showing a bolt and nut assembly with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a folded paper or sheet with a numbered label (1) on the page, no text or symbols present.

Technical diagram showing two mechanical assembly steps with labeled component 1

Technical diagram showing a mechanical assembly with labeled component 1 and a close-up of a pipe fitting.

Illustration of a faucet with a valve and pipe fitting, showing fluid flow direction (no text or symbols)

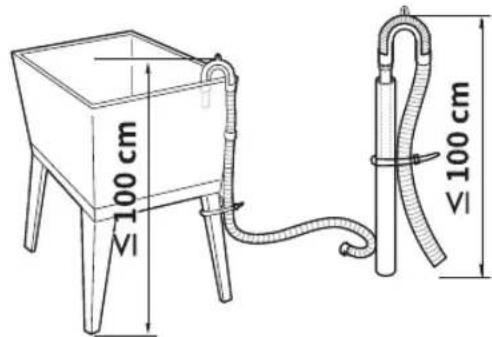

REMARQUE

Illustration showing a hand holding a camera lens interacting with a device, and another person observing from the side (no text or symbols present)

≤100 cm ≤145 cm ≤100 cm ≤105 cm

FRANÇAIS

100 cm MI 100 cm VI

Line drawing of a kitchen sink with faucet and plate (no text or symbols)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

20 UTILISATION

UTILISATION

Diagram showing a cross symbol inside a circular structure, possibly indicating a medical or surgical procedure (no text or labels present)

3 Fermer la porte.

ATTENTION

Medical illustration showing a hand holding a device near the lower left, and a close-up of the device being held in the upper right (no text or symbols present)

Line drawing of a refrigerator interior with shelves and legs (no text or symbols)

Simple circular diagram with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

22 UTILISATION

Panneau de commande

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

24 UTILISATION

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

26 UTILISATION

Diagram illustrating a mechanical or electrical setup with labeled components including a key, switch, and a component with a magnified view.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

REMARQUE

Technical diagram of a mechanical device with numbered components and labeled parts

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

30 UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

32 UTILISATION

Programme Intensief (Intensif) Voorwas (Pré-lavage)
Katoen (Coton)	●	●
Eco 40-60	●	●
Mix (Mix 40°C)	●	●
Easy Care (Synthétiques)	●	●
Nachtprogramma (Ultra silence)	●
Anti-Allergie (Anti-allergie)	●
Extra verzorging (Baby Care Vapeur)	●
Fijne Was (Délicat)	●
Hand/Wol Was (Main/Laine)	●
Sportkleding (Textiles sport)	●
Snel 14min. (Rapide 14)
Donsdeken (Couette)	●

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

fr_main.book.book Page 35 Monday, August 24, 2020 5:25 PM

UTILISATION

35

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

36 UTILISATION

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

38 UTILISATION

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure electrical circuit lines without any symbols

fr_main.book.book Page 39 Monday, August 24, 2020 5:25 PM

UTILISATION

39

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

40 FONCTIONS SMART

FONCTIONS SMART

Application LG ThinQ

Smart Diagnosis (Diagnostic intelligent)

Smart Diagnosis (Diagnostic intelligent)

Illustration of hands cleaning a circular object with a lid and brush (no text or symbols)

AVERTISSEMENT

Diagram showing a cable being inserted into a socket with an arrow indicating rotation (no text or symbols)

Illustration of a tool being inserted into a container using a spool, with motion arrows indicating movement (no text or symbols)

Illustration of a hand holding a folder with a pen, showing a scroll and arrow (no text or symbols)

Diagram illustrating food preparation steps with labeled components and a magnified view of raw food items

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

50 DÉPANNAGE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

52 DÉPANNAGE

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

54 DÉPANNAGE

Odeur

fr_main.book.book Page 55 Monday. August 24, 2020 5:25 PM Note

fr_main.book.book Page 55 Monday, August 24, 2020 5:25 PM

LG

Life's Good
