SEAS 20 A1 - Electric mower SILVERCREST - Free user manual and instructions

USER MANUAL SEAS 20 A1 SILVERCREST

Operating instructions

FR CH

AIGUISEUR ÉLECTRIQUE

Mode d'emploi

NL

ELEKTRISCHE ALLESSLIJPER

Gebruksaanwijzing

KOMPERNASS GMBH

Burgstraße 21

D-44867 Bochum

www.kompernass.com

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE/AT/CH	Bedienungsanleitung	Seite	1
FR/CH	Mode d'emploi	Page	11
IT/CH	Istruzioni per l'uso	Pagina	21
NL	Gebruiksaanwijzing	Pagina	31
GB	Operating instructions	Page	41

INDEX	PAGE
Introduction	42
Intended use	42
Items supplied	42
Technical data	42
Appliance description	43
Safety instructions	43
Unpacking	44
Placement	45
Adjustment	45
Sharpening	45
Cleaning and Care	47
Maintenance	48
Disposal	48
Importer	49
Warranty and Service	49

Read these operating instructions carefully before using the appliance for the first time and preserve this booklet for later reference. Additionally, pass this booklet on to whoever might acquire the appliance at a future date.

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner.

Intended use

This appliance is intended for the sharpening of knives, screwdrivers and scissors in domestic households. This appliance is not intended for commercial or industrial applications.

Items supplied

1 x Electric All-Purpose Sharpener
1 x Operating Instructions

Technical data

Power consumption : 20 W max.

Mains voltage: 230V ,50Hz

Revolutions: 3000 min-1

Protection class: II

C.O. Time: 3 min.

The C.O. Time (Continuous Operation) details how long an appliance may be used without the motor overheating and being damaged. When the specified C.O. Time has been reached, the appliance must be switched off until the motor has cooled itself down to room temperature (approx. 30 minutes).

Appliance description

Function "Knife with smooth edge"
Function "Knife with serrated edge"
Function "Scissor sharpening"
4Grinder openings for slot-screwdrivers
Grindstone
Function and protective cap
1 Abrade collector
Switch

Safety instructions

To avoid potentially fatal electric shocks:

• Protect the appliance against moisture. Use it only in dry rooms, do not use it outdoors or in damp areas.
• Ensure that the power cable cannot be damaged when the appliance is in use, particularly not by sharpened knife or scissor blades.
• Arrange for defective power plugs and/or cables to be replaced as soon as possible by a qualified technician or by our Customer Service Department to avoid the risk of injury.

• NEVER open any housing components, other than those specified herein.

• After use or during extended absences, ALWAYS remove the plug from the power socket. For as long as the plug is inserted in the wall socket the appliance itself is under electrical power.

• Ensure that the power plug is at all times easily accessible, so that it can be quickly and easily removed in the event of potential danger or risk.

To avoid the risks of accidents and personal injuries:

• Always check to ensure that the appliance is in a serviceable condition before taking it into use. If there is recognisable damage to the appliance it may not be used. Arrange for it to be safety-checked by Customers Services before using it again.
• Take steps to ensure that hair, loose clothing and parts of the body do not come into contact with the revolving grindstone 5.
• Wear protective gloves so as to avoid injury from sharp blades, or, if you are operating the knife sharpener with the function cap 6 removed.
• This appliance is not intended for use by individuals (including children) with restricted physical, sensorial or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used.
• Children should be supervised to ensure that they do not play with the appliance.

Unpacking

• Check that all items listed are available and that they show no signs of visible damage.

• Remove all parts from the packaging and all packaging remnants from the items.

• Retain the packaging, either for storing the appliance or for reuse in the event of posting it to Customer Services for repair.

• Before the first usage thoroughly clean all component parts as described in the section "Cleaning and care".

Placement

• Place the appliance on a stable and slip-free surface.
• Then insert the plug into the power socket.

Adjustment

• To select the required sharpening function ① ② ③, turn the function cap ⑥ until the cap perceptibly engages.
• In the position ② "Knife with serrated edge" the relevant symbol points to the grinder opening (see Fig. C) - however, the cap engages at that point.
• Hold the switch 3 pressed down. The grindstone 5 revolves continuously until the switch 8 is released.

Sharpening

• First present the blade when the grindstone 5 is revolving.
• Always draw the knife or scissors back, from the blade stop, in an even movement, not in a repetitive back and forth movement - otherwise the result will be an uneven sharpening.

• Do not apply any great pressure and always sharpen only clean blades, so as to avoid a premature wearing-out of the grindstone.

• Always sharpen knives and scissors so that the blade is at an acute angle to the grindstone (as alluded to in the shape of the opening). Sharpening at the false angle can destroy any blade.

• After sharpening, remove any possible grinding remnants that may be on the blade with a moist cloth.

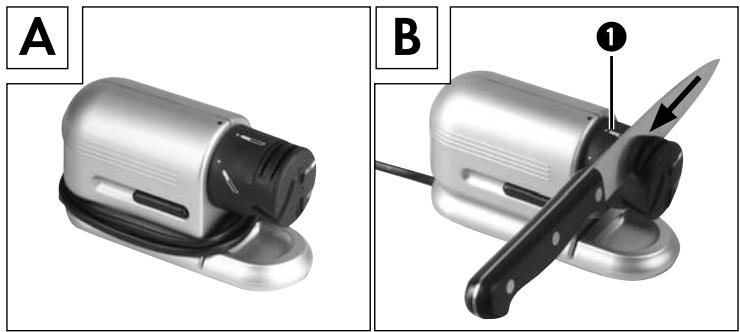

If you have selected the setting "Knife with smooth edge" ① (Fig. B):

• Always sharpen knives with a smooth edge on both sides - for this, left and right side sharpening guides are available.
• In the left guide hold the knife inclined to the left, and in the right guide inclined to the right, whilst drawing the blade through.

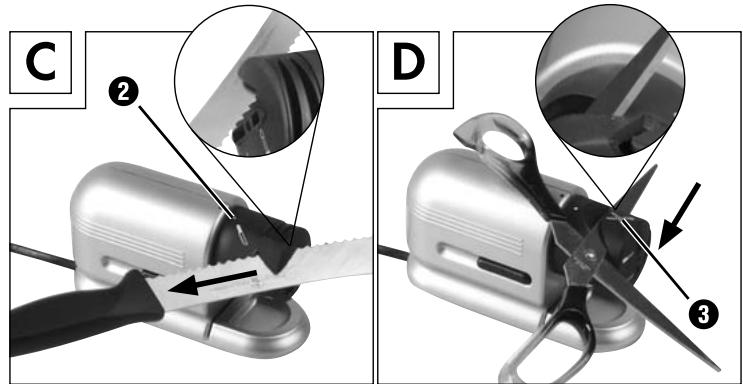

If you have selected the setting "Knife with serrated edge" (Fig. C):

• Sharpen these only on the side with the serration – the draw through direction for the knife is dependant on which side of the blade this is on.
• In general, serrated blades can only be sharpened up to a point. Knifes with a fine sawtoothing (e.g. table knives) do not require sharpening.

If you have selected the setting "Scissor sharpening" (Fig. D):

• Sharpen both scissor blades one after the other. For this, open the scissors out and draw both blades, one after the other, through the guide.

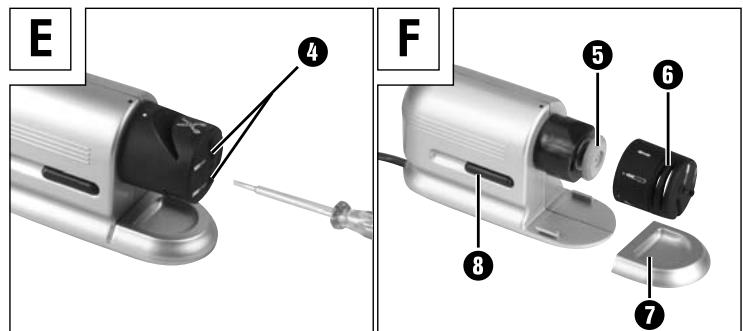

Should you wish to grind a slot-screwdriver 4 flat (Fig. E):

• This is possible in every position of the function cap ⑥. Appropriate to its width, insert the screwdriver through one of the two grinding openings ④ on the front of the function cap (see fold-out side). The end face of the screwdriver will now be ground level and flat.

Certain edges can possibly be more easily sharpened directly on the grindstone , without the function cap : For these cases, the function cap is removable (Fig. F):

• Turn the function cap 6 until the arrow is at the top.

You can now take off the function cap 6

• To replace the function cap 6 , hold it so that the arrow is once again at the top. You can now push the function cap 6 on and secure it by turning it to the left or right.

Cleaning and Care

To avoid risks of personal injury and damage:

• Before carrying out any maintenance work, first remove the plug from the wall socket.
• NEVER submerge the appliance in water or other liquids! These could damage the appliance. Additionally, there is a potentially fatal risk of electric shock should moisture come into contact with electrical components.

Cleaning the appliance:

• Turn the function cap ⑥, until the arrow is at the top. You can now remove the function cap ⑥ and clean the area around the grindstone ⑤ with a dry brush.
• Dismantle the abrade collector ① and clean it with a brush and, if necessary, a lightly moistened cloth.

• Clean the remaining parts of the appliance also with a lightly moistened cloth, not with abrasive or aggressive detergents. They can damage the surfaces.

• To replace the function cap 6, hold it so that the arrow is once again at the top. You can now push the function cap 6 cap on and secure it by turning it to the left or right. To conclude, reassemble the abrade collector 7 into the appliance.

Maintenance

• The appliance is maintenance-free. No form of maintenance, either on or in the appliance, is intended for execution by the user. In the event of malfunction or apparent damage, make contact with Customer Services.
• For storage, wrap the power cable around the appliance housing.

Disposal

Do not dispose of the appliance in your normal domestic waste. This product is subject to the European guideline 2002/96/EC.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally friendly manner.

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com

Warranty and Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service

Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN75468
