USER MANUAL AL2411 IFM

1 Preliminary note 3
1.1 Symbols used 3
2 Safety instructions 3
3 Functions and features 3
4 Function 4
4.1 Communication, parameter setting, evaluation 4

4.1.1 IO-Link data 4
4.1.2 Visual indication 5
4.1.3 Parameter setting 5

4.2 Digital inputs 5
4.3 Sensor supply 5

5 Installation 6
6 Electrical connection 7

6.1 IO-Link connection 8

7 Pin connection 8
8 operating and display elements 8
9 Maintenance, repair and disposal 9

1 Preliminary note

Technical data, approvals, accessories and further information at www.ifm.com.

1.1 Symbols used

Instructions

Reaction, result
Cross-reference

Important note

Non-compliance may result in malfunction or interference.

Information

Supplementary note.

2 Safety instructions

• Read this document before setting up the product and keep it during the entire service life.
• The product must be suitable for the corresponding applications and environmental conditions without any restrictions.
• Only use the product for its intended purpose ( Functions and features).
• If the operating instructions or the technical data are not adhered to, personal injury and/or damage to property may occur.
• The manufacturer assumes no liability or warranty for any consequences caused by tampering with the product or incorrect use by the operator.
• Installation, electrical connection, set-up, operation and maintenance of the unit must be carried out by qualified personnel authorised by the machine operator.
• Protect units and cables against damage.

3 Functions and features

The device transmits the input states of the digital type 2 inputs and the status of the sensor supply to IO-Link.

4 Function

4.1 Communication, parameter setting, evaluation

4.1.1 IO-Link data

The device

• transmits the current states of the digital inputs cyclically in byte 0. Byte 1 is not used and always transfers the value '0'.
• transmits the device information "short circuit" (SC) cyclically in byte 2.
• transmits the equipment identification cyclically in byte 3.
• provides the equipment identification for writing acyclically (index 688, sub-index 0).

AL2410 (4 DI)

Bit no. 7 6 5 4 3 2 1 0
Byte no. 0
Assignment 0 0 0 0 X1 3 X1.2 X1 .1 X1.0
Byte no. 1
Assignment 0 0 0 0 0 0 0
Byte no. 2
Assignment 0 0 0 0 0 0 K S1
Byte no. 3
Assignment Equipment identification

For AL2410 the data bits 4...7 of byte 0 are transmitted with '0'.

AL2411 (8 DI)

Bit no. 7 6 5 4	3 2 1 0
Byte no. 0
Assignment	X1.7	X1.6	X1.5	X1.4	X1.3	X1.2	X1.1	X1.0
Byte no. 1
Assignment	0 0 0 0 0	0 0
Byte no. 2

Assignment 0	0 0 0 0	KS2 KS1
Byte no. 3
Assignment Equipment identification

4.1.2 Visual indication

The device

• indicates the current state of an input (yellow LED).
• indicates a correct operation (green PWR/FLT LED lights).
• indicates a short circuit of one or several sensor supplies (red PWR/FLT LED lights).

4.1.3 Parameter setting

Device-specific parameter lists for IO-Link parameter setting are available

www.ifm.com

4.2 Digital inputs

Depending on the version the device has 4 (AL2410) or 8 (AL2411) digital inputs (type 2 input to IEC 61131-2). All inputs refer to the sensor supply potential.

4.3 Sensor supply

Depending on the version the device has 4 (AL2410) or 8 (AL2411) process connections on the front panel. Each process connection has a sensor supply rated for a nominal current of 100mA .

The short-circuit protection applies to a group of 4 inputs

• group 1: inputs X1.0...X1.3
• group 2: inputs X1.4 - X1.7 (only AL2411)

and is rated for 400mA per group.

So the total current of the group of 4 inputs can be taken from one of the process connections of the corresponding group.

Maximum cable length < 30 m .

A short circuit or overload has no effect on the sensor supply of the other group (only AL2411). Moreover every sensor supply has a short-circuit and overload

detection which is indicated by the red PWR/FLT LED and via the IO-Link interface.

A correct operation is indicated by the green PWR/FLT LED. The output voltage of the sensor supply is in linear proportion to the input voltage (positive supply cable of the IO-Link port). Voltage can vary within the IO-Link specification (18...30 V).

5 Installation

Disconnect power before installation.

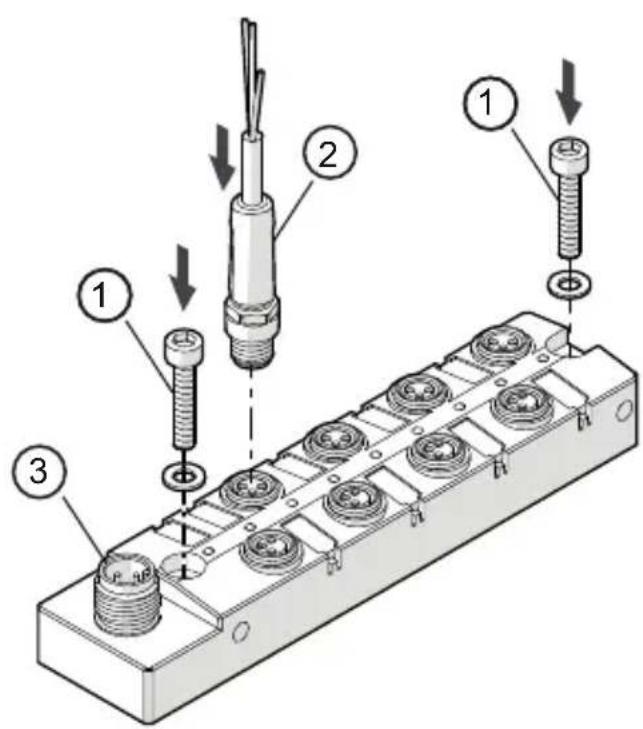

For installation choose a flat mounting surface. The entire bottom of the module must lie flat on the mounting surface.

• Fasten the module onto the mounting surface using M4 screws and washers (1). Tightening torque 1.2...1.5 Nm. Connect the plugs of the sensors to the M8 sockets.

• Tighten firmly, recommended tightening torque 0.3...0.5 Nm.

As an alternative the module can be mounted laterally using two M4 screws, tightening torque max. 1 Nm.

To ensure the protection rating

• Cover the unused sockets with the enclosed protective caps. Tighten firmly, recommended tightening torque 0.3...0.5 Nm.

UK

1: M4 screws and washers (not supplied with the device). Tightening torque 1.2...1.5 Nm.
2: M8 connector
3: M12 connector IO-Link (X1)

Observe the maximum tightening torque of the connection cable.

6 Electrical connection

The unit must be connected by a qualified electrician.

The national and international regulations for the installation of electrical equipment must be adhered to.

Intended for connection to class 2 (cULus class 2) circuits only.

Disconnect power.

Connect M12 plug (IO-Link) to the M12 socket. Tightening torque 0.6...0.8Nm.
Connect the device.

6.1 IO-Link connection

The IO-Link port must be connected according to the IO-Link specification.

The current required by the devices depends on the current load of the sensor supplies.

The total current (AL2410 = 550 mA and AL2411 = 1050 mA) must be provided by the connected IO-Link master.

If the positive supply cable is interrupted the device may be supplied via the IO-Link cable. This may lead to an unwanted system behaviour.

7 Pin connection

Inputs

1: Sensor supply +
3: Sensor supply -
4: Data input

M12 connector IO-Link (X1)

1: L+
2: not connected
3:L-
4: C/Q / I/O-Link

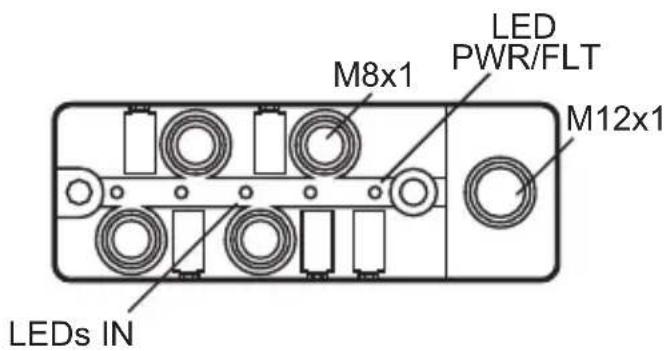

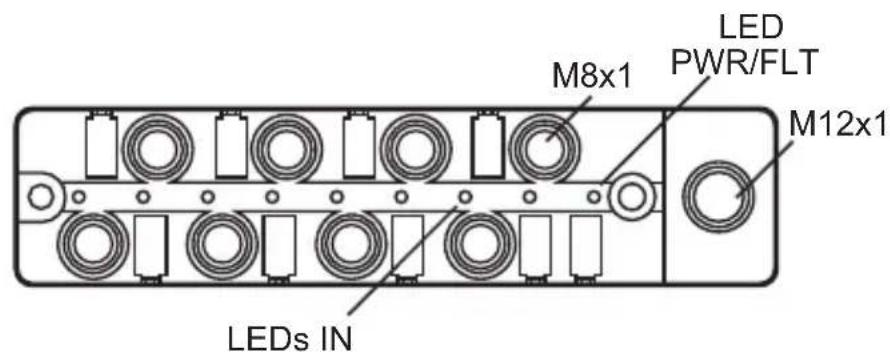

8 Operating and display elements

UK

Green LED PWR / FLT on: everything ok

Red LED PWR / FLT on: short circuit on one or several sensor supplies

LED PWR / FLT off: undervoltage or disconnected system

Yellow LED IN input on: input provides a type 2 HIGH signal

Yellow LED IN input off: input provides a type 2 LOW signal

9 Maintenance, repair and disposal

The operation of the unit is maintenance-free.

After use dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations.
