IMPORTANT!

Safety Instructions

All Operators Must Read These Instructions Before Use

Any electrical appliance can be dangerous if used incorrectly. Some of the safety precautions given in this manual apply generally to many appliances. Other warnings are specific to the use of this ash vacuum.

Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death.

DANGER! This indicates a hazardous situation, which, if not followed, will result in serious injury or death.
WARNING! This indicates a hazardous situation, which, if not avoided, could result in serious injury or death.
CAUTION! This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.

General Safety

WARNING! This ash vac is for household use only.

CAUTION! Never use this product to vacuum liquids. Only use this unit to vacuum dry dust material!

• Do not vacuum up soot.
  Only vacuum up cold, noncombustible ashes.
• Do not vacuum up hot, burning, or red hot objects, such as cigarettes, charcoal, or smoldering ashes.
  The temperature of the vacuumed material must be below 100^ (40^) . If it exceeds 100^ (40^) , there is a risk of fire.

WARNING! To reduce the risk of fire, electric shock, or injury:

1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
2. The risk of electric shock. Do not use outdoors or on wet surfaces.

3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.

4. Use only as described in this manual. Use only manufacturer's recommended attachments.

5. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
11. Turn off all controls before unplugging.
12. Use extra care when cleaning on stairs.
13. This appliance is provided with double insulation. Use only identical replacement parts. See instructions for Servicing of Double-Insulated Appliances.

SAVE THESE INSTRUCTIONS

Personal Safety

• Keep the appliance away from children and pets.
• The device must not be used by people (including children) with limited physical, sensory or mental faculties or by those who lack the necessary experience and/or knowledge required to properly use the machine. The only time such individuals may use the machine is when they are supervised by a person who is responsible for their safety and can instruct them on the safe operation of the appliance.
  Children in the work area must be supervised to ensure that they do not play with the appliance. This appliance is NOT a toy and should never be used as such.
• Never leave a machine that is ready for operation unattended at the workplace.
• People and animals should never be vacuumed with the machine.
• Nozzles and suction tubes must not reach head level while in use as this can result in serious bodily injury.

If you have any questions or comments, please call the

All Season Power customer service department at:

1-866-225-9723

• Do not vacuum substances or dust particles that are hot, glowing, combustible, explosive or hazardous to one's health. This includes hot ashes, petrol, solvents, acids or caustic solutions. Personal injury could occur.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Maintain proper footing and use extra care when using the appliance on stairs.

Double-Insulated Appliances

In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized Snow Joe + Sun Joe dealer. Replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is marked with the words "Double Insulation" or "Double Insulated." The symbol (square within a square) may also be marked on the appliance.

TABLE-INSULATED: GROUNDING NOT REQUIRED. WHEN SERVICING, USE ONLY IN IDENTICAL REPLACEMENT PARTS.

This electric garden cultivator is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions before servicing double-insulated appliances. Use this garden cultivator only as described in this manual.

Electrical Safety

1. To prevent electric shock, use only with an extension cord suitable for outdoor use, such as SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A, or SJTOW-A.

Before use, check that the extension cord is in good condition. When using an extension cord, make sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.

1. To reduce the risk of electric shock, this appliance has a polarized plug (i.e. one blade is wider than the other). Use this appliance only with a polarized UL-, CSA-, or ETL-rated extension cord for outdoor, all-weather use. The appliance plug will fit into a polarized extension cord only one way.

If the appliance plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. The extension cord plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not modify the appliance plug, extension cord receptacle, or extension cord plug in any way.

WARNING!

Electric shock may cause SEVERE INJURY or DEATH. Heed these warnings:

• Do not allow any part of the ash vac to make contact with water while it is in operation. If the appliance becomes wet while turned off, wipe dry before starting.
• Use only a UL-, CSA-, or ETL-rated extension cord for outdoor, all-weather use.
• Do not use an extension cord over 100 ft (30 m).
• Do not touch the appliance or its plug with wet hands or while standing in water. Wearing rubber boots offers some protection.

EXTENSION CORD CHART

Cord Length:	Up to 50 ft(15 m)	+50 ft - 100 ft(+15 m - 30 m)
Min. Wire Gauge (A.W.G.):	16	14

WARNING! To reduce the risk of personal injury due to a loose electrical connection between the appliance's plug and extension cord, firmly and fully attach the appliance plug to the extension cord. Periodically check the connection while operating to ensure it is fully attached. Do not use an extension cord that provides a loose connection. A loose connection may result in overheating, fire, and increases the risk of a burning.

1. To prevent the appliance cord from disconnecting from the extension cord during operation, make a knot with the two cords as shown in Table 1.

Table 1. Method of Securing Extension Cord
(A) Tie cord as shown

(B) Connect plug and receptacle

1. Maintain appliance with care - Inspect extension cords periodically and replace if damaged. Do not abuse the cord. Never pull the ash vac by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.

Specific Safety Rules for Ash Vacuums

This motor-operated ash vacuum is intended for vacuuming cold ashes and fine dust material from fireplaces, wood/coal-fired ovens, ashtrays, firepits and barbecues. This equipment is not suitable for vacuuming liquids, soot or cement dust or for vacuuming heating boilers or oil-burning ovens. Vacuuming of glowing embers or materials and dusts that are combustible, explosive or hazardous to one's health is prohibited. The manufacturer will not be held responsible for injuries resulting from incorrect use of the device or from use that does not comply with the directions.

NOTE: This ash vacuum is intended for household use only.

CAUTION! Extreme temperature conditions may damage the tubes, the ash filter, or the vacuum canister. Completely empty the vacuum cleaner and the ash filter in a safe area after cleaning.

WARNING! To reduce the risk of electric shock, do not use on wet surfaces. Do not expose to rain. Store indoors in a dry place.

WARNING! For your own safety, read and understand the operator's manual. Do not run the unit unattended. Do not pick up hot ashes, coals, toxic substances, flammable materials or other hazardous debris. Do not use the device in an area with explosive liquids or vapors.

CAUTION! To reduce the risk of injury from moving parts, unplug the unit before servicing.

• Do not use the ash vacuum without pleated filter and wire filter basket in place.
• When vacuuming, do not place the equipment on heat sensitive floors. For safety reasons, use a fireproof base when cleaning ovens, chimneys or barbecue equipment.
• Do not extinguish hot ash particles with water as the sudden temperature differences can cause cracks in your chimney.
• Empty and clean the vacuum before and after vacuuming to avoid the accumulation of debris that could pose a fire hazard.

CAUTION! Do not vacuum hazardous substances (e.g. petrol, solvents, acids or lyes) and ash from unauthorized fuels (i.e. from oil-burning ovens or heating boilers). These substances pose a serious risk of injury.

• Do not use the vacuum in areas where flammable or combustible liquids, such as gasoline, may be present.
• Do not vacuum fine, combustible dust particles that can ignite and potentially lead to an explosion.

• This ash vacuum is designed for cold ash pickup only. Do not vacuum hot ashes and hot, glowing or combustible objects (e.g. charcoal, cigarettes, matches, etc.). These objects pose a fire hazard if vacuumed.

• Do not vacuum liquids, soot, plaster or cement dust. Vacuuming such substances can damage the equipment.

• Do not use the appliance without the pleated filter and wire filter basket fitted properly in place.
• Do not put foreign objects into openings. Do not use the vacuum with any opening blocked; keep all openings free of dust, lint, hair, and anything that may reduce air flow.
  Always check the hose and vacuum cleaner for heating when vacuuming.
• The vacuum must not exceed a temperature of 100^ (40^) . Vacuumed material that appears cool from the outside may still be hot inside. Hot vacuumed material can re-ignite in the air stream. Furthermore, the equipment can be damaged. In the event there is a noticeable increase in the appliance's temperature, switch off the equipment and disconnect the plug. Place the equipment outside and monitor it as it cools.

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

• "Cold ashes" are ashes that have cooled for a sufficient time and no longer contain pockets of embers. This can be determined by sifting through the ashes with a metal implement before using the equipment. The cold ashes emit no further perceptible heat radiation.

Symbols	Descriptions Symbols	Descriptions
	Safety alert. Exercise caution.	>40°C/100°F	For cold ashes only*!Matter exceeding a temperature of40°C/100°F poses a fire risk!
	To reduce the risk of injury, user must read the instruction manual.		WARNING! Always turn the machine OFF and disconnect the electrical power before conducting inspection, cleaning and maintenance. Remove the plug from the outlet immediately if the cord is damaged or cut.
	To reduce the risk of electric shock, do not use outdoors or in damp or wet environments. Do not expose to rain. Store indoors in a dry place.
		During vacuuming, constantly check the hoses and vacuum for heating. Do not vacuum up soot or combustible materials. The vacuumed material must not exceed a temperature of40°C/100°F.
		Open, empty and clean the vacuum outdoors before and after vacuuming.

Know Your Ash Vacuum

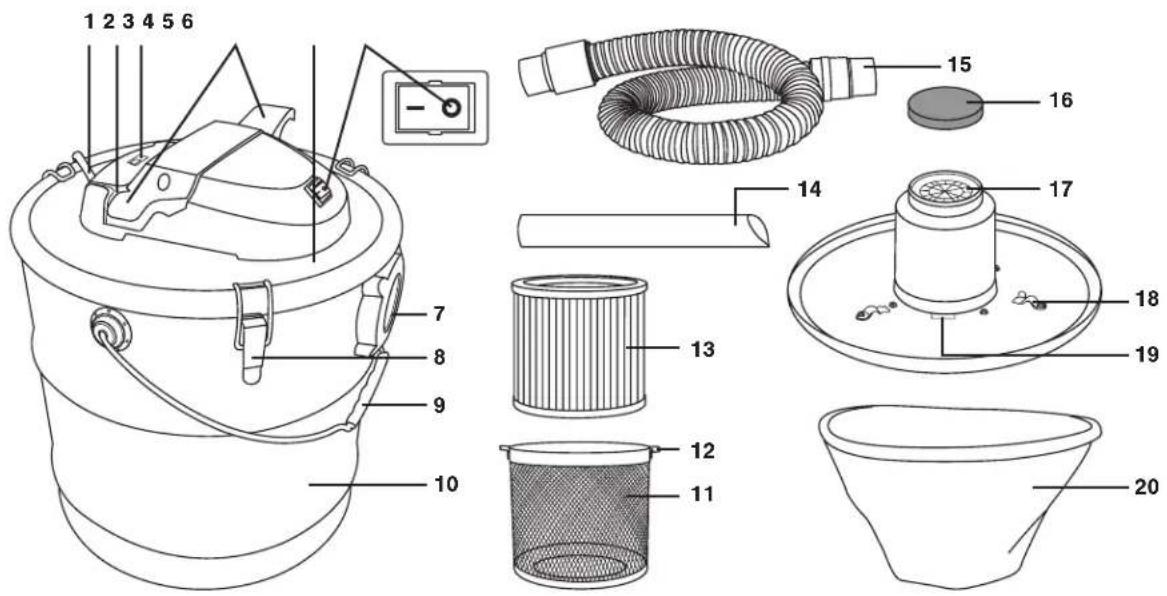

Read the owner's manual and safety instructions carefully before operating the ash vac. Compare the illustration below to the ash vac in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

1. Power cord
2. Accessory holder

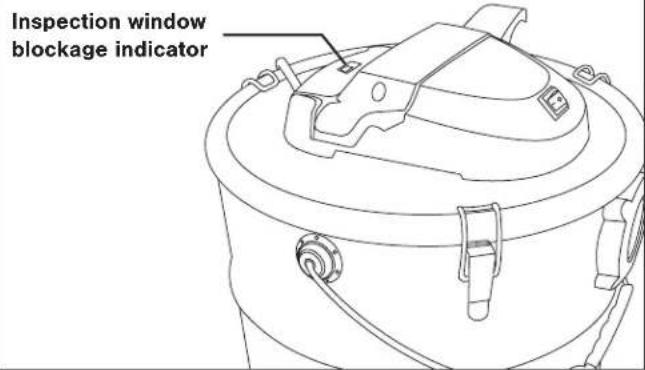

3. Inspection window blockage indicator
4. Retaining bracket
5. Container lid
6. On/Off switch
7. Hose connection
8. Seal clips (3)
9. Carry handle

10. Metal container

11. Wire filter basket

12. Wire filter basket tabs
13. Pleated filter
14. Suction tube
15. Metal suction hose
16. Air filter
17. Filter housing
18. Metal retainer clips (3)
19. Safety stop switch
20. Pre-filter

Technical Data

Rated Voltage 120V\~60Hz

Motor. 4-amp

Tank Capacity. 4.8 gallons (18 L)

Air Flow. 42.4 ft³/min (1.2 m³/min)

Suction Hose Length 3.9 ft (1.2 m)

Suction Tube Length. 11.8 in. (30 cm)

Power Cord Length 8 ft (2.4 m)

Product Dimensions. 12.95 in. (L) x 72 in. (W) x 13.3 in. (H) 32.9 cm (L) x 182.9 cm (W) x 33.8 cm (H)

Net Weight. 8.6 lbs (3.9 kg)

Unpacking

Carton Contents

• Container lid
  Metal container
• Pre-filter
• Flexible metal suction hose
  Aluminium suction tube
• Wire filter basket with pleated filter

• Manual

• Carefully remove the ash vac and check to see that all of the above items are supplied.

• Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the All Season Power customer service center at 1-866-225-9723.

NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new ash vac. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

Assembly

DANGER! Never start the motor before installing the pleated filter and the wire filter basket.
WARNING! To avoid serious personal injury, read and understand all safety instructions provided.
WARNING! Before performing any maintenance, make sure the tool is unplugged from the power supply and the On/Off switch is turned off. Failure to heed this warning could result in serious personal injury.

Fitting the Pre-Filter

The coarse-dust pre-filter is made of a specially designed glass fabric cloth that effectively filters approximately 95% of coarse-dust particles. Installing the pre-filter correctly will reduce the cleaning of the pleated filter and prolong the pleated filter lifetime.

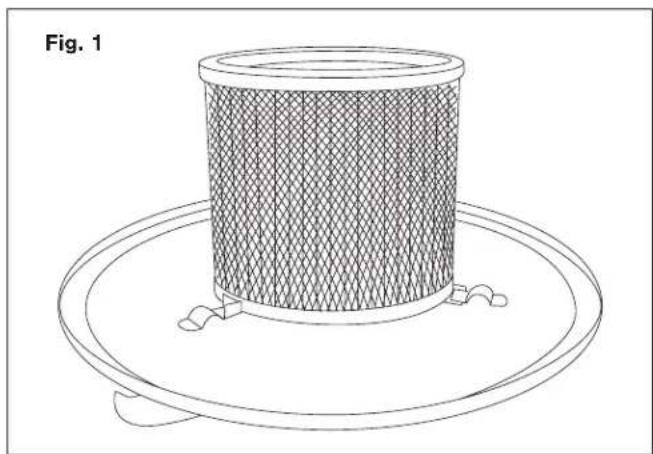

1. Check that the wire filter basket and the pleated filter (inside of the wire filter basket) are securely mounted in the correct position (Fig. 1).

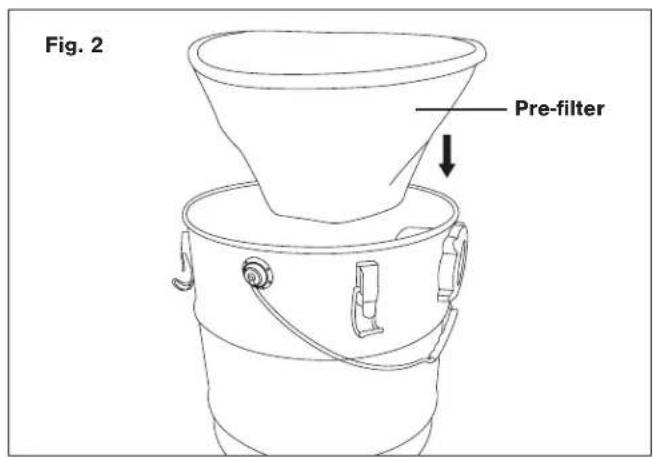

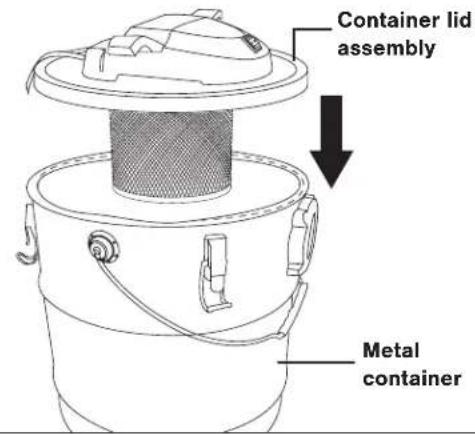

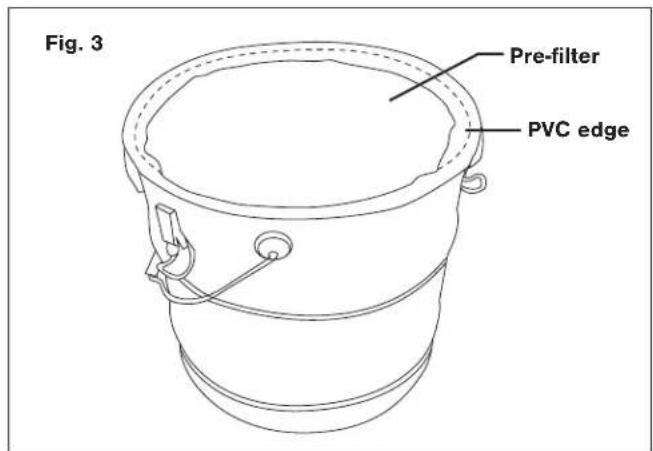

1. Insert the pre-filter into the ash vacuum metal container, aligning the PVC edge of the filter with the rim of the container (Figs. 2-3).

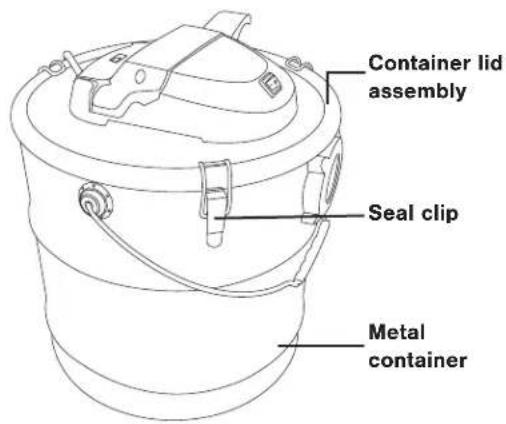

1. Place the container lid on the metal container and lock it using the seal clips (Figs. 4 - 5).

Fig. 4

Fig.6

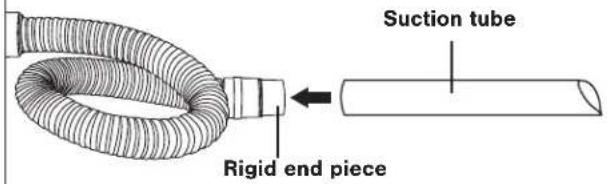

2. Insert the suction tube into the rigid end piece of the suction hose (Fig. 7).

Fig. 5

Fig. 7

Fitting the Suction Hose and Tube

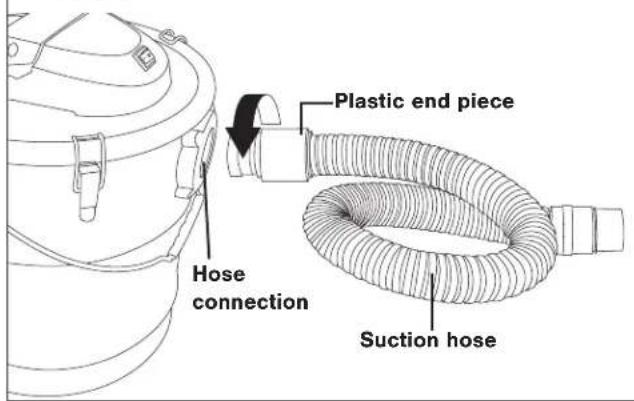

1. Connect the suction hose to the metal container by screwing the rotatable plastic end piece of the suction hose into the hose connection securely (Fig. 6).

NOTE: When assembling/detaching the suction hose, hold the black plastic end piece, not the metal suction hose. Twisting or bending the hose could damage it (Fig. 6).

Operation

Switching ON/OFF

Do not switch on the ash vac until it has been completely assembled. Before switching on the unit, always check the appliance cord and the extension cord for signs of damage. Use only intact cords.

WARNING! Damaged cords pose a severe risk of injury. Replace damaged cords immediately.

1. Connect the power cord into a working 120V60Hz outlet.
   NOTE: The equipment is fitted with a safety stop switch, which allows for operation only when the pleated filter and wire filter basket are installed correctly.

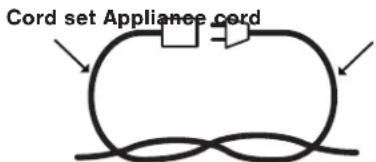

2. If using a extension cord, make a knot with the two cords like indicated by Table 1 on page 3.

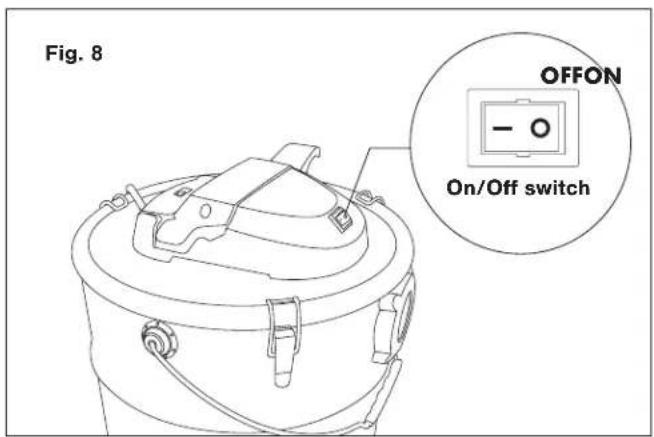

3. To switch the unit on, set the On/Off switch to position "--" (Fig. 8).
4. To switch the unit off, set the On/Off switch to position "o" (Fig. 8).

Basic Vacuum Procedures

WARNING! The vacuuming of glowing embers and materials that are combustible, explosive or harmful to your health is prohibited. Failure to adhere to this warning could result in severe personal injury.

• Place the equipment on a level surface that is not heat sensitive.
  Always use the suction tube for vacuuming. Hold the suction tube at a distance of approximately 0.4 in. (1 cm) above the ash.
  Vacuum only cooled ash that is less than 100^(40^)
• When vacuuming, check the metal container and suction hose periodically to ensure there is no rise in temperature.
• In the event of a rise in temperature, switch off the equipment and disconnect the plug. Place the equipment outside and monitor it as it cools.

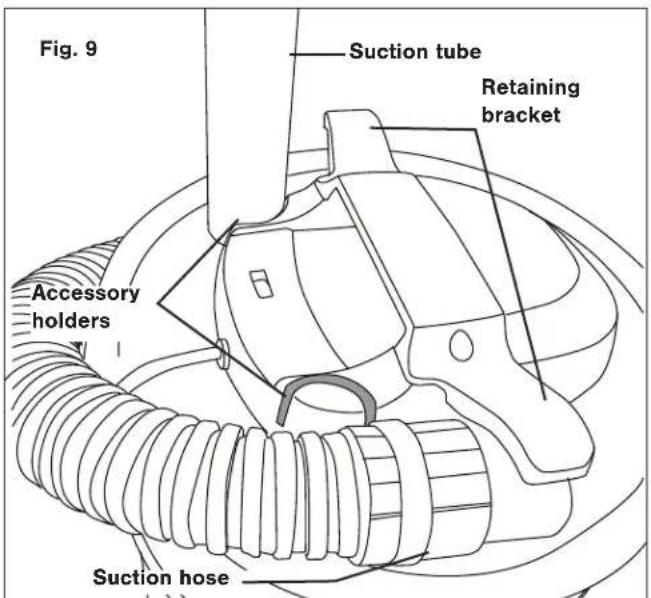

  During rest periods, you can use the accessory holder located on the container lid to secure the suction tube, and you can secure the suction tube under the retaining bracket (Fig. 9).

Always use the carry handle for transporting the equipment.
In order to ensure that the pleated filter remains clear, fill the metal container no more than halfway.
- Empty the container outside in order to avoid a mess (see Maintenance section).
- Clean the pleated filter (see Maintenance section) if the suction performance deteriorates or when the inspection window blockage indicator on the container lid turns red (Fig. 10).

Fig. 10

Maintenance

WARNING! Disconnect the extension cord before performing any maintenance task. If the extension cord is plugged into the unit, someone could accidentally operate it while you are performing maintenance on it, resulting in serious personal injury.
WARNING! Never hose the appliance down with water.

Never use aggressive cleaning agents or solvents.

These substances can damage the appliance.

Clean the Metal Container

Clean the equipment routinely after each use:

Take the unit outside to clean it to avoid creating a mess indoors.
- Remove the container lid and empty the metal container. Clean the metal container with water and allow it to dry completely.

Clean the Wire Filter Basket and Pleated Filter

NOTE: Replace the pleated filter if it is worn, damaged or heavily soiled. Visit shopjoe.com or call our toll-free customer service helpline at 1-866-225-9723 to purchase replacement filters.

1. Take off the container cover.

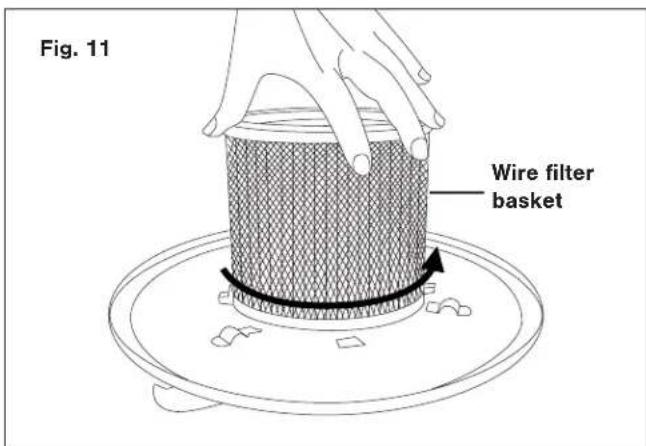

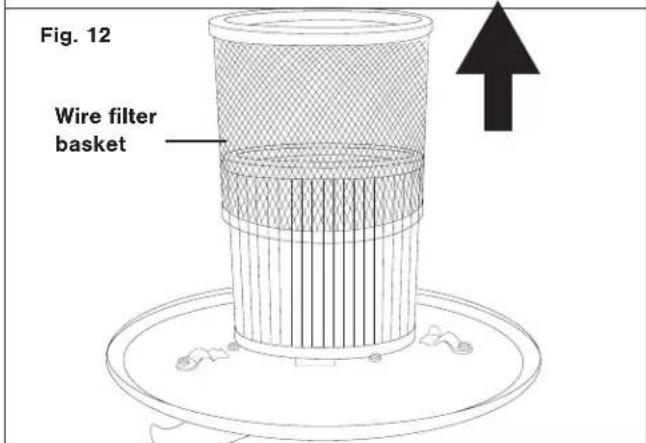

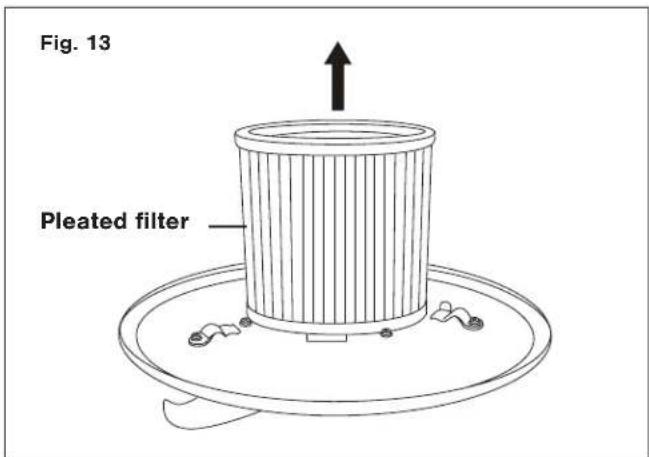

2. Remove the wire filter basket by turning it counterclockwise. Tap out the basket to remove any accumulated residue (Figs. 11 - 12).

3. Take out the pleated filter and tap it clean. Remove any debris with a clean and dry paintbrush or hand brush (Fig. 13).

NOTE: Do not wash the pleated filter in water.

1. After cleaning, replace the pleated filter on the motor and filter housing located on the underside of the container lid (Fig. 14).

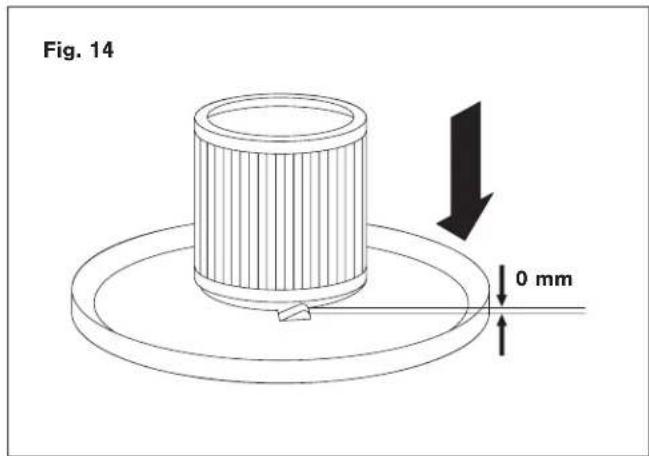

NOTE: Check that the rubber rim of the pleated filter is seated flush against the container lid.

5. Fit the wire filter basket over the pleated filter and turn it clockwise until it stops. The wire filter basket tabs must cover and depress the safety stop switch.
NOTE: Make sure the wire filter basket tabs are under the metal retainer clips.

Cleaning the Air Filter

1. Take off the container cover, wire filter basket and pleated filter.

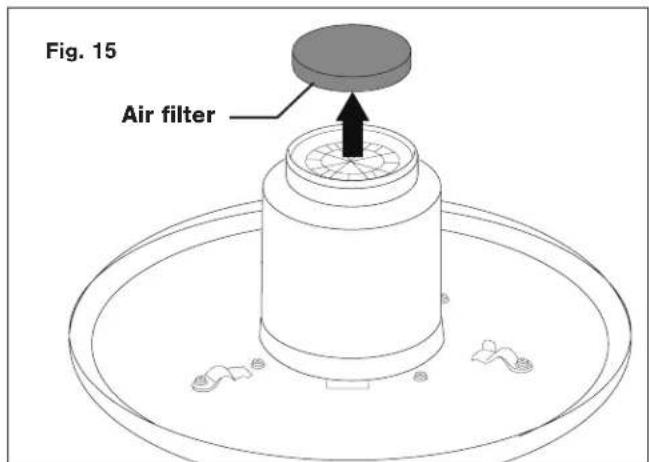

2. Take the air filter out of the filter housing (Fig. 15).

3. Clean the filter with soap and water and let it air dry.
4. Place the air filter back into the filter housing and reassemble the pleated filter and the wire filter basket.

Cleaning the Pre-filter

1. Gently clean the pre-filter with water and hang to dry.

NOTE: Make sure not to rub the cloth when cleaning as this could damage the coarse cloth grain.

Storage

• To store, wind the power cord around the retaining bracket on the container lid.
• Use the retaining bracket to secure the end of the suction hose.
• Insert the suction tube into the accessory holder.
• Keep the equipment in a secure and dry place out of the reach of children.

Service and Support

If your Snow Joe® ASHJ201 ash vacuum requires service or maintenance, please call 1-866-225-9723 for assistance.

Model and Serial Numbers

When contacting the company, reordering parts, or arranging for service, you will need to provide the model and serial numbers of your product. These can be found on the decal affixed to the housing of your ash vacuum. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product:

Model #:

Troubleshooting

Problem Possible Cause	Possible Solution
Device does not start Mains voltage is not present Check plug socket, cable, line	plug and fuse; if damage is found, contact a qualified electrician to repair
The equipment is not switched ON	Switch on the equipment (see "Switching ON" section)
Safety stop switch is activated due to missing or incorrectly inserted pleated filter	Insert the pleated filter correctly (see "Maintenance" section)
Defective ON/OFF switch	Contact All Season Power customer service at 1-866-225-9723 to repair
Defective motor
Low or lack of suction	Suction hose or suction tube is blocked	Remove obstructions and blockages
The metal container is not closed	Close the metal container
The metal container is full	Empty the metal container (see "Maintenance" section)
The pleated filter is clogged	Clean or replace the pleated filter (see "Maintenance" section)
The air filter is clogged	Clean the air filter (see "Maintenance" section)

Only a company specialist may be able to correct faults that cannot be rectified with the aid of this table. Please call the All Season Power customer service center at 1-866-225-9723.

Optional Accessories

WARNING! ALWAYS use only authorized Snow Joe + Sun Joe replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this tool. Contact All Season Power if you are unsure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

		ModelAccessor
1	Ash Vac Replacement Pre-Filter ASHJ201PRFLT
2	Ash Vac Replacement Filter	ASHJ201FTR
3	Ash Vac Replacement Hose	ASHJ201-2-HOSE
4	Ash Vac Replacement Tube	ASHJ201-2-TUBE
5	Ash Vac Replacement Wire Filter Basket	ASHJ201-2-WBSKT

NOTE: Accessories are subject to change without any obligation on the part of All Season Power to provide notice of such changes. Accessories can be ordered online at shopjoe.com or via phone by contacting the All Season Power customer service center at 1-866-225-9723.

ALL SEASON POWER CUSTOMER PROMISE

ABOVE ALL ELSE, All Season Power LLC ("All Season Power") is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe®, Sun Joe®, Aqua Joe®, or Auto Joe® product ("Product") does not work or breaks under normal operating conditions. We think it's important that you know what you can expect from us. That's why we have a Limited Warranty ("Warranty") for our Products.

OUR WARRANTY:

All Season Power warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of delivery of the Product to the original, end-user purchaser when purchased from All Season Power or from one of All Season Power's authorized sellers with proof of purchase. Because All Season Power is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, All Season Power will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

All Season Power strongly encourages you to register your Product. You can register online at shopjoe.com/register, or by printing and mailing in a registration card available online from our website, or by calling our Customer Service Department at 1-866-225-9723, or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow All Season Power to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by All Season Power to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at shopjoe.com/support or by calling 1-866-225-9723.

CERTIFIED AUTHENTIC

Keep your warranty intact. Only use CERTIFIED AUTHENTIC Snow Joe, Sun Joe, Aqua Joe + Auto Joe replacement parts + accessories. Use of any other parts + accessories will void the warranty. Genuine parts + accessories can be found and purchased online at shopjoe.com/support by entering the model number of your product.

Modelo ASHJ201

BLE ISOLATION:MISEA LA TERRE NON

ESSAIRE. POUR LES RÉPARATIONS,

SER UNIQUEMENT DES PIECES DE

RECHANGE IDENTIQUES.
