CMS421 - Network switch Gembird - Free user manual and instructions

Product type	Manual computer switch (KVM)
Brand	Gembird
Model	CMS421
Number of supported computers	4
Keyboard/mouse connectivity	2 PS/2 ports
Video connectivity	VGA (HD15)
Maximum resolution	2048 x 1536
Video bandwidth	250 MHz
Keyboard/mouse emulation	Yes, integrated
Plug and Play	Yes (automatic initialization)
Hot-plug	Yes, without restart
Keyboard LED state saving	Yes
Mouse compatibility	Standard PS/2 mouse, 3 buttons, scroll wheel, Microsoft, Logitech, A4Tech, Genius
Maximum transmission distance	9 meters (PC side + console side)
Dimensions (L x W x H)	190 x 160 x 65 mm
Weight (estimated)	500 g
Warranty	36 months
Standards	CE, EMC (89/336/EEC)
System requirements	No software or driver required
Maintenance	Wipe with a soft, dry cloth
Recommended use	Sharing peripherals between 4 PCs

Frequently Asked Questions - CMS421 Gembird

How to connect multiple computers to this switch?

Connect each computer to the switch using PS/2 cables for keyboard and mouse, and a VGA cable for the monitor. The switch has 4 computer ports. Then, plug a PS/2 keyboard and mouse into the console ports of the switch. No software is required.

Can I use a USB mouse?

No, this switch only supports PS/2 devices. For a USB mouse, you would need a PS/2 adapter, but compatibility is not guaranteed.

Does the switch require an external power supply?

The switch is self-powered via the PS/2 ports. No external power supply is needed.

Can I connect or disconnect computers without turning off the switch?

Yes, the switch supports hot-plug. You can plug or unplug computers without restarting the switch or the PCs.

How to select the active computer?

Use the rotary button or manual selector on the switch to choose the active computer. The selection is mechanical.

What is the maximum supported video resolution?

The maximum resolution is 2048 x 1536 with a bandwidth of 250 MHz, providing excellent image quality.

Are the keyboard LEDs preserved when switching computers?

Yes, the switch saves and restores the state of the keyboard LEDs (Num Lock, Caps Lock, etc.) when you switch computers.

Can I use a wireless keyboard and mouse?

Only devices with a PS/2 connector are supported. Wireless keyboards/mice require a PS/2 receiver, but compatibility is not guaranteed.

What is the maximum distance between a PC and the switch?

The average transmission distance is 9 meters total (PC side + console side). Beyond that, signal quality may degrade.

What to do if the switch does not work?

Check that all cables are properly connected. Make sure the devices are PS/2 and that the computers are powered on. If the problem persists, refer to the 36-month warranty for a replacement.

USER MANUAL CMS421 Gembird

Abstract logo design featuring a stylized arrow and 'GE' letters, no readable text or symbols beyond the graphic elements.

GEMBIRD®

GEMBIRD® CMS-4.21 CPU MANUAL SWITCH PTON HPI/RADD AND ADJUSE CANDATION

MANUAL CPU SWITCH WITH KEYBOARD/MOUSE EMULATION FOR 4 PCS

MANUAL CPU SWITCH MIT TASTATUR / MAUS-EMULATION FÜR 4 PCS

HANDMATIGE SWITCH MET TOETSENBORD / MUIS EMULATIE VOOR 4 PC'S

MANUEL SWITCH 4 ORDINATEURS À LA FOIS AVEC LA SOURIS ET LE CLAVIER

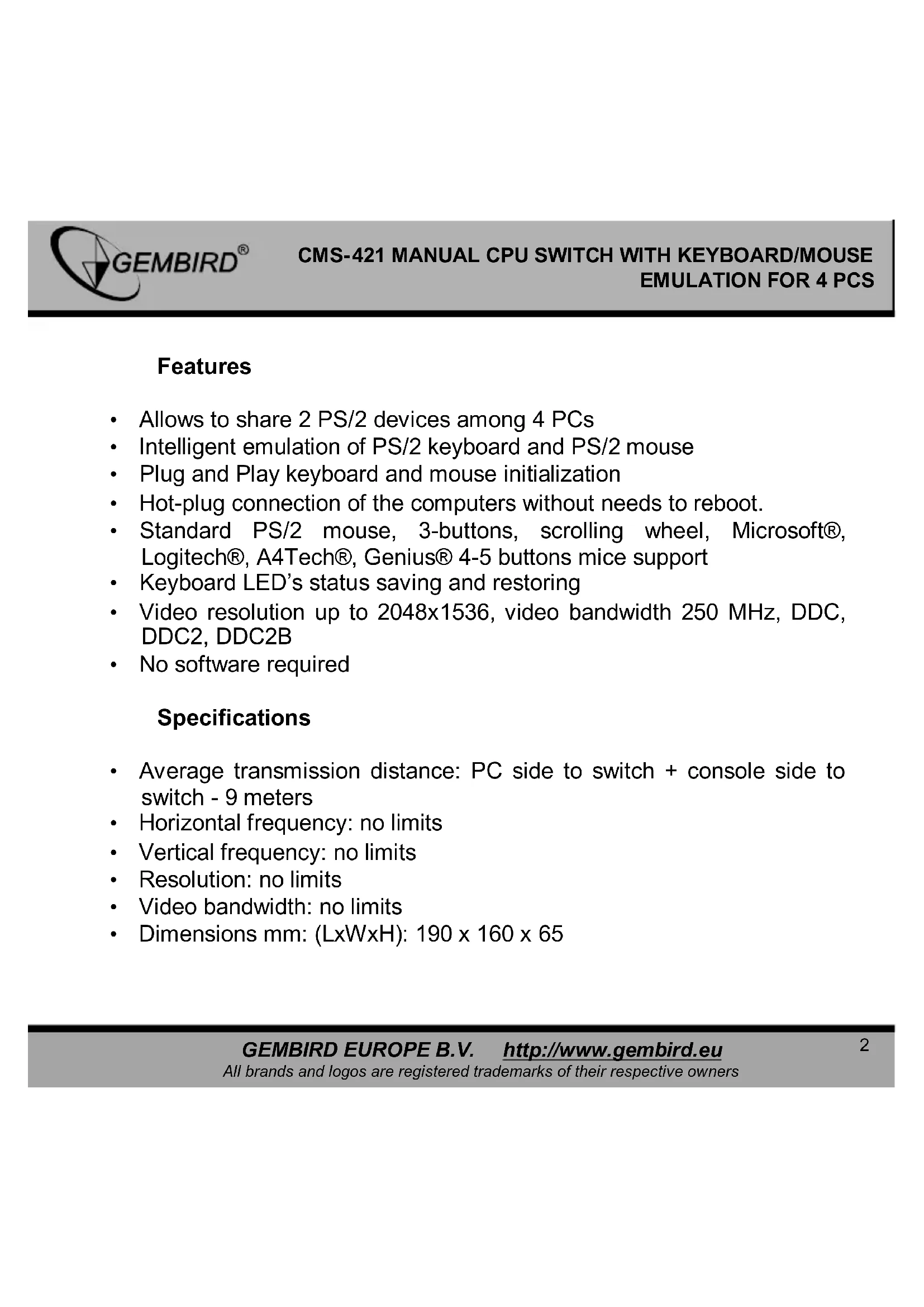

• Allows to share 2 PS/2 devices among 4 PCs
  • Intelligent emulation of PS/2 keyboard and PS/2 mouse
• Plug and Play keyboard and mouse initialization
• Hot-plug connection of the computers without needs to reboot.
• Standard PS/2 mouse, 3-buttons, scrolling wheel, Microsoft®, Logitech®, A4Tech®, Genius® 4-5 buttons mice support
• Keyboard LED's status saving and restoring
  • Video resolution up to 2048x1536, video bandwidth 250 MHz, DDC, DDC2, DDC2B
• No software required

Specifications

• Average transmission distance: PC side to switch + console side to switch - 9 meters
  • Horizontal frequency: no limits
  • Vertical frequency: no limits
  • Resolution: no limits
  • Video bandwidth: no limits
  • Dimensions mm: (LxWxH): 190 x 160 x 65
