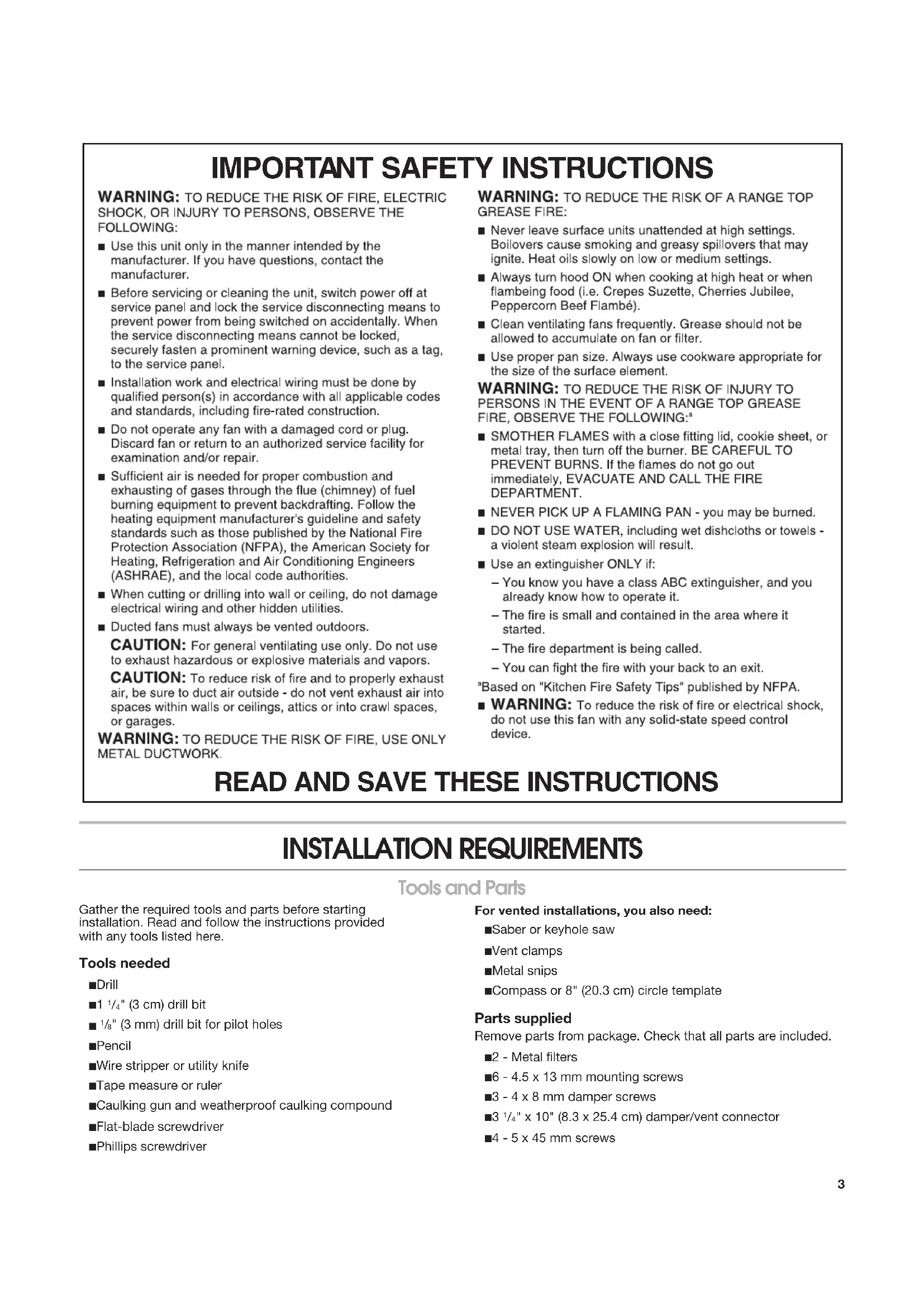

READ AND SAVE THESE INSTRUCTIONS4

■ 4 - 8 x 40 mm wall anchors ■ Recirculating kit ■ Charcoal filters for non-vented (recirculating) installations. See the “Assistance or Service” section to order replacement filters. Parts needed For vented installations: ■ 3

" x 10" (8.3 x 25.4 cm) to 6" (15.2 cm) or larger diameter transition piece if using 6" (15.2 cm) or larger diameter round vent system. For cabinets with recessed bottoms: ■ Two 2" (5.1 cm) wide filler strips. Length and thickness determined by recess dimensions. ■ Four flat-head wood screws or machine screws with washers and nuts (to attach filler strips). Location Requirements IMPORTANT: Observe all governing codes and ordinances. ■ It is the installer’s responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial/rating plate is located inside the range hood on the left wall. ■ Range hood location should be away from strong draft areas, such as windows, doors and strong heating vents. ■ Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance. Consult the cooktop/range manufacturer installation instructions before making any cutouts. ■ Grounded electrical outlet is required. See “Electrical Requirements” section. ■ The hood is factory-set for vented installations. For non-vented (recirculating) installations, the Recirculation Kit is included. See the “Assistance or Service” section to order Replacement Charcoal Filters Part Number W10272068. ■ All openings in ceiling and wall where range hood will be installed must be sealed. For Mobile Home Installations The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes. Product Dimensions Installation Clearances (5.1 cm) 12"(30.5 cm)9"(22.9 cm)

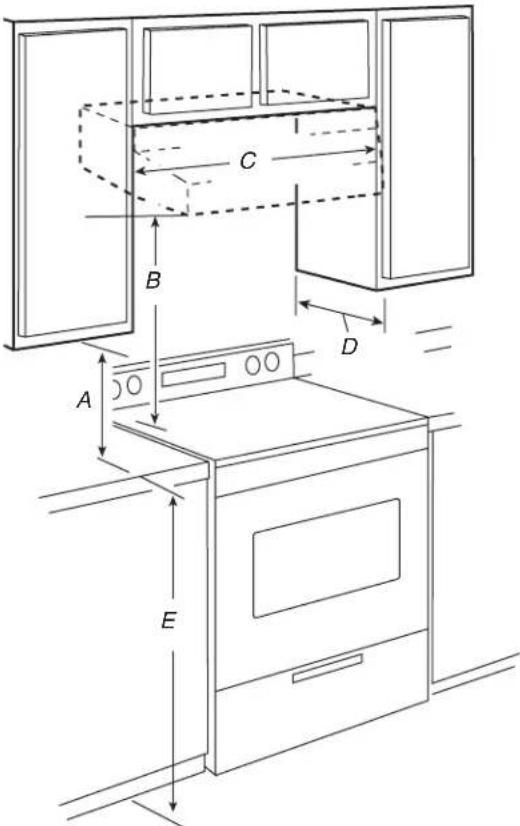

A. 18” (45.7 cm) min. clearance - upper cabinet to countertop B. 24” (61 cm) min. for electric cooking surfaces 27” (68.6 cm) min. for gas cooking surfaces 30” (76.2 cm) suggested max. - bottom of range hood to cooking surface C. 30” or 36” (76.2 cm or 91.4 cm) min. cabinet opening width D. 13” (33 cm) cabinet depth E. 36” (91.4 cm) base cabinet height5 Venting Requirements (Vented Models Only) ■ Vent system must terminate to the outdoors, except for non-vented (recirculating) installations. ■ Do not terminate the vent system in an attic or other enclosed area. ■ Do not use a 4" (10.2 cm) laundry-type wall cap. ■ Use a 6" (15.2 cm) or larger round metal vent or a

" x 10" (8.3 x 25.4 cm) rectangular metal vent. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended. ■ The length of vent system and number of elbows should be kept to a minimum to provide efficient performance.For the most efficient and quiet operation: ■ Use no more than three 90° elbows. ■ Make sure there is a minimum of 24" (61 cm) of straight vent between the elbows if more than 1 elbow is used. ■ Do not install 2 elbows together. ■ Use clamps to seal all joints in the vent system. ■ The vent system must have a damper. If roof or wall cap has a damper, do not use damper supplied with the range hood. ■ Use caulking to seal exterior wall or roof opening around the cap. Cold Weather Installations An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.The break should be as close as possible to where the vent system enters the heated portion of the house. Makeup Air Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area. Venting Methods Vent system can terminate either through the roof or wall. Use 3

" x 10" (8.3 x 25.4 cm) with a maximum vent length of 35 ft (10.7 m) or 6" (15.2 cm) or larger round vent with a maximum length of 50 ft (15.2 m) for vent system.NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that gently reduces performance.Roof Venting Wall Venting

" x 10" (8.3 x 25.4 cm) rectangular vent through roofB. Round vent: use 6" (15.2 cm) or larger round damper (purchased separately)C. Round vent: use 3

" x 10" (8.3 x 25.4 cm) to 6" (15.2 cm) or larger diameter transition piece (purchased separately)D. 24" to 30" (61 to 76.2 cm) above electric cooking surface 27" to 30" (68.6 to 76.2 cm) above gas cooking surfaceE. Roof capA. 6" (15.2 cm) or larger round vent or a 3

" x 10" (8.3 x 25.4 cm) rectangular vent through the wallB. Round vent: use 3

" x 10" (8.3 x 25.4 cm) to 6" (15.2 cm) or larger diameter transition piece (purchased separately) C. 3

" x 10" (8.3 x 25.4 cm) through the wallD. 24" to 30" (61 to 76.2 cm) above electric cooking surface 27" to 30" (68.6 to 76.2 cm) above gas cooking surfaceE. Wall cap Calculating Vent System Length To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system. 6” (15.2 cm) or Larger Round Vent System Vent Piece Round45° elbow 2.5 ft (0.8 m)90° elbow 5 ft (1.5 m)6" (15.2 cm) or larger wall cap 0 ft (0 m)

" x 10" (8.3 cm x 25.4 cm) to 6" (15.2 cm) or larger4.5 ft (1.4 m)

" x 10" (8.3 cm x 25.4 cm) to 6" (15.2 cm) or larger 90° elbow5 ft (1.5 m)6 Example vent system Maximum Recommended Length = 50 ft (15.2 m)

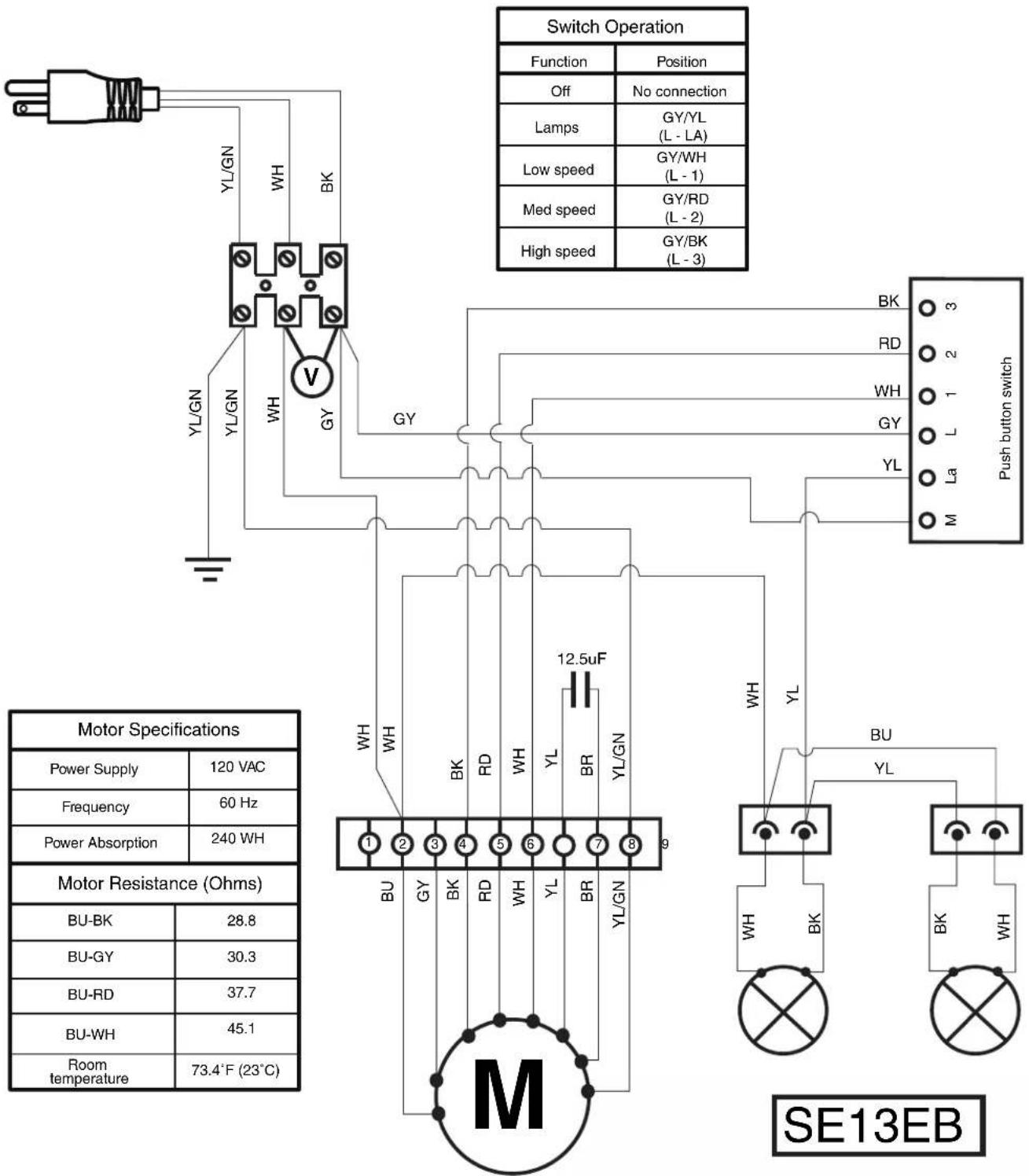

" x 10" (8.3 cm x 25.4 cm) system = 13 ft (3.9 m) Electrical Requirements IMPORTANT: The range hood must be electrically grounded in accordance with local codes and ordinances, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 (latest edition) or Canadian Electrical Code, CSA C22.1 No. 0-M91 (latest edition). If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path is adequate. A copy of the above code standards can be obtained from: National Fire Protection Association 1 Batterymarch Park Quincy, MA 02169-7471 CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575 ■ A 120 volt, 60 Hz, AC only, 15- or 20-amp, fused electrical circuit is required. A time-delay fuse or circuit breaker is also recommended. It is recommended that a separate circuit serving only this range hood be provided. ■ This range hood is equipped with a power supply cord having a 3 prong grounding plug. ■ To minimize possible shock hazard, the cord must be plugged into a mating, 3 prong, grounding-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician. Wall cap

" x 10" (8.3 x 25.4 cm) elbow 2 ft (0.6 m) 6 ft (1.8 m) Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING7 ■ The grounded 3 prong outlet is to be located inside the cabinet above the range hood at a maximum distance of

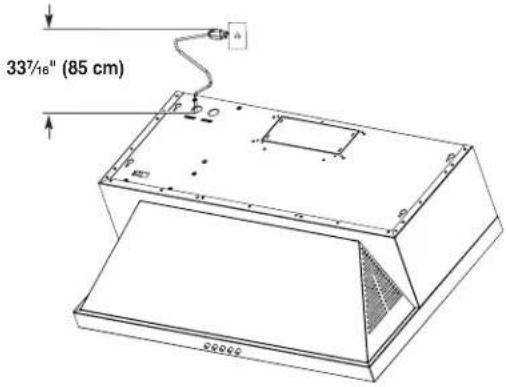

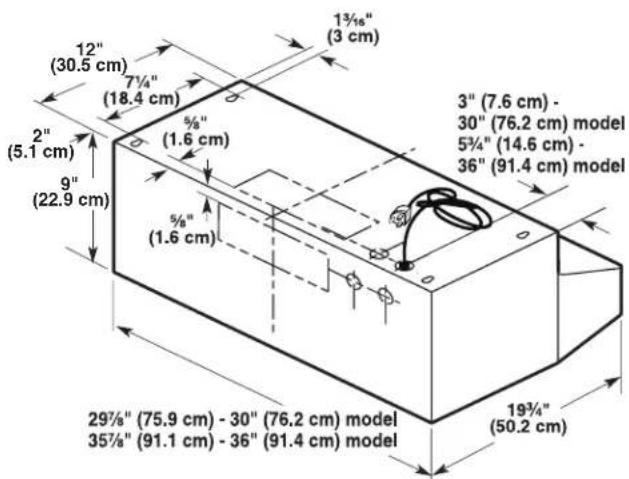

" (85 cm) from where the power cord exits the hood. INSTALLATION INSTRUCTIONS Prepare Location NOTE: For vented installations, it is recommended that the vent system be installed before hood is installed.Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.1. For vented installations, determine which venting method to use: roof or wall.2. Select a flat surface for assembling the range hood. Place covering over that surface.3. Using 2 or more people, lift the range hood and set it upside down onto covered surface.4. If cabinet has recessed bottom, add wood filler strips on each side. Install screws to attach filler strips in locations shown. Determine Wiring Hole Location Cut only one 1

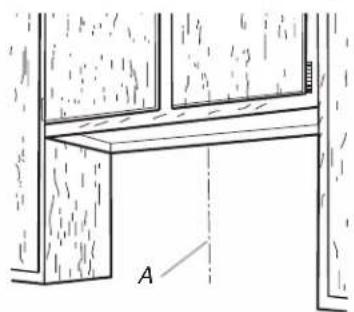

" (3.2 cm) diameter wiring access hole. See Step 2 for wiring hole location instructions.1. Determine and clearly mark a vertical centerline on the wall and cabinet in the area the vent opening will be made.2. To wire through top:Mark a line distance “A” from the left of the centerline on the underside of the cabinet. Mark the point on this line that is 2" (5.1 cm) from back wall. Drill a 1

" (3.2 cm) diameter hole through the cabinet at this point.

SAVE THESE INSTRUCTIONS

For a grounded, cord-connected range hood: This range hood must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This range hood is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper grounding can result in a risk of

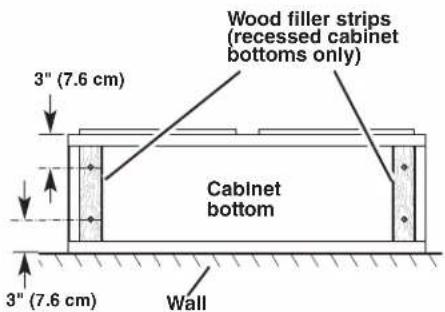

electric shock.Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the range hood is properly grounded.Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the range hood. WARNING Excessive Weight HazardUse two or more people to move and install range hood.Failure to do so can result in back or other injury. Cabinet bottom Wall 3" (7.6 cm) Wood filler strips (recessed cabinet bottoms only) 3" (7.6 cm)

" x 10" (8.3 cm x 25.4 cm) Rectangular Vent System Roof Venting To make a 4

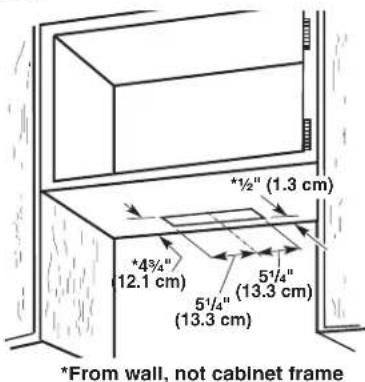

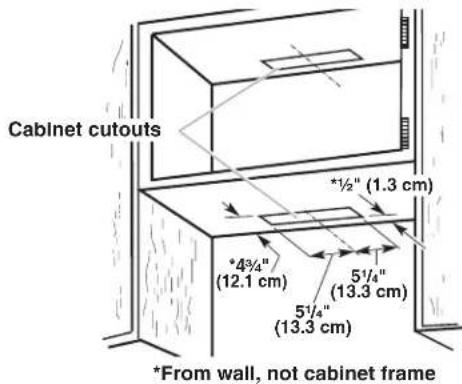

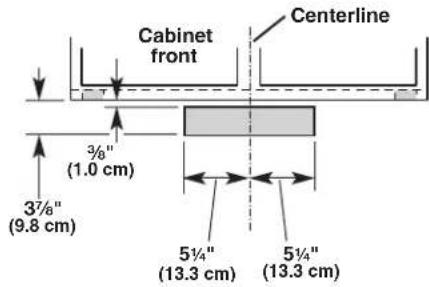

" (10.8 cm x 26.7 cm) rectangular cutout on the underside of cabinet top and bottom:

" (12.1 cm) from the back wall on the centerline of the underside of cabinet.

” (13.3 cm) to the right and left of the centerline on the underside of cabinet.

3. Use saber or keyhole saw to cut a rectangular

4. Repeat steps 1 through 3 for the underside

of the top of the cabinet. Wall Venting To make a 3

" (8.9 cm x 26.7 cm) rectangle in the wall:

1. Make 2 lines by measuring

" (9.8 cm) down from underside of cabinet and mark on the centerline on the back wall.

" (13.3 cm) to the right and left of the centerline on the wall.

3. Use saber or keyhole saw to cut a rectangular

opening in the wall for the vent. Style 2 - Cut Openings for 3

" x 10" (8.3 x 25.4 cm) Rectangular Vent to Round Vent Transition Roof Venting To make a 4

" (10.8 cm x 26.7 cm) rectangular cutout on the underside of cabinet bottom:

" (12.1 cm) from the back wall on the centerline of the underside of cabinet.

" (13.3 cm) to the right and left of the centerline on the underside of cabinet.

3. Use saber or keyhole saw to cut a rectangular

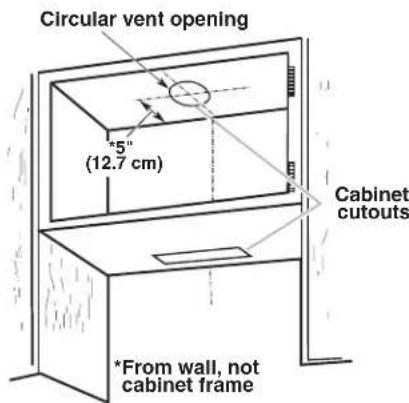

opening for vent. To make a circular vent opening on the underside of the cabinet top:

1. Mark a centerline on the underside of the top of cabinet.

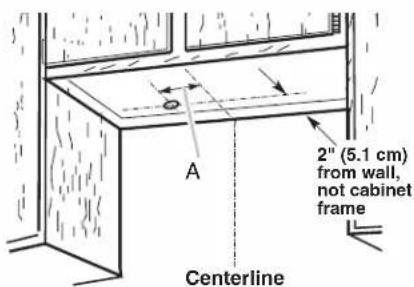

2. Mark a line 5" (12.7 cm) from the back wall on the

underside of the top of cabinet.

3. Use a compass or a circle template to draw a circle

with a diameter that is

" (6.4 mm) larger than the vent.

4. Use saber or keyhole saw to cut the circular vent opening.

1. Install vent through the vent opening in upper cabinet or

wall. Complete venting system according to the selected venting method. See “Venting Requirements” section.

2. Use caulking to seal exterior wall or roof opening

1. Remove the grease filters. See the “Range

2. Remove mounting screws and lateral supports.

3. For vented installations:

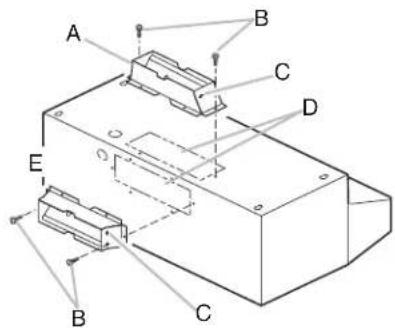

■ Depending on your installation, remove either top or rear rectangular vent knockout. If using round vent, remove top rectangular knockout. NOTE: Do not remove rectangular knockouts if installation of range hood is to be non-venting (recirculating). ■ Make sure damper pivot is nearest to top/back edge of range hood. ■ Remove tape from damper flap. NOTE: The exhaust adaptor/damper can be installed up to 1" (2.5 cm) on either side of the hood center to accommodate off-center ductwork. ■ If using rectangular vent, attach rectangular damper/vent connectors to the range hood using sheet metal screws. ■ If using round vent, attach vent transition piece (purchased separately) to range hood top using sheet metal screws. NOTE: If the wall cap is directly behind the vent connector, the dampers in the connector and wall cap must not interfere with each other. Remove the vent connector damper if they interfere.

4. Lift the range hood up under cabinet and determine

final location by centering beneath cabinet. Mark on the underside of cabinet the location of the 4 keyhole mounting slots on the range hood. Set range hood aside on a covered surface.

" (3 mm) drill bit and drill 4 pilot holes as shown.

" mounting screws in pilot holes. Leave about

" (6.4 mm) space between screw heads and cabinet to slide range hood into place.

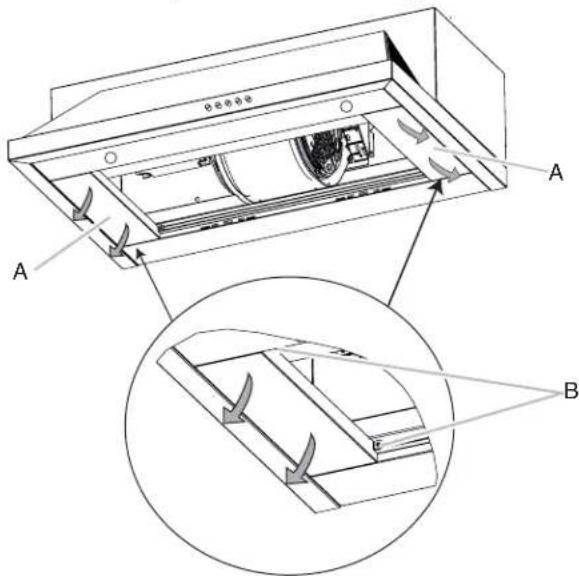

A. Lateral supports B. Mounting screws

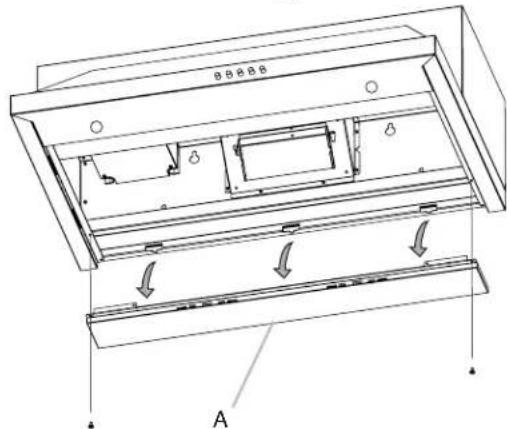

7. For non-vented (recirculating) installations:

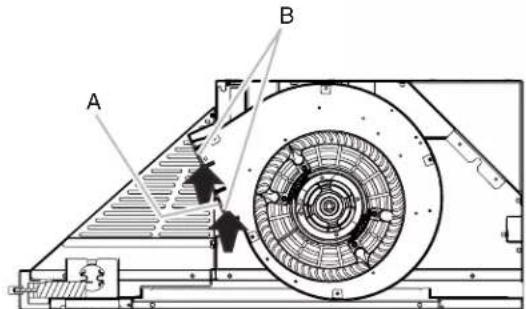

■ Remove screws and rear support. ■ Remove the blower mounting screws. Push up on the blower to detach the blower from the mounting plate. ■ Remove the vent knockout from the front mounting plate. ■ Rotate the blower and attach to front mounting plate. Install the blower mounting screws. ■ Install charcoal filters. See the “Range Hood Care” section.

8. Using 2 people, lift range hood into final position, feeding

electrical wire through wiring opening. Position the range hood so that the large end of the keyhole slots are over the screws. Then push the hood toward the wall so that the screws are in the neck of the slots. Tighten mounting screws to cabinet, making sure mounting screws are in narrow neck of slots.

9. Check that damper, if used, rotates up and down freely.

10. Reinstall the rear support.

11. Replace the 2 lateral supports.

12. Replace filters. See the “Range Hood Care” section.

13. Plug 3 prong power cord into a grounded 3 prong outlet

located inside the cabinet above the range hood.

14. For Vented Installations Only:

Connect ventwork to hood. Seal joints with clamps to make secure and airtight. Complete Installation

1. Replace grease filters. See the “Range Hood Care” section.

2. Check the operation of the range hood fan and light.

See “Range Hood Use” section. If range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown. Disconnect power and check wiring connections. NOTE: To get the most efficient use from your new range hood, read the “Range Hood Use” section.

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen. The hood controls are located on the center of the range hood.

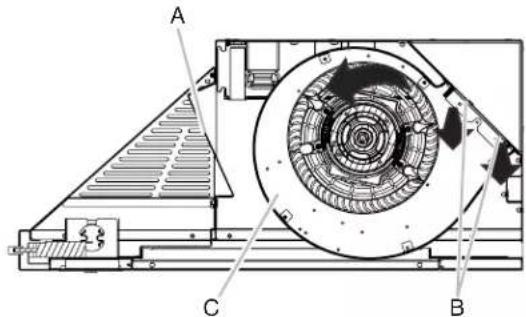

A. Front mounting plate knockout B. Blower mounting screws C. Blower

A. Front mounting plate B. Blower mounting screws Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING

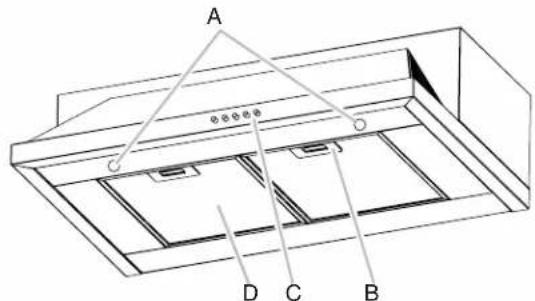

A. Halogen lamp housings B. Grease filter handle C. Blower and light controls D. Grease filter11 Range Hood Controls Operating the light The On/Off light button controls both lights. Press once for On and again for Off. Operating the blower The Blower Speed buttons turn the blower On and control the blower speed and sound level for quiet operation. The speed can be changed anytime during fan operation by pressing the desired blower speed button. The Blower Off button turns the blower Off.

Cleaning IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filters before operating hood. Exterior Surfaces: To avoid damage to the exterior surface, do not use steel wool or soap-filled scouring pads. Always wipe dry to avoid water marks. Cleaning Method: ■ Liquid detergent soap and water, or all-purpose cleanser ■ Wipe with damp soft cloth or nonabrasive sponge, and then rinse with clean water and wipe dry. Metal Grease Filters

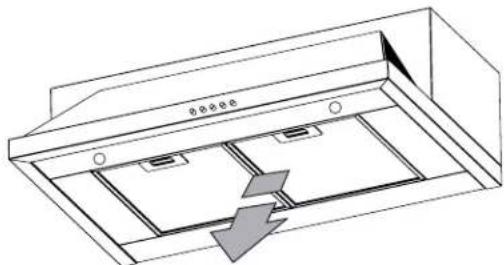

1. Remove each filter by pulling the spring release handle

and then pulling down the filter.

2. Wash metal filters as needed in dishwasher

or hot detergent solution.

3. Reinstall the filter by making sure the spring release handles

are toward the front. Insert aluminum filter into upper track.

4. Push in spring release handle.

5. Push up on metal filter and release handle to latch into place.

6. Repeat steps 1 through 5 for the other filter.

Non-Vented (recirculating) Installation Filters The charcoal filter is not washable. It should last up to six months with normal use. Replace with Charcoal Filter Kit Number W10272068. To replace charcoal filter:

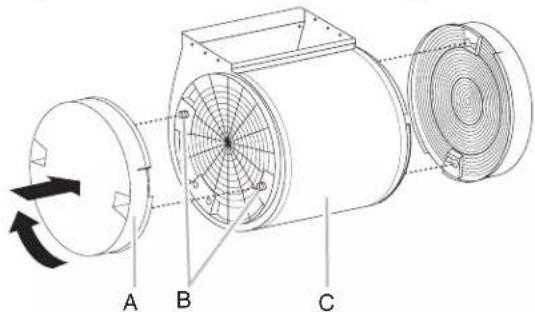

1. Cover the grille that covers the blower motor with the

charcoal filter so that the slots on the filter correspond to the pins on the sides of the motor cover grille.

2. Turn the charcoal filter clockwise to lock it.

3. Repeat steps 1 through 2 on the other filter.

Replacing a Halogen Lamp Turn off the range hood and allow the halogen lamp to cool. To avoid damage or decreasing the life of the new lamp, do not touch lamp with bare fingers. Replace lamp, using tissue or wearing cotton gloves to handle lamp. If new lights do not operate, make sure the lamps are inserted correctly before calling service.

1. Disconnect power.

2. Use a flat-blade screwdriver and gently pry the

maximum, halogen lamp made for a G-9 base.

A. Spring release handle

If you need service Please refer to the warranty page in this manual. If you need replacement parts If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance. To locate factory specified replacement parts in your area, call the following customer assistance telephone number or your nearest designated service center. In the U.S.A. Call the Whirlpool Customer eXperience Center toll free: 1-800-253-1301 or visit our website at www.whirlpool.com. Our consultants provide assistance with: ■ Scheduling of service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in the United States. ■ Features and specifications on our full line of appliances. ■ Referrals to local dealers. ■ Installation information. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). For further assistance If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at: Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada Call the Whirlpool Canada Customer eXperience Centre toll free: 1-800-807-6777, or visit our website at www.whirlpool.ca. Our Consultants Provide Assistance With: ■ Scheduling of Service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in Canada. ■ Features and specifications on our full line of appliances. ■ Referrals to local dealers. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. For Further Assistance If you need further assistance, you can write to Whirlpool Canada with any questions or concerns at: Whirlpool Brand Home Appliances Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7 Please include a daytime phone number in your correspondence. Accessories Replacement Charcoal Filter Kit (2 Pack of Filters) (for non-vented installations only) Order Part Number W10272068

" x 10" (8.3 x 25.4 cm) Makeup Air Kit (consult local building codes) Order Part Number W1044691414 11/14 IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair.

Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit www.whirlpool.com/product_help.

2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers.

In the U.S. and Canada, direct all requests for warranty service to: Whirlpool Customer eXperience CenterIn the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies. WHIRLPOOL

MAJOR APPLIANCE LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.Please have the following information available when you call the Customer eXperience Center: ■ Name, address and telephone number ■ Model number and serial number ■ A clear, detailed description of the problem ■ Proof of purchase including dealer or retailer name and address

ONE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator or installation instructions. 2. In-home instruction on how to use your product.

3. Service to correct improper product maintenance or installation, installation not in accordance

with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).

4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).

5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.6. Conversion of products from natural gas or L.P. gas.7. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by Whirlpool.8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.

9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes

unless such damage results from defects in materials and workmanship and is reported to Whirlpool within 30 days.

10. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments

including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.11. Food or medicine loss due to product failure.12. Pick-up or delivery. This product is intended for in-home repair.

13. Travel or transportation expenses for service in remote locations where an authorized Whirlpool

servicer is not available.

14. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative

panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.

15. Service or parts for appliances with original model/serial numbers removed, altered or not easily

determined.The cost of repair or replacement under these excluded circumstances shall be borne by the customer. DISCLAIMER OF IMPLIED WARRANTIESIMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty.LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGESYOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.www.whirlpool.com/product_help15 SÉCURITÉ DE LA HOTTE DE CUISINIÈRE Risque possible de décès ou de blessure grave si vous ne suivez pas immédiatement les instructions. Risque possible de décès ou de blessure grave si vous ne suivez pas les instructions. Tous les messages de sécurité vous diront quel est le danger potentiel et vous disent comment réduire le risque de blessure et ce qui peut se produire en cas de non-respect des instructions. Votre sécurité et celle des autres est très importante. Nous donnons de nombreux messages de sécurité importants dans ce manuel et sur votre appareil ménager. Assurez-vous de toujours lire tous les messages de sécurité et de vous y conformer. AVERTISSEMENT DANGER Voici le symbole d’alerte de sécurité. Ce symbole d’alerte de sécurité vous signale les dangers potentiels de décès et de blessures graves à vous et à d’autres. Tous les messages de sécurité suivront le symbole d’alerte de sécurité et le mot “DANGER” ou “AVERTISSEMENT”. Ces mots signifient : Avertissements de la proposition 65 de l'État de Californie :

ASSISTANCE OU SERVICE
