Product type	Bagless vacuum cleaner
Brand	Miele
Model	Complete C2 Parquet XL
Bag type	Miele original dust bag (type GN)
Motor protection filter	Replaceable motor protection filter
Exhaust filter	AirClean / AirClean Plus 50 / Active AirClean 50 / HEPA AirClean 50 (depending on version)
Main brush	Double position brush (carpets and hard floors)
Suction tube	Telescopic tube or EasyLock (depending on version)
Cable rewind	Automatic (pedal)
Power adjustment	Rotary selector with 6 positions
Filter saturation indicator	Timestrip (on models with Active AirClean or HEPA filter)
Supplied accessories	Flat nozzle, swivel head brush, upholstery nozzle
Safety	Automatic shutdown in case of overheating
Recommended use	Carpets, rugs, hard floors

Frequently Asked Questions - Complete C2 Parquet XL MIELE

How do I replace the dust bag of my Miele Complete C2 Parquet XL vacuum cleaner?

Open the lid by pressing the release button. The hygiene closure automatically closes to prevent dust emissions. Hold the bag by the handle and remove it. Insert a new Miele original bag (type GN) until it clicks. Close the lid.

How do I know if the dust bag is full?

The bag change indicator turns completely red when the bag is full. Check by plugging in the vacuum, setting the power to maximum, and lifting the brush off the floor.

What should I do if my vacuum cleaner suddenly stops during use?

This is due to a temperature limiter that stops the vacuum in case of overheating. Possible causes: full bag, dirty filter, object blocking the hose. Turn off and unplug the appliance, eliminate the cause, wait 20-30 minutes before restarting.

How do I replace the motor protection filter?

Open the dust compartment, remove the bag. Open the filter grille, remove the old motor filter by grasping it by the clean hygiene surface. Insert a new filter, close the grille, and replace the bag.

How do I replace the exhaust filter?

Depending on the filter type (AirClean, AirClean Plus, Active AirClean, HEPA), open the dust compartment. For AirClean, remove the filter by the square hygiene corner. For others, lift it directly. Insert the new filter. If it is an Active AirClean or HEPA filter, activate the Timestrip indicator by pressing it for 10-15 seconds until a red band appears.

How do I activate the Timestrip saturation indicator?

After inserting an Active AirClean 50 or HEPA AirClean 50 exhaust filter, press the Timestrip indicator until a red band appears on the left (approximately 10-15 seconds). This indicates the start of the 50-hour usage countdown.

How do I adjust the suction power?

Turn the rotary selector to the desired position. The symbols indicate applications: curtains, furniture, carpets, hard floors, etc. To reduce the pushing force on hard floors, reduce the power.

How do I clean the vacuum cleaner and its accessories?

Unplug the appliance. Clean the vacuum and plastic accessories with a standard plastic cleaner. Never use abrasive or greasy products. The dust compartment can be vacuumed with another vacuum or cleaned with a dry cloth.

What optional accessories are available?

You can order additional brushes (TurboTeQ turbo brush, Hardfloor brush, Parquet Twister), nozzles (mini turbo brush, extra long flat nozzle), a comfort handle with light, and replacement filters (AirClean Plus, Active AirClean, HEPA). Check the Miele online store.

How do I store the vacuum after use?

Unplug the cord. Rewind the cable by pressing the pedal. Attach the tube and brush to the vacuum using the attachment system. To save space, you can separate the EasyLock tubes.

USER MANUAL Complete C2 Parquet XL MIELE

Warning and Safety instructions 27

Guide to the appliance 32

Caring for the environment 34

Notes on the European Regulation (EU) No. 666/2013 35

Illustrations 36

Connection 36

Use 37

Setting down, transportation and storage 39

Maintenance 39

Purchasing dustbags and filters. 40

Dustbag airflow indicator 40

Removing the dustbag 41

Replacing the motor protection filter 41

When to replace the exhaust filter. 41

Replacing the AirClean exhaust filter 42

Replacing the AirClean Plus 50, Active AirClean 50 and HEPA AirClean 50 exhaust filters 42

Replacing one type of exhaust filter with another 42

Replacing the thread lifters 43

Cleaning and care 43

Problem solving guide 44

Service 45

Contact in case of malfunction 45

Warranty 45

Optional accessories 45

Electrical connection for the UK 46

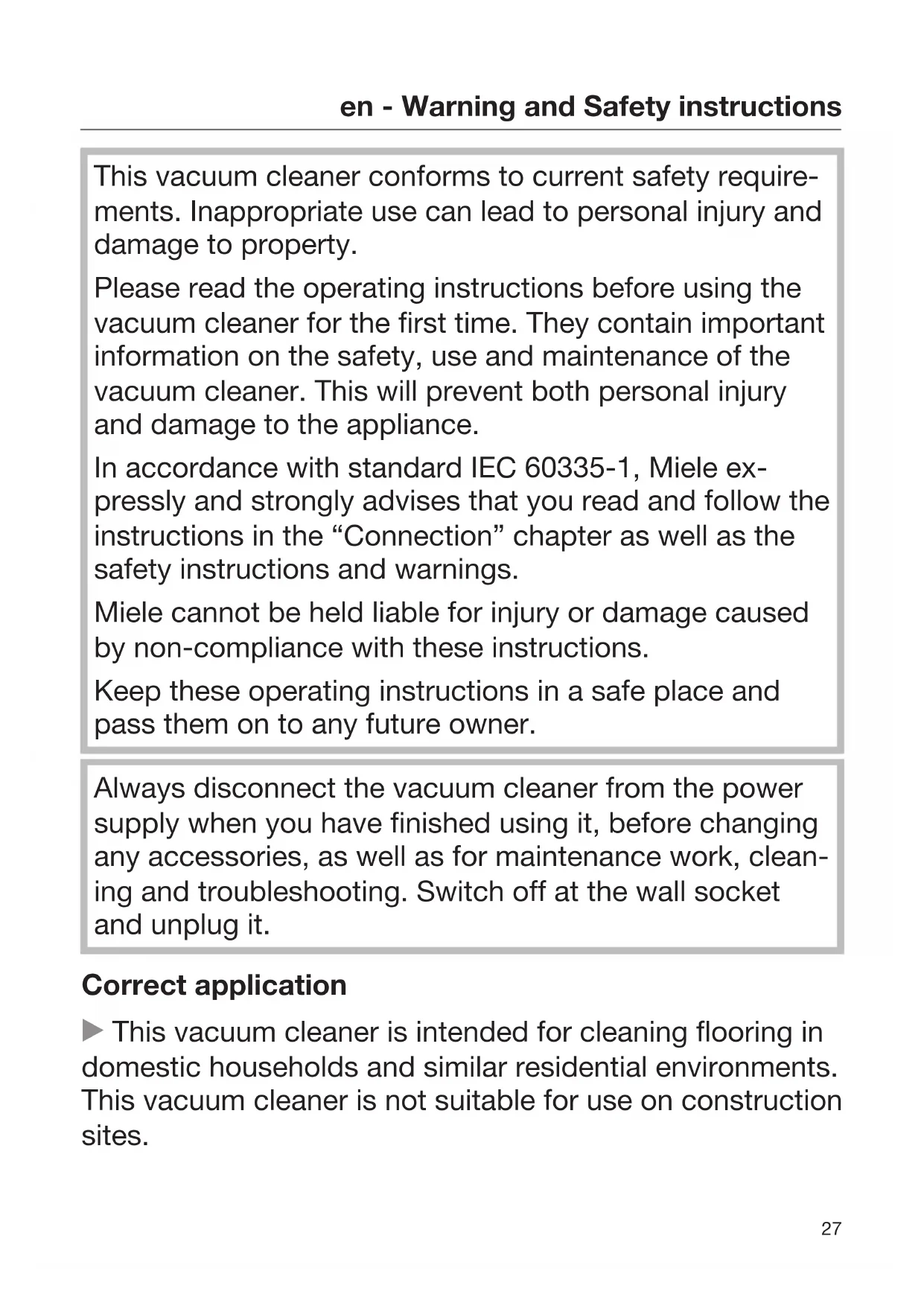

This vacuum cleaner conforms to current safety requirements. Inappropriate use can lead to personal injury and damage to property.

Please read the operating instructions before using the vacuum cleaner for the first time. They contain important information on the safety, use and maintenance of the vacuum cleaner. This will prevent both personal injury and damage to the appliance.

In accordance with standard IEC 60335-1, Miele expressly and strongly advises that you read and follow the instructions in the "Connection" chapter as well as the safety instructions and warnings.

Miele cannot be held liable for injury or damage caused by non-compliance with these instructions.

Keep these operating instructions in a safe place and pass them on to any future owner.

Always disconnect the vacuum cleaner from the power supply when you have finished using it, before changing any accessories, as well as for maintenance work, cleaning and troubleshooting. Switch off at the wall socket and unplug it.

Correct application

• This vacuum cleaner is intended for cleaning flooring in domestic households and similar residential environments. This vacuum cleaner is not suitable for use on construction sites.

This vacuum cleaner can be used for all normal cleaning of carpets, rugs and robust hard flooring.
This vacuum cleaner is not intended for outdoor use.
This vacuum cleaner is intended for use at altitudes of up to 4000m above sea level.
The vacuum cleaner must only be used to vacuum dry floor surfaces. Do not vacuum people or animals. Any other types of use, modifications or alterations are not permitted.
The vacuum cleaner can only be used by people (including children) with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it in a safe way and understand and recognise the consequences of incorrect operation.

Safety with children

Danger of suffocation. Packaging, e.g. plastic wrappings, must be kept out of the reach of babies and children. Whilst playing, children could become entangled in packaging or pull it over their head and suffocate.
Children under 8 years of age must be kept away from the vacuum cleaner unless they are constantly supervised.
Children aged 8 and older may only use the vacuum cleaner without supervision if they have been shown how to use it in a safe manner. Children must be able to understand and recognise the possible dangers caused by incorrect operation.

Children must not be allowed to clean or maintain the vacuum cleaner unsupervised.
Please supervise children in the vicinity of the vacuum cleaner and do not let them play with it.

Technical safety

Before using the vacuum cleaner and its accessories, check for any visible signs of damage. Do not use a damaged appliance.
- Compare the connection data on the data plate of the vacuum cleaner (mains voltage and frequency) with that of the mains electricity supply. This data must match exactly. Without modifications, the vacuum cleaner is suitable for 50Hz or 60Hz .
The mains electrical plug must be fitted with an appropriate fuse.
Reliable and safe operation of this vacuum cleaner can only be assured if it has been connected to the mains electricity supply.
While the vacuum cleaner is under warranty, repairs should only be undertaken by a Miele authorised service technician. Otherwise the warranty will be invalidated.
- Do not use the vacuum cleaner if the cable is damaged. If the cable is damaged it must be replaced together with a complete cable rewind. For safety reasons this must only be done by Miele Service or a Miele authorised service technician.

• Do not pull or carry the vacuum cleaner by the cable, and be careful not to damage the cable when withdrawing the plug from the socket. Keep the cable away from sharp edges and do not let it get squashed, for example, under a door. Avoid running the vacuum cleaner over the cable. This could damage the cable, plug or socket. The appliance must not be used if any of these have suffered damage.
• Do not let the vacuum cleaner get wet. Clean only with a dry cloth or slightly damp cloth when disconnected from the mains supply.
  Repairs should only be carried out by a Miele authorised service technician. Repairs and other work by unqualified persons can cause considerable danger to users.
  Miele can only guarantee the safety of the appliance when genuine Miele replacement parts are used. Faulty components must only be replaced with genuine Miele replacement parts.
  The packaging material protects the vacuum cleaner from transport damage. We recommend you keep the packaging for transport purposes.

Correct use

To avoid the risk of damage, do not use the vacuum cleaner without the dustbag, dust compartment filter and exhaust filter in place.
The dust compartment cover will not close without a dustbag fitted. Do not force it.

Do not vacuum up anything which has been burning or is still glowing e.g. cigarettes, ashes or coal, whether glowing or apparently extinguished.
Do not use the vacuum cleaner to vacuum up any water, liquid or damp dirt. Wait until any freshly cleaned or shampooed rugs or carpets are completely dry before attempting to vacuum.
- Do not use the vacuum cleaner to vacuum toner dust. Toner, such as that used in printers and photocopiers, can conduct electricity.
- Do not vacuum up any inflammable or combustible liquids or gases and do not vacuum in areas where such substances are stored.
Do not vacuum at head height and do not let the suction get anywhere near a person's head.

Accessories

To avoid the risk of injury when vacuuming with a Miele Turbobrush, do not touch the rotating roller brush.
It is not advisable to vacuum directly with the handle, i.e. without an accessory attached as the rim could get damaged and you could hurt yourself on sharp edges.
Only use dustbags, filters and accessories bearing the "ORIGINAL Miele" logo on the packaging. The manufacturer cannot otherwise guarantee the safety of the product.

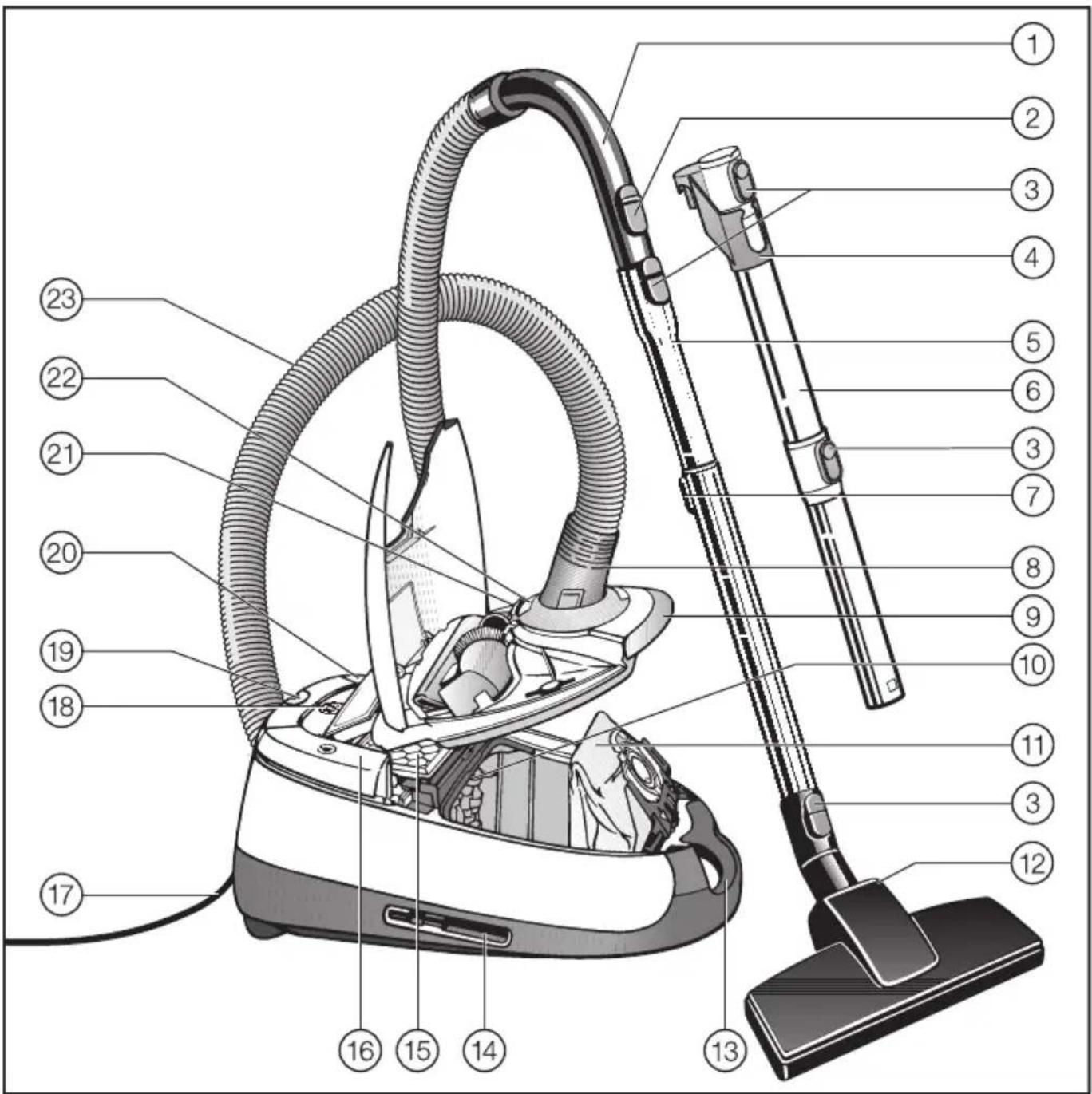

① Handle
② Air inlet valve
③ Release catches
④ Connection piece for storage
⑤ Telescopic suction tube*
⑥ EasyLock suction tube*
⑦ Telescopic suction tube release button
⑧ Hose connector
Dust compartment lid release catch
⑩ Motor protection filter
⑪ Original Miele dustbag
⑫ Floorhead
⑬ Carrying handle
14 Park system for storage (on both sides of the vacuum cleaner)
15 Original Miele exhaust filter*
Footswitch for automatic cable rewind
⑦ Connection cable
18 Rotary selector
19 Park system for pauses during vacuuming
20 On/Off footswitch ①
21 Release catch for accessories compartment
22 Airflow indicator
② 3 Suction hose

• These special features depend on the model and may vary or may not be available on your vacuum cleaner.

Disposing of sales packaging

The packaging material protects the vacuum cleaner from transport damage. The packaging materials used are selected from materials which are environmentally friendly for disposal and can therefore be recycled.

Recycling the packaging material reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.

Disposing of the dustbag and filters

Dustbags and filters are made from environmentally friendly materials, and can be disposed of with the normal household waste, as long as they have been used exclusively for general household dust.

Disposing of your old appliance

Before disposing of your old appliance, remove the dustbag and filters and dispose of them with your household waste.

Electrical and electronic appliances contain many valuable materials. They also contain certain materials, compounds and components which were essential for their correct functioning and safety. These could be hazardous to human health and to the environment if disposed of with household waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with household waste.

Instead, please make use of officially designated collection and disposal points to dispose of and recycle electrical and electronic appliances in your local community, with your dealer or with Miele, free of charge. By law, you are solely responsible for deleting any personal data from the old appliance prior to disposal. You are legally obliged to remove any old batteries which are not securely enclosed by the appliance and to remove any lamps without destroying them, where this is possible. These must be taken to a suitable collection point where they can be handed in free of charge. Please ensure that your old appliance poses no risk to children while being stored for disposal.

Notes on the European Regulation (EU) No. 666/2013

This vacuum cleaner is a domestic vacuum cleaner and is classified as a universal vacuum cleaner in accordance with the above-mentioned regulation.

These operating instructions and additional information are available to download from the Miele website at www.miele.com.

The annual energy consumption stated in the regulation describes the indicative annual energy consumption (kWh per year), based on 50 cleaning cycles. Actual energy consumption depends on how the vacuum cleaner is used.

All tests and calculations were carried out according to the following harmonised standards applicable at the time in due consideration of the published regulation guidelines of the European Commission from September 2014: a) EN 60312-1 Vacuum cleaners for household use - Part 1: Dry vacuum cleaners - Methods for measuring the performance.
b) EN 60704-2-1 Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for vacuum cleaners.
c) EN 60335-2-2 Household and similar electrical appliances - Safety - Part 2-2: Particular requirements for vacuum cleaner and water suction appliances.

Not all floorheads and accessories supplied with the vacuum cleaner are intended for intensive cleaning of carpets or

hard floors as described in the regulation. The following floorhead and setting were used to determine the values:

For energy consumption and cleaning class on carpet and hard floors and sound power level on carpet, the adjustable floorhead was used with the brush retracted (press the foot-switch).

The data given in the regulation refers exclusively to the combinations and settings of the floorhead on the different floor surfaces described here.

Only original Miele dustbags, motor protection filters and exhaust filters were used for all measurements.

Illustrations

The illustrations referred to in the text are shown on the fold-out pages at the end of these operating instructions.

Connection

Attaching the suction hose (Fig. 01)

• Insert the hose connector into the suction opening on the vacuum cleaner until it clicks into position. To do this, line up the guides on the two pieces.
  If you want to separate the pieces again, press the release catches at the side of the hose connector, and pull the suction hose out of the suction opening (Fig. 02)

Connecting the suction hose to the handle (Fig. 03)

Fit the connector at the other end of the suction hose into the handle until it clicks into position.

Your vacuum cleaner is fitted with one of the following suction tubes, depending on model:

• EasyLock suction tube
• Telescopic suction tube
• Comfort telescopic suction tube

Assembling the EasyLock suction tube (Fig. 04)

Hold the suction tube by the connection piece and push it into the second suction tube, turning it clockwise or anti-clockwise until it clicks into position.

• Slide the connection piece upwards until it clicks into position.

Connecting the handle to the suction tube (Fig. 05 + 06)

① Insert the handle into the suction tube until it clicks into position. To do this, line up the guides on the two pieces.
To detach the handle from the suction tube, press the release catch and pull the handle out of the suction tube, twisting it slightly as you do so.

Adjusting the telescopic suction tube (Fig. 07)

One part of the telescopic suction tube is packed inside the other, and it can be adjusted to suit your height for comfortable vacuuming.

• Grasp the release mechanism and adjust the telescopic suction tube to the required length.

Connecting the suction tube to the adjustable floorhead (Fig. 08)

Push the suction tube into the floorhead and turn it clockwise or anticlockwise until it clicks into position.
To separate the suction tube from the floorhead press the release button and pull the suction tube away from the floorhead, twisting it slightly as you do so.

Activating the timestrip® filter change indicator on the exhaust filter

Depending on the model, your vacuum cleaner will be fitted as standard with one of the following exhaust filters (Fig. 09):

a AirClean

b AirClean Plus 50 (light blue)

c Active AirClean 50 (black)

d HEPA AirClean 50 (white)

If your vacuum cleaner is fitted with exhaust filter c or d, you need to activate the timestrip® filter change indicator.

Press the release catch for the dust compartment lid and raise the lid as far as it will go (Fig. 10).
Remove the indicator strip (Fig. 11).
Press the tstrip® filter change indicator (Fig. 12).

After approx. 10-15 seconds, a thin red line will appear in the left-hand side of the display (Fig. 13).

• Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dust-bag when doing so.

How the timestep® filter change indicator works

The timestrip® filter change indicator shows the remaining functional life of the exhaust filter. After approx. 50 operating hours the display will be completely filled with red (Fig. 14). 50 operating hours equates to approximately one year of use.

Using the supplied accessories (Fig. 15)

① Crevice nozzle
Dusting brush
③ Upholstery nozzle

Some models are supplied as standard with one of the following accessories which are not illustrated.

• AllergoTeQ floorhead
  -Turbobrush

These are supplied with their own operating instructions.

Removing accessories (Fig. 16)

Press the release button on the accessories compartment lid.
The accessories compartment will then open.
Take out the accessory you require.
Press down firmly on the lid to close it.

Use

Adjusting the floorhead (Fig. 17, 18 + 19)

Depending on the model, your vacuum cleaner will be fitted as standard with one of the floorheads illustrated.

This vacuum cleaner can be used for daily cleaning of carpets, rugs and robust hard floors.

Miele offers a range of other floorheads, brushes and accessories for other types of flooring and special applications (see "Optional accessories").

Please observe the flooring manufacturer's cleaning and care instructions.

Clean even hard floors which are not susceptible to scratching, as well as flooring with gaps or deep crevices in it with the brush protruding:

Press the footswitch.

Vacuum carpets and rugs with the brush retracted:

Press the footswitch.

If the suction power of the adjustable floorhead seems too high, reduce the suction until the floorhead is easier to manoeuvre (see "Use" - "Regulating the suction power").

Adjustable floorhead (Fig. 20)

The adjustable floorhead can also be used for vacuuming the stairs.

Risk of injury caused by falling vacuum cleaner.

You may be injured if the vacuum cleaner should fall from the stairs.

When vacuuming stairs, it is best to start at the bottom of the stairs and move upwards.

Unwinding the mains cable (Fig. 21)

Pull the mains cable out to the required length.
Insert the plug into the socket.

Risk of damage due to overheat

The mains cable may overheat after a long period of use.

If vacuuming for longer than
30 minutes, the cable must be pulled out all the way.

Rewinding the cable (Fig. 22)

• Switch off at the wall socket and unplug it.
  Press the rewind foot switch. The cable will rewind automatically.

Switching on and off (Fig. 23)

Press the On/Off footswitch ①.

Regulating the suction power (Fig. 24)

The suction power can be regulated to suit the type of flooring being cleaned. Reducing the suction power reduces the amount of effort required to manoeuvre the floorhead.

The vacuum cleaner has symbols on the controls which indicate the type of use the power levels are suitable for.

Curtains, fabric
Upholstery, cushions
Cut pile carpets, rugs and runners
Energy-saving vacuuming. This setting is also very quiet
Loop pile carpet and rugs
Hard floors and heavily soiled carpets and rugs

When using the adjustable floorhead, if the suction seems too high, reduce the suction power until the floorhead is easier to manoeuvre.

Turn the suction power selector manually to the power level you require.

Opening the air inlet valve (Fig. 25)

It is easy to reduce the suction power for a short time, e.g. to prevent rugs or other textile flooring being sucked into the vacuum cleaner.

• Open the air inlet valve on the handle far enough to reduce the suction power.

The floorhead will be easier to manoeuvre.

During vacuuming

• When vacuuming, pull the cleaner behind you on its wheels. You can stand it upright for vacuuming stairs and curtains etc.

Setting down, transportation and storage

Park system for pauses during vacuuming (Fig. 26)

The Park system allows you to conveniently park the suction tube and floorhead during brief pauses.

Slot the floorhead into the slot in the parking attachment.

If your vacuum cleaner is on a sloping surface, e.g. a ramp,

• Retract the telescopic suction tube fully
• Do not use the park system if your vacuum cleaner has an EasyLock suction tube.

Park system for storage (Fig. 27 + 28)

Risk of electric shock from mains voltage.

The mains voltage is applied to the appliance even if it is switched off.

After use, switch the appliance off at the wall socket and unplug it.

Stand the vacuum cleaner upright.

If your vacuum cleaner has a telescopic suction tube, retract the tubes fully so that it takes up less room for storage.

Slot the floorhead downwards into the parking attachment.

If your vacuum cleaner has an EasyLock suction tube, you can detach this so that the vacuum cleaner requires less storage space.

Press the release catch on the lower suction tube section and pull the top section out.
- Push the connection piece attached to the upper suction tube into the lower suction tube.

Maintenance

Risk of electric shock from mains voltage.

The mains voltage is applied to the appliance even if it is switched off.

Before carrying out any maintenance work, switch the appliance off at the wall socket and unplug it.

The Miele filtration system consists of 3 accessories:

• Original Miele dustbag (type GN)

• Motor protection filter

• Original Miele exhaust filter

These accessories will need to be replaced from time to time to ensure that your vacuum cleaner performs efficiently.

We recommend using only genuine Miele accessories bearing the "ORIGINAL Miele" logo on the packaging. Only these will guarantee the optimum performance of your vacuum cleaner and the best possible cleaning results.

Dustbags with the "ORIGINAL Miele" logo on the packaging are not made from paper or paper-based materials and nor do they have a cardboard collar. This is why Miele dustbags are particularly long-lasting and reliable.

Please note that faults and damage caused by use of accessories which do not bear the "ORIGINAL Miele" logo on the packaging are not covered by the vacuum cleaner warranty.

Purchasing dustbags and filters

Original Miele dustbags and filters are available from the Miele webshop, the Miele Spare Parts Department and your Miele dealer.

Original Miele dustbags and filters are identified by the "ORIGINAL Miele" logo on the packaging.

Every packet of original Miele dustbags contains 4 dustbags, one AirClean exhaust filter and one motor protection filter. Original Miele multipacks contain 16 dustbags, 4 AirClean exhaust filters and 4 motor protection filters (available depending on country).

Original Miele exhaust filters can also be purchased separately from the Miele Customer Service Department or your Miele dealer. Please quote the model number of your vacuum cleaner when ordering to make sure you get the correct filter. You can also order these filters via the Miele webshop.

Dustbag airflow indicator (Fig. 29)

Change the dustbag when the airflow indicator turns red, or sooner if it is no longer effective (see possible reasons for this below).

• Blocked pores reduce the suction power of the vacuum cleaner.
• Dispose of the dustbag when it is full.
• Do not attempt to re-use the dustbag.

To check the airflow indicator

• Attach the standard adjustable floorhead to the vacuum cleaner.
• Switch the vacuum cleaner on and select the highest power setting.
  Lift the floorhead off the floor a little.

How the airflow indicator works

The airflow indicator is set for normal household dust. This generally contains a mixture of dust, hair, threads, carpet fluff, grit etc.

However, if the cleaner has been used to vacuum up fine dust, such as plaster, brick dust, cement or flour, the pores of the dustbag will become blocked very quickly.

This affects the air permeability of the bag, and the marker will indicate that the bag is "full" even when it is not. The dustbag must be replaced if this is the case.

If, on the other hand, a large amount of hair and carpet fluff which typically contains a lot of air is vacuumed up, the indicator may fail to react even though the bag is full. You should still change it. Both these extremes can occur.

Removing the dustbag (Fig. 30)

Press the release catches at the side of the hose connector and pull the hose out of the suction opening.
- Lift the release catch for the dust compartment lid and raise the lid as far as it will go.

The dustbag has a flap which closes automatically when the dust compartment lid is raised to prevent any dust escaping.

Pull the dustbag out by the grip on the collar.

Fitting a dustbag (Fig. 31)

Fit the new dustbag into the holder until it clicks into position. Leave the dustbag folded up when you take it out of the box.
- Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dust-bag when doing so.

A safety device prevents the lid closing without a dustbag in place. Do not force it.

Insert the hose connector into the suction opening on the vacuum cleaner until it clicks into position. To do this, line up the guides on the two pieces (Fig. 01).

Replacing the motor protection filter (Fig. 32)

Replace the motor protection filter whenever you start a new packet of dustbags.

Every packet of original Miele dustbags contains a motor protection filter. Multipacks contain 4 motor protection filters.

• Open the dust compartment lid.
  Pull the dustbag out by the grip on the collar.
• Lift up the filter frame until it clicks and remove the old filter. Hold by the clean, unsoiled section to remove it.
  Replace with a new motor protection filter.
  Close the filter frame.
  Fit the dustbag into the holder as far as it will go.
• Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dust-bag when doing so.

When to replace the exhaust filter

Depending on the model, your vacuum cleaner will be fitted as standard with one of the following exhaust filters (Fig. 09):

a AirClean

Replace this filter every time you start a new packet of Miele dustbags. Every packet of original Miele dustbags contains one AirClean exhaust filter. Multipacks contain four AirClean filters.

b AirClean Plus 50 (light blue)

Replace this filter after approx. one year. Make a note of the date on the exhaust filter.

c Active AirClean 50 (black)

d HEPA AirClean 50 (white)

Replace this filter when the timestrip® filter change indicator is completely red (Fig. 14). The indicator lights up after approximately 50 hours of operation, which is equivalent to about a year of average use. You can continue vacuuming when the light comes on. However, the suction power will be reduced as will the effectiveness of the filter if it is not replaced in good time.

Replacing the AirClean exhaust filter (Fig. 33 + 34)

Do not use more than one exhaust filter at a time.

• Open the dust compartment lid.
  Open the filter grille.
• Grasp the used AirClean exhaust filter by the clean, unsoiled section and take it out.
  Replace it with a new AirClean exhaust filter.

If you wish to fit an AirClean Plus 50, Active AirClean 50 or HEPA AirClean 50 exhaust filter, see "Replacing one type of exhaust filter with another".

Close the filter grille.
Close the dust compartment lid.

Replacing the AirClean Plus 50, Active AirClean 50 and HEPA AirClean 50 exhaust filters (Fig.35 + 36)

Do not use more than one exhaust filter at a time.

Open the dust compartment lid.
Lift the exhaust filter and remove it.
Insert a new exhaust filter, making sure it goes in properly, then press it down into position.
If you are using exhaust filter c or d, press the tstrip® filter change indicator (Fig. 12).

After approx. 10-15 seconds, a thin red line will appear in the left-hand side of the display (Fig. 13).

If you wish to fit an AirClean exhaust filter, see "Replacing one type of exhaust filter with another".

Close the dust compartment lid.

Replacing one type of exhaust filter with another (Fig. 09)

Depending on the model, your vacuum cleaner will be fitted as standard with one of the following exhaust filters:

a AirClean

b AirClean Plus 50 (light blue)
c Active AirClean 50 (black)
d HEPA AirClean 50 (white)

Do not use more than one exhaust filter at a time.

When changing the filter, please note

1. If you wish to replace exhaust filter a with filter b, c or d, it is essential that you remove the filter grille before you fit the new exhaust filter.
   If you are using exhaust filter c or d, you must also activate the timestrip® filter change indicator (Fig. 12).
2. If you wish to replace exhaust filter b, c or d with filter a it is essential that filter a is fitted in the filter grille* (Fig. 34).
3. Filter grille - see "Optional accessories"

Replacing the thread lifters (Fig. 37 + 38)

(not possible on EcoTeQ Plus floorheads)

The thread lifters on the suction inlet to the floorhead can be replaced. Replace the thread lifters if the pile has worn down.

Lever the thread lifters from the slots. To do so use a suitable tool, e.g. a flat blade screwdriver.
Fit new thread lifters.

Replacement parts are available from your Miele dealer or from the Miele Spare Parts Dept.

Cleaning and care

Risk of electric shock from mains voltage.

The mains voltage is applied to the appliance even if it is switched off.

Before cleaning, switch the appliance off at the wall socket and unplug it.

Vacuum cleaner and accessories

Risk of electric shock from mains voltage.

If moisture gets into the vacuum cleaner, there is a risk of electric shock.

Do not let the vacuum cleaner get wet.

The vacuum cleaner and all plastic accessories can be cleaned with a proprietary cleaner suitable for plastic.

Damage due to unsuitable cleaning agents.

All surfaces are susceptible to scratching. Contact with unsuitable cleaning agents can alter or discolour the external surfaces.

Do not use abrasive cleaning agents, glass cleaning agents, all-purpose cleaners or oil-based conditioning agents.

Dust compartment

The dust compartment can, if necessary, be cleaned using a dry duster, brush or, if available, a second vacuum cleaner to vacuum the dust out.

Problem solving guide

Many malfunctions and faults that can occur in daily operation can be easily remedied. You can save time and money in many cases, as you do not need to call the Miele Customer Service Department.

Information to help you rectify faults yourself can be found at www.miele.com/service.

The following tables are designed to help you to find the cause of a malfunction or a fault and to resolve it.

Problem Cause and remedy

The vacuum cleaner switches off automatically.

A temperature limiter switches the vacuum cleaner off automatically if it gets too hot. This can occur if, for instance, large articles block the suction tube or when the dustbag is full or contains particles of fine dust. A heavily soiled exhaust or dust compartment filter can also be the cause of overheating. ■ Switch the vacuum cleaner off immediately using the On/Off foot control ①. Switch off at the wall socket and unplug it. After removing the cause, wait for approximately 20 - 30 minutes to allow the vacuum cleaner to cool down. It can then be switched on again.

Service

Information to help you rectify faults yourself and about Miele spare parts can be found at www.miele.com/service.

Contact in case of malfunction

In the event of any faults which you cannot remedy yourself, please contact your Miele Dealer or Miele Service.

Contact information for Miele Service can be found at the end of this document.

Please note that telephone calls may be monitored and recorded for training purposes and that a call-out charge will be applied to service visits where the problem could have been resolved as described in this booklet.

Warranty

For information on the appliance warranty specific to your country please contact Miele. See back cover for address.

In the UK, your appliance warranty is valid for 2 years from the date of purchase. However, you must activate your cover by calling 0330 160 6640 or registering online at www.miele.co.uk.

Optional accessories

Please observe the flooring manufacturer's cleaning and care instructions.

These and many other products can be ordered from the Miele webshop, the Miele Customer Service Department or your Miele dealer.

Certain models are supplied as standard with one or more of the following accessories.

Floorheads / brushes

(only available in selected countries)

TurboTeQ Turbobrush (STB 305-3)

This brush is ideal for cleaning cut pile carpet.

Hard floorbrush (SBB 235-3)

This brush is designed for use on hard flooring such as tiled or stone floors.

Parquet Twister floorbrush with swivel action (SBB 300-3)

With natural bristles for vacuuming smooth hard floors and small gaps.

Parquet Twister XL floorbrush with swivel action (SBB 400-3)

With natural bristles for quickly vacu-uming smooth hard floors and small gaps.

Other accessories

(only available in selected countries)

Turbo Mini hand turbobrush (STB 101)

For vacuuming upholstery, mattresses or car seats, etc.

Universal brush (SUB 20)

For dusting books, shelves, etc.

Radiator brush (SHB 30)

For dusting radiators, narrow shelves and crevices.

Mattress nozzle (SMD 10)

For vacuuming upholstery, mattresses, cushions, curtains, covers etc.

Crevice nozzle, 300mm (SFD 10)

Extra long crevice nozzle for cleaning in folds, crevices and corners.

Crevice nozzle, 560~mm (SFD 20)

Flexible crevice nozzle for vacuuming hard to reach places.

XL upholstery nozzle (SPD 20)

Wide upholstery nozzle for cleaning upholstery, mattresses and cushions.

Comfort handle with lighting (SGC 20)

Lights up the area being vacuumed.

Filters

AirClean Plus 50 exhaust filter (SF-AP 50)

Effective filtration for particularly clean room air.

Active AirClean 50 exhaust filter (SF-AA 50)

For a significant reduction of unpleasant odours. Ideal for households with pets or smokers

HEPA AirClean 50 exhaust filter (SF-HA 50)

Effectively filters fine dust and allergens. Ideal for people allergic to house dust.

Filter grille

This is required if you wish to replace an AirClean Plus 50, Active AirClean 50 or HEPA AirClean 50 exhaust filter with an AirClean exhaust filter.

Electrical connection for the UK

All electrical work should be carried out by a suitably qualified and competent person in strict accordance with current national and local safety regulations (BS 7671 in the UK). The voltage and frequency are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains supply. The fuse rating is quoted on the plug. The appliance is supplied with a cable and moulded plug ready for connection to a 230 - 240V / 50Hz a.c. single phase supply.

a) EN 60312-1 Vacuum cleaners for household use - Part 1: Dry vacuum cleaners - Methods for measuring the performance
b) EN 60704-2-1 Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for vacuum cleaners
c) EN 60335-2-2 Household and similar electrical appliances - Safety - Part 2-2: Particular requirements for vacuum cleaner and water suction appliances

a) EN 60312-1 Vacuum cleaners for household use - Part 1: Dry vacuum cleaners - Methods for measuring the performance
b) EN 60704-2-1 Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for vacuum cleaners
c) EN 60335-2-2 Household and similar electrical appliances - Safety - Part 2-2: Particular requirements for vacuum cleaner and water suction appliances

d HEPA AirClean 50 (wit)

Controle of de stofzuigerzak vol is

d HEPA AirClean 50 (wit)

Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW

Tel: [phone], Internet: www.miele.co.uk/service, E-mail: [e-mail]

Australia

Miele Australia Pty. Ltd.

ACN 005 635 398

ABN 96005635398

Level 4, 141 Camberwell Road

Hawthorn East, VIC 3123

Tel: [phone]

Internet: www.miele.com.au

China Mainland

Miele Electrical Appliances Co., Ltd.

1-3 Floor, No. 82 Shi Men Yi Road

Jing' an District

200040 Shanghai, PRC

Tel: [phone]

Fax: [phone]

E-mail: [e-mail],

Kowloon Bay, Hong Kong

Tel: [phone]

Fax: [phone]

Email:

[e-mail]

Website: www.miele.hk

India

Miele India Pvt. Ltd.

1st Floor, Copia Corporate Suites,

Commercial Plot 9,

Mathura Road, Jasola,

New Delhi - 110025

E-mail: [e-mail]

Website: www.miele.in

Ireland

Miele Ireland Ltd.

2024 Bianconi Avenue

Citywest Business Campus

Dublin 24

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Internet: www.miele.ie

Kuwait

Miele Kuwait

AI Wazzan United Trading Co.

P.O.Box:3379

Hawally, 32034 Kuwait

Tel.: [phone]

Fax: [phone]

E-mail: mail@alwazzan united.com

Website: www.alwazzanunited.com

Malaysia

Miele Sdn Bhd

Suite 12-2, Level 12

Menara Sapura Kencana

Petroleum

Solaris Dutamas No. 1

Jalan Dutamas 1

50480 Kuala Lumpur, Malaysia

Phone: [phone]

Fax: [phone]

New Zealand

Miele New Zealand Limited

IRD 98 463 631

8 College Hill

Freemans Bay, Auckland 1011

New Zealand

Tel: [phone]

Internet: www.miele.co.nz

Singapore

Miele Pte. Ltd.

29 Media Circle

11-04 ALICE@Mediapolis

Singapore 138565

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Internet: www.miele.sg

South Africa

Miele (Pty) Ltd.

63 Peter Place, Bryanston 2194

P.O. Box 69434, Bryanston 2021

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Internet: www.miele.co.za

Thailand

Miele Appliances Ltd.

BHIRAJ TOWER at EmQuartier

43rd Floor Unit 4301-4303

689 Sukhumvit Road

North Klongton Sub-District

Vadhana District

Bangkok 10110, Thailand

United Arab Emirates

Miele Appliances Ltd.

Showroom 1, Eiffel 1 Building

Sheikh Zayed Road, Umm Al She

P.O.Box 114782 - Dubai

Tel. [phone]

Fax. [phone]

800-MIELE (64353)
