USER MANUAL KM0624 Krüger&Matz

text_image Technical diagram of a mechanical component with numbered parts for identification

BEDIENUNG

Ein-/Ausschalten:

Read the instruction manual before first use and keep it for future reference.

  • Minimize the volume on your audio device before connecting the headphones in order to avoid hearing damage from sudden exposure to excessive volume. Keep the volume at a reasonable level throughout entire time of using the earphones. To prevent damage to your hearing, do not raise the volume too high.
  • Do not use the headphones in places where the inability to hear ambient sound presents a serious risk (such as at railroad crossings, train stations, construction sites or on roads where vehicles and bicycles are traveling). Never use the headphones while driving a car, riding a motorcycle or bicycle or operating any other vehicle, as it may cause potential risk to your safety.
  • Stop using the headphones if you feel a tinnitus, hearing discomfort, irritation or have other adverse reactions.
  • Do not attempt to repair this device yourself. In case of damage, contact with an authorized service point for check-up/repair.
  • Do not subject the headphones to strong impact.
  • Clean this device with soft, slightly damp cloth. Do not use any abrasives or chemical agents to clean this product.
  • Protect this product from moisture, humidity, water and any other liquid. Avoid using/storing it in extreme temperatures. Do not expose it to direct sunlight and sources of heat.
  • Never use this device if it is damaged.
  • Use only authorized accessories.

⑧
Krüger&Matz KM0624 - Ein-/Ausschalten: - 1

natural_image Technical line drawing of a mechanical component with no visible text or symbols

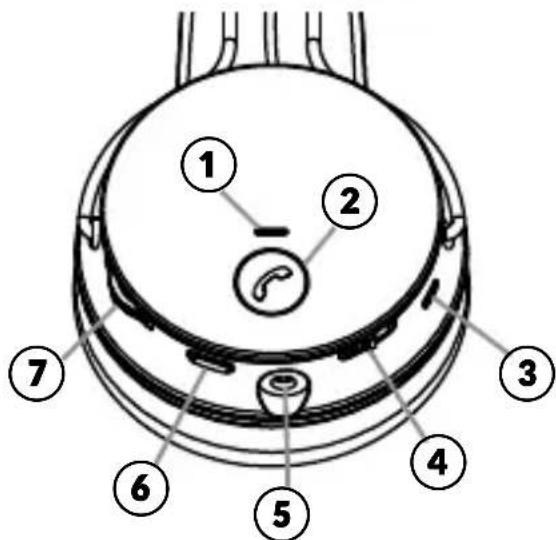

Product description

  1. LED indicator
  2. Phone button
  3. Microphone
  4. Power switch
  5. AUX input
  6. microUSB port
  7. Multifunctional switch (MF)
  8. microSD card slot

Krüger&Matz KM0624 - Product description - 1

text_image Diagram of a device with numbered parts labeled 1 through 7, likely for assembly or labeling purposes.

Operation

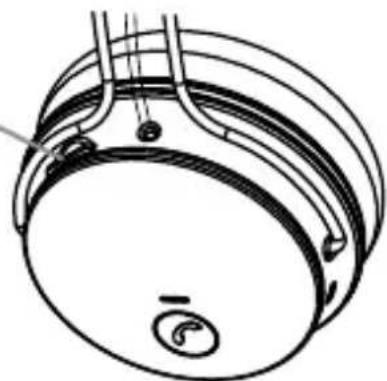

Turning on/off:

Switch the power switch to turn on the headphones. Switch again to turn off the headphones.

Answering/Rejecting/Redialing/Ending a call:

Press Phone button to answer an incoming call. Press Phone button again to end a call. Press and hold Phone button to reject a call. In standby mode or while playing music, press and hold Phone button to redial.

Music playback:

While playing music, press ▶ switch to play/pause music playback.

Volume adjustment/ Music selection:

Toggle to + to go to the next track; toggle and hold to increase the volume. Toggle to - to go to the previous track; toggle and hold to decrease the volume.

Mode switch:

Press and hold MF switch to change the mode (Bluetooth/microSD/FM radio).

FM radio mode:

Press and hold Phone button to search for and store available radio stations automatically.

Bluetooth

  1. Keep the devices in near distance (preferably within 1 meter).
  2. Turn on the headphones.
  3. The device will automatically enter Bluetooth pairing mode.
  4. Turn on the Bluetooth on your phone (or other device), and search for external devices.
  5. Pair with the headphones (KM Wave). Enter password: "0000" if necessary. The headphones will issue a sound signifying successful pairing.

Note:

  • Every time the headphones are switched on, they will connect to last connected device automatically. Please note, your device must be on with Bluetooth function turned on.
  • When in Bluetooth mode, when there is an incoming call the headphones will switch to call automatically.

MicroSD card mode

  1. Insert microSD card into the slot.
  2. The headphones will automatically enter microSD mode.
  3. Start playing music from your microSD card.

Note: The producer does not guarantee compatibility with every microSD card.

AUX Mode

  1. Use 3,5 mm AUX cable and connect one end of the cable into the headphones' 3,5 mm input.
  2. The headphones will automatically enter AUX mode.
  3. Connect the other end into the 3,5 mm input of the device you wish to play music from.
  4. Start playing music from your device.

Charging

Connect the headphones to AC charger or a computer USB port.

Note:

  • use only original accessories to charge the headphones.
  • charge the headphones regularly to keep its battery in good condition.
  • please turn off the headphones before charging.
Operation LED Status
Bluetooth pairing mode Blue LED flashes
Bluetooth connection established Blue LED flashes
AUX mode Blue LED flashes
MicroSD mode Blue LED flashes
Charging Red LED is on
Radio mode Blue LED is on
Automatic channel search Blue LED flashes quickly
Automatic channel search completed Blue LED is on

Specification

  • Speaker size: 40 mm
    • Frequency Response: 20 Hz - 20 kHz
  • Impedance: 32
    • Sensitivity: 108 dB ± 3 dB
  • microSD card player
  • Bluetooth version: 2.1
  • Bluetooth profiles: A2DP, AVRCP, HSP, HFP
  • Bluetooth range: up to 10 m
  • Playback time: up to 5 h
    • Standby time: up to 72 h
  • Battery capacity: 220 mAh

LEARN MORE

For more information on this product, go to www.krugermatz.com.

Visit www.krugermatz.com website for more products and accessories.

In case of any doubts or questions reach out to our Frequently Asked Questions section.

"The LECHPOL ELECTRONICS Sp. z o.o. Sp.k. company declares that product KM0624 / KM0625 is consistent with the essential requirements and other relevant provisions of directive 2014/53/UE. The proper declaration for download from www.lechpol.eu"

Z

Krüger&Matz KM0624 - LEARN MORE - 1

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

Krüger&Matz KM0624 - LEARN MORE - 2

Krüger&Matz KM0624 - LEARN MORE - 3

Krüger&Matz KM0624 - LEARN MORE - 4

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska 1, 08-400 Miętne.
