USER MANUAL MKKF41ADD0 BOSCH

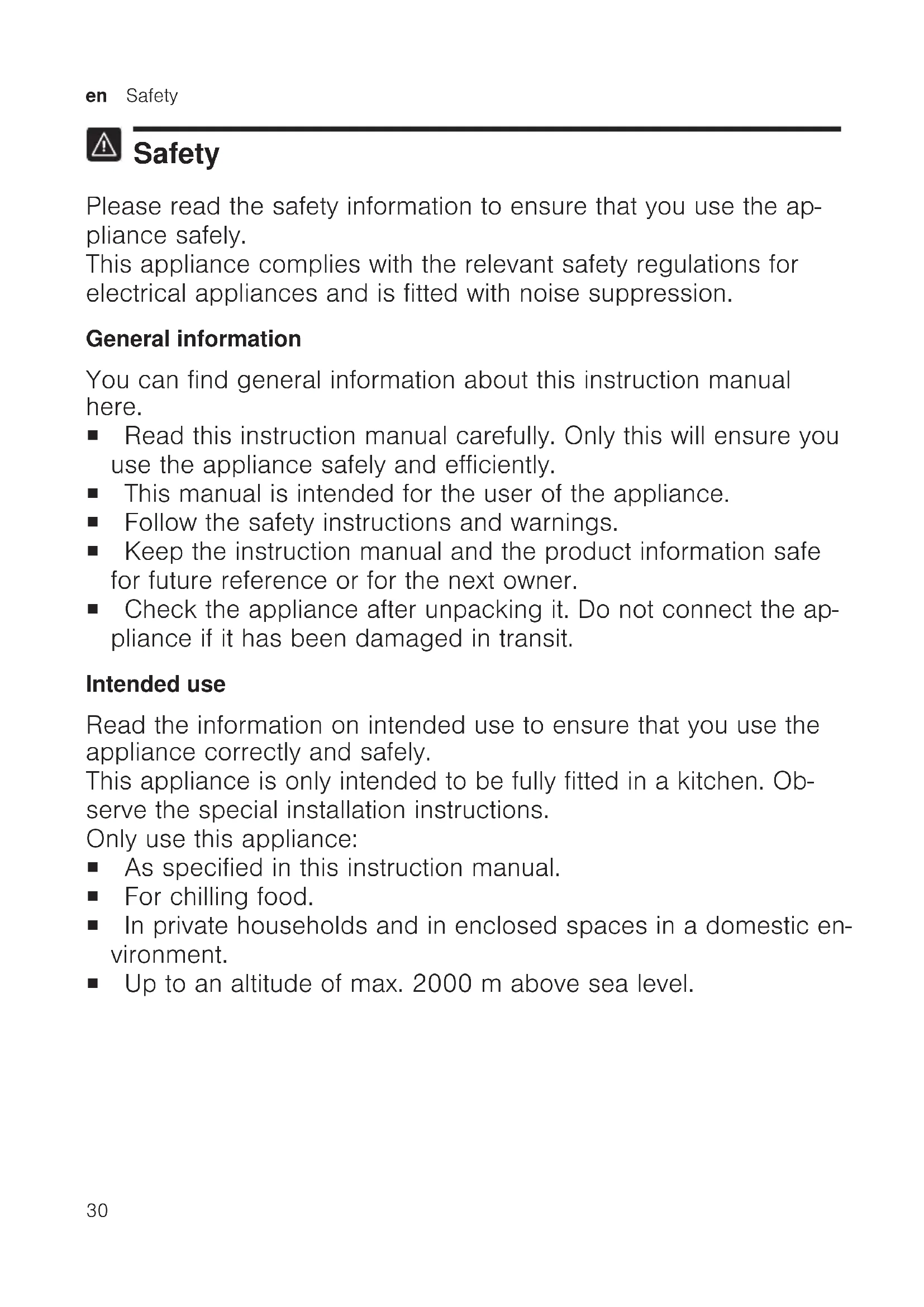

Safety Please read the safety information to ensure that you use the ap- pliance safely. This appliance complies with the relevant safety regulations for electrical appliances and is fitted with noise suppression. General information You can find general information about this instruction manual here. ¡ Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently. ¡ This manual is intended for the user of the appliance. ¡ Follow the safety instructions and warnings. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Check the appliance after unpacking it. Do not connect the ap- pliance if it has been damaged in transit. Intended use Read the information on intended use to ensure that you use the appliance correctly and safely. This appliance is only intended to be fully fitted in a kitchen. Ob- serve the special installation instructions. Only use this appliance: ¡ As specified in this instruction manual. ¡ For chilling food. ¡ In private households and in enclosed spaces in a domestic en- vironment. ¡ Up to an altitude of max. 2000m above sea level.Safety en

Restriction on user group Avoid risks to children and vulnerable persons. This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be performed by chil- dren unless they are being supervised. Keep children under the age of 8 years away from the appliance and power cable. Children above the age of three years old and younger than eight years old may load and unload the the fridge-freezer. Safe transport Follow these safety instructions when transporting the appliance. WARNING‒Risk of injury! The high weight of the appliance may result in injury when lif- ted.

Do not lift the appliance on your own. Safe installation Follow these safety instructions when installing the appliance. WARNING‒Risk of electric shock! Improper installation is dangerous.

Connect and operate the appliance only in accordance with the specifications on the rating plate.

Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.

The protective conductor system of the domestic electrical installation must be properly installed.

When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the installation regulations.

When installing the appliance, check that the power cable is not trapped or damaged. WARNING‒Risk of fire! ¡ It is dangerous to use an extended power cord and non-ap- proved adapters.

Do not use extension cables or multiple socket strips.

If the power cord is too short, contact Customer Service.

Only use adapters approved by the manufacturer.

Portable multiple socket strips or portable power supply units may overheat and cause a fire.

Do not position portable multiple socket strips or portable power supply units behind the appliance. Safe use Follow these safety instructions when using the appliance. WARNING‒Risk of electric shock! ¡ If the insulation of the power cord is damaged, this is danger- ous.

Never let the power cord come into contact with hot appli- ance parts or heat sources.

Never let the power cord come into contact with sharp points or edges.

Only use the appliance in enclosed spaces.

Never expose the appliance to intense heat or humidity.

Do not use steam- or high-pressure cleaners to clean the appliance.Safety en

WARNING‒Risk of suffocation! ¡ Children may put packaging material over their heads or wrap themselves up in it and suffocate.

Keep packaging material away from children.

Do not let children play with packaging material. ¡ Children may breathe in or swallow small parts, causing them to suffocate.

Keep small parts away from children.

Do not let children play with small parts. WARNING‒Risk of explosion! ¡ Electrical devices within the appliance may explode (e.g. heat- ers or electric ice makers).

Do not operate electrical devices within the appliance. ¡ Mechanical devices or other devices may damage the refri- geration circuit; flammable refrigerant may escape and ex- plode.

To accelerate the defrosting process, do not use any other mechanical devices or devices other than those recommen- ded by the manufacturer. ¡ Products which contain flammable propellants and explosive substances may explode, e.g. spray cans.

Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. WARNING‒Risk of injury! ¡ Containers that contain carbonated drinks may burst.

Do not store containers that contain carbonated drinks in the cool-fresh compartment. ¡ Injury to the eyes caused by escaping flammable refrigerant and hazardous gases.

Do not damage the pipes of the refrigerant circuit or the in- sulation.en Safety

CAUTION‒Risk of harm to health! To prevent food from being contaminated, you must observe the following instructions.

If the door is open for an extended period of time, this may lead to a considerable temperature increase in the compart- ments of the appliance.

Regularly clean the surfaces that may come into contact with food and accessible drain systems.

Store raw meat and fish in suitable containers in the refri- gerator so that they do not touch or drip on other food.

If the fridge/freezer is empty for an extended period of time, switch off the appliance, defrost it, clean it and leave the door open to prevent the formation of mould. Damaged appliance Follow the safety instructions if your appliance is damaged. WARNING‒Risk of electric shock! ¡ If the appliance or the power cord is damaged, this is danger- ous.

Never operate a damaged appliance.

Never operate an appliance with a cracked or fractured sur- face.

Never pull on the power cord to unplug the appliance. Al- ways unplug the appliance at the mains.

If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.

Repairs to the appliance should only be carried out by trained specialist staff. ¡ Improper repairs are dangerous.

Repairs to the appliance should only be carried out by trained specialist staff.

Only use genuine spare parts when repairing the appliance.Safety en

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. WARNING‒Risk of fire! If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

Keep naked flames and ignition sources away from the ap- pliance.

Switch off the appliance. →Page41

Unplug the appliance from the mains or switch off the cir- cuit breaker in the fuse box.

Call after-sales service. →Page50en Preventing material damage

Preventing material damage Preventing material dam- age Follow these instructions to prevent material damage to your appliance, accessories or other objects in your kitchen. ATTENTION! ¡ Contamination with oil or fat may cause plastic parts and door seals to become porous.

Keep plastic parts and door seals free of oil and grease. ¡ Using the base, runners or appli- ance doors as a seat surface or climbing surface may damage the appliance.

Do not stand or support yourself on the base, runners or doors. Environmental protection and saving energy Environmental protection and saving energy Help protect the environment by us- ing your appliance in a way that con- serves resources and by disposing of reusable materials properly. Disposing of packaging The packaging materials are environ- mentally compatible and can be re- cycled.

Sort the individual components by type and dispose of them separ- ately. Information about current disposal methods are available from your specialist dealer or local authority. Saving energy If you follow these instructions, your appliance will use less power. Selecting the installation location Follow these instructions when in- stalling your appliance. ¡ Keep the appliance out of direct sunlight. ¡ Install the appliance as far away as possible from heating ele- ments, cookers and other heat sources: – Maintain a 30mm clearance to electric or gas cookers. – Maintain a 30cm clearance to oil or solid-fuel cookers. The appliance needs to cool less frequently at low ambient temper- atures. ¡ Use a niche depth of 560mm. ¡ Do not cover or block ventilation openings. ¡ Ventilate the room daily. The air on the back wall of the ap- pliance can escape more easily and the appliance does not warm up so intensely. The appliance must cool less fre- quently. Saving energy during use Follow these instructions when using your appliance. Note:The arrangement of the fittings does not affect the energy consump- tion of the appliance.Installation and connection en

¡ Do not cover or block ventilation openings. The air on the back wall of the ap- pliance can escape more easily and the appliance does not warm up so intensely. ¡ Open the appliance door only briefly. ¡ Transport purchased food in a cool bag and place in the appli- ance quickly. ¡ Allow warm food and drinks to cool down before placing them in the appliance. ¡ Thaw frozen food in the refriger- ator compartment to utilise the low temperature of the food. The air in the appliance does not warm up so intensely. The appliance must cool less fre- quently. ¡ Always leave some space between the food and to the back panel. ¡ Pack the food airtight. The air can circulate and the air humidity remains constant. Installation and connection Installation and connec- tion You can find out where and how best to install your appliance here. You will also learn how to connect your appliance to the power supply. Scope of delivery After unpacking all parts, check for any transport damage and check the completeness of the delivery. If you have any complaints, contact your dealer or our after-sales service

• Page50. The delivery consists of the following: ¡ Built-in appliance ¡ Equipment and accessories

¡ Energy label ¡ Product data sheet ¡ Information on the energy con- sumption and noises Installing and connecting the ap- pliance Requirement:The scope of delivery of the appliance is checked.

ance's installation location.

2. Install the appliance according to

Depending on the appliance specifications

Not in all countriesen Installation and connection

3. Prepare the appliance for first use.

4. Electrically connect the appliance.

• Page38 Criteria for the installation loca- tion Follow these instructions when in- stalling your appliance. WARNING Risk of explosion! If the appliance is in a space that is too small, a leak in the refrigeration circuit may result in a flammable mix- ture of gas and air.

Only install the appliance in a space with a volume of at least

per 8g refrigerant. The volume of refrigerant is indicated on the rating plate. →Fig.

The weight of the appliance ex works may be up to 55kg depending on the model. The subfloor must be of sufficient sta- bility to bear the weight of the appli- ance. Permitted room temperature The permitted room temperature de- pends on the appliance's climate class. The climate class can be found on the rating plate. →Fig.

Climate class Permitted room temperat- ure SN 10°C to 32°C N 16°C to 32°C ST 16°C to 38°C T 16°C to 43°C The appliance is fully functional within the permitted room temperature. If an appliance with climate class SN is operated at colder room temperat- ures, the appliance will not be dam- aged up to a room temperature of 5°C. Niche dimensions Observe the niche dimensions if you install your appliance in the furniture recess. If this is not the case, prob- lems may occur when installing the appliance. Niche depth Install the appliance in the recom- mended niche depth of 560mm. If the niche depth is smaller, the en- ergy consumption increases slightly. The niche depth must be a minimum 550mm. Niche width An inside niche width of at least 560mm is required for the appli- ance. Preparing the appliance for the first time

1. Remove the informative material.

2. Remove the protective foil and

transit bolts, e.g. remove the ad- hesive strips and carton.

3. Clean the appliance for the first

time. →Page43 Connecting the appliance to the electricity supply

1. Insert the mains plug of the appli-

ance's power cable in a socket nearby. The connection data of the appli- ance can be found on the rating plate. →Fig.

2. Check the mains plug is inserted

properly. a The appliance is now ready for use.Familiarising yourself with your appliance en

Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarise yourself with the parts of your appliance. Appliance You can find an overview of the parts of your appliance here.

Refrigerator compartment

Cool-fresh compartment

Partition with humidity controller

Fruit and vegetable container

Butter and cheese compartment

Door storage compartment for large bottles Note:Deviations between your appli- ance and the diagrams may differ with regard to their features and size. Controls The controls are used to configure all functions of your appliance and to obtain information about the operat- ing status.

switches the warning signal off.

/ sets the temperature of the refri- gerator compartment.

Displays the set temperature for the refrigerator compartment in°C.

switches Super cooling on or off.

switches the appliance on or off. Features Features Here you can see an overview of the features of your appliance and their use. The features of your appliance de- pend on the model. Shelf To vary the shelves as required, re- move the shelf and re-insert it else- where.

• "Removing the shelf", Page44 Variable shelf Use the variable shelf to the store tall items, e.g. cans or bottles, on the shelf below. You can remove the front section of the variable shelf and slide it below the rear part of the shelf.

Extendable shelf In order to achieve an improved over- view and to remove food more quickly, remove the shelf. Fruit and vegetable container Store fresh fruit and vegetables in the fruit and vegetable container. You can adjust the humidity in the fruit and vegetable container via the humidity controller on the partition and a special seal.

The air humidity in the fruit and vegetable container can be set according to the type and amount of food to be stored: ¡ Low humidity required when primarily storing fruit or if the appli- ance is very full. ¡ Higher humidity required when primarily storing vegetables as well as when the appliance is filled with mixed items or is not very full. Condensation may form in the fruit and vegetable container depending on the food and quantity stored. Remove the condensation with a dry cloth and adjust the air humidity us- ing the humidity controller. To ensure that the quality and aroma are retained, store fruit and veget- ables that are sensitive to cold out- side of the appliance at temperatures of approx. 8°C to 12°C. Fruit that is sensitive to cold ¡ Pineapples ¡ Bananas ¡ Mangoes ¡ Papayas ¡ Citrus fruits Vegetables that are sensitive to cold ¡ Aubergines ¡ Gherkins ¡ Courgettes ¡ Peppers ¡ Tomatoes ¡ Potatoes Cool-fresh container Use the lower temperatures in the cool-fresh container to store perish- able food, e.g. fish, meat and saus- ages. Butter and cheese compartment Store butter and hard cheese in the butter and cheese compartment. Door racks To adjust the door racks as required, remove the door rack and re-insert elsewhere.

• "Removing door racks", Page44 Accessories Only use original accessories. These have been made especially for your appliance. Here you can find an over- view of your appliance's accessories and how to use them. The accessories for your appliance depend on the model. Egg tray Store eggs safely on the egg tray. Bottle holder The bottle holder prevents bottles from falling over when the appliance door is opened and closed.

Basic operation Basic operation You can find out everything you need to know about operating your appli- ance here. Switching on the appliance

a The appliance begins to cool.Additional functions en

2. Set the required temperature.

• Page41 Operating tips ¡ Once you have switched on the appliance, the set temperature is only reached after several hours. Do not put in any food in the appli- ance until the temperature is reached. ¡ The housing to the left, the right and beneath the cool-fresh com- partment may heat up slightly tem- porarily. This prevents condensa- tion in the area of the door seal. Switching off the appliance

Press . a The appliance stops cooling. Setting the temperature After you have switched on the appli- ance, you can set the temperature. Setting the refrigerator compartment temperature

Press / repeatedly until the tem- perature display shows the re- quired temperature. The recommended temperature in the refrigerator compartment is 4°C. Setting the cool-fresh compartment temperature Note:The temperature in the cool- fresh compartment is kept at around 0°C.

If frost forms on the food items in the cool-fresh compartment, set a higher cool-fresh temperature.

• Page47 Additional functions Additional functions Find out which additional functions which can be used for your appli- ance. Super cooling Super cooling cools the refrigerator compartment to make it as cold as possible. This cools food and drinks quickly through. Switch on Super cooling before pla- cing large quantities of food in the freezer compartment. Note:When Super cooling is switched on, increased noise may occur. Switching on Super cooling

Press . a lights up. Note:After approx. 15hours, the ap- pliance switches to normal operation. Switching off Super cooling

Press . a The previously set temperature is displayed. Alarm Alarm Your appliance is equipped with alarm functions. Door alarm If the appliance door is open for a longer period, the door alarm switches on. Switching off the warning signal (door alarm)

a The warning tone is switched off.en Refrigerator compartment

Refrigerator compartment Refrigerator compartment You can keep dairy products, eggs, ready meals, pastries, open pre- serves and hard cheese in the refri- gerator compartment. You can set the temperature in the refrigerator compartment from 3°C to 8°C. The recommended temperature in the refrigerator compartment is 4°C. The refrigerator compartment can also be used to store highly perish- able foods in the short to medium term. The lower the selected temper- ature, the longer the food remains fresh. Tips for storing food in the refri- gerator compartment Follow the tips if you store food in your refrigerator compartment. ¡ To ensure that the freshness and quality of the food is retained for longer, only store fresh and un- spoiled food. ¡ In the case of ready-made products and bottled goods, do not exceed the best-before date or use-by date specified by the manu- facturer. ¡ To retain aroma, colour and fresh- ness or to prevent taste transfer and discolouration of the plastic parts, store food well wrapped or covered. ¡ Leave warm food and beverages to cool down before placing them in the refrigerator compartment. Chill zones in the refrigerator compartment The air circulation in the refrigerator compartment creates different chill zones. Coldest zone The coldest zone is on the partition and in the door rack for large bottles. Warmest zone The warmest zone is at the very top of the door. Tips ¡ Store food that does not spoil eas- ily in the warmest zone, e.g. hard cheese and butter. Cheese can then continue to release its aroma and the butter will still be easy to spread. ¡ Store perishable food such as fish, sausages and meat in the cool- fresh compartment.

• "Cool-fresh compartment", Page42 Cool-fresh compartment Cool-fresh compartment In the cool-fresh compartment, you can keep fresh food fresh three times longer than in the refrigerator com- partment. The temperature in the cool-fresh compartment is kept at around 0°C. Storing food in the fresh compart- ment retains the quality of the food better. The low temperature and the optimum moisture provide ideal stor- age conditions for fresh food.Defrosting en

Storage times in the cool-fresh compartment at 0°C The storage times are dependent on the original quality of your food. Food Storage time Fresh fish, seafood up to 3days Poultry, meat (boiled/fried) up to 5 days Beef, pork, lamb, sausage (cold meat) up to 7 days Smoked fish, broccoli up to 14 days Salad greens, fennel, apricots, plums up to 21 days Soft cheese, yoghurt, quark, buttermilk, cauliflower up to 30 days Defrosting Defrosting Observe the information when you want to defrost your appliance. Defrosting in the refrigerator compartment The refrigerator compartment in your appliance defrosts automatically. Defrosting in the cool-fresh compartment The cool-fresh compartment in your appliance defrosts automatically. Cleaning and servicing Cleaning and servicing To keep your appliance working effi- ciently for a long time, it is important to clean and maintain it carefully. Customer Service must clean inac- cessible points. Cleaning by cus- tomer service can give rise to costs. Preparing the appliance for cleaning Find out how to prepare your appli- ance for cleaning.

1. Switch off the appliance.

2. Disconnect the appliance from the

power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

3. Take out all of the food and store it

in a cool location. Place ice packs (if available) onto the food.

4. If there is a layer of hoarfrost, allow

5. Remove all fittings from the appli-

6. To remove the following compon-

ents from the appliance: – →"Partition and cover of the fruit and vegetable container", Page44 – →"Telescopic rails", Page45 Cleaning the appliance Clean the appliance as specified to ensure that it is not damaged by in- correct cleaning or unsuitable clean- ing products. WARNING Risk of electric shock! ¡ An ingress of moisture can cause an electric shock.

Do not use steam- or high-pres- sure cleaners to clean the appli- ance. ¡ Liquid in the lighting can be dan- gerous.

The rinsing water must not run into the light.en Cleaning and servicing

ATTENTION! ¡ Unsuitable cleaning products may damage the surfaces of the appli- ance.

Do not use hard scouring pads or cleaning sponges.

Do not use harsh or abrasive detergents.

Do not use cleaning products with a high alcohol content. ¡ If you clean fittings and accessor- ies in the dishwasher, this may cause them to become deformed or discolour.

Never clean shelves or contain- ers in the dishwasher.

1. Prepare the appliance for cleaning.

2. Clean the appliance, the fittings,

the components and the door seals with a dish cloth, lukewarm water and a little pH-neutral wash- ing-up liquid.

3. Dry thoroughly with a soft, dry

4. Refit the fittings and the compon-

5. Electrically connect the appliance.

6. Switch on the appliance.

7. Putting the food into the appliance.

Removing the fittings If you want to clean the fittings thor- oughly, remove these from your ap- pliance. Removing the shelf

Pull out and remove the shelf. Removing the extendable shelf

1. Pull out the extendable shelf until

the locking catch is released.

2. Lower the shelf and swing it out to

the side. Removing door racks

Lift the door rack upwards and re- move it.

Removing the fruit and vegetable container

Tilt the fruit and vegetable con- tainer forwards and remove it .

Removing the cool-fresh container

Tilt the cool-fresh container for- wards and remove it .

Removing appliance compon- ents If you want to clean your appliance thoroughly, you can remove certain components from your appliance. Partition and cover of the fruit and vegetable container You can remove the partition and the cover of the fruit and vegetable con- tainer in order to clean it thoroughly. Removing the partition

1. Remove the fruit and vegetable

2. Press the lever on the underside

on both sides and pull the parti- tion forwards .

3. Lift the partition and swivel it out to

the side. Removing the cover

Lift the cover of the fruit and veget- able container, pull it forwards and swivel it out to the side.Cleaning and servicing en

Fitting the partition and cover

1. Insert the cover for the fruit and ve-

2. Set the humidity controller to a low

Telescopic rails You can remove the telescopic rails in order to clean them thoroughly. Removing telescopic rails

1. Pull out the telescopic rail.

2. Move the lock in the direction of

the arrow and loosen the pin from the rear .

3. Push in the telescopic rail.

4. Push the telescopic rail backwards

above the rear pin and disen- gage .

1. Place the extended telescopic rail

on the front pin and pull it for- wards slightly to lock in place .

2. Place the telescopic rail on the

rear pin and push the locking mechanism back .

• Fig. 15en Troubleshooting

Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous.

Repairs to the appliance should only be carried out by trained specialist staff.

Only use genuine spare parts when repairing the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. Malfunctions Fault Cause troubleshooting The appliance is not work- ing. No displays light up. The mains plug has not been inserted properly.

Connect the mains plug. Fuse has been tripped.

Check the fuses. The power has failed. 1. Check whether the power is on.

2. Place ice packs (if available) on the

top shelf. The appliance is not cooling, the displays and lighting light up. Showroom mode is switched on.

Carry out the appliance self-test.

• Page49 a Once the appliance self-test has ended, the appliance switches to normal operation. The LED lighting does not work. Do not remove the lamp cover. Different causes are pos- sible.

Call the after-sales service.

• "Customer Service", Page50 The refrigeration unit is switching on more fre- quently and for longer. The appliance door was opened frequently.

Do not open appliance door unne- cessarily. The ventilation openings are covered up.

Remove any obstructions from in front of the ventilation openings. Information on display panel Fault Cause troubleshooting Message showing "D" or "E" appears in the display. The electronics have detec- ted a fault.

Call the after-sales service.

Fault Cause troubleshooting A warning signal sounds and lights up. Different causes are pos- sible.

Press . a The alarm is switched off. The appliance door is open.

Close the appliance door. Temperature problem Fault Cause troubleshooting The temperature differs greatly from the setting. Different causes are pos- sible.

1. Switch off the appliance.

2. Switch the appliance back on after

fiveminutes. →Page40 ‒ If the temperature is too warm, check the temperature again after a couple of hours. ‒ If the temperature is too cold, check the temperature again on the following day. Cool-fresh compartment is too warm or cold. Standard setting is too high or too low, e.g. frost in cool- fresh compartment. Note:The standard setting of the cool- fresh compartment is preset at 0. Set- ting 0 corresponds to a temperature of around 0°C. You can set the temperat- ure in the cool-fresh compartment to 3settings warmer or colder.

1. Press until the temperature

– Setting –3 corresponds to the coldest setting. – Setting +3 corresponds to the warmest setting. a The selected setting is saved after one minute. Noise Fault Cause troubleshooting Appliance has a humming sound. Not a fault. A motor is run- ning, e.g. refrigerating unit, fan. No action required. The appliance bubbles, buzzes or gargles. Not a fault. Refrigerant flows through the pipes. No action required.en Troubleshooting

Fault Cause troubleshooting The appliance clicks. Not a fault. Motor, switches or solenoid valves are switching on or off. No action required. The appliance makes noises. The appliance is not level.

Align the appliance using a spirit level. If required, place something underneath it. Fittings wobble or stick.

Check the removable fittings and, if required, replace these. Bottles or containers are touching.

Move the bottles or containers away from each other. Odours Fault Cause troubleshooting The appliance has an un- pleasant smell. Different causes are pos- sible.

1. Prepare the appliance for cleaning.

2. Clean the appliance. →Page43

3. Clean all food packaging.

4. To prevent odours from forming,

store strong smelling food in air- tight containers.

5. After 24hours, check whether

odours are still forming.Storage and disposal en

Conducting an appliance self- test

1. Switch off the appliance.

2. Switch the appliance back on after

approx. fiveminutes. →Page40

3. Within the first 10seconds after

switching on, press and hold 3 to 5seconds. a The appliance self-test starts. a While the appliance self-test is run- ning, a long audible signal sounds. a If, at the end of the appliance self- test, two audible signals sound and the temperature display indic- ates the set temperature, your ap- pliance is OK. The appliance then switches to normal operation. a If, at the end of the appliance self- test, five audible signals sound and flashes for 10seconds, inform the after-sales service. Storage and disposal Storage and disposal You can find out here how to prepare your appliance for storage. You will also find out how to dispose of old appliances. Switching off the appliance

1. Switch off the appliance.

2. Disconnect the appliance from the

power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

Clean the appliance. →Page43

5. Leave the appliance door open.

Disposing of old appliance Valuable raw materials can be re- used by recycling. WARNING Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk.

Leave shelves and containers in- side the appliance to prevent chil- dren from climbing in.

Keep children away from the re- dundant appliance. WARNING Risk of fire! If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

Do not damage the tubes of the re- frigerant circuit or the insulation.

1. Unplug the appliance from the

2. Cut through the power cord.

3. Dispose of the appliance in an en-

vironmentally friendly manner. This appliance is labelled in ac- cordance with European Direct- ive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and re- cycling of used appliances as applicable throughout the EU.en Customer Service

Customer Service Customer Service If you have any queries, are unable to rectify faults on the appliance your- self or if your appliance needs to be repaired, contact Customer Service. You can solve many problems your- self by consulting the information on eliminating faults in this instruction manual or on our website. If this is not the case, contact our Customer Service. We will always find an appropriate solution and try to avoid unnecessary visits being made by a Customer Ser- vice technician. With any warranty claims we will make sure that your appliance is re- paired by trained Customer Service technicians using original spare parts, including after the manufac- turer's warranty has expired. For safety reasons repairs to the ap- pliance should only be carried out by trained specialist staff. The warranty claim becomes void if repairs or in- terventions have been carried out by persons not authorised by us for that purpose or if our appliances have been fitted with spare, supplementary or accessory parts that were not genuine parts and then resulted in a defect. Function-relevant genuine spare parts according to the corresponding Eco- design Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Eco- nomic Area. Note:Under the terms of the manu- facturer's warranty applicable to the location the use of Customer Service is free of charge. The minimum dura- tion of the warranty (manufacturer's warranty for private consumers) in the European Economic Area is 2 years (except for Denmark and Sweden, where it is 1 year) accord- ing to the terms of warranty applic- able to the location. The terms of warranty do not affect other rights or claims held by yourself under local legislation. Detailed information on the warranty period and terms of warranty in your country is available from our Cus- tomer Service, your retailer or on our website. If you contact Customer Service, you will require the product number (E- Nr.) and the production number (FD) of your appliance. The contact details for Customer Ser- vice can be found in the enclosed Customer Service directory or on our website. Product number (E-Nr.) and pro- duction number (FD) You can find the product number (E- Nr.) and the production number (FD) on the appliance's rating plate.

Make a note of your appliance's de- tails and the Customer Service tele- phone number to find them again quickly. Technical data Technical data Refrigerant, cubic capacity and fur- ther technical specifications can be found on the rating plate.

More information about your model can be found online at https://en- ergylabel.bsh-group.com

. This web address is linked to the official EU EPREL product database. At the time of printing its web address had not yet been published. Please then fol- low the instructions on searching for models. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate. Alternatively you can also find the model identifier in the first line of the EU energy label.

Only applies to countries in the European Economic Areafr

• Expert tips & tricks for your appliance

• Warranty extension options

• Discounts for accessories & spare-parts

• Digital manual and all appliance data at hand

• Easy access to Bosch Home Appliances Service Free and easy registration – also on mobile phones: www.bosch-home.com/welcome Looking for help? You'll find it here. Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direc- tory. *9001490676* 9001490676 (000123) de, en, fr, it, nl Robert Bosch Hausgeräte GmbH Carl-Wery-Straße 34 81739 München GERMANY www.bosch-home.com
