Product type	Iron with boiler (steam generator)
Brand	Termozeta
Model	No Limits Super Compact
Power supply	220-240 V ~ 50/60 Hz
Power	Approximately 2000 W
Water tank capacity	Approximately 1 L
Soleplate type	Stainless steel
Steam functions	Continuous steam (slider), variable steam (button), vertical steam (vertical position)
Temperature adjustment	Dial with indicator for synthetic fabrics, silk, wool, cotton, linen
Indicator lights	Steam ready (8), water shortage (8.a), iron thermostat (14)
Dry ironing	Yes, without activating steam
Power cord	Standard length (approximately 1.5 m) removable? (not specified)
Dimensions (approx.)	30 x 15 x 20 cm (boiler); iron: 20 x 10 x 12 cm
Weight (approx.)	Approximately 1.5 kg (total)
Care and cleaning	Soleplate: damp sponge; other parts: damp cloth; do not immerse
Spare parts and repairability	Customer service at 800 200 899; use original parts
Safety	Do not leave plugged in unattended; keep out of reach of children; use on a stable surface
Recommended water type	Tap water; distilled water if water is hard; no additives

Frequently Asked Questions - No Limits Super Compact TERMOZETA

How to fill the water tank?

Unplug the unit. Remove the cap (5) by turning counterclockwise. Slowly pour water using the provided funnel, without exceeding the maximum capacity. Replace the cap. Use only tap water or, if hard, distilled water. Never add detergents or chemical additives.

How to use the continuous steam function?

Press the steam button (11) and while holding it, push the slider (11.a) towards the cork handle. To stop, move the slider in the opposite direction. Continuous steam is convenient for ironing without having to constantly press the button.

What to do if the water shortage indicator (8.a) lights up?

Set the switch (2) to off (O). Press the steam button (11) until no more steam comes out. Unplug the cord. Remove the cap and fill the tank. Replug and turn on. Never fill the tank when the unit is plugged in or hot.

Can I iron clothes that are being worn?

No. The steam is very hot and can cause burns. Never iron clothes that are being worn. Use the vertical steam function only on unworn clothes, at a distance of about 20 cm.

How to clean the iron's soleplate?

Unplug the appliance and let it cool down completely. Use a damp sponge to clean the soleplate. For other parts of the iron and the boiler, use a damp cloth. Never immerse the appliance in water and do not use abrasive products.

Why are there water drops during first use of steam?

This is normal. Condensation forms inside the connection hose (6) during the first uses. Direct the first steam burst away from the fabric. After a few distributions, the phenomenon disappears.

What type of water to use for the boiler?

Use exclusively tap water. If the water in your area is very hard, use distilled water. Never add detergents, chemical additives, or descaling products, as they would damage the appliance.

How to adjust temperature for different fabrics?

Turn the temperature adjustment knob (13) according to the fabric type: low temperature for synthetic fibers, medium for wool and silk, high for cotton and linen. The indicator (14) goes off when the temperature is reached.

What to do if the appliance does not produce steam?

Check that the switch (2) is in the on position (I), that the tank is filled, and that the iron is set to a steam temperature (steam symbol). Make sure the steam ready indicator (8) is lit. If the problem persists, contact customer service at 800 200 899.

How to turn off and store the appliance after use?

Set the switch (2) to off (O). Press the steam button (11) to release residual steam. Unplug the cord. Place the iron on the iron rest (3) and wait for complete cooling before storing. Never store the appliance while still hot.

USER MANUAL No Limits Super Compact TERMOZETA

Blue and white super compact steam iron with coiled cord, no visible text or symbols on body

TERMOZETA®

NO▶LIMITS

SUPER COMPACT

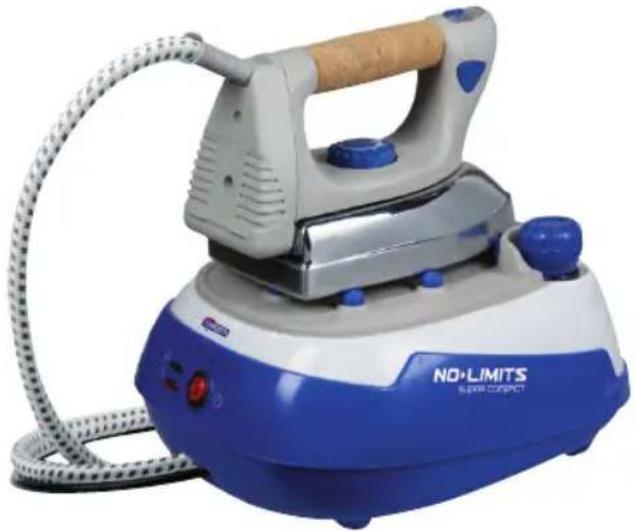

Exterior view of a super compact steam iron with blue and white casing (no text or symbols visible)

• DATI TECNICI
• TECHNICAL DATA
• DONNÉES TECHNIQUES
• TECHNISCHE DATEN
• DATOS TÉCNICOS

NO LIMITS SUPER COMPACT

Steam Station Type: 107006

220V-240 V \~ 50/60Hz

2100W

Made in China

CE

TERMOZETA®

I

GB

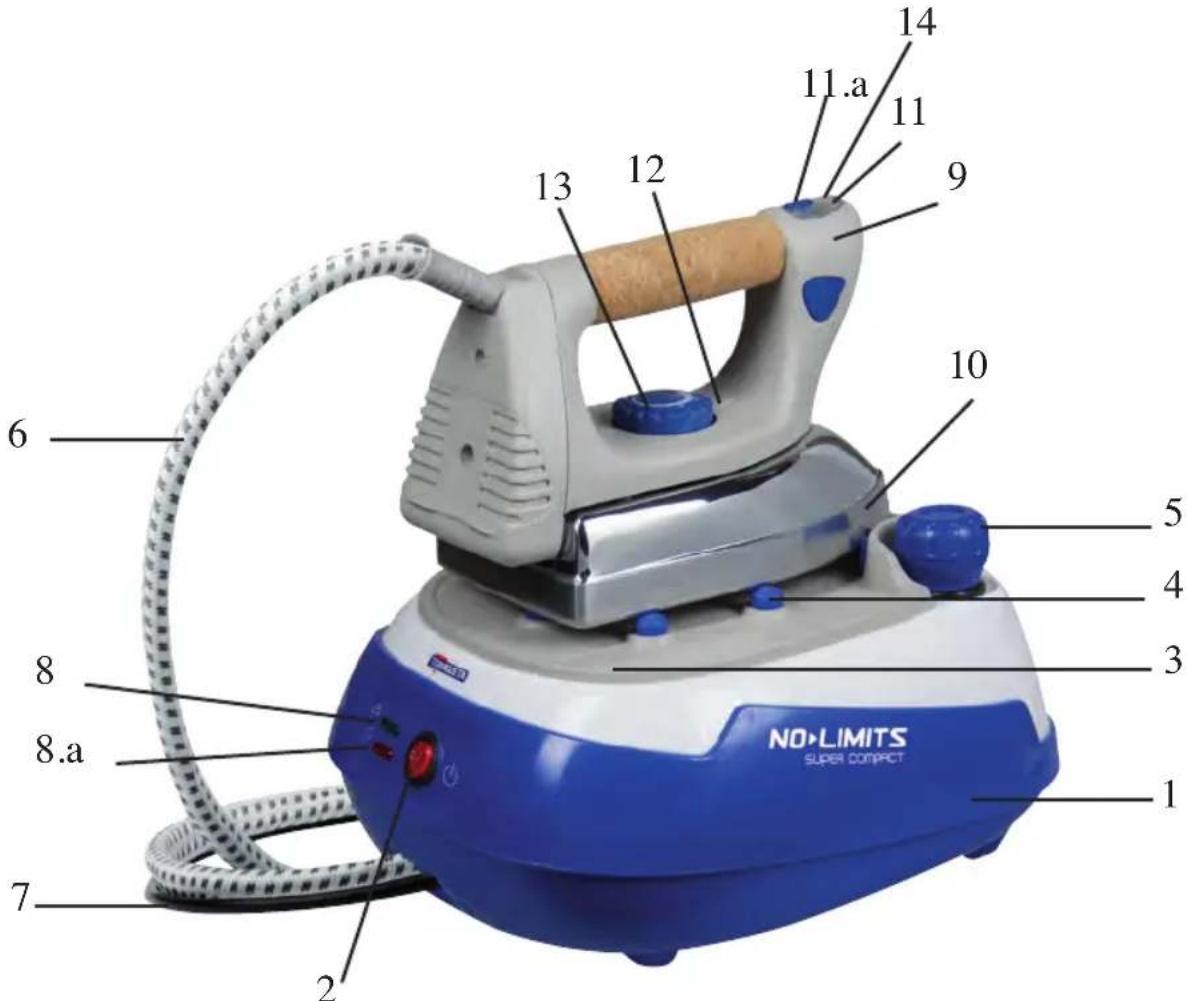

DESCRIZIONE

1 Body of steam boiler
2 Boiler on/off button with indicator lamp
3 Iron support base
4 Non-slip rubber tips for iron
5 Water tank Cap
6 Iron-boiler connecting tube
7 Cord
8 Steam ready indicator
8.a No-water LED
9 Iron
10 Soleplate
11 Steam spray button
11.a Cursor for continuos steam
12 Temperature control indicator
13 Temperature control knob
14 Thermostat indicator lamp

F

D

DESCRIPTION

Abstract circular design with geometric patterns and a central stylized symbol (no text or symbols)

This manual is an integral part of the appliance and must be carefully read before using it as it gives important indications with regard to safety of installation, use and maintenance.

Keep it with care.

• After taking off the packing make sure that the appliance is intact. In case of doubt do not use it and contact our service center calling toll-free Number 800 200 899.

- Do not leave pieces of packing (plastic bags, polystyrene foam, nails etc.) within reach of children or persons with reduced mental capabilities, since these are potential sources of danger.

- The electrical safety of this appliance is ensured only if it is correctly connected to an effective earthing system in compliance with the existing electrical safety standards. LANGE DISTRIBUTION shall not be held responsible for any damage caused by the lack of an earthing system.

- Before connecting the plug to the outlet check that the working voltage of the appliance corresponds to the one in your house. If in doubt, contact professionally qualified staff.

- Use of adaptors, multiple outlets and extension leads is not advisable. In case of necessity use exclusively approved appliances in conformity with the current safety regulations while making sure that they are compatible with the appliance power. If in doubt, contact professionally qualified staff.

- Any installation which doesn't comply with what is specified can endanger your safety and the warranty expires.

- The appliance must only be used to iron cloths for domestic purposes.

- For safety reasons pay attention and:

• do not use the appliance when you are barefoot or having wet hands or feet
• do not use the appliance outside the domestic environment
• do not leave the appliance exposed to atmospheric agents (sun, rain, etc.)
• never pull the power cord or the appliance itself in order to disconnect the plug from the outlet
• do not leave the appliance unattended when it is plugged into the main

ENGLISH

power supply

- never immerse the appliance in water or other liquids

• The appliance can be used by children aged from 8 and above and by people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, only if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The power cord of the appliance should never be replaced by the user himself. In case of necessity contact our service center calling toll-free Number 800 200 899.
• Incase of failure and/or malfunctioning of the appliance, turn it off and do not tamper with it. For any repairs contact our service center calling toll-free Number 800 200 899 and ask for the use of original spare parts.
• At the end of the life-cycle of the appliance, put it out of service by cutting the power cord after disconnecting the plug from the outlet. For the disposal of the appliance follow the regulations which are valid in your place of residence.
• LANGE DISTRIBUTION cannot be considered responsible for any damage to persons, animals or things caused by the incorrect installation or as a result of an illegitimate, mistaken or unreasonable use.
• The iron must be used and rested on a firm surface.
• When placing the iron on its base, ensure that the surface on which the base is placed is firm.
• The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
• Keep the iron and its cord out of reach of children when it is supplied with power or when it is cooling down.
• Do not iron clothes while wearing them since the steam is very hot and it could cause burnings.

USE INSTRUCTIONS

CHOICE OF THE IRON TEMPERATURE

Turn the iron temperature control knob (13) so that the proper temperature corresponds to the indicator (12) according to the type of cloth to be ironed.

Fig.: 1

Abstract circular emblem with geometric patterns and a central stylized symbol (no text or symbols)

High temperature steam ironing (cotton, linen)

Medium temperature steam ironing (wool, silk)

Low temperature ironing (synthetic, fibres)

FOR STEAM IRONING

HOW TO FILL THE TANK WITH WATER

• Always unplug the iron from the outlet when filling the boiler with water.
- Remove the cap (5) slowly pour the water through opening by using the provided funnel to avoid any leakage. Put the cap back on.
- Only use running water to fill the tank without exceeding its maximum capacity: never add detergents, chemical additives or water softeners.

SUGGESTION: If water in your area is particularly calcareous, it is advisable to use distilled water.

STARTING UP

• Rest the appliance on a firm flat surface.
• Place the iron on the boiler base (3).
• Fill up the water tank as described in the previous paragraph.
• Completely unwind the power cord (7) and plug into the outlet.
• Press the on/off button (2) on the boiler taking it to (ON).
• Turn the iron temperature control knob (13) to the steam ironing position.
• The pilot light (14) on the iron will go on immediately and will go out a few minutes later, when the required temperature is reached.
• When the pilot light (8 ♂) goes on, it is possible to use the jet of steam.
• During operation, the iron light (14) and the “steam ready” pilot light (8 ≈) go on and then automatically go out indicating that the iron temperature are constantly under control.
• Rest the iron on the boiler base (3) during ironing pauses.

ENGLISH

IRONING

• Press button (11) on the iron for the steam jet: the steam will stop coming out when you release the button.
• To use the continuous steam function, press the steam button (11) and at the same time slide cursor (11a) towards the cork handle. To disable this function, slide cursor (11a) in the opposite direction to the handle.
• With the iron held upright at a distance of about 20 cm you can use the jet of steam to smooth out creases and freshen up clothes while they are hanging. Avoid carrying out this operation on any worn garment as the steam is extremely hot and it is possible to get burned.
• Before ironing delicate fabrics it is best to make trial run on a hidden piece e.g. the hem.
• We advise you to iron more delicate fabrics needing low temperatures first, then go on ironing more resistant fabrics needing higher temperatures.

WARNING!

Some drops of water may leak out of the iron soleplate (10) when the first jet of steam starts coming out; this is quite normal and is due to condensation forming inside the iron-boiler connecting tube (6).

This will disappear with the following jets of steam. It is therefore not recommended to point the first jet of steam directly on the item to be ironed. The iron must be used and left at rest on a firm surface.

NO MORE WATER DURING USE

• When the water tank is empty the indicator lamp (8a) will light on.
• Carefully follow the instructions given below to fill up the boiler again:
• Press the ON/OFF switch of the boiler (2) bringing it to the "OFF" position;
• unplug the appliance from the outlet;
• remove the cap (5);
• fill up the tank following instructions given in the “HOW TO FILL THE TANK WITH WATER” paragraph;
• switch on the appliance again following the same instructions given in the “STARTING UP” paragraph.

WHEN YOU HAVE FINISHED IRONING

• Press the ON/OFF switch of the boiler (2) bringing it to the "OFF" position.
• Press button (14) on the iron, until no more steam is being produced.
• Unplug the appliance from the outlet.
• Rest the iron on base (3) and wait for the appliance to completely cool down before carrying out any operations.

ENGLISH

FOR DRY IRONING

• Place the appliance on a firm flat surface.
• Rest the iron on the boiler base (3).
• Select the proper temperature by turning the control knob (13) on the iron (figure 1).
• Completely unwind the power cord (7) and plug into the outlet.
• Put switch (2) to position "1" to turn on the appliance.
• When the pilot light (14) goes out, the iron is ready for use.
• The pilot light (14) on the iron will light up and go out automatically while you are ironing to show that the soleplate is being kept at a constant temperature.
• When you have finished ironing to turn off the appliance. Let the iron cool down.

CLEANING

Always unplug the iron from the outlet and wait for the appliance to completely I down before starting any cleaning operations.

Use a normal damp sponge to clean the soleplate.

Use a damp cloth to clean the rest of the iron and the boiler shell only.

Never immerse the appliance or parts of it into water or other liquid, do not use steam, chemical or abrasive substances.

TABLE TO BE USED IN CASE OF ANOMALIES

In case of anomalies, see the table below before calling the Service Centre.

PROBLEMSSOLUTIONS
The appliance is not working Make sure the power cord is plugged into the outlet.Make sure there are no problems with the mains.
The iron soleplate does not heat Make sure you turned the temperature control knob on the iron
The appliance is connected to the mains and stops working	Call the Service Centre
The appliance is connected to the mains and the switch is put to position “1”, but the appliance does not work	Call the Service Centre
The appliance is on but it does not work Call the Service Centre

ENGLISH

INFORMATION FOR USERS

In accordance with European Directives 2011/65/CE, 2002/96/CE and 2003/108/CE on the restriction of the use of dangerous substances in electric and electronic equipment as well as their waste disposal.

• The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful life, the product must be collected separately from other waste.
• Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis.
• The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposal of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus.
• Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws in force.
