USER MANUAL S7 Pro Ultra ROBOROCK

成品尺寸：182*130mmRoborock S7 Pro Ultra Read this user manual with diagrams carefully before using this product and store it properly for future reference. Robotic Vacuum Cleaner User Manual02 03 Safety Information 04 Battery and Charging 04 International Symbols Explanation 05 FCC/IC Statement 06 Product Overview 07 Installation 08 Connecting to the App 09 Instructions 11 Routine Maintenance 13 Basic Parameters 14 Common Issues English Contents English English 02 Français 16 Español 2803 Safety Information WARNING

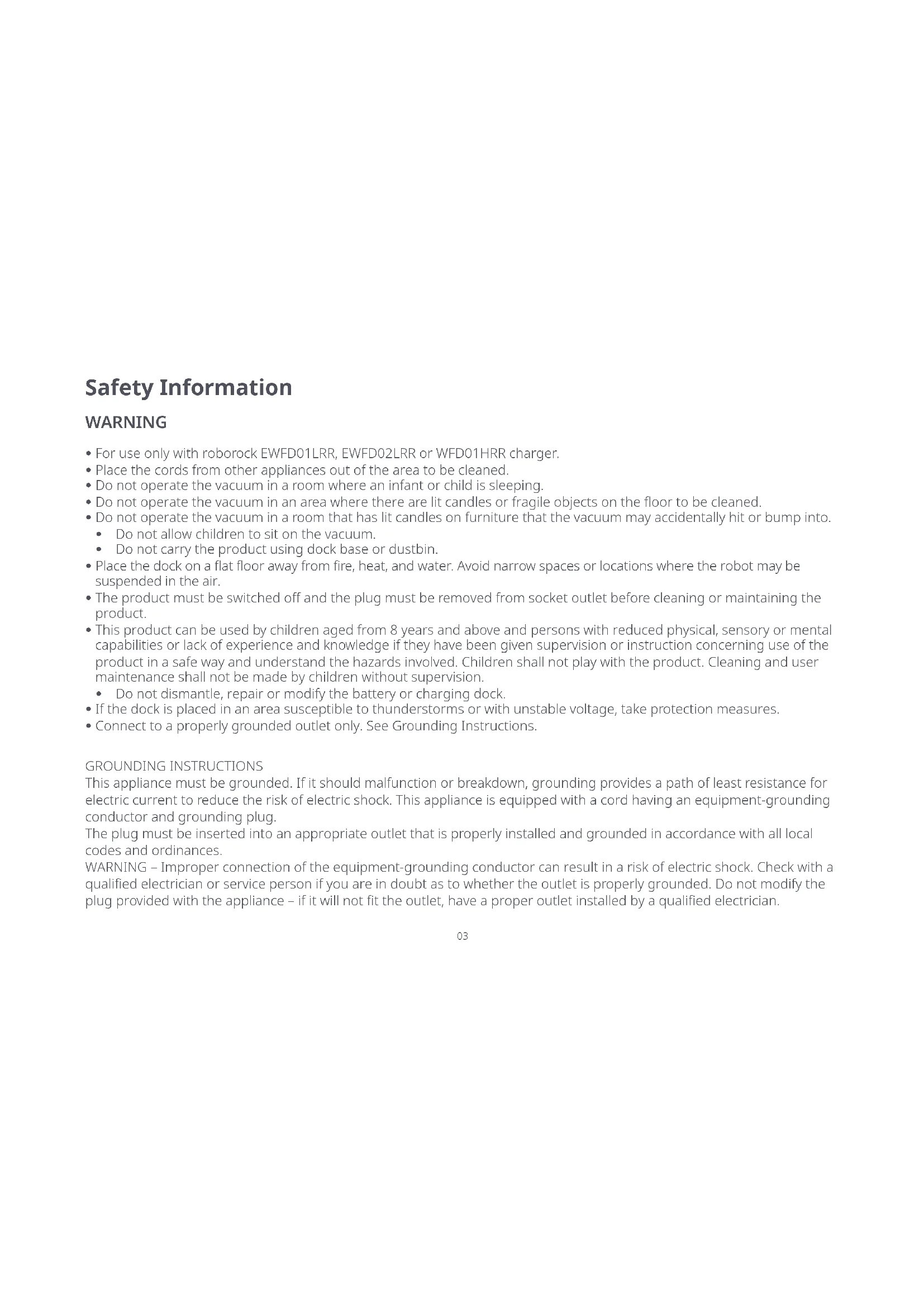

• For use only with roborock EWFD01LRR, EWFD02LRR or WFD01HRR charger.

• Place the cords from other appliances out of the area to be cleaned.

• Do not operate the vacuum in a room where an infant or child is sleeping.

• Do not operate the vacuum in an area where there are lit candles or fragile objects on the floor to be cleaned.

• Do not operate the vacuum in a room that has lit candles on furniture that the vacuum may accidentally hit or bump into.

• Do not allow children to sit on the vacuum.

• Do not carry the product using dock base or dustbin.

• Place the dock on a flat floor away from fire, heat, and water. Avoid narrow spaces or locations where the robot may be suspended in the air.

• The product must be switched off and the plug must be removed from socket outlet before cleaning or maintaining the product.

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

• Do not dismantle, repair or modify the battery or charging dock.

• If the dock is placed in an area susceptible to thunderstorms or with unstable voltage, take protection measures.

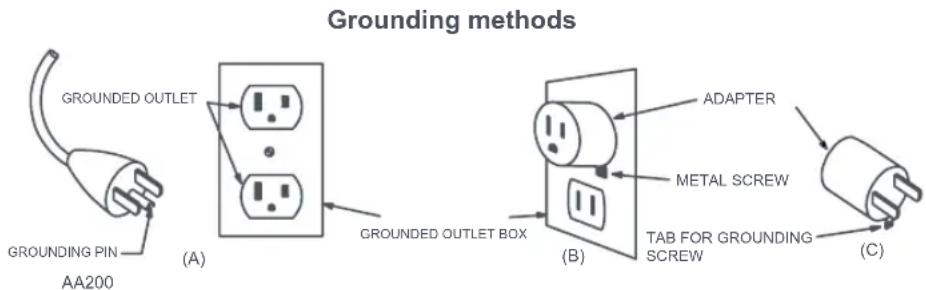

• Connect to a properly grounded outlet only. See Grounding Instructions. GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. WARNING – Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.04 Safety Information Battery and Charging

• Keep the charging dock away from heat (such as radiators).

• Do not wipe the charging contacts with wet cloth or wet hands.

• Turn the robot off and use original packaging for shipment.

• If placing the robot into storage, charge it fully and turn it off before placing it in a cool dry place. Recharge it at least every three months to prevent the battery over discharging.

• Do not use the product when the temperature is higher than 40°C (104°F) or lower than 4°C (39°F), or there is any liquid or sticky substance on the floor. Grounding methods GROUNDED OUTLETGROUNDING PINGROUNDED OUTLET BOXADAPTERMETAL SCREWTAB FOR GROUNDING SCREW AA200 (A) (B) (C) This appliance is for use on a nominal 120-V circuit and has a grounding attachment plug that looks like the plug illustrated in sketch A in Grounding methods. Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adaptor should be used with this appliance. International Symbols Explanation – PROTECTIVE EARTH (Protective Ground) symbol [symbol IEC 60417-5019 (2009-02)]05 FCC/IC Statement Compliance Information Product Name Robotic Vacuum Cleaner with Charging Dock Robotic Vacuum Cleaner Model: S300RR Wash and Fill Dock Model: WFD01HRR Empty Wash Fill Dock Model: EWFD01LRR, EWFD02LRR Product Model Compliance Statement Correspondence of the responsible party in USA Roborock Technology Co. 108 West 13th Street, Wilmington, Delaware 19801. [e-mail] Company Address Email This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.06

• Flashing slowly: Waiting for connection

• Flashing quickly: Connecting

Robot (Top View) Press any button to stop the robot during cleaning or docking.Note:The VibraRise mop mount is non-detachable.Note: A1-1—Dock Locator

• Press to return to dock/start emptying

• Press and hold to wash mop Dock

• Press and hold for 3 seconds to turn on/off the child lock Spot Clean/Child Lock

• White: Battery level ≥ 20%

• Red: Battery level < 20%

• Pulsing: Charging or starting up

• Flashing red: Error Power Indicator Power/Clean

• Press and hold to turn the robot on or off

• Press to start cleaning Product Overview

Robot (Bottom View) A2-1—Wall Sensor A2-2—Charging Contacts A2-3—Carpet Sensor A2-4—Omni-Directional Wheel A2-5—Side Brush A2-6—Main Wheel A2-7—Main Brush A2-8—Main Brush Cover Latches A2-9—Cliff Sensors07 A12 Power Cable Storage A12-1—Cable Outlets A12-2—Power Port A12-3—Cable Slot Power cable can exit at either side.Note: Place the dock on a hard and flat floor, and remove the foam used to secure the high-speed maintenance brush components in shipment at the bottom. B1-1— Attach the base by pressing down both sides of the base firmly, and then pressing the connecting part in the middle until you hear a click. B1-2—

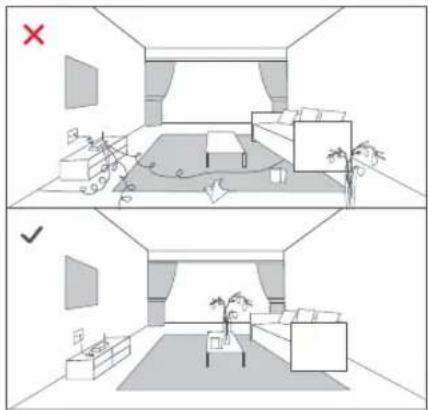

1. Tidy cables and loose items from the

ground and move any unstable, fragile, precious, or dangerous items to prevent personal injury or property damage due to items becoming tangled in, struck by, or knocked over by the robot.

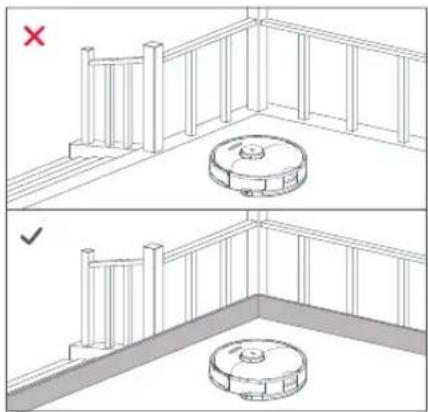

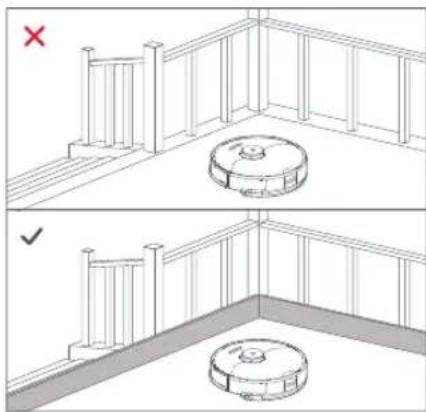

2. When using the robot in a raised area,

always use a secure physical barrier to prevent accidental falls that may result in personal injury or property damage. Installation

Important Information Remove the water tanks and the dustbin before moving the dock.Note:When using the robot for the first time, follow it throughout its whole cleaning route and watch for potential problems. The robot will be able to clean by itself in future uses.Note: Connect the power cable to the back of the dock, and keep excess cable inside the storage slot. B1-3—

• Pulsing: Emptying/Washing Mop

• Light off: Charging/Powered Off A11-14—Water Filter A11-15—Dock Base08 Option 2: Search for “Mi Home” in the App Store or Google Play or scan the QR code to download and install the app. Connecting to the App Option 1: Search for “Roborock” in the App Store or Google Play or scan the QR code to download and install the app. ❶ Download App This robot supports both Roborock and Mi Home apps. Choose the one that best meets your needs. The robot may not be turned on when the battery is low. In this case, connect the robot to the dock.Note:

Power on and charge the robot Press and hold the button to power on the robot. When the power light goes on, place the robot on the dock to charge. Make sure the charging dock power indicator turns off and a “charging” voice alert sounds. To maintain the performance of the high- performance lithium-ion rechargeable battery pack, keep the robot charged. ❷ Reset WiFi

1. Open the top cover and find the WiFi

2. Press and hold the

and buttons until you hear the “Resetting WiFi” voice alert. The reset is complete when the WiFi indicator flashes slowly. The robot will then wait for a connection. Open the Roborock App, tap the “Search for device” button, or open Mi Home app, tap “+” in the top right corner and add the device as instructed in the app. Notes: • The actual process may vary due to ongoing app updates. Follow the instructions provided in the app. • Only 2.4 GHz WiFi is supported. • If the robot waits more than 1 hour for a connection, WiFi will be automatically disabled. If you want to reconnect, reset the WiFi before proceeding. ❸ Add device If you cannot connect to the robot due to your router configuration, a forgotten password, or any other reason, reset the WiFi and add your robot as a new device.Note:Notes: • If the power cable hangs vertically to the ground, it may be caught by the robot, causing the dock to be moved or disconnected. • The dock indicator is on when the dock is powered on, and off when the robot is charging. • The dock indicator turns red if an error occurs. • Place the dock on a flat floor away from fire, heat, and water. Avoid narrow spaces or locations where the robot may be suspended in the air. • Placing the dock on a soft surface (carpet/mat) may cause the dock to tilt over and cause problems docking and departing. • Keep the dock away from direct sunlight or anything that may block the dock location beacon; otherwise, the robot may fail to return to the dock. • Do not use the dock without clean water tank, dirty water tank, high-speed maintenance brush, dustbin, dust bag or water filter. • Maintain the dock according to the maintenance instructions. Do not clean the dock with a wet cloth or tissue. • All docks are subject to water-based tests before leaving the factory. It is normal that a small amount of water remains in the waterway of the dock. B1-5—more than 0.5 m (1.6 ft) B1-6—more than 1.5 m (4.9 ft) B1-7—more than 1 m (3.3 ft) Place the dock on a hard and flat floor (wood/tile/concrete etc.), flat against a wall. Keep at least 0.5 m (1.6 ft) of clearance on either side, 1.5 m (4.9 ft) in front, and 1 m (3.3 ft) above. Make sure the location has good WiFi for a better experience with the mobile app, and then plug it in. B1-4—09 Instructions Notes: • To prevent corrosion or damage, only use the Roborock branded floor cleaner in the water tank. • To avoid water tank deformation, do not place hot water in the tank. • If water marks remain on the water tank, wipe them clean before reinstallation. Filling the Clean Water Tank Open the clean water tank. Fill with water until the Max line. Close the lid, lock the latch, and fit the tank back in place. The robot cannot be turned off when it is being charged.Note: Press and hold the button to turn on the robot. The power indicator will turn on and the robot will enter standby mode. Press and hold the button to turn off the robot and complete the cleaning cycle. On/Off Press the button to start cleaning. The robot will plan its cleaning route according to its scan of the room. It splits a room into zones, first draws out zone edges, and then fills the zone in a zigzag pattern. In so doing, the robot cleans all zones one by one, efficiently cleaning the house. Starting Cleaning Zone 1 – CleanedZone 4 – Next ZoneZone 2 – CleanedZone 3 – In ProgressNotes: • To allow the robot to automatically vacuum and return to the dock, start the robot from the dock. Do not move the dock during cleaning. • Cleaning cannot start if the battery level is too low. Allow the robot to charge before starting cleanup. • If cleaning is completed in less than 10 minutes, the area will be cleaned twice. • If the battery runs low during the cleaning cycle, the robot will automatically return to the dock. After charging, the robot will resume where it left off. • Automatic mop washing will not work if the dock encounters an error during cleaning. Wash the mop manually to restore. • When the mop mount is attached, the robot will retract it when cleaning the carpet. You can also set the carpet as a no-go zone in the app to avoid it. • Before starting each mopping task, make sure that the VibraRise mop has been properly installed.After spot cleaning, the robot will automatically return to the starting point and enter Standby mode.Note: Press the button to start spot cleaning. Cleaning range: The robot cleans a 1.5 m (4.9 ft) x 1.5 m (4.9 ft) square area centered on itself. Spot Cleaning Manually Activated Emptying Auto-Emptying Emptying can be triggered manually by pressing the button while the robot is charging. Auto-emptying will begin when the robot returns to the dock after cleaning. Avoid frequent manual emptying.Note: Notes:

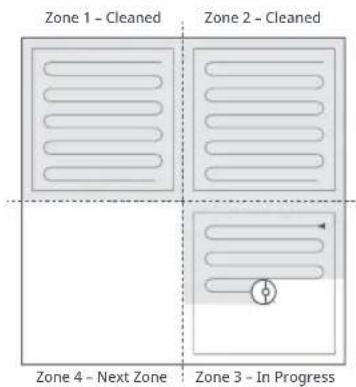

• If the dock has not emptied for an extended period, empty the robot dustbin manually and clear the air inlet of any debris to ensure optimum performance.

• If necessary, auto-emptying can be disabled in the app. Manually Activated Mop Washing During cleaning, press any button to pause, then press and hold the button to send the robot back for mop washing. Auto Mop Washing During cleaning, the robot automatically determines when it should return to dock for mop washing and water tank refilling to maximize its mopping performance. To allow the robot to wash the mop automatically, start the robot from the dock once it is fully charged. Do not move the dock during cleaning. Note:10 Placing a paused robot on the dock manually will end the current cleanup. Note: When the robot is running, press any button to pause it, press the button to resume cleaning, press the button to send it back to the dock. Pause If the robot is paused for over 10 minutes, it will go to sleep, and the power indicator will flash every few seconds. Press any button to wake the robot up. Sleep Notes:

• The robot will not go to sleep when it is charging.

• The robot will automatically shut down if left in sleep mode for more than 12 hours. The default Do Not Disturb (DND) period is from 22:00 to 08:00. You can use the app to disable the DND mode or modify the DND period. When DND mode is activated, the robot will not automatically resume cleanup, the power indicator light will dim, and the volume of the voice prompts will lower. DND Mode Child Lock Press and hold the button to enable/ disable the child lock. You can also set it in the app. Once enabled, the robot will not react to button presses when it is stationary. When the robot is cleaning or docking, press any button to stop it. Error If an error occurs, the power indicator will flash red and a voice alert will sound. See “Errors” for solutions. Notes:

• The robot will go to sleep automatically if left in a malfunctioning state for over 10 minutes.

• Placing a malfunctioning robot on the dock manually will end the current cleanup. Restore Factory Settings If the robot does not function properly after a system reset, switch it on. Press and hold the button and at the same time press Reset button until you hear the “Restoring factory settings” voice prompt. The robot will then be restored to factory settings. Stopping Emptying Press any button to stop emptying. Charging After cleaning, the robot will automatically return to the dock to charge. In Pause mode, press the button to send the robot back to the dock. The power indicator will pulse as the robot charges. If the robot fails to find the dock, it will automatically return to its starting location. Place the robot on the dock manually to recharge. Note: System Reset If the robot does not respond when a button is pressed or cannot be turned off, reset the system. Press the Reset button, and the robot will reset automatically. After resetting the system, scheduled cleaning, WiFi, etc. will be restored to factory settings. Note: App Features Cleaning Map

• Multi-Map Management

• Real-Time Vacuum and Mop Route

• Map Editing Custom Cleaning Modes Cleaning Mode Switch

• Suction Power Levels

• Washing Intensity Levels

• Voice Assistant Support Functions and details of the app may vary slightly due to the continuous app development and updates.Note: More Features

Clean every 2 weeks and replace every 6-12 months. C1-1—Main Brush Cover C1-2—Latches C1-3— Main Brush C1-4—Main Brush Caps C1-5—Main Brush Bearing C1-6—Turn over the robot and press the latches to remove the main brush cover. Rotate the main brush caps in the indicated unlock direction to remove the caps. C1-8— After removing the tangled hair or dirt at both ends of the main brush, reinstall it, press on the main brush cover to lock it in place. C1-9— Notes: • Main brush should be wiped down with wet cloth and left to dry away from direct sunlight. • Do not use corrosive cleaning fluids or disinfectants to clean the main brush.

1. Unscrew the side brush screw.

2. Remove and clean the side brush.

Reinstall the brush and tighten the screw.

Clean monthly and replace every 3-6 months. Pull out the main brush and remove the main brush bearing. C1-7— Routine Maintenance

Clean the main wheels with a soft, dry cloth.

Omni-Directional Wheel Use a tool, such as a small screwdriver, to pry out the axle and take out the wheel. C3-1—

Clean as required. Rinse the wheel and the axle with water to remove any hair and dirt. Dry and reattach the wheel, pressing it firmly in place. C3-2— The omni-directional wheel bracket cannot be removed.Note:

Dustbin Open the dustbin cover and remove the filter, then empty the dustbin. C5-2— Open the top cover of the robot and take out the dustbin. C5-1—

Clean as required. Fill the dustbin with clean water and close the cover. Gently shake the dustbin, and then pour out the dirty water. C5-3— To prevent blockage, only use clean water without any cleaning liquid.Note: Leave the dustbin and the washable filter to dry. C5-4— Purchase an additional filter and alternate if necessary. Rinse the filter repeatedly and tap it to remove as much dirt as possible. Allow 24 hours for the filter to dry thoroughly and reinstall it. Do not touch the surface of the filter with your hands, brush, or hard objects to avoid potential damage.Note:Note: C6-3— C6-2— Open the water tank and fill it with clean water. Close the water tank and shake it gently. Pour out the remaining water as shown. C7-1—

Clean as required. C7-2— C7-3— Open the filter cover and remove the filter.

Clean every 2 weeks and replace every 6-12 months. C6-1—12 Slide the mop cloth in from the opening of the attachment slot then stick it flat in place. C8-2— If the robot will be left unused for a long period, turn it off and charge it at least every three months to avoid battery damage caused by over-discharge.Note: Battery The robot is equipped with a built-in high-performance lithium-ion rechargeable battery pack. To maintain battery performance, keep the robot charged during normal use. Remove the water tanks and the dustbin before moving the dock. Grip the handle on the back with one hand and the inner side of the front, as shown. Do not grip the base because as it is not designed for lifting. C11 Moving the Dock Use a soft, dry cloth to wipe and clean all sensors, including: Use a soft dry cloth to wipe the charging contacts on the robot and the dock.

Clean as required. Unlock the water filter and remove it for washing. Use a soft, dry cloth to wipe the cleaning tank, and then reinstall the filter. Press down the filter until you hear it lock with a click. C14 Water Filter Pulling the dust bag handle to remove the bag will seal the bag to prevent leakage. Lift the dustbin and remove the bag vertically as shown. Discard the dust bag and clean around the filter with a dry cloth. Slot in a new disposable dust bag as shown. Slide until it reaches the bottom of the slot and reinstall the dustbin securely. Always install a dust bag before putting back the dustbin top lid to avoid auto-emptying without the bag. You can also disable auto-emptying in the app.Note:Note:

Replace the disposable dust bag when it is full. C15-1— C15-2— C15-3— C15 Replacing the Disposable Dust Bag

Clean as required. Remove the clean water tank, dirty water tank, and dustbin. Follow the following steps to clean the air duct and avoid blockages. C16-1— C16 Cleaning the Air Duct

Clean as required. Lift the high-speed maintenance brush latch and remove the brush, as shown below. Remove any entangled objects in the high-speed maintenance brush and rinse it clean. Reinstall the brush and latch it in place.

Clean as required and replace every 6-12 months. Clean the dirty water tank as needed. Open the dirty water tank lid and pour out the dirty water. Fill the tank with clean water, close the lid, lock it, and shake. Pour out the dirty water. Close the lid and then re-install. C12 Dirty Water Tank C13 High-Speed Maintenance Brush C8-1—

Clean after each use and replace every 3-6 months.A dirty VibraRise mop will affect the mopping performance. Clean it before use.Note:

VibraRise Mop Cloth Remove the VibraRise mop cloth from the VibraRise mop mount. Clean the VibraRise mop cloth and air-dry it.13 Remove the water filter and wipe off any water marks with a cloth. Carefully place the the dock upside down on a hard floor covered with a soft towel. Unscrew the eight screws and remove the cover. Wipe the air duct and duct cover with a dry cloth. Re-install the cover and screw it back in place. C16-2— C16-3— C16-4— C16-5— C16-6— Basic Parameters Robot The serial number is on a sticker on the underside of the robot. Note: < 6 hoursCharging Time S300RRModel 14.4V/5200mAh lithium-ion battery Battery Rated Input 20VDC 1.8A Empty Wash Fill Dock Model EWFD01LRR, EWFD02LRR Rated Frequency 50-60Hz 120VACRated Input Voltage 0.75ARated Input (Charge) Rated Output 20VDC 1.8A Charging Battery 14.4V/5200mAh lithium-ion battery 9.5A Rated Input (Dust Collection)14 Common Issues Problem Solution Unable to power on

• The battery level is low. Put the robot on the charging dock and charge it before use.

• The battery temperature is too low or too high. Only use the robot within the range of 4-40°C (39-104°F). Unable to charge

• Check the power indicator light turns on and both ends of the power cabel are properly connected.

• If contact is poor, clean the contact areas on the charging dock and the robot. Slow charging

• When used at high or low temperatures, the robot will automatically reduce its charging speed to extend battery life.

• The charging contacts may be dirty. Wipe them with a dry cloth. Unable to dock

• There are too many obstacles near the charging dock. Move it to an open area.

• The robot is too far from the charging dock. Place it closer and retry. Abnormal behavior

• Restart the robot. Noise during cleaning

• The main brush, side brush, main wheels, or omni-directional wheel may be jammed. Turn off the robot and clean them.

• VibraRise system abnormal. Check for jammed objects. Unable to connect to WiFi

• WiFi is disabled. Reset the WiFi and try again.

• The WiFi signal is poor. Move the robot to an area with good WiFi reception.

• Abnormal WiFi connection. Reset the WiFi, download the latest mobile app, and retry.

• The current Roborock robot is not supported. You can find supported models in the app.

• Unable to connect to WiFi abruptly. There may be an error with your router settings. Contact Roborock customer service for additional support. Poor cleaning ability or dust falling out

• The dustbin is full and needs emptying.

• The filter is blocked and needs cleaning.

• The main brush is jammed and needs cleaning. Scheduled cleaning is not working

• Keep the robot charged. Scheduled cleaning can only begin when the battery level is above 20%. Is power always being drawn when the robot is on the charging dock?

• The robot will draw power while it is docked to maintain battery performance, but power consumption is minimal. Does the robot need to be charged for at least 16 hours the rst three times it is used?

• No. The robot can be used any time after it has been fully charged. No or little water during mopping

• Check whether there is water in the water tank and use the mobile app to set the scrub intensity or check the manual for full instructions on how to correctly install the mop cloth and mop mount. Cleaning does not resume after recharging

• Make sure that the robot is not in DND mode. DND mode will prevent cleanup. When cleaning a space requiring a top-up charge, if the robot was placed manually on the charging dock before it returned to the dock automatically, it will not be able to continue cleanup.15 Common Issues The robot cannot return to the charging dock after Spot cleaning or when it has been moved manually

• After spot cleaning or a significant position change, the robot will re-generate the map. If the charging dock is too far away, it may not be able to return to recharge and must be placed on the charging dock manually. The robot has begun to miss certain spots

• The wall sensor or cliff sensors may be dirty. Wipe them with a soft dry cloth. It takes a long time to ll the water tank

• The filter may be blocked and need cleaning. The LED status indicator light on the dock is steady red.

• The dustbin is not in place. Check and correct installation.

• Voltage error. Check that local voltage meets the requirements listed on the dock.

• Check clean water tank placement or refill as required.

• Check dirty water tank placement or empty as required.

• Check that the water filter has been correctly installed. Reduced emptying performance or unusual noise when emptying.

• The main brush or main brush cover is not properly installed. Check and correct installation.

• The filter, air duct, suction inlet, air inlet, or dustbin is blocked. Clean to remove blockages. Robot voice alert: Error 42. Maintenance brush jammed. Clean it and remove blockages.

• If the brush stops at the left side, it may be jammed. Remove any items jamming it.

• If the brush stops at the right side, the filter may be blocked or is not installed in place. Clean and correct installation. Reduced mop washing performance.

• The mop is not attached properly. Reinstall.

• The floor is dirty. Change the mop washing mode to “Deep” in the app for better cleaning. Auto-emptying is not working.

• Auto-emptying is disabled. Check in-app settings.

• Dock dustbin is not installed. Check and install.

• Auto-emptying will not be triggered if the robot returns to the dock without cleaning.

• The robot will not auto-empty after returning to the dock in Do Not Disturb (DND) mode. Adjust cleaning or DND duration, or start emptying manually. The mop is not washed.

• The mop will not be washed if not used.

• The robot will not return to the dock for mop washing if it does not start from the dock or no dock is found on the app map.

• Check tank placement and refill or empty as required.
