USER MANUAL WILD DUB 2 NGS

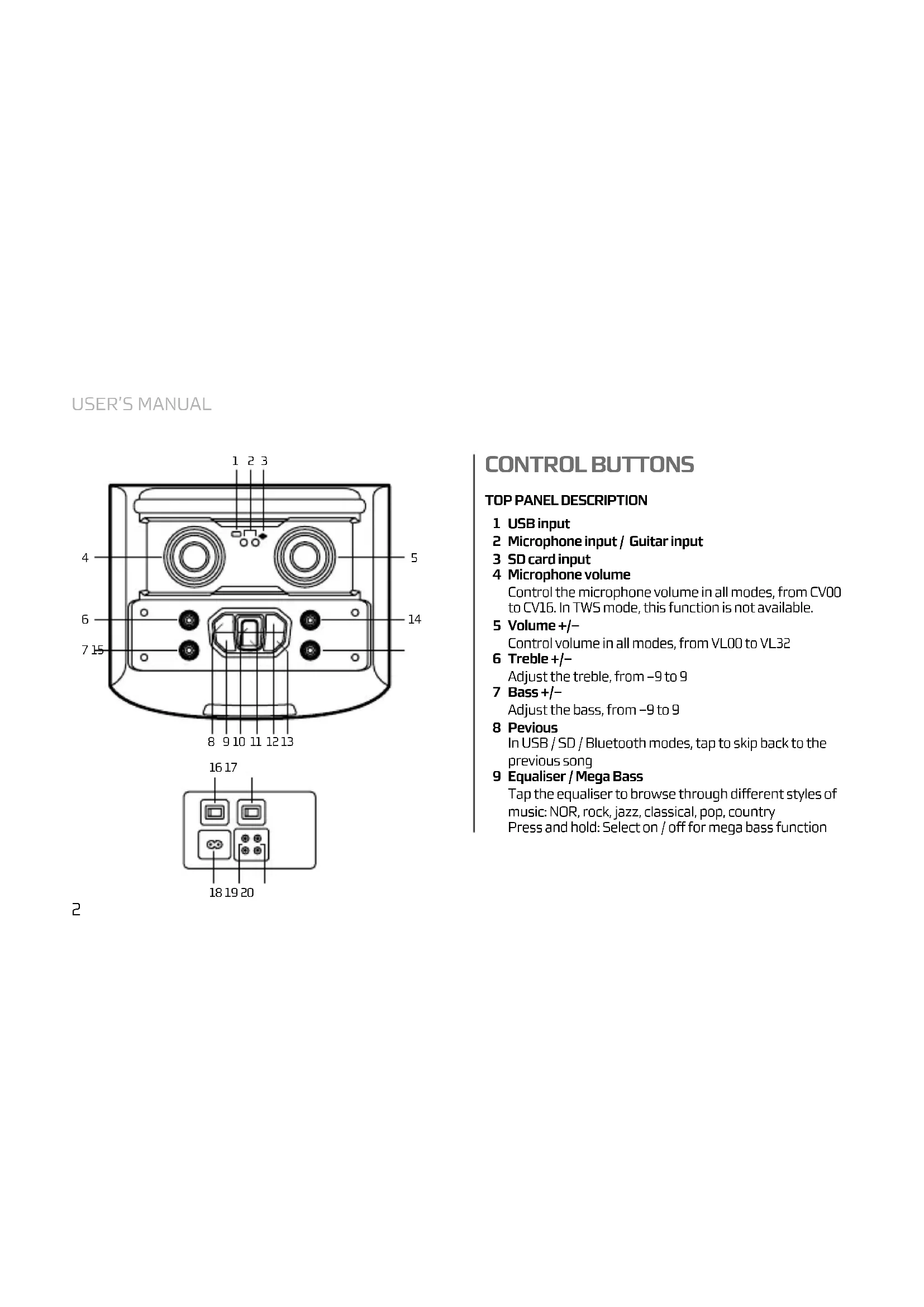

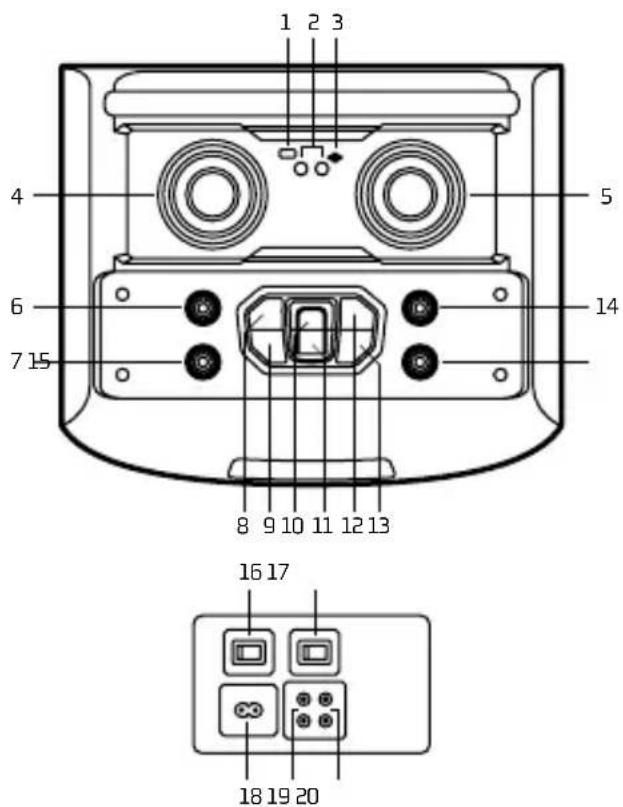

USB input Microphone input / Guitar input SD card input Microphone volume Control the microphone volume in all modes, from CV00 to CV16. In TWS mode, this function is not available. Volume +/– Control volume in all modes, from VL00 to VL32 Treble +/– Adjust the treble, from –9 to 9 Bass +/– Adjust the bass, from –9 to 9 Pevious In USB / SD / Bluetooth modes, tap to skip back to the previous song Equaliser / Mega Bass Tap the equaliser to browse through different styles of music: NOR, rock, jazz, classical, pop, country Press and hold: Select on / off for mega bass function

POWER Power on / off LIGHT SW Turn on / off the light AC IN For connecting the AC cable to get power supply AUX OUT To connect more speakers togheter AUX-IN For connecting the external device under AUX-IN mode

Play / Pause Under USB / SD modes, this button is play/pause In BT mode, tap to play / pause In TWS mode, press and hold to connect and disconnect the TWS (5 seconds) Under AUX-IN mode, this button has no function Mode Press shortly to skip to Wireless BT / AUX-IN / USB / SD modes In BT mode, press and hold to disconnect Bluetooth (3 seconds) Next Under USB / SD / BT modes, tap to skip forward to the next song Standby mode By pressing standby, all functions will stop working Echo Press and adjust the value with the multifunction from EC00 to EC30 Guitar volume Control the guitar volume under guitar-input mode Note: To fully disconnect the electrical cable, please disconnect the plug from the electrical power point it is connected to. The base of the power point should be easy to access.USER’S MANUAL

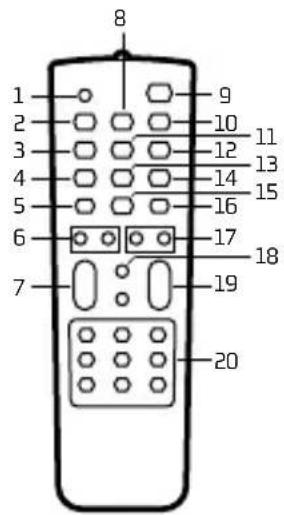

Installing the batteries Remove the battery cover from the back of the remote control as shown and insert 2xAAA size batteries ensuring correct polarity. Note: Please point at the LED screen when you are using the remote controller

Mute Press this button, sound off. Press again, sound on Previous Under USB / SD / Bluetooth mode, press shortly for previous sound sourceENGLISH

MODE Press shortly to skip to Wireless BT / AUX-IN / USB (with USB card plug in) / SD (with SD card plug in) mode REC Under any mode, press “REC” button to record sound with connected microphone and record in USB stick / SD card LIGHT The color changes from red, green, blue, purple four color automatically. Press “LIGHT” button, the light will twinkle & change color with the music. Press the “LIGHT” again, the light will be off. BASS +/– Adjust the bass M. VOL +/– Control the microphone volume Play / Pause Under USB / SD / BT modes, this button is play/pause Under AUX-IN mode, this button has no function STANDBY Press shortly to put speaker in standby Press again to turn on speaker Next Under USB / SD / BT modes, press shortly for next song VOICE Sound effects key which can emphasize the voice REPEAT Repeat one, repeat all (only available under USB / SD modes) REC PLAY Play the recorded files into USB / SD R-DEL Delete the recorded file (only available under REC PLAY mode) RGB Change LED lights colours between red, green and blue M-PRI Gives priority to mic voice against music TREBLE +/– Adjust the treble

Equalizer to browse through different music styles: NOR, rock, jazz, classical, pop, country VOL +/– Control the volume 0-9 keys Under USB / SD modes to select songs For other modes, number buttons have no functionUSER’S MANUAL

To switch from one mode to another press the MODE button. If the device is not connected to a USB stick or an SD card, these modes will be omitted.

With the attached audio cable, you can connect the device with the external multimedia audio sources through the port “AUX”. After connection, just set the mode to AUX by pressing the MODE button on the device. At this time, the AUX indicator will be displayed on the screen, suggesting the device can play the audio files from multimedia sources like PC, mobile phone, MP3 and MP4, etc. Note: In AUX IN mode, the forward and rewind song functions will not operate. They must be accessed through the auxiliary device directly.

2. USB/SD CARD PLAYING

Insert the SD card or a USB Flash memory stick into the corresponding slot. The device will automatically play any music in MP3 format on the card.

A. Press the MODE button until the word “BLUE” appears on the screen. The icon will start to flash. In Bluetooth mode the device goes into searching / paring / reconnect mode for pair. B. Now, turn ON the Bluetooth function on your mobile phone. C. Search for “NGS WILDDUB” and select it to pair (for first time pairing or pairing a new mobile device). Once connected, the icon will stop flashing. D. The Bluetooth speaker will be reconnecting automatically if your mobile phone has been paired (Depend on the of mobile phone’s type and configuration, manual reconnection may require on some devices).

A. Change the two speaker in the BT mode, then press the PLAY/PAUSE button on one speaker for 5 seconds. B. You’ll hear a beep and ON will appear on the main screen and PAUSE on the secondary screen. C. Search your mobile device for NGS WILDDUB and it will hook up.

AUX IN, USBSD, BLUETOOTHENGLISH

1. Plug in a microphone to the MIC IN input

2. Insert USB/SD card into the corresponding port, press

MODE button and select USB/SD mode.

3. If the USB/SD card is plugged into the speaker for the first

time, the system will automatically create a folder named RECORD to save recorded files (FAT32 USB file system is supported).

4. When you are ready to record, press REC button to go to

recording mode. The current sound output will stop and the MICRO mode will be activated, the screen shows the recording time. The device starts recording when the screen shows 00:01 and users can use the microphone to record. TWS USB / SD / BT / AUX inputs Microphone input Guitar input LED screen LED lights AUX output Input voltage: AC 100V-240V 50/60Hz Frequency range: 20Hz ~ 20kHz WILDDUB3 WILDDUB2 Output power (Peak power): 1200W 800W Bluetooth operation frequency: 2402-2480 MHz 2402-2480 MHz Max RF output power: 6.37 dBm 6.37 dBm Woofer size: 2 x 15” 2 x 12” Tweeter size: 2 x 6” 2 x 4” RMS power: 120W 100W If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)MANUEL DE L’UTILISATEUR
