Lavica Black G10162 - Grill plate G3 Ferrari - Free user manual and instructions

Product Type	Griddle Plate (Contact Grill)
Brand	G3 Ferrari
Model	Lavica Black G10162
Power Supply	AC 220-240V~50/60Hz
Power	1800-2000W
Cooking Dimensions	2 plates of (30 x 22) cm each
Weight (estimated)	Approximately 5 kg
Temperature Control	Temperature control knob with heating indicator light
Cooking Type	Cooking with closed or open plates (double surface)
Removable Plates	Yes, release via unlock buttons
Oil Reservoir	Yes, removable container for fats
Handle	Insulated handle to lift the lid
Adjustable Feet	Adjustable rear feet for stability
Indicator Lights	Red power light, green temperature reached light
Care and Cleaning	Plates washable by hand with soft sponge and detergent; do not immerse the housing
Safety	Automatic shut-off not mentioned; unplug after use; supervision required
Usage	Indoor household use only
Spare Parts and Repairability	Original parts available at authorized service center
Included Accessories	Cooking plates, oil reservoir

Frequently Asked Questions - Lavica Black G10162 G3 Ferrari

What should I do if smoke comes out during first use?

This is normal: new plates may emit smoke during initial uses. After a few uses, the smoke will disappear.

How to clean the grill plates?

Unplug the appliance and let it cool. Remove the plates using the release buttons. Wash them by hand with a soft sponge and dish detergent. Do not use metal sponges. Dry completely before reassembling.

Can I use the grill in open position?

Yes, you can fully open the appliance using the hinge release lever. This doubles the cooking surface. Place the handle on the support surface for optimal stability.

What is the power of the appliance?

The appliance operates at 220-240V~50/60 Hz and a power between 1800 and 2000 W.

How to adjust the cooking temperature?

Use the temperature control knob (reference 2). The green light turns on when the temperature is reached. During cooking, the light cycles on and off to maintain the temperature.

Are the plates removable?

Yes, both the upper and lower plates are removable. Press the release buttons (references 6 and 9) to remove them. To reinstall, insert the pins into the rear slots and snap into place.

Can I use metal utensils on the plate?

No, use only wooden or plastic utensils to avoid scratching the plate surface.

What should I do if the power cord is damaged?

Do not use the appliance. Take it to an authorized service center for replacement. Do not attempt to repair it yourself.

Does the appliance have automatic shut-off?

The manual does not mention automatic shut-off. Never leave the appliance unattended while operating and unplug it after use.

Where to find spare parts?

Contact an authorized service center approved by the manufacturer and request original spare parts. Non-compliance may compromise safety and warranty.

USER MANUAL Lavica Black G10162 G3 Ferrari

Technical model: GT50

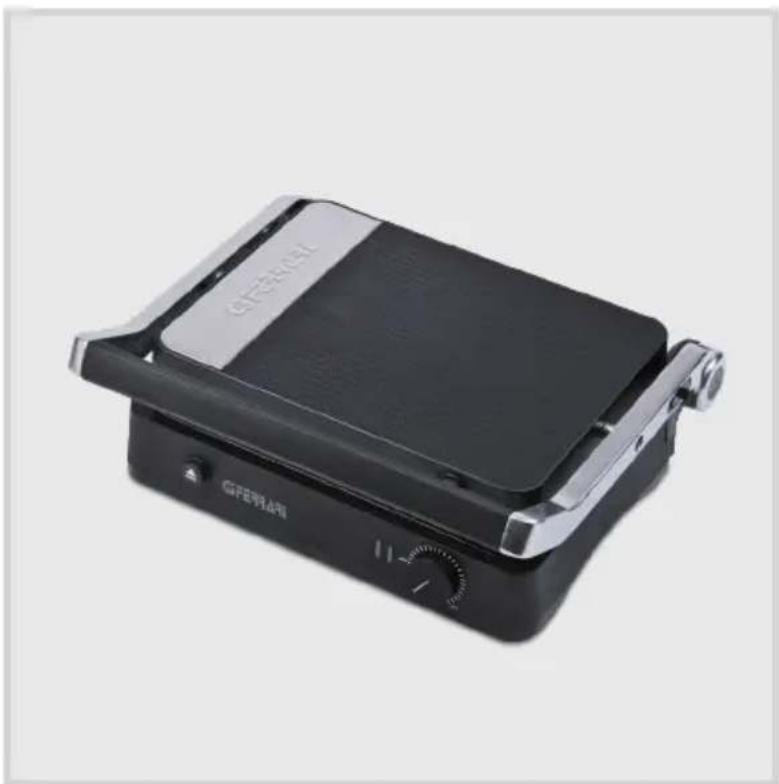

Black and silver portable flat-screen grater with control knob (no visible text or symbols)

Safety Instructions.... p. 8

General information.... p. 10

G10162....p. 11

Operating.... p. 11

Operating with closed plates.... p. 11

Operating with open plates.... p. 11

Assembling / Disassembling the plates.... p. 12

Cleaning.... p. 12

Technical features.... p. 12

Waste of electric and electronic equipment (WEEE directive)....p. 34

PORTUGUES:....p. 12

ESPAÑOL ...... p. 17

DEUTSCH p. 23

FRANCAIS......p.28

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

UTILIZZO COME GRIGLIA a PRESSIONE

Technical line drawing of a mechanical component with no visible text or symbols

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.
• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.
  If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.
  WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops,

offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.

GENERAL INFORMATION

When you first turn on the unit, the grill plates may emit some smoke. Do not worry, after few uses the smoke will disappear. At first use, clean the parts that will be in contact with food (ie the plates).

To avoid any risk of burns, after turning on the appliance, do not touch the slots as they become very hot. Handle with care fresh-cooked food.

While the unit is running and/or after every use, touch only handles and knobs.

Once you have placed the food on the grill plate, handle them with wooden cutlery only, being careful not to scrape the surface of the plates.

After every use, unplug the unit and wait for the complete cooling of each part before cleaning.

Do not immerse in water or other liquids. Do not leave it under the stream of tap water. In any case, avoid water or other liquids to slide on the cooking plates. For cleaning, use a soft sponge, avoiding metal ones. The grill plates can be cleaned with a common cleaner for dishes.

Place the unit on stable shelves. Leave enough space at both sides of the grill, while unit is working.

Keep the unit away from flammable materials, heat, cold spots and steam. Do not use as a shelf to support objects.

Unplug the appliance from the main electrical outlet

and let the grill plates cooling down before touching them to remove them. Dry them completely before assembly.

DESCRIPTION G10162

2 Temperature control knob 3 Working light

4 Thermostat light

5 Main support

6 Lower plate release button

8 Hinged opening button

9 Upper plate release button

10 Lid

11 Cool-to-touch handle 12 Removable grill plate (Upper)

13 Removable grill plate (Lower) 14 Oil container

OPERATING

This contact grill is suitable for cooking and heating many foods: grilled meat and vegetables, sandwiches, fish and dishes that require grill cooking in general.

The possibility to remove the plates makes cleaning operations easier and faster.

OPERATING WITH CLOSED PLATES

The upper part of the griddle can be closed for an even cooking on both sides of the food.

• Place the unit on a flat and stable surface and plug it to the electrical outlet. If the plug is properly inserted the red light switch (3) will light up.
• Set the desired temperature using the temperature control knob (2). The green light (4) will illuminate, indicating that the plates are heating up: once the temperature is reached, the green light goes off. During operation, the light (4) switches on flashing to indicate that the unit is maintaining the temperature.
• If you want to cook foods that could lose fluids, oils or fat, place the oil container (14) in position.
• At this point the appliance is ready for cooking. Place the food and close the top grill (12) using the handle (11).
• During cooking, periodically check the condition of the food to prevent burnings.
• Once cooking is finished, raise the lid with the handle and remove food using a wooden or plastic utensil. Do not use metal utensils.
• Unplug the unit and wait for the complete cooling of each part before starting cleaning operations.

OPERATING WITH OPEN PLATES

The unit can be totally open to double the cooking size area.

• Place the unit on a flat and stable surface.
• Unlock the upper part of the plate using the lever (8) as shown in Fig. 1.
• Place the handle on the supporting surface, Fig. 2.
• Plug the appliance to the power outlet. If plug is properly inserted, the red light (3) lights up.
• Set the desired temperature using the temperature control knob (2). The green light (4) will illuminate, indicating that the plates are heating up,

when the temperature is reached, the green light goes off. During

Technical line drawing of a mechanical component labeled Fig. 2 (no text or symbols on the diagram itself)

operation, the lamp (4) switches on flashing, indicating that unit is maintaining temperature.

• In case you want to cook meat or foods that could lose fluids, oils or fat, place the oil container (14) in position. At this point the appliance is ready for cooking. Place the food on the plates.
• During cooking, periodically check the condition of the food to prevent burnings. Only use wooden utensils to move the food during cooking.
• Once cooking is finished, remove food using a wooden or plastic utensil. Do not use metal utensils.
• Unplug the unit and wait for complete cooling of each part before cleaning operations.

After cleaning, to be carried out by following the instructions in the next section, replace the lid and store the unit away from heat sources and out of the reach of children.

ASSEMBLING / DISASSEMBLING THE PLATES

Unplug the appliance from the electrical outlet and let the grill plates cooling down before removing them. Dry the plates completely before assembly.

To disassemble the grill plates from the main unit press release buttons (6 or 9) and remove the grills (12 or 13). To assemble the plates, insert the pins on the racks in the slots situated on the rear of the appliance and press the grill on the main body until it locks in position.

CLEANING

Unplug the unit from the electrical outlet and allow each part to cool down before carrying out any cleaning operation.

• Do not immerse the unit in water; do not leave it under the water stream. In any case avoid water or other liquids to slide on the cooking plates.
• Do not use scouring or metal sponges for cleaning plates.
• Clean the cooking plates with a damp sponge and dishwashing detergents, after cleaning always remove any residual detergent and let them dry completely before reassembling.
• The oil collector can be treated as a normal dish.
• Clean the main body, handle and cover with a damp cloth.

TECHNICAL FEATURES

• Power supply: AC 220-240V\~50-60Hz – 1800-2000W
• Removable & easy to clean grill plates
• Cooking area dimensions: 2 grills (30 x 22) cm
• Temperature thermostat

PORTUGUES: ADVERTÊNCIAS

Technical line drawing of a mechanical component labeled Fig. 2 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component labeled Fig. 2 (no text or symbols on the diagram itself)

MONTAJE / DESMONTAJE DE LAS PARRILLAS

Technical line drawing of a mechanical component labeled Fig. 2 (no text or symbols on the diagram itself)

MONTAGE / DEMONTIEREN DER GRILLPLATTEN

Technical line drawing of a mechanical component labeled Fig. 2 (no text or symbols on the diagram itself)

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
