Ultimate Digital Fuzzy - Vacuum Cleaner TAURUS - Free user manual and instructions

USER MANUAL Ultimate Digital Fuzzy TAURUS

- Caution: A new battery is not fully charged and must therefore be charged before the appli- ance is used for the rst time. - Charge the battery at an atmospheric tempera- ture of between 4 and 40ºC. - Plug the charger (L) into the mains. - A pilot light will come on to indicate that the charger is ready to begin charging the battery. - Approximately 4 to 5 hours are needed for acomplete charge of the battery. Never attempt to over-charge the battery (although it is rec- ommended that the rst charge of the battery be of 6 hours in duration). - Insert the battery into the charger. - Connect the charger (L) to the jack using the socket on the appliance. The socket is located at the lower/back part of the appliance. - The pilot light will come on to indicate that the charger is charging the battery. - At the end of the time period specied above, remove the battery from the charger. - When the battery is charged disconnect the charger from the mains supply. - NB: Do not use the appliance while it is con- nected to the charger. HOW TO CHECK THE BATTERY’S CHARGE LEVEL: - Press the ON/OFF button in order to see the battery indicator lights. - If no pilot light lights up, this means that the battery is completely at. - NB: For a long battery life, it is advisable to charge the battery, only, when it has run out completely.

INSTRUCTIONS FOR USE

BEFORE USE: - Make sure that product’s packaging has been removed. - Before using this product for the rst time, it is important to make a full charge of batteries. - Prepare the appliance according to the function you wish to use: VACUUMING FUNCTION: USE: - Turn the appliance on, by using the on/off button. - Select the desired speed.

FITTING AN ACCESSORY TO THE HAND

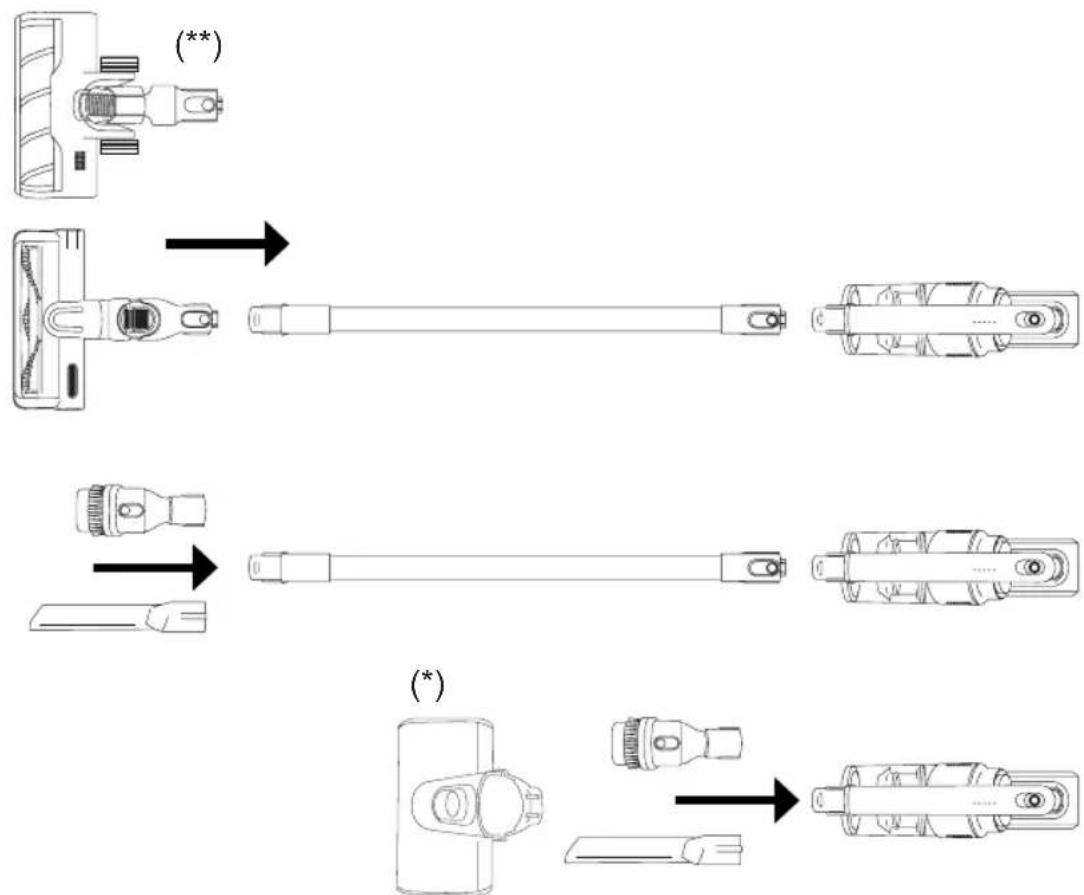

VACUUM: - The hand vacuum is designed in such a way that it allows the following accessories to be tted: (use the combination that best meets your requirements). (Fig.1). - Furniture brush: Equipped with a brush at the end, which brushes the surface as it is used.– Crevice nozzle: Specially designed for getting into cracks and difcult corners. - Small Turbo brush: Special motorized brush to remove the hair of pets in upholstery.

ONCE YOU HAVE FINISHED USING THE

APPLIANCE: - Turn the appliance off using the on/off button. - Clean the appliance. CLEANING - Disconnect the battery charger from the mains and allow it to cool before undertaking any cleaning task. - Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry. - Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance. - Never submerge the appliance in water or any other liquid or place it under running water.

EMPTYING THE DUST BOX

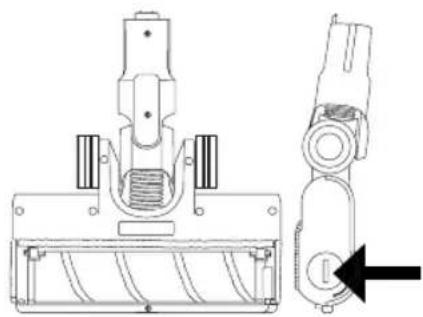

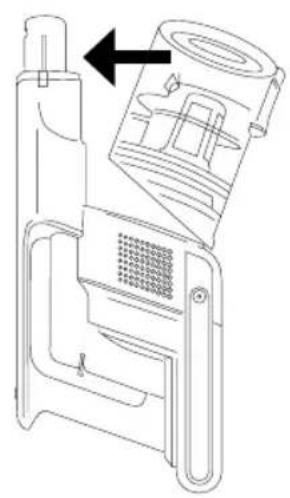

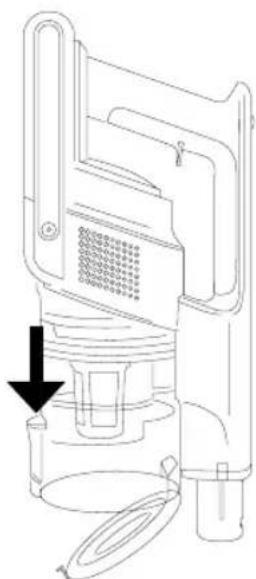

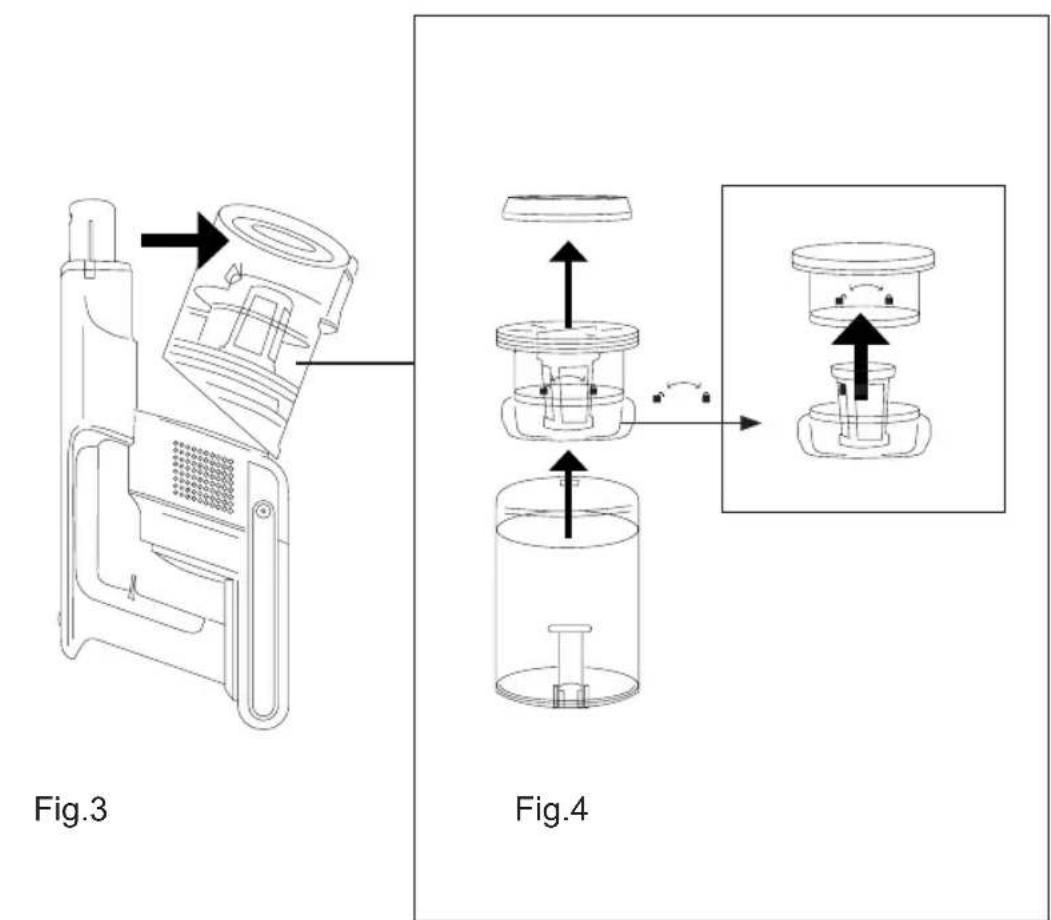

- Empty the dust box when it is full (observation facilitated by transparent windows), or when vacuuming power is notably reduced. - Disconnect the accessories from the vacuum cleaners air intake. (Fig.2). - Open the lid of the dust box and empty the contents into the appropriate waste disposal receptacle. - Close the lid of the dust box. CHANGING THE FILTERS: - Motor lter, it is advisable to be changed at least once a year or every 100 hours of the appliance’s use. TO REMOVE THE FILTERS: - Remove the dust tank pulling out without press- ing any button. (Fig.3) - Remove the lter from its housing (Fig.4). - To reassemble the lter, proceed with the above instructions, in reverse order. - Engage the dust tank in the vacuum cleaner. (Fig.5) CLEANING THE ROTARY BRUSH:(C) - To remove the brush: - Turn the rotating button on the bottom of thetting to the left in order to release the brush. (Fig.6A). - Remove the brush and clean. - To reassemble, follow the above instructions but in reverse. CLEANING THE ROTARY BRUSH:(D**) - To remove the brush: - Turn the rotating button on the side of the tting to the left in order to release the brush. (Fig.6B). - Remove the brush and clean. - To reassemble, follow the above instructions but in reverse. SUPPLIES - Supplies can be acquired from distributors and authorised establishments (such as lters, etc...) for your appliance model. - Always use original supplies, designed speci- cally for your appliance model. - These supplies are available in specialist shops.

HOW TO REMOVE THE BATTERIES FROM

THE INTERIOR OF THE DEVICE: - CAUTION: It is important that the batteries are fully discharged prior to its withdrawal from the apparatus. - CAUTION: the appliance must be disconnect- ed from the supply mains when removing the batteries.

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our ofcial technical assistance services. You can nd the closest one by accessing the following web link: http://taurus-home.com/ You can also request related information by contacting us. You can download this instruction manual and its updates at http://taurus-home.com/ Français
