USER MANUAL Alpatec MSB 2000 TAURUS

Simple line drawing of a rectangular container with a lid and two small circular symbols on the side (no text or labels)

EN: This product is only suitable for well insulated spaces or occasional use.

Technical diagram showing a door panel with labeled components (a, b, c) and a close-up view of the door handle.

C D F A + OK SET - E G B 88° 88° 88:88 SET ON 1 2 3 4 5 6 7 1 6 12 18 24

Fig.1

Min 0.25M Min 0.25M Min 0.5M

Fig.2

350mm 537mm 390mm φ6mm

Fig.3Fig.4

x4pcs

15mm 20mm 40mm

Fig.5

ST340 2pcs

Fig.6

M4*16 8pcs M4*8 2pcs

Fig.7

M4*10 4pcs

Español

Calefactor toallero

MSB 2000

88 88°C SET 1 2 3 4 5 6 7 1 6 12 18 24 + OK SET -

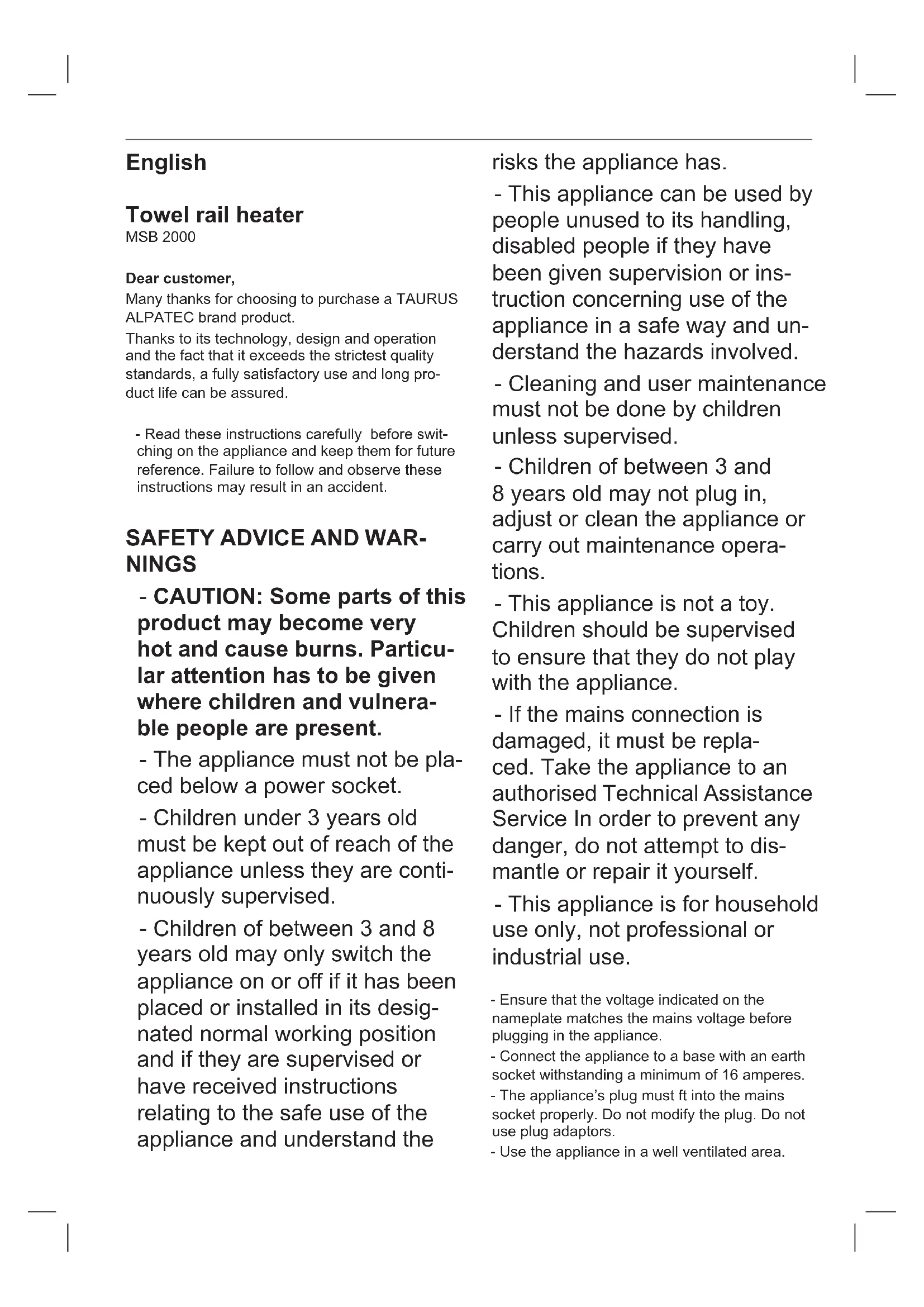

Many thanks for choosing to purchase a TAURUS ALPATEC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.

SAFETY ADVICE AND WAR- NINGS

- CAUTION: Some parts of this product may become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The appliance must not be placed below a power socket.

- Children under 3 years old must be kept out of reach of the appliance unless they are continuously supervised.

- Children of between 3 and 8 years old may only switch the appliance on or off if it has been placed or installed in its designated normal working position and if they are supervised or have received instructions relating to the safe use of the appliance and understand the

risks the appliance has.

- This appliance can be used by people unused to its handling, disabled people if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance must not be done by children unless supervised.

- Children of between 3 and 8 years old may not plug in, adjust or clean the appliance or carry out maintenance operations.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- If the mains connection is damaged, it must be replaced. Take the appliance to an authorised Technical Assistance Service In order to prevent any danger, do not attempt to dismantle or repair it yourself.

- This appliance is for household use only, not professional or industrial use.

- Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

- Connect the appliance to a base with an earth socket withstanding a minimum of 16 amperes.

- The appliance's plug must fit into the mains socket properly. Do not modify the plug. Do not use plug adaptors.

- Use the appliance in a well ventilated area.

- Make sure the room is adequately ventilated, if other appliances are used in the same room and at the same time that are powered by gas or other types of fuel.

- Keep the appliance away from flammable material such as textiles, cardboard or paper, etc.

- Install the appliance a minimum distance of 50cm away from combustible materials, such as curtains, furniture ...

- Ensure that neither the air inlet or outlet become totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.

- Do not use the appliance in conjunction with a programmer, timer or other device automatically connected to it.

- Do not use the appliance if the cable or plug is damaged.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- WARNING: Maintain the appliance dry.

- WARNING: Do not use the appliance near water.

- Do not stretch the mains cable. Never use the mains cable to lift, carry or unplug the appliance.

- Ensure that the electric cable does not get trapped or tangled.

- Do not allow the connection cable to come into contact with the appliance's hot surfaces.

- Keep the appliance away from sources of heat, oils, sharp edges or moving objects.

- Check the condition of the mains cable. Damaged or twisted cables increase the risk of electric shock.

- The power cord must be regularly examined for signs of damage and if damaged, the appliance must not be used.

- As an additional protection to the electrical supply for the appliance, it is advisable to have a differential current device with a maximum sensitivity of 30mA. Ask for advice from a competent installer.

- Do not touch the plug with wet hands.

- Do not use the appliance, in the case persons insensitive to heat (the appliance has heated surfaces).

- Do not touch any heated parts, as this may cause serious burns.

USE AND CARE:

- Fully unroll the appliance's power cable before each use.

- Do not use the appliance if the on/off switch does not work.

- Do not move the appliance while it is in use.

- Do not turn the appliance over while it is in use or connected to the mains.

- If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only for a short while, as proximity to water involves a risk, even if the appliance is disconnected.

- Unplug the appliance from the mains when not in use and before undertaking any cleaning task.

- Store this appliance out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfamiliar with its use

- Do not put the appliance away if it is still hot.

- Do not store the appliance on areas where the temperature could be lower than 2^ C.

- Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.

- Never leave the appliance unattended while in use.

- Do not use the appliance to dry pets or animals.

SERVICE:

- Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.

- WARNING: There is a risk of fire if the appliance is not cleaned following these instructions.

- Misuse or failure to follow the instructions may be dangerous and renders the manufacturer's guarantee null and void.

DESCRIPTION

a On/off switch

b Air outlet

c Towel rack

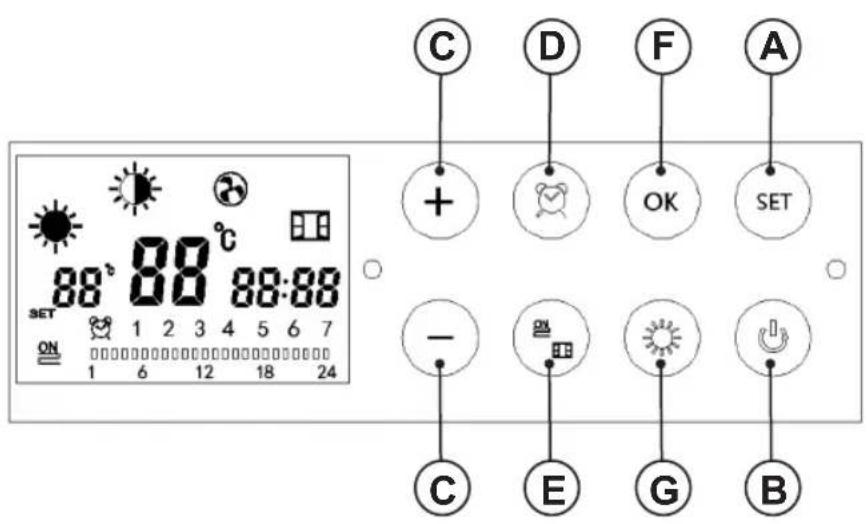

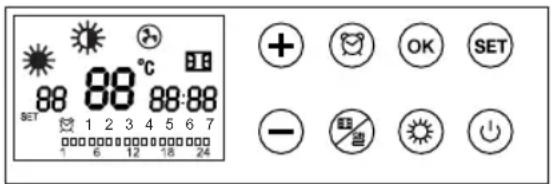

DISPLAY

88 88 88:88 SET 1 2 3 4 5 6 7 1 6 12 18 24 + OK SET -

A Setup button

B On/off button

C Button +/-

D Timer button

E Open window detector

F OK button

G Heater setting

ASSEMBLING THE WALL BRACKET:

• The appliance has a wall support (Fig.1) to support the product.
• Fix the wall support as you think appropriate, using wall plugs, screws, adhesive...

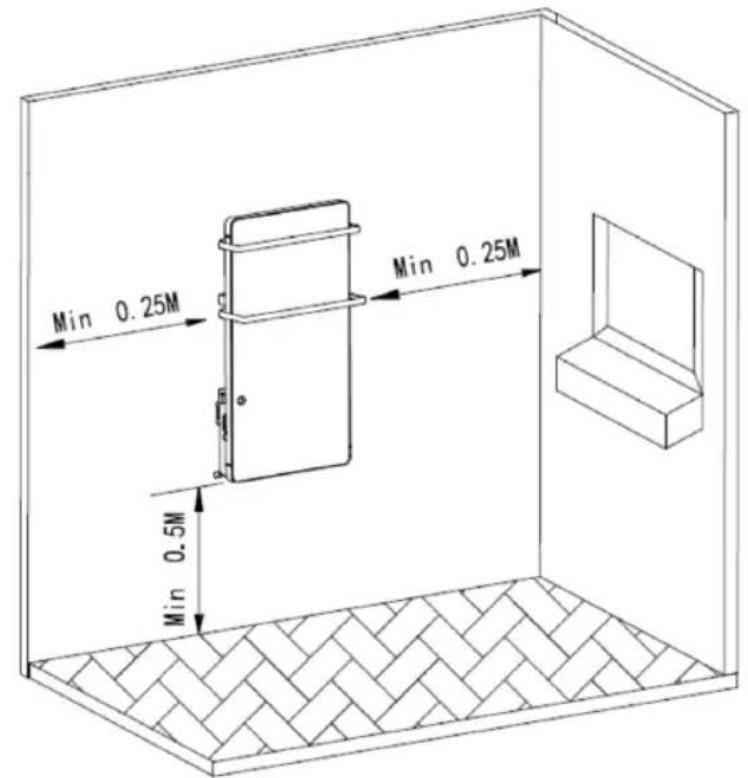

• Taking into account the separation distances mentioned above, place the wall support in the required position and mark the drilling points on the wall (Fig.2).

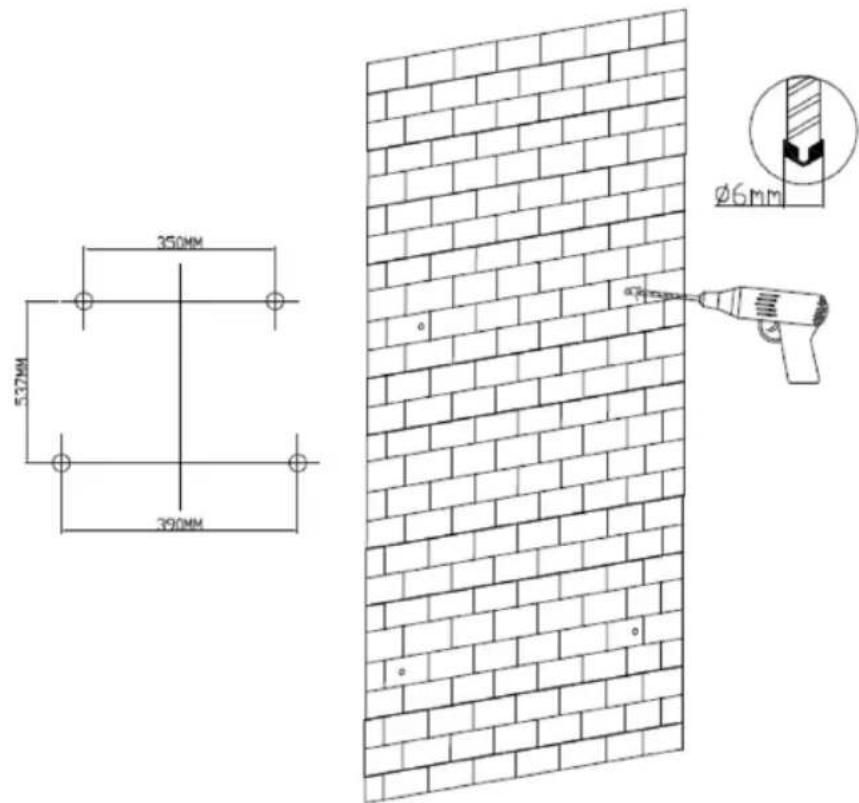

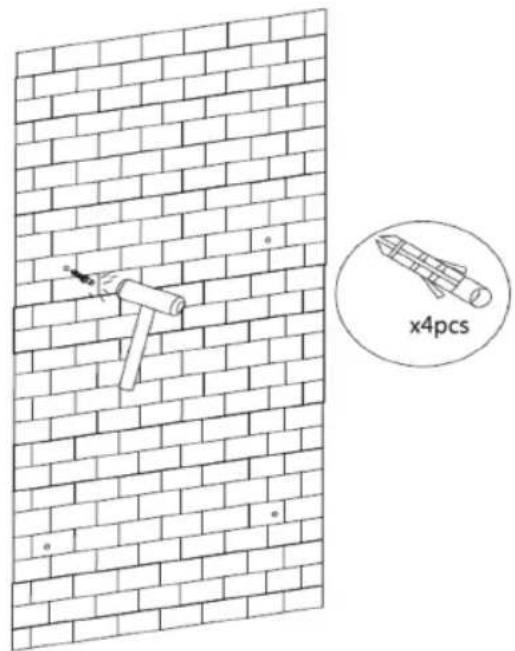

• Drill on the marks and introduce the plugs (Fig.3).

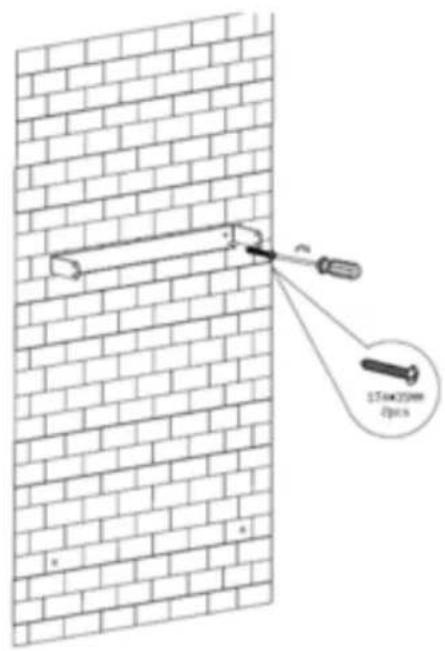

• Fit the support, lining up its holes with those of the plugs, and screw on (Fig.4).
• Make sure that the bracket is firmly fixed; it should be able to support twice the weight of the appliance.

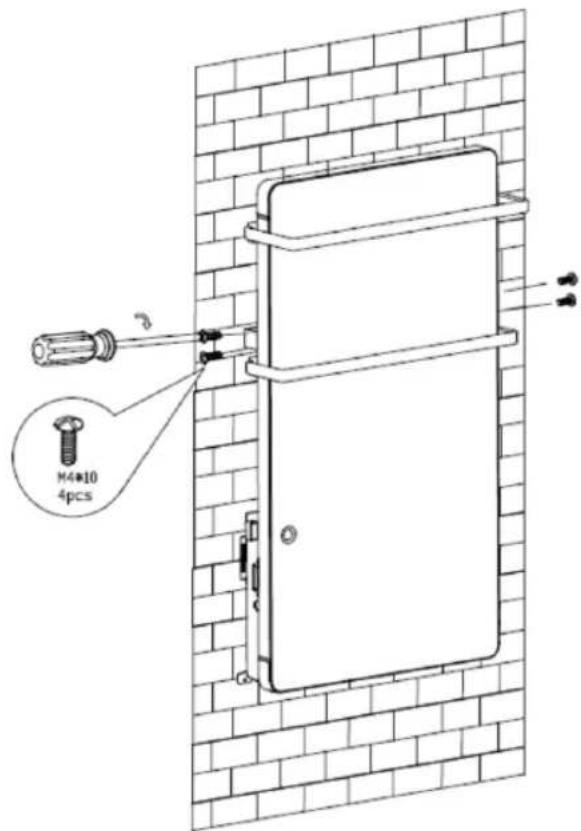

• Fit the appliance into the wall support.

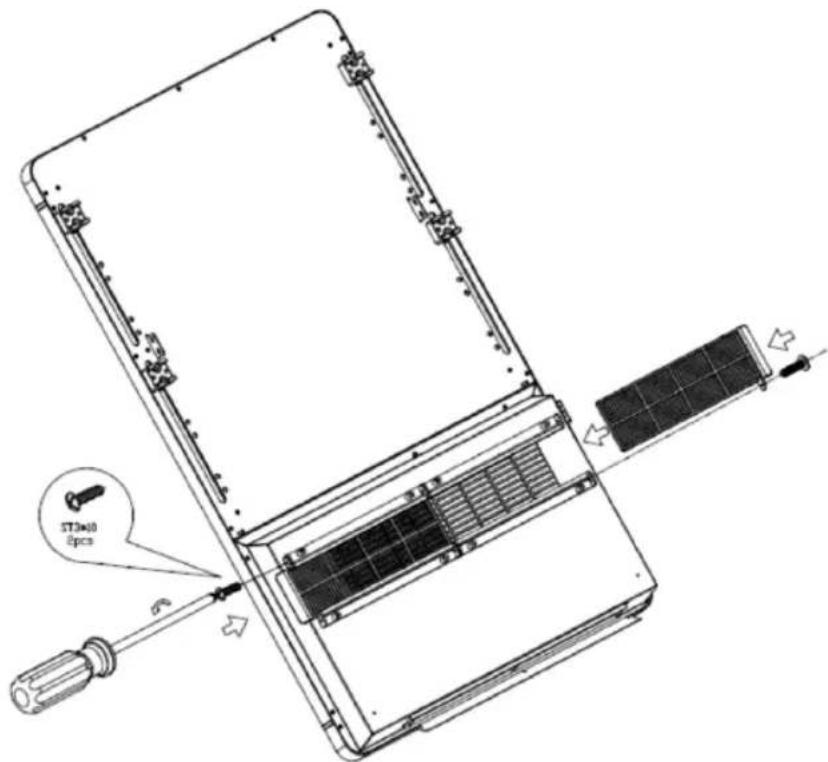

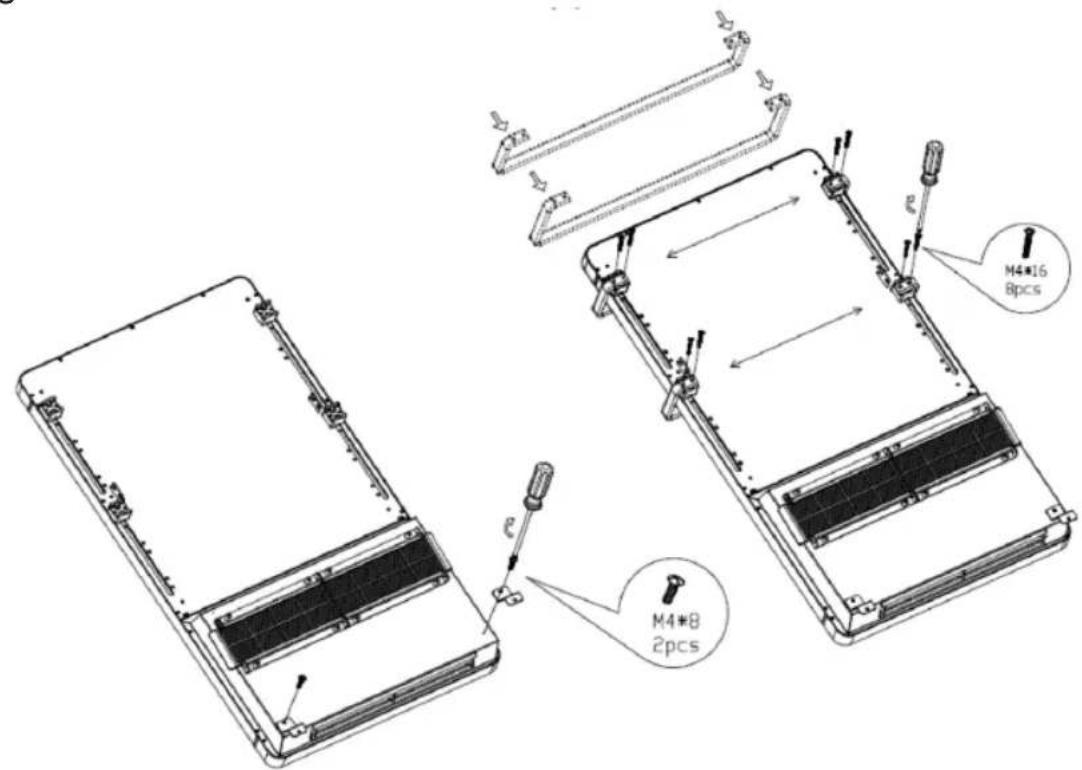

• Now follow the instructions in Figures 5,6,7.

INSTRUCTIONS FOR USE BEFORE USE:

• Make sure that all the product's packaging has been removed.
• Some parts of the appliance have been lightly greased, consequently, the appliance may give off a light smoke the first time it is used. After a short time, this smoke will disappear.
• To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.
• Prepare the appliance according to the function you wish to use.

USE:

• Connect the appliance to the mains.
• Turn the appliance on using the on/off switch(a)
• Turn the appliance on using the on/off button. (B)

HEATER FUNCTION

• Select the heater function by pressing (G) and select the desired setting: 1800W (★900W) or fan function.
• Check that the thermostat control is set to the desired temperature.

TEMPERATURE SELECTION

• Select the desired temperature (5-40°C) by pressing (A).
• Press (C) to set the desired temperature and then press (F) to confirm.

SET DAY & TIME:

• When setting the day and time, the unit has to be in standby mode.
• Press (A) and the icons will light up, use + or - to set the day, once the required day is flashing, press (F) to confirm it.
• Press (A) until the hour icon lights up to order to set the hour, and then OK to confirm it.
• Press (A) until the minute icon lights up in order to set the minutes, and then OK to confirm it.

SET PROGRAM:

• When the unit is on standby, press and hold (D) for 3 seconds, the icon will remain lit until programming has been completed.
• The icon 1 2 3 4 5 6 7 will light up fully, now use + or - to select the desired day of the week, once selected press OK to confirm. Next, the 1 6 12 18 24 icon will appear in order to select when the heater is operating, one mark per hour, use + or - to select the desired hours and press OK (F) to confirm.

- To program more than one hour, use + or – for the ON time, press SET (A) and OK (F) to confirm, and then press OK (F) to program the OFF time.

- Once finished, the temperature can be set, 20^ by default, use + or – to specify the desired temperature (5-40) and OK (F) to confirm.

- In this way the whole week, 7 days, can be programmed.

- When the weekly programming is operational, the icon 📊 will be lit, to switch this off, or on again, press (D) and the icon will disappear or reappear.

NOTE: The program is saved even after turning off. If the appliance is turned of for five days, all settings must be made again.

TOWEL WARMING FUNCTION

• Press (E) to switch on the towel warming function. To cancel this function, press the same button again.
• During operation, the icon ON will light up.
• The towel warmer is 200W.

OPEN WINDOW DETECTOR:

• Press and hold (E) for 3 seconds to activate or deactivate this function.
• When the temperature drops 5 degrees in 10 minutes. After 30 minutes, it returns to its previous operation mode if the temperature is higher when the “open window” function is activated, but if it is lower then the unit switches over to stand-by mode.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off, using the on/off switch.
• Unplug the appliance to the mains.

SAFETY THERMAL PROTECTOR:

• The appliance has a safety device, which protects the appliance from overheating.
• When the appliance switches itself on and off repeatedly, for reasons other than the thermostat control, check to ensure that there are no obstacles that impede correct air entry or expulsion.
• If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• Note: When the appliance is switched on during the heating function, after a long period stopped or operating only in fan mode, it is possible that at first it releases some smoke, without any consequence, because dust and other particles accumulated in the heating element are burning. This phenomenon can be avoided by cleaning up previously and through the vents of the appliance and its interior with the help of a vacuum cleaner or with a jet of compressed air.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• Note: When the appliance is switched on during the heating function, after a long period stopped or operating only in fan mode, it is possible that at first it releases some smoke, without any consequence, because dust and other particles accumulated in the heating element are burning. This phenomenon can be avoided by cleaning up previously and through the vents of the appliance and its interior with the help of a vacuum cleaner or with a jet of compressed air.

FAULTS AND REPAIR

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair it, as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment

This symbol means that if you wish to dispose of the product once its useful life has ended, it must be deposited with an authorised waste management agent for the selective collection of Waste Electrical and Electronic Equipment

(WEEE)

Model:	MSB 2000
Heat output
Nominal heat output P_nom	2,0 kW
Minimum heat output (indicative) P_min	0,2 kW
Maximum continuous heat output P_max,c	2,0 kW
Auxiliary electricity consumption
At nominal heat output el_max	N/A
At minimum heat output el_min	N/A
In standby mode el_SB	0,0009 kW
Type of heat input, for electric storage local space heaters only
Manual heat charge control, with integrated thermostat	N/A
Manual heat charge control with room and/or outdoor temperature feedback	N/A
Electronic heat charge control with room and/or outdoor temperature feedback	N/A
Fan assisted heat output	N/A
Type of heat output/room temperature control
Single stage heat output and no room temperature control	No
Two or more manual stages, no room temperature control	No
With mechanic thermostat room temperature control	No
With electronic room temperature control	No
Electronic room temperature control plus day timer	No
Electronic room temperature control plus week timer	Yes
Other control options
Room temperature control, with presence detection	Yes
Room temperature control, with open window detection	Yes
With distance control option	No
With adaptive start control	No
With working time limitation	Yes
With black bulb sensor	No
Contact details "ELECTRODOMÉSTICOS	TAURUS, S.L.Avda. Barcelona S/N25790 Oliana, Lleida, Spain"

Français

88 88°C SET 1 2 3 4 5 6 7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 5 12 18 24 + OK SET -

SET 88 88°C 88:88 1 2 3 4 5 6 7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 6 12 18 24 + OK SET -

SET 88 88°C 88:88 1 2 3 4 5 6 7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 6 12 18 24 + OK SET -

A Instelknop

B Aan/uit knop

C Knop +/-

D Timerknop

88 88°C SET 1 2 3 4 5 6 7 00000000000000000000000000000000000000000000000000000000000000000000000000 + OK SET -

88 88°C SET 1 2 3 4 5 6 7 1 6 12 15 24 + OK SET -

Α Κουμπί ρυθμίσεων

88 88 °C SET 1 2 3 4 5 6 7 000000000000000000000000000000000000000000000000000000000000000000000000000000 + OK SET -

88 88 88:88 SET 1 2 3 4 5 6 7 1 6 12 18 24 + OK SET -

А Бутон за настройки

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Benin 359 Av. Steinmetz, 1930, Cotonou 0299-21313798
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Burkina Faso Avenue Bassawarga, 01 BP915, Ouagadougou 226 25301038
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus	20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos	35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa	00243-991223232
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]		902 118 050
Ethiopia Lideta Sub City Kebele 10 H.NO 124, Addis Ababa		[phone]
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Gabon	BP 574, Port-Gentil Centre-ville	24101552689 / 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar 11 Horse Barrack Lane, 54000, Gibraltar 00350 200 75397 / 00350 200
		41023
Greece Sapfous 7-9, 10553, Athens [phone]
Guinea BP 206, GN, Conakry (224) 622204545
Hong Kong Unit H,13/F., World Tech Centre, Hong kong (852) 2448 0116 / 9197 3519
Hungary Késmárk utca 11-13, 1158, Budapest [phone]
India C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi		([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Jordan 28 Basman St Down town, Amman [phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon Damascus Highway; Sciale Building, Jamhour	9615922963
Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Marruecos	Avenue 2 Mars, Résidence Nassrallah, Appt n° 2 1er, Casablanca	([phone]
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos	23408023360099
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Peru	Calle los Negocios 428, Surquillo, Lima	[phone]
Portugal Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa		[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam Lot 7 Ind. Zone for, Ha Noi		84437658111 / 84437658110

_

| _

一

1

_

| _

一

1
