Product Type	Speaker
Brand	Power Dynamics
Model	BTW30SET
Power Supply	220-240 V~, 50 Hz
Playback Modes	USB, Bluetooth, FM Radio
Equalizer	Normal, Rock, Pop, Classic, Jazz
Bluetooth Range	About 10 m (without obstacles)
Connections	USB port, speaker terminals
Remote Control	Yes (infrared)
Display	LCD
Operating Temperature	5 °C to 35 °C
Maintenance	Dry cloth, no chemicals
Safety	Do not open the casing; avoid moisture
Repairability	Use original parts; contact a technician
Warranty	Warranty void if modified or used improperly

Frequently Asked Questions - BTW30SET Power Dynamics

How to turn on the BTW30SET device?

Press and hold the mode switch button (7) to turn the device on or off.

How to connect my phone via Bluetooth?

Enable Bluetooth on your phone, search for 'BTW30' and select it to pair. The range is about 10 m without obstacles.

How to change the playback mode?

Press briefly the mode switch button (7) to cycle between USB, Bluetooth, and FM.

How to adjust the equalizer?

Press the EQ button (3) to switch between Normal, Rock, Pop, Classic, and Jazz modes.

What to do if the device does not turn on?

Check the mains connection (220-240 V~ 50 Hz) and that the fuse is intact. If the problem persists, contact a technician.

Can I use the device outdoors?

No, the device is designed for indoor use. Do not expose it to rain or moisture.

How to clean the device?

Use a dry cloth. Do not use chemicals or aerosols.

How to use the FM radio?

Select FM mode with the mode switch button. Press and hold PLAY/PAUSE/SCAN to start automatic station search.

Can I plug in a USB flash drive?

Yes, insert a USB flash drive into the USB port (9) on the front panel. Use the buttons to navigate and play audio files.

What to do if an odor occurs when first powering on?

It is normal. The odor will disappear after a few minutes of use. Ensure the device is well ventilated.

USER MANUAL BTW30SET Power Dynamics

Power Dynamics Professional Audio

BTW30 Wall Player 2x15W BT

Ref. nr.: 952.480; 952.482

White industrial microwave oven with control panel and display screen (no visible text or symbols)

Black handheld electronic device with red and black buttons (no readable text or symbols)

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

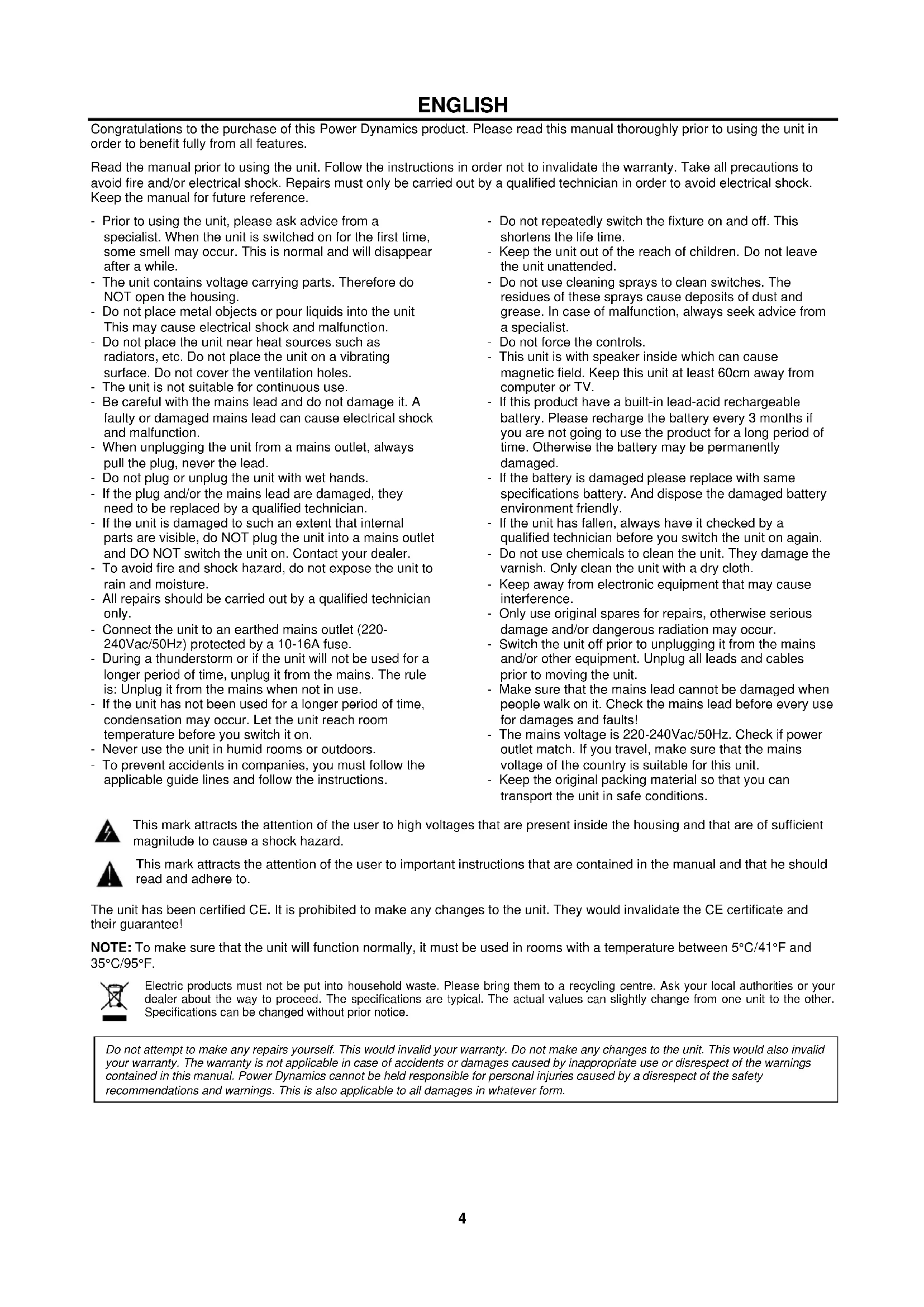

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on.
• Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The type of power supply that must be connected is indicated on the label on the backside of the product. Check that the mains voltage corresponds to this, all other voltages than specified, the device can be irreparably damaged. The product must also be directly connected to the mains, no dimmer or adjustable power supply.

Always connect the device to a protected circuit (fuse).

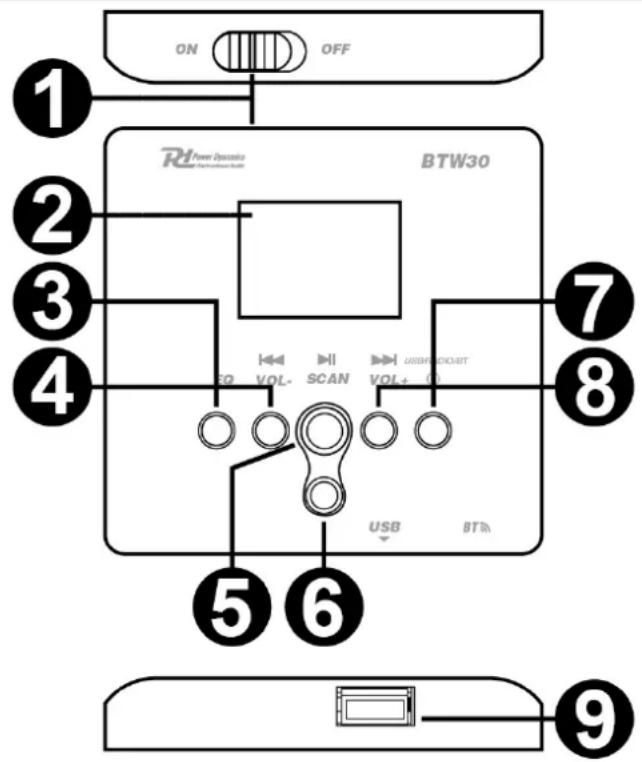

OVERVIEW

1. ON / OFF

Switch to turn on/off the wall player.

1. LCD DISPLAY

2. EQ

Equalizer button. Press to change between normal, rock, pop, classic and jazz.

1. PREVIOUS / VOLUME -

In USB or BT mode, a short press of this button selects the previous track. In radio mode, a short press of this button selects the previous station. Pressing and holding this button will decrease the audio volume in USB, BT or radio mode.

1. PLAY / PAUSE / SCAN

Press to (re)start or pause playback in USB or BT modes. Perform a long press in radio mode to initiate automatic station tuning and storage of FM stations.

1. INFRARED REMOTE CONTROL RECEIVER

2. MODE CHANGE / ON/OFF

Short press to change modes (USB-BT-FM). Press and hold to turn the device ON/OFF.

1. NEXT / VOLUME +

In USB or BT mode, a short press of this button selects the next track. In radio mode, a short press of this button selects the next station. Pressing and holding this button will increase the audio volume in USB, BT or radio mode.

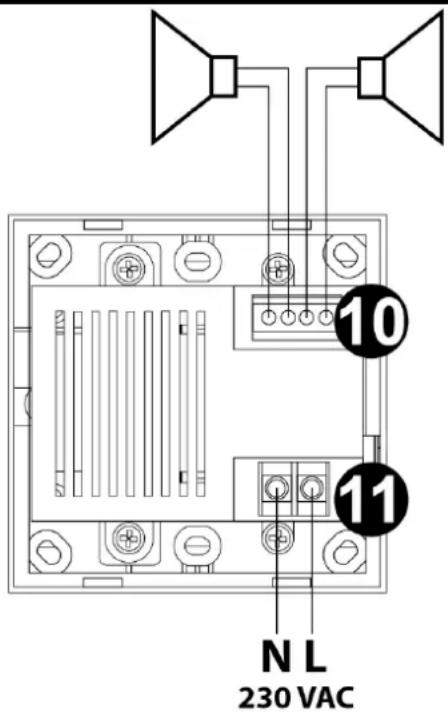

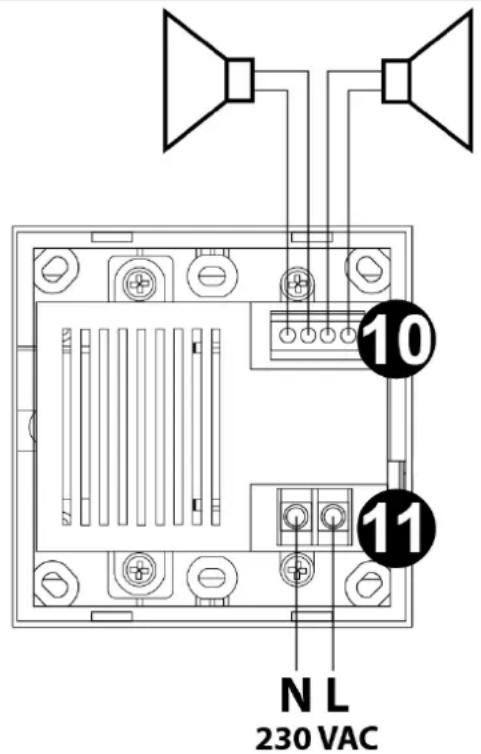

1. USB STORAGE DEVICE CONNECTION PORT

2. LOUDSPEAKER CONNECTION TERMINALS

3. POWER CONNECTION TERMINAL

CONNECT BT

1. Activate the BT-function on your device (Mobile phone, tablet etc.) from which you want to play the music. See the operating instructions for that device.
2. Select "BTW30" on your BT-device and make the BT-connection

Attention: The BT distance is approx. 10 meter without any barrier.

1. EIN / AUS-SCHALTER

4. PRÉCÉDENT / VOLUME -

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

• Low Voltage (LVD) 2014/35/EU
• Electromagnetic Compatibility (EMC) 2014/30/EU
• Restriction of Hazardous Substances (RoHS) 2011/65/EU

Specifications and design are subject to change without prior notice.
